Model Whirlpool GMC305PRT03 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC (GOLD LINE) – Common Parts & Diagrams

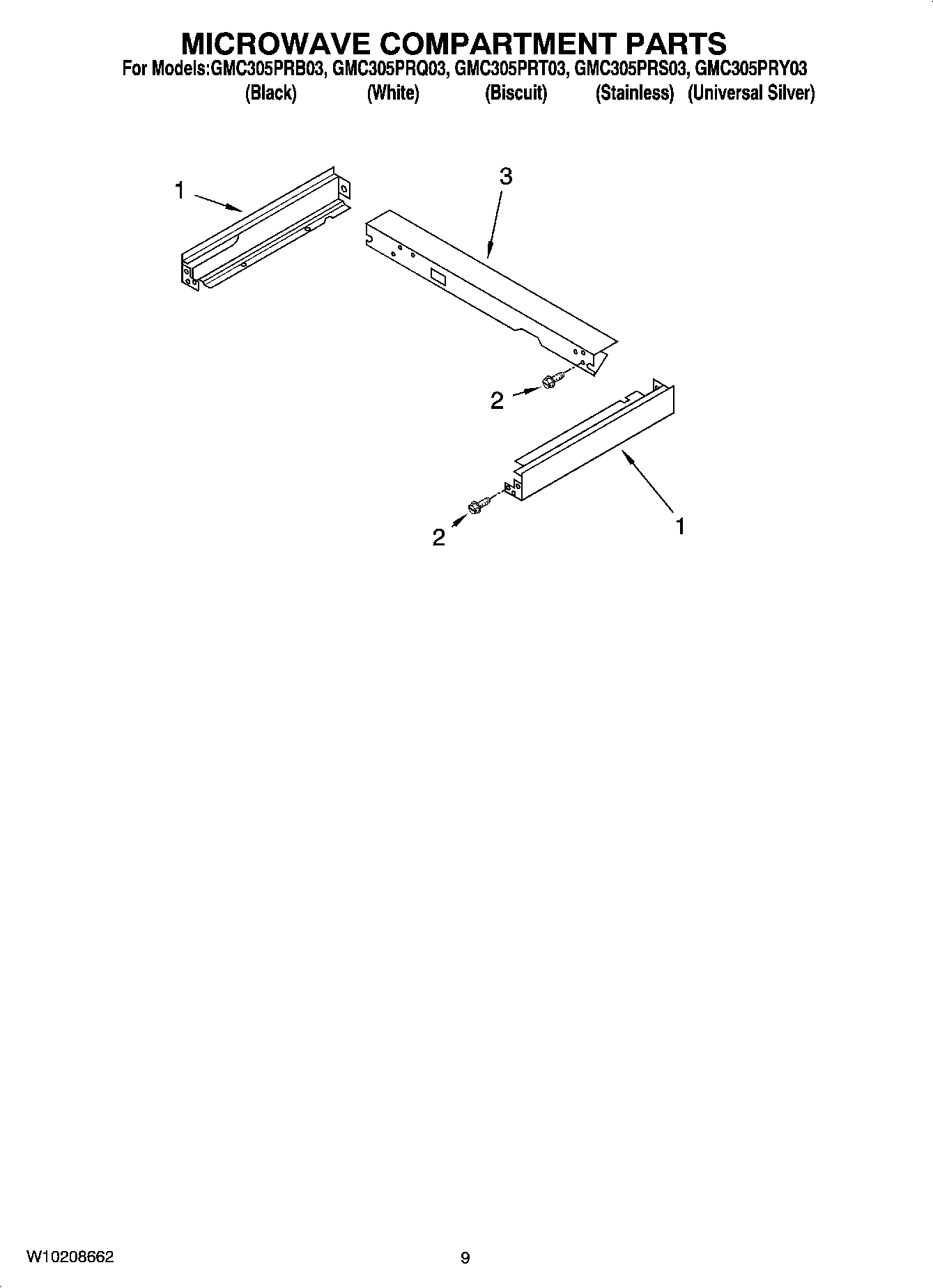

07 - MICROWAVE COMPARTMENT PARTS

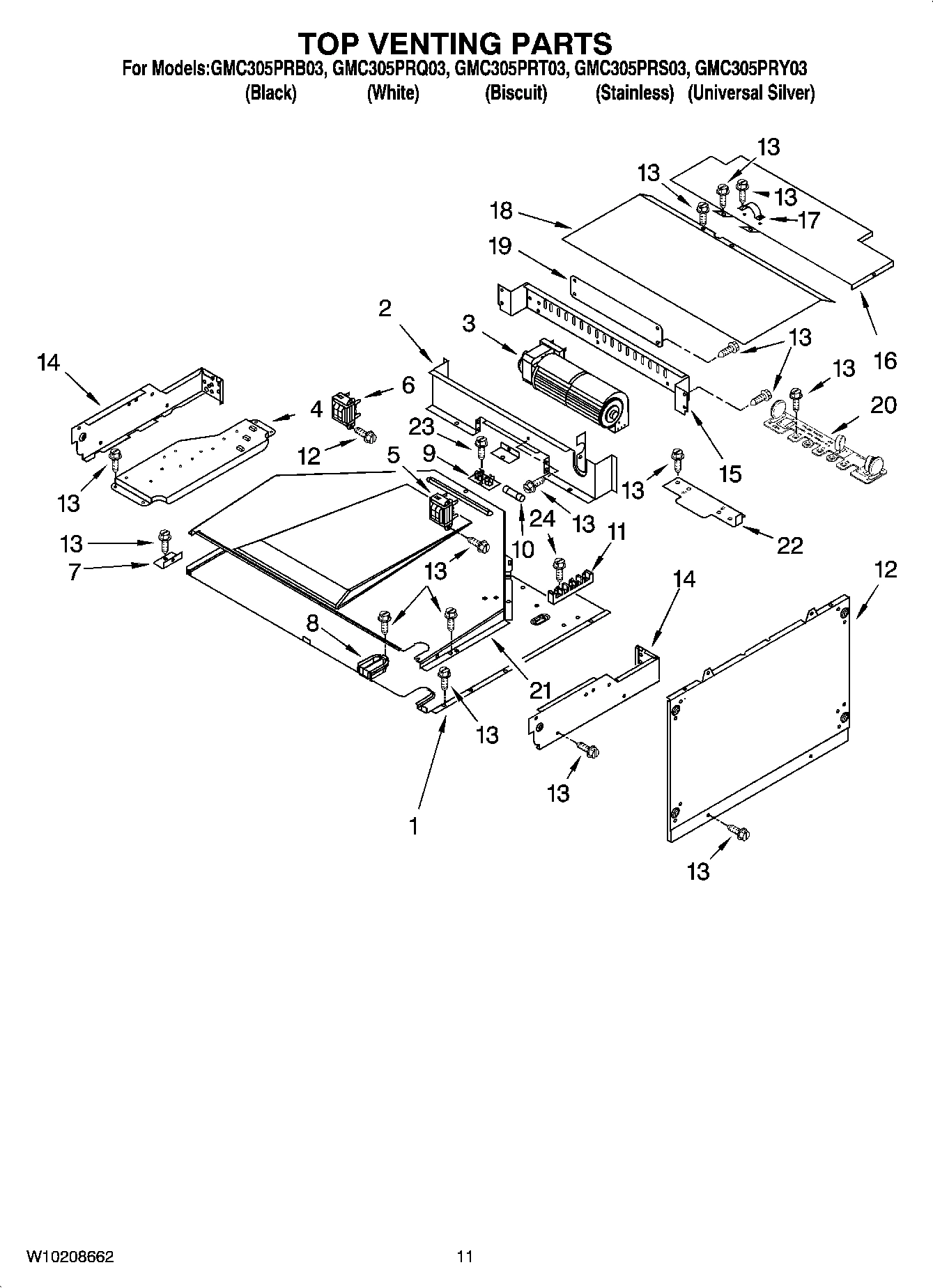

09 - TOP VENTING PARTS, OPTIONAL PARTS

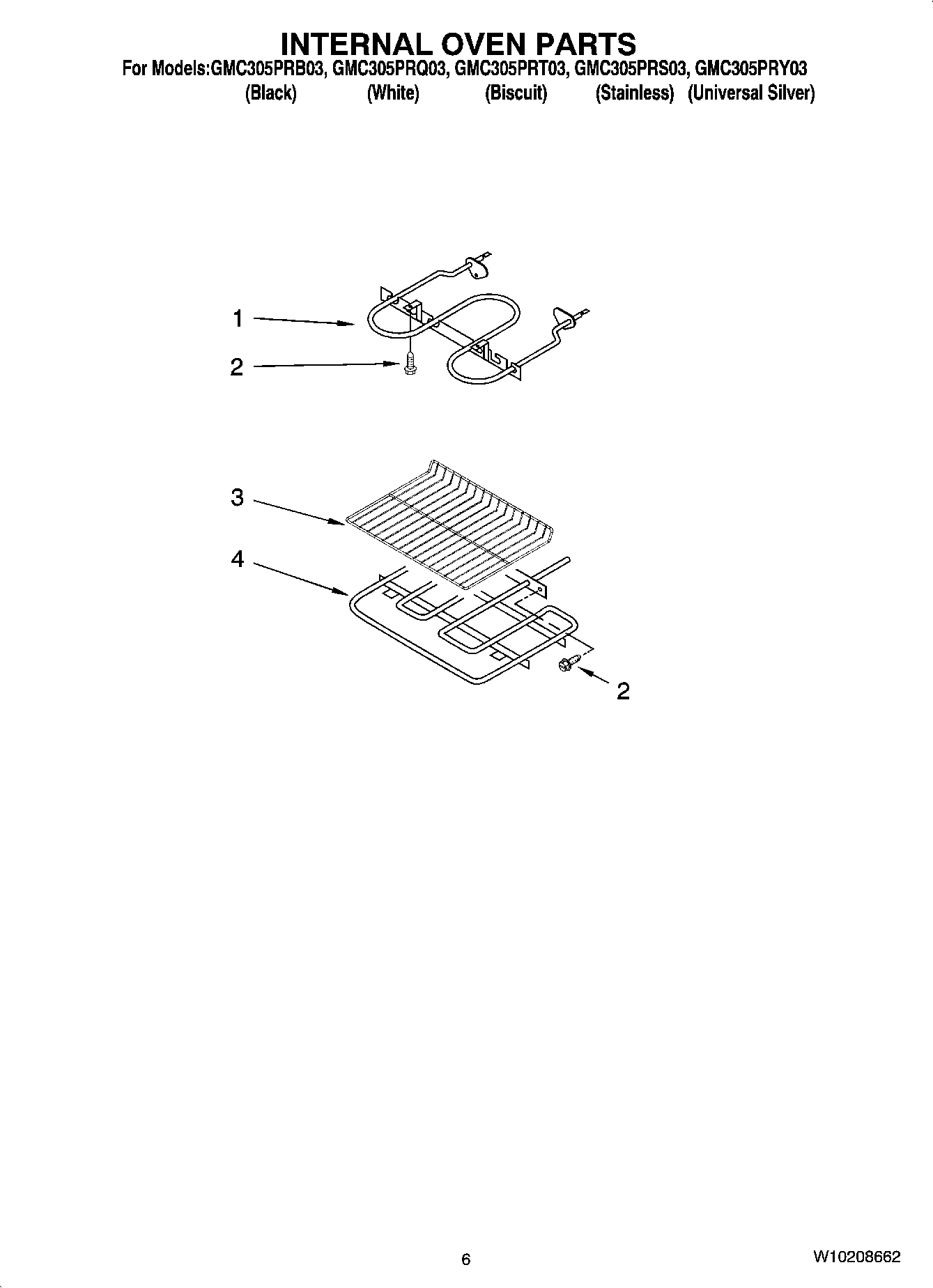

05 - INTERNAL OVEN PARTS

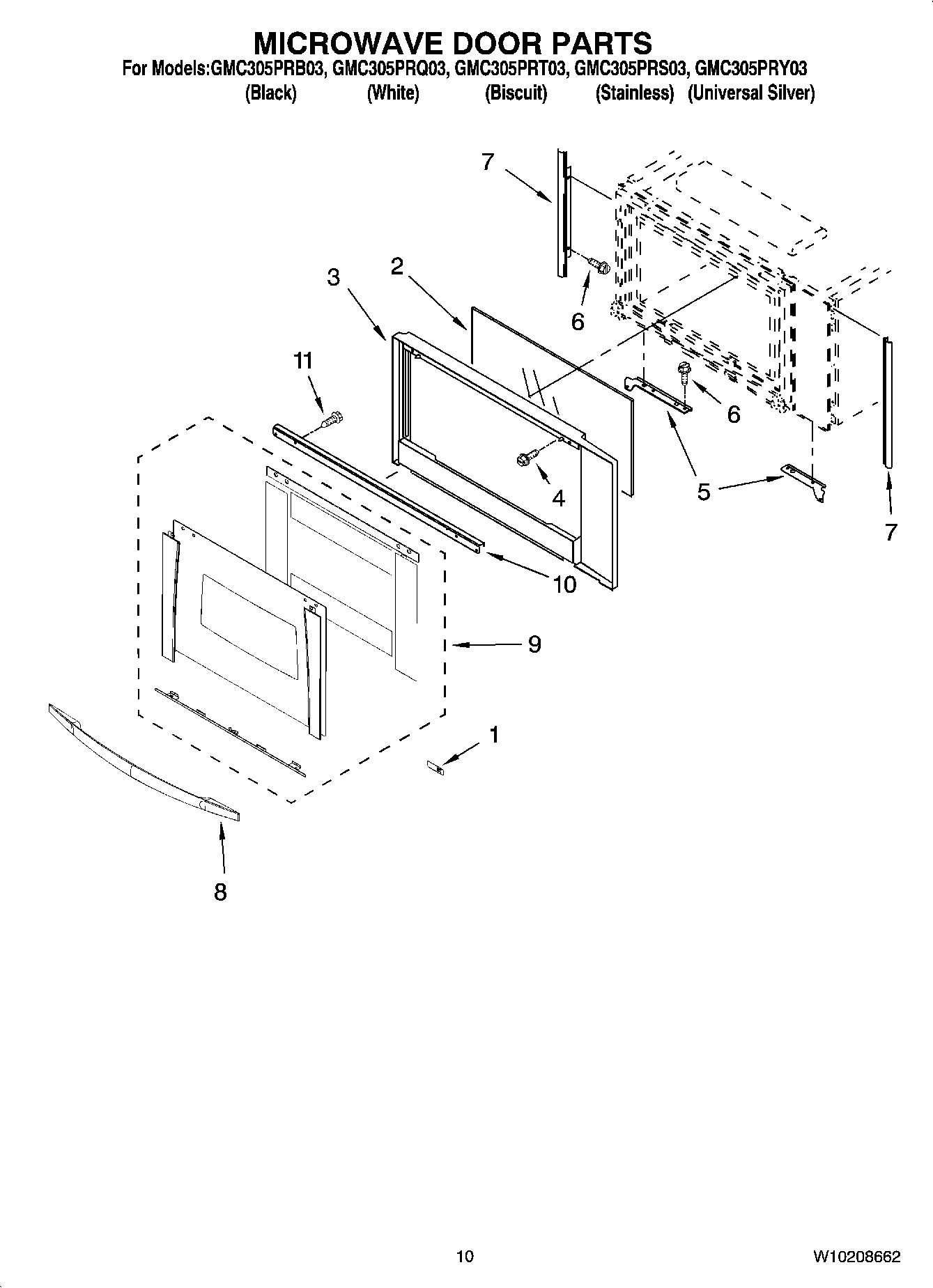

08 - MICROWAVE DOOR PARTS

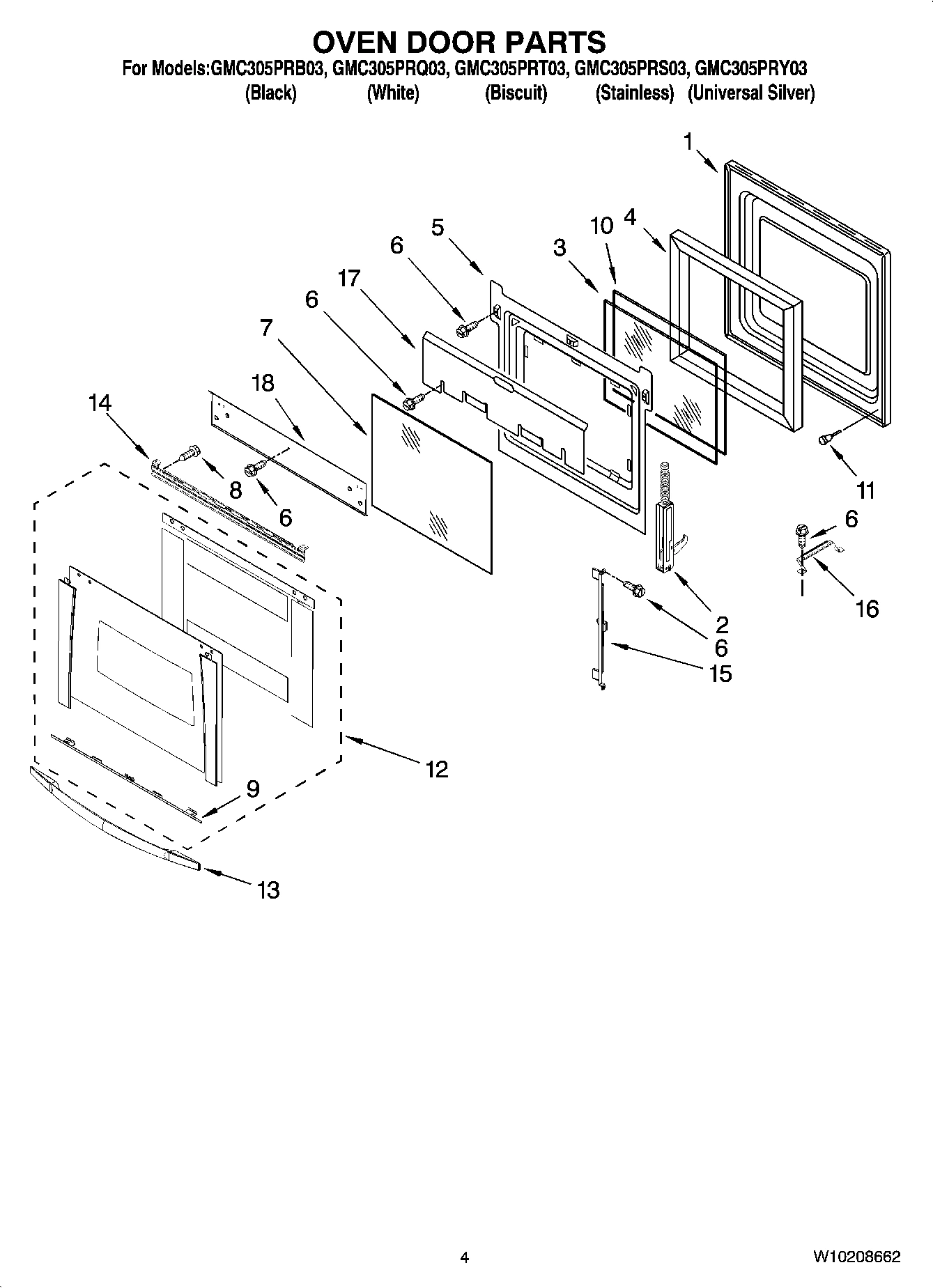

03 - OVEN DOOR PARTS

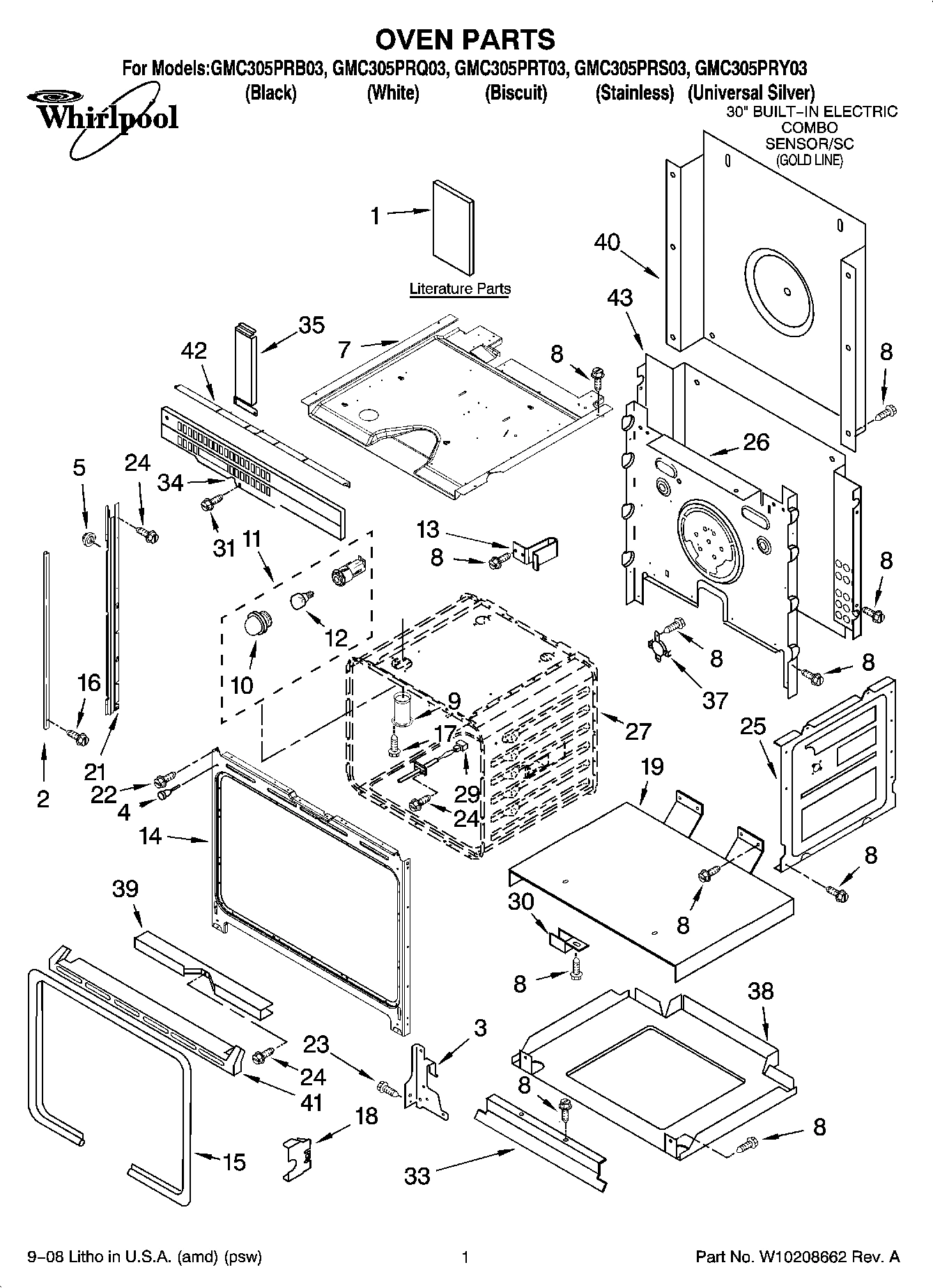

01 - OVEN PARTS

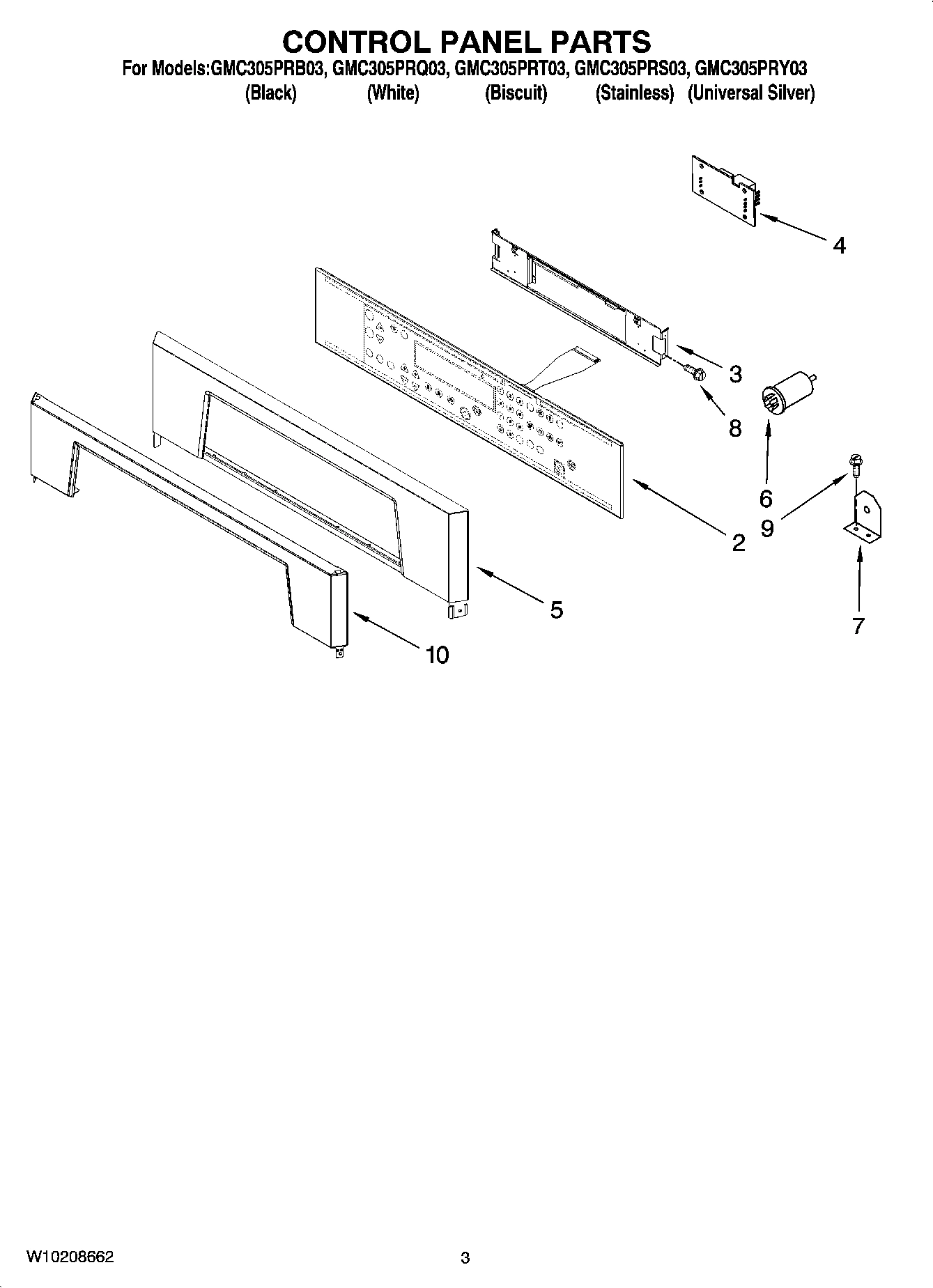

02 - CONTROL PANEL PARTS

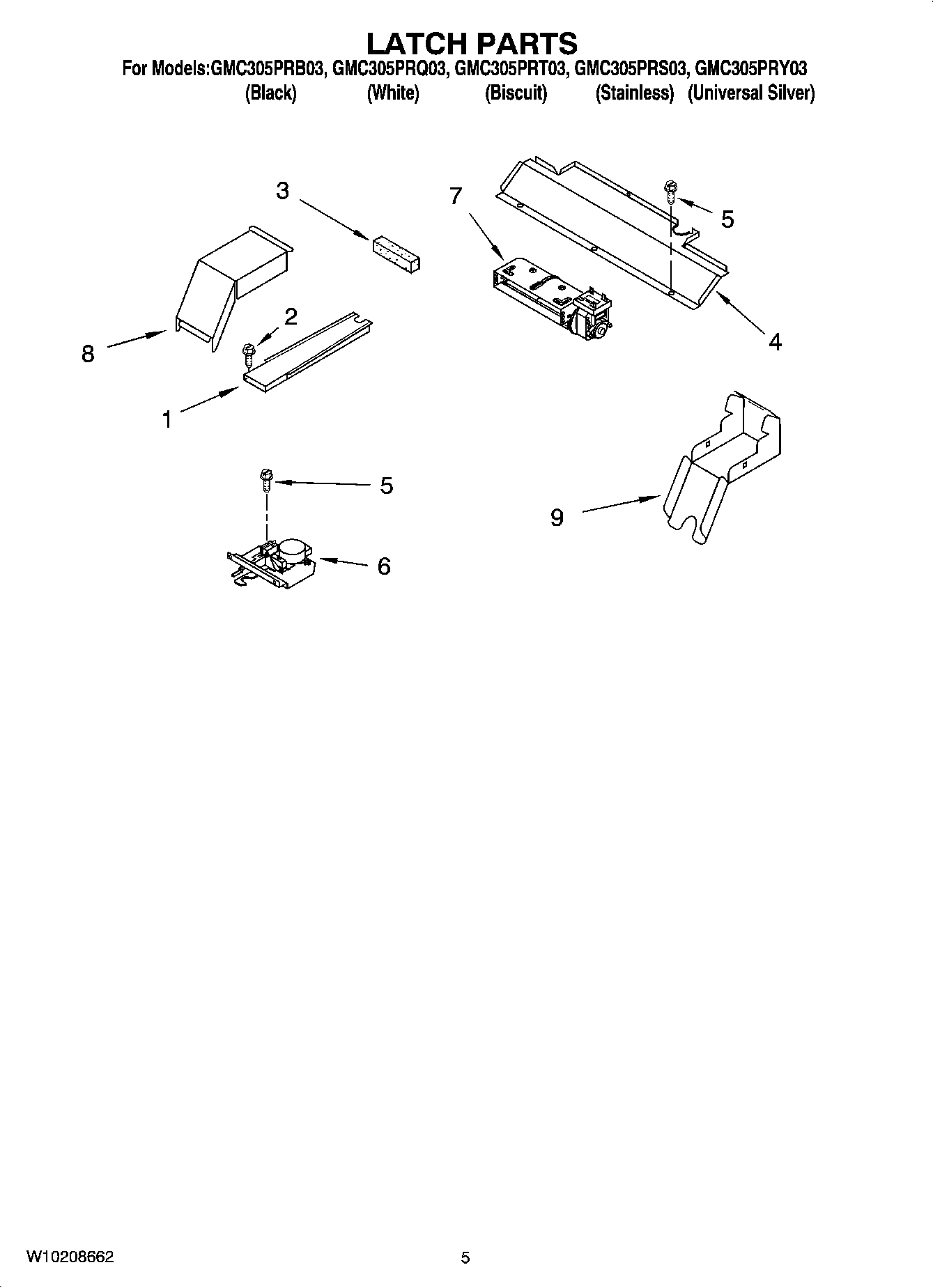

04 - LATCH PARTS

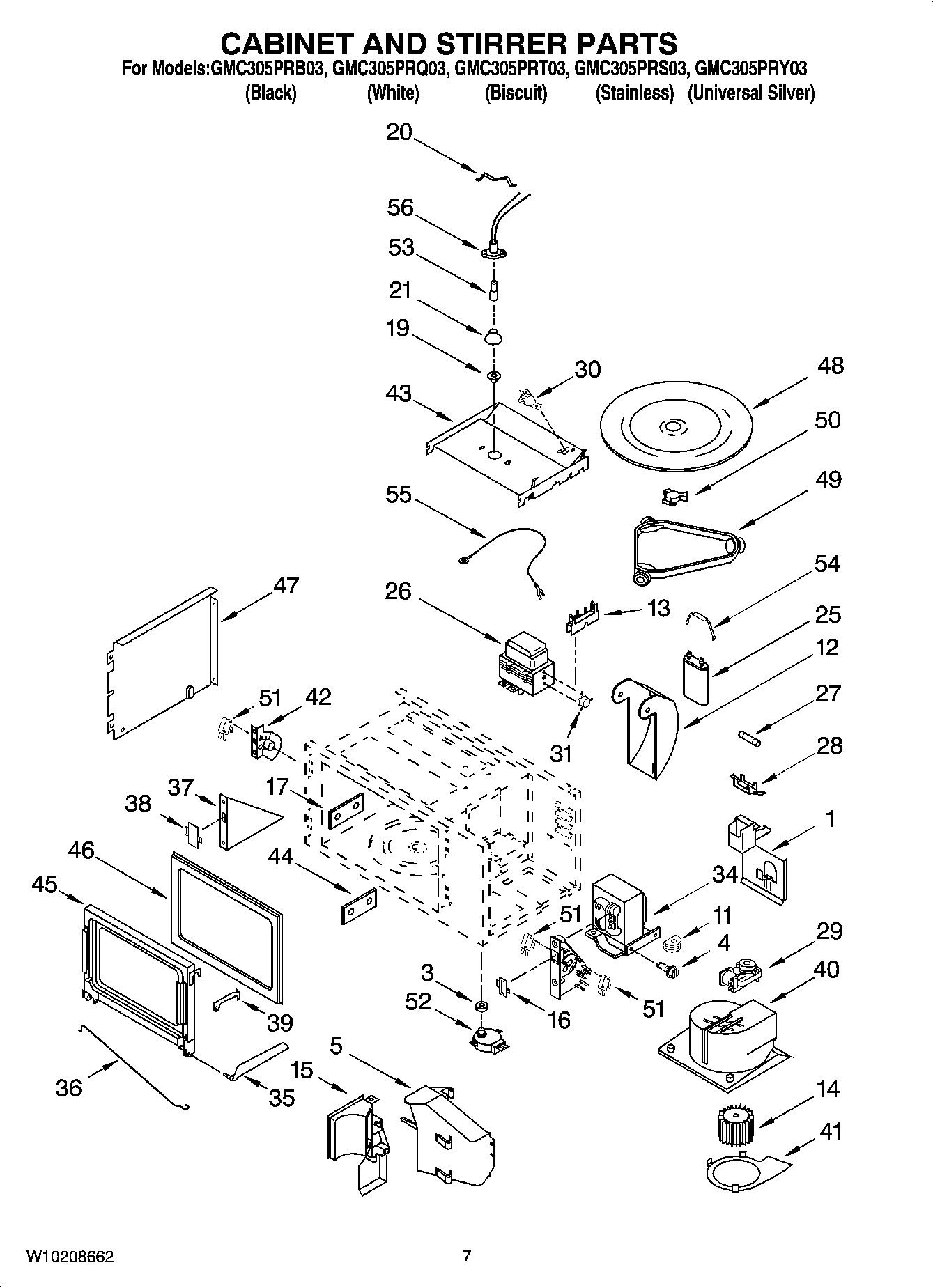

06 - CABINET AND STIRRER PARTS
Common parts from model Whirlpool GMC305PRT03 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC (GOLD LINE)
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
2
Screw WPL 4449040 Contact Us For Availability
2
Trim, Side Right (White) WPL W10136106 Contact Us For Availability
2
Trim, Side Left (White) WPL W10136107 Contact Us For Availability
2
Trim, Side Right (Biscuit) WPL W10136108 Contact Us For Availability
2
Trim, Side Left (Biscuit) WPL W10136109 Contact Us For Availability
2
Trim, Side Right (Stainless) WPL W10166952 Contact Us For Availability
2
Trim, Side Left (Stainless) WPL W10166953 Contact Us For Availability
2
Assembly, Switch (Black) WPL 8303948 Contact Us For Availability
2
Assembly, Switch (White) WPL 8303949 Contact Us For Availability
2
Assembly, Switch (Biscuit) WPL 8303950 Contact Us For Availability
2
Assembly, Switch (Silver) WPL 8304152 Contact Us For Availability
3
Backer, Control WPL W10153086 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
4
Board, Mtrzd Latch WPL 8301848 Contact Us For Availability
4
Baffle, Rear WPL 4450408 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
5
Bracket, Mounting (Right) WPL 4449141 Contact Us For Availability
5
Bracket, Mounting (Left) WPL 4449142 Contact Us For Availability
5
Panel, Control (White) WPL 8302849 Contact Us For Availability
5
Panel, Control (Biscuit) WPL 8302850 Contact Us For Availability
5
Panel, Control (Apollo Gray) WPL 8304153 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
6
Filter WPL 4451592 Contact Us For Availability
7
Filler, Side (Right) WPL 4449083 Contact Us For Availability
7
Filler, Side (Left) WPL 4449086 Contact Us For Availability
7
Top Chassis WPL 8303099 Contact Us For Availability
7
Bracket, Filter WPL 4451632 Contact Us For Availability
8
Handle, Door (Black) WPL 8302813 Contact Us For Availability
9
Clip, Door (White) WPL 8303389WH Contact Us For Availability
10
Glass, Inner WPL 9759228 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
13
Bracket, Combo WPL 8300791 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
16
Block, Side WPL 4375264 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
SUPPRESSOR WPL 8302143 Contact Us For Availability
21
Rail, Side (Right) WPL 8303117 Contact Us For Availability
21
Rail, Side (Left) WPL 8303118 Contact Us For Availability
24
Screw WPL 3400080 Contact Us For Availability
26
Back, Chassis WPL W10161110 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI67228A5 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
33
Deflector, Vent WPL 9760677 Contact Us For Availability
34
Vent, Center WPL 8302592 Contact Us For Availability
35
EXT Filler WPL 4449906 Contact Us For Availability
37
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
37
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
38
Base, Chassis WPL 9759713 Contact Us For Availability
38
Inlet WPL 4375329 Contact Us For Availability
39
Door Strap WPL 4375330 Contact Us For Availability
40
Fan Cap WPL 4375333 Contact Us For Availability
41
Trim, Bottom (Stainless) WPL 8303582 Contact Us For Availability
41
Fan Cap Bottom WPL 4375334 Contact Us For Availability
42
WPL 8303502 WPL 8303502 Contact Us For Availability
43
WPL 4451756 WPL 4451756 Contact Us For Availability
43
Isolation Plate WPL 4375337 Contact Us For Availability
44
Cover Plate WPL 4375338 Contact Us For Availability
45
Door, Plate WPL 4375339 Contact Us For Availability
46
Inner Frame WPL 4375340 Contact Us For Availability
47
Side Plate (Left) WPL 4375341 Contact Us For Availability
47
Side Plate (Right) WPL 4375342 Contact Us For Availability
49
Ring Assembly WPL 4375344 Contact Us For Availability
55
Cable WPL 4375350 Contact Us For Availability
56
Lamp Holder WPL 4375351 Contact Us For Availability
× ![]()
