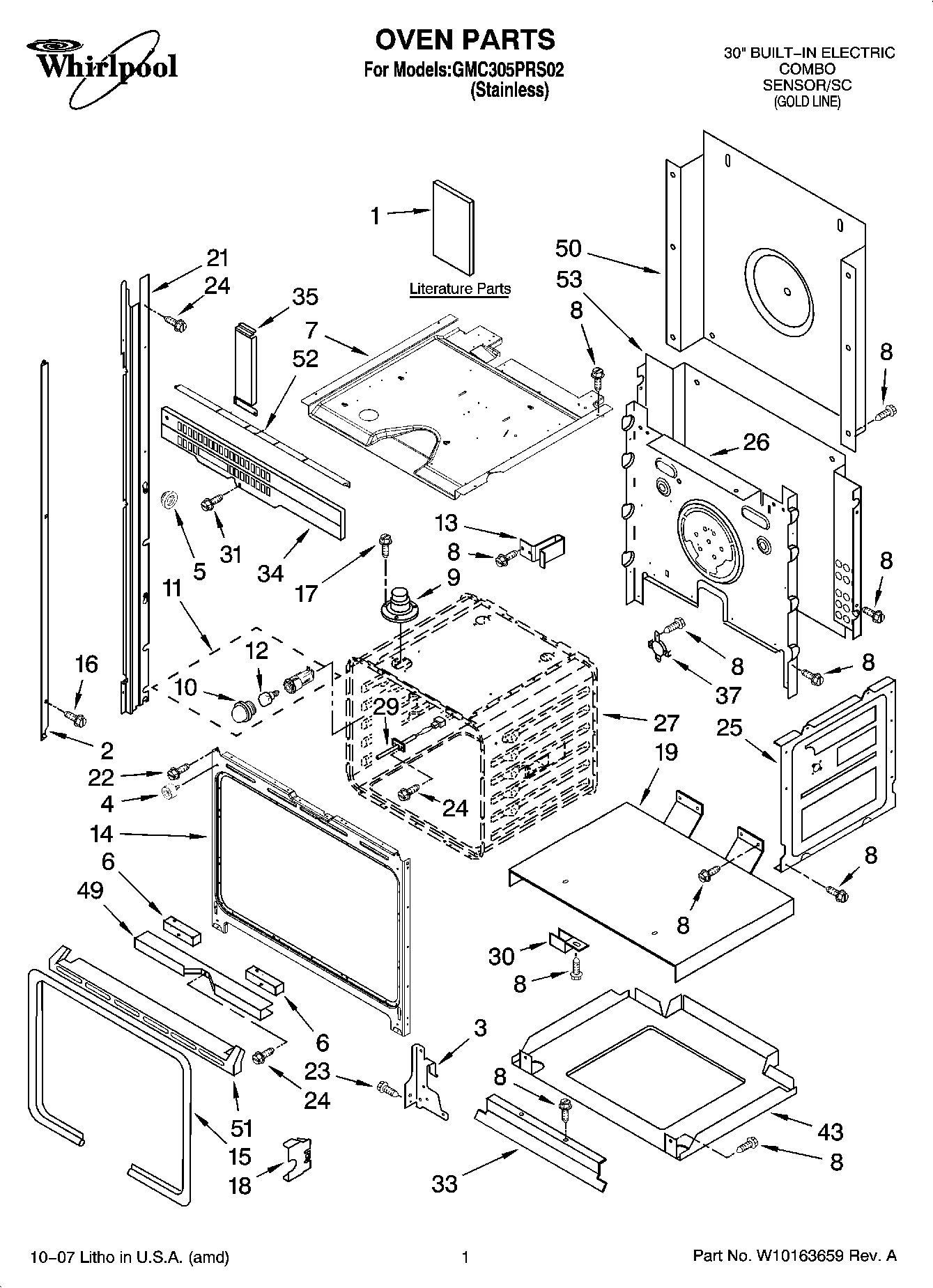

Model Whirlpool GMC305PRS02 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC (GOLD LINE) – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $71.24

1

Support Rails (Right) WPL 4452551 Contact Us For Availability

1

Support Rails (Left) WPL 4452552 Contact Us For Availability

1

Bracket, Capacitor WPL 4375299 Contact Us For Availability

1

Name Plate WPL 8303810 Contact Us For Availability

2

WP9760577 Whirlpool Oven Right Door Hinge In Stock WPL WP9760577 $39.95

2

WP9760578 Whirlpool Oven Left Door Hinge In Stock WPL WP9760578 $41.78

2

Trim, Side (Right) WPL W10145006 Contact Us For Availability

2

Trim, Side (Left) WPL W10145007 Contact Us For Availability

2

Glass, Middle WPL 4450834 Contact Us For Availability

3

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $114.92

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

3

Backer, Control WPL W10153086 Contact Us For Availability

3

Rear Channel WPL 4452548 Contact Us For Availability

3

Rubber Ring WPL 4375037 Contact Us For Availability

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

Board, Motorized Latch WPL 8301848 Contact Us For Availability

4

Baffle, Rear WPL 4450408 Contact Us For Availability

4

Screw WPL 4375038 Contact Us For Availability

5

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $102.32

5

WP8302848 Whirlpool Control Panel Backorder WPL WP8302848 $115.86

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $94.64

5

Bracket, Mounting (Right) WPL 4449141 Contact Us For Availability

5

Bracket, Mounting (Left) WPL 4449142 Contact Us For Availability

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

6

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $218.57

6

Filter WPL 4451592 Contact Us For Availability

7

WP9759225 Whirlpool Inner Door Glass In Stock WPL WP9759225 $82.93

7

Filler, Side (Right) WPL 4449083 Contact Us For Availability

7

Filler, Side (Left) WPL 4449086 Contact Us For Availability

7

Bracket, Filter WPL 4451632 Contact Us For Availability

8

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

Handle, Door WPL 8303164 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

9

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

9

Glass, Inner Door WPL 9759228 Contact Us For Availability

9

Glass, Outer WPL W10151072 Contact Us For Availability

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

WPW10172165 Whirlpool Trim Panel Backorder WPL WPW10172165 $46.34

Lens, Light WPL W10067870 Contact Us For Availability

Clip, Door WPL 8303389BL Contact Us For Availability

Bracket, Handle WPL 8303169 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

Wings (Left) WPL W10144994 Contact Us For Availability

Wings (Right) WPL W10144995 Contact Us For Availability

Damper WPL 4375315 Contact Us For Availability

12

Duct, Inlet WPL 4375260 Contact Us For Availability

12

Assembly, Door Glass WPL W10151080 Contact Us For Availability

13

Insulation, Switch WPL 4375316 Contact Us For Availability

14

Bracket, Handle WPL W10136473 Contact Us For Availability

14

Fan Wheel WPL 4375322 Contact Us For Availability

15

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

15

Duct, Air WPL 4375317 Contact Us For Availability

16

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

16

BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability

16

Block, Side WPL 4375264 Contact Us For Availability

17

Cover Plate, Upper WPL 4375248 Contact Us For Availability

18

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Shield, Heat WPL 4457103 Contact Us For Availability

20

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

20

SUPPRESSOR WPL 8302143 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

22

4457114 Whirlpool Oven Heat Shield Backorder WPL 4457114 $82.55

22

Screw WPL 4449040 Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

24

Screw WPL 3400080 Contact Us For Availability

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $94.01

26

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $135.56

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

30

Thermostat WPL 4375279 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $33.38

31

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

33

9760677 Whirlpool Oven Vent Deflector Backorder WPL 9760677 $61.70

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

34

Vent, Center WPL 8302592 Contact Us For Availability

35

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $52.87

35

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $52.70

36

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $47.54

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

37

Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability

37

Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability

38

Inlet WPL 4375329 Contact Us For Availability

39

Door Strap WPL 4375330 Contact Us For Availability

40

Fan Cap WPL 4375333 Contact Us For Availability

41

Fan Cap Bottom WPL 4375334 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

43

Base, Chassis WPL 9759713 Contact Us For Availability

43

Isolation Plate WPL 4375337 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

45

Door, Plate WPL 4375339 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

47

Side Plate (Left) WPL 4375341 Contact Us For Availability

47

Side Plate (Right) WPL 4375342 Contact Us For Availability

48

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $54.92

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

Ring Assembly WPL 4375344 Contact Us For Availability

50

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

51

W10211972 Whirlpool Microwave Switch Backorder WPL W10211972 $28.44

52

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $72.24

53

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $12.94

54

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $11.69

55

Cable WPL 4375350 Contact Us For Availability

56

Lamp Holder WPL 4375351 Contact Us For Availability
