Model Whirlpool GMC305PRB03 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC (GOLD LINE) – Common Parts & Diagrams

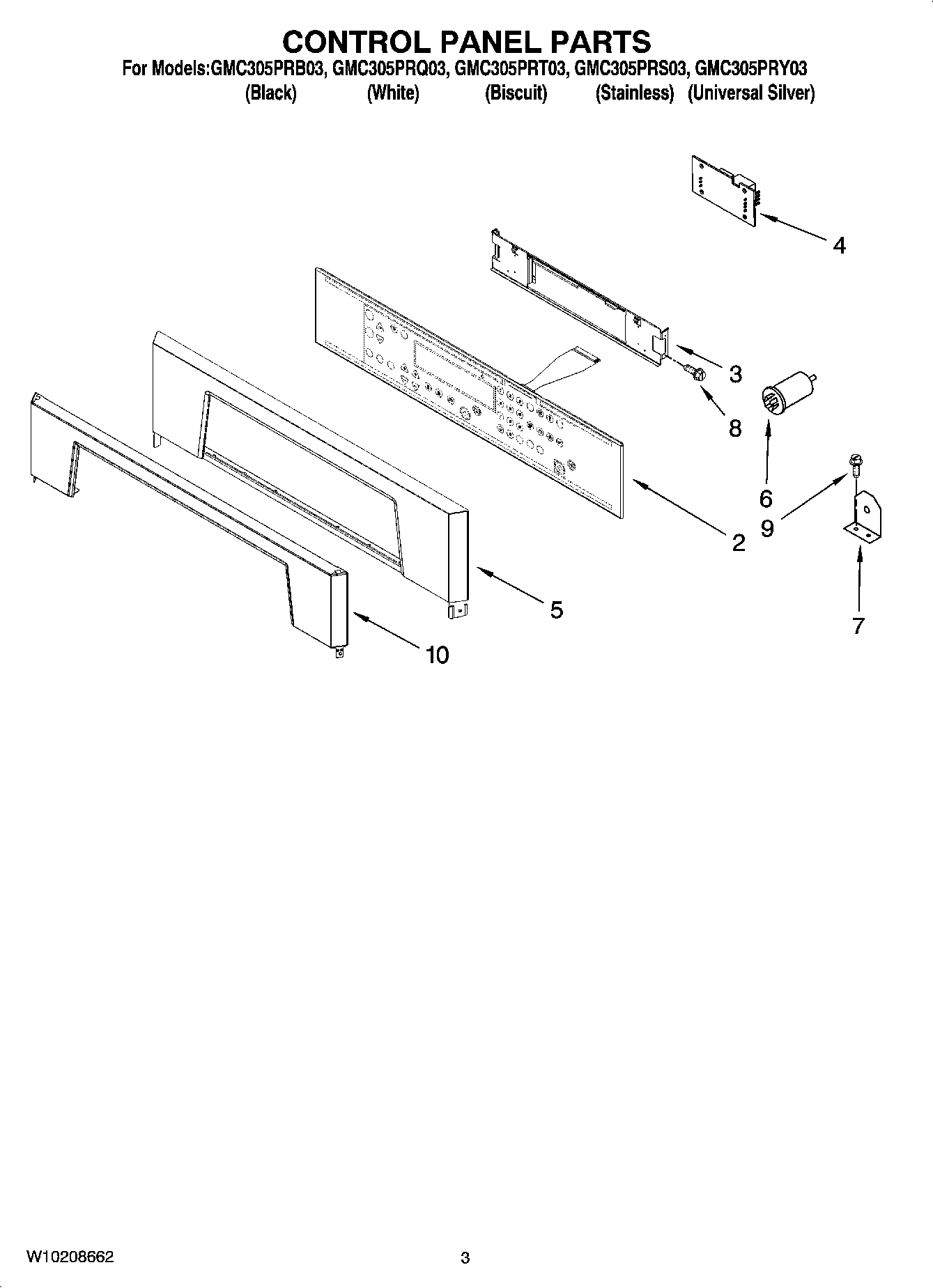

02 - CONTROL PANEL PARTS

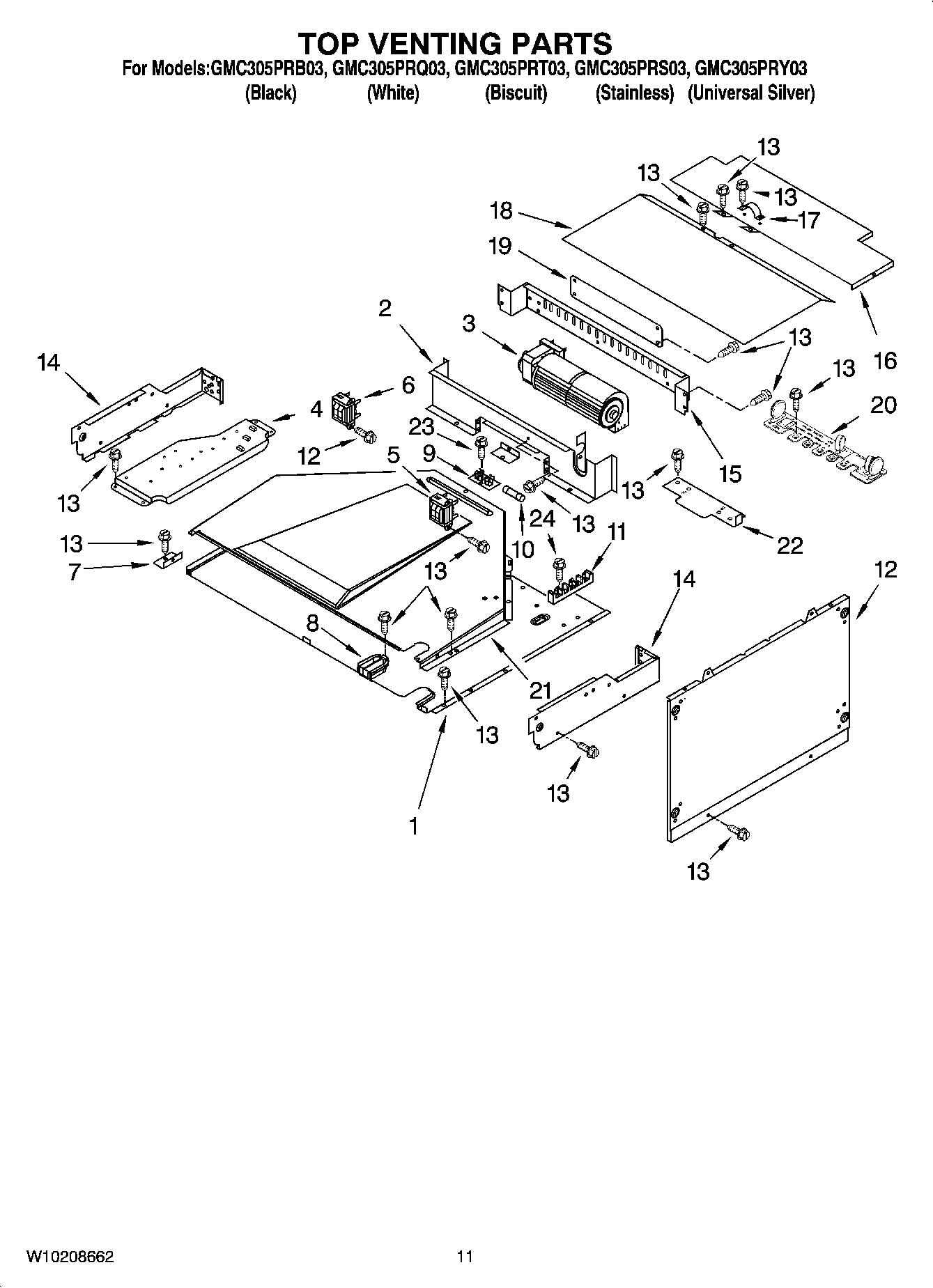

09 - TOP VENTING PARTS, OPTIONAL PARTS

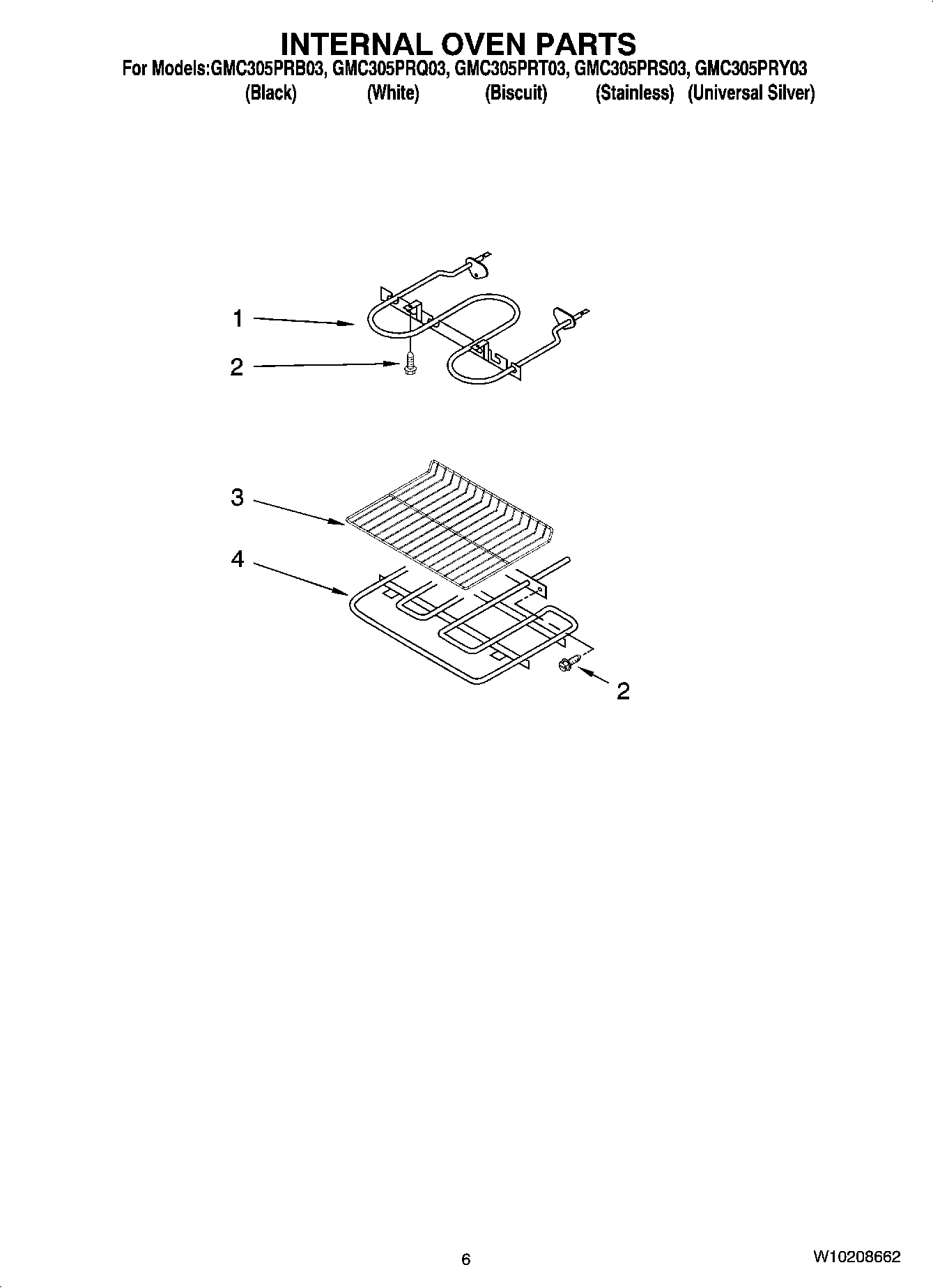

05 - INTERNAL OVEN PARTS

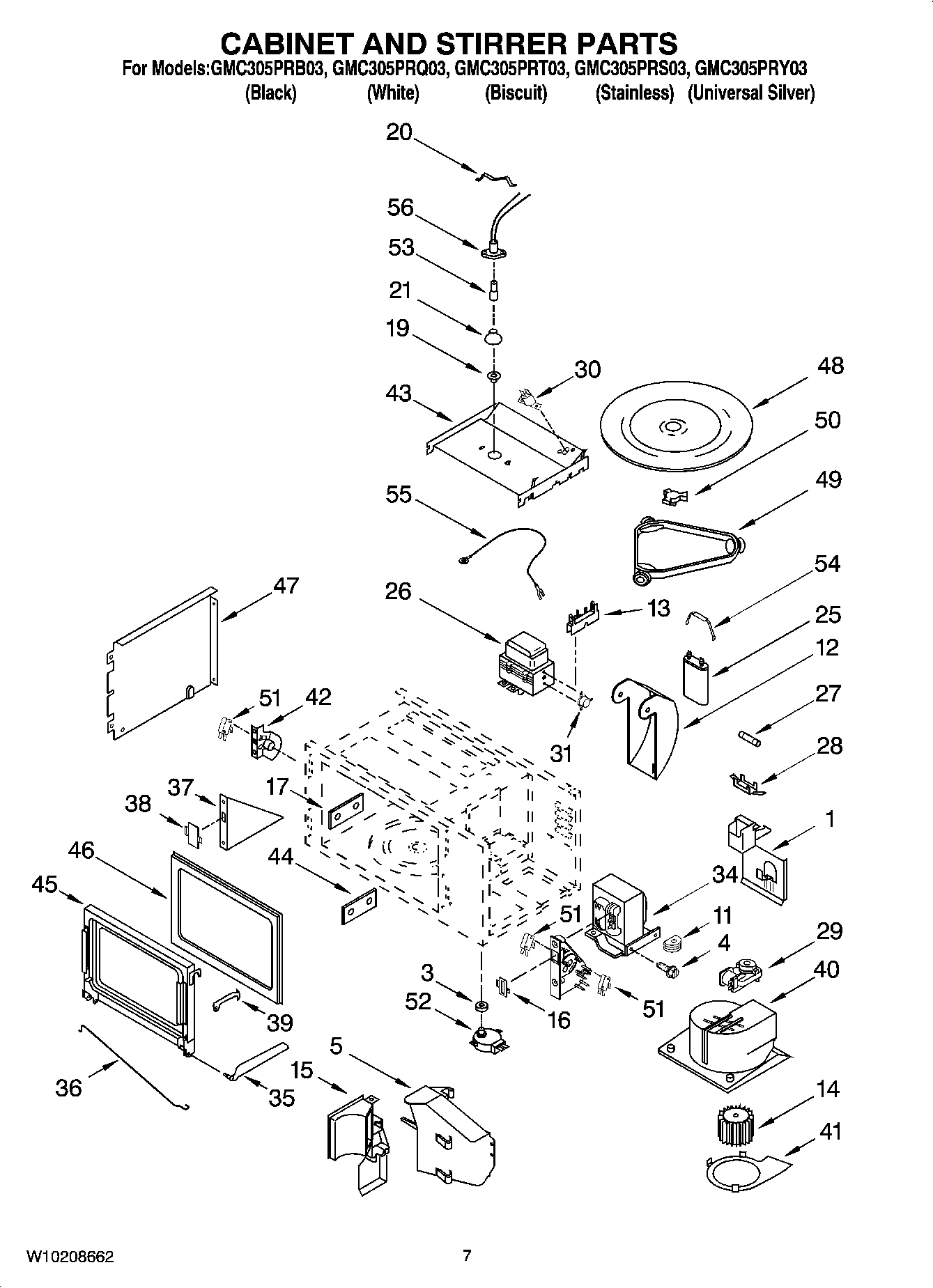

06 - CABINET AND STIRRER PARTS

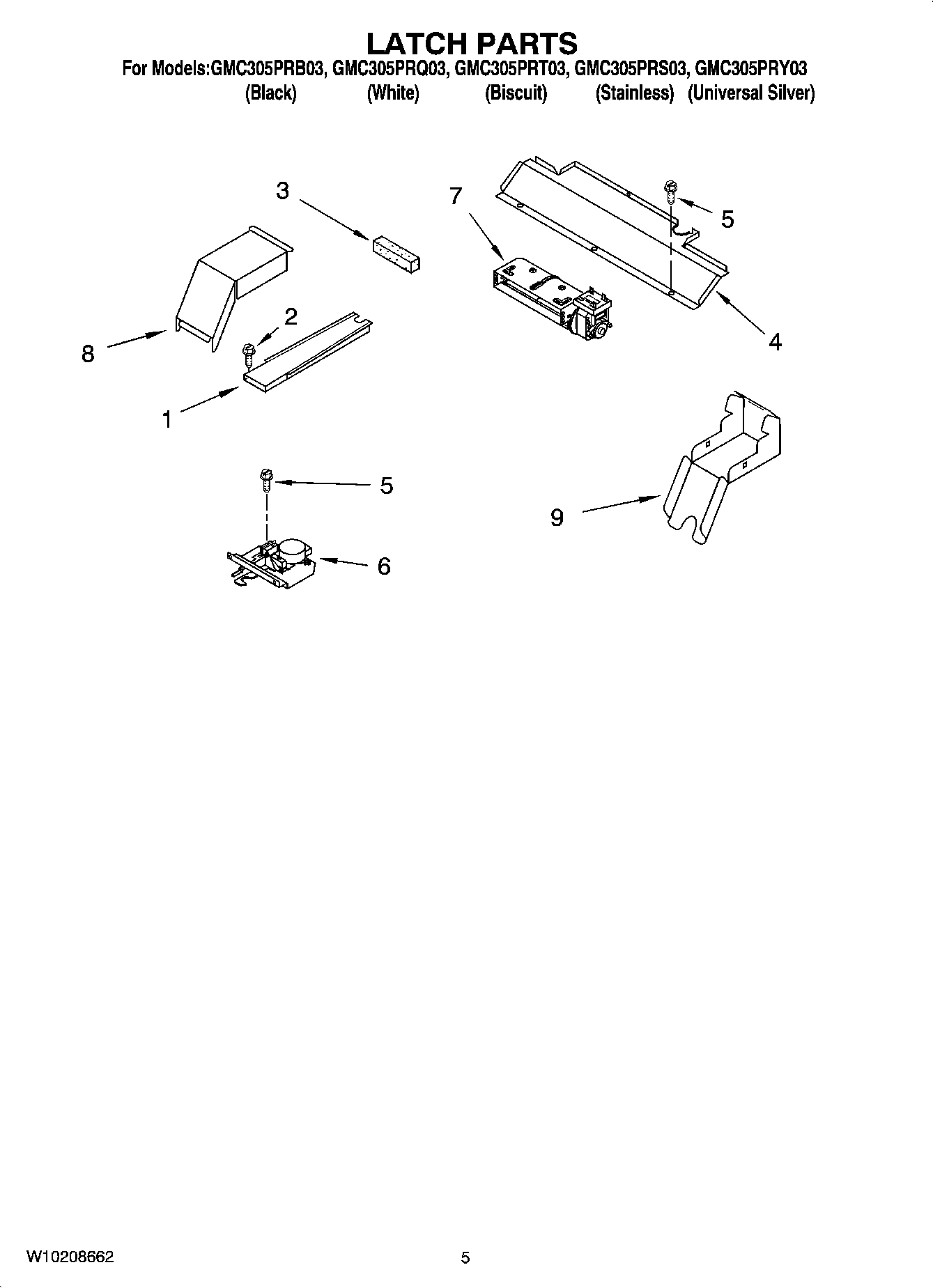

04 - LATCH PARTS

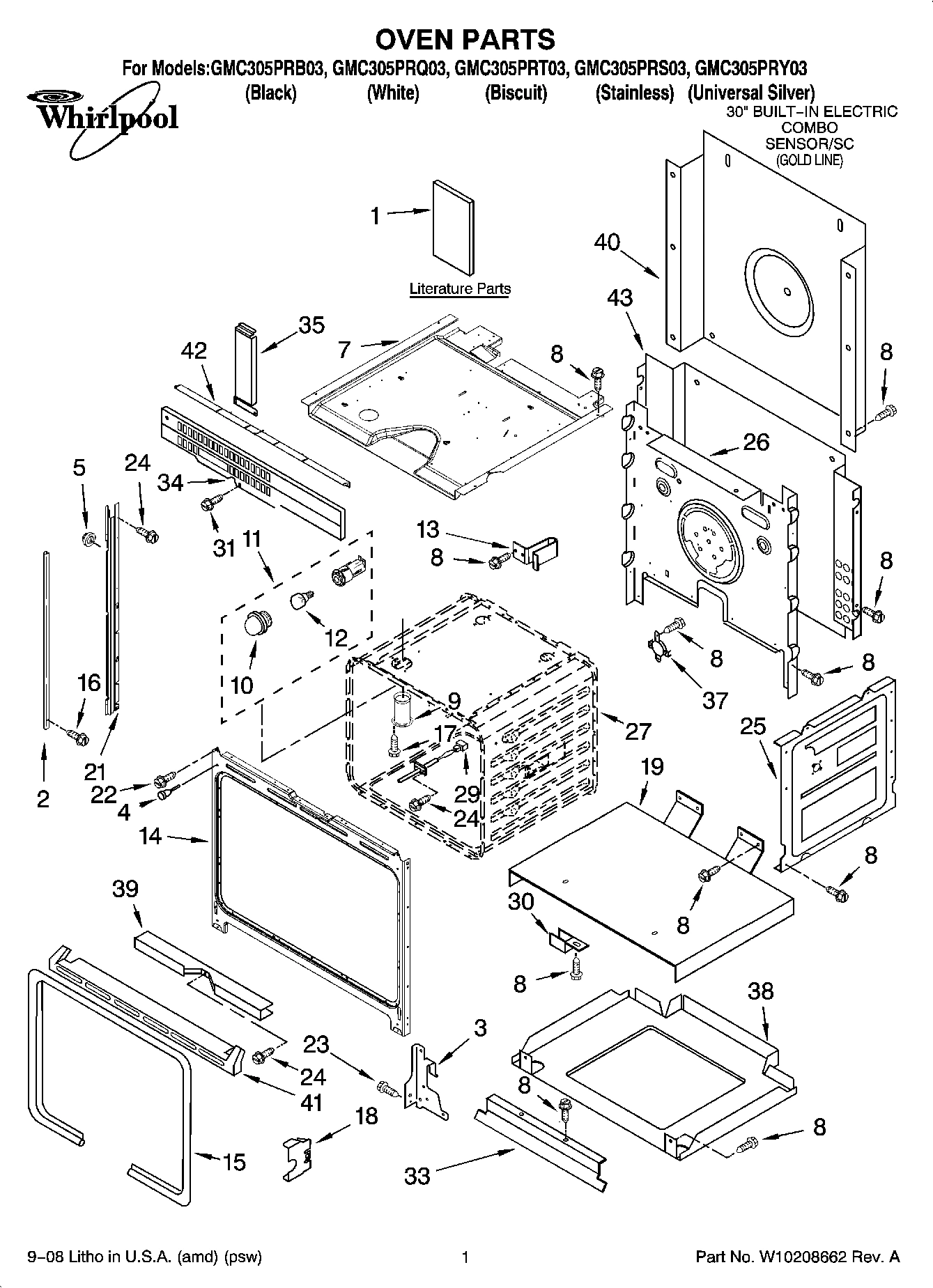

01 - OVEN PARTS

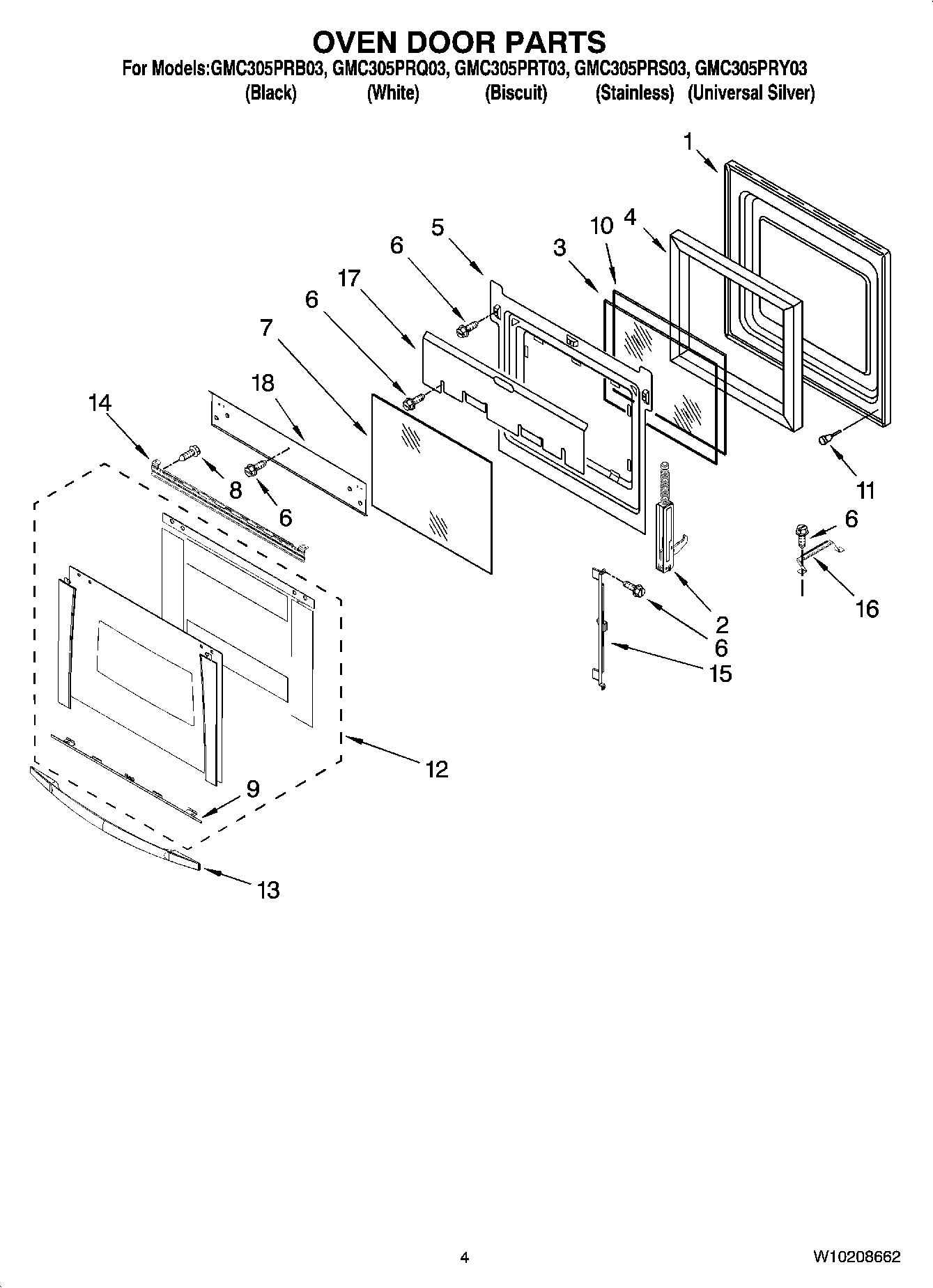

03 - OVEN DOOR PARTS

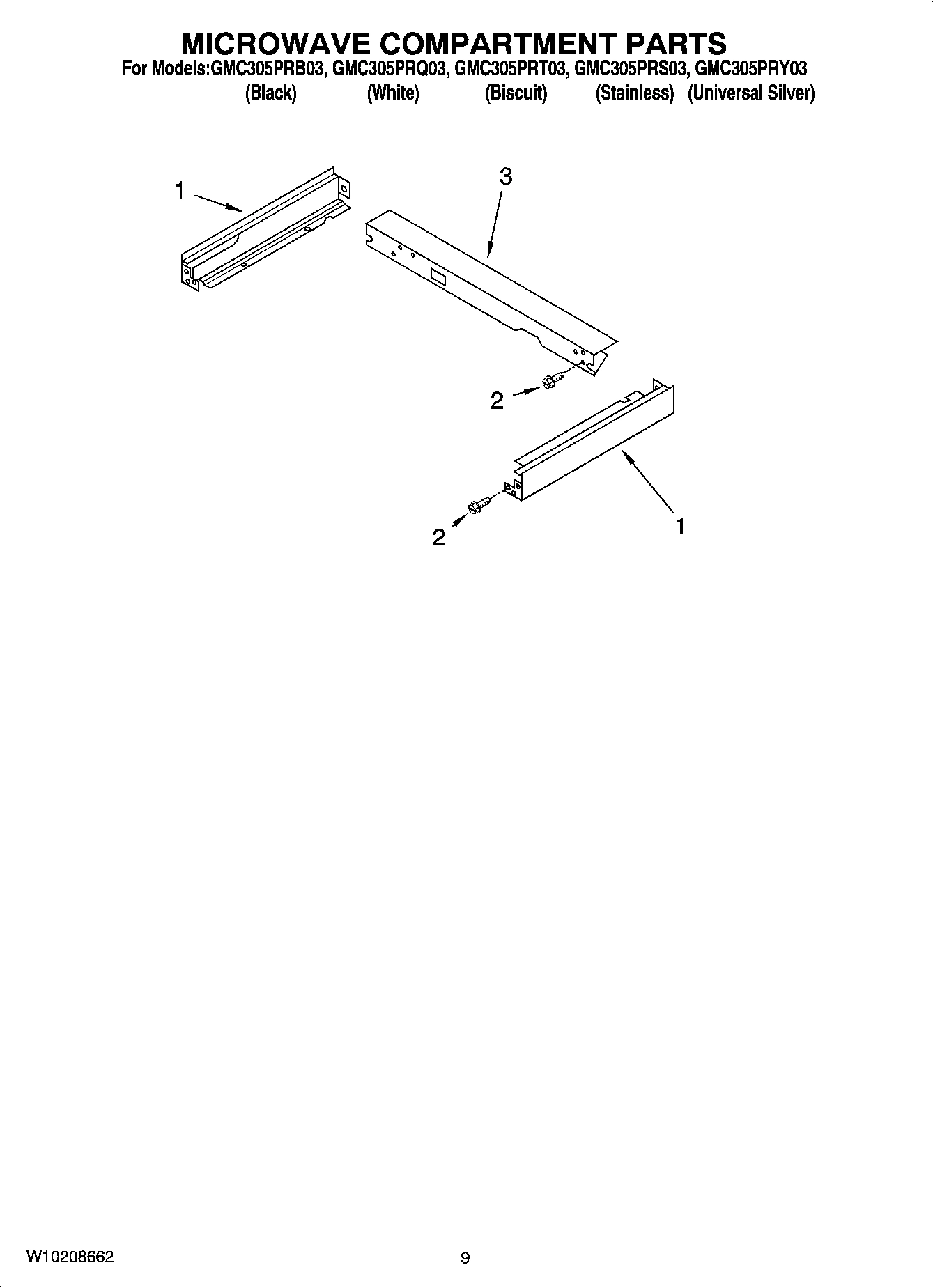

07 - MICROWAVE COMPARTMENT PARTS

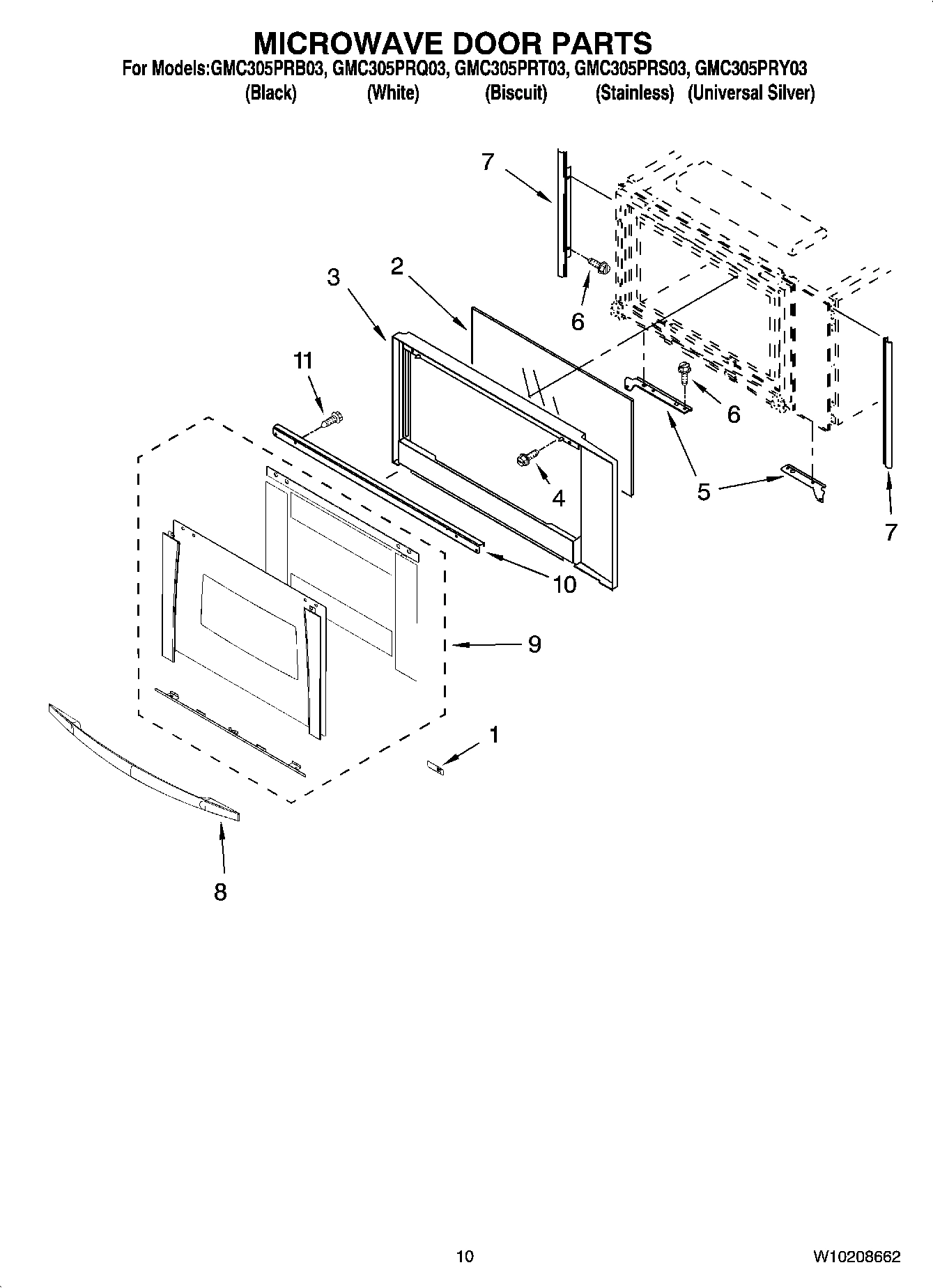

08 - MICROWAVE DOOR PARTS
Common parts from model Whirlpool GMC305PRB03 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC (GOLD LINE)
1
SAFER COOKING TIPS (ENGLISH WPL 9762761 Contact Us For Availability
1
Safer Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
Use & Care Guide (Oven) (English) WPL W10162173 Contact Us For Availability
1
Use & Care Guide (Microwave) (English) WPL W10162174 Contact Us For Availability
1
Use & Care Guide (Oven) (French) WPL W10162177 Contact Us For Availability
1
Use & Care Guide (Microwave) (French) WPL W10162178 Contact Us For Availability
1
Support Rails (Right) WPL 4452551 Contact Us For Availability
1
Support Rails (Left) WPL 4452552 Contact Us For Availability
1
Name Plate WPL 8303810 Contact Us For Availability
2
Screw WPL 4449040 Contact Us For Availability
2
Trim, Side Right (Black) WPL W10136104 Contact Us For Availability
2
Trim, Side Left (Black) WPL W10136105 Contact Us For Availability
2
Trim, Side Right (White) WPL W10136106 Contact Us For Availability
2
Trim, Side Left (White) WPL W10136107 Contact Us For Availability
2
Trim, Side Right (Biscuit) WPL W10136108 Contact Us For Availability
2
Trim, Side Left (Biscuit) WPL W10136109 Contact Us For Availability
2
Trim, Side Right (Stainless) WPL W10166952 Contact Us For Availability
2
Trim, Side Left (Stainless) WPL W10166953 Contact Us For Availability
2
Glass, Middle WPL 4450834 Contact Us For Availability
3
Rear Channel WPL 4452548 Contact Us For Availability
4
Board, Mtrzd Latch WPL 8301848 Contact Us For Availability
5
Bracket, Mounting (Right) WPL 4449141 Contact Us For Availability
5
Bracket, Mounting (Left) WPL 4449142 Contact Us For Availability
5
Panel, Control (Biscuit) WPL 8302850 Contact Us For Availability
7
Filler, Side (Right) WPL 4449083 Contact Us For Availability
7
Filler, Side (Left) WPL 4449086 Contact Us For Availability
7
Top Chassis WPL 8303099 Contact Us For Availability
8
Handle, Door (Black) WPL 8302813 Contact Us For Availability
8
Handle, Door (White) WPL 8302814 Contact Us For Availability
8
Handle, Door (Biscuit) WPL 8302815 Contact Us For Availability
8
Handle, Door (Stainless) WPL 8303164 Contact Us For Availability
9
Clip, Door (White) WPL 8303389WH Contact Us For Availability
9
Clip, Door (Black) WPL 8303389BL Contact Us For Availability
9
Clip, Door (Biscuit) WPL 8303389BT Contact Us For Availability
9
Glass, Outer (Stainless) WPL 8303249 Contact Us For Availability
9
Glass, Outer (Black) WPL 8303265 Contact Us For Availability
9
Glass, Outer (White) WPL 8303273 Contact Us For Availability
9
Glass, Outer (Biscuit) WPL 8303279 Contact Us For Availability
9
Glass, Outer (Silver) WPL 8304181 Contact Us For Availability
10
Glass, Inner WPL 9759228 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
10
Bracket, Handle WPL 8303169 Contact Us For Availability
11
Screw WPL 4451040 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Door Glass (Black Stainless) WPL 8303289 Contact Us For Availability
12
Door Glass (Black) WPL 8303301 Contact Us For Availability
12
Door Glass (White) WPL 8303307 Contact Us For Availability
12
Door Glass (Biscuit) WPL 8303311 Contact Us For Availability
12
Door Glass (Silver) WPL 8304178 Contact Us For Availability
13
Bracket, Combo WPL 8300791 Contact Us For Availability
14
Bracket, Handle WPL W10136473 Contact Us For Availability
16
BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability
17
Shield, Heat WPL 4457103 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
SUPPRESSOR WPL 8302143 Contact Us For Availability
21
Rail, Side (Right) WPL 8303117 Contact Us For Availability
21
Rail, Side (Left) WPL 8303118 Contact Us For Availability
24
Screw WPL 3400080 Contact Us For Availability
26
Back, Chassis WPL W10161110 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI67171A9 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
34
Vent, Center WPL 8302592 Contact Us For Availability
35
EXT Filler WPL 4449906 Contact Us For Availability
38
Base, Chassis WPL 9759713 Contact Us For Availability
38
Inlet WPL 4375329 Contact Us For Availability
41
Trim, Bottom (Stainless) WPL 8303582 Contact Us For Availability
42
WPL 8303502 WPL 8303502 Contact Us For Availability
43
WPL 4451756 WPL 4451756 Contact Us For Availability
44
Cover Plate WPL 4375338 Contact Us For Availability
46
Inner Frame WPL 4375340 Contact Us For Availability
55
Cable WPL 4375350 Contact Us For Availability
× ![]()
