Model Whirlpool GMC275PDB1 BUILT-ELECTRIC COMBO – Common Parts &amp; Diagrams

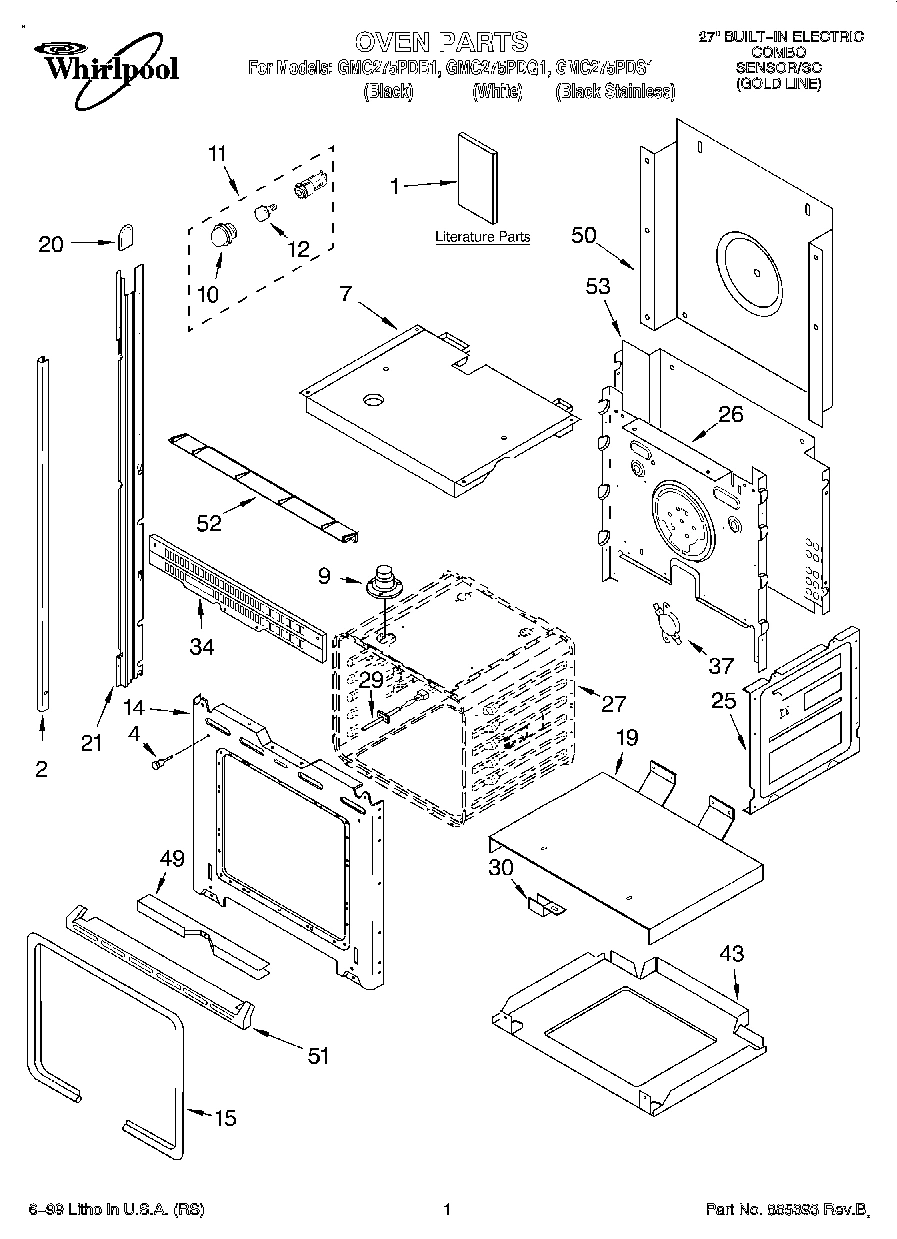

1

Screw WPL 4449040 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450412 Contact Us For Availability

1

Literature Parts (Cooking Guide (Label)) WPL LIT4450785 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Microwave WPL LIT4452005 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT4452006 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4452027 Contact Us For Availability

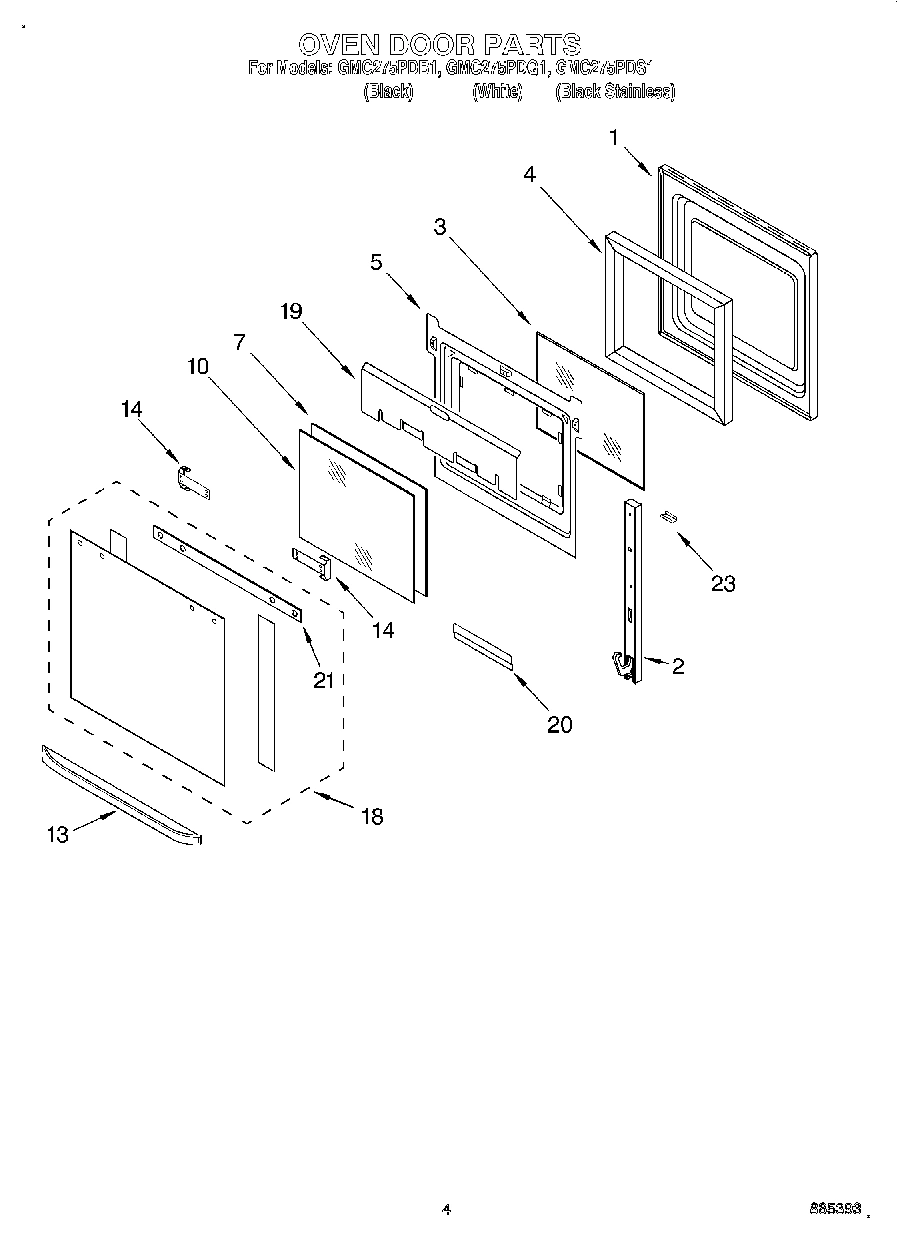

1

Door Liner WPL 4451718 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4455523 Whirlpool Oven Door Hinge In Stock WPL WP4455523 $31.90

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $41.25

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

Trim, Side (Screw White) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450856 Contact Us For Availability

2

Trim, Side (RH White) WPL 4450857 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450859 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450860 Contact Us For Availability

3

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

Retainer, Glass WPL 4451670 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

7

Top, Chassis WPL 4452236 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Holder, Fuse WPL 4454749 Contact Us For Availability

9

Baffle, Rear WPL 4450407 Contact Us For Availability

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

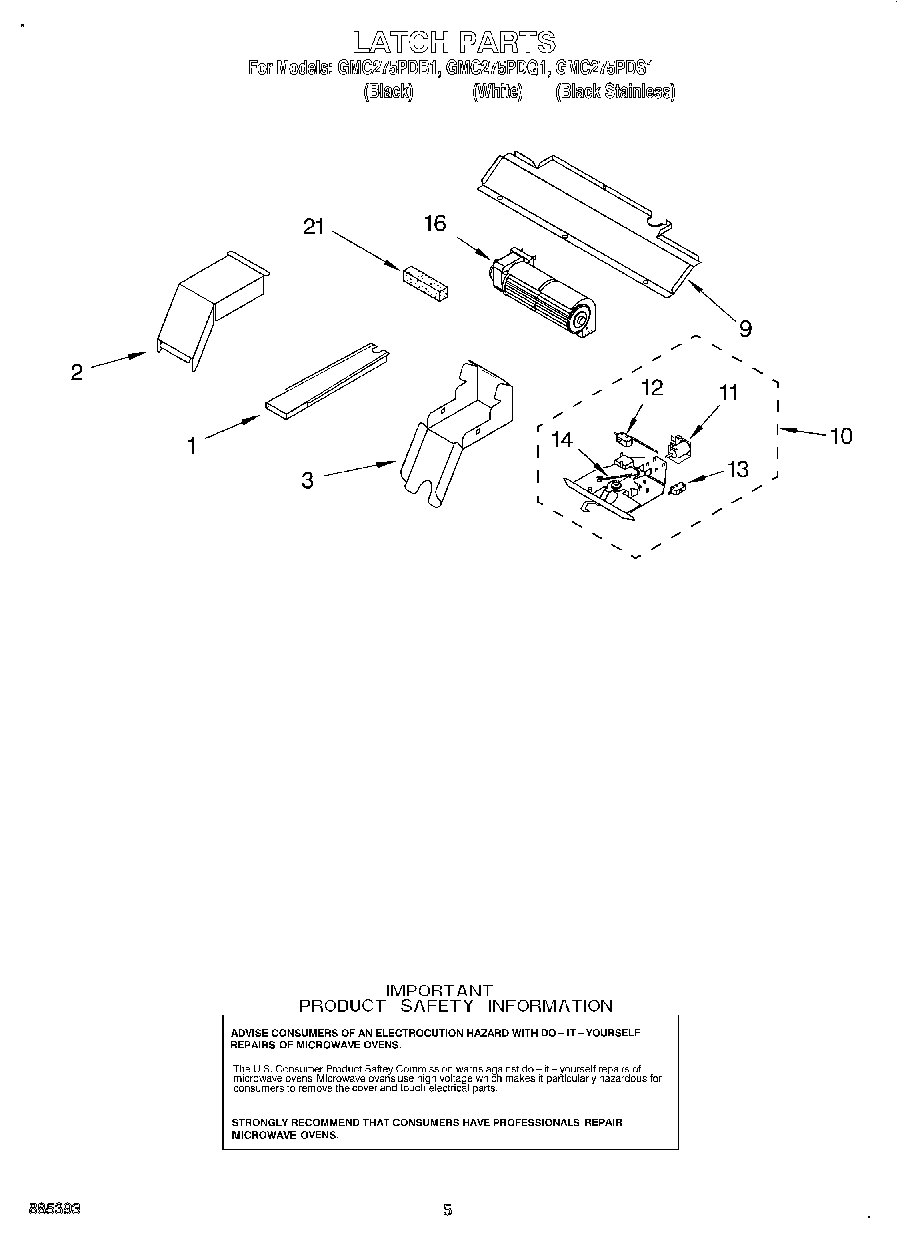

Latch Assembly WPL 4451424 Contact Us For Availability

Lens, Light WPL 4452165 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

Solenoid WPL 4451663 Contact Us For Availability

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

Duct, Inlet WPL 4375260 Contact Us For Availability

Side, Combo WPL 4450401 Contact Us For Availability

Micro Switch N.C. WPL 4451422 Contact Us For Availability

13

Microswitch WPL 4451426 Contact Us For Availability

13

Door Handle (Black Model) WPL 4448405 Contact Us For Availability

13

Handle, Door (White Model) WPL 4448406 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

Spring, Leaf WPL 4451537 Contact Us For Availability

Frame, Front WPL 4451739 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Filler, Side WPL 4449083 Contact Us For Availability

15

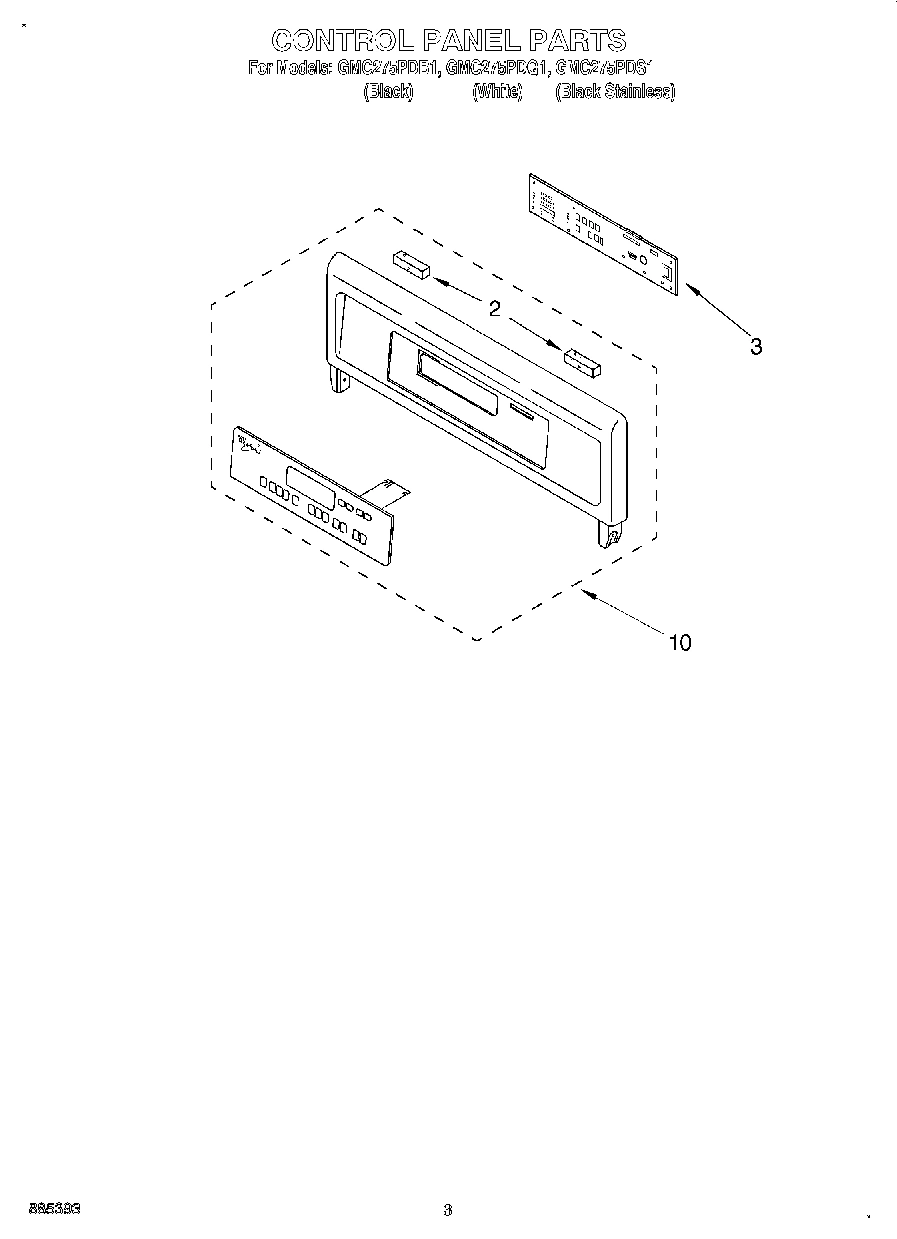

Back, Control WPL 4452244 Contact Us For Availability

16

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

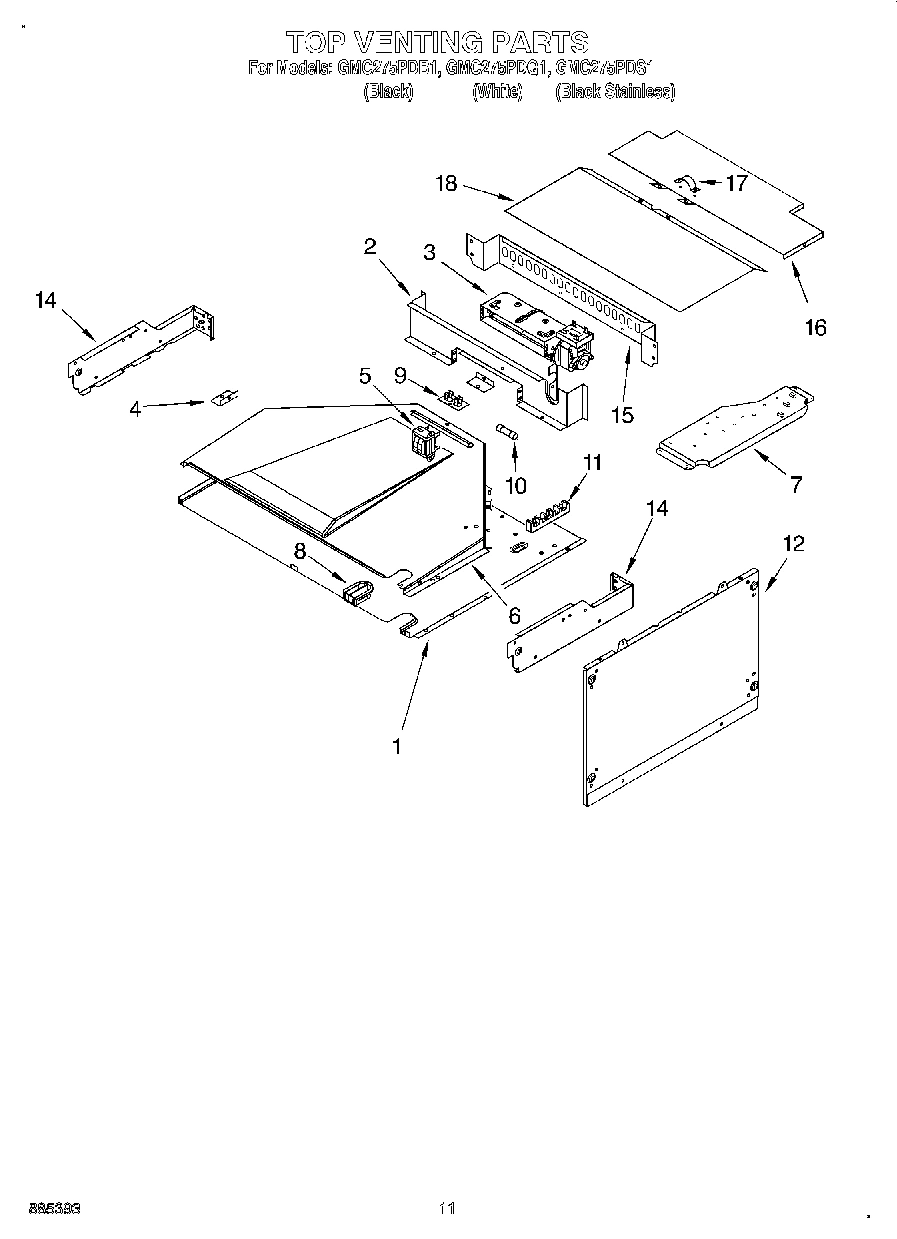

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

17

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (BL) WPL 4378950 Contact Us For Availability

Filler Kit (WH) WPL 4378951 Contact Us For Availability

Cover, Top Front WPL 4450553 Contact Us For Availability

Ground (M/W) WPL 4450831 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Latch WPL 4452239 Contact Us For Availability

Harness, Main WPL 4454923 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

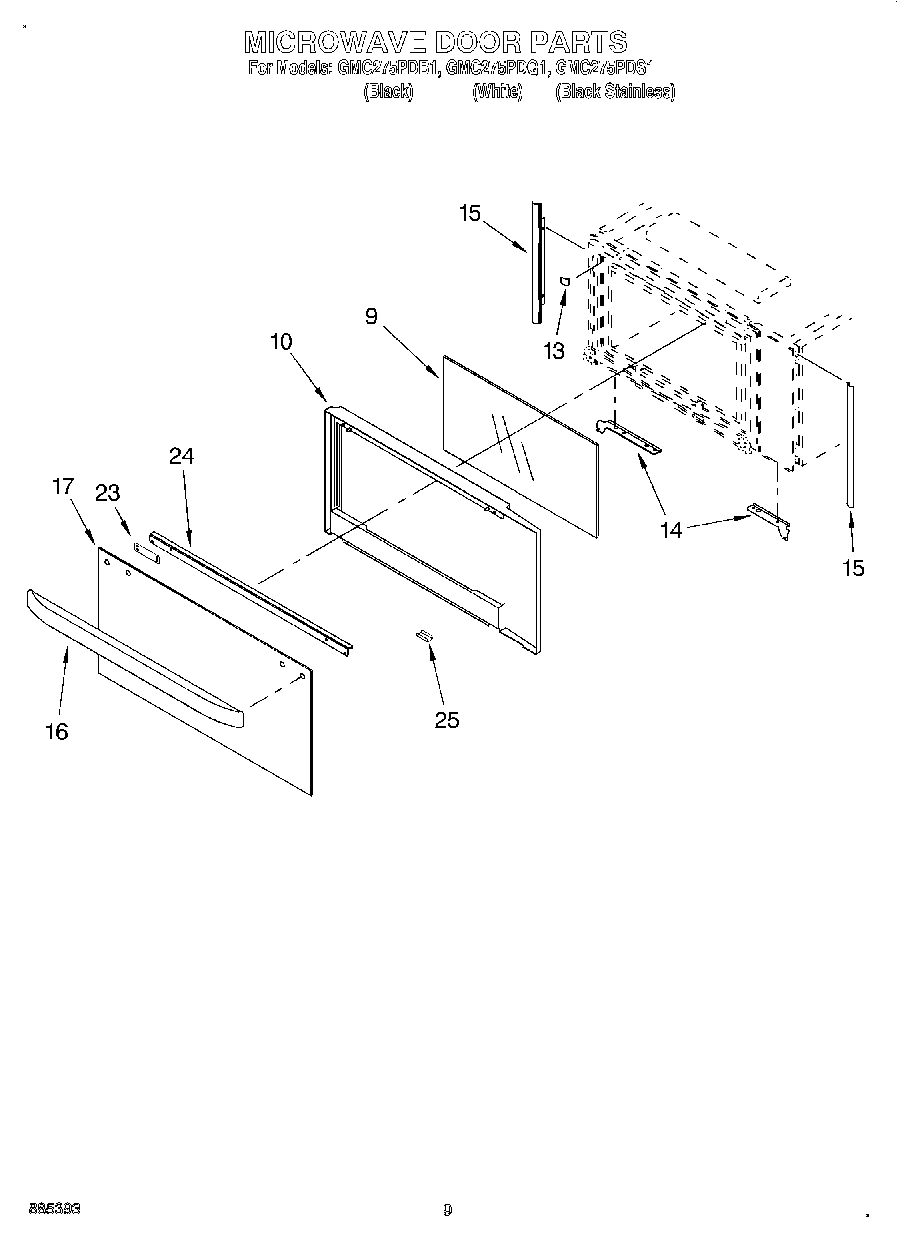

Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability

Door Glass, Assy (Black, Stainless Model) WPL 4452478 Contact Us For Availability

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Support, Insulation WPL 4451477 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

814375 Whirlpool Oven Rail Mount Backorder WPL 814375 $81.00

814376 Whirlpool Oven Rail Mount Backorder WPL 814376 $74.37

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door Top WPL 4451673 Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $94.01

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

27

Liner, Oven (Not a Serviceable Part) WPL ARI66917A4 Contact Us For Availability

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

29

Sensor WPL 4451665 Contact Us For Availability

30

Thermostat WPL 4375279 Contact Us For Availability

30

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $33.38

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

34

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

34

WP8304106 Whirlpool Oven Vent Backorder WPL WP8304106 $86.52

35

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

35

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

36

WP4451008 Whirlpool Microwave Spring In Stock WPL WP4451008 $41.08

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

38

Inlet WPL 4375329 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

43

Base, Chassis WPL 4451397 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability

Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability

Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability

52

Vent, Control WPL 4450787 Contact Us For Availability

53

Insulation, Wrap WPL 4449315 Contact Us For Availability

53

Insulation, Back WPL 4450364 Contact Us For Availability

53

Chassis, Back WPL 4451755 Contact Us For Availability

55

Cable WPL 4375350 Contact Us For Availability
