Model Electrolux GLHS267ZAB5 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

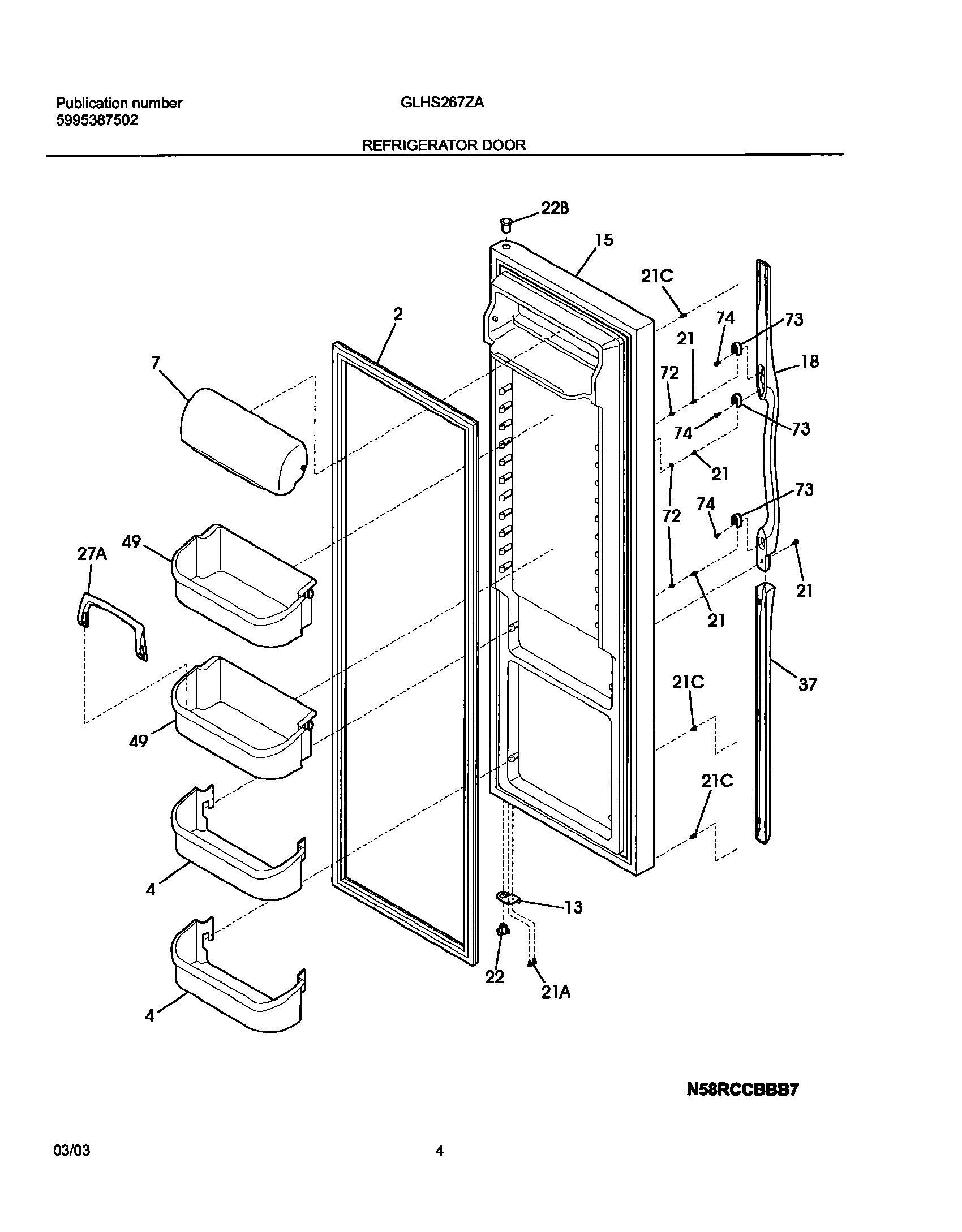

05 - REFRIGERATOR DOOR

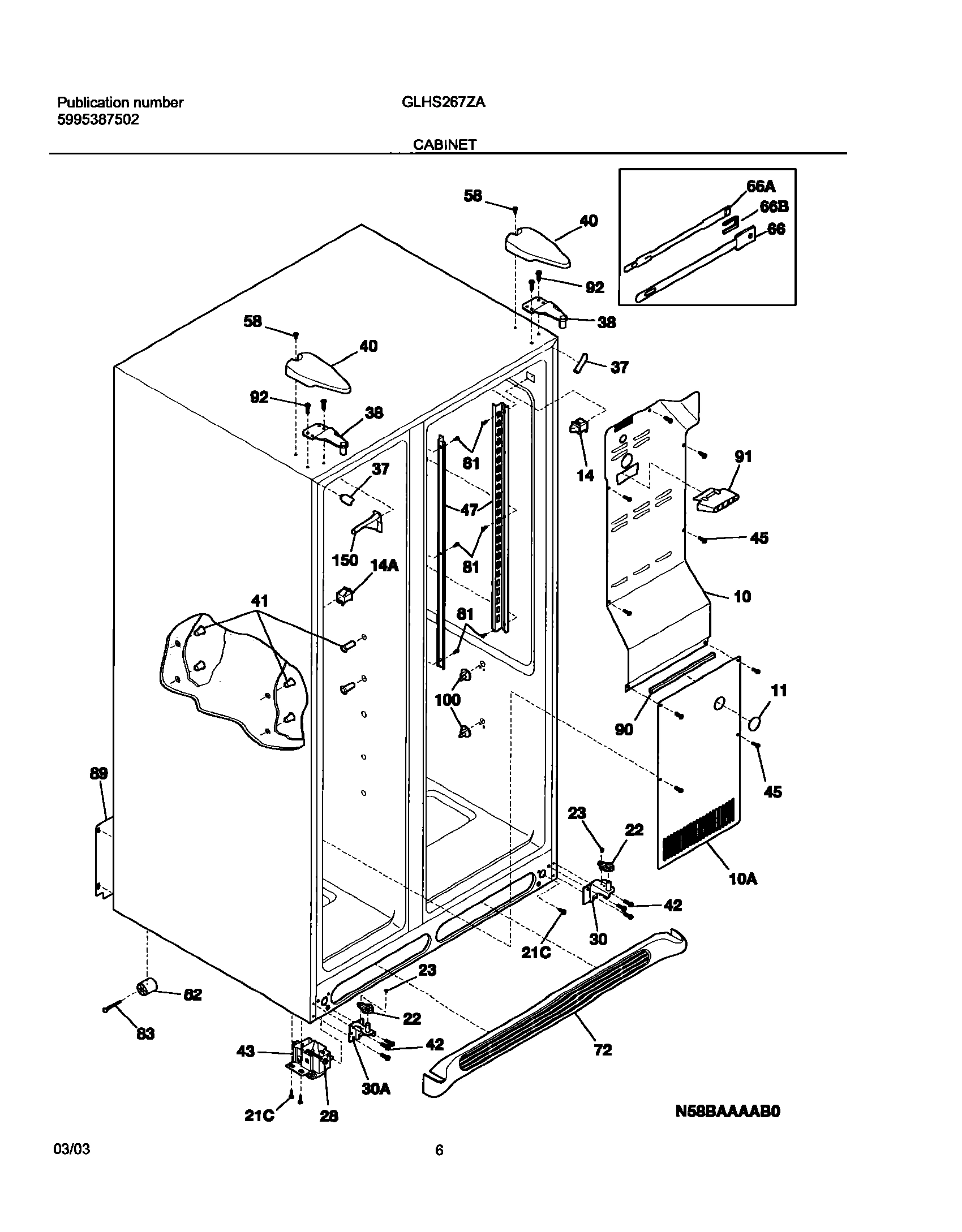

07 - CABINET

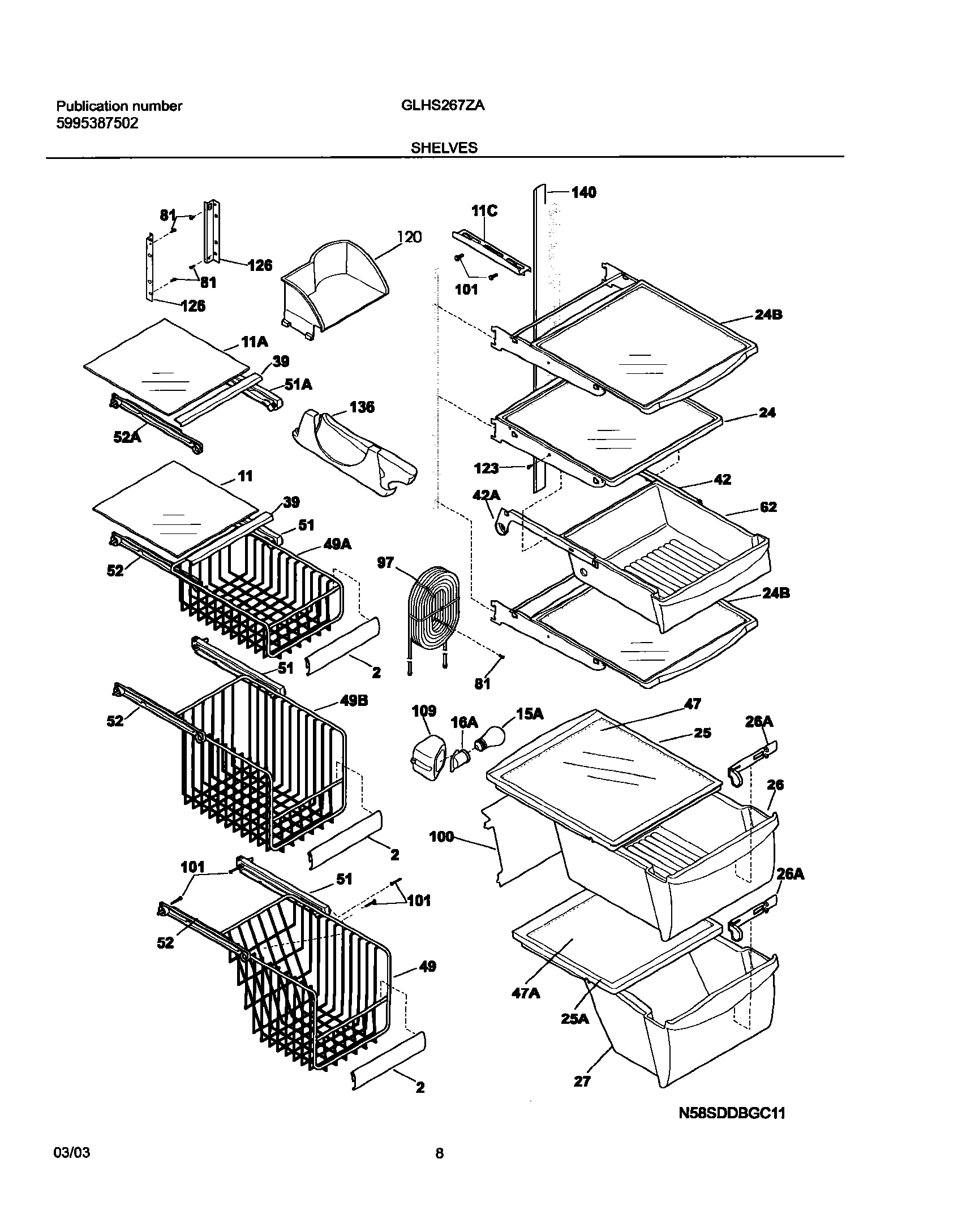

09 - SHELVES

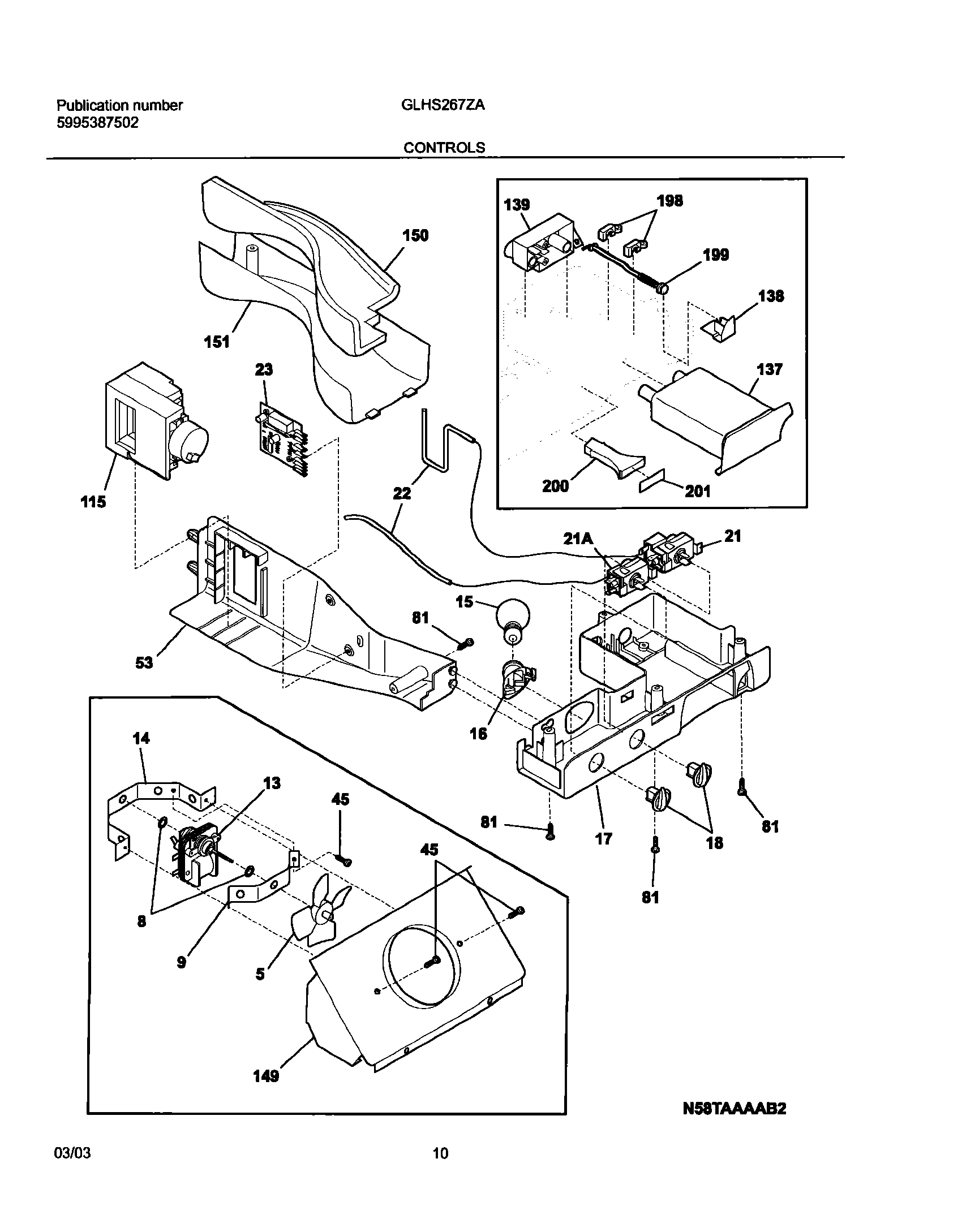

11 - CONTROLS

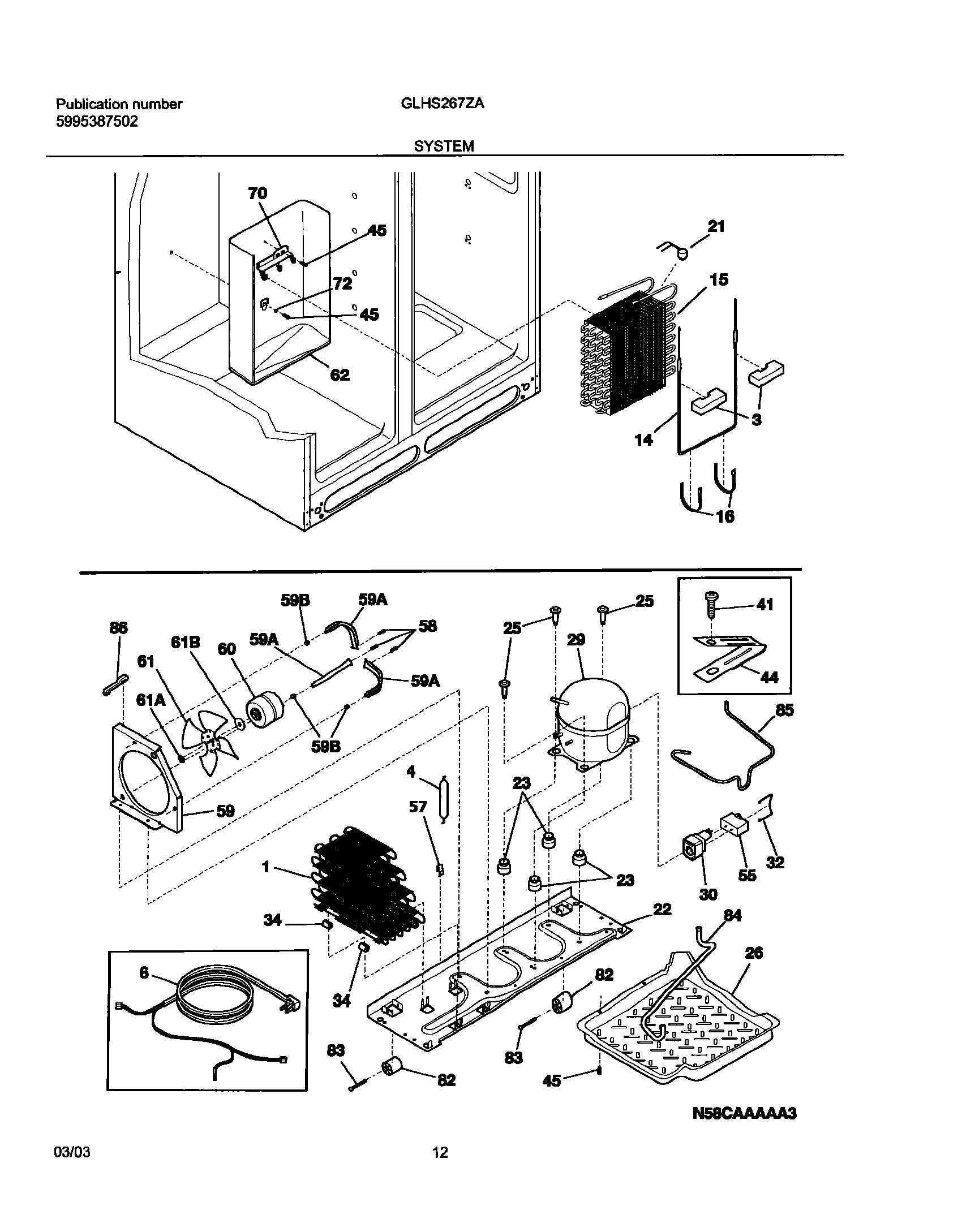

13 - SYSTEM

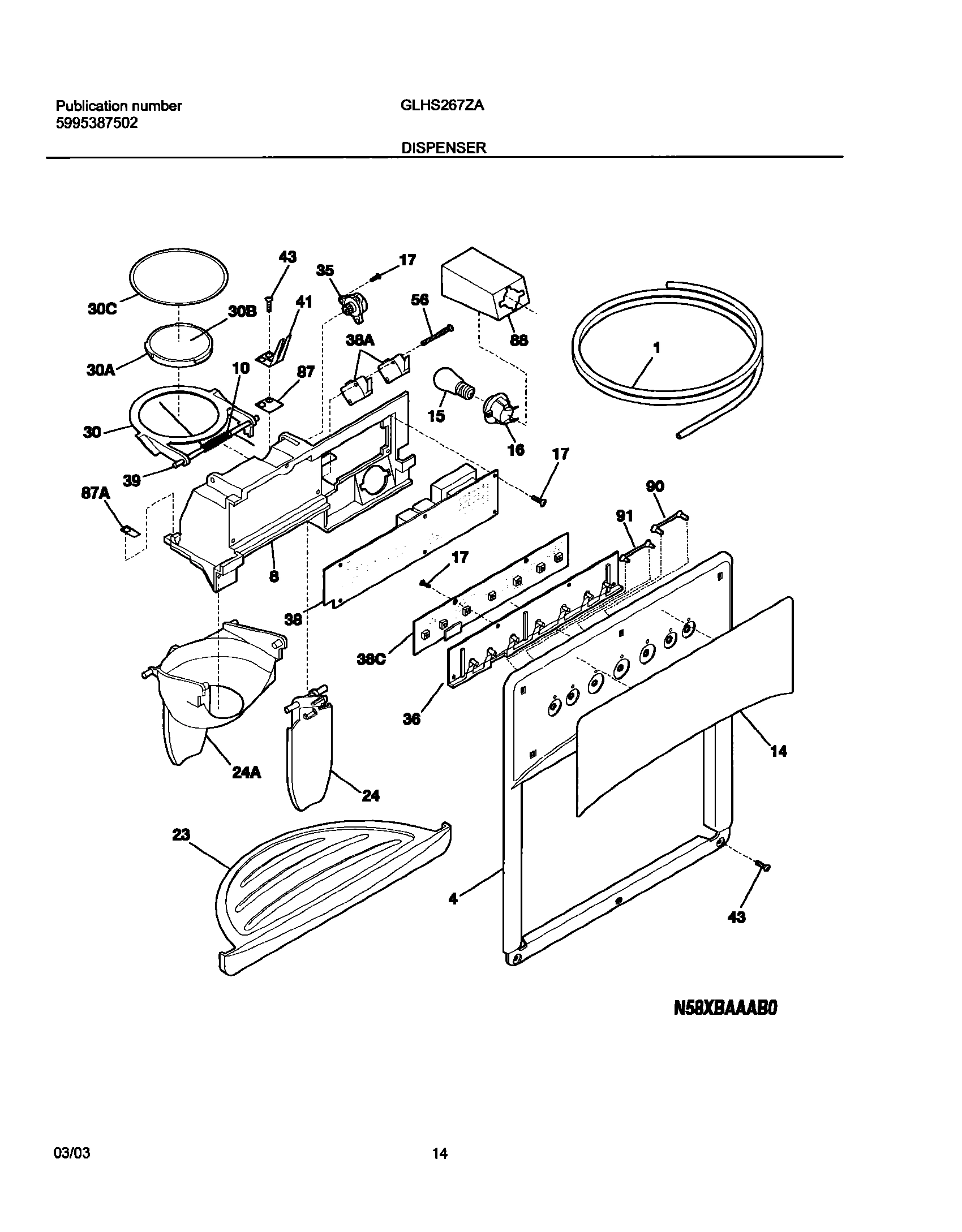

15 - DISPENSER

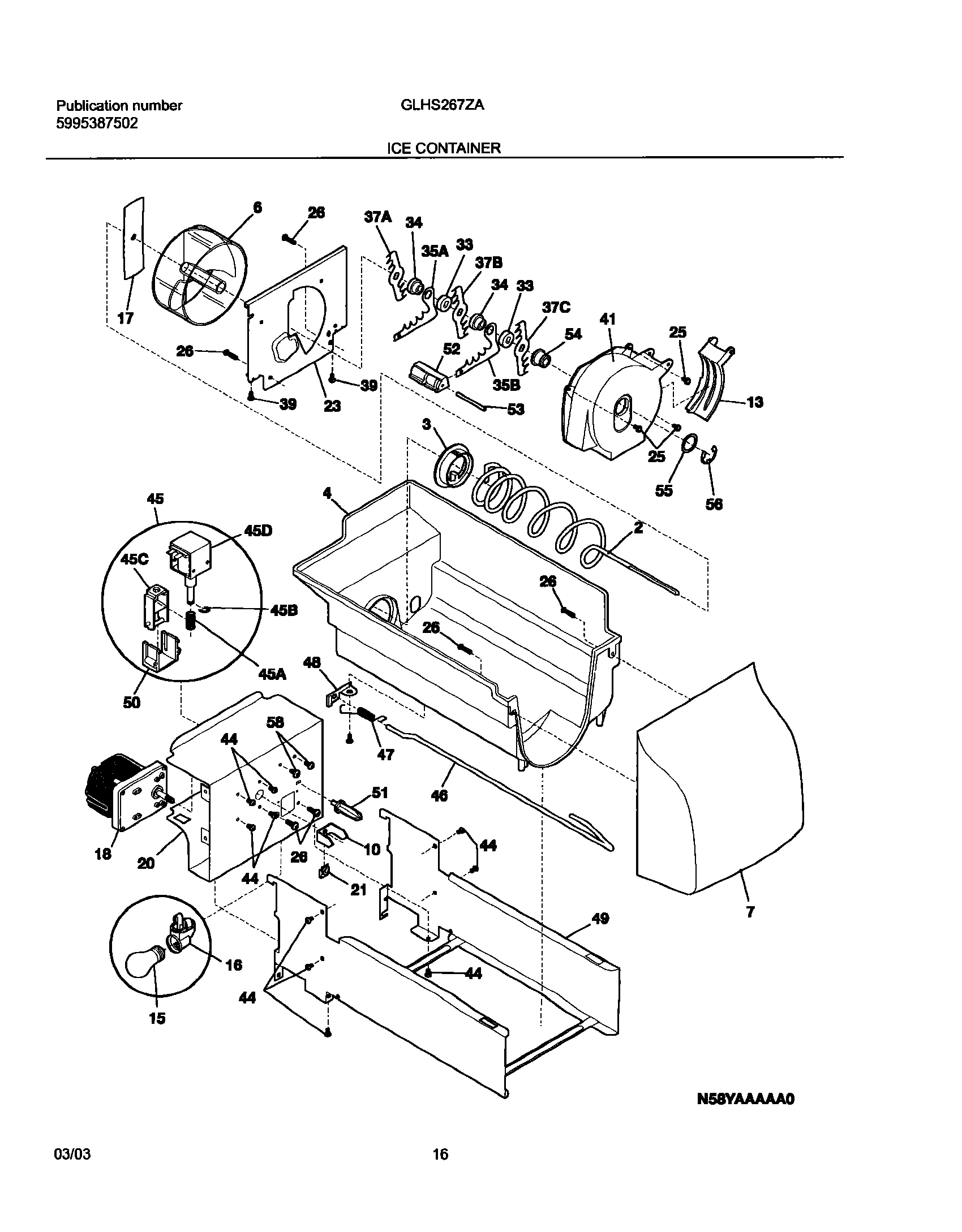

17 - ICE CONTAINER

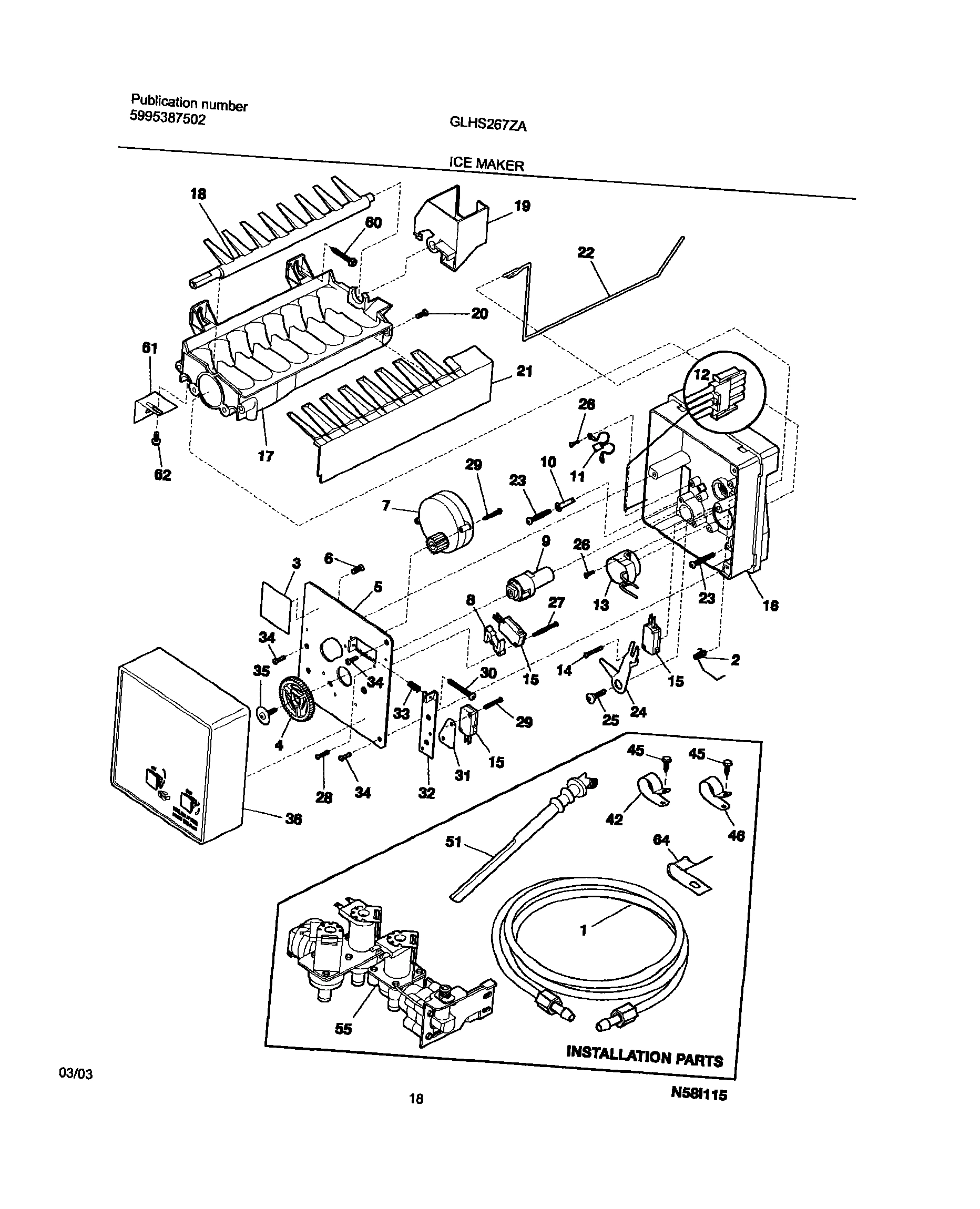

19 - ICE MAKER

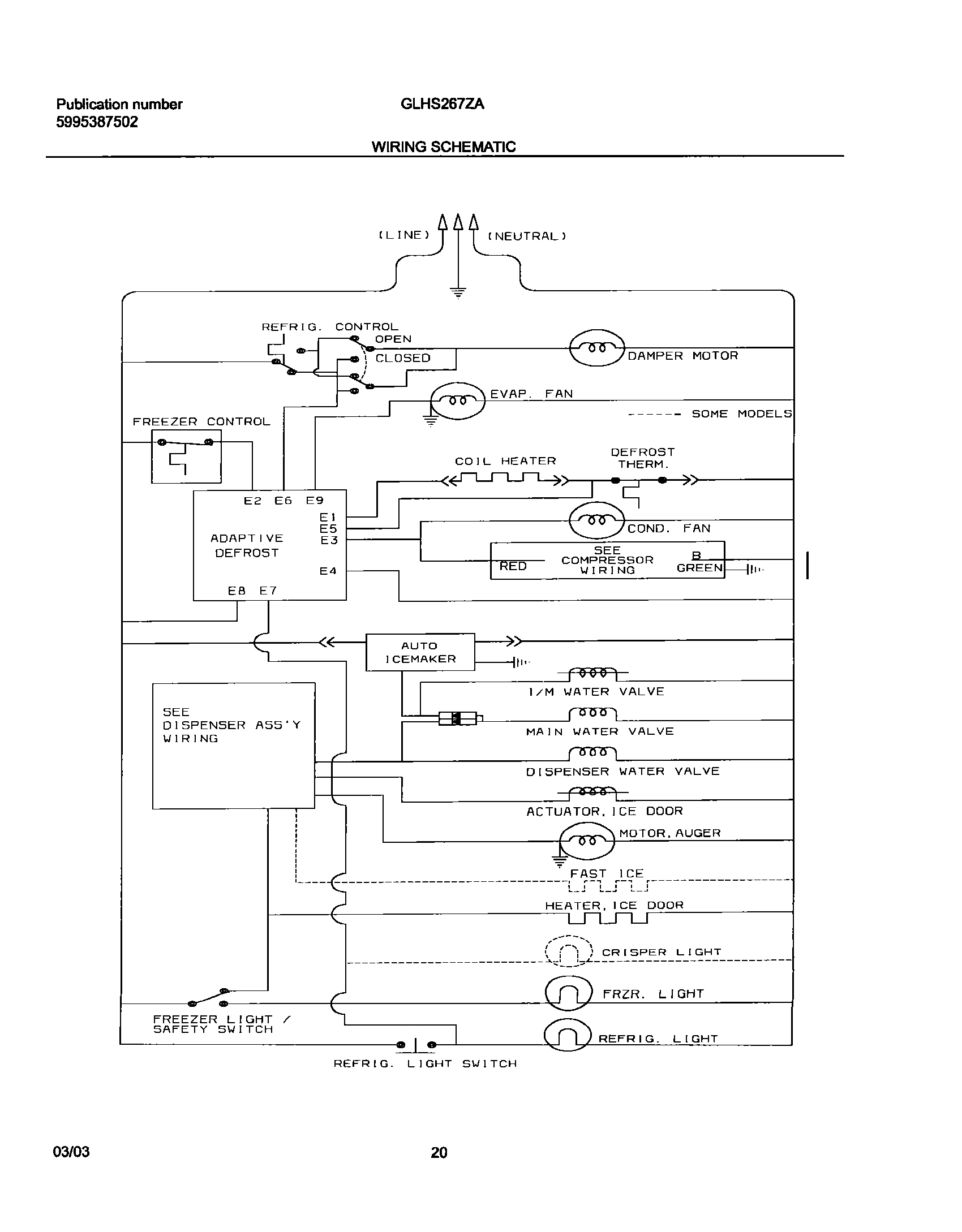

20 - WIRING SCHEMATIC

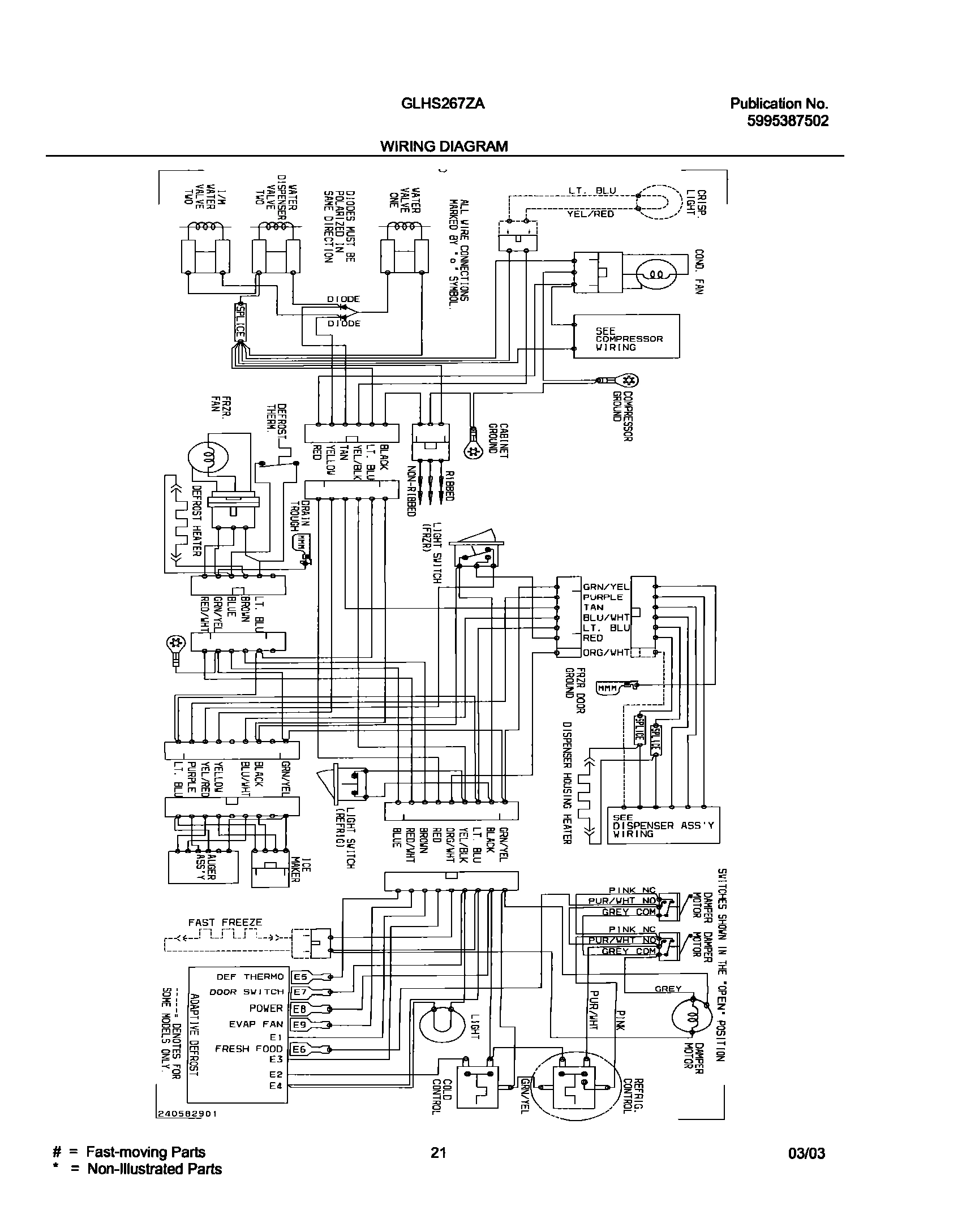

21 - WIRING DIAGRAM
Common parts from model Electrolux GLHS267ZAB5 REFRIGERATOR
1
Tube-water WCI 218976409 Contact Us For Availability
2
WCI 5304420650 WCI 5304420650 Contact Us For Availability
3
Label,ID plate WCI 3206299 Contact Us For Availability
4
WCI 240323002 WCI 240323002 Contact Us For Availability
4
WCI 5304422012 WCI 5304422012 Contact Us For Availability
4B
WCI 240351602 WCI 240351602 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
7
WCI 240326203 WCI 240326203 Contact Us For Availability
7
WCI 5304422805 WCI 5304422805 Contact Us For Availability
8
WCI 5304422013 WCI 5304422013 Contact Us For Availability
8
SPACER-HOLD SWITCH WCI 3206312 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
Thermal Cutoff,ice maker ,complete assy WCI 3206319 Contact Us For Availability
11C
WCI 240324101 WCI 240324101 Contact Us For Availability
12
Wiring Harness,ice maker ,internal ,with plug WCI 240352601 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
14
WCI 240505801 WCI 240505801 Contact Us For Availability
14
WCI 240323916 WCI 240323916 Contact Us For Availability
14
WCI 5304420652 WCI 5304420652 Contact Us For Availability
15
WCI 5303918284 WCI 5303918284 Contact Us For Availability
15
WCI 5304421616 WCI 5304421616 Contact Us For Availability
15
Panel-refr door,black ,complete assy WCI 240451908 Contact Us For Availability
16
WCI 5304420653 WCI 5304420653 Contact Us For Availability
17
WCI 240317701 WCI 240317701 Contact Us For Availability
18
WCI 240360801 WCI 240360801 Contact Us For Availability
18
EJECTOR-ICE WCI 3206328 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5304404332 WCI 5304404332 Contact Us For Availability
20
WCI 5304408581 WCI 5304408581 Contact Us For Availability
21
WCI 5303918214 WCI 5303918214 Contact Us For Availability
21
WCI 240383703 WCI 240383703 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 240457701 WCI 240457701 Contact Us For Availability
22
SHUT-OFF ARM WCI 3206333 Contact Us For Availability
22B
Bearing-hinge,upper WCI 240328403 Contact Us For Availability
22C
WCI 240328404 WCI 240328404 Contact Us For Availability
23
WCI 240554502 WCI 240554502 Contact Us For Availability
23
WCI 240402701 WCI 240402701 Contact Us For Availability
23
WCI 5304408582 WCI 5304408582 Contact Us For Availability
24
WCI 240355203 WCI 240355203 Contact Us For Availability
25
WCI 240350702 WCI 240350702 Contact Us For Availability
25
SCREW,8-18 X 0.562 ,LEVER ARM/SPRT WCI 3206336 Contact Us For Availability
26
WCI 5304420654 WCI 5304420654 Contact Us For Availability
26A
WCI 240362201 WCI 240362201 Contact Us For Availability
27
SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,(2) WCI 3206338 Contact Us For Availability
27A
WCI 240396102 WCI 240396102 Contact Us For Availability
28
Screw-timing stop`4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
SCREW,4-24 X 0.750 ,(6) WCI 3206323 Contact Us For Availability
30
SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 218973501 WCI 218973501 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 5304408583 WCI 5304408583 Contact Us For Availability
34
WCI 5304420655 WCI 5304420655 Contact Us For Availability
35
WCI 5304421620 WCI 5304421620 Contact Us For Availability
35
WCI 5304408585 WCI 5304408585 Contact Us For Availability
36
WCI 5304421824 WCI 5304421824 Contact Us For Availability
36
COVER-ICE MAKER WCI 3206347 Contact Us For Availability
37
WCI 240337603 WCI 240337603 Contact Us For Availability
38
WCI 5304431764 WCI 5304431764 Contact Us For Availability
38C
WCI 5304430811 WCI 5304430811 Contact Us For Availability
38C
WCI 5304431856 WCI 5304431856 Contact Us For Availability
40
WCI 240327007 WCI 240327007 Contact Us For Availability
42
WCI 240356501 WCI 240356501 Contact Us For Availability
42A
WCI 240349701 WCI 240349701 Contact Us For Availability
42A
WCI 240349901 WCI 240349901 Contact Us For Availability
42A
WCI 240350001 WCI 240350001 Contact Us For Availability
43
WCI 215296300 WCI 215296300 Contact Us For Availability
44
WCI 218359200 WCI 218359200 Contact Us For Availability
46
Clamp,.50 ID ,steel ,water tube WCI 5303001193 Contact Us For Availability
46
WCI 5304404341 WCI 5304404341 Contact Us For Availability
47
WCI 5304404342 WCI 5304404342 Contact Us For Availability
47A
WCI 240350603 WCI 240350603 Contact Us For Availability
49
WCI 5304404329 WCI 5304404329 Contact Us For Availability
49B
WCI 240530504 WCI 240530504 Contact Us For Availability
51
WCI 240343002 WCI 240343002 Contact Us For Availability
51
WCI 5304404336 WCI 5304404336 Contact Us For Availability
52
WCI 240343102 WCI 240343102 Contact Us For Availability
53
WCI 240369501 WCI 240369501 Contact Us For Availability
56
WCI 5304421830 WCI 5304421830 Contact Us For Availability
58
WCI 5304404331 WCI 5304404331 Contact Us For Availability
59B
WCI 240346601 WCI 240346601 Contact Us For Availability
60
WCI 240334002 WCI 240334002 Contact Us For Availability
61
WCI 240315401 WCI 240315401 Contact Us For Availability
61
WCI 218721500 WCI 218721500 Contact Us For Availability
61A
WCI 215004700 WCI 215004700 Contact Us For Availability
61B
WCI 215004800 WCI 215004800 Contact Us For Availability
70
WCI 218990801 WCI 218990801 Contact Us For Availability
72
WCI 218397000 WCI 218397000 Contact Us For Availability
82
WCI 5304418225 WCI 5304418225 Contact Us For Availability
85
WCI 240346201 WCI 240346201 Contact Us For Availability
86
WCI 240409302 WCI 240409302 Contact Us For Availability
88
WCI 5304421615 WCI 5304421615 Contact Us For Availability
90
WCI 5304421831 WCI 5304421831 Contact Us For Availability
91
WCI 5304421850 WCI 5304421850 Contact Us For Availability
138
WCI 240397301 WCI 240397301 Contact Us For Availability
140
WCI 240430501 WCI 240430501 Contact Us For Availability
198
WCI 240397401 WCI 240397401 Contact Us For Availability
199
WCI 240397501 WCI 240397501 Contact Us For Availability
199
WCI 240398401 WCI 240398401 Contact Us For Availability
NI
WCI 5303918222 WCI 5303918222 Contact Us For Availability
NI
WCI 218976901 WCI 218976901 Contact Us For Availability
NI
WCI 5303918256 WCI 5303918256 Contact Us For Availability
NI
WCI 240362101 WCI 240362101 Contact Us For Availability
NI
WCI 218976903 WCI 218976903 Contact Us For Availability
NI
WCI 240349801 WCI 240349801 Contact Us For Availability
NI
WCI 240561701 WCI 240561701 Contact Us For Availability
NI
WCI 218976907 WCI 218976907 Contact Us For Availability
NI
WCI 240449601 WCI 240449601 Contact Us For Availability
NI
WCI 218888001 WCI 218888001 Contact Us For Availability
NI
WCI 5308000133 WCI 5308000133 Contact Us For Availability
NI
WCI 240439901 WCI 240439901 Contact Us For Availability
NI
WCI 5304426535 WCI 5304426535 Contact Us For Availability
NI
WIRING HARNESS,AUGER MOTOR WCI 5304404335 Contact Us For Availability
NI
WCI 5304404364 WCI 5304404364 Contact Us For Availability
NI
WCI 218515402 WCI 218515402 Contact Us For Availability
× ![]()
