Model GE GHDS830ED1WS Dryer Electric – Common Parts & Diagrams

20
SCREW
SCREW GEN WE2M302 Contact Us For Availability
View on Model
25
GUIDE LIGHT & LABEL ASM
GUIDE LIGHT & LABEL ASM GEN WE5M101 Contact Us For Availability
View on Model

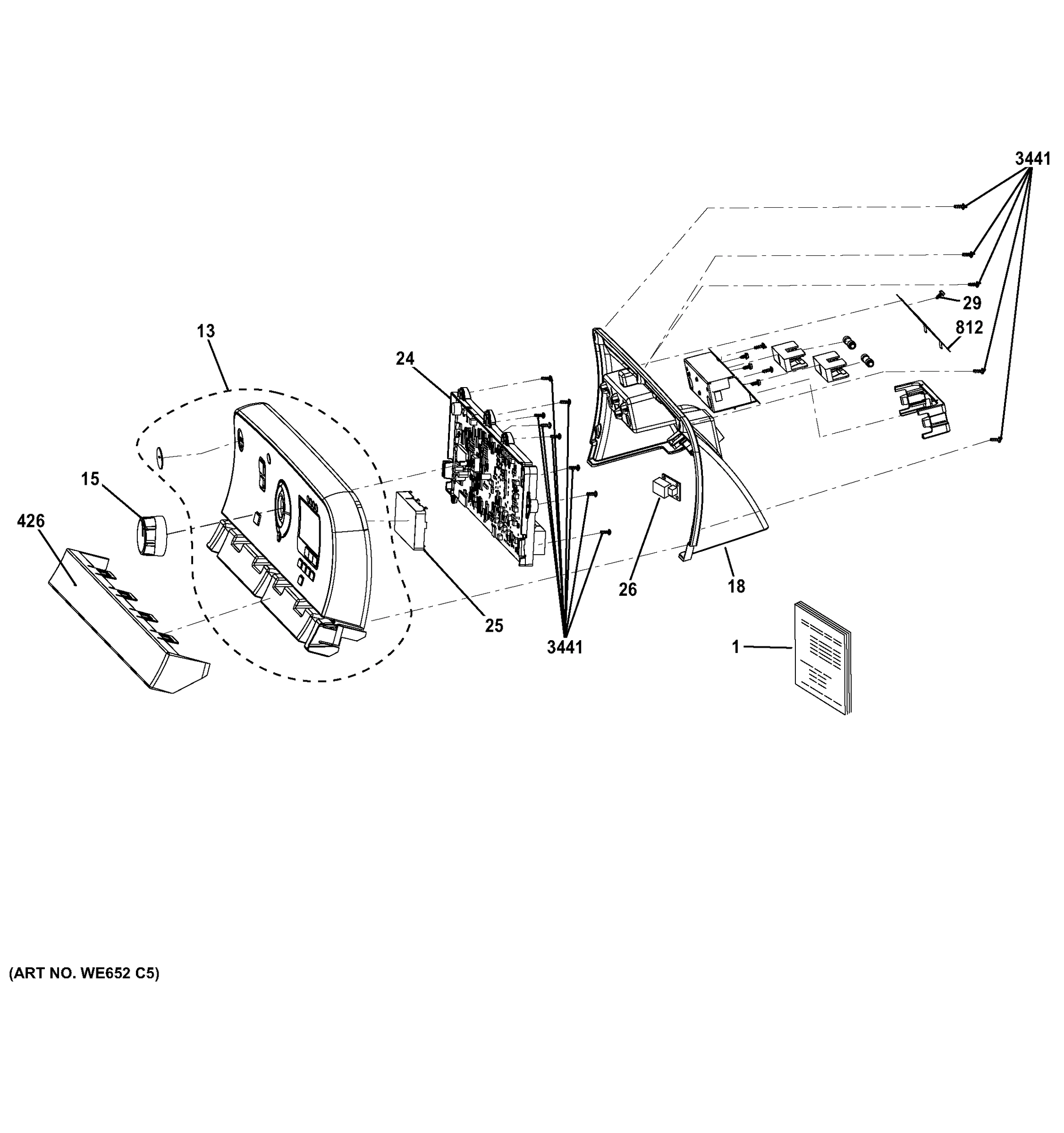

26
BOARD DSM
BOARD DSM GEN WE4M549 Contact Us For Availability
View on Model
29
SCR 8-18 AB IHW 3/8 SN
SCR 8-18 AB IHW 3/8 SN GEN WB01K10042 Contact Us For Availability
View on Model
112
PLUG BUTTON WHITE
PLUG BUTTON WHITE GEN WE1M934 Contact Us For Availability
View on Model

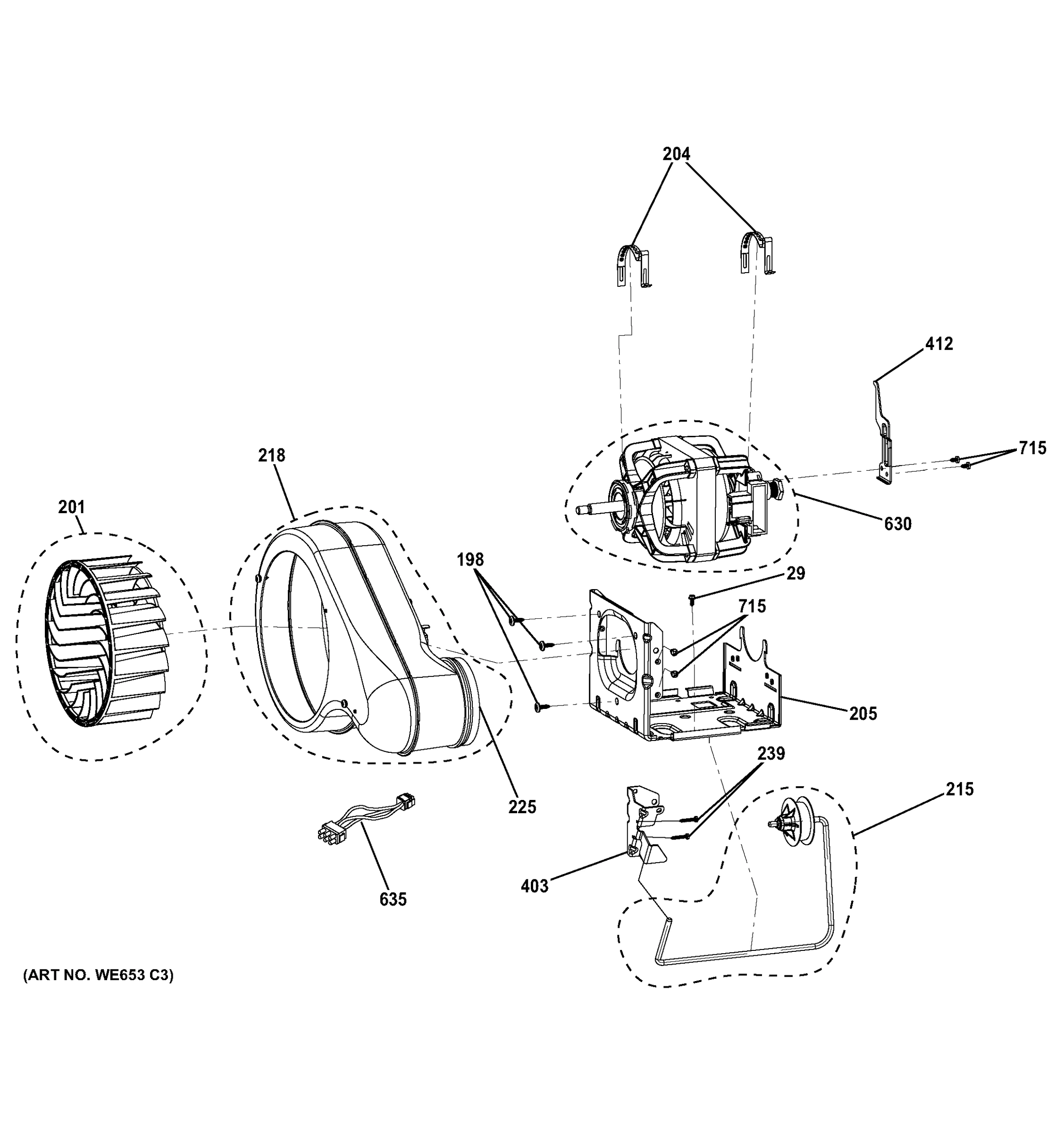

201
BLOWER WHEEL
BLOWER WHEEL GEN WE16M24 Contact Us For Availability
View on Model
215
IDLER ARM ASM
IDLER ARM ASM GEN WE12M38 Contact Us For Availability
View on Model
228
EXHAUST DUCT
EXHAUST DUCT GEN WE14M107 Contact Us For Availability
View on Model
236
FOOT LEVELING
FOOT LEVELING GEN WE1M1097 Contact Us For Availability
View on Model
272
LOCK
LOCK GEN WE1M1065 Contact Us For Availability
View on Model
273
SHAFT ROLLER
SHAFT ROLLER GEN WE3M53 Contact Us For Availability
View on Model
300
FILTER ASM
FILTER ASM GEN WE18M54 Contact Us For Availability
View on Model
311
GRID ASM
GRID ASM GEN WE18M56 Contact Us For Availability
View on Model
314
SUPPORT FRONT ROLLER
SUPPORT FRONT ROLLER GEN WE20M514 Contact Us For Availability
View on Model
327
LATCH DOOR
LATCH DOOR GEN WE1M1011 Contact Us For Availability
View on Model
375
LED
LED GEN WE5M94 Contact Us For Availability
View on Model
380
DOOR SWITCH
DOOR SWITCH GEN WE4M415 Contact Us For Availability
View on Model
403
BRACKET SWITCH
BRACKET SWITCH GEN WE1M1069 Contact Us For Availability
View on Model
502
SCREW # 10
SCREW # 10 GEN WE2M174 Contact Us For Availability
View on Model
553
THERMOSTAT HI LIMIT
THERMOSTAT HI LIMIT GEN WE4M547 Contact Us For Availability
View on Model
600
REMOTE HEATER ASM
REMOTE HEATER ASM GEN WE11M58 Contact Us For Availability
View on Model
610
GASKET DOOR
GASKET DOOR GEN WE9M60 Contact Us For Availability
View on Model
630
MOTOR AND PULLEY ASM
MOTOR AND PULLEY ASM GEN WE17M67 Contact Us For Availability
View on Model
635
HARNESS BLOWER ASM
HARNESS BLOWER ASM GEN WE26M393 Contact Us For Availability
View on Model
711
HANDLE DOOR
HANDLE DOOR GEN WE1M1079 Contact Us For Availability
View on Model
713
DOOR GLASS ASM
DOOR GLASS ASM GEN WE10M167 Contact Us For Availability
View on Model
715
SCR
SCR GEN WD2M101 Contact Us For Availability
View on Model
750
HINGE
HINGE GEN WE1M1033 Contact Us For Availability
View on Model
801
THERMISTOR INLET
THERMISTOR INLET GEN WE4M550 Contact Us For Availability
View on Model
3049
STRIKE
STRIKE GEN WE01M10007 Contact Us For Availability
View on Model
3356
STRIKE PLATE
STRIKE PLATE GEN WE1M569 Contact Us For Availability
View on Model
3360
STRIKE PLATE W/STRK HOLE
STRIKE PLATE W/STRK HOLE GEN WE1M570 Contact Us For Availability
View on Model
3363
SENSOR ROD LFT
SENSOR ROD LFT GEN WE1M1058 Contact Us For Availability
View on Model
3443
SCREW
SCREW GEN WE1M280 Contact Us For Availability
View on Model
