Model Whirlpool GH8155XJQ1 MICROWAVE OVEN 1.5 CU. FT. – Common Parts & Diagrams

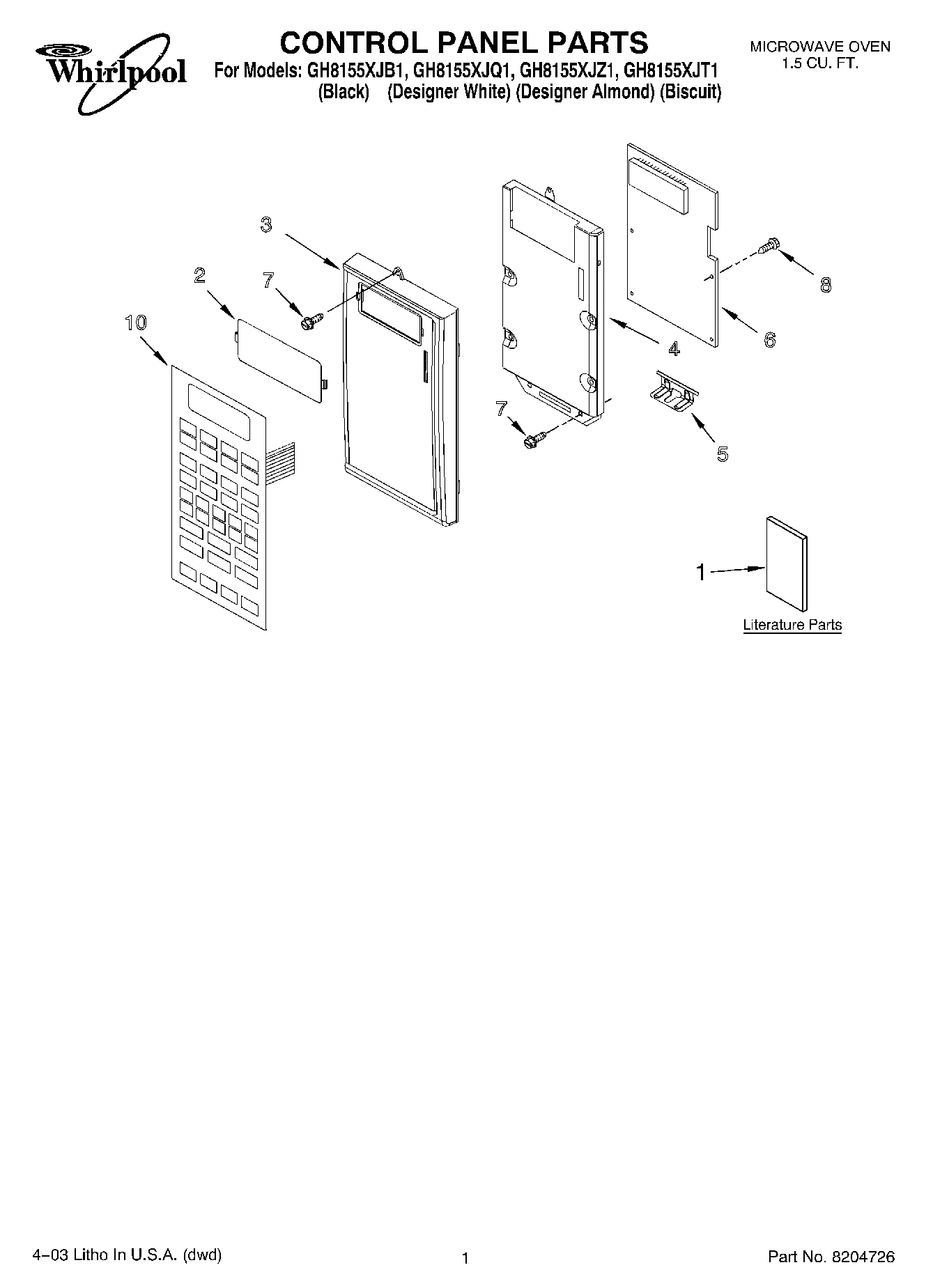

01 - CONTROL PANEL PARTS

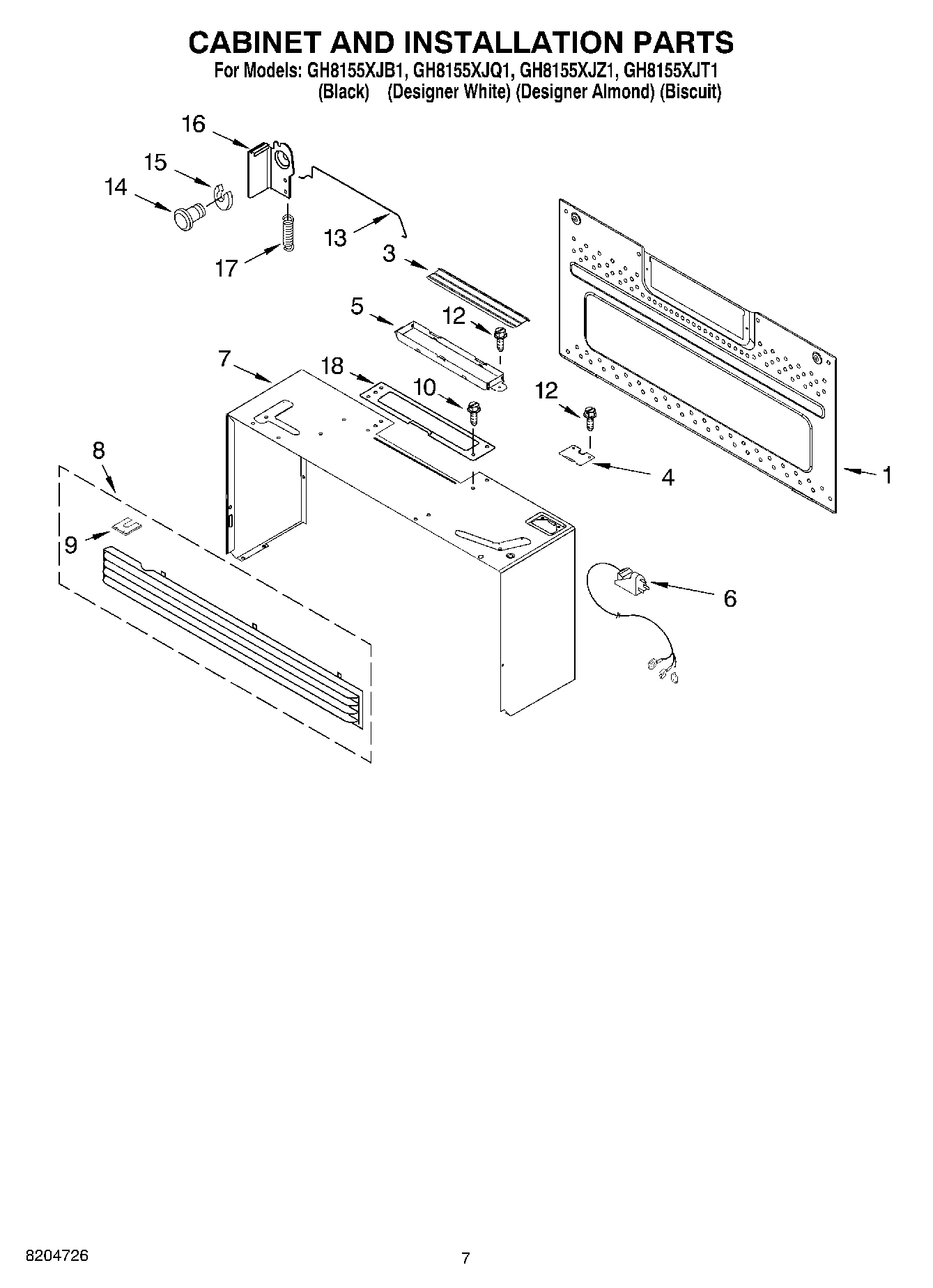

06 - CABINET AND INSTALLATION PARTS

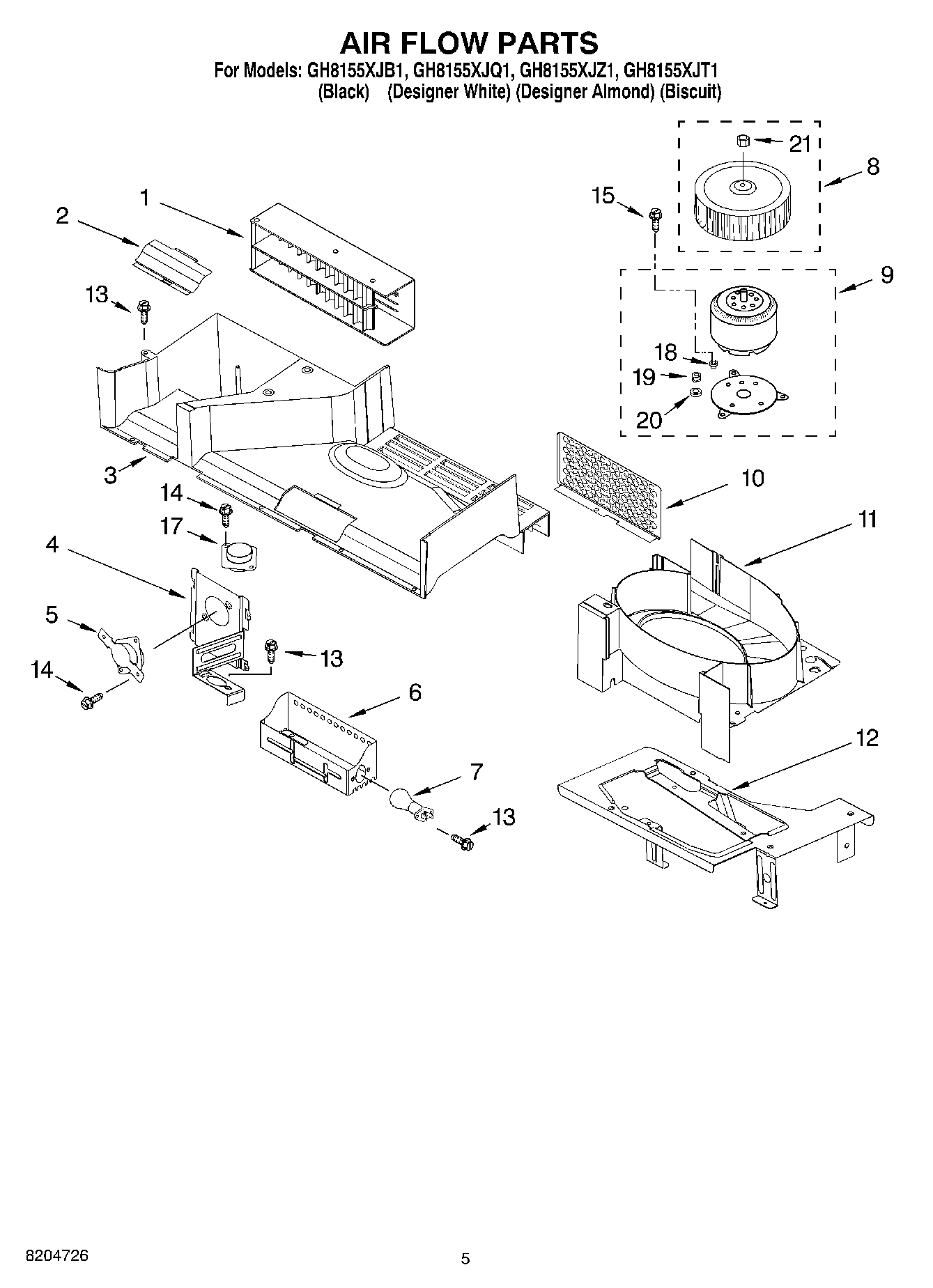

04 - AIR FLOW PARTS

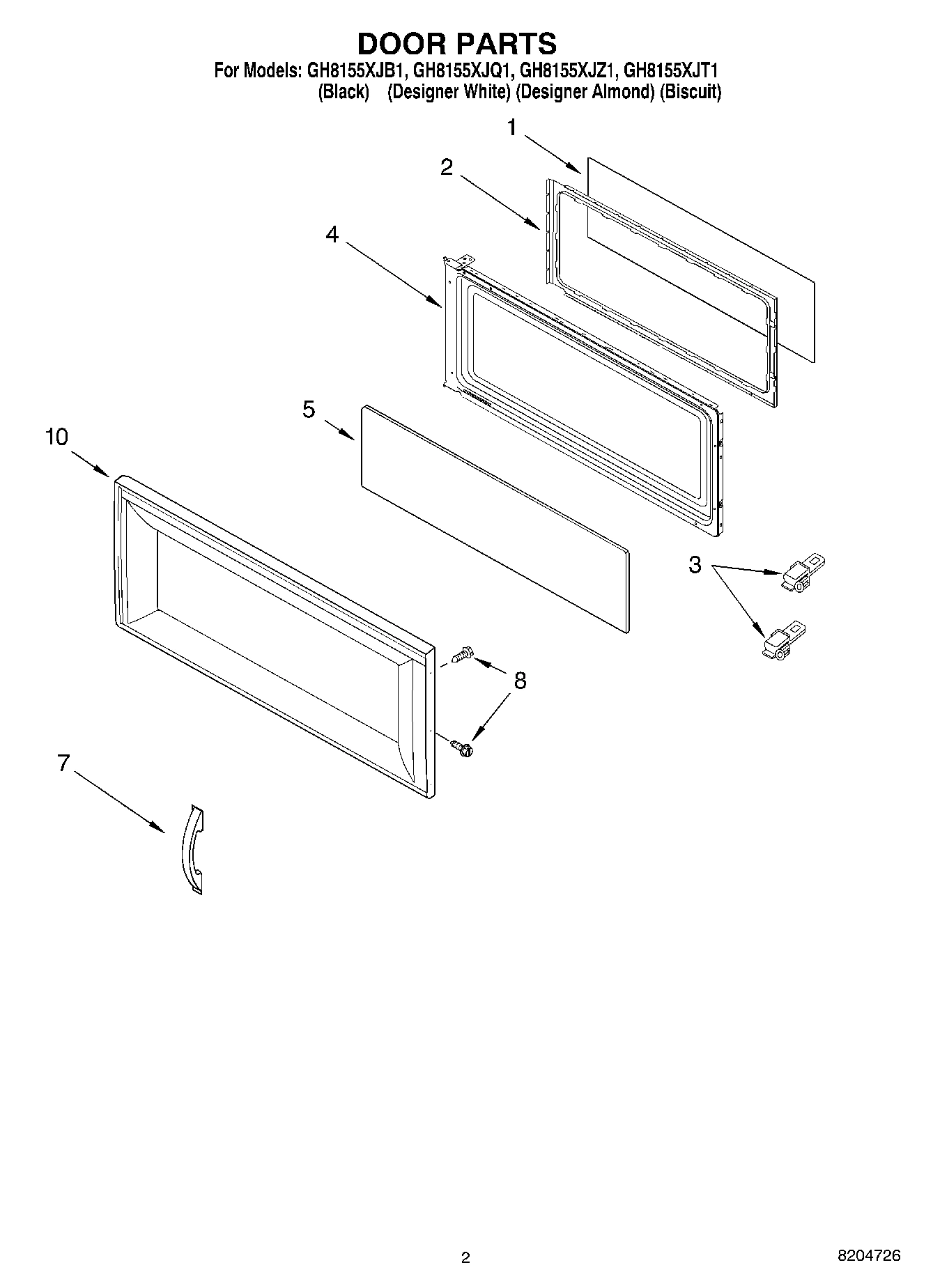

02 - DOOR PARTS

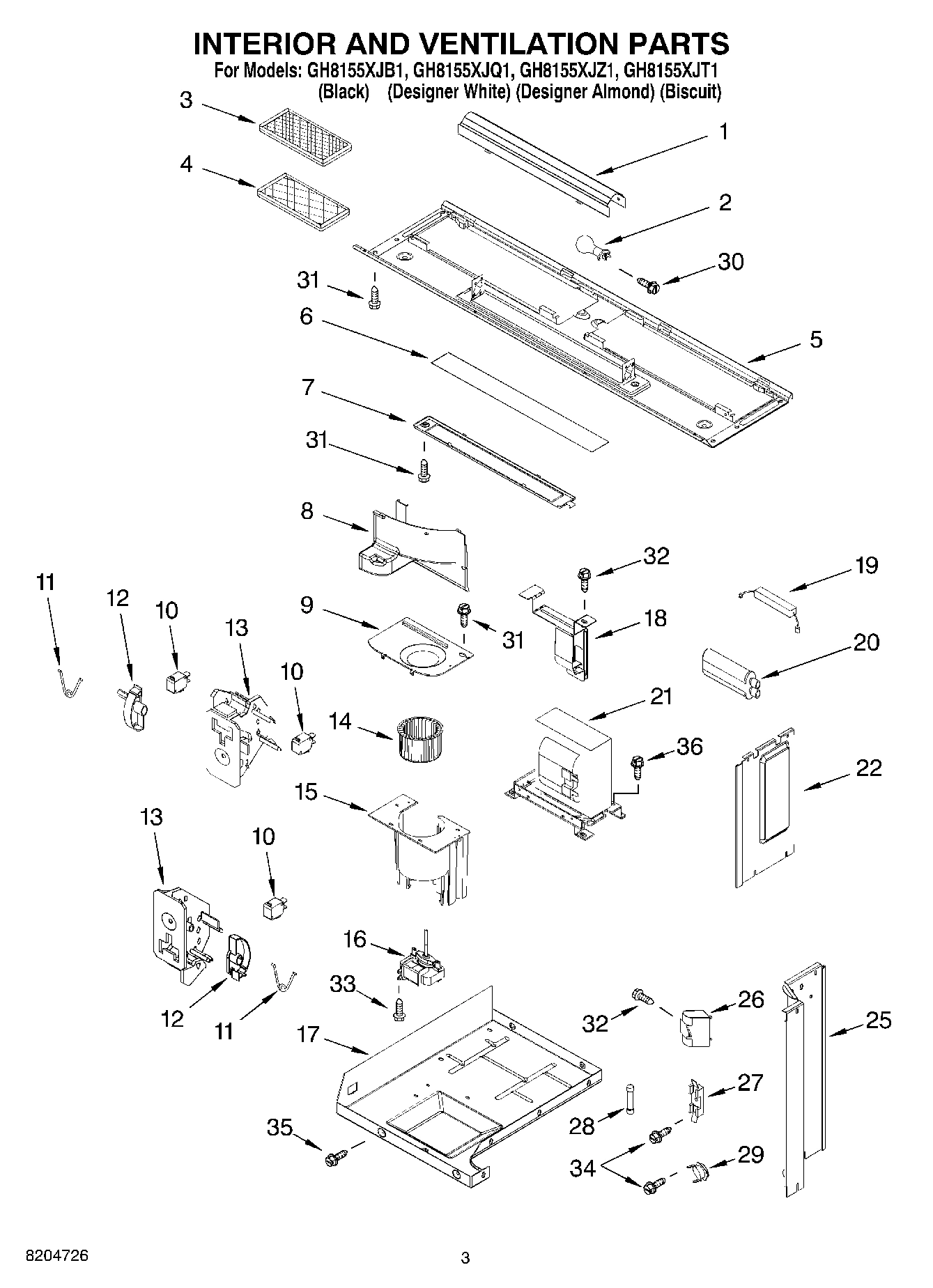

03 - INTERIOR AND VENTILATION PARTS

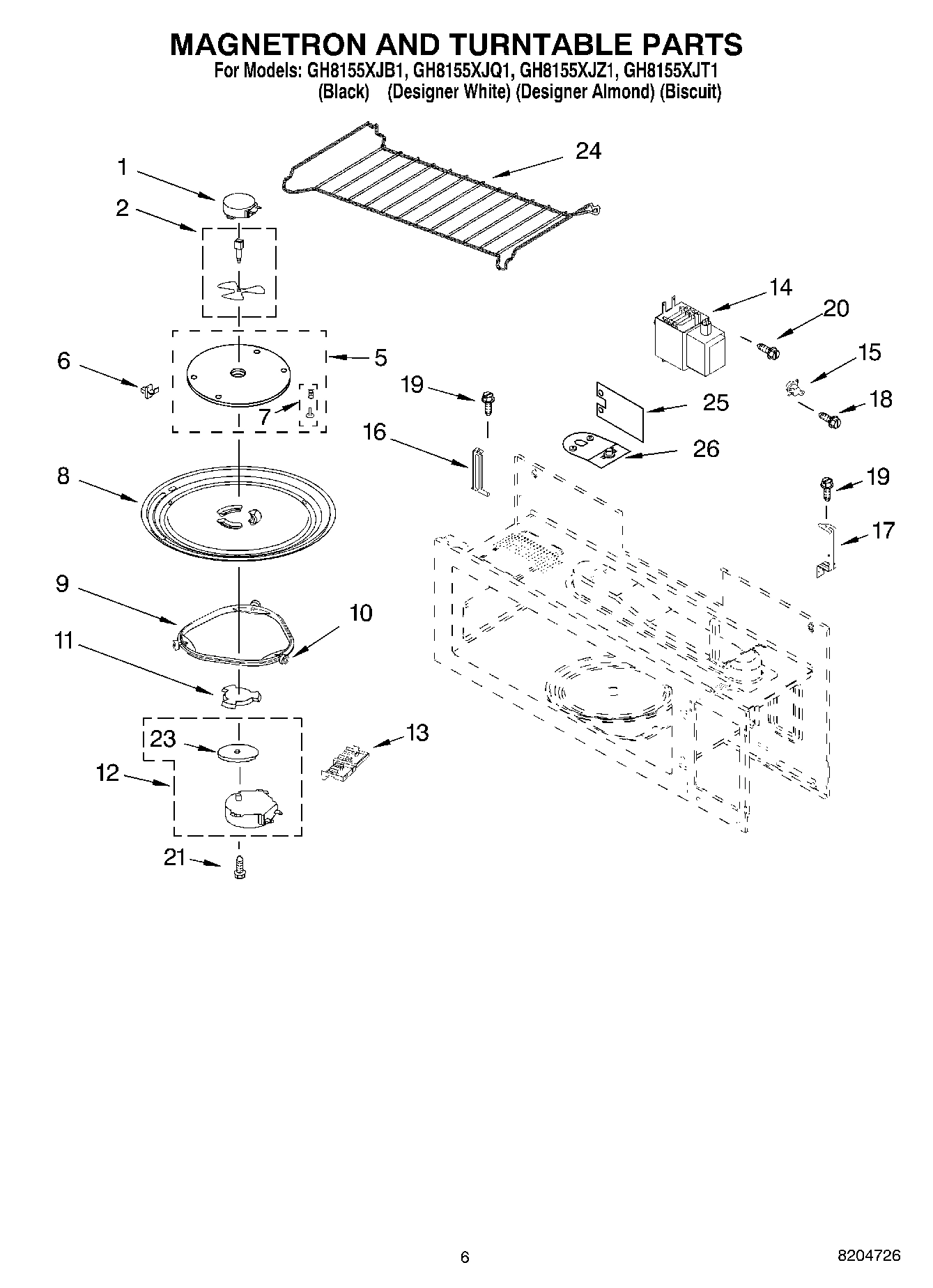

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool GH8155XJQ1 MICROWAVE OVEN 1.5 CU. FT.
1
Deflector, Air WPL 8184638 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
2
Stirrer/Blade WPL 8184633 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
4
Body, Door (Almond) WPL 8169429 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8169546 Contact Us For Availability
5
Glass, Outer (Clear (Green Tint)) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Glass, Outer (Clear) WPL 8183704 Contact Us For Availability
5
Plate, Bottom WPL 8184307 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Housing, Lamp WPL 8184745 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Handle, Door (Almond) WPL 4393783 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
7
Nail, Plastic WPL 8184549 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (Almond) WPL 8184243 Contact Us For Availability
8
Wheel, Fan WPL 4393682 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability
9
Motor, Fan WPL 4393789 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
10
Screw WPL 4393833 Contact Us For Availability
10
Frame, Outer (White) WPL 8169471 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8169641 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
10
Frame, Outer (Almond) WPL 8169430 Contact Us For Availability
10
Frame, Outer (Black) WPL 8184593 Contact Us For Availability
10
Switch, Micro (3) WPL 8204656 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI65346A8 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Motor, Fan WPL 8185211 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Chassis WPL 8185212 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
Filler Kit (Black) WPL 8171337 Contact Us For Availability
18
Filler Kit (White) WPL 8171336 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Hardware, Installation WPL 8169768 Contact Us For Availability
18
Filler Kit (Biscut) WPL 8171338 Contact Us For Availability
18
Filler Kit (Almond) WPL 8171570 Contact Us For Availability
18
Wall Template WPL 8183743 Contact Us For Availability
18
Upper Template WPL 8183985 Contact Us For Availability
18
Miscellaneous WPL ARI65347A8 Contact Us For Availability
18
ACCESSORY PARTS WPL ARI65348A6 Contact Us For Availability
18
Cushion, Mtr WPL 8169569 Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
20
Plate, Damper WPL 4393874 Contact Us For Availability
21
Nut WPL 8184404 Contact Us For Availability
21
Transformer, H.V. WPL 8185252 Contact Us For Availability
22
Plate, Side (R) WPL 8204657 Contact Us For Availability
24
Rack WPL 8204725 Contact Us For Availability
25
Plate, Side (L) WPL 8204658 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
26
Thermostat/Bracket WPL 8184585 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
36
Screw WPL 4393839 Contact Us For Availability
× ![]()
