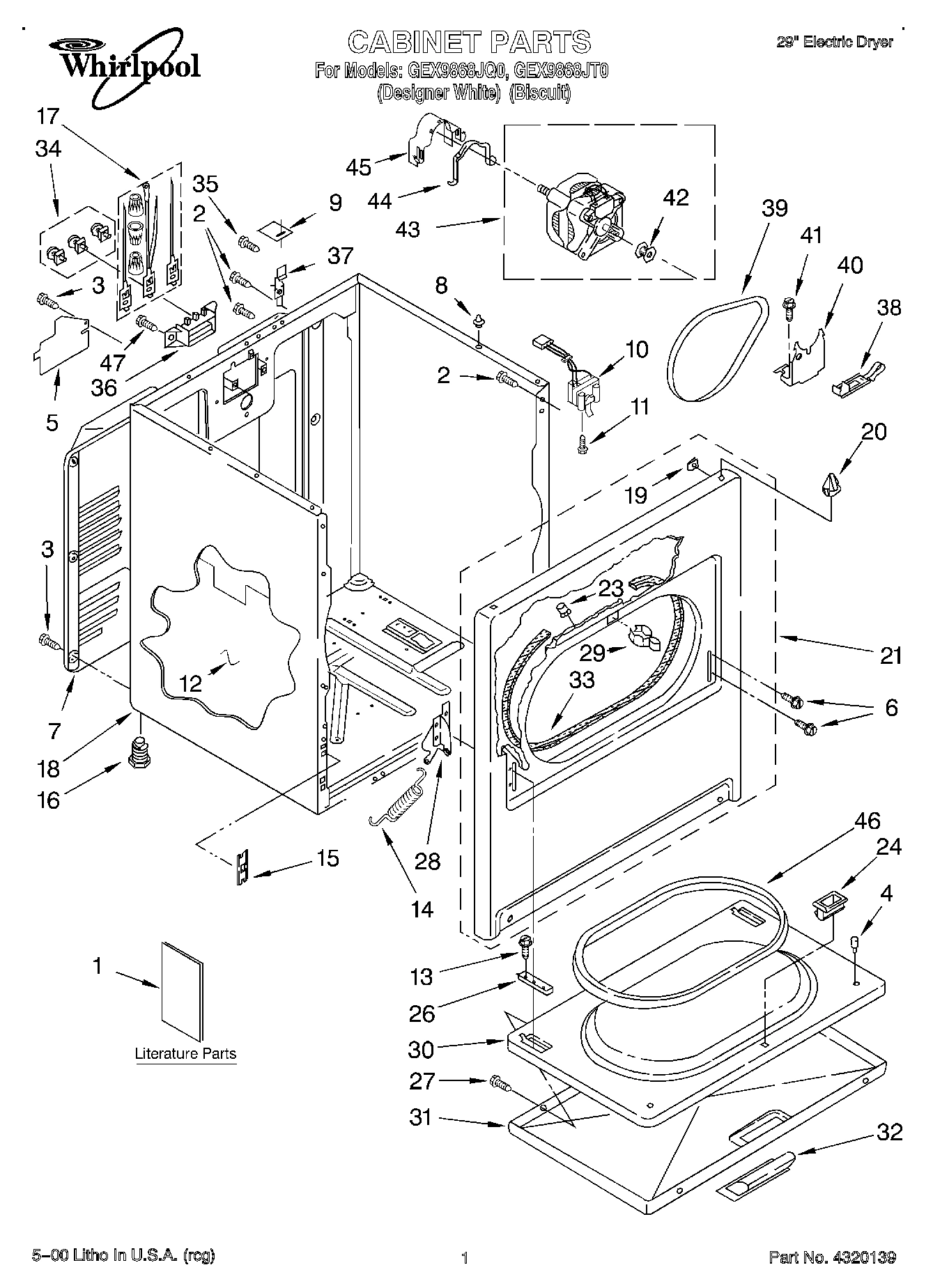

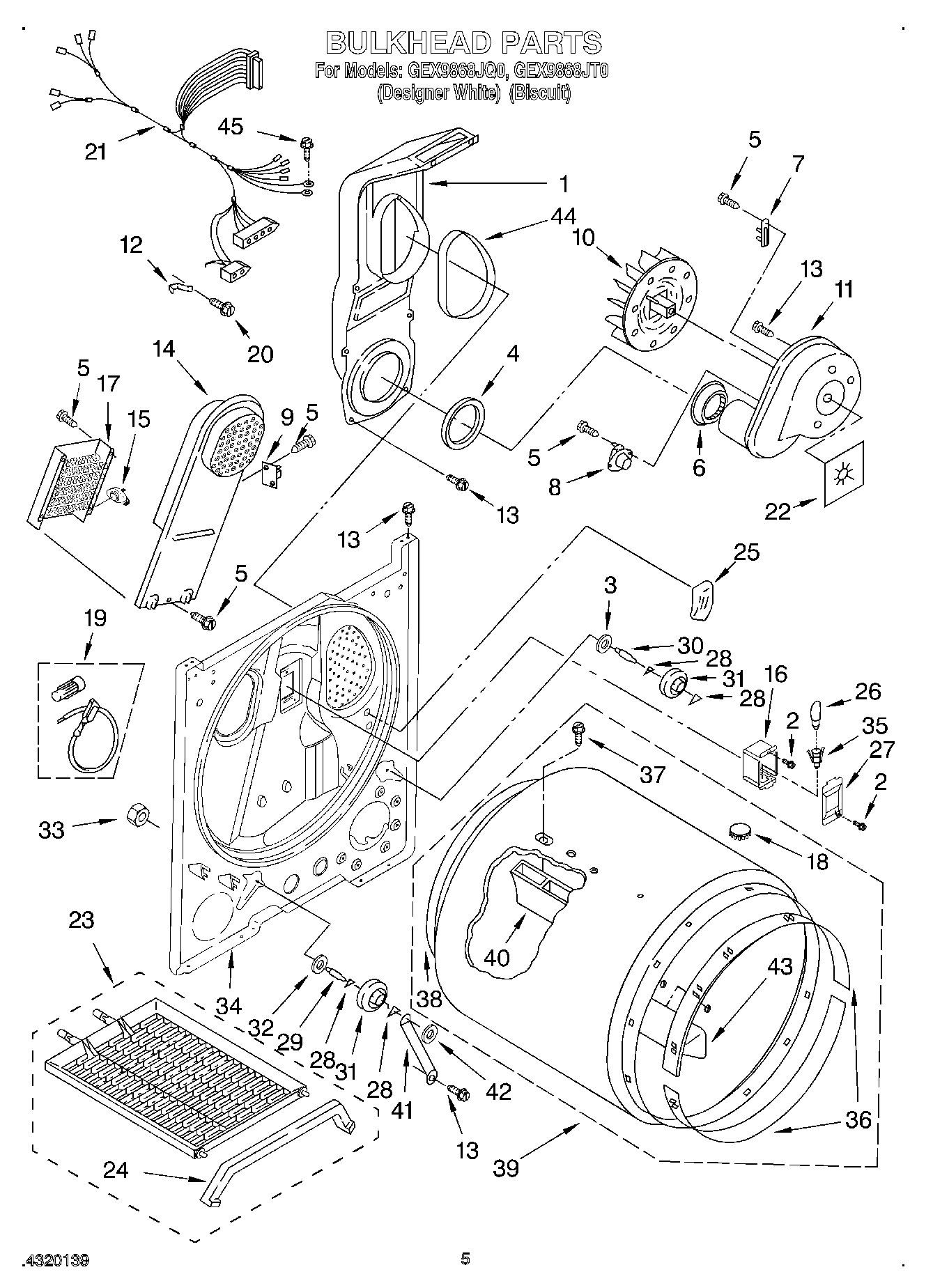

Model Whirlpool GEX9868JT0 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $66.93

2

Control Board WPL 3406654 Contact Us For Availability

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.98

4

Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability

4

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

5

Washer WPL 237446 Contact Us For Availability

6

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

7

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $9.06

7

Clip, Ground WPL 3355753 Contact Us For Availability

8

Cap, End (R.H.) (White) WPL 8271359 Contact Us For Availability

8

Cap, End (R.H.) (Biscuit) WPL 8271362 Contact Us For Availability

9

WP355214 Whirlpool Screw In Stock WPL WP355214 $3.33

10

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $24.66

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $18.21

11

Cover, Lint Screen (White) WPL 3977235 Contact Us For Availability

11

Cover, Lint Screen (Biscuit) WPL 3977237 Contact Us For Availability

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $4.52

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $4.52

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

15

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

15

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.32

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.28

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

Top (White) WPL 8271395 Contact Us For Availability

Top (Biscuit) WPL 8271397 Contact Us For Availability

17

279318 Whirlpool Terminal In Stock WPL 279318 $42.38

18

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

19

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.76

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

19

Bimper, Lint Lid WPL 297535 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

20

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $3.33

20

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $3.33

21

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

21

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

22

Seal, Blower WPL 3394196 Contact Us For Availability

22

Harness, Wiring WPL 3406614 Contact Us For Availability

23

3406839 Whirlpool Drying Rack In Stock WPL 3406839 $56.01

23

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

24

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

24

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.52

24

Bracket, Dryer Rack WPL 692989 Contact Us For Availability

25

Bracket, Control WPL 8274305 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

Panel, Control (White) WPL 8274398 Contact Us For Availability

26

Panel, Control (Biscuit) WPL 8274399 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $44.19

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $33.45

30

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

31

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

32

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

33

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

34

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $16.18

34

W10828905 Whirlpool Bulkhead OS1 Backorder WPL W10828905 $119.21

40

WP348780 Whirlpool Base In Stock WPL WP348780 $38.94

40

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $53.07

41

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

41

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

42

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

43

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

44

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.70

44

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

45

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

46

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43
