Model Gibson GEF352BHWA RANGE – Common Parts & Diagrams

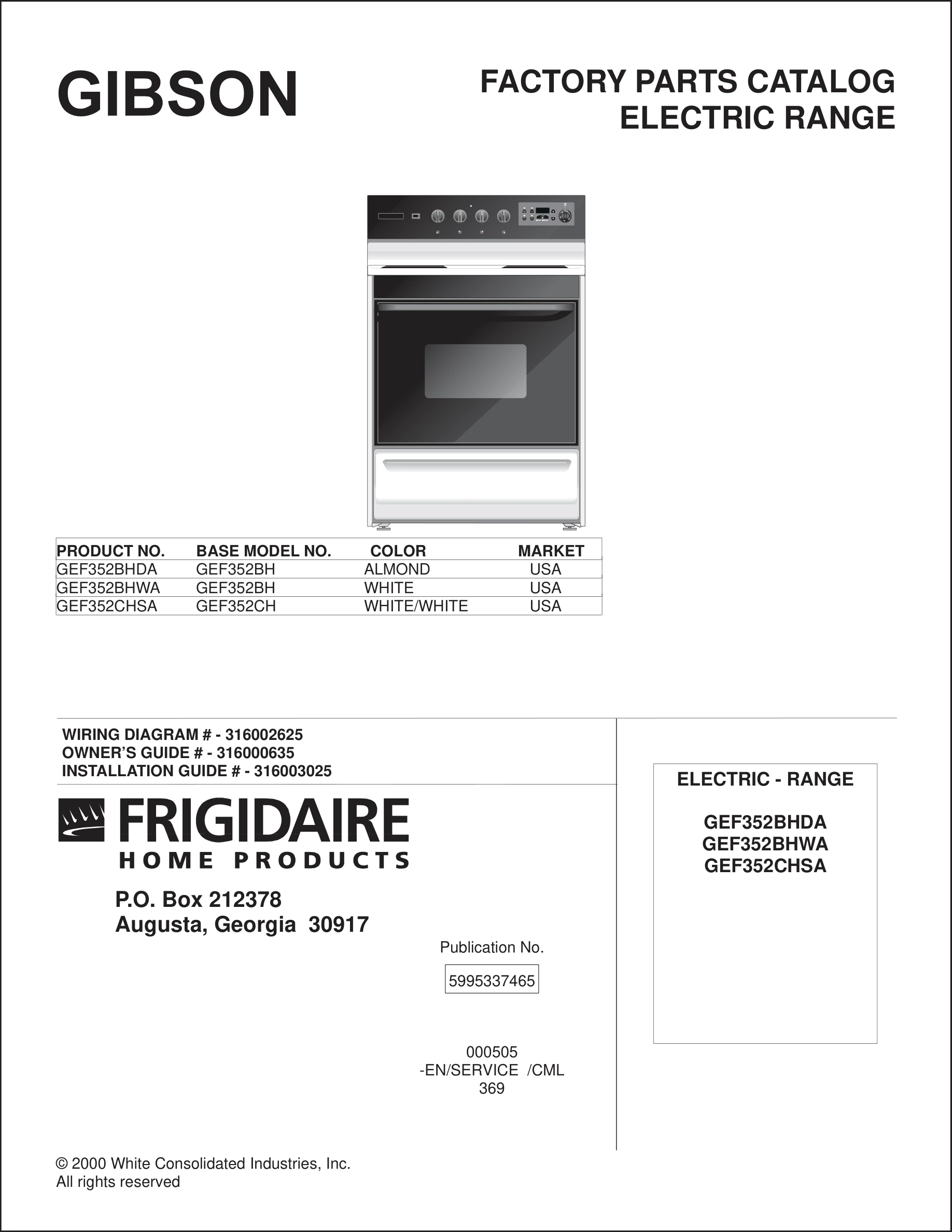

01 - COVER

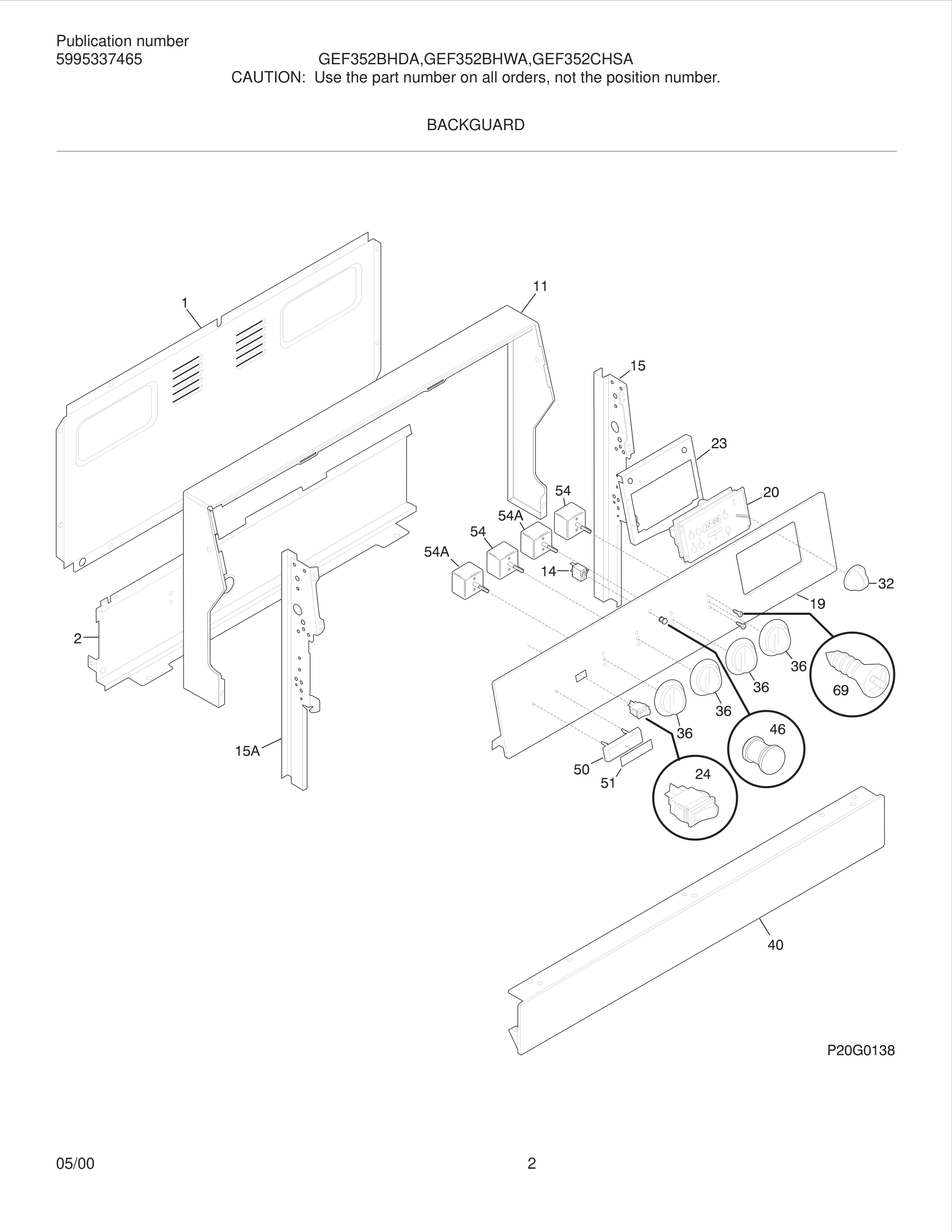

03 - BACKGUARD

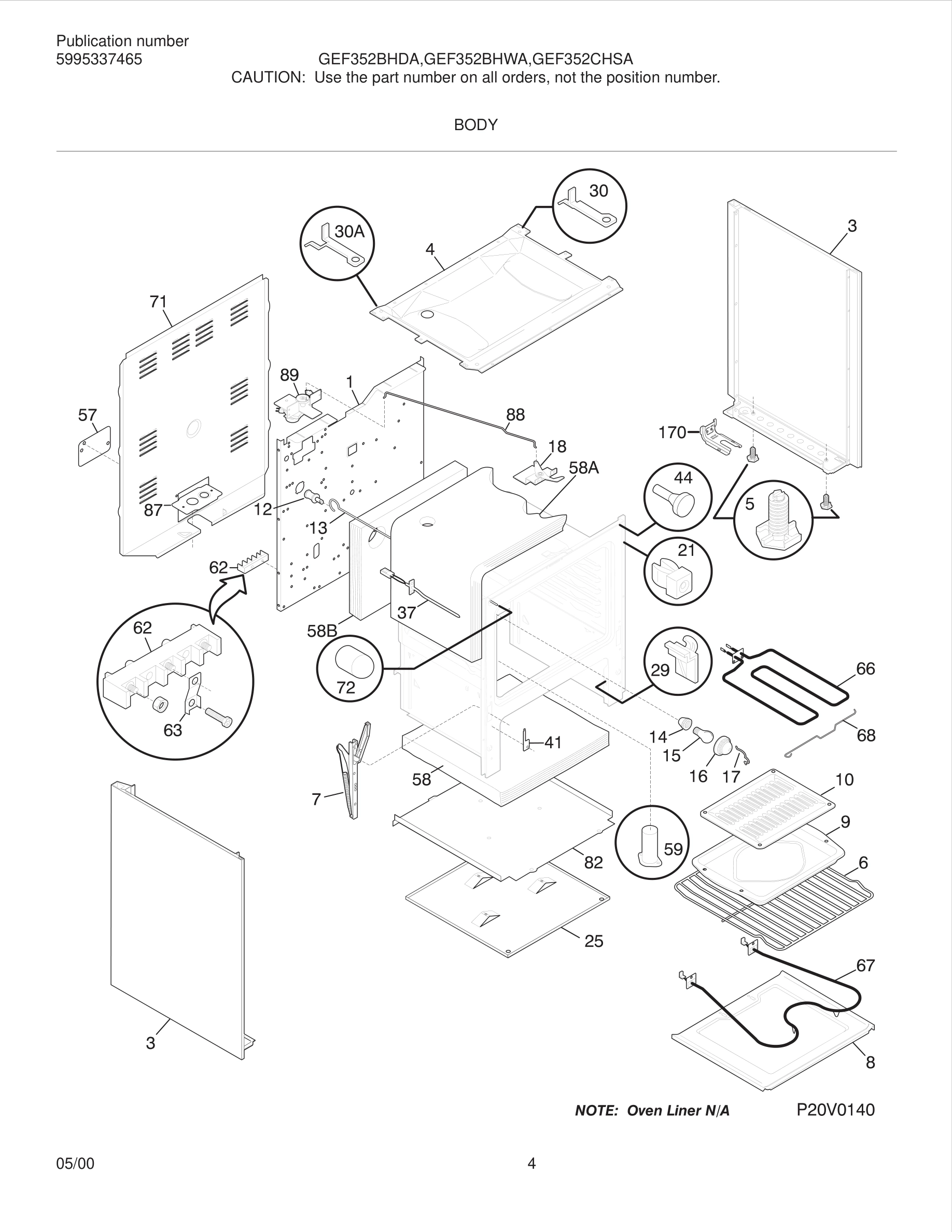

05 - BODY

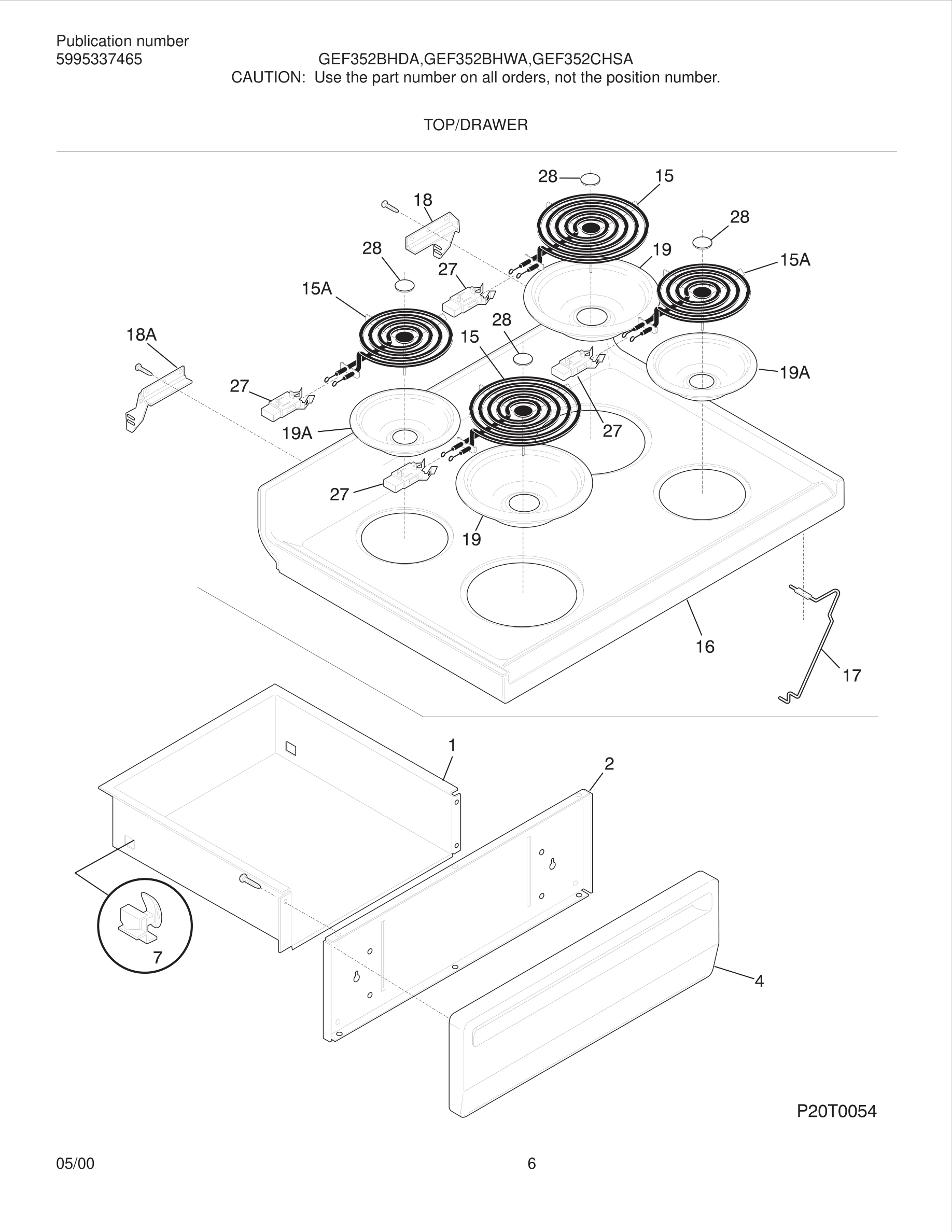

07 - TOP/DRAWER

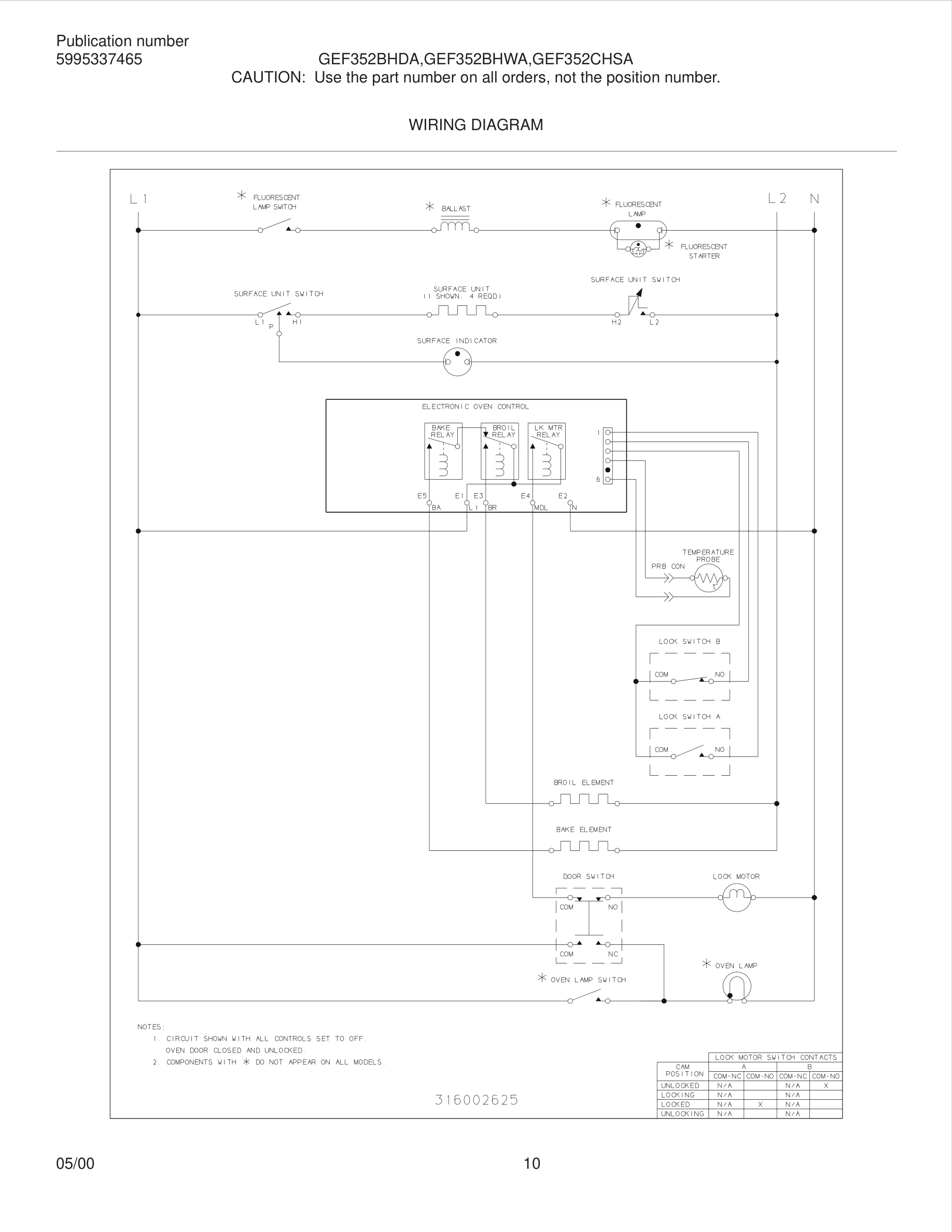

10 - WIRING DIAGRAM
Common parts from model Gibson GEF352BHWA RANGE
*
Screw,cup pt ,8-18 x 0.375 ,hinge WCI 316021108 Contact Us For Availability
*
Screw, waf hd sdr , 10-32 x 5/16 , (2) WCI 5303280311 Contact Us For Availability
*
Wiring Harness,surface element WCI 316001725 Contact Us For Availability
*
Spacer-drawer,(2) WCI 316089600 Contact Us For Availability
1
Drawer-utility WCI 316011501 Contact Us For Availability
2
Shield-panel WCI 3131975 Contact Us For Availability
4
Panel-drawer,white WCI 316084405 Contact Us For Availability
7
Hinge-oven door,(2) WCI 316007002 Contact Us For Availability
10
Screw-handle mtg,wafer head ,10-24T x 2 WCI 5303280308 Contact Us For Availability
15A#
Element-surface,small/ 6", 1250w,medallion in WCI 316115400 Contact Us For Availability
18
Hinge-main top,RH WCI 5303273062 Contact Us For Availability
18A
Hinge-main top,LH WCI 5303273063 Contact Us For Availability
20#
Clock/Timer,trimline WCI 316101103 Contact Us For Availability
20*
Overlay-clock,black WCI 316101505 Contact Us For Availability
21
Spacer-bodyside, (8) WCI 3014099 Contact Us For Availability
32
Knob-thermostat,black WCI 316101400 Contact Us For Availability
41
Cover-hinge cutout WCI 3131570 Contact Us For Availability
58A
Insulation, 2" ,oven wrapper WCI 316047708 Contact Us For Availability
58B
Insulation, 2" ,oven back WCI 316054200 Contact Us For Availability
59
Tube-oven vent WCI 316073600 Contact Us For Availability
62*
Insulator WCI 316085600 Contact Us For Availability
63
Plate-ground strap WCI 5301145190 Contact Us For Availability
71
Shield-rear wall WCI 316015805 Contact Us For Availability
72
Cover-light/switch rod WCI 5303285692 Contact Us For Availability
82
Shield-insulation WCI 5303289913 Contact Us For Availability
88
Rod-latch,auto WCI 316026400 Contact Us For Availability
89#
Motor-latch/lock WCI 316028101 Contact Us For Availability
× ![]()
