Model Whirlpool GDU4050XPW3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
06 - 3367743 PUMP AND MOTOR
03 - DOOR

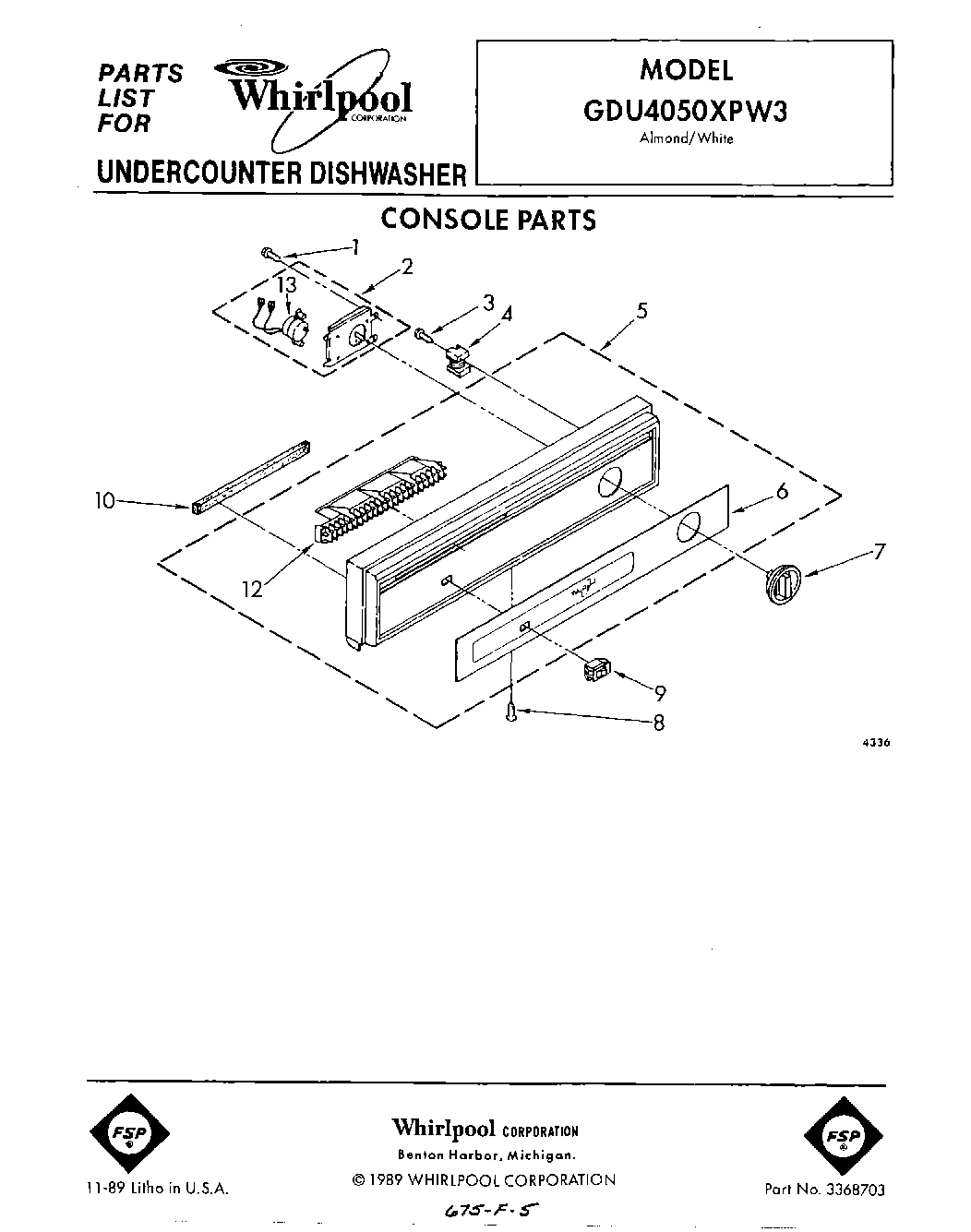

01 - CONSOLE

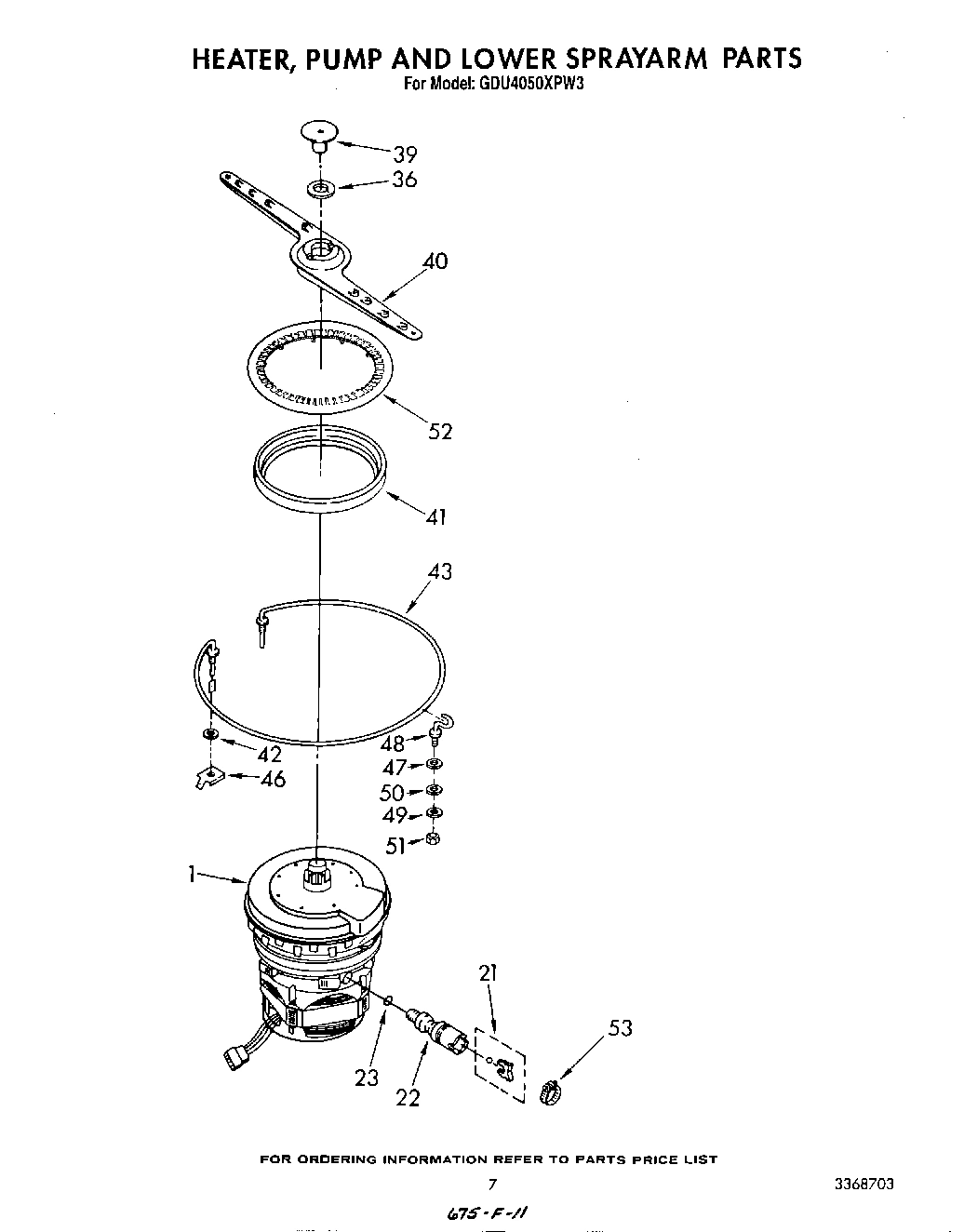

05 - HEATER, PUMP AND LOWER SPRAY ARM

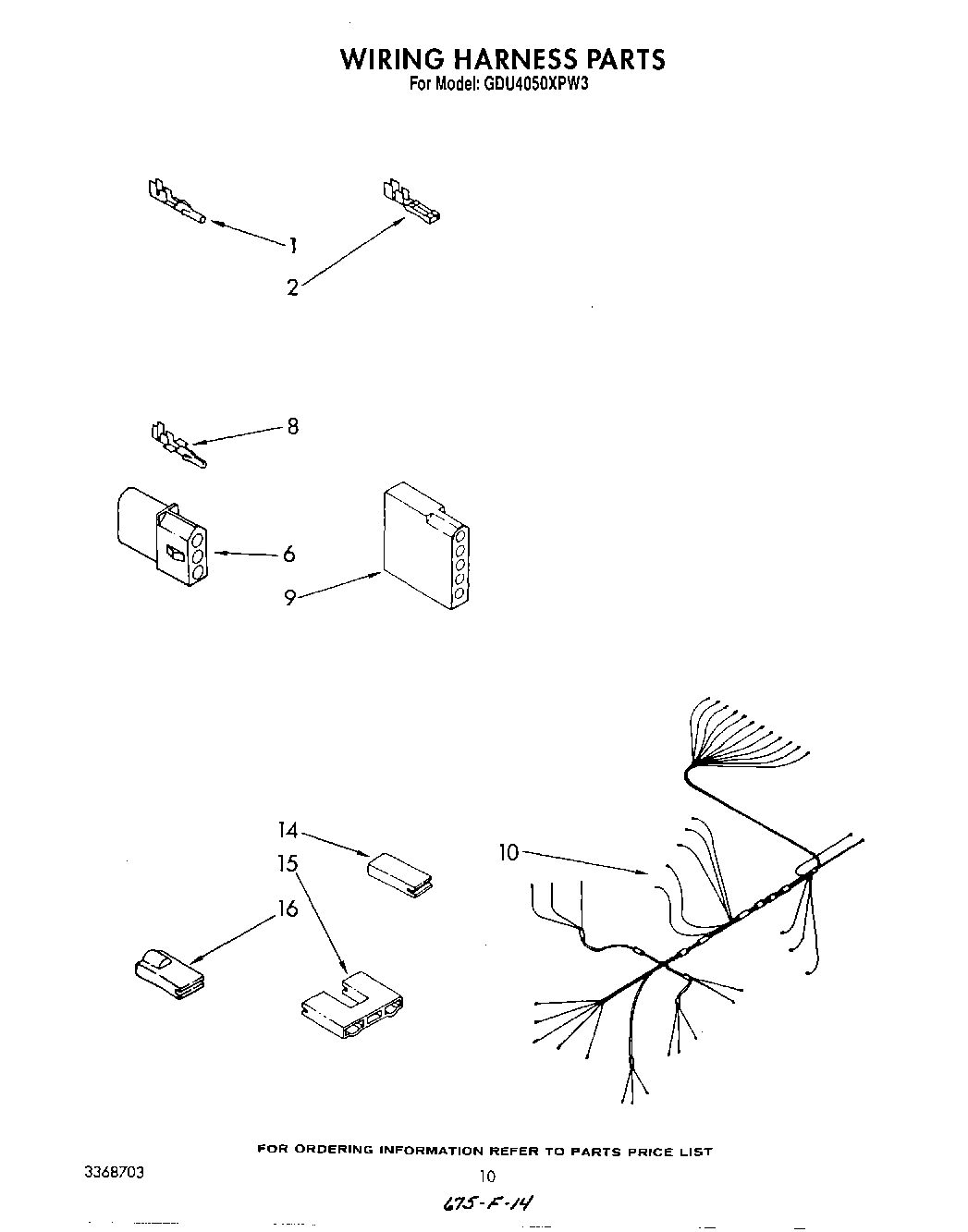

07 - WIRING HARNESS

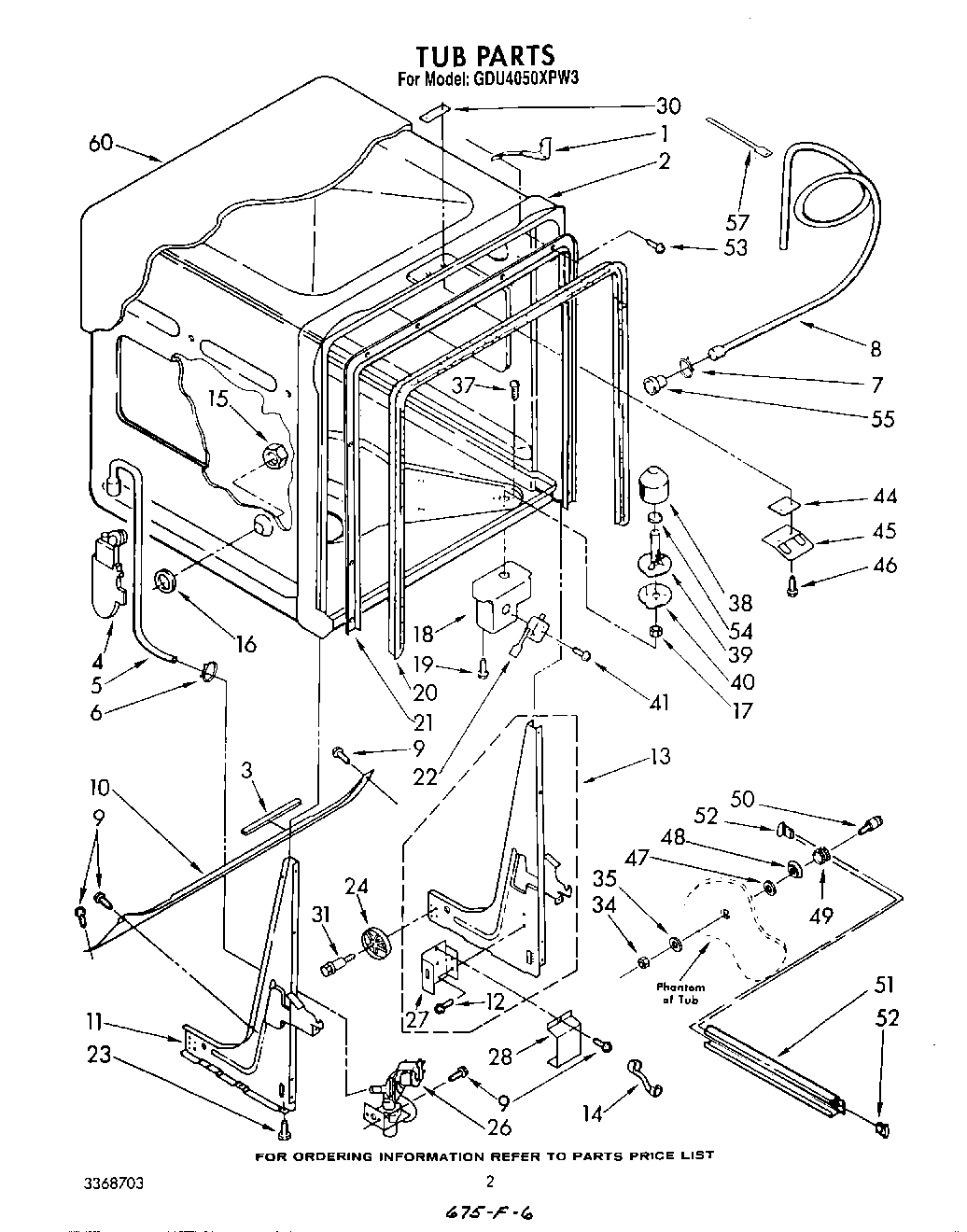

02 - TUB

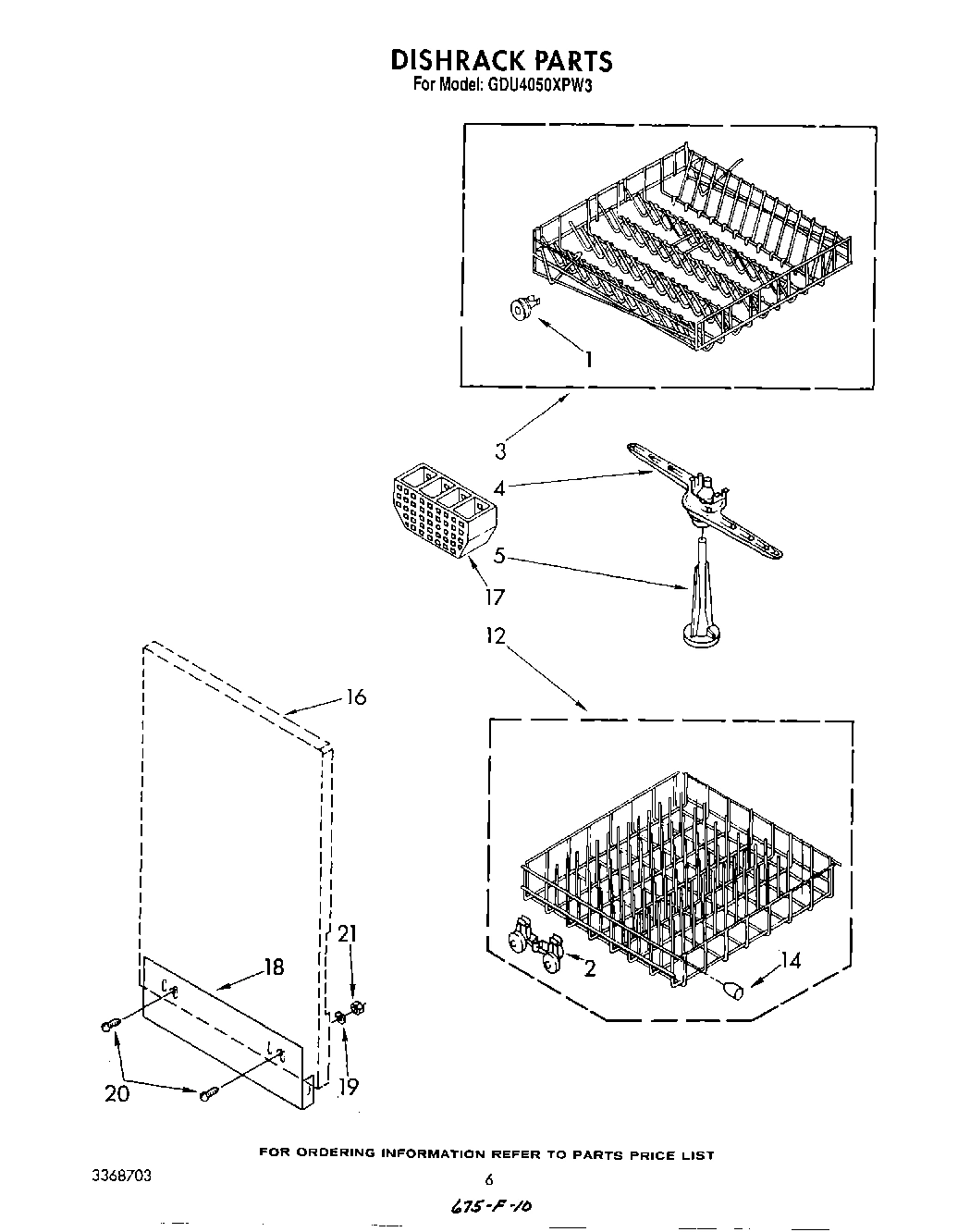

04 - DISHRACK
Common parts from model Whirlpool GDU4050XPW3 UNDERCOUNTER DISHWASHER
WPL LIT304282 WPL LIT304282 Contact Us For Availability
WPL LIT304830 WPL LIT304830 Contact Us For Availability
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3368703 WPL LIT3368703 Contact Us For Availability
1
Pump & Motor Assembly (Includes Item 41) WPL 3367443 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Timer WPL 304464 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
3
Screw, 7-18 x 1-3/8 WPL 304232 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Relay, Start WPL 304409 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
5
Tower WPL 304170 Contact Us For Availability
5
Hose, Inlet WPL 304670 Contact Us For Availability
5
Console WPL 304613 Contact Us For Availability
6
Insert, Decorative WPL 304834 Contact Us For Availability
6
Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability
7
Knob, Timer WPL 3367282 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
10
Baffle WPL 719860 Contact Us For Availability
10
Harness, Wiring WPL 304503 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
12
Grill, Vent WPL 304602 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 718178 Contact Us For Availability
13
Motor, Timer WPL 301074 Contact Us For Availability
13
Leg & Hinge Assembly, R.H. WPL 3367498 Contact Us For Availability
14
Connector Block WPL 301219 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Bumper WPL 304490 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
15
Nut, 7/8-16 WPL 713799 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Insulator .250 Terminal WPL 358736 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
Panel, Reversible WPL ARI64785A4 Contact Us For Availability
17
Nut, 1/8 WPL 717488 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
18
Panel, Lower Side WPL 3367549 Contact Us For Availability
19
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Screw, Lower Side Panel Mounting (2) WPL 9419621 Contact Us For Availability
21
Retainer WPL 3368002 Contact Us For Availability
21
Check Ball & Retainer WPL 675488 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
26
Valve, Water Inlet WPL 660995 Contact Us For Availability
27
Box, Terminal WPL 300067 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Screw, Shoulder WPL 3370031 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Bearing, Nozzle WPL 719576 Contact Us For Availability
37
Trim, Panel WPL 304047 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Cap, Nozzle WPL 3367910 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability
41
Screw, 4-40 x 9/16 WPL 302203 Contact Us For Availability
43
Heater WPL 660318 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
Washer, Retainer (2) WPL 717289 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Panel, Front WPL ARI64784A9 Contact Us For Availability
48
Support, Heater (2) WPL 717096 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Trim, Door R.H. WPL 3367206 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367207 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
53
Screw, 8-18 x 5/8 (10) WPL 3368008 Contact Us For Availability
54
Gasket (2) WPL 301662 Contact Us For Availability
55
Insert, Cup-Hose WPL 301656 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
60
Golden Harvest WPL 261890 Contact Us For Availability
60
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
60
Toast WPL 285365 Contact Us For Availability
60
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
60
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
60
Platinum (Uncut) WPL 285368 Contact Us For Availability
60
WPL 675476 WPL 675476 Contact Us For Availability
60
WPL 675506 WPL 675506 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799340 WPL 799340 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304408 Contact Us For Availability
90
Clip, Wire WPL 301857 Contact Us For Availability
92
Screw, 8 x 1/2 (4) WPL 3367288 Contact Us For Availability
93
Retainer, Clip WPL 3367720 Contact Us For Availability
94
Shield, Harness WPL 303362 Contact Us For Availability
95
Screw, 8-18 x 5/8 WPL 303090 Contact Us For Availability
× ![]()
