Model Whirlpool GDU3024XLW0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

1
Plate, Perforated (Includes Illus. 5) (Also O
Plate, Perforated (Includes Illus. 5) (Also O WPL 302720 Contact Us For Availability
View on Model
1
Pump & Motor Assembly (Includes Illus. 41)
Pump & Motor Assembly (Includes Illus. 41) WPL 302740 Contact Us For Availability
View on Model
1

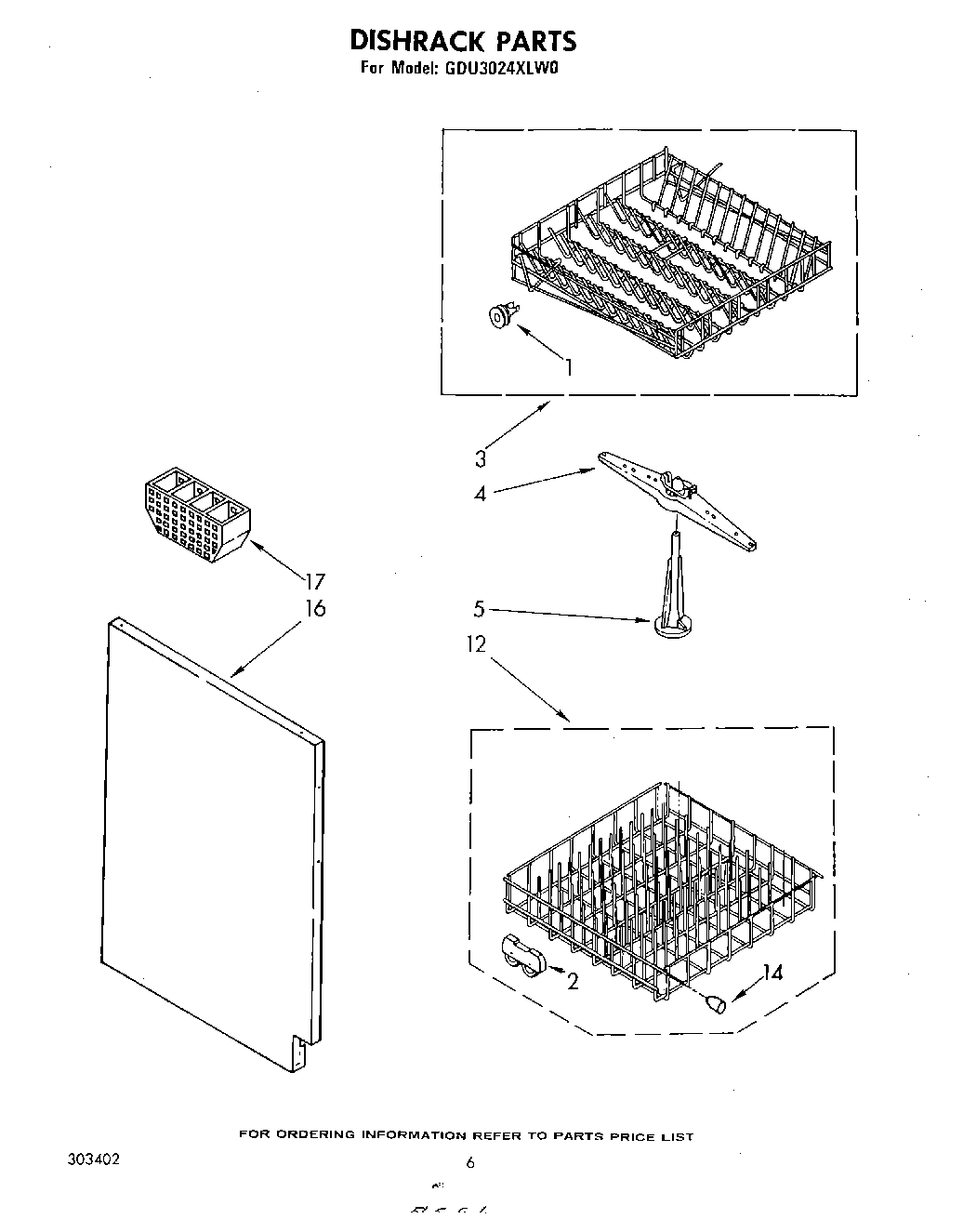

Wheel & Axle Assembly (4)
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
View on Model
1

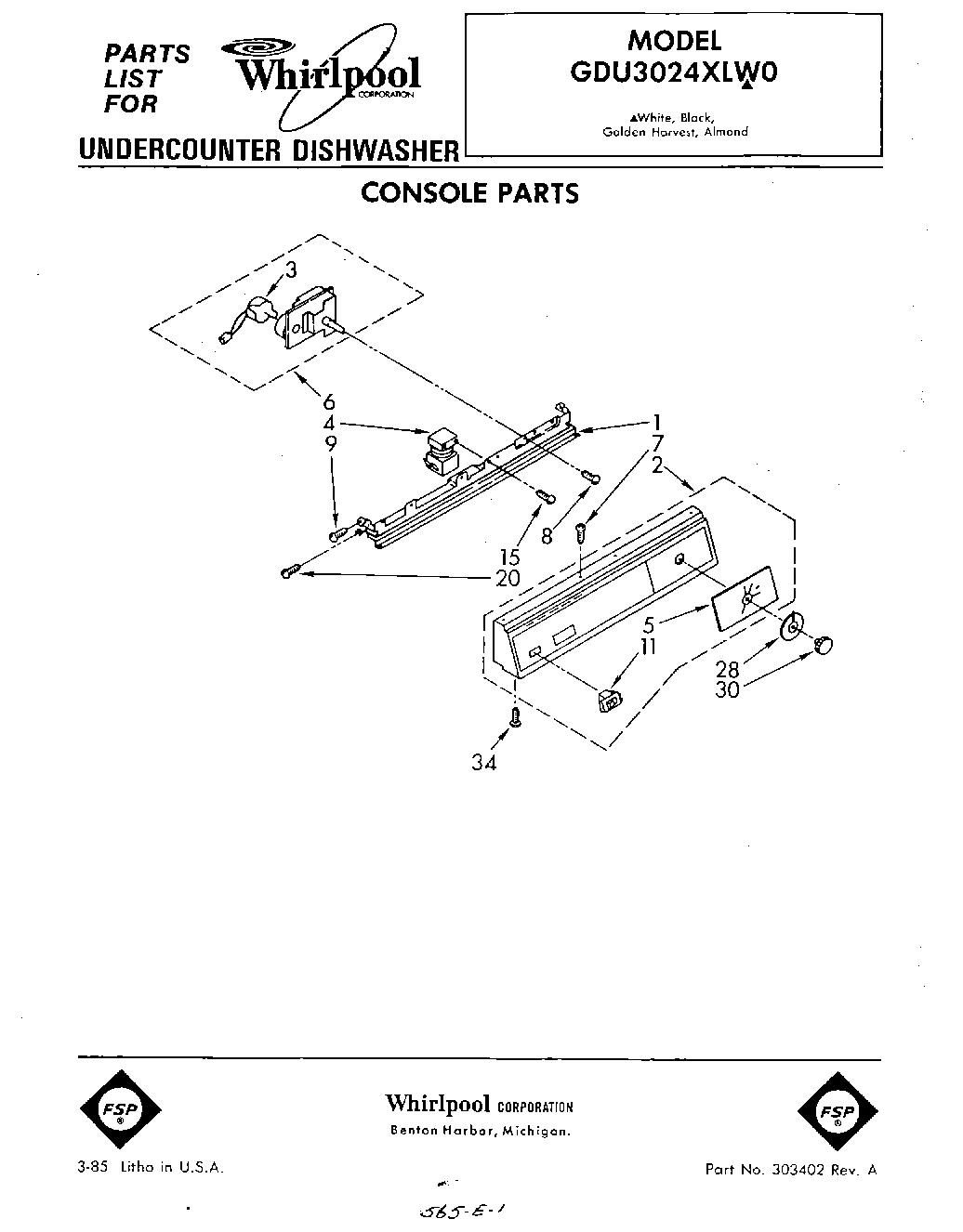

Bracket, Console
Bracket, Console WPL 300754 Contact Us For Availability
View on Model
1
Door, Inner (Includes Illus. 4)
Door, Inner (Includes Illus. 4) WPL 303266 Contact Us For Availability
View on Model
2
Base, Inlet (Includes Items 1 & 5) (Also Orde
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 302726 Contact Us For Availability
View on Model
2
Panel, Escutcheon
Panel, Escutcheon WPL 303462 Contact Us For Availability
View on Model
2
Support Door (L.H.)
Support Door (L.H.) WPL 303196 Contact Us For Availability
View on Model
2
Support, Door (R.H.)
Support, Door (R.H.) WPL 303197 Contact Us For Availability
View on Model
3
Motor, Timer
Motor, Timer WPL 301074 Contact Us For Availability
View on Model
3
Gasket, Door
Gasket, Door WPL 717921 Contact Us For Availability
View on Model
4
Relay, Start (Alternate)
Relay, Start (Alternate) WPL 300516 Contact Us For Availability
View on Model
4
Relay, Start (Alternate)
Relay, Start (Alternate) WPL 301536 Contact Us For Availability
View on Model
4
Relay, Start (Alternate)
Relay, Start (Alternate) WPL 301620 Contact Us For Availability
View on Model
4
Liner, Door
Liner, Door WPL 303202 Contact Us For Availability
View on Model
5
Ball, Check
Ball, Check WPL 302709 Contact Us For Availability
View on Model
5
Tower
Tower WPL 302030 Contact Us For Availability
View on Model
5
Insert, Console
Insert, Console WPL 303251 Contact Us For Availability
View on Model
6
Timer
Timer WPL 302845 Contact Us For Availability
View on Model
7
Cover, Valve
Cover, Valve WPL 302721 Contact Us For Availability
View on Model
8
Valve Stem Kit (Includes Items 12, 13 & 22) S
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
View on Model
8
Screw (2)
Screw (2) WPL 339494 Contact Us For Availability
View on Model
8
Pin, Pivot (2)
Pin, Pivot (2) WPL 300234 Contact Us For Availability
View on Model
9
Separator Assembly (Includes Illus. 12, 13 &
Separator Assembly (Includes Illus. 12, 13 & WPL 302741 Contact Us For Availability
View on Model
9
Receptacle (5-Circuit)
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
View on Model
10
Screw, 8-18 x 1-5/8 St. Stl. (4)
Screw, 8-18 x 1-5/8 St. Stl. (4) WPL 302717 Contact Us For Availability
View on Model
10
Harness, Wiring
Harness, Wiring WPL 302344 Contact Us For Availability
View on Model
10
Screen, Vent
Screen, Vent WPL 300246 Contact Us For Availability
View on Model
12
Latch Assembly
Latch Assembly WPL 300235 Contact Us For Availability
View on Model
14
Outlet, Pump (Includes Illus. 13)
Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability
View on Model
14
Connector Block (Alternate)
Connector Block (Alternate) WPL 301219 Contact Us For Availability
View on Model
14
Bumper
Bumper WPL 303358 Contact Us For Availability
View on Model
14
Switch, Interlock (Alternate)
Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability
View on Model
14
Switch, Interlock (Alternate)
Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability
View on Model
15
Connector, Block (Alternate)
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
View on Model
15
Connector Block (Alternate)
Connector Block (Alternate) WPL 374230 Contact Us For Availability
View on Model
16
Gasket
Gasket WPL 713878 Contact Us For Availability
View on Model
16
Insulator .250 Terminal
Insulator .250 Terminal WPL 358736 Contact Us For Availability
View on Model
16
xPanel, Reversible Side
xPanel, Reversible Side WPL ARI64776A3 Contact Us For Availability
View on Model
17
Nut, 1/8 Self-Threading (1)
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
View on Model
18
Bracket, Overflow
Bracket, Overflow WPL 719342 Contact Us For Availability
View on Model
18
Bushing, Grind
Bushing, Grind WPL 302707 Contact Us For Availability
View on Model
20
Gasket (Alternate)
Gasket (Alternate) WPL 302090 Contact Us For Availability
View on Model
20
Gasket (Alternate)
Gasket (Alternate) WPL 302091 Contact Us For Availability
View on Model
20
Sleeve, Drain Impeller
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
View on Model
20
Screw, 8-18 x 5/8 (2)
Screw, 8-18 x 5/8 (2) WPL 303090 Contact Us For Availability
View on Model
21
Retainer (R.H.)
Retainer (R.H.) WPL 302093 Contact Us For Availability
View on Model
21
Retainer (L.H.)
Retainer (L.H.) WPL 302094 Contact Us For Availability
View on Model
21
Check Ball & Retainer
Check Ball & Retainer WPL 675488 Contact Us For Availability
View on Model
22
Switch, Pressure
Switch, Pressure WPL 301671 Contact Us For Availability
View on Model
22
Switch, Pressure (Alternate)
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
View on Model
22
Seal, Drain Cover
Seal, Drain Cover WPL 302704 Contact Us For Availability
View on Model
23
Cover, Drain (Also Order Illus. No. 30) See N
Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability
View on Model
23
``O`` Ring
``O`` Ring WPL 95080 Contact Us For Availability
View on Model
23
Plate, Toe
Plate, Toe WPL 303144 Contact Us For Availability
View on Model
25
Base, Pump (Includes Illus. 24) (Also Order I
Base, Pump (Includes Illus. 24) (Also Order I WPL 675516 Contact Us For Availability
View on Model
26
Valve, Water Inlet
Valve, Water Inlet WPL 300453 Contact Us For Availability
View on Model
26
Support, Pump Mounting (4)
Support, Pump Mounting (4) WPL 718260 Contact Us For Availability
View on Model
27
Box, Terminal
Box, Terminal WPL 300067 Contact Us For Availability
View on Model
28
Cover, Terminal Box
Cover, Terminal Box WPL 300068 Contact Us For Availability
View on Model
28
Motor (Includes Illus. 24 & 27) (Also Order I
Motor (Includes Illus. 24 & 27) (Also Order I WPL 675515 Contact Us For Availability
View on Model
28
Dial, Indicator
Dial, Indicator WPL 300996 Contact Us For Availability
View on Model
29
WPL  301817
WPL 301817 WPL 301817 Contact Us For Availability
View on Model
30
Nut, Twin Spring
Nut, Twin Spring WPL 303080 Contact Us For Availability
View on Model
30
WPL  675505
WPL 675505 WPL 675505 Contact Us For Availability
View on Model
30
Knob
Knob WPL 301010 Contact Us For Availability
View on Model
31
WPL  303918
WPL 303918 WPL 303918 Contact Us For Availability
View on Model
31
Screw, Shoulder
Screw, Shoulder WPL 302818 Contact Us For Availability
View on Model
32
Lever, Catch
Lever, Catch WPL 300119 Contact Us For Availability
View on Model
33
Seal, Lever
Seal, Lever WPL 300105 Contact Us For Availability
View on Model
34
Locknut, 10-32 (8)
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
View on Model
35
Washer (8)
Washer (8) WPL 717624 Contact Us For Availability
View on Model
35
Retainer
Retainer WPL 300104 Contact Us For Availability
View on Model
36
Bearing, Nozzle
Bearing, Nozzle WPL 719576 Contact Us For Availability
View on Model
38
Actuator
Actuator WPL 300109 Contact Us For Availability
View on Model
38
Float
Float WPL 718035 Contact Us For Availability
View on Model
39
Screw, 8 x 1/2 Hi-Lo Blunt Point (1)
Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability
View on Model
39
Standpipe, Overflow
Standpipe, Overflow WPL 719967 Contact Us For Availability
View on Model
39
Cap, Nozzle
Cap, Nozzle WPL 302737 Contact Us For Availability
View on Model
40
Gasket, Overflow
Gasket, Overflow WPL 719966 Contact Us For Availability
View on Model
40
Spray Arm, Lower
Spray Arm, Lower WPL 302767 Contact Us For Availability
View on Model
41
Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut
Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability
View on Model
41
Screw, 6-32 x 1 (1)
Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability
View on Model
43
Heater (Alternate)
Heater (Alternate) WPL 302113 Contact Us For Availability
View on Model
43
Heater (Alternate)
Heater (Alternate) WPL 302562 Contact Us For Availability
View on Model
43
Heater (Alternate)
Heater (Alternate) WPL 717141 Contact Us For Availability
View on Model
43
Heater (Alternate)
Heater (Alternate) WPL 719687 Contact Us For Availability
View on Model
44
Shim
Shim WPL 712302 Contact Us For Availability
View on Model
45
Strike
Strike WPL 300233 Contact Us For Availability
View on Model
46
Nut, 7/16 x 20 (2)
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
View on Model
47
Washer (8)
Washer (8) WPL 718750 Contact Us For Availability
View on Model
47
Washer, Retainer (2)
Washer, Retainer (2) WPL 717289 Contact Us For Availability
View on Model
47
Clip, Ground (2)
Clip, Ground (2) WPL 718533 Contact Us For Availability
View on Model
48
Washer, Cup (8)
Washer, Cup (8) WPL 718817 Contact Us For Availability
View on Model
48
Support, Heater (2)
Support, Heater (2) WPL 717096 Contact Us For Availability
View on Model
48
xPanel, Front
xPanel, Front WPL ARI64775A9 Contact Us For Availability
View on Model
49
Wheel Assembly (8)
Wheel Assembly (8) WPL 300844 Contact Us For Availability
View on Model
49
Washer (2)
Washer (2) WPL 711284 Contact Us For Availability
View on Model
49
Trim, Door (2)
Trim, Door (2) WPL 303501 Contact Us For Availability
View on Model
50
Screw, Shoulder (8)
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
View on Model
50
Washer (2)
Washer (2) WPL 14351 Contact Us For Availability
View on Model
51
Track (2)
Track (2) WPL 300846 Contact Us For Availability
View on Model
51
Nut, 10-32 (2)
Nut, 10-32 (2) WPL 9420162 Contact Us For Availability
View on Model
52
End Cap, Track (4)
End Cap, Track (4) WPL 300845 Contact Us For Availability
View on Model
52
Grate
Grate WPL 303469 Contact Us For Availability
View on Model
53
Screw, 8-18 x 5/8 Indented Hex Head
Screw, 8-18 x 5/8 Indented Hex Head WPL 719266 Contact Us For Availability
View on Model
54
WPL  301662
WPL 301662 WPL 301662 Contact Us For Availability
View on Model
55
WPL  301656
WPL 301656 WPL 301656 Contact Us For Availability
View on Model
59
WPL  301663
WPL 301663 WPL 301663 Contact Us For Availability
View on Model
77
Washer
Washer WPL 300237 Contact Us For Availability
View on Model

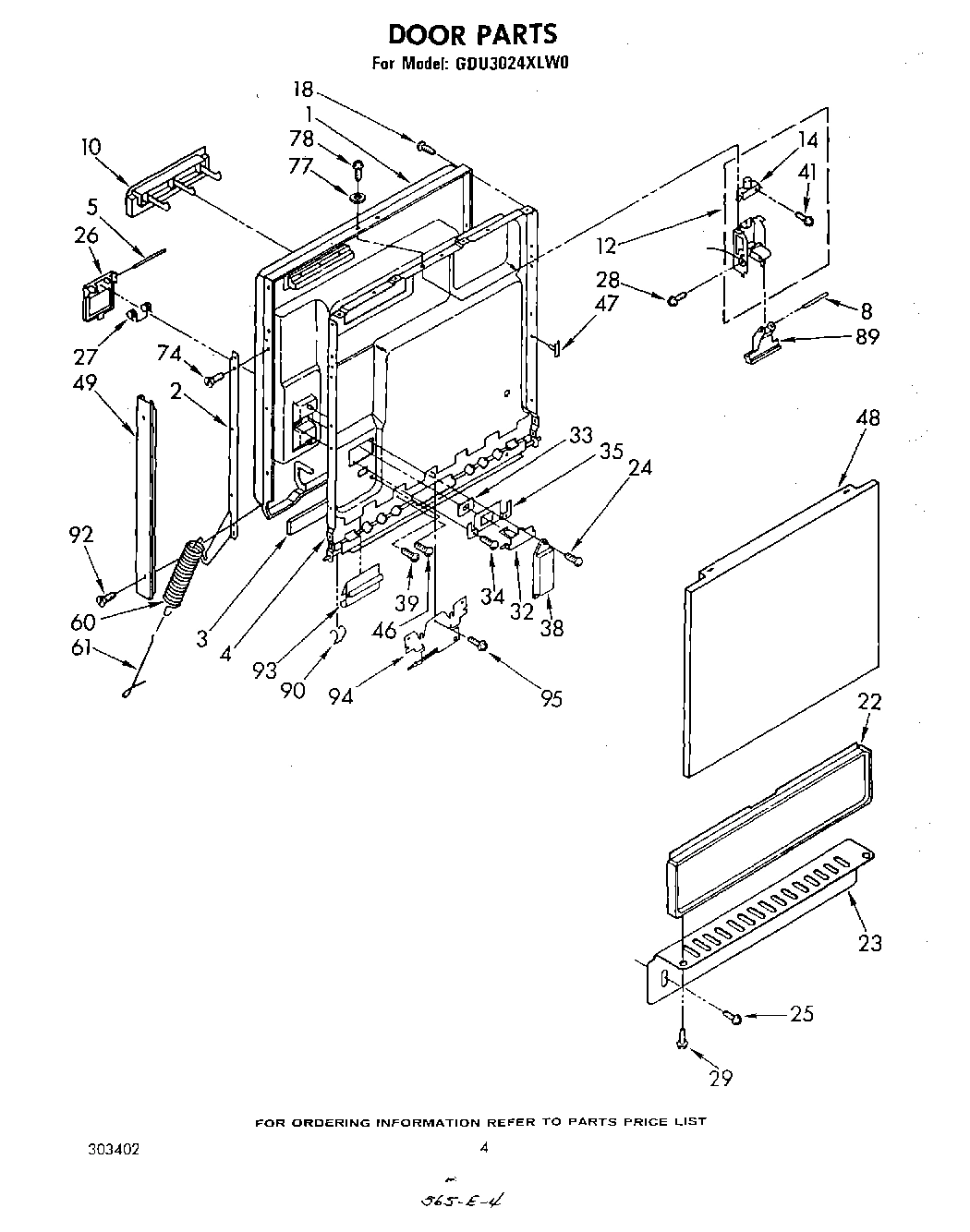

89
Lever, Release
Lever, Release WPL 300230 Contact Us For Availability
View on Model
90
Clip, Wire
Clip, Wire WPL 301857 Contact Us For Availability
View on Model
93
Retainer, Clip
Retainer, Clip WPL 303121 Contact Us For Availability
View on Model
94

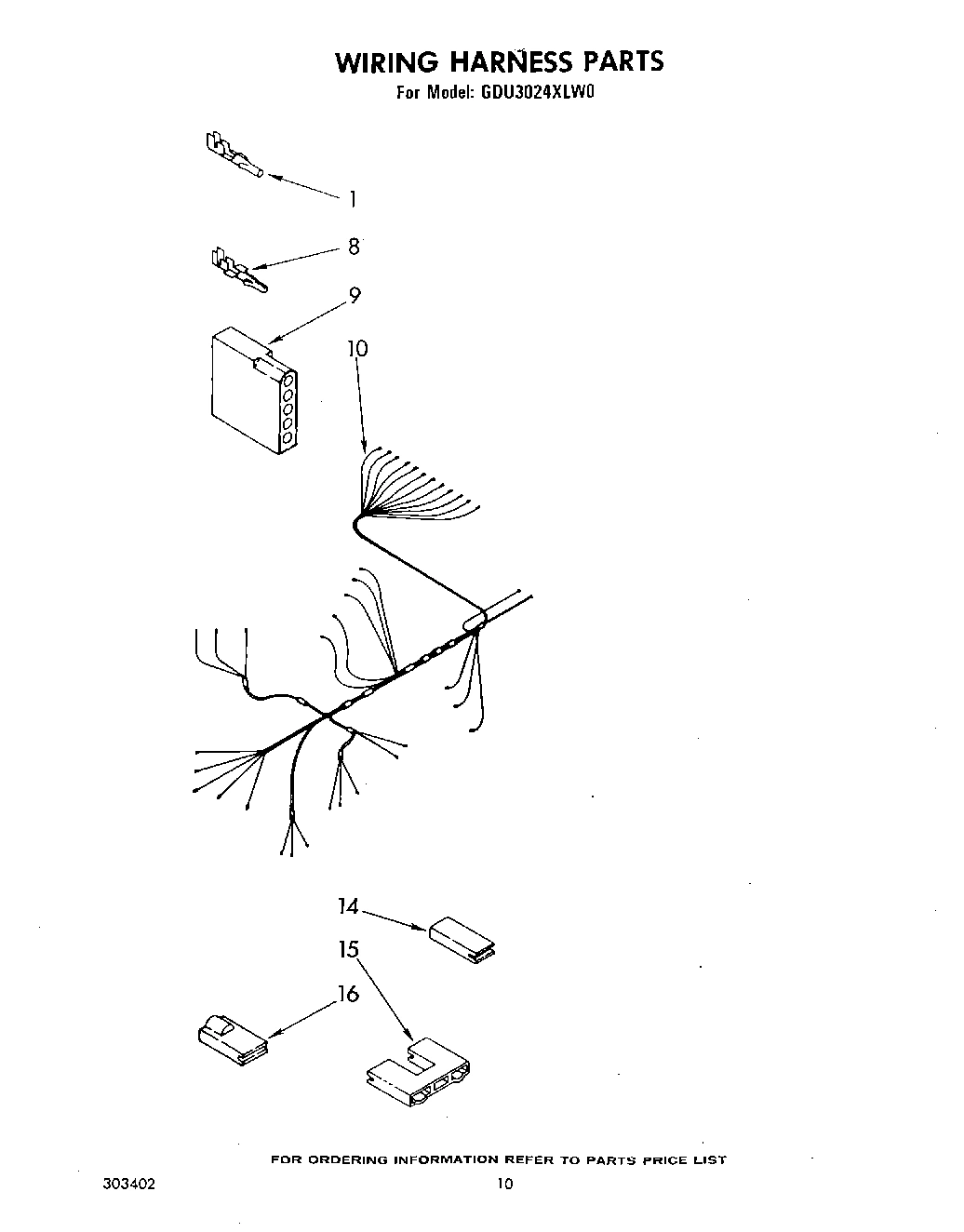

Shield, Harness
Shield, Harness WPL 303362 Contact Us For Availability
View on Model
