Model GE GDT226SIL0II Dishwasher – Common Parts & Diagrams

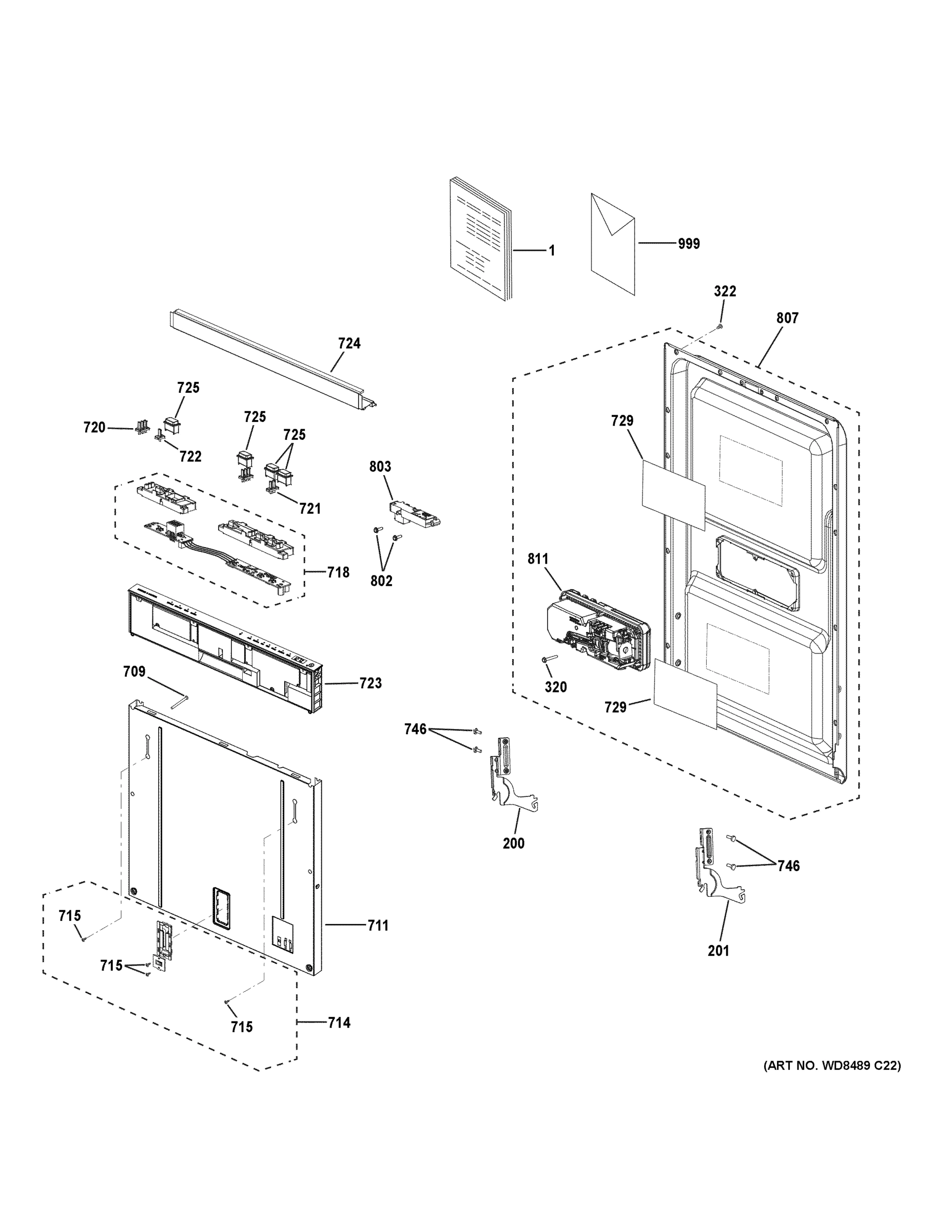

ESCUTCHEON & DOOR ASSEMBLY

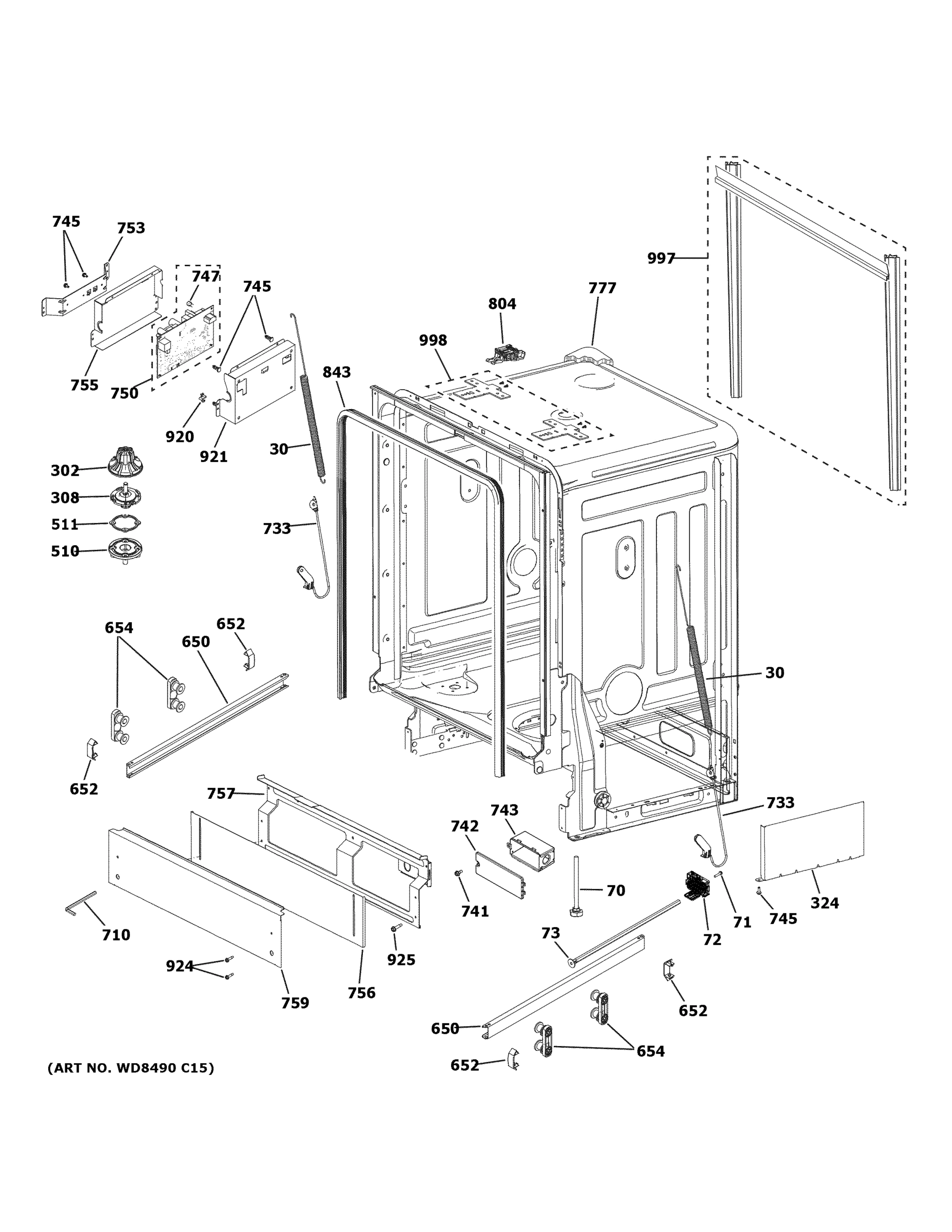

BODY PARTS

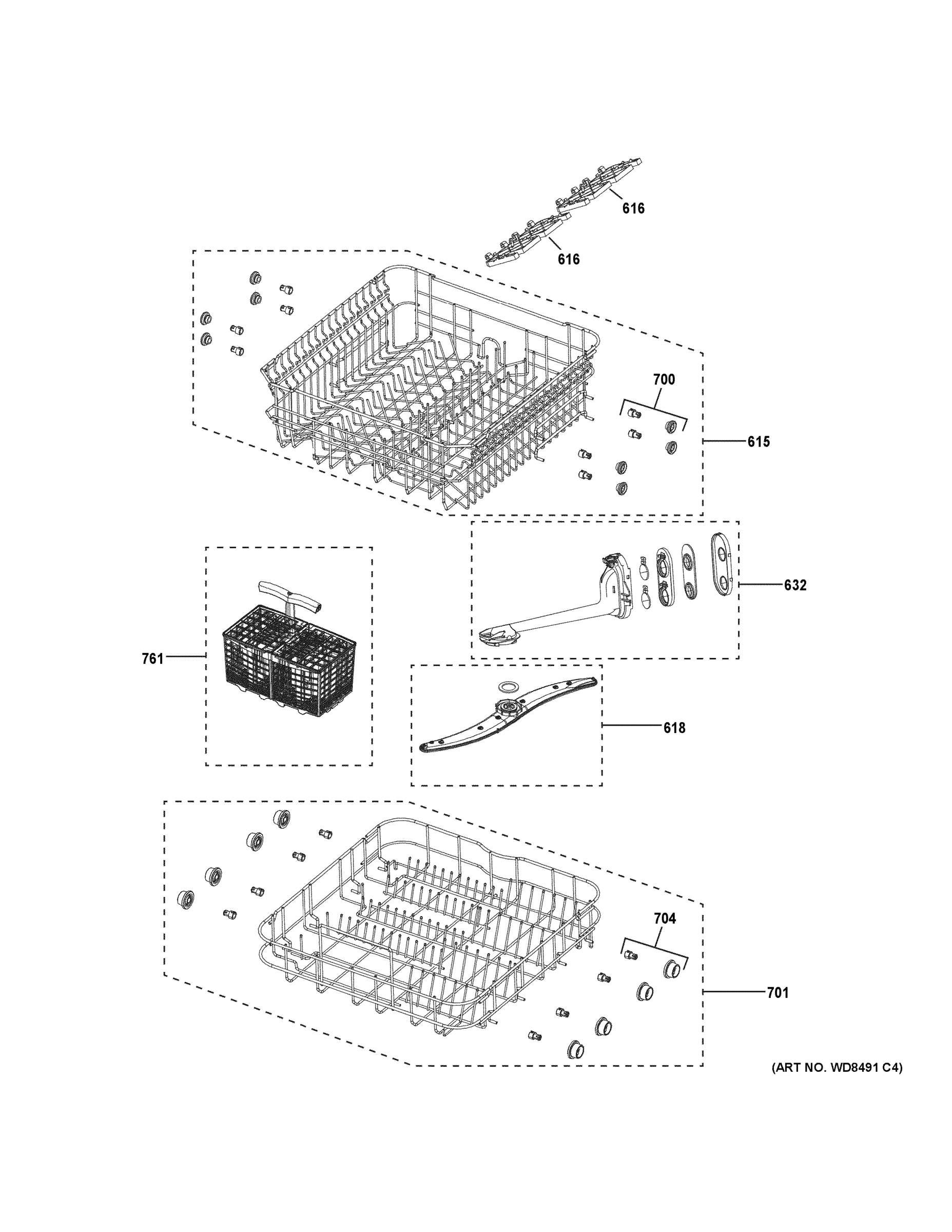

RACK ASSEMBLIES

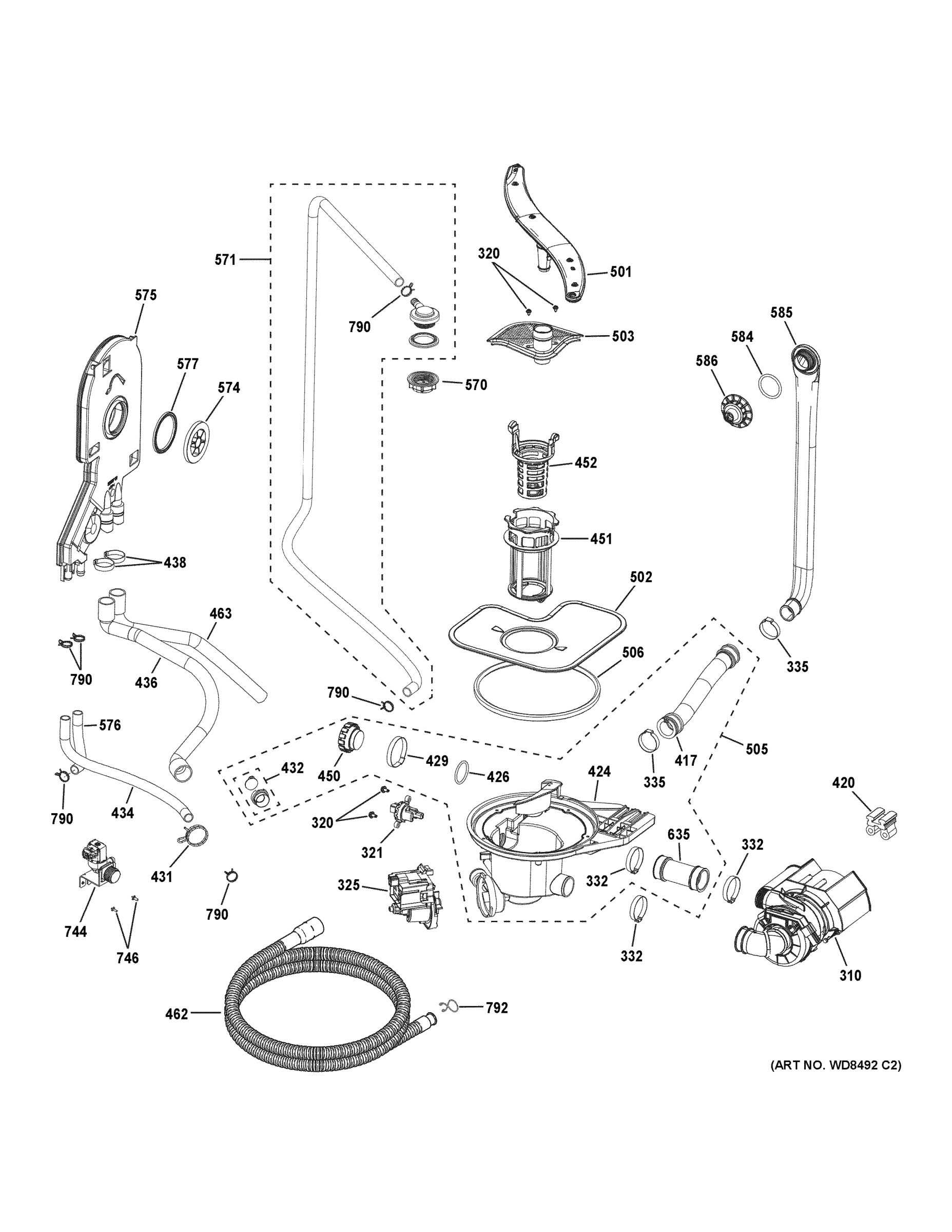

MOTOR-PUMP MECHANISM
Common parts from model GE GDT226SIL0II Dishwasher
70
LEVELING LEG GEN WD02X25806 Contact Us For Availability
310
WASH PUMP ASM GEN WD19X24705 Contact Us For Availability
320
SCREW GEN WD02X24690 Contact Us For Availability
321
TURBIDITY SENSOR GEN WD21X24700 Contact Us For Availability
325
DRAIN PUMP ASM GEN WD19X24651 Contact Us For Availability
417
MAIN CONDUIT HOSE GEN WD24X24675 Contact Us For Availability
420
WASH PUMP HANGER GEN WD01X24707 Contact Us For Availability
424
SUMP INSERT GEN WD08X24694 Contact Us For Availability
426
SUMP PORT PLUG GASKET GEN WD08X24696 Contact Us For Availability
431
SQUEEZE CLAMP LARGE GEN WD01X24723 Contact Us For Availability
432
CHECK VALVE AND HOUSING GEN WD15X24624 Contact Us For Availability
434
AIR BREAK TO SUMP FILL HOSE GEN WD24X24729 Contact Us For Availability
436
DRAIN PUMP DISCHARGE HOSE GEN WD24X24717 Contact Us For Availability
450
SUMP PORT PLUG GEN WD01X24695 Contact Us For Availability
451
FINE FILTER GEN WD12X24656 Contact Us For Availability
452
GLASS TRAP GEN WD12X24663 Contact Us For Availability
463
DRAIN HOSE GEN WD24X24649 Contact Us For Availability
501
LOWER SPRAY ARM GEN WD22X24672 Contact Us For Availability
502
PLASTIC COARSE FILTER GEN WD12X26378 Contact Us For Availability
503
LOWER SPRAY ARM BASE GEN WD12X24673 Contact Us For Availability
505
SUMP ASM GEN WD19X24692 Contact Us For Availability
506
SUMP GASKET GEN WD08X28058 Contact Us For Availability
511
FLOOD FLOAT STEM GASKET GEN WD08X24660 Contact Us For Availability
570
UPPER SPRAY NOZZLE GEN WD22X24704 Contact Us For Availability
571
UPPER SPRAY ASM GEN WD22X24753 Contact Us For Availability
574
WATER INLET NUT GEN WD02X24709 Contact Us For Availability
575
AIRBREAK FLOW METER ASM GEN WD12X24598 Contact Us For Availability
576
FILL HOSE GEN WD24X24599 Contact Us For Availability
577
WATER INLET NUT GASKET GEN WD08X24710 Contact Us For Availability
584
MAIN CONDUIT GASKET GEN WD08X24720 Contact Us For Availability
585
MAIN CONDUIT GEN WD12X24719 Contact Us For Availability
586
MID SPRAY DOCKING PORT GEN WD22X24722 Contact Us For Availability
615
UPPER RACK ASM GEN WD28X25179 Contact Us For Availability
616
CUP SHELF GEN WD12X24636 Contact Us For Availability
632
MID SPRAY ARM CONDUIT ASSEMBLY GEN WD22X25158 Contact Us For Availability
650
UPPER RACK SLIDE GEN WD30X25805 Contact Us For Availability
652
RACK SLIDE END CAP GEN WD12X24354 Contact Us For Availability
654
RACK SLIDE SUPPORT GEN WD30X24688 Contact Us For Availability
700
WHEEL STUD ASM UPPER RACK GEN WD12X24713 Contact Us For Availability
704
WHEEL STUD ASM LOWER RACK GEN WD12X24712 Contact Us For Availability
710
ADJUSTMENT WRENCH GEN WD02X28899 Contact Us For Availability
718
UI CONTROL ASM GEN WD21X28718 Contact Us For Availability
725
BUTTONS DORIAN GREY GEN WD09X24601 Contact Us For Availability
733
PULLEY CABLE ASSEMBLY GEN WD02X24746 Contact Us For Availability
741
GROUND SCREW GEN WH02X26236 Contact Us For Availability
742
JUNCTION BOX COVER GEN WD01X28880 Contact Us For Availability
743
JUNCTION BOX GEN WD01X28879 Contact Us For Availability
744
WATER VALVE GEN WD15X24711 Contact Us For Availability
745
SCREW GEN WJ01X23759 Contact Us For Availability
746
SCREW WATER VALVE GEN WD02X24617 Contact Us For Availability
750
MAIN CONTROL BOARD GEN WD21X24676 Contact Us For Availability
753
CONTROL BOX BRACKET GEN WD01X24634 Contact Us For Availability
755
CONTROL BOX FRONT GEN WD01X24635 Contact Us For Availability
756
ADJUSTABLE TOE KICK GEN WD27X28938 Contact Us For Availability
757
FRONT FRAME BRACE GEN WD30X28878 Contact Us For Availability
759
TOE KICK GEN WD27X28939 Contact Us For Availability
761
SILVERWARE BASKET AND LID GEN WD28X24747 Contact Us For Availability
777
TUB INSULATION BLANKET GEN WD30X26201 Contact Us For Availability
790
QUEEZE CLAMP SMALL GEN WD01X24620 Contact Us For Availability
792
DRAIN HOSE CLAMP GEN WD01X25898 Contact Us For Availability
803
DOOR LATCH GEN WD12X24644 Contact Us For Availability
804
DOOR STRIKER ASM GEN WD12X24648 Contact Us For Availability
807
INNER DOOR ASM GEN WD31X24740 Contact Us For Availability
811
DETERGENT MODULE GEN WD12X24637 Contact Us For Availability
843
TUB GASKET GEN WD08X24750 Contact Us For Availability
920
CONTROL BOARD CLIP GEN WD02X24632 Contact Us For Availability
921
CONTROL BOX BACK GEN WD01X24633 Contact Us For Availability
924
SCREW GEN WD02X24608 Contact Us For Availability
925
SCREW GROUND GEN WD02X24614 Contact Us For Availability
997
TRIM KIT GEN WD01X27198 Contact Us For Availability
998
24" MOUNTING BRACKETS KIT GEN WD02X25400 Contact Us For Availability
× ![]()
