Model Whirlpool GDP8500XXN3 PORTABLE DISHWASHER – Common Parts & Diagrams
04 - PUMP AND MOTOR
06 - CABINET

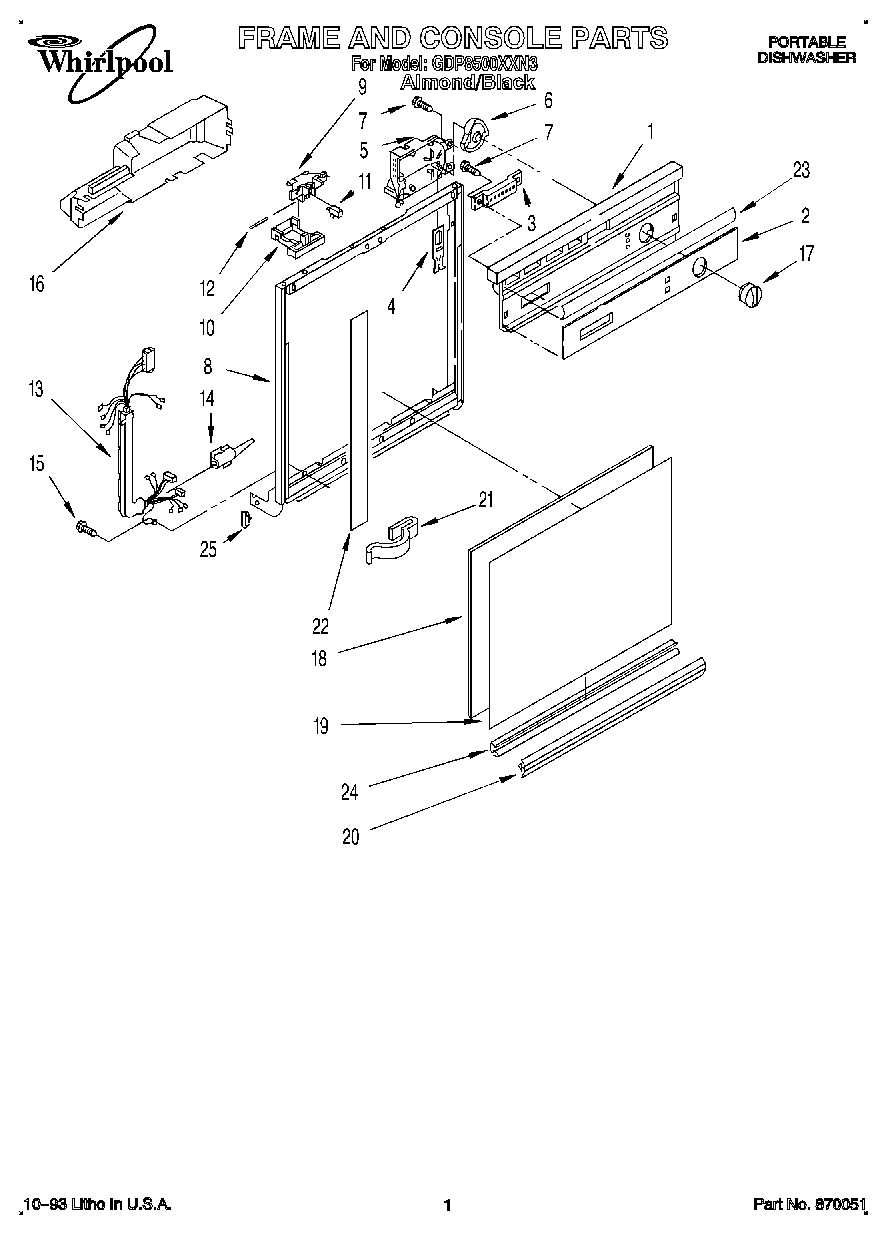

01 - FRAME AND CONSOLE

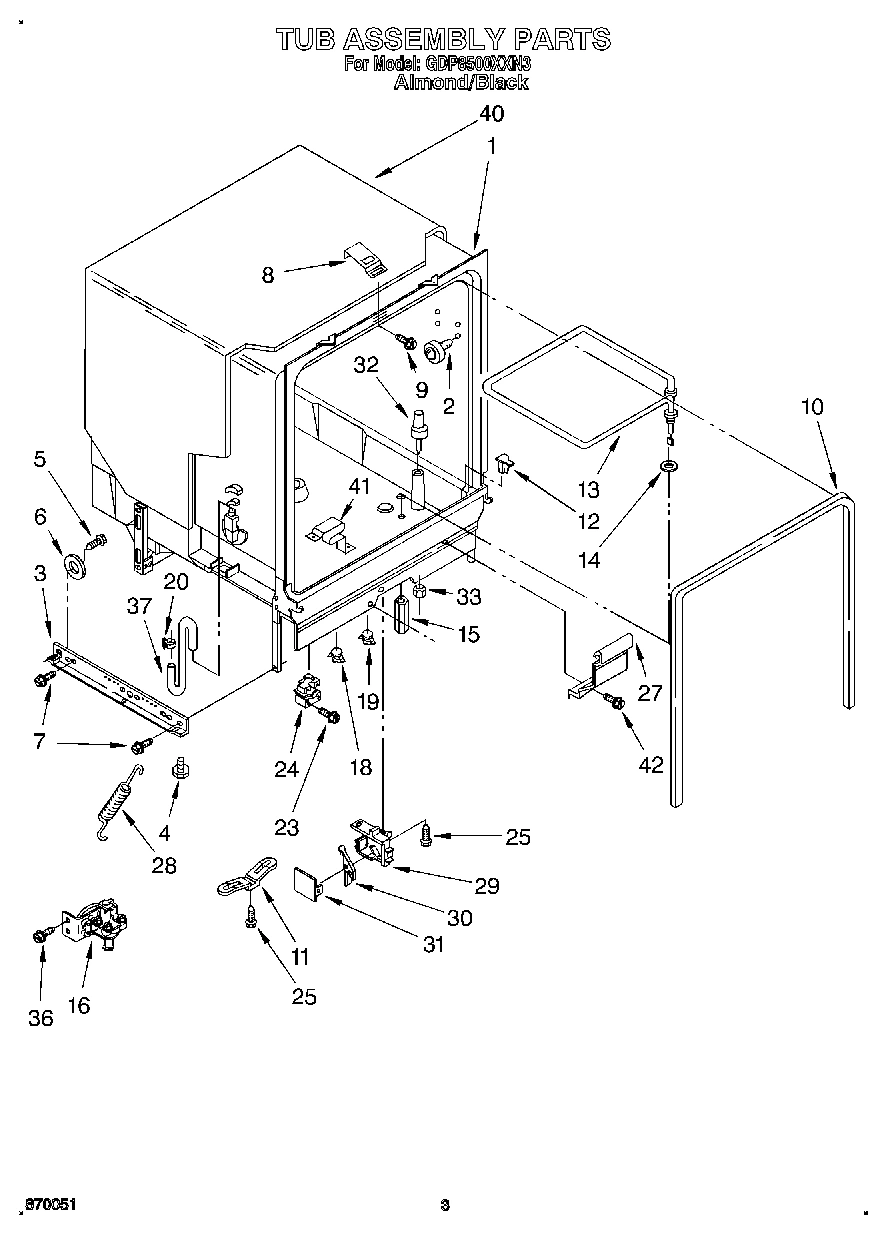

03 - TUB ASSEMBLY

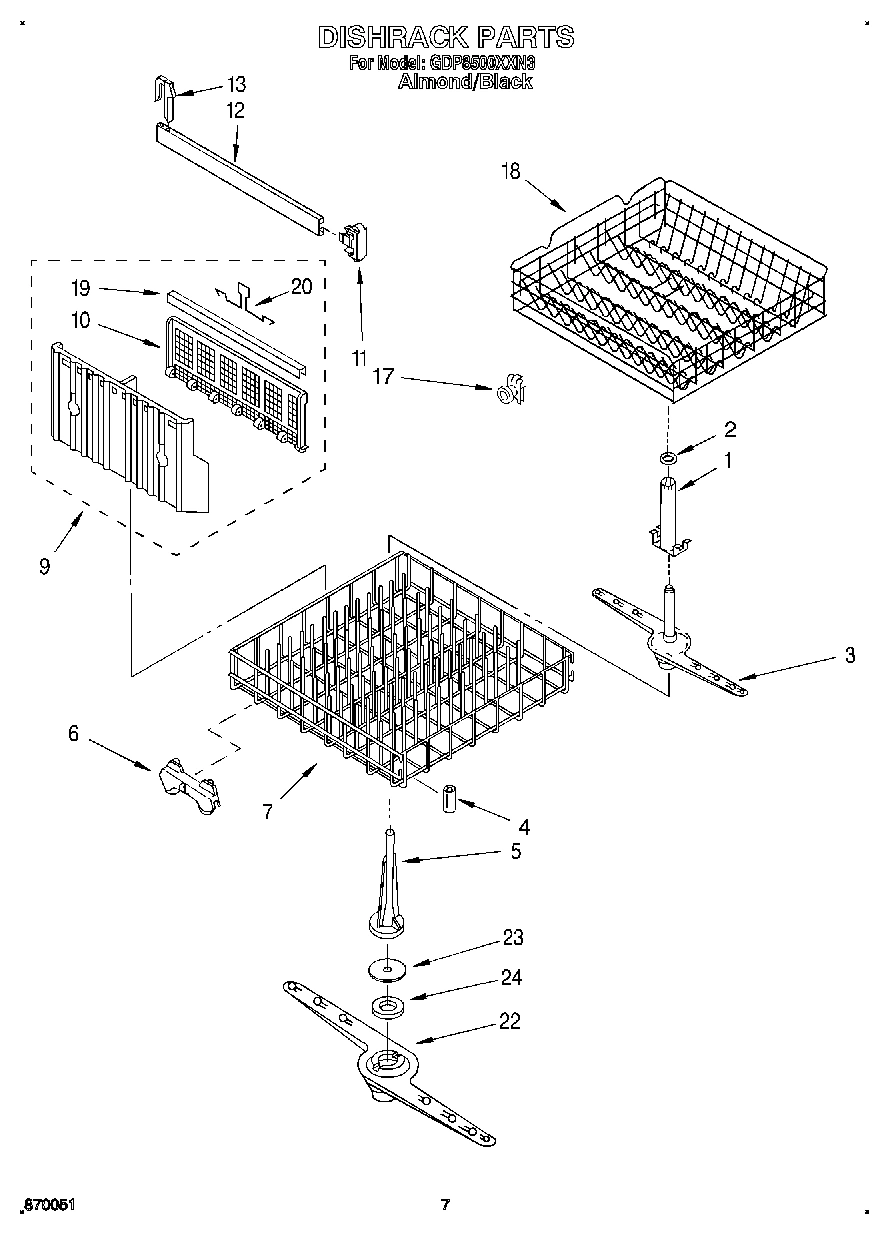

05 - DISHRACK

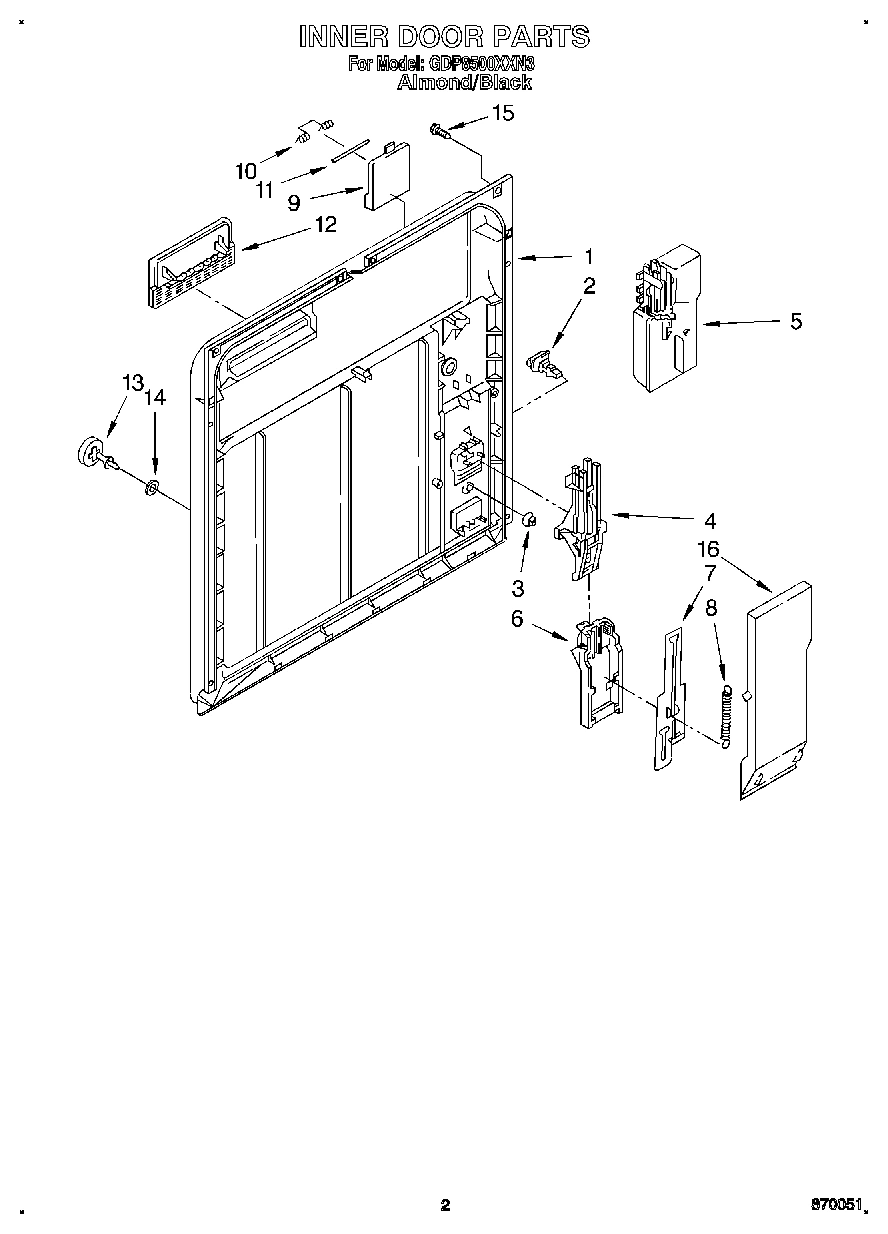

02 - INNER DOOR
Common parts from model Whirlpool GDP8500XXN3 PORTABLE DISHWASHER
Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
Guide, Use & Care WPL LIT3369270 Contact Us For Availability
W WPL LIT3370466 Contact Us For Availability
WPL LIT3372194 WPL LIT3372194 Contact Us For Availability
WPL LIT3374366 WPL LIT3374366 Contact Us For Availability
1
Console (Includes Item 2) WPL 3370310 Contact Us For Availability
1
Tub Assembly WPL 3370851 Contact Us For Availability
1
Support, Arm WPL 3367070 Contact Us For Availability
1
Inner Door (Also Order) WPL 3371481 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
2
Insert, Console WPL 3370309 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
3
Switch WPL 3369565 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
3
Spray Arm, Upper WPL 3367067 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
4
Bumper (2) WPL 304490 Contact Us For Availability
5
Tower, Pressure WPL 304170 Contact Us For Availability
5
Timer WPL 3371548 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
8
Housing, Hose WPL 3371343 Contact Us For Availability
8
Plate, Latch WPL 3372030 Contact Us For Availability
9
Cord, Power WPL 3371542 Contact Us For Availability
9
Screw, 8-32 WPL 3372029 Contact Us For Availability
9
Silverware Basket Assembly WPL 3369492 Contact Us For Availability
10
Cover, Basket WPL 3369489 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
11
Bracket, Thermostat WPL 3370555 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
13
Harness and Protector WPL 3370252 Contact Us For Availability
13
Heater WPL 3369416 Contact Us For Availability
13
Stop, Track (2) WPL 3369046 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Socket, Caster WPL 300450 Contact Us For Availability
16
Cover Timer WPL 3373367 Contact Us For Availability
17
Knob, Timer WPL 3368998 Contact Us For Availability
17
Wheel and Axle Assembly (4) WPL 3371581 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
19
Thermostat WPL 3373359 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Retainer, Panel WPL 3374010 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
22
Trim (2) WPL 3369586 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Trim, Console WPL 3369598 Contact Us For Availability
24
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
24
Channel, Retainer (Also Order Item No.20) WPL 3374015 Contact Us For Availability
24
Relay WPL 3371575 Contact Us For Availability
24
Leveler (Thinner) WPL 350941 Contact Us For Availability
24
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
24
Avocado WPL 4317926 Contact Us For Availability
24
Gold WPL 4317927 Contact Us For Availability
24
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
24
Toast WPL 4317930 Contact Us For Availability
24
Platinum WPL 4317931 Contact Us For Availability
24
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
24
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
24
Black (Uncut) WPL 799340 Contact Us For Availability
24
Almond (Uncut) WPL 978883 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Adapter WPL 715676 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Adapter WPL 3367946 Contact Us For Availability
29
Conversion Kit (To Convert From Portable To U WPL 4317856 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
37
Hose, Inlet WPL 3371030 Contact Us For Availability
41
Support, Heater WPL 3368987 Contact Us For Availability
× ![]()
