Model Maytag GDG482 GAS DRYER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - DOOR

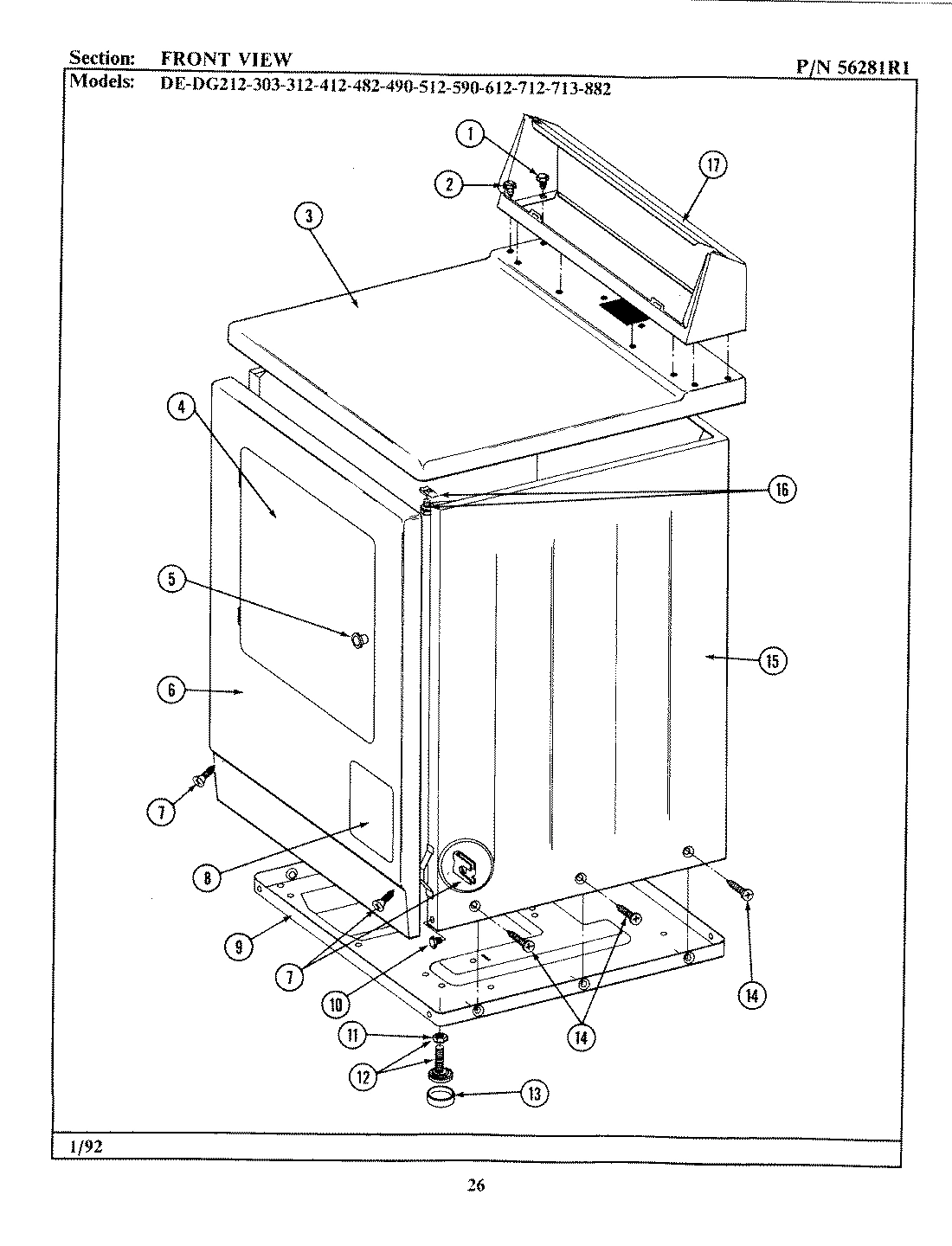

03 - FRONT VIEW

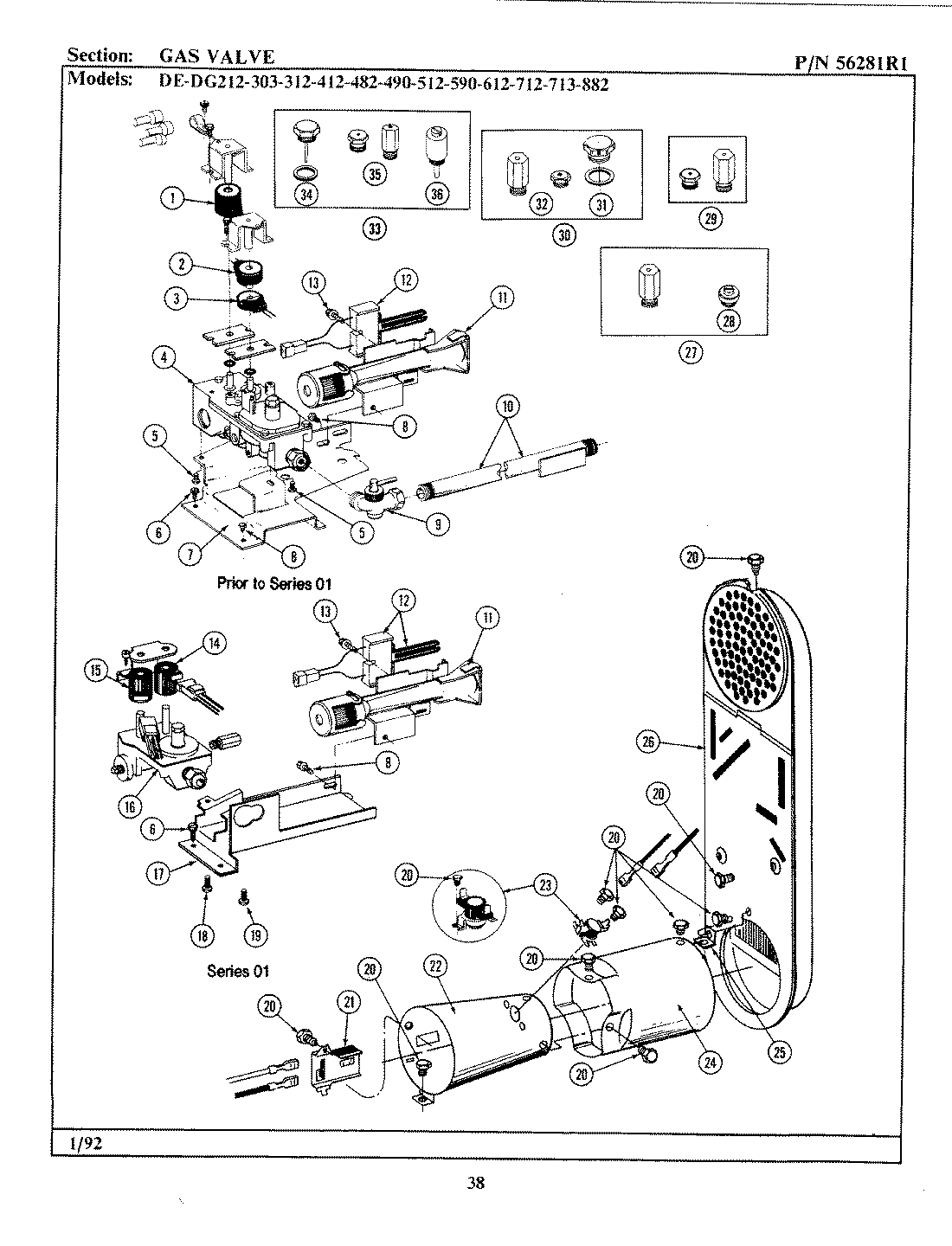

04 - GAS VALVE (ORIGINAL & SERIES 01)

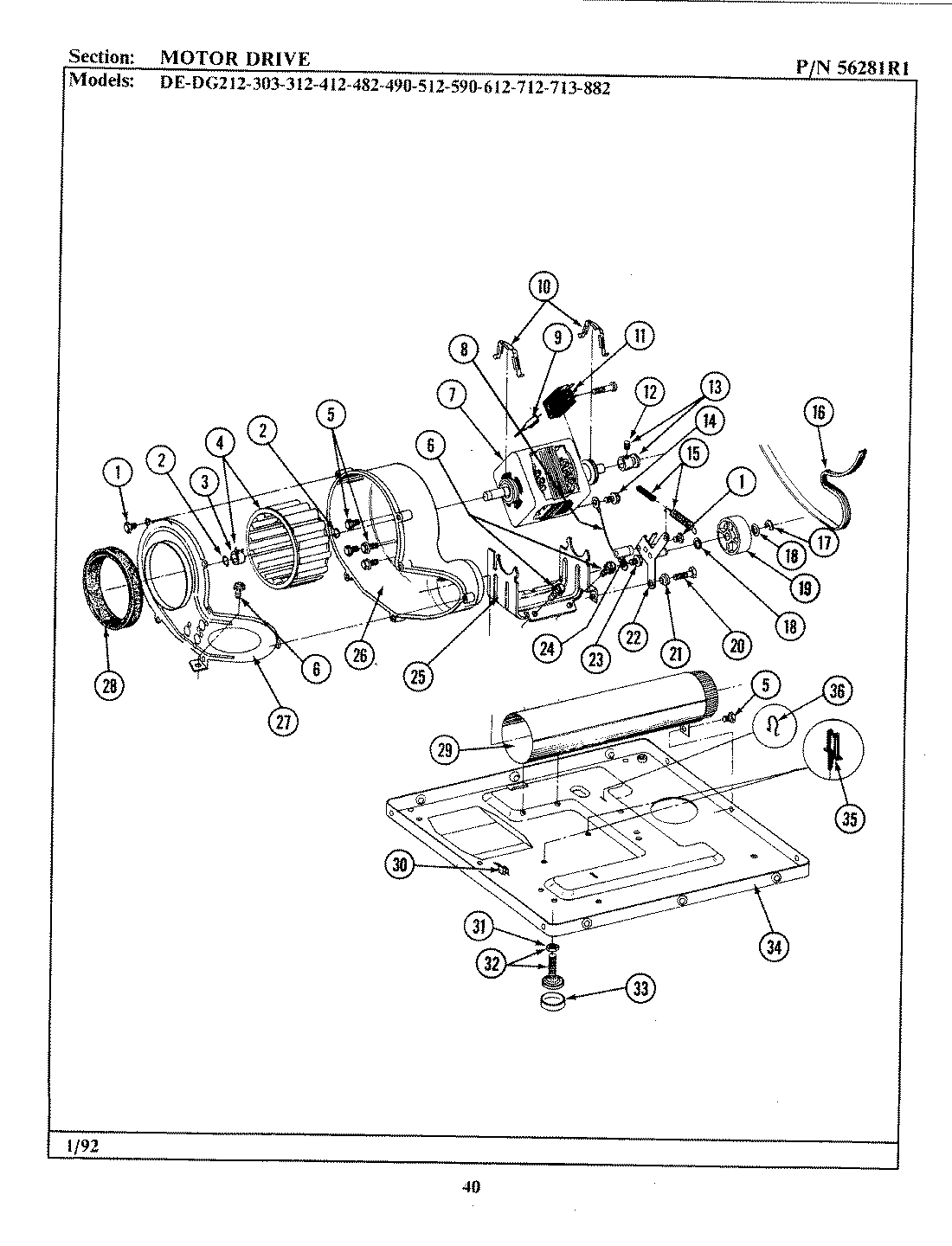

05 - MOTOR DRIVE

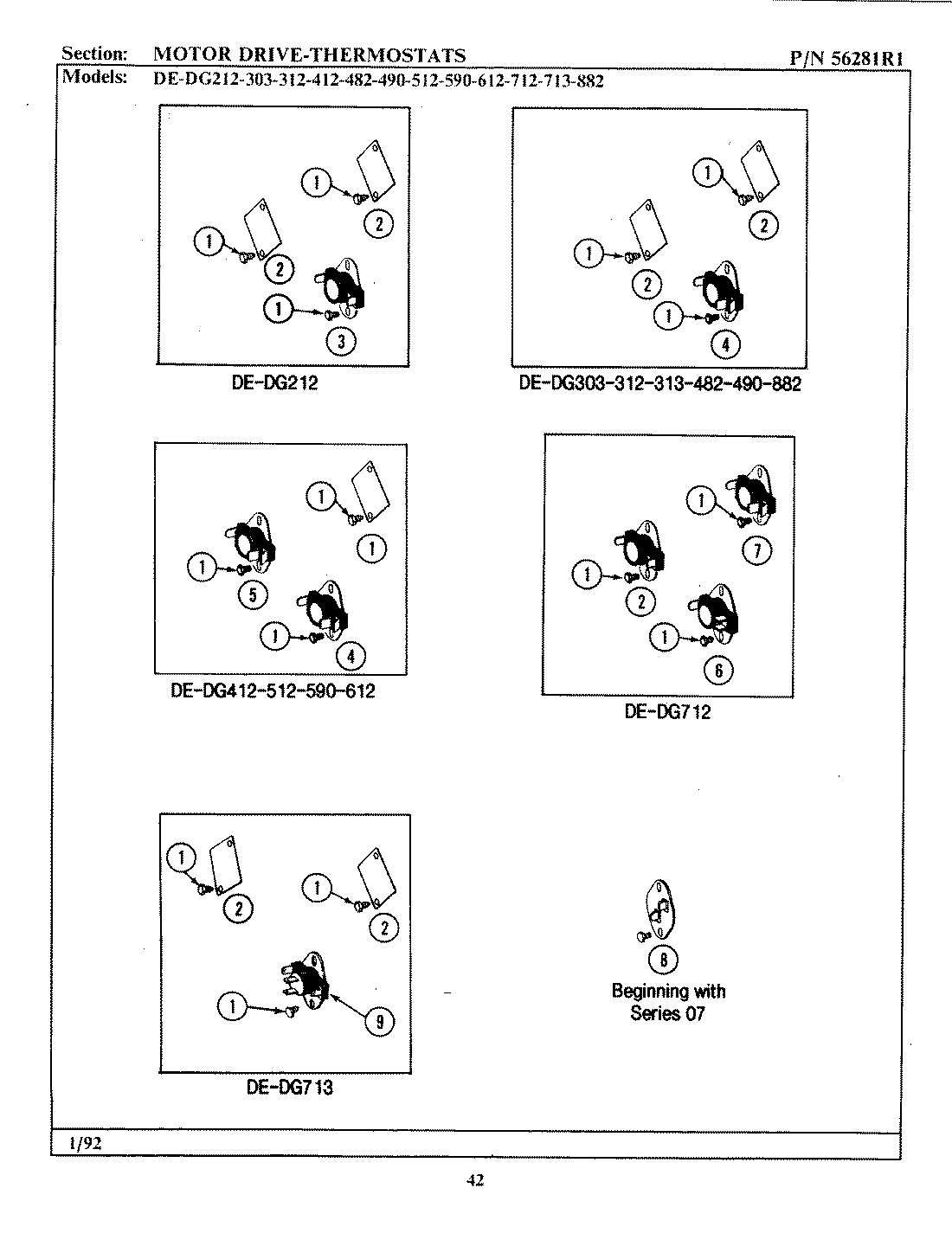

06 - MOTOR DRIVE-THERMOSTATS

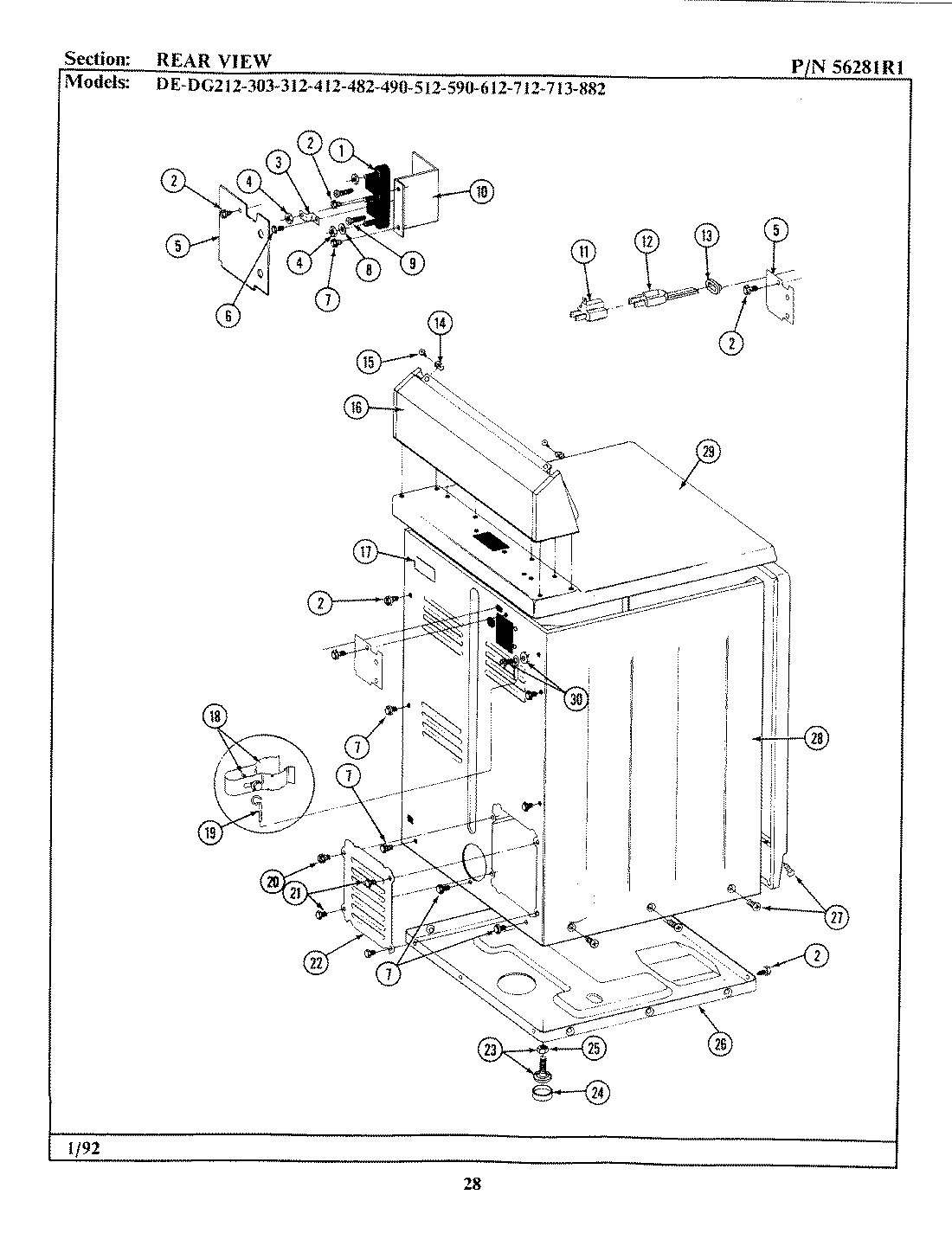

07 - REAR VIEW

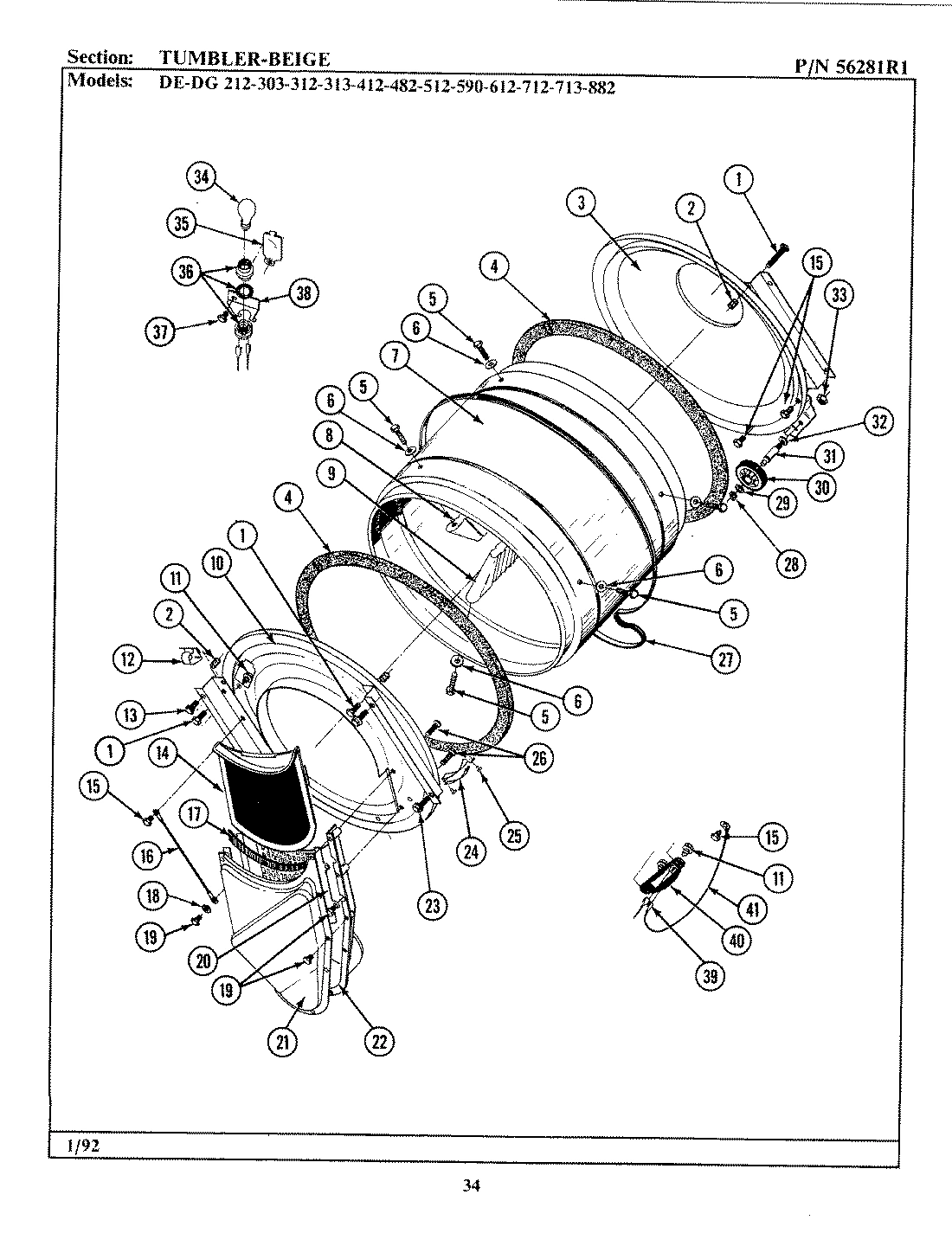

08 - TUMBLER-BEIGE

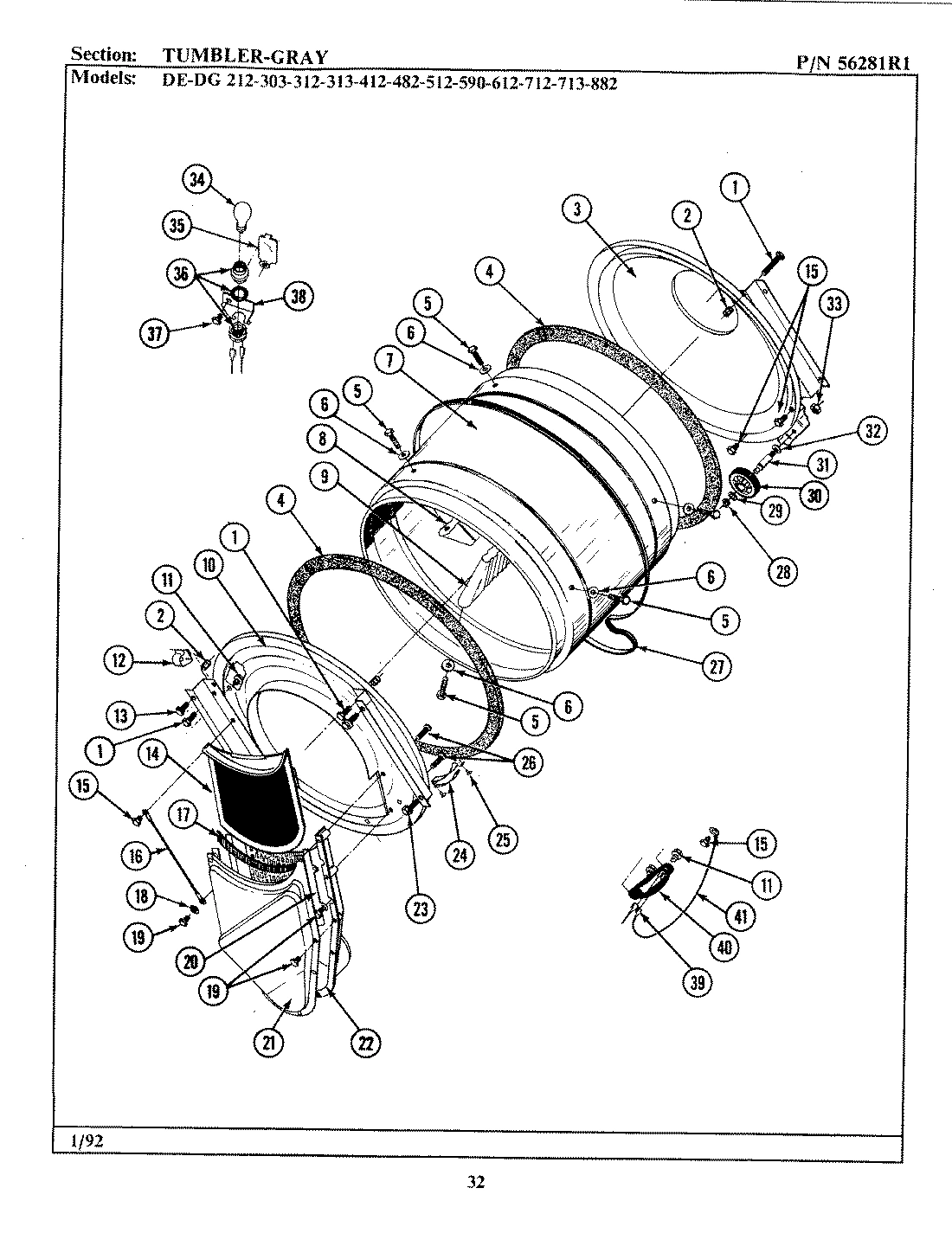

09 - TUMBLER-GRAY
Common parts from model Maytag GDG482 GAS DRYER
1
MAY 211194 MAY 211194 Contact Us For Availability
1
MAY 305603 MAY 305603 Contact Us For Availability
1
MAY 313764 MAY 313764 Contact Us For Availability
2
SWITCH, PUSH/TO/START W/BKT MAY 306533 Contact Us For Availability
2
MAY 305604 MAY 305604 Contact Us For Availability
2
MAY Y312853 MAY Y312853 Contact Us For Availability
2
MAY 313915 MAY 313915 Contact Us For Availability
3
MAY Y306660 MAY Y306660 Contact Us For Availability
4
MAY 306668M MAY 306668M Contact Us For Availability
4
MAY W10116794 MAY W10116794 Contact Us For Availability
4
MAY Y313541 MAY Y313541 Contact Us For Availability
5
MAY 303942 MAY 303942 Contact Us For Availability
5
MAY 211410 MAY 211410 Contact Us For Availability
5
MAY Y312905 MAY Y312905 Contact Us For Availability
5
MAY Y310759 MAY Y310759 Contact Us For Availability
6
MAY 314158 MAY 314158 Contact Us For Availability
6
MAY 304594M MAY 304594M Contact Us For Availability
7
MAY 312929 MAY 312929 Contact Us For Availability
7
MAY 306663 MAY 306663 Contact Us For Availability
7
MAY 314802 MAY 314802 Contact Us For Availability
7
MAY 305187 MAY 305187 Contact Us For Availability
7
MAY Y314153 MAY Y314153 Contact Us For Availability
8
MAY 302542M MAY 302542M Contact Us For Availability
8
MAY 901220 MAY 901220 Contact Us For Availability
8
MAY 314803 MAY 314803 Contact Us For Availability
8
MAY 314154 MAY 314154 Contact Us For Availability
9
MAY Y303349 MAY Y303349 Contact Us For Availability
9
MAY 306448 MAY 306448 Contact Us For Availability
9
MAY 314155 MAY 314155 Contact Us For Availability
10
MAY Y303383 MAY Y303383 Contact Us For Availability
10
MAY 306670 MAY 306670 Contact Us For Availability
10
MAY Y303815 MAY Y303815 Contact Us For Availability
11
MAY 304974 MAY 304974 Contact Us For Availability
11
MAY 306207 MAY 306207 Contact Us For Availability
11
MAY Y303877 MAY Y303877 Contact Us For Availability
11
MAY Y303879 MAY Y303879 Contact Us For Availability
11
MAY Y201808 MAY Y201808 Contact Us For Availability
12
MAY Y053241 MAY Y053241 Contact Us For Availability
12
MAY Y310376 MAY Y310376 Contact Us For Availability
12
MAY 302521 MAY 302521 Contact Us For Availability
13
MAY Y313561 MAY Y313561 Contact Us For Availability
13
MAY 304971 MAY 304971 Contact Us For Availability
13
MAY Y305185 MAY Y305185 Contact Us For Availability
13
MAY 211881 MAY 211881 Contact Us For Availability
14
MAY 910343 MAY 910343 Contact Us For Availability
14
MAY 215075 MAY 215075 Contact Us For Availability
14
MAY Y306666 MAY Y306666 Contact Us For Availability
14
MAY Y304388 MAY Y304388 Contact Us For Availability
15
MAY 305302M MAY 305302M Contact Us For Availability
15
MAY Y303945 MAY Y303945 Contact Us For Availability
15
MAY 210932 MAY 210932 Contact Us For Availability
16
MAY 204445 MAY 204445 Contact Us For Availability
16
MAY 205810 MAY 205810 Contact Us For Availability
17
MAY Y313796 MAY Y313796 Contact Us For Availability
17
MAY 314566 MAY 314566 Contact Us For Availability
17
MAY 214519 MAY 214519 Contact Us For Availability
18
MAY 314082 MAY 314082 Contact Us For Availability
18
MAY Y312527 MAY Y312527 Contact Us For Availability
18
MAY 301548 MAY 301548 Contact Us For Availability
18
MAY 310557 MAY 310557 Contact Us For Availability
19
MAY Y313907 MAY Y313907 Contact Us For Availability
19
MAY 311155 MAY 311155 Contact Us For Availability
20
MAY Y313559 MAY Y313559 Contact Us For Availability
20
MAY Y313795 MAY Y313795 Contact Us For Availability
21
MAY 204439 MAY 204439 Contact Us For Availability
21
MAY Y312894 MAY Y312894 Contact Us For Availability
21
MAY Y312964 MAY Y312964 Contact Us For Availability
22
MAY 212949 MAY 212949 Contact Us For Availability
22
MAY Y303368 MAY Y303368 Contact Us For Availability
22
MAY Y312951 MAY Y312951 Contact Us For Availability
22
MAY 306656 MAY 306656 Contact Us For Availability
22
MAY 306657 MAY 306657 Contact Us For Availability
22
MAY Y304810 MAY Y304810 Contact Us For Availability
23
MAY Y305086 MAY Y305086 Contact Us For Availability
23
BUSHING FOR ACCESS STUD MAY 312301 Contact Us For Availability
23
MAY Y310632 MAY Y310632 Contact Us For Availability
24
MAY Y314137 MAY Y314137 Contact Us For Availability
24
MAY 312369 MAY 312369 Contact Us For Availability
24
MAY Y303841 MAY Y303841 Contact Us For Availability
25
MAY Y312890 MAY Y312890 Contact Us For Availability
25
MAY 312897 MAY 312897 Contact Us For Availability
26
MAY Y303361 MAY Y303361 Contact Us For Availability
26
MAY Y303369 MAY Y303369 Contact Us For Availability
26
MAY Y312893 MAY Y312893 Contact Us For Availability
26
MAY Y314110 MAY Y314110 Contact Us For Availability
27
MAY 314846 MAY 314846 Contact Us For Availability
27
MAY Y312895 MAY Y312895 Contact Us For Availability
28
MAY 305193M MAY 305193M Contact Us For Availability
29
MAY 307104M MAY 307104M Contact Us For Availability
29
MAY 305862 MAY 305862 Contact Us For Availability
29
MAY Y303442 MAY Y303442 Contact Us For Availability
30
MAY Y304672 MAY Y304672 Contact Us For Availability
30
MAY 303846 MAY 303846 Contact Us For Availability
30
MAY Y303373 MAY Y303373 Contact Us For Availability
31
SCREW ASSEMBLY - LEAK LIMIT MAY 302809 Contact Us For Availability
32
MAY 305860 MAY 305860 Contact Us For Availability
33
MAY Y306195 MAY Y306195 Contact Us For Availability
33
MAY 312538 MAY 312538 Contact Us For Availability
34
MAY 302810 MAY 302810 Contact Us For Availability
35
MAY 305861 MAY 305861 Contact Us For Availability
35
MAY Y313262 MAY Y313262 Contact Us For Availability
36
MAY 306184 MAY 306184 Contact Us For Availability
36
MAY 410490 MAY 410490 Contact Us For Availability
× ![]()
