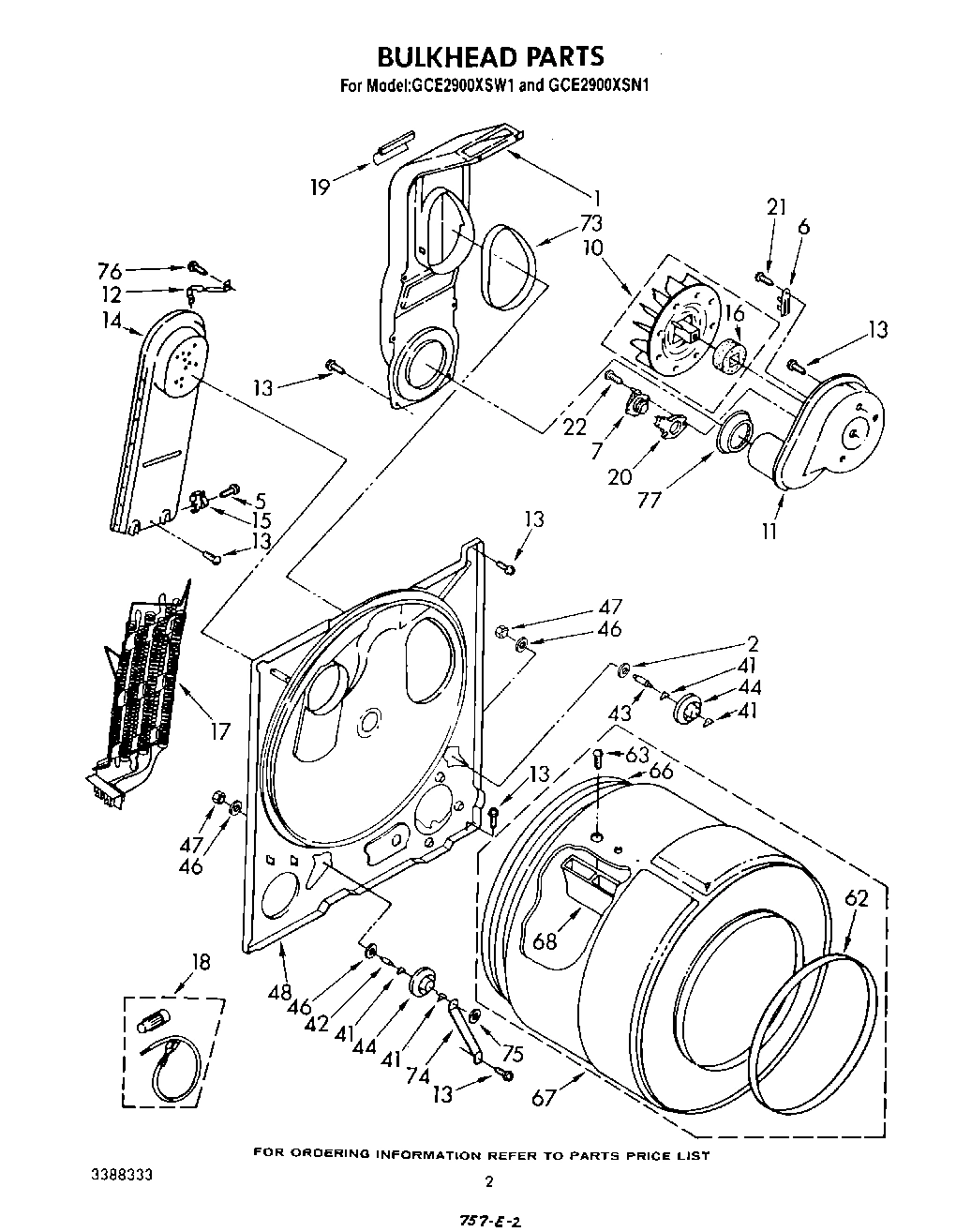

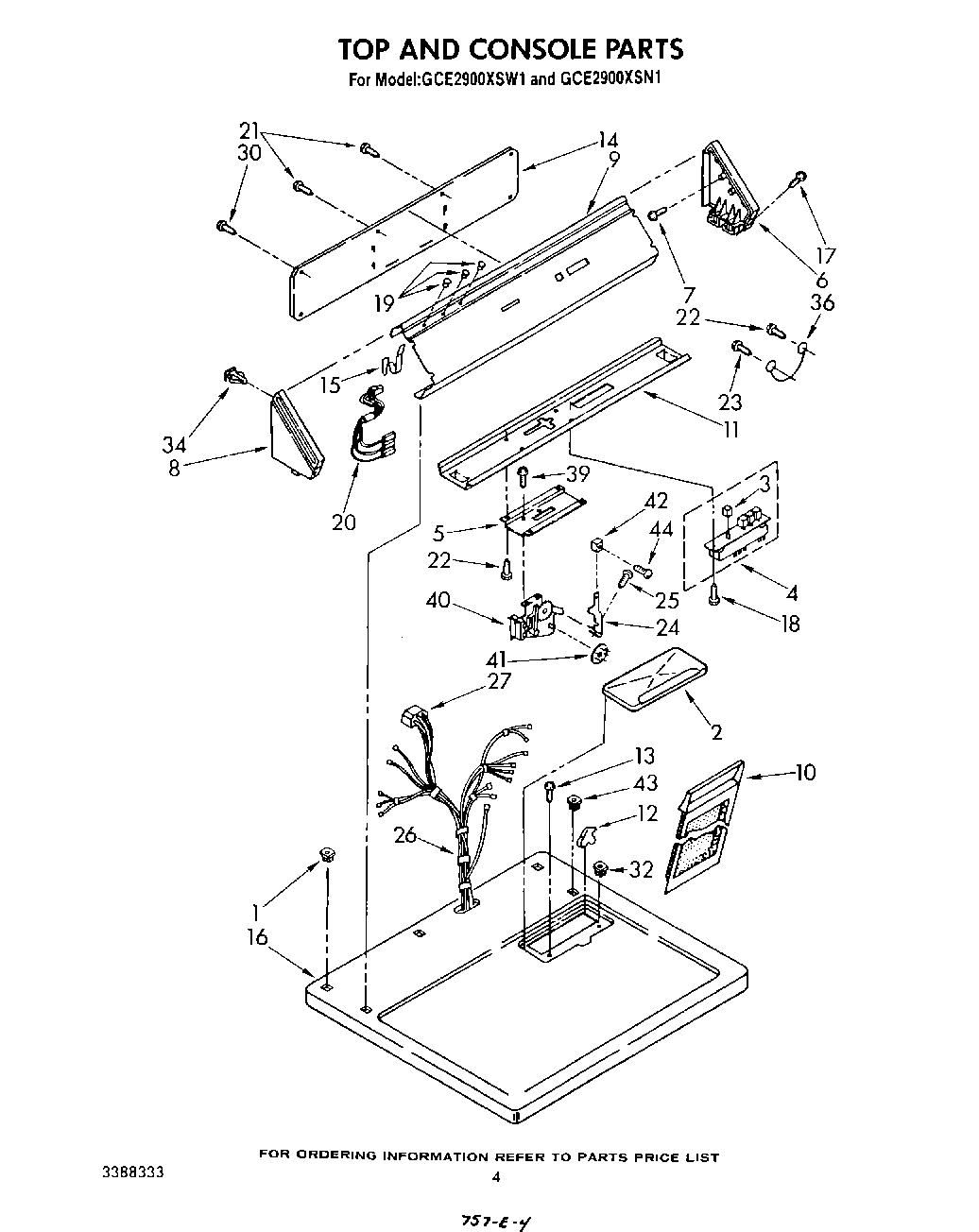

Model Whirlpool GCE2900XSW1 ELECTRIC DRYER – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE
PAINT, BULK (1 QT.) (WHITE WPL 799344 Contact Us For Availability
View on Model
2
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
2
Cover, Lint Screen (Almond)
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
View on Model
3
Button (4)
Button (4) WPL 3348587 Contact Us For Availability
View on Model
4
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
5
Control, Bracket
Control, Bracket WPL 3388374 Contact Us For Availability
View on Model
6
Cap, End. (R.H.)
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
View on Model
6
Clip, Toe Panel (2)
Clip, Toe Panel (2) WPL 342601 Contact Us For Availability
View on Model
7
Screw, 13-16 x 5/8
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
View on Model
8
Cap, End (L.H.)
Cap, End (L.H.) WPL 63789 Contact Us For Availability
View on Model
9
Panel, Control
Panel, Control WPL 3389679 Contact Us For Availability
View on Model
11
Bracket, Control
Bracket, Control WPL 3388375 Contact Us For Availability
View on Model
14
Panel, Rear
Panel, Rear WPL 386367 Contact Us For Availability
View on Model
15
CLIP
CLIP WPL 693141 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 695507 Contact Us For Availability
View on Model
16
Top (Almond)
Top (Almond) WPL 695508 Contact Us For Availability
View on Model
17
Screw
Screw WPL 64211 Contact Us For Availability
View on Model
18
Panel, Rear
Panel, Rear WPL 346368 Contact Us For Availability
View on Model
20
Heater, Thermostat
Heater, Thermostat WPL 61894 Contact Us For Availability
View on Model
20
Lights, Indicator (240 Volts)
Lights, Indicator (240 Volts) WPL 3388650 Contact Us For Availability
View on Model
24
Lever, Timer
Lever, Timer WPL 694583 Contact Us For Availability
View on Model
24
Front Panel Assembly (White)
Front Panel Assembly (White) WPL 693202 Contact Us For Availability
View on Model
24
Front Panel Assembly (Almond)
Front Panel Assembly (Almond) WPL 693203 Contact Us For Availability
View on Model
25
Screw
Screw WPL 98831 Contact Us For Availability
View on Model
26
Harness, Wire (Complete)
Harness, Wire (Complete) WPL 3391226 Contact Us For Availability
View on Model
27
Plug, Terminal (6 Way) Uses Terminal 94614)
Plug, Terminal (6 Way) Uses Terminal 94614) WPL 352457 Contact Us For Availability
View on Model
28
Cabinet (White)
Cabinet (White) WPL 690847 Contact Us For Availability
View on Model
28
Cabinet (Almond)
Cabinet (Almond) WPL 690848 Contact Us For Availability
View on Model
34
NUT, PUSH IN
NUT, PUSH IN WPL 689559 Contact Us For Availability
View on Model
36
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
42
Pushbutton
Pushbutton WPL 3348574 Contact Us For Availability
View on Model
43
Nut, Push-In
Nut, Push-In WPL 358473 Contact Us For Availability
View on Model
44
Screw
Screw WPL 310410 Contact Us For Availability
View on Model
62
Panel, Toe (White)
Panel, Toe (White) WPL 697095 Contact Us For Availability
View on Model
62
Panel, Toe (Almond)
Panel, Toe (Almond) WPL 697096 Contact Us For Availability
View on Model
63
Door, Front (Almond)
Door, Front (Almond) WPL 689314 Contact Us For Availability
View on Model
64
Handle, Door (Almond)
Handle, Door (Almond) WPL 689308 Contact Us For Availability
View on Model
87
Locator, Top
Locator, Top WPL 98669 Contact Us For Availability
View on Model
