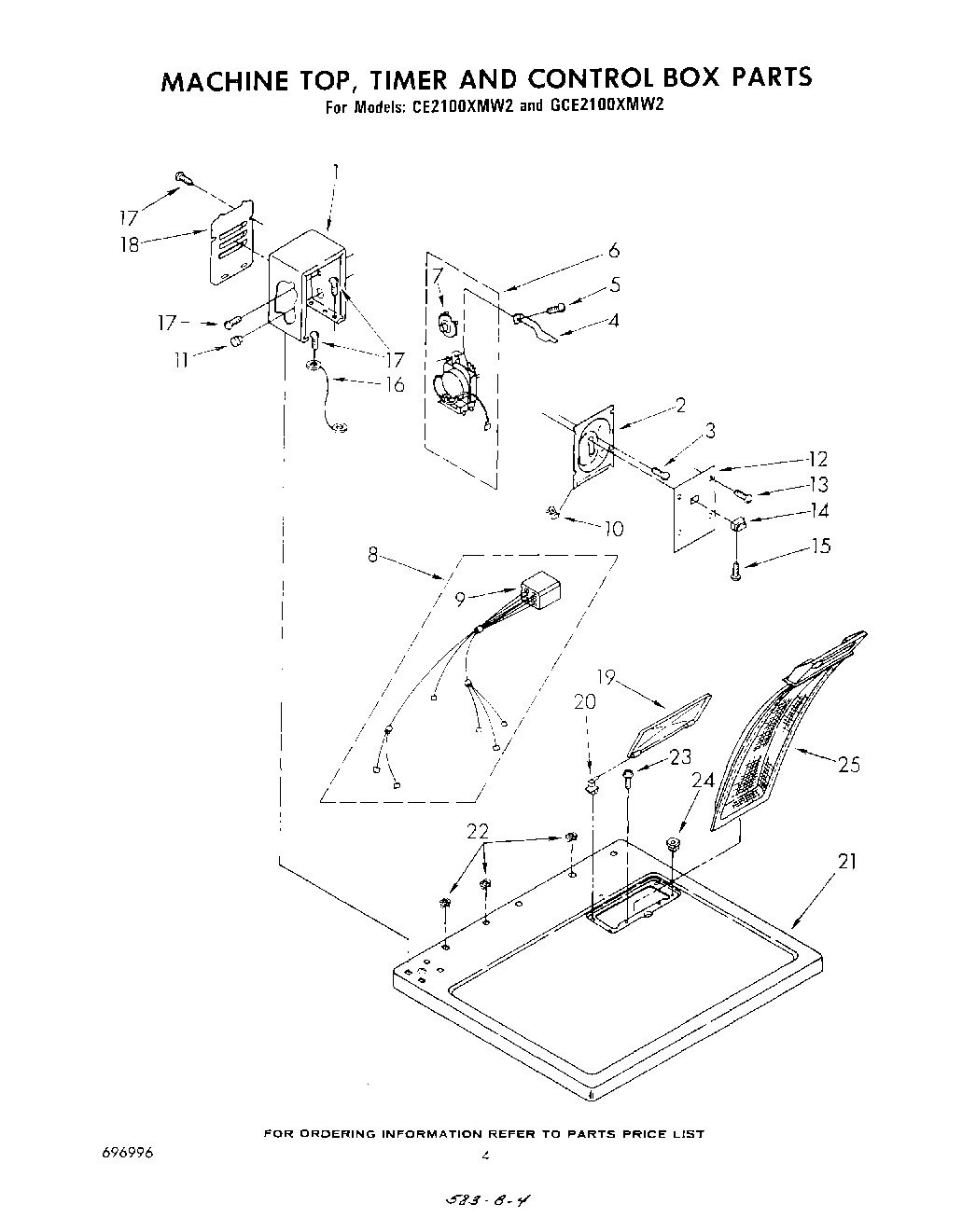

Model Whirlpool GCE2100XMW2 ELECTRIC DRYER – Common Parts & Diagrams

1

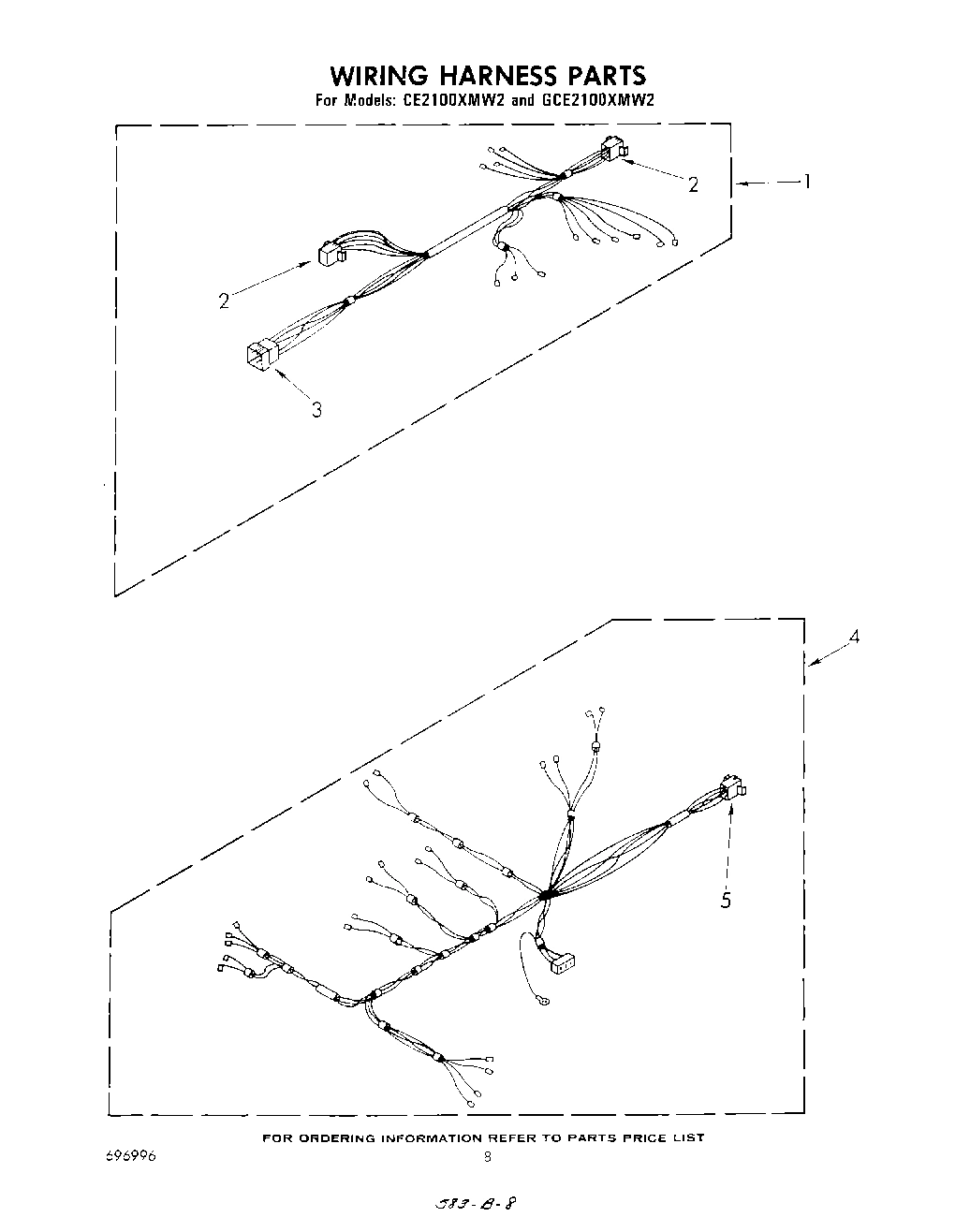

Harness, Console
Harness, Console WPL 695576 Contact Us For Availability
View on Model
1
Box, Control (White)
Box, Control (White) WPL 694870 Contact Us For Availability
View on Model
1

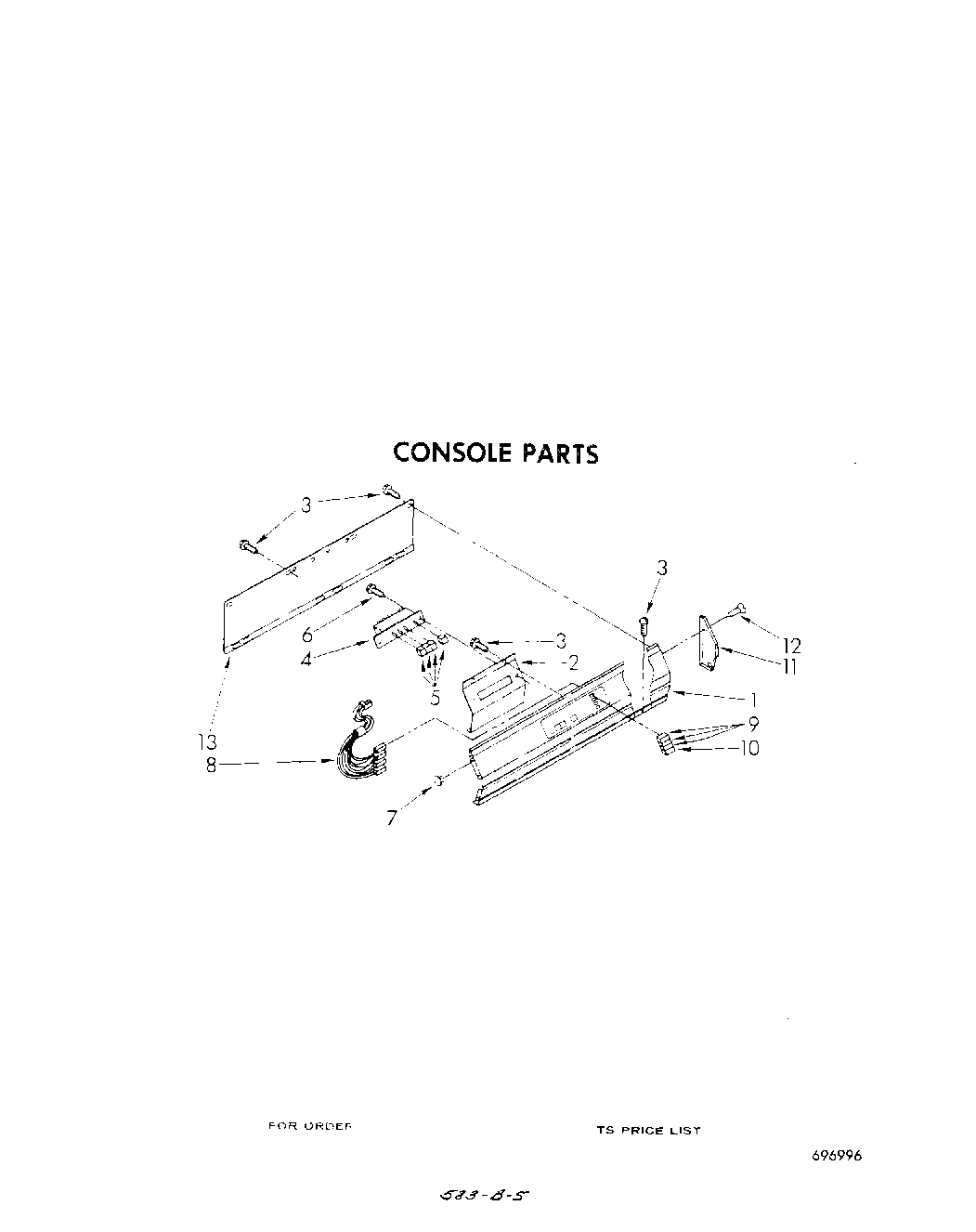

Billboard, Console
Billboard, Console WPL 695007 Contact Us For Availability
View on Model
2
Cap, Terminal (6-Way) (Uses Terminal 94614)
Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability
View on Model
2
Plate, Timer Mounting
Plate, Timer Mounting WPL 386791 Contact Us For Availability
View on Model
2
Bracket, Control
Bracket, Control WPL 386567 Contact Us For Availability
View on Model
3
Cap, Terminal (9 Way) (Uses Terminal 94613)
Cap, Terminal (9 Way) (Uses Terminal 94613) WPL 94612 Contact Us For Availability
View on Model
4
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
4
Harness, Lower
Harness, Lower WPL 695513 Contact Us For Availability
View on Model
4
Lever, Timer
Lever, Timer WPL 694583 Contact Us For Availability
View on Model
4
Switch, Pushbutton
Switch, Pushbutton WPL 693987 Contact Us For Availability
View on Model
5
Plug, Terminal (9 Way) (Uses Terminal 94614)
Plug, Terminal (9 Way) (Uses Terminal 94614) WPL 94611 Contact Us For Availability
View on Model
5
Screw, Lever To Timer
Screw, Lever To Timer WPL 98831 Contact Us For Availability
View on Model
5
Pushbutton (4)
Pushbutton (4) WPL 385798 Contact Us For Availability
View on Model
7
Plug, Button
Plug, Button WPL 54690 Contact Us For Availability
View on Model
8
Harness, Timer
Harness, Timer WPL 695569 Contact Us For Availability
View on Model
8
Lights, Indicator
Lights, Indicator WPL 358742 Contact Us For Availability
View on Model
9
Plug, Terminal (6 Way)
Plug, Terminal (6 Way) WPL 352457 Contact Us For Availability
View on Model
9
Lens, Amber (3)
Lens, Amber (3) WPL 301006 Contact Us For Availability
View on Model
10
Lens, Yellow (1)
Lens, Yellow (1) WPL 358741 Contact Us For Availability
View on Model
11
Bushing, Snap
Bushing, Snap WPL 352481 Contact Us For Availability
View on Model
11
Cap, End (R.H.)
Cap, End (R.H.) WPL 385800 Contact Us For Availability
View on Model
12
Cover, Control Box
Cover, Control Box WPL 694568 Contact Us For Availability
View on Model
13
Panel, Rear Billboard
Panel, Rear Billboard WPL 386370 Contact Us For Availability
View on Model
14
Button, Timer Set
Button, Timer Set WPL 386276 Contact Us For Availability
View on Model
15
Screw, 6-32 x 1/4
Screw, 6-32 x 1/4 WPL 310410 Contact Us For Availability
View on Model
16
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
18
Panel, Rear
Panel, Rear WPL 346368 Contact Us For Availability
View on Model
18
Panel, Control Box Rear
Panel, Control Box Rear WPL 295871 Contact Us For Availability
View on Model
19
Cover, Lint Screen
Cover, Lint Screen WPL 688150 Contact Us For Availability
View on Model
20
Heater, Thermostat
Heater, Thermostat WPL 61894 Contact Us For Availability
View on Model
20
Locator, Top (2)
Locator, Top (2) WPL 98669 Contact Us For Availability
View on Model
21
Top (White)
Top (White) WPL 695009 Contact Us For Availability
View on Model
22
Nut, Push-In (8)
Nut, Push-In (8) WPL 98219 Contact Us For Availability
View on Model
24
front panel assembly (white)
front panel assembly (white) WPL 693197 Contact Us For Availability
View on Model
25
Shield, Relay
Shield, Relay WPL 691220 Contact Us For Availability
View on Model
28

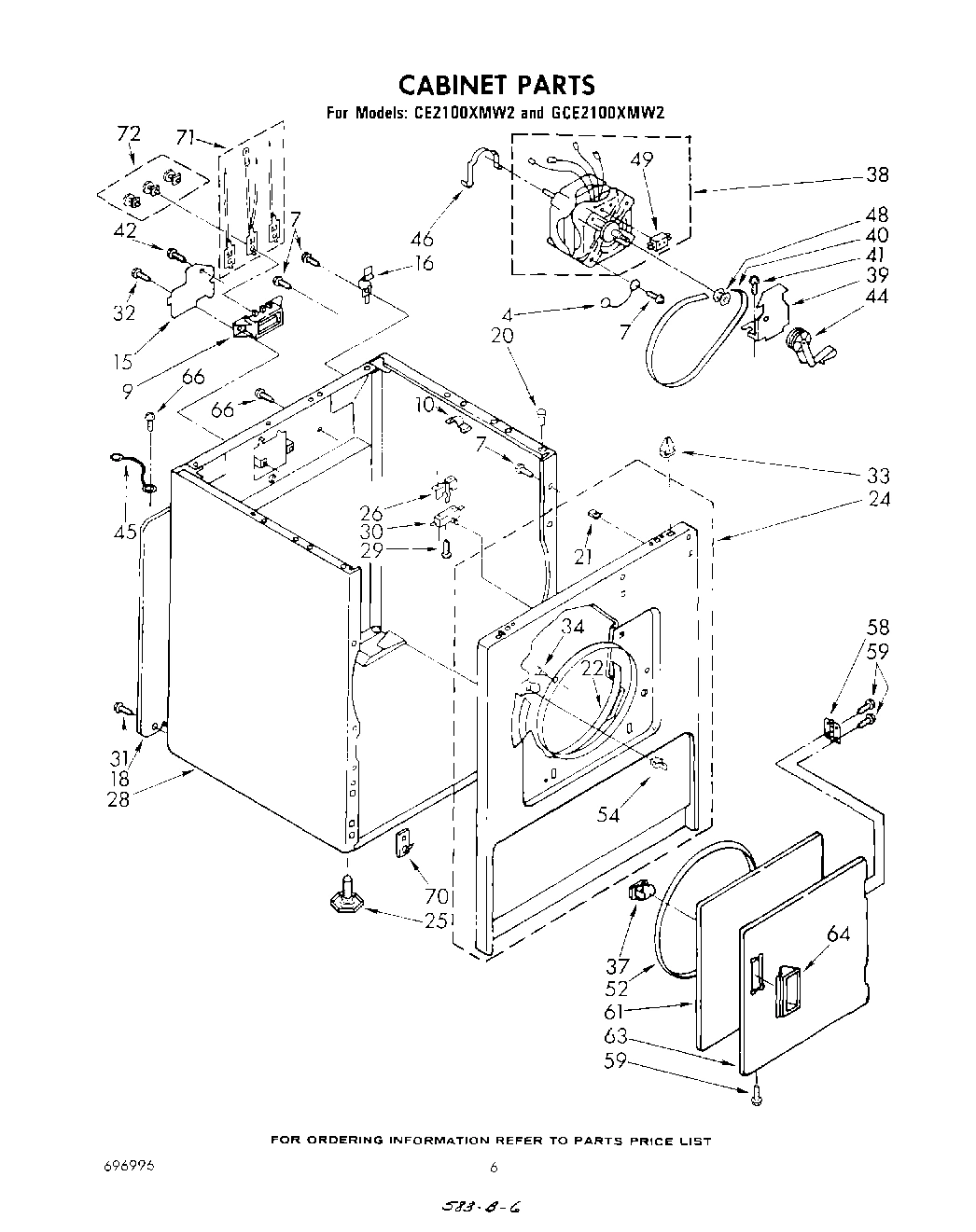

Cabinet (White)
Cabinet (White) WPL 690847 Contact Us For Availability
View on Model
45
Wire, Ground
Wire, Ground WPL 340025 Contact Us For Availability
View on Model
48

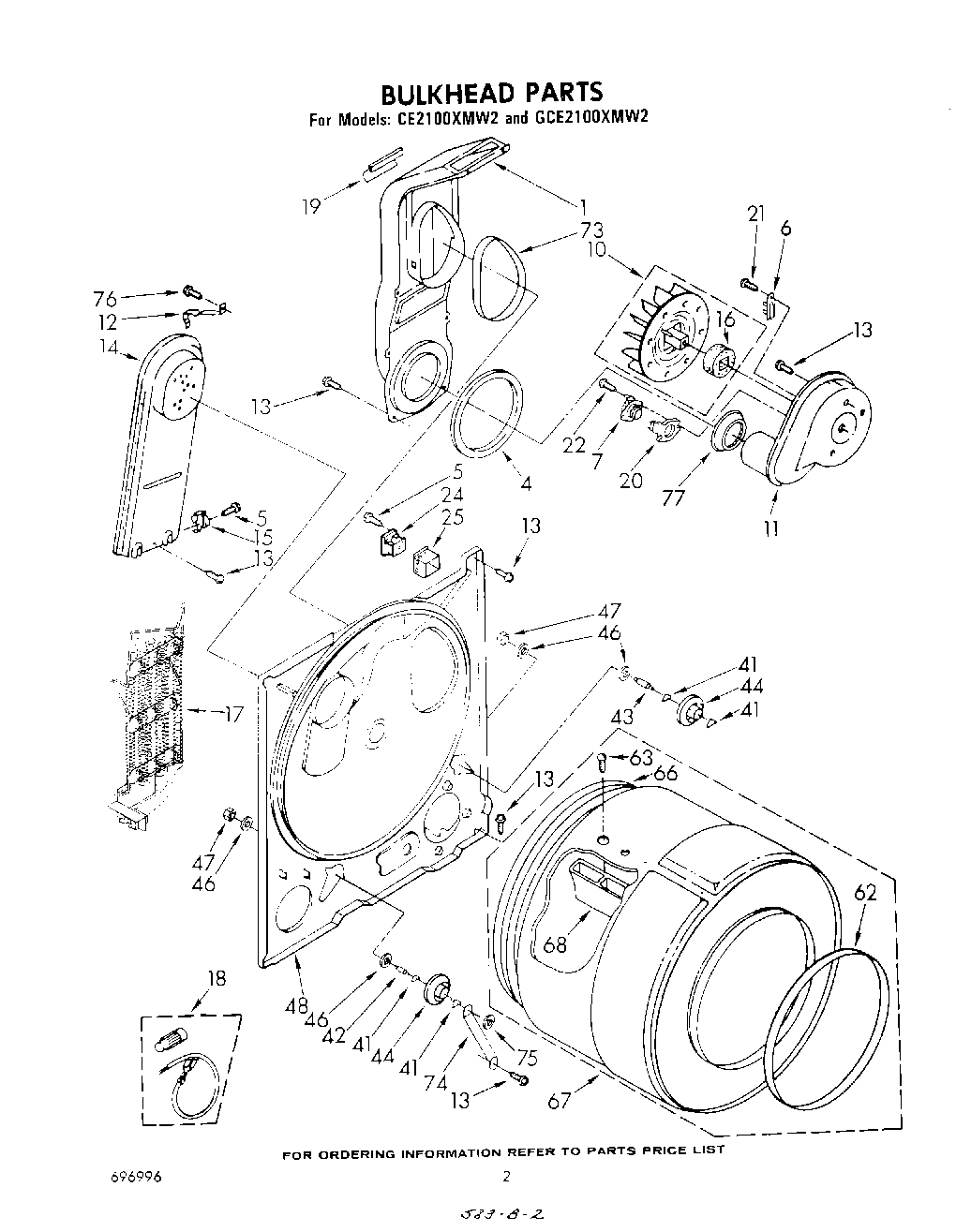

Bulkhead
Bulkhead WPL 685775 Contact Us For Availability
View on Model
63
Screw, 11-16 x 7/8
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
View on Model
74
Bracket, Support Shaft
Bracket, Support Shaft WPL 348945 Contact Us For Availability
View on Model
