Model Whirlpool GBS307PRQ03 30`` BUILT-IN ELECTRIC OVEN SELF CLEAN CONVECTION – Common Parts & Diagrams

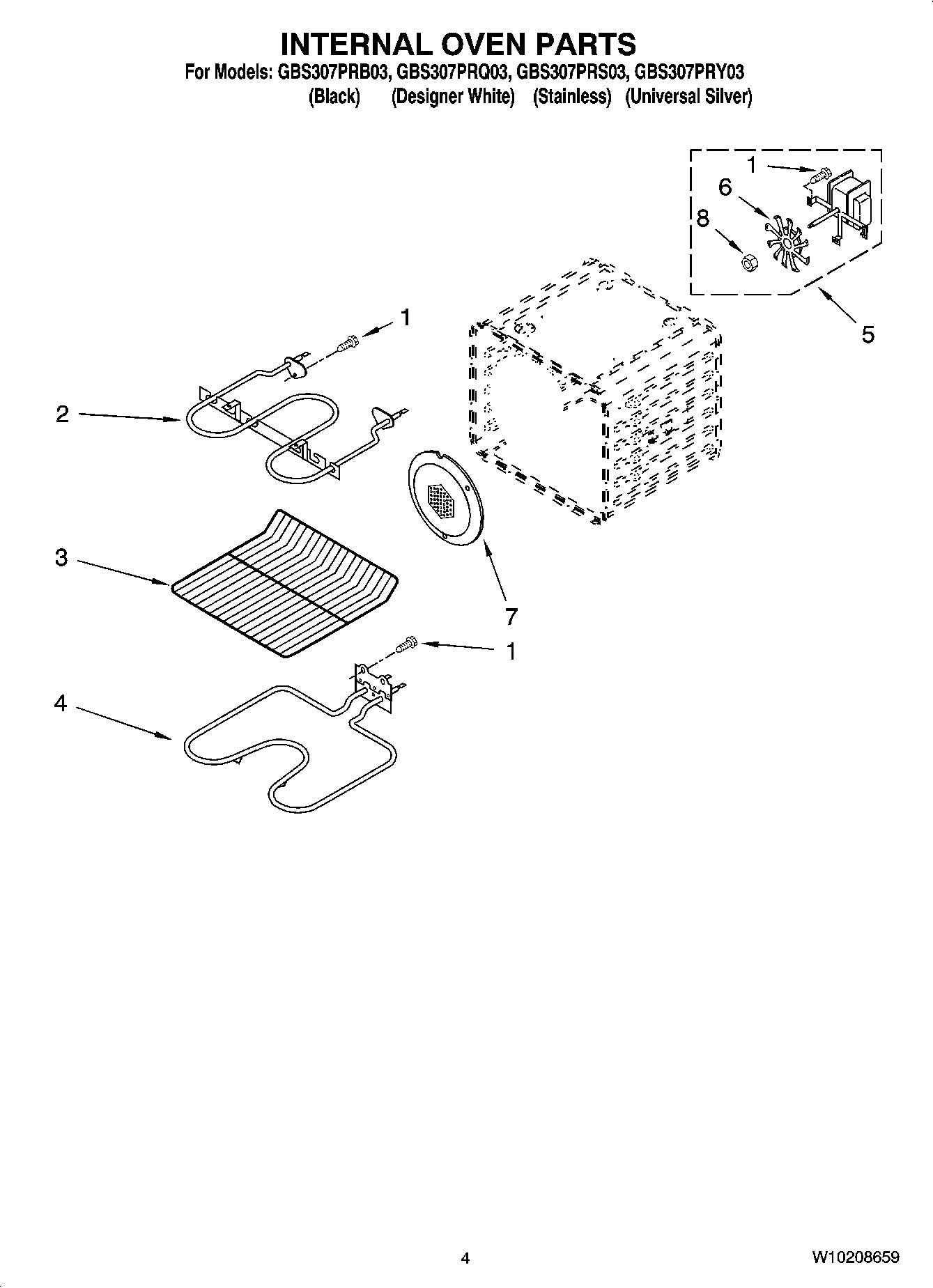

03 - INTERNAL OVEN PARTS
05 - TOP VENTING PARTS, OPTIONAL PARTS

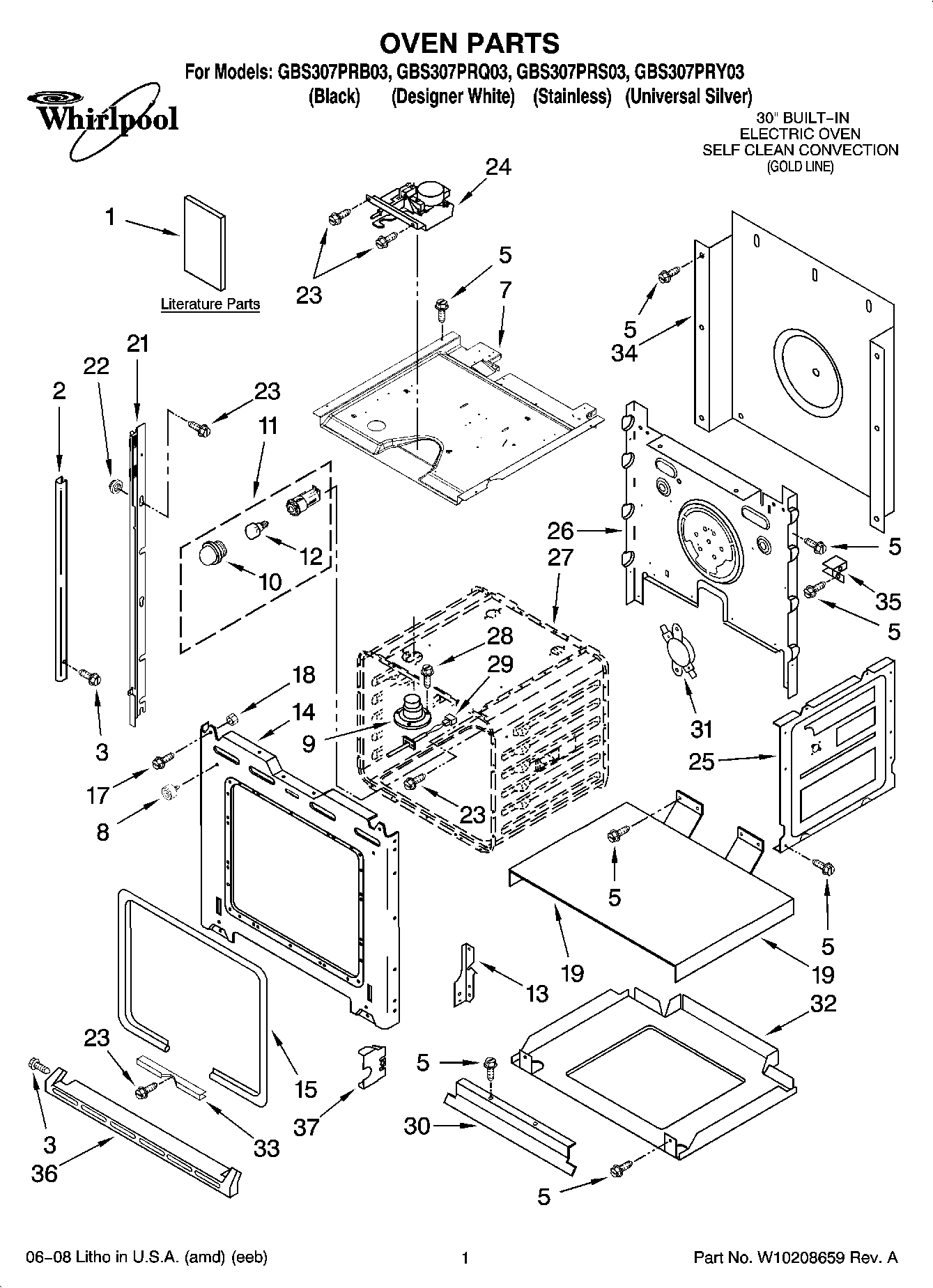

01 - OVEN PARTS

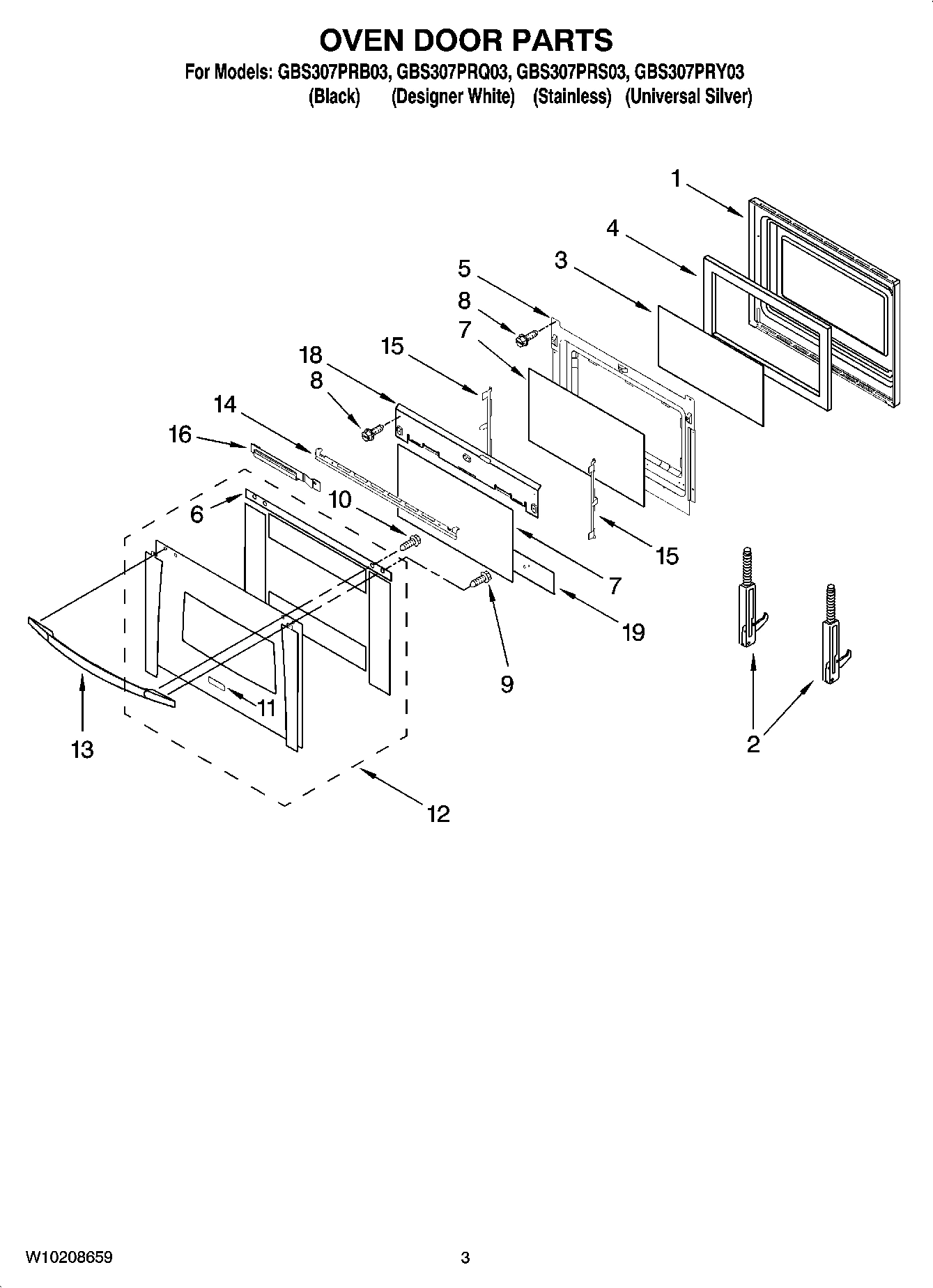

02 - OVEN DOOR PARTS

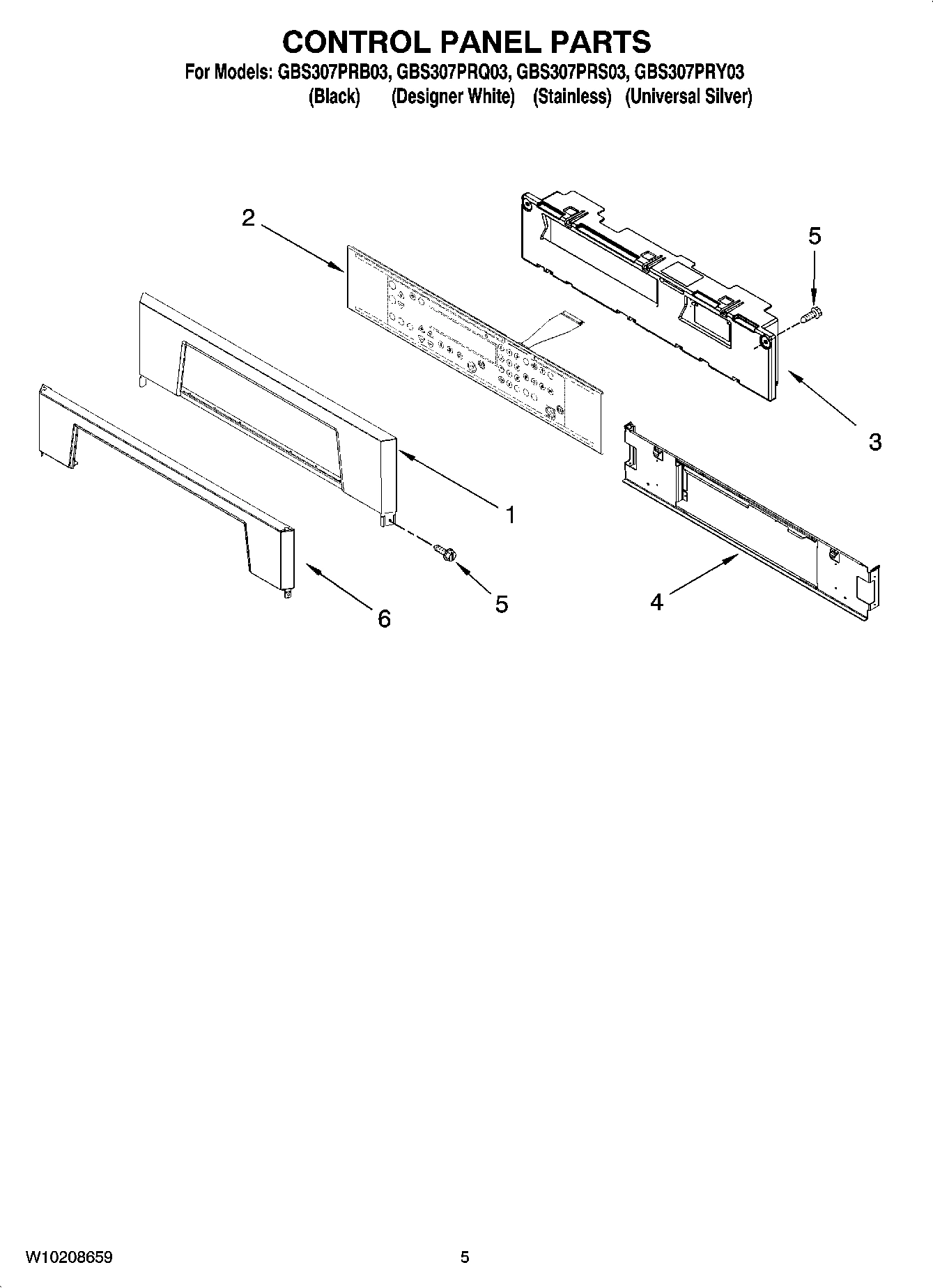

04 - CONTROL PANEL PARTS
Common parts from model Whirlpool GBS307PRQ03 30`` BUILT-IN ELECTRIC OVEN SELF CLEAN CONVECTION
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
Lead, Ground Strap WPL 4452400 Contact Us For Availability
Harness WPL 8301399 Contact Us For Availability
Following Parts Not Illustrated WPL ARI59175A5 Contact Us For Availability
Insulation WPL ARI59176A1 Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Bumper WPL 4448520 Contact Us For Availability
1
Tech Sheet WPL 8301758 Contact Us For Availability
1
Installation Instructions, M/W Trim Kit WPL 8301928 Contact Us For Availability
1
Installation Instructions WPL 8303647 Contact Us For Availability
1
INSTALLATION, UNDERCOUNTER WPL 8304571 Contact Us For Availability
1
SAFER COOKING TIPS (ENGLISH WPL 9762761 Contact Us For Availability
1
Safer Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
Owners Manual (Sgl/Dbl Oven) (English) WPL W10162171 Contact Us For Availability
1
Owners Manual (Sgl/Dbl Oven) (French) WPL W10162172 Contact Us For Availability
1
Control Panel (Apollo Gray) WPL 8304153 Contact Us For Availability
2
Assembly, Switch (Black & Stainless) WPL W10161675 Contact Us For Availability
2
Trim, Side Left (White) WPL W10136095 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Trim, Side Right (Black) WPL W10136093 Contact Us For Availability
2
Trim, Side Right (White) WPL W10136094 Contact Us For Availability
2
Trim, Side Right (Stainless) WPL W10166950 Contact Us For Availability
2
Trim, Side Left (Stainless) WPL W10166951 Contact Us For Availability
2
Assembly, Switch (Silver) WPL W10112123 Contact Us For Availability
2
Assembly, Switch (White) WPL W10161674 Contact Us For Availability
3
Assembly, Control WPL 8303885 Contact Us For Availability
4
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
4
Backer, Control Panel WPL W10153086 Contact Us For Availability
6
Screw WPL 4449040 Contact Us For Availability
6
Seal - Door WPL 8303878 Contact Us For Availability
7
Top Chassis WPL 8303099 Contact Us For Availability
8
Screw WPL 3400080 Contact Us For Availability
8
Bumper, Door WPL W10105790 Contact Us For Availability
9
Screw WPL 4451040 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
11
Name Plate WPL 8303810 Contact Us For Availability
12
Assembly, Door Glass (Stainless) WPL 8303288 Contact Us For Availability
12
Assembly, Door Glass (Black) WPL 8303300 Contact Us For Availability
12
Assembly, Door Glass (White) WPL 8303306 Contact Us For Availability
12
Assembly, Door Glass (Silver) WPL 8304177 Contact Us For Availability
13
Door Handle (Black) WPL 8302813 Contact Us For Availability
13
Door Handle (White) WPL 8302814 Contact Us For Availability
13
Door Handle (Stainless) WPL 8303164 Contact Us For Availability
14
Bracket, Handle WPL W10136473 Contact Us For Availability
16
BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability
18
Shield, Heat WPL 4457103 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
19
SHIELD, HEAT BOTTOM WPL 4457114 Contact Us For Availability
21
Rail, Side (Right) WPL 8303115 Contact Us For Availability
21
Rail, Side (Left) WPL 8303116 Contact Us For Availability
26
Back, Chassis WPL W10161110 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI59174A2 Contact Us For Availability
30
Deflector WPL 9760677 Contact Us For Availability
32
Base, Chassis WPL 9759713 Contact Us For Availability
35
Support, Bracket WPL 4449845 Contact Us For Availability
36
Vent, Bottom Trim (Stainless) WPL 8303582 Contact Us For Availability
37
BRACKET, MOUNTING BOTTOM VENT WPL 4452152 Contact Us For Availability
× ![]()
