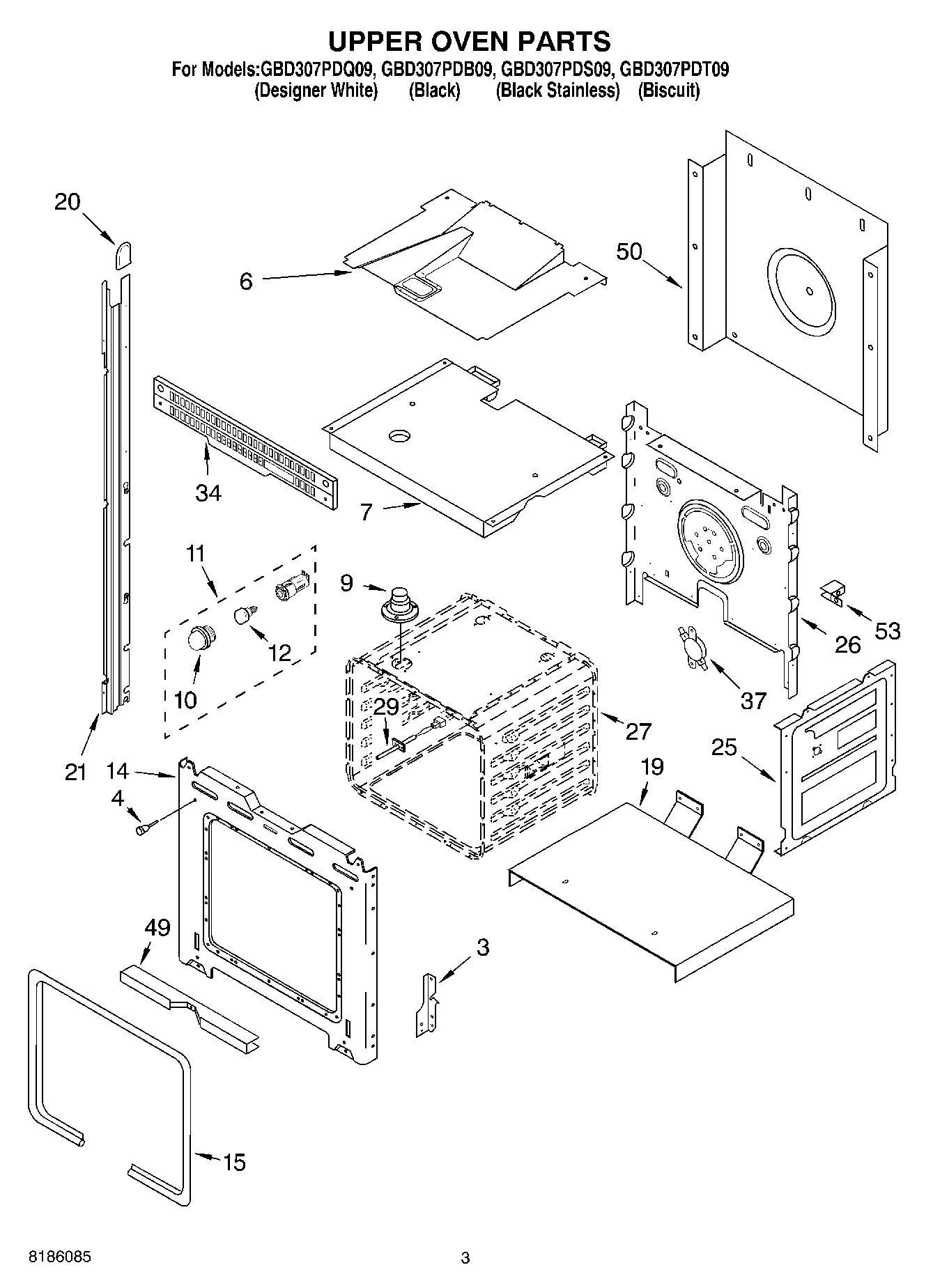

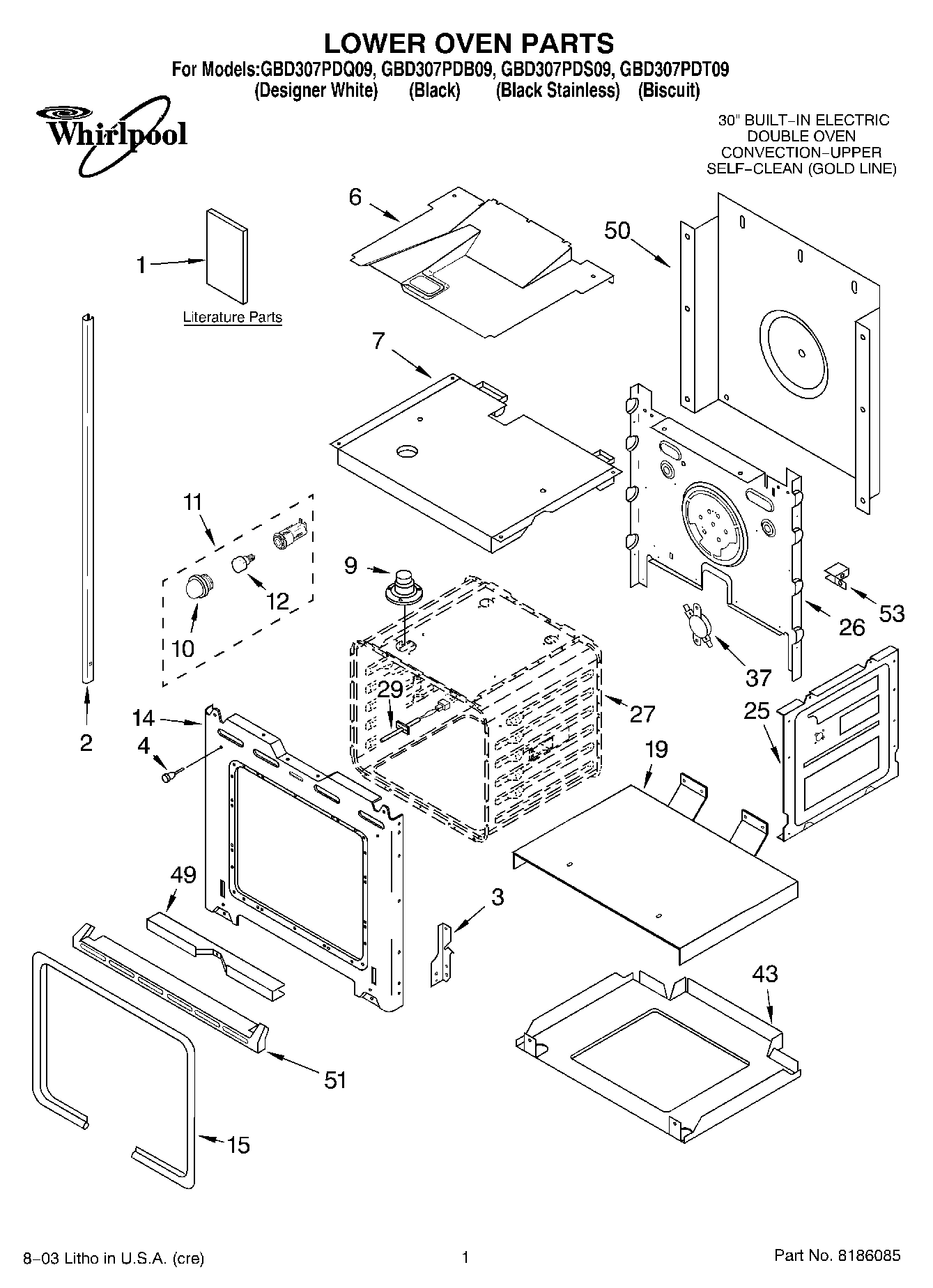

Model Whirlpool GBD307PDT09 30`` BUILT-IN ELECTRIC DOUBLE OVEN CONVECTION-UPPE – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Conduit, Double WPL 4450953 Contact Us For Availability

WPL ARI58691A4 WPL ARI58691A4 Contact Us For Availability

WPL ARI58692A2 WPL ARI58692A2 Contact Us For Availability

WPL ARI58693A5 WPL ARI58693A5 Contact Us For Availability

WPL ARI58694A2 WPL ARI58694A2 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI58689A2 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI58685A9 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI58682A7 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $34.33

1

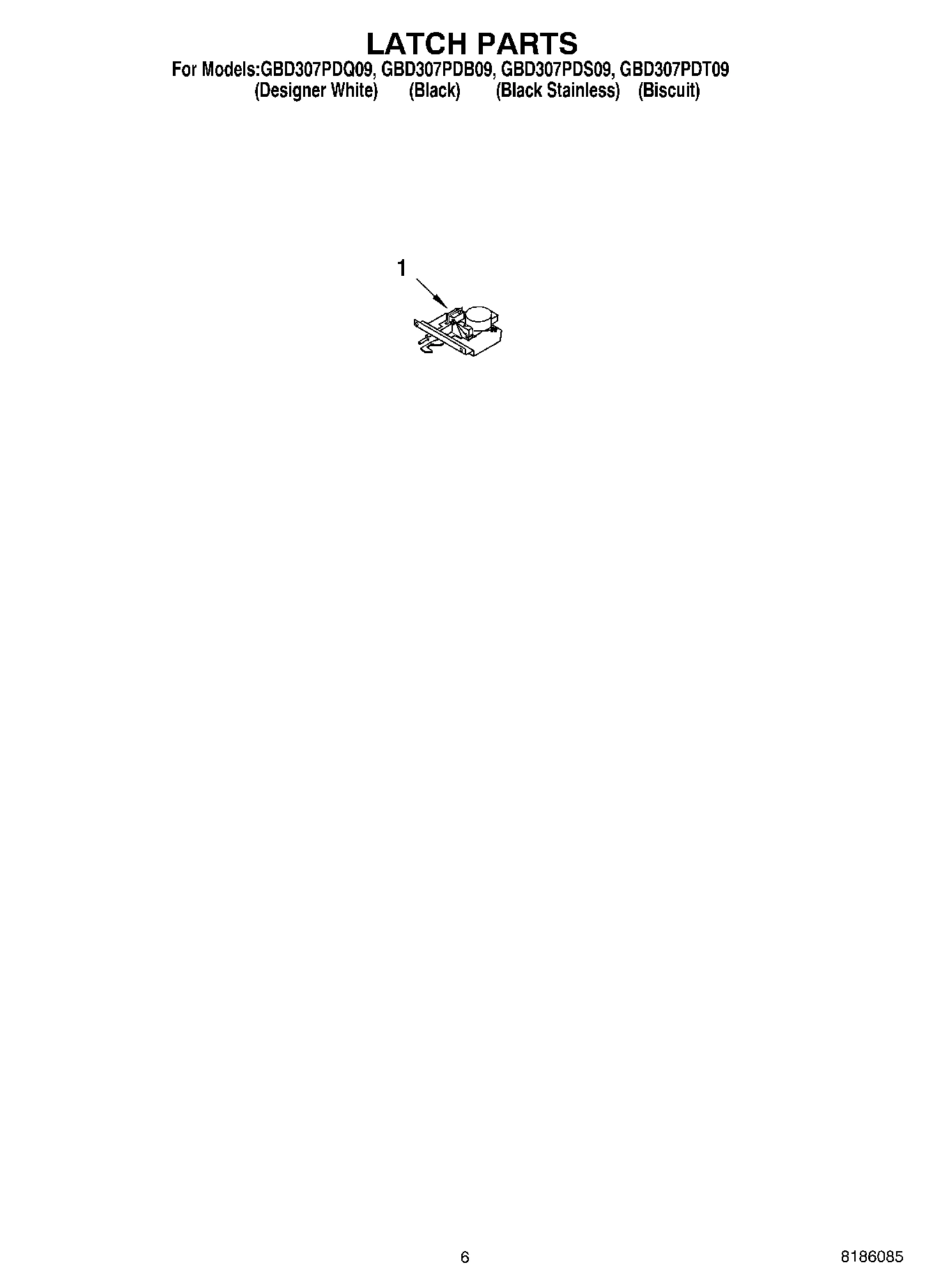

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $218.57

1

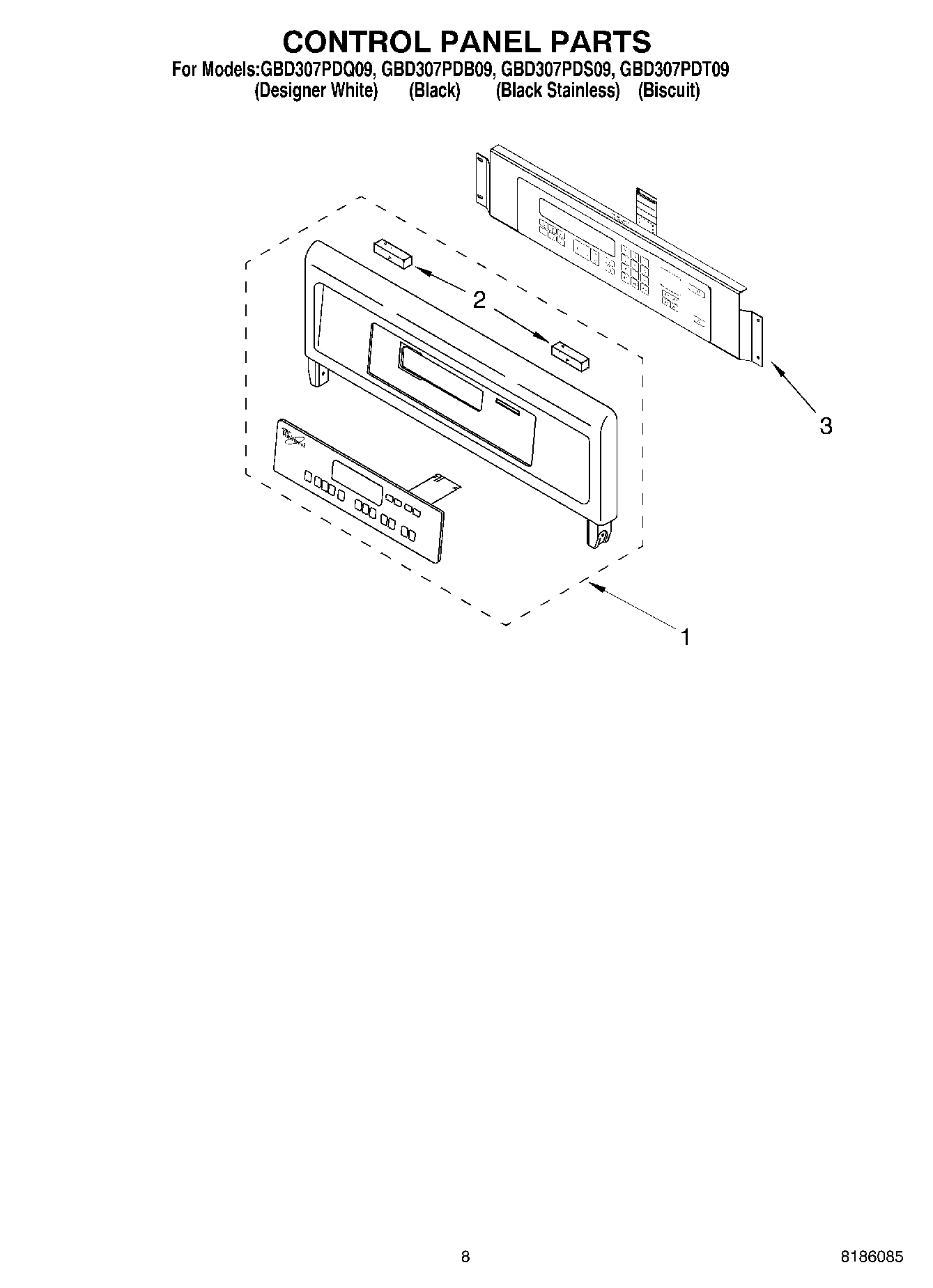

Control Panel Assy W/Membrane, Switch (Black) WPL 8300440 Contact Us For Availability

1

Control Panel Assy W/Membrane, Switch (White) WPL 8300441 Contact Us For Availability

1

Control Panel Assy W/Membrane, Switch (Biscui WPL 8300442 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Cookbook, WP Conv.) WPL LIT4449237 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4455993 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT8300609 Contact Us For Availability

1

Literature Parts (Tech Sheet (Oven)) WPL LIT8302068 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

2

Trim, Side (RH White) WPL 4450851 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450854 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4452122 Contact Us For Availability

2

Trim, Side (LH Biscuit) WPL 4452123 Contact Us For Availability

3

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

3

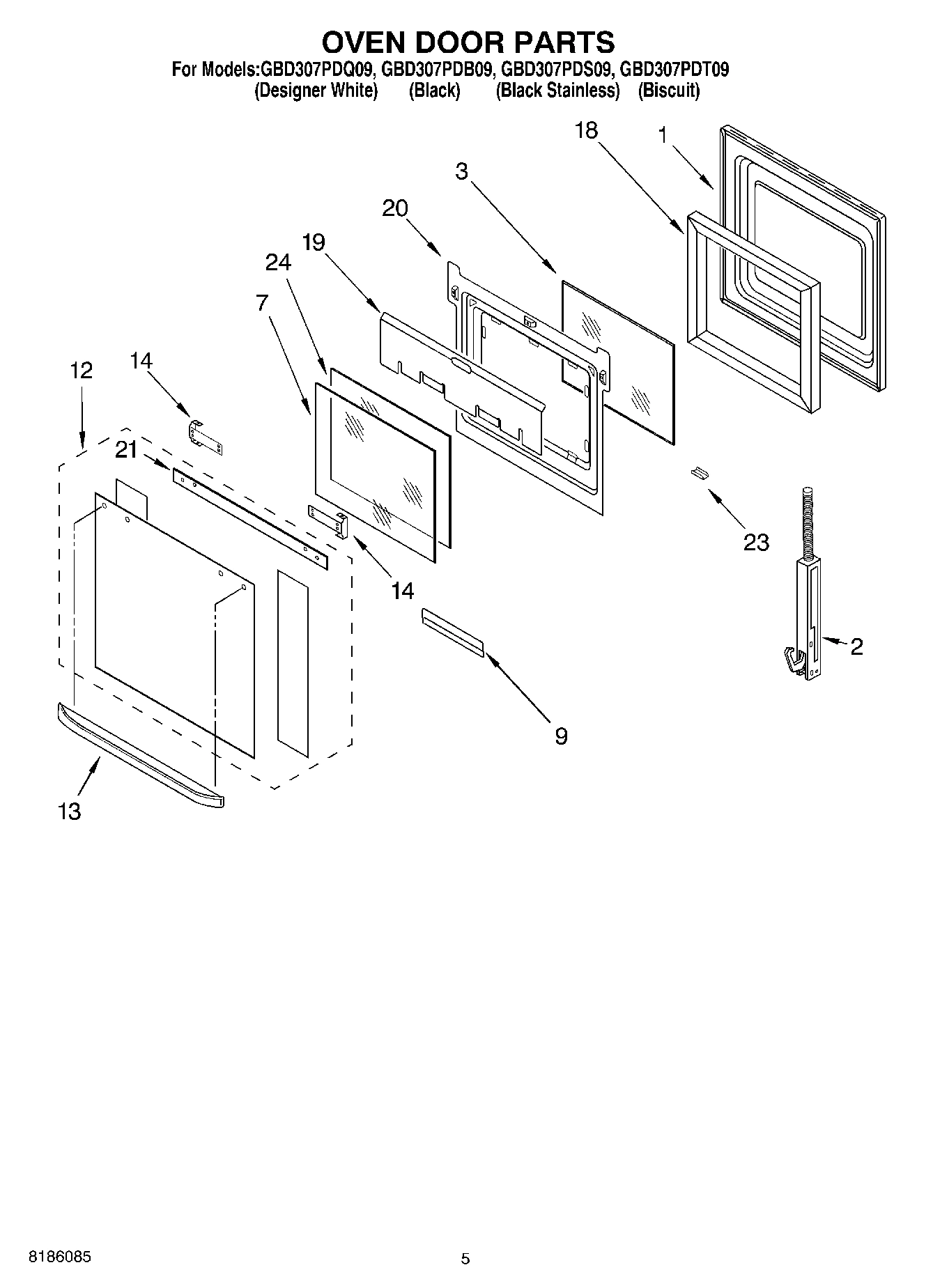

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $83.40

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

3

Latch, Sister Board WPL 8301848 Contact Us For Availability

3

Microcomputer WPL 8302152 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

4

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $158.49

4

Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability

5

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

6

Transformer, Control WPL 8300642 Contact Us For Availability

6

Divider, Vent WPL 4452201 Contact Us For Availability

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $84.67

7

Top, Chassis WPL 4455865 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

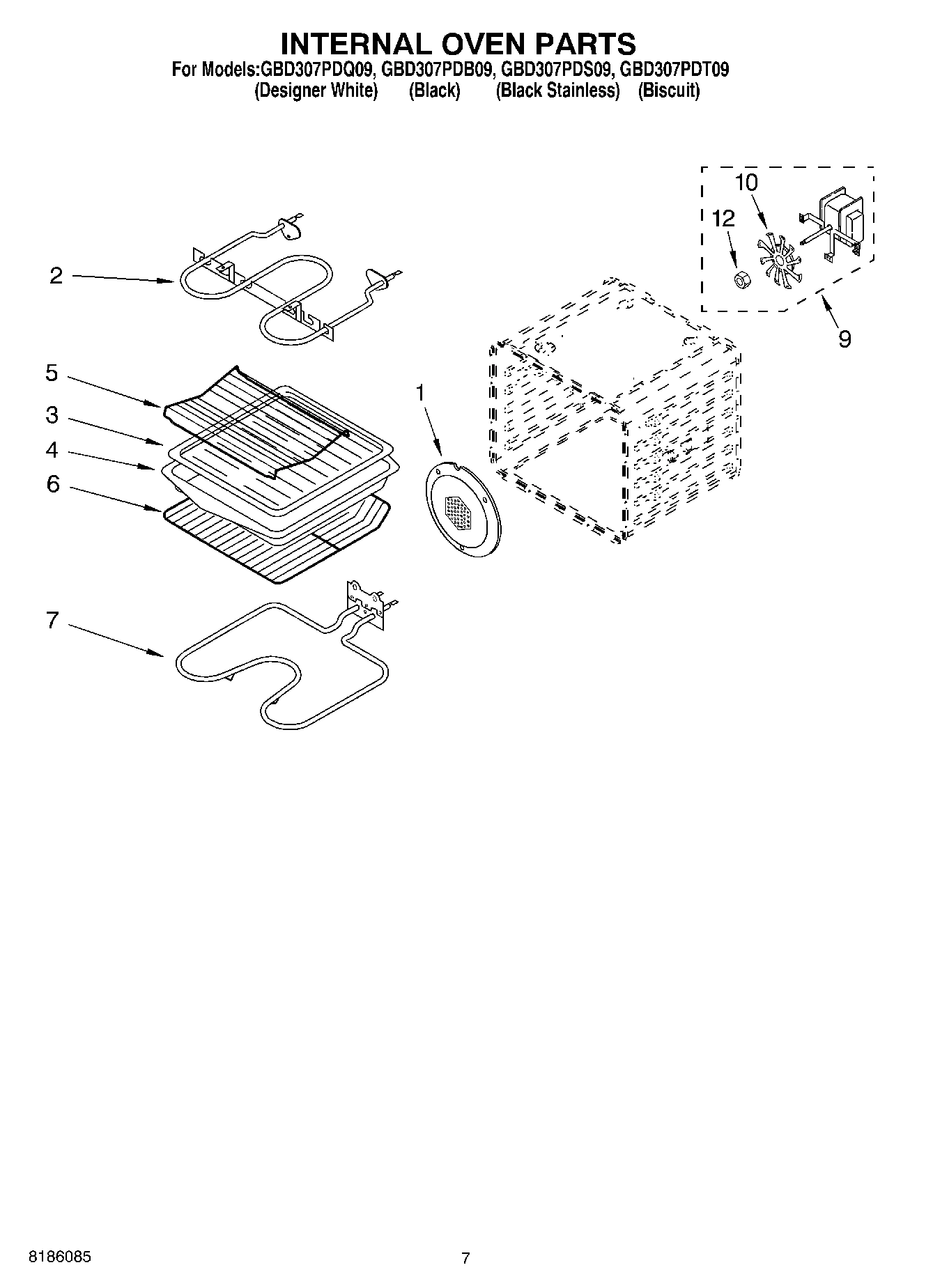

Fan, Convection WPL 4451583 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $28.29

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $37.09

11

Screw WPL 3400080 Contact Us For Availability

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $28.53

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Door Handle (Black) WPL 4448854 Contact Us For Availability

13

Vent, Control Panel WPL 4448549 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $35.63

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $30.23

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $26.72

15

Back, Control WPL 4452244 Contact Us For Availability

16

WP4450551 Whirlpool Top Cabinet Backorder WPL WP4450551 $54.44

18

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $48.29

19

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $39.01

19

Support, Insulation WPL 4451478 Contact Us For Availability

20

SUPPRESSOR WPL 8302143 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $90.90

21

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $90.99

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

24

Glass, Inner WPL 8300974 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI58686A5 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI58683A1 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

34

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

34

Vent, Center WPL 4452267 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

51

Trim, Bottom (Black) WPL 4448477 Contact Us For Availability

51

Trim, Bottom (White) WPL 4448478 Contact Us For Availability

51

Trim, Bottom (Biscuit Screw) WPL 4452415 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $47.58

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

Support, Bracket WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI58687A2 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI58684A6 Contact Us For Availability
