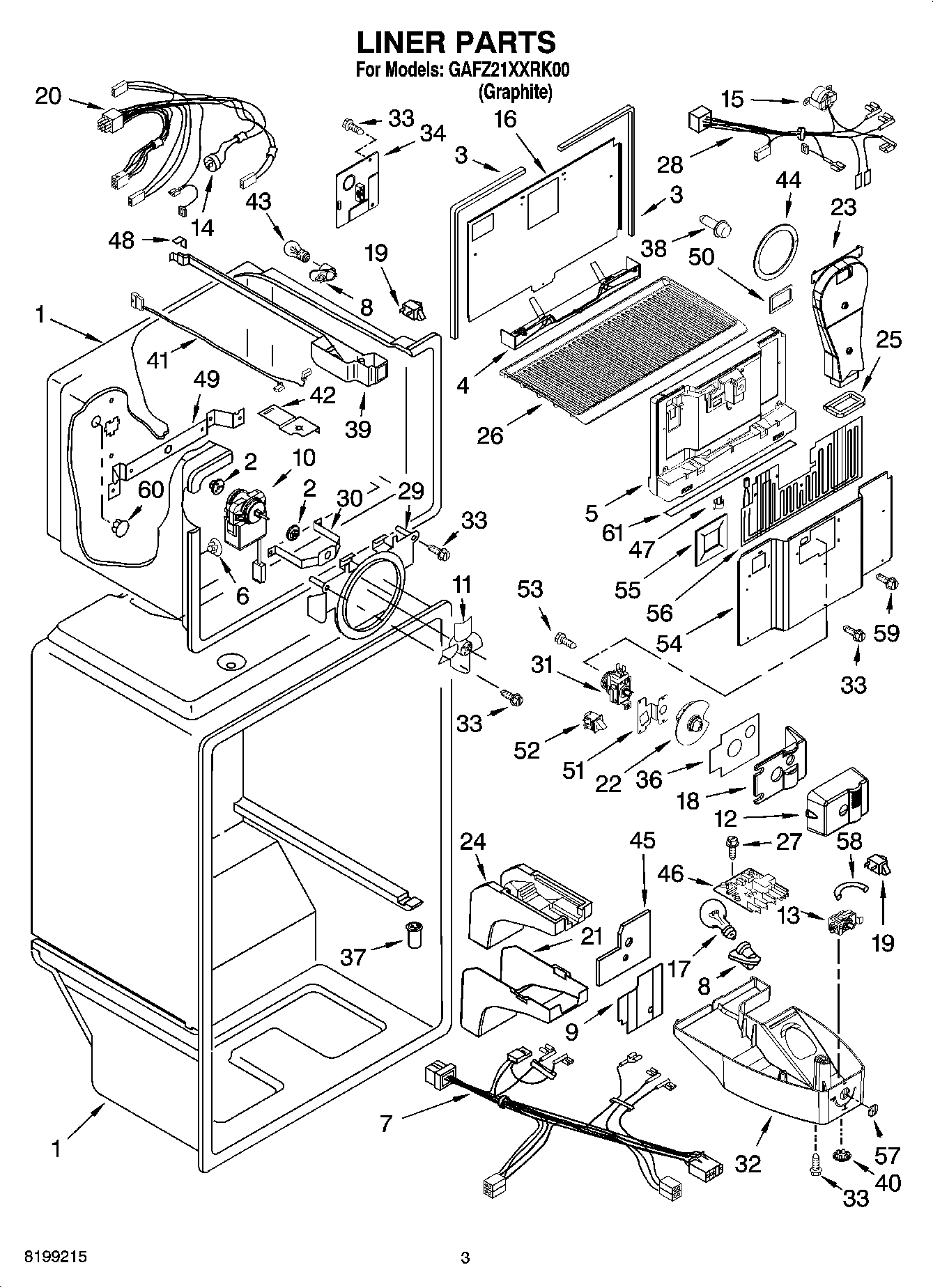

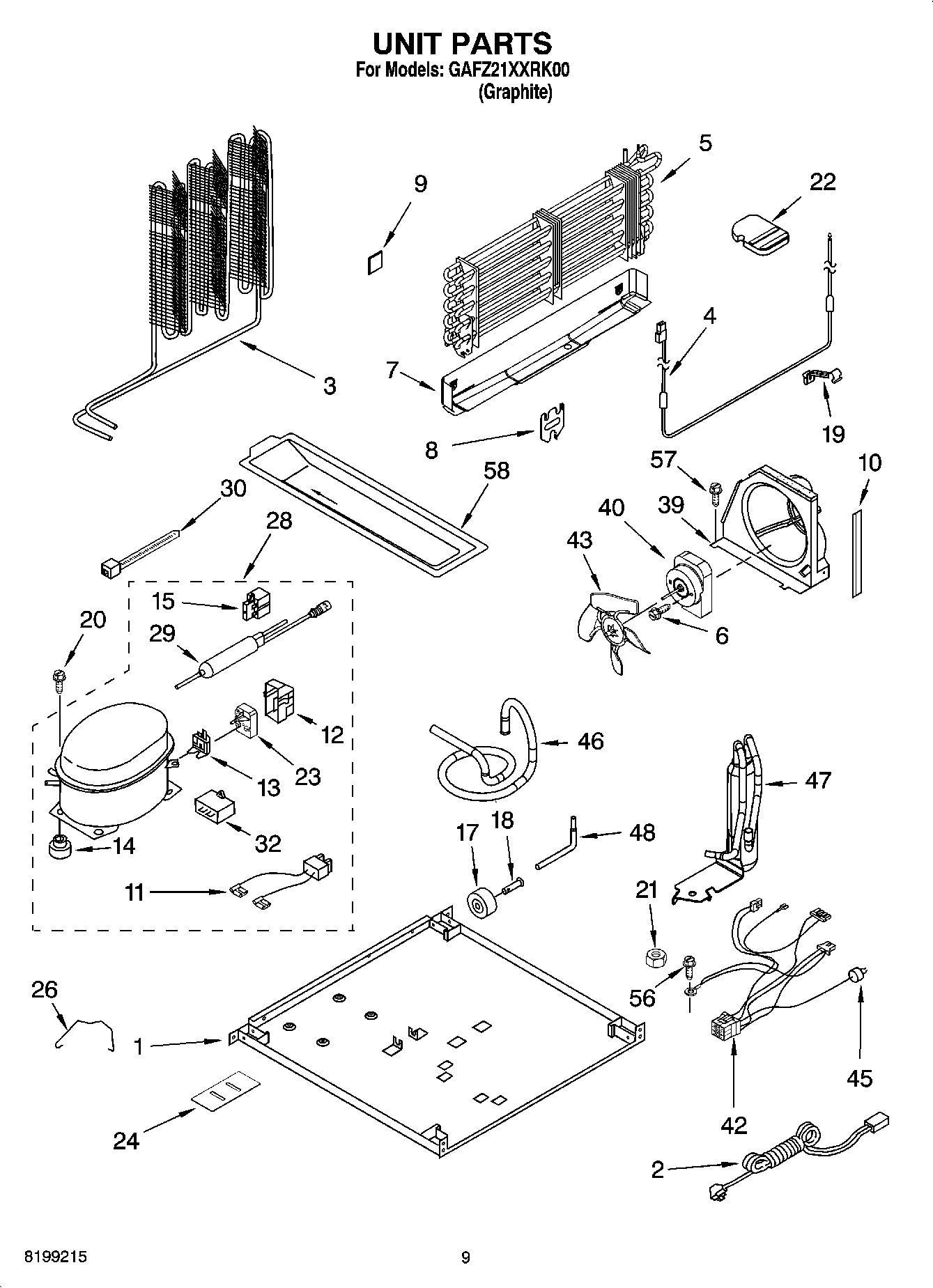

Model Whirlpool GAFZ21XXRK00 CONVERTIBLE REFRIGERATOR/FREEZER – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

Brush Touch-up Kit (Graphite) WPL 80051 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Graphite (1 Qt. Uncut) WPL 8171358 Contact Us For Availability

WPL ARI58020A5 WPL ARI58020A5 Contact Us For Availability

WPL ARI58021A9 WPL ARI58021A9 Contact Us For Availability

WPL ARI58022A5 WPL ARI58022A5 Contact Us For Availability

WPL ARI58023A2 WPL ARI58023A2 Contact Us For Availability

1

Top Door (Includes 8 & 12) (Graphite) WPL 2253083 Contact Us For Availability

1

Door Removal/ Reversal Instructions WPL 2204872 Contact Us For Availability

1

Customer Quick Tips WPL 2253207 Contact Us For Availability

1

Service & Wiring Sheet (English) Energy Label WPL 2253241 Contact Us For Availability

1

Use & Care Guide WPL 2253278 Contact Us For Availability

1

Literature Parts (English) WPL 2302297 Contact Us For Availability

1

Literature Parts (Spanish) WPL 2302298 Contact Us For Availability

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

1

Bottom Door (Includes 8 & 12) (Graphite) WPL 2253082 Contact Us For Availability

2

2187762 Whirlpool Refrigerator Power Cord Backorder WPL 2187762 $49.54

2

Rack, Can WPL 2253006 Contact Us For Availability

2

Cabinet (Not A Serviceable Part) WPL ARI58013A2 Contact Us For Availability

2

Shelf, Ladder Center WPL 2300520 Contact Us For Availability

2

Shelf, Wire Door WPL 2253270 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $43.15

3

Gasket, Evaporator Cover (2) WPL 2253133 Contact Us For Availability

3

Condenser WPL 2214960 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

5

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

5

Cover, Insulated Evaporator WPL 2253137 Contact Us For Availability

5

Hole Plug, Endcap (Graphite) WPL 2204839 Contact Us For Availability

6

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Cover, Water Valve WPL 2166251 Contact Us For Availability

6

Support, Shelf WPL 2253149 Contact Us For Availability

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Bracket, Caster (Left) WPL 2253155 Contact Us For Availability

7

Bracket, Caster (Right) WPL 2253156 Contact Us For Availability

7

Frame Assembly, Wire Shelf (1) WPL 2253287 Contact Us For Availability

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $107.38

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $159.43

8

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

8

Basket, Wire (1) WPL 2253274 Contact Us For Availability

9

WP2253168 Whirlpool Refrigerator Caster Backorder WPL WP2253168 $72.51

9

Cover, Basket (Includes Item 10) WPL 2253254 Contact Us For Availability

10

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

10

Slide, Basket WPL 2253259 Contact Us For Availability

11

Basket, Lower WPL 2253260 Contact Us For Availability

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

12

WP8533952 Whirlpool Refrigerator Nut Backorder WPL WP8533952 $30.89

2253774 Whirlpool Nameplate Backorder WPL 2253774 $27.52

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2253122 Whirlpool Refrigerator Thermostat Backorder WPL WP2253122 $97.78

Shim WPL 2172743 Contact Us For Availability

14

WP3400527 Whirlpool Refrigerator Screw In Stock WPL WP3400527 $3.70

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

Bimetal, Liner Heater WPL 2253219 Contact Us For Availability

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

16

Shelf Assembly WPL 2253275 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

Shelf, Freezer WPL 2253265 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Clip, Heater WPL 2182338 Contact Us For Availability

Handle (Graphite) WPL 2253076 Contact Us For Availability

Lock Washer (4) WPL 8533956 Contact Us For Availability

Handle (Graphite) WPL 2253075 Contact Us For Availability

20

WP2204813 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204813 $51.09

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

21

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

21

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $41.74

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

3400241 Whirlpool Screw Backorder WPL 3400241 $9.13

22

Support Block WPL 2201185 Contact Us For Availability

23

Trim, Door Shelf WPL 2253250 Contact Us For Availability

24

Fitting, Water Tube (Not Serviced) WPL ARI58014A1 Contact Us For Availability

25

Gasket, Air Tower WPL 2253052 Contact Us For Availability

27

Hole Plug (6) (Graphite) WPL 2204835 Contact Us For Availability

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP2253228 Whirlpool Refrigerator Thermostat Backorder WPL WP2253228 $89.27

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

35

Corner Filler (2) (Graphite) WPL 2204843 Contact Us For Availability

36

Grille (Graphite) WPL 2254317 Contact Us For Availability

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

38

Endcap, Door Trim WPL 2177340 Contact Us For Availability

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

40

Cover, Hinge (Graphite) WPL 2213388 Contact Us For Availability

41

Rail Center (Not Serviced) WPL ARI58015A5 Contact Us For Availability

44

Cover, Unit WPL 2302358 Contact Us For Availability

45

Bi-metal WPL 2253201 Contact Us For Availability

46

Board, Control WPL 2303821 Contact Us For Availability

52

2225399 Whirlpool Refrigerator Switch In Stock WPL 2225399 $30.25

53

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

56

Heater, Auxilary WPL 2253123 Contact Us For Availability

57

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI58018A6 Contact Us For Availability

R WPL ARI58019A8 Contact Us For Availability

61

WP2253055 Whirlpool Refrigerator Gasket In Stock WPL WP2253055 $9.92
