Model Whirlpool GA8120 WASHER – Common Parts & Diagrams

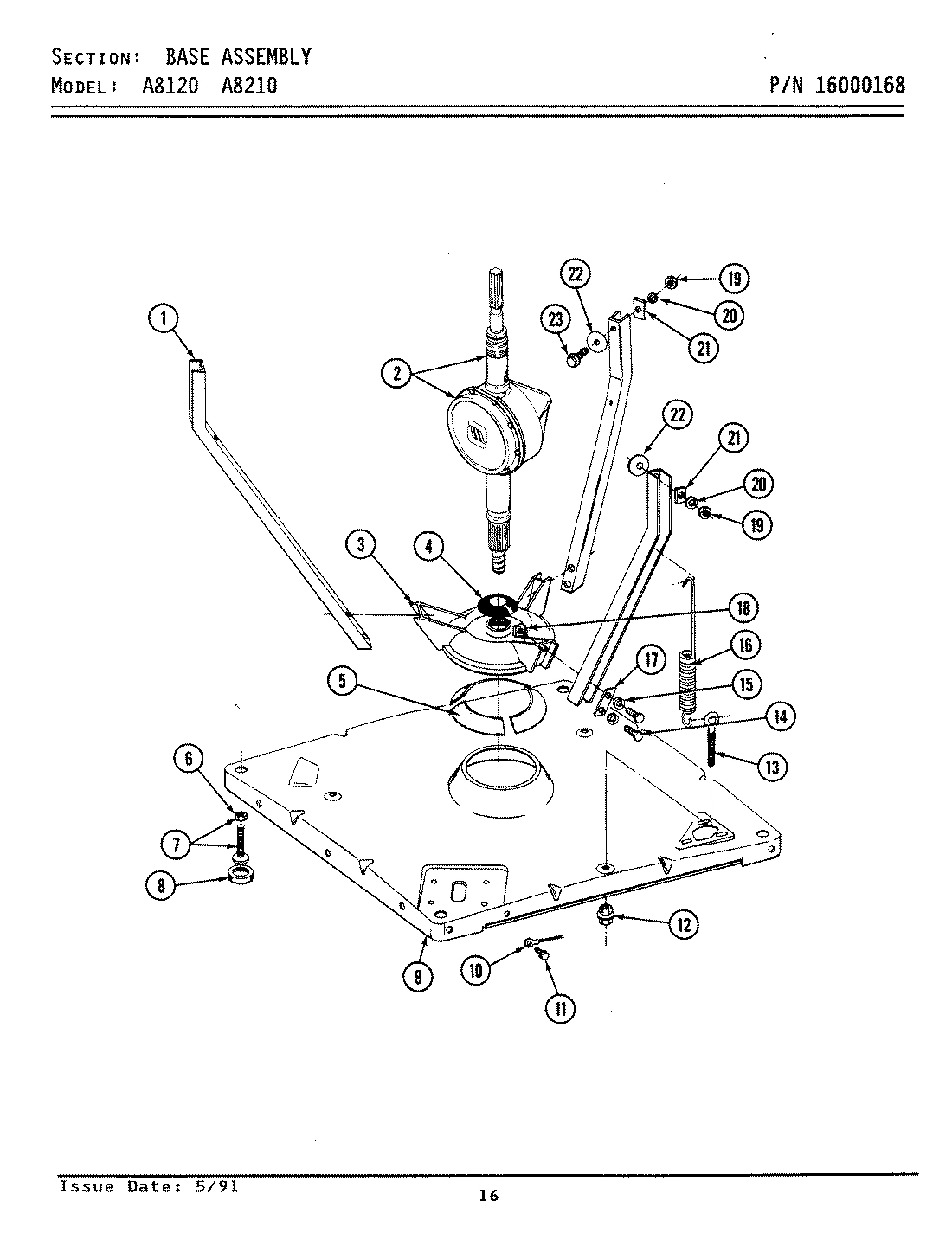

01 - BASE ASSEMBLY

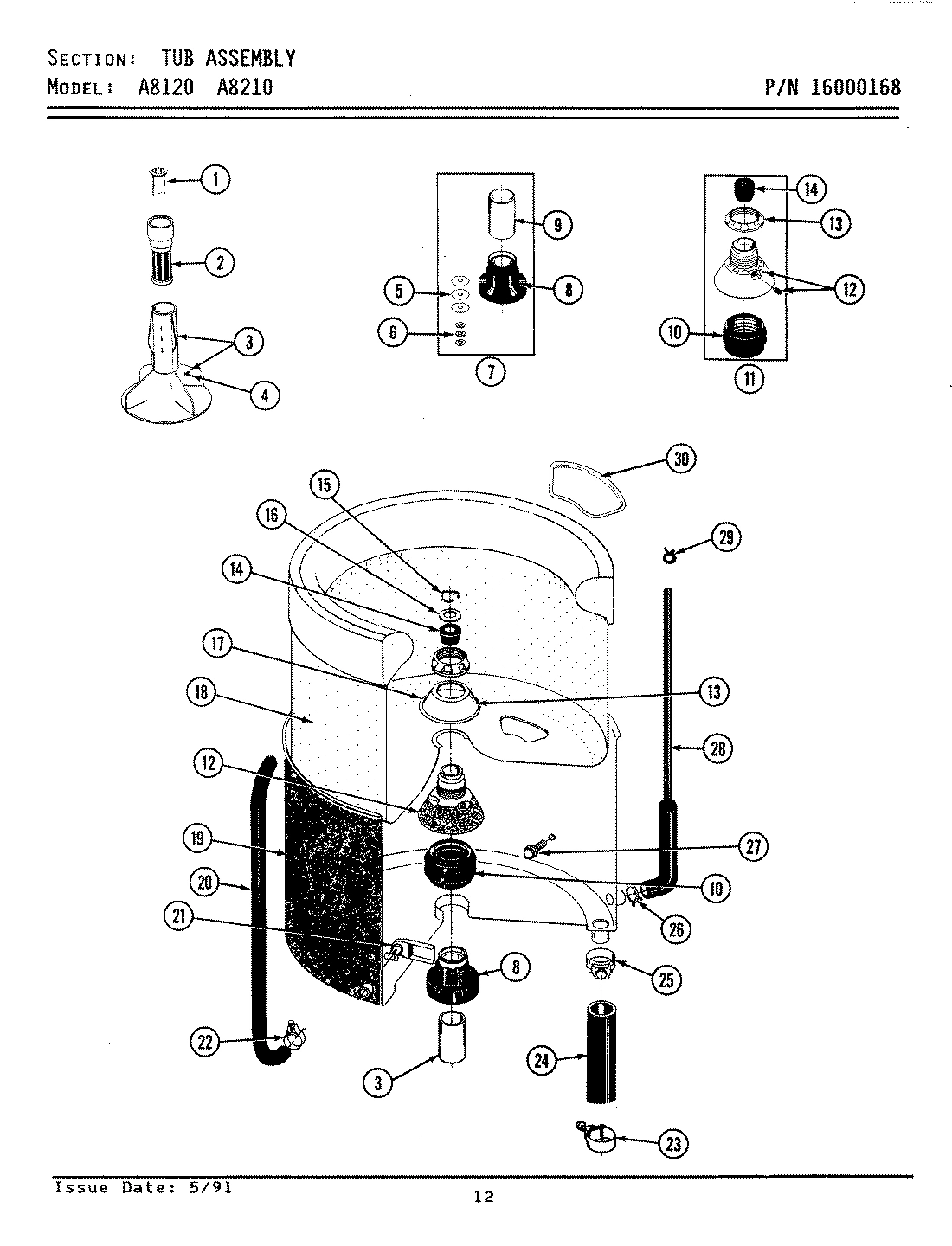

08 - TUB ASSEMBLY

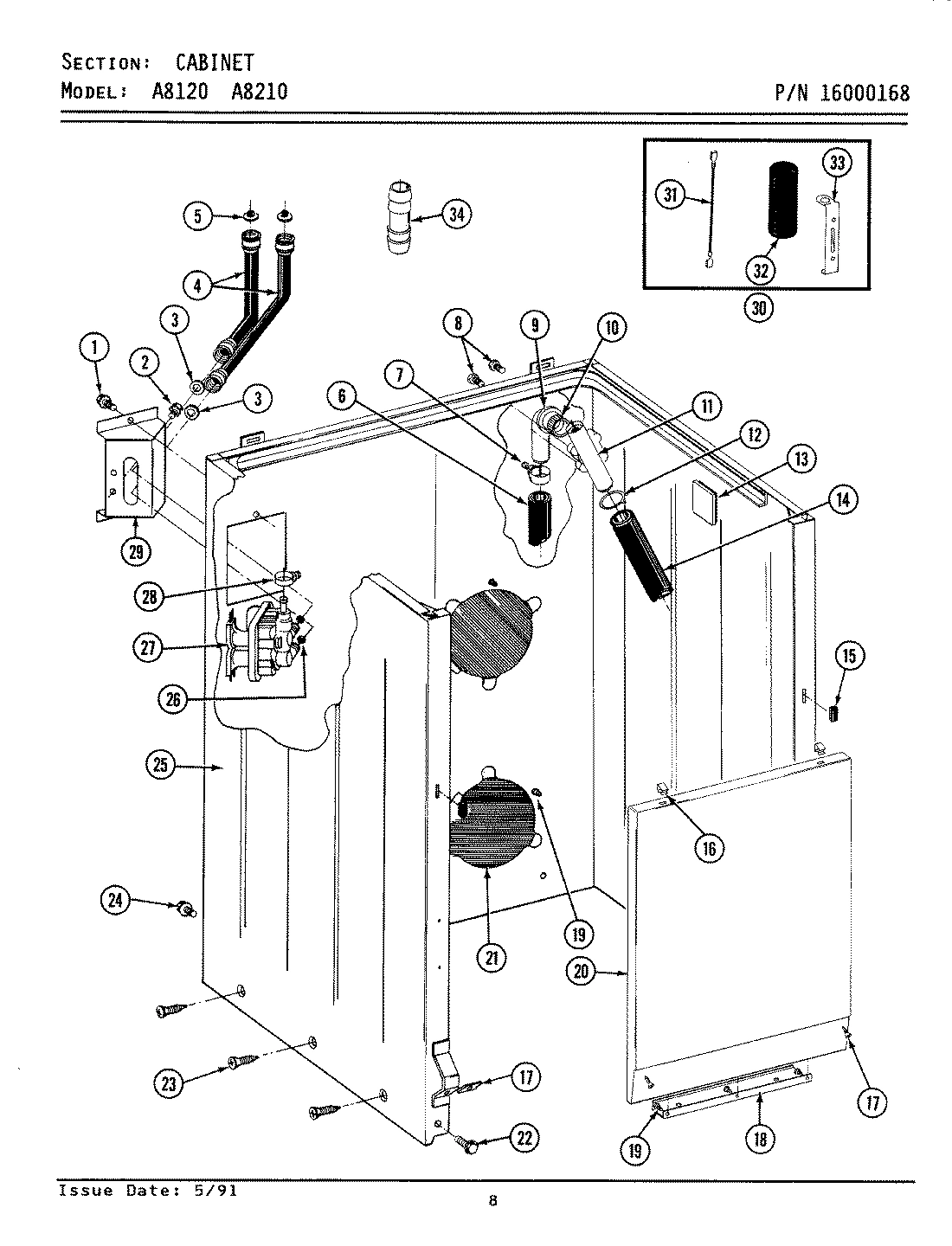

02 - CABINET

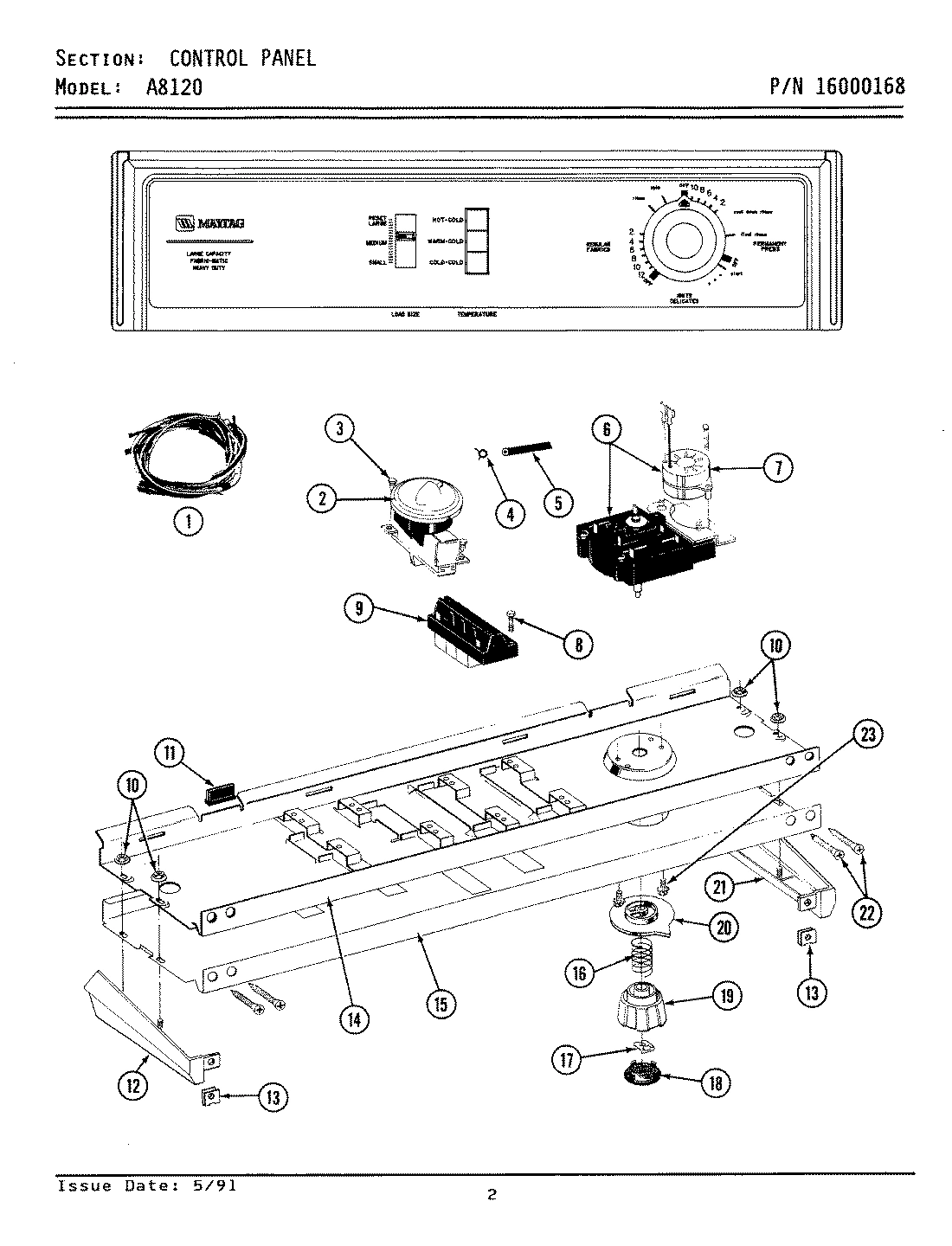

04 - CONTROL PANEL

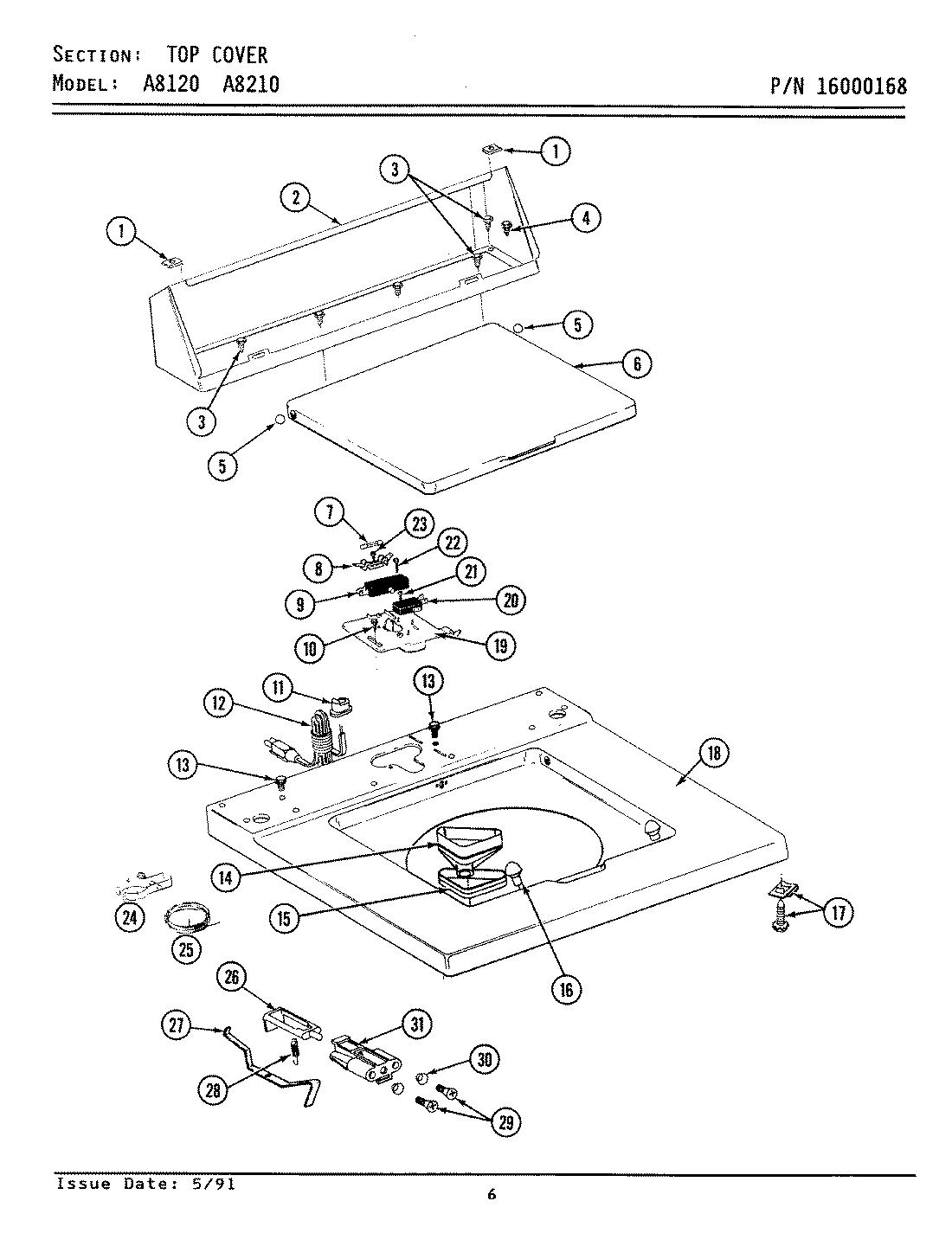

06 - TOP COVER

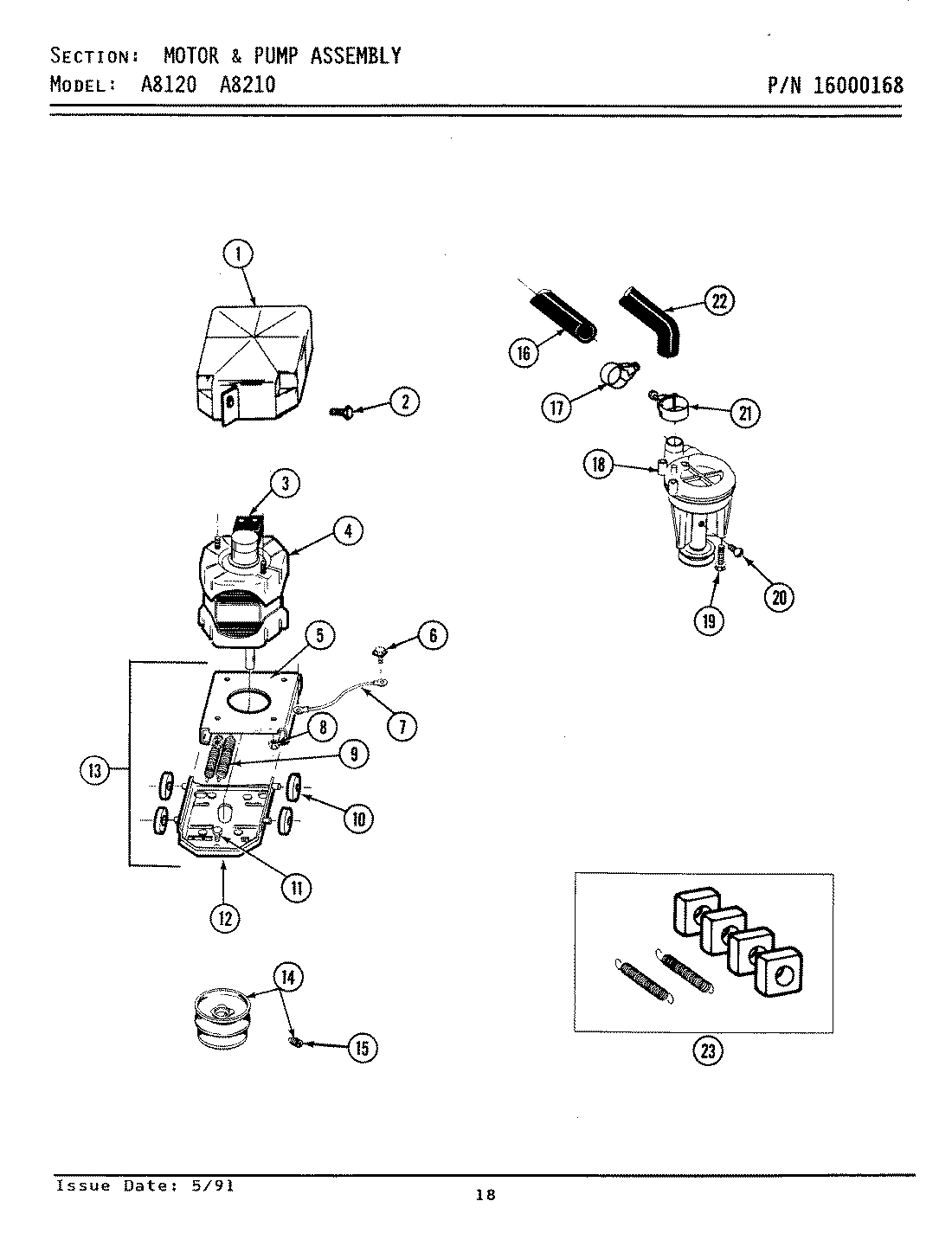

05 - MOTOR & PUMP ASSEMBLY

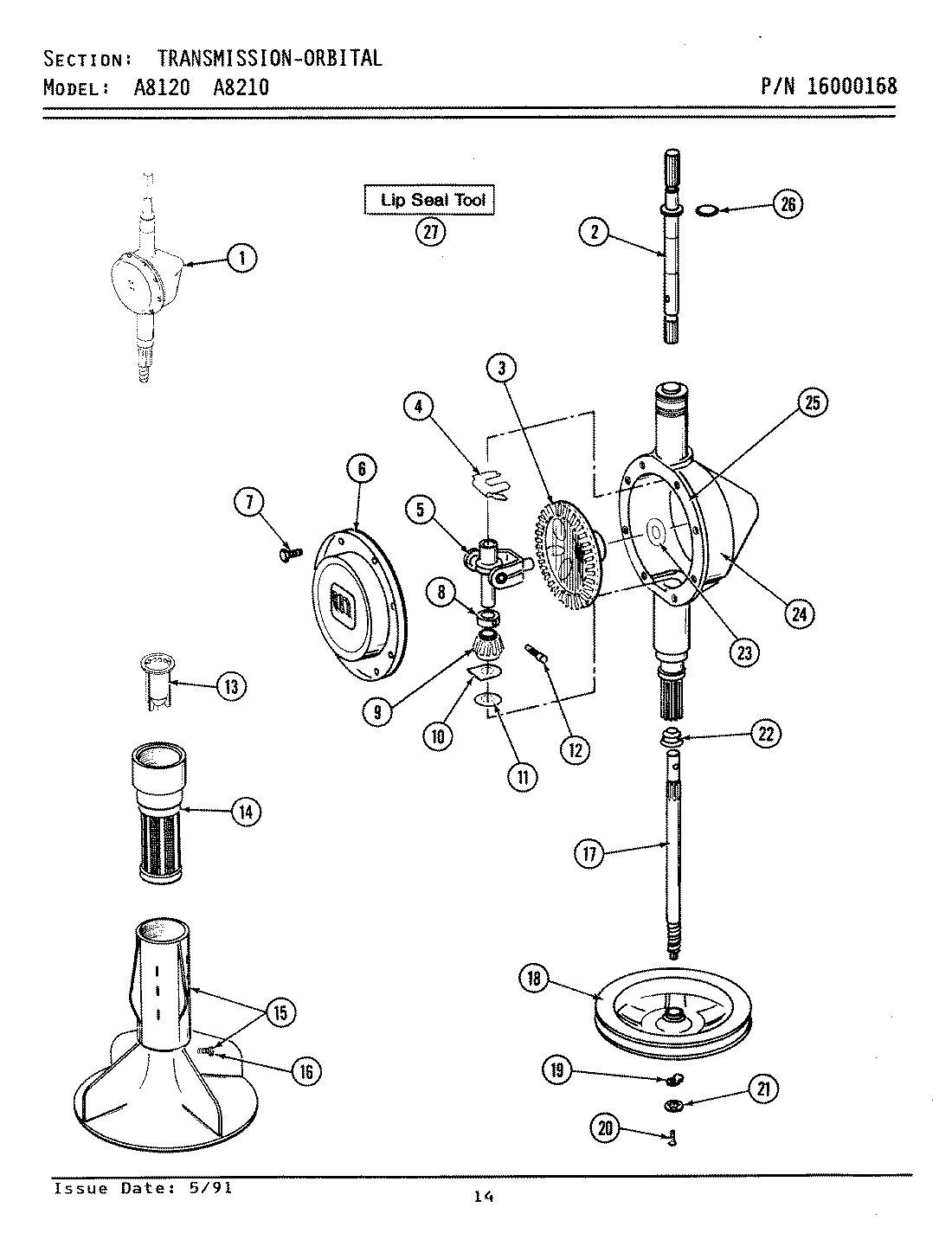

07 - TRANSMISSION

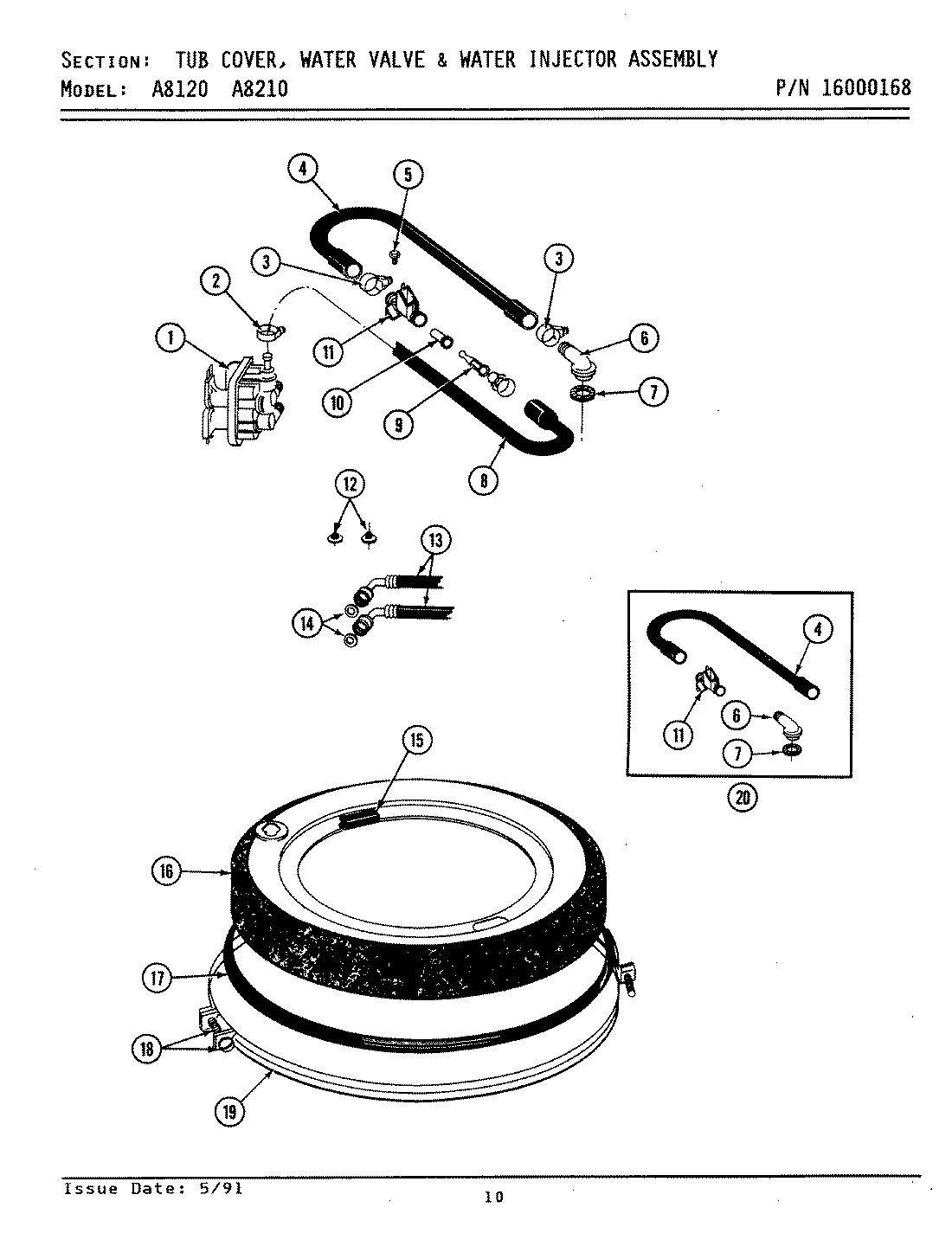

09 - TUB COVER

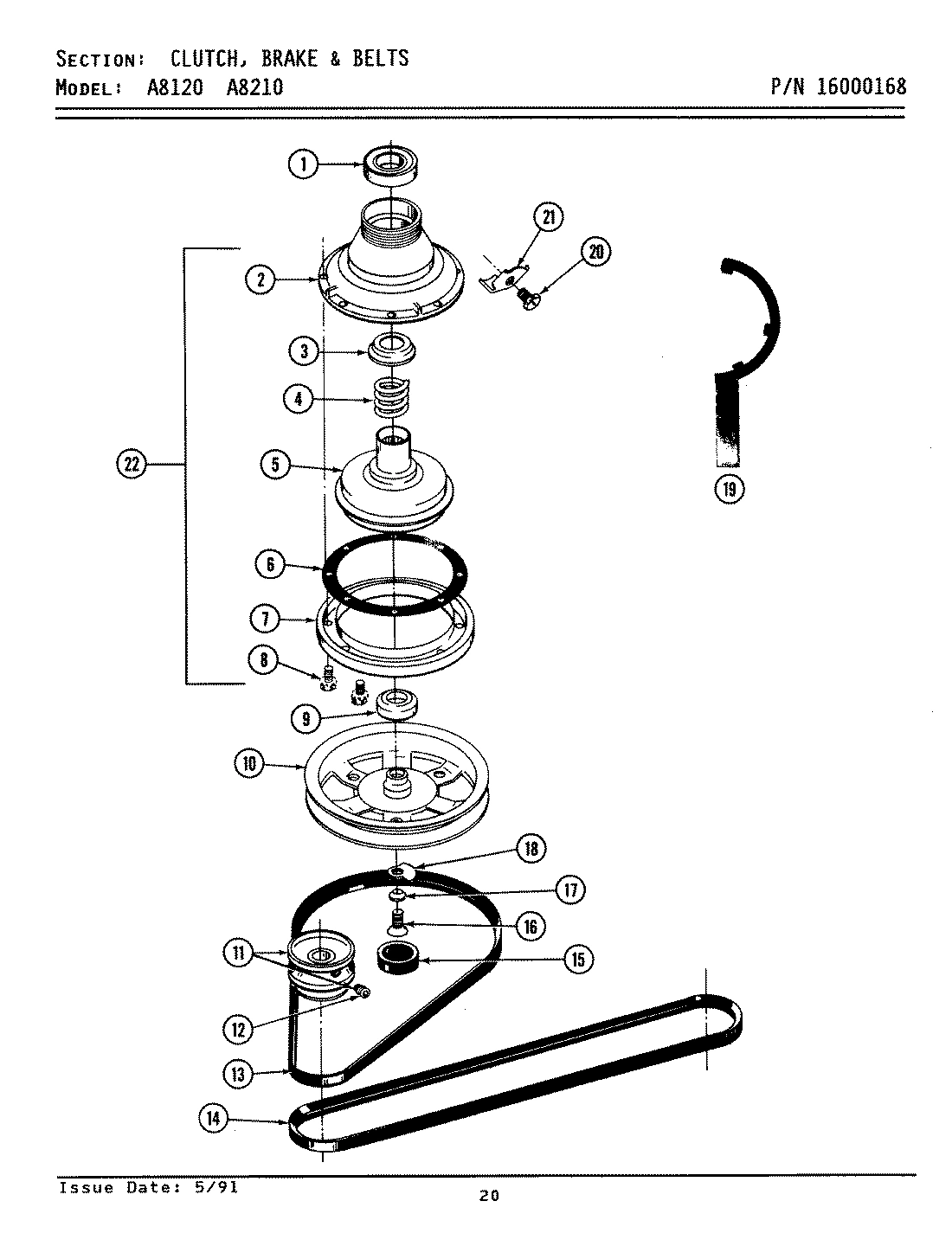

03 - CLUTCH, BRAKE & BELTS
Common parts from model Whirlpool GA8120 WASHER
1
WIRE HARNESS WPL 207383 Contact Us For Availability
1
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
1
SHIELD, MOTOR WPL 215098 Contact Us For Availability
1
TRANSMISSION WPL 206708 Contact Us For Availability
1
BALL BEARING, RADIAL WPL Y200720 Contact Us For Availability
2
INFINITE LEVEL PRESSURE SWITCH WPL 207362 Contact Us For Availability
2
CONSOLE (HVST WHEAT) WPL 205635M Contact Us For Availability
2
SHAFT, AGITATOR (W/SPRING) WPL 207153 Contact Us For Availability
2
HOUSING, BRAKE WPL 211045 Contact Us For Availability
3
SWITCH, MOTOR START WPL 205132 Contact Us For Availability
3
MOTOR EXTERNAL START SWITCH WPL 205133 Contact Us For Availability
3
SWITCH, MOTOR START WPL 206505 Contact Us For Availability
3
GEAR, BEVEL WPL 206713 Contact Us For Availability
3
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
4
SPRING, BRAKE WPL 211041 Contact Us For Availability
5
WASHER, CUSHION WPL 211100 Contact Us For Availability
5
MOUNT, MOTOR/UPPER WPL 214956 Contact Us For Availability
5
BLOCK, TORQUE AND YOKE ASSEMBL WPL 206685 Contact Us For Availability
5
SEMS SCREW, No.10-16 X 1/2`` WPL 312620 Contact Us For Availability
5
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
6
WASHER, LOCK WPL Y054867 Contact Us For Availability
6
HOSE, DRAIN (7/8``I.D.) WPL 216017 Contact Us For Availability
6
(7/8`` I.D. CARTON OF 50 FT.) WPL Y059149 Contact Us For Availability
6
TIMER WPL 207377 Contact Us For Availability
6
LID-HARVEST WHEAT WPL 212073M Contact Us For Availability
6
COVER, TRANSMISSION WPL 206628 Contact Us For Availability
6
INJECTOR TUBE WPL 215235 Contact Us For Availability
6
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
7
TIMER MOTOR 120-60 WPL 205033 Contact Us For Availability
7
FUSE WPL 207168 Contact Us For Availability
7
WIRE, GROUND WPL 901220 Contact Us For Availability
7
SCREW, TRANSMISSION COVER WPL 215417 Contact Us For Availability
7
DRUM, BRAKE WPL 211043 Contact Us For Availability
8
BLOCK, FUSE WPL 207167 Contact Us For Availability
8
COLLAR, LOWER WPL 215415 Contact Us For Availability
9
LINER, TUB BEARING WPL 211130 Contact Us For Availability
9
TEMP CONTROL SWITCH - 3 BUTTON WPL 207368 Contact Us For Availability
9
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
10
SEAL AND SPRING WPL 201537 Contact Us For Availability
10
PALNUT, END CAP WPL 214872 Contact Us For Availability
11
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
11
SCREW----NA WPL Y313561 Contact Us For Availability
11
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
11
GROMMET, CORD WPL 211881 Contact Us For Availability
11
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
12
MOUNTING STEM WPL 202521 Contact Us For Availability
12
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
12
END CAP LH WPL 207215 Contact Us For Availability
12
POWER CORD WPL 204590 Contact Us For Availability
12
LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability
12
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
13
DISPENSING CUP WPL 215733 Contact Us For Availability
13
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
13
FASTENER, END CAP WPL 214894 Contact Us For Availability
13
MOTOR MOUNT ASSM COMPLETE WPL 205999 Contact Us For Availability
14
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
14
BACK UP PLATE WPL 214818 Contact Us For Availability
15
WASHER, LOCK (BRACE) WPL 911852 Contact Us For Availability
15
AGITATOR W/LOCK SCREW WPL 207538 Contact Us For Availability
15
RETAINING RING WPL Y015667 Contact Us For Availability
15
SPACER, FRONT PANEL WPL 214376 Contact Us For Availability
15
CONTROL PANEL WPL 207605 Contact Us For Availability
15
UNBALANCE BUMPER WPL 215232 Contact Us For Availability
15
CAP, OIL RETAINER WPL 211038 Contact Us For Availability
16
WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability
16
CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability
16
SCREW & WASHER FOR AGITATOR WPL 206478 Contact Us For Availability
16
TUB COVER WPL 206380 Contact Us For Availability
17
WASHER, DOUBLE WPL 213073 Contact Us For Availability
17
WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability
17
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
17
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
17
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
17
SHAFT, CENTER WPL 215411 Contact Us For Availability
18
NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability
18
NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability
18
INNER TUB W/PLUG WPL 207830 Contact Us For Availability
18
GUARD, BELT WPL 213846 Contact Us For Availability
18
CAP, KNOB WPL 215821 Contact Us For Availability
18
TOP COVER ASSY HVT WHEAT WPL 207172M Contact Us For Availability
18
PUMP AS PAK WPL 202203 Contact Us For Availability
19
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
19
KNOB, TIMER (BLK) WPL 215828 Contact Us For Availability
19
NUT WPL Y052734 Contact Us For Availability
19
OUTER TUB WPL 203318 Contact Us For Availability
19
TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability
20
FRONT PANEL-HARVEST WHEAT WPL 212998M Contact Us For Availability
20
TIMER DIAL SKIRT WPL 215827 Contact Us For Availability
20
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
21
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
21
SPOUT, DEFLECTOR WPL 214434 Contact Us For Availability
21
PLATE, ACCESS WPL 211878 Contact Us For Availability
21
END CAP RH WPL 207216 Contact Us For Availability
21
SCREW WPL 912012 Contact Us For Availability
22
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
22
SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability
22
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
23
SCREW WPL Y311711 Contact Us For Availability
23
WASHER, BEVEL GEAR WPL 215394 Contact Us For Availability
24
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
24
HOUSING, TRANSMISSION WPL 206625 Contact Us For Availability
25
CABINET-HARVEST WHEAT WPL 203319M Contact Us For Availability
26
KIT, PLUNGER & BRACKET WPL 208591 Contact Us For Availability
26
LID SWITCH PLUNGER WPL 215700 Contact Us For Availability
26
SEAL, RUBBER WPL 210690 Contact Us For Availability
27
UNBALANCE LEVER WPL 215704 Contact Us For Availability
27
LIP SEAL TOOL WPL 038228 Contact Us For Availability
29
BRACKET,WATER VALVE WPL 214812 Contact Us For Availability
30
PLUG, FILTER HOLE WPL 215980 Contact Us For Availability
30
CAPACITOR KIT WPL 206103 Contact Us For Availability
30
WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability
31
No.17 WIRE WITH TERMINAL WPL 203237 Contact Us For Availability
31
BRACKET F/LID SWITCH PLUNGE WPL 214279 Contact Us For Availability
31
BRACKET, UNBALANCE WPL 216256 Contact Us For Availability
32
CAPACITOR WPL Y200832 Contact Us For Availability
33
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
34
HOSE COUPLING WPL Y216015 Contact Us For Availability
× ![]()
