Model FRS6KR5JSB4 – Common Parts & Diagrams

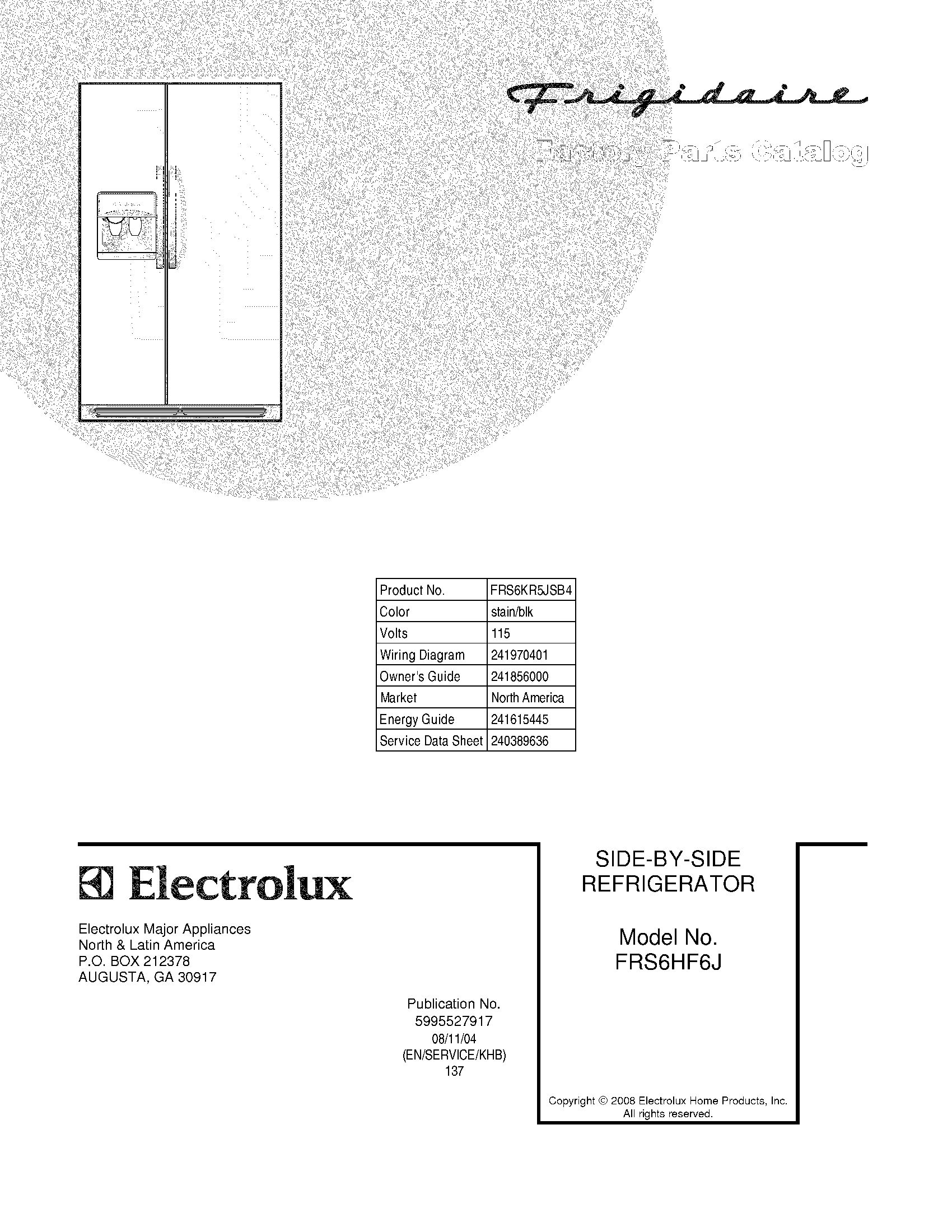

01 - COVER

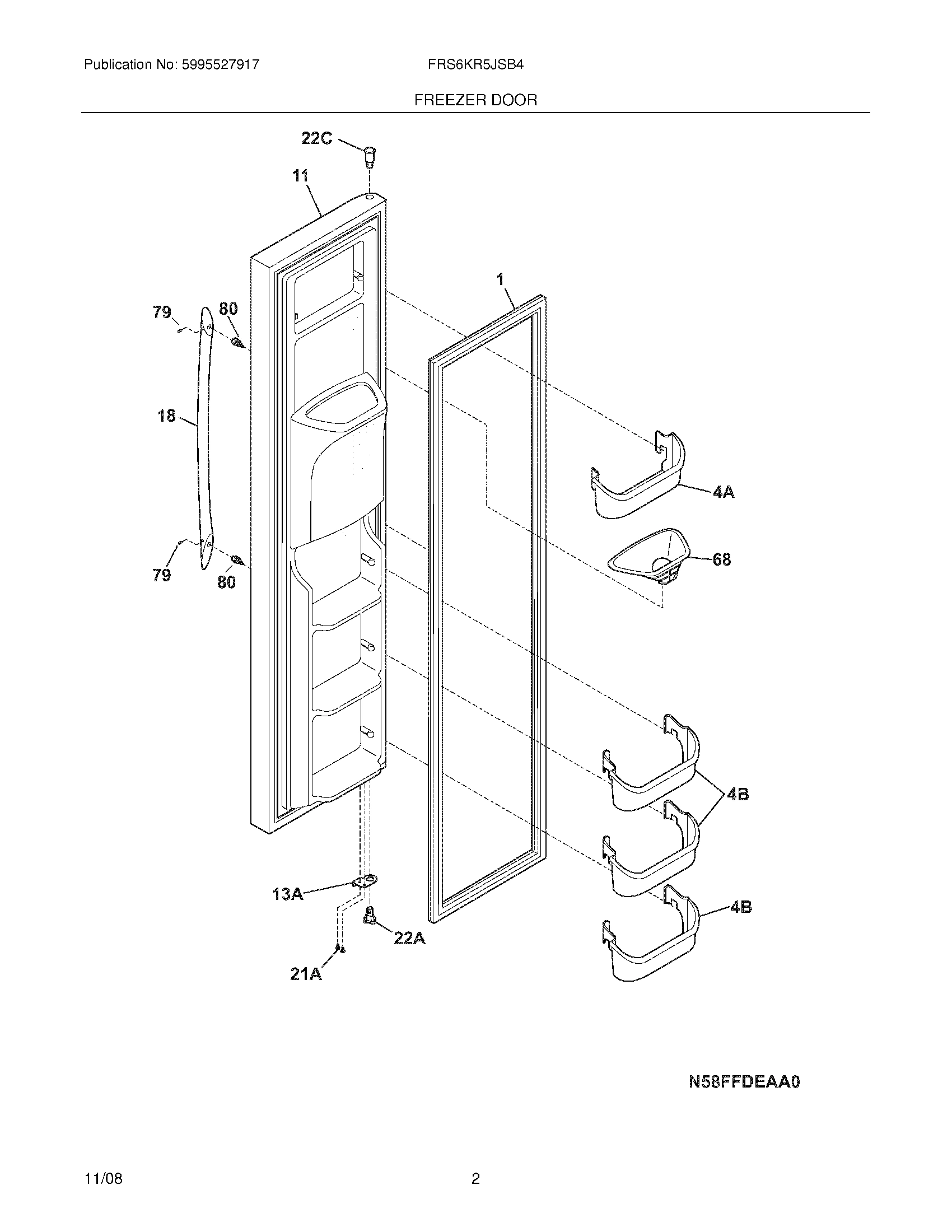

03 - FREEZER DOOR

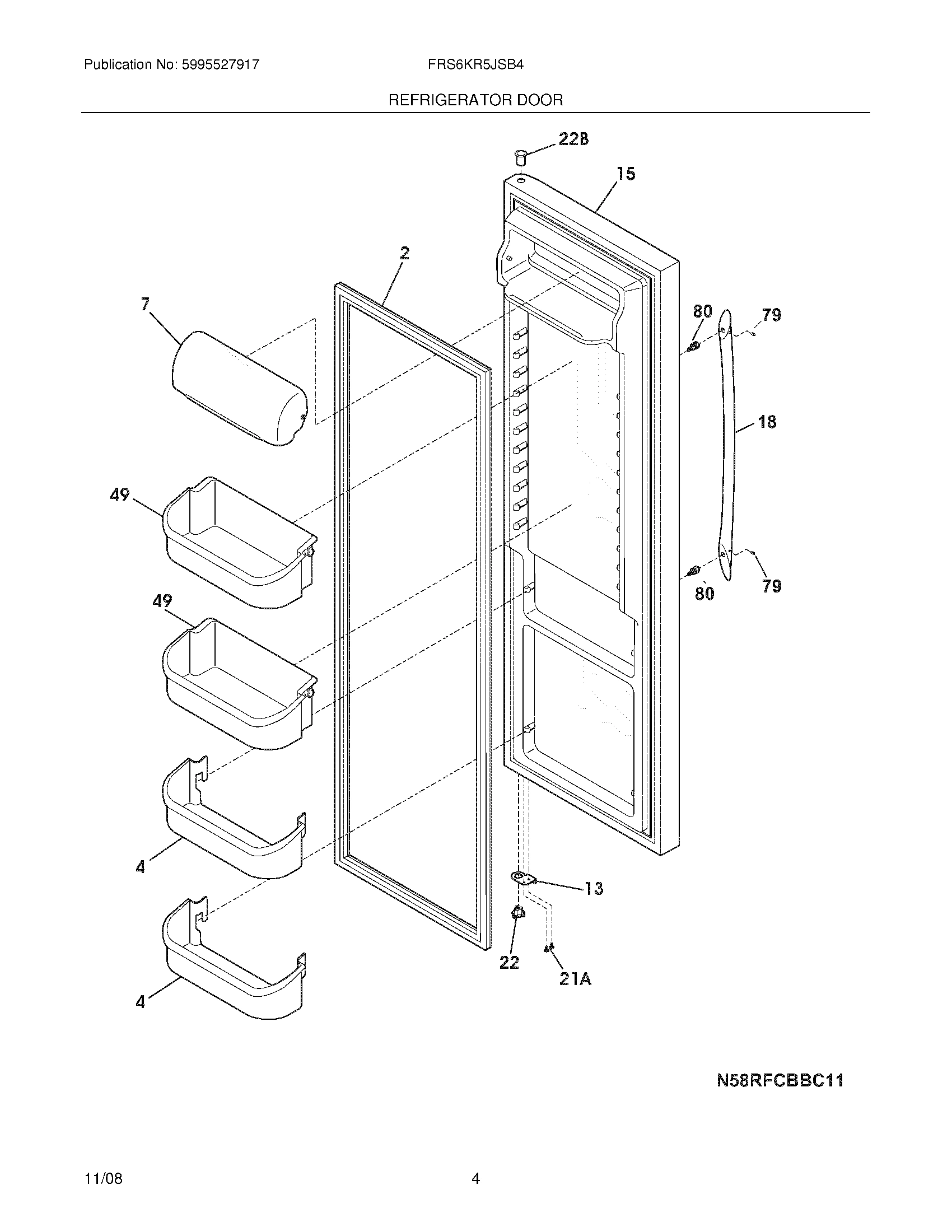

05 - REFRIGERATOR DOOR
07 - CABINET

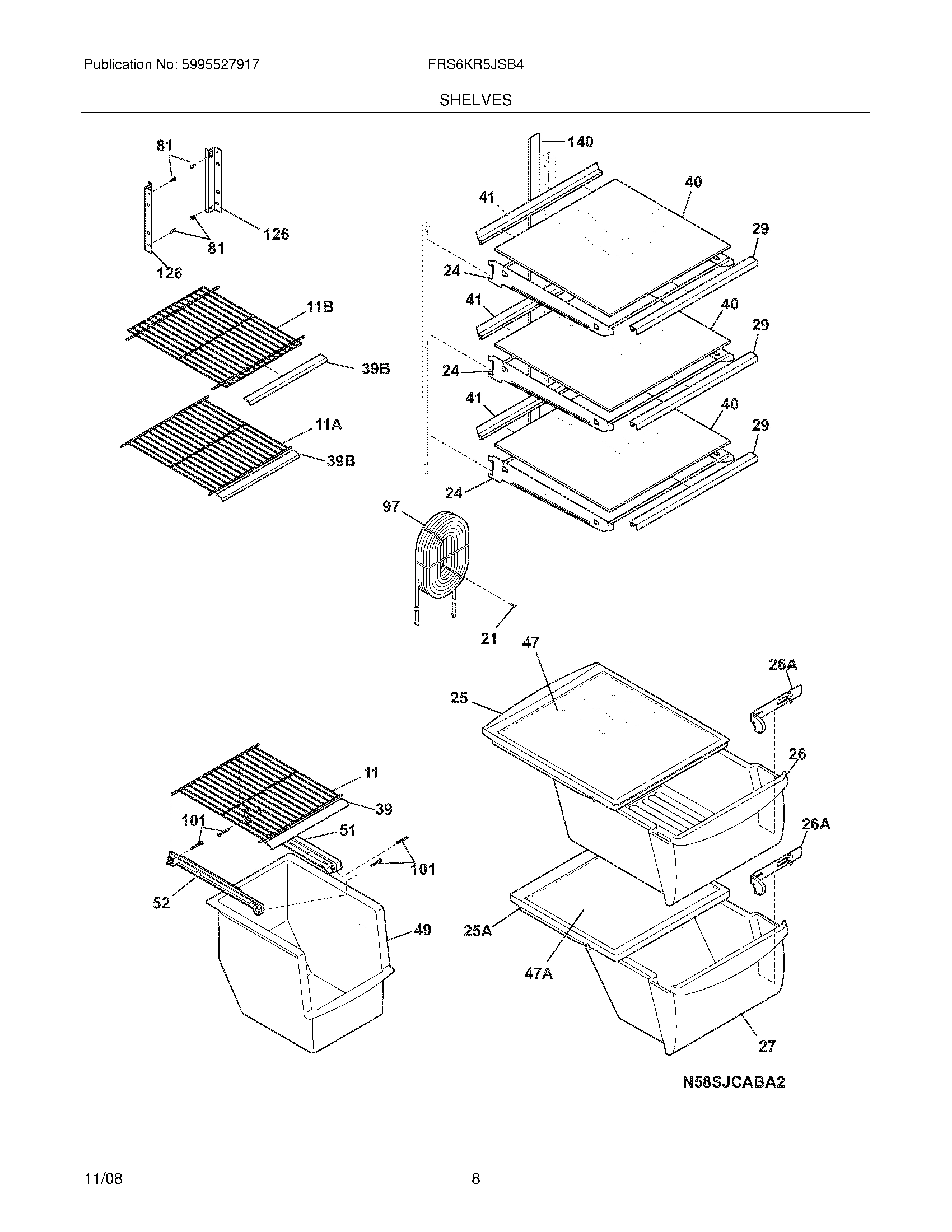

09 - SHELVES

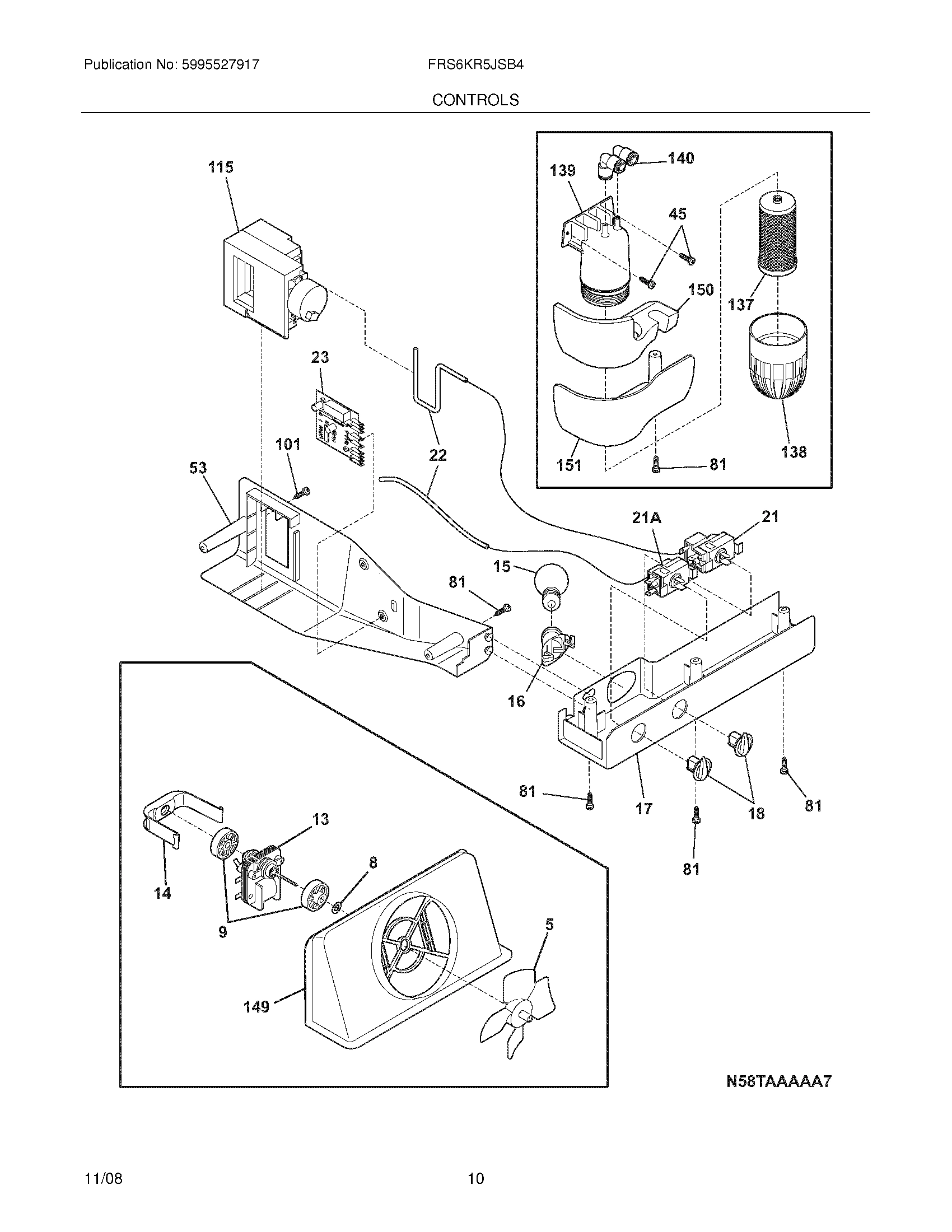

11 - CONTROLS

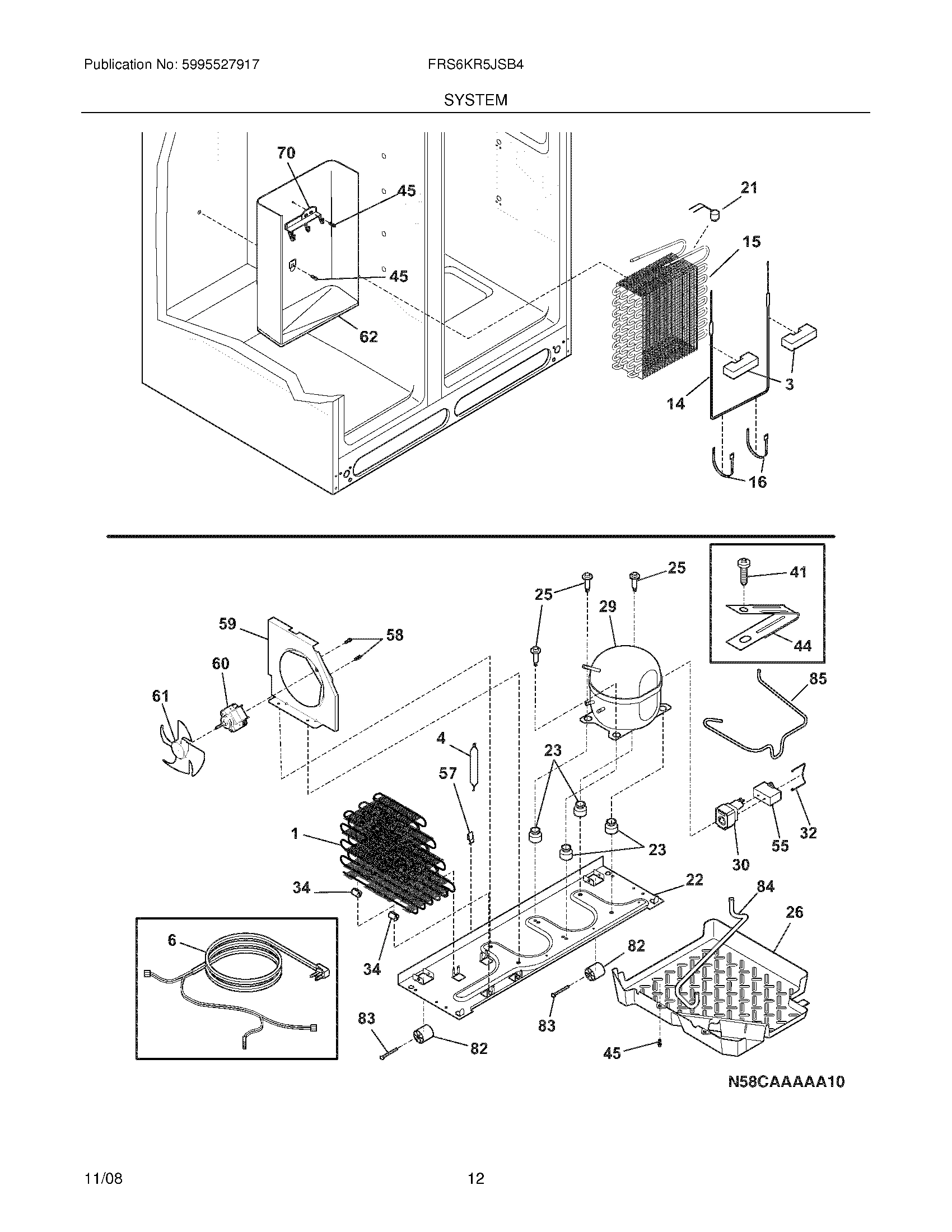

13 - SYSTEM
15 - ICE & WATER DISPENSER
17 - ICE CONTAINER
19 - ICE MAKER

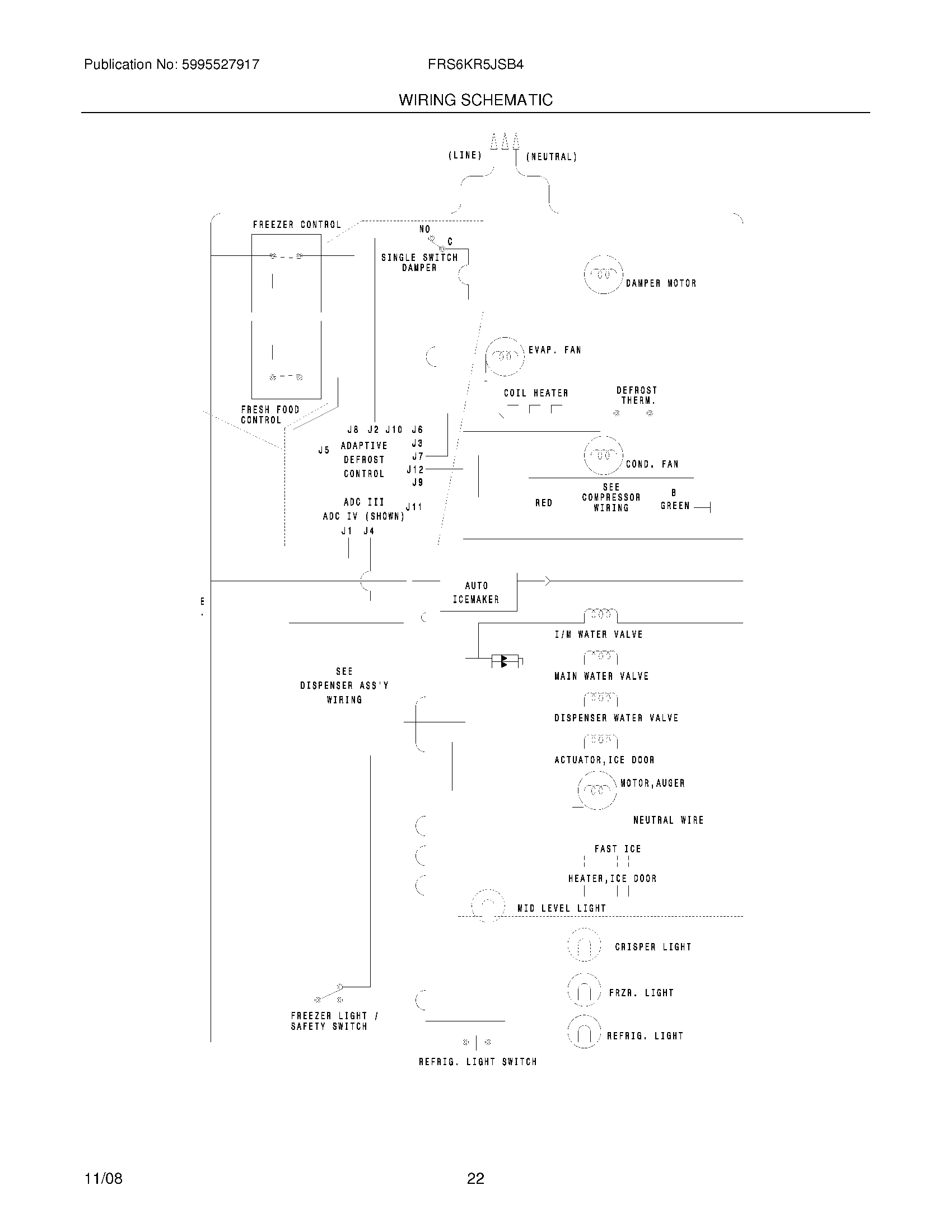

22 - WIRING SCHEMATIC
23 - WIRING DIAGRAM
