Model FRS6HR5JSB4 – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

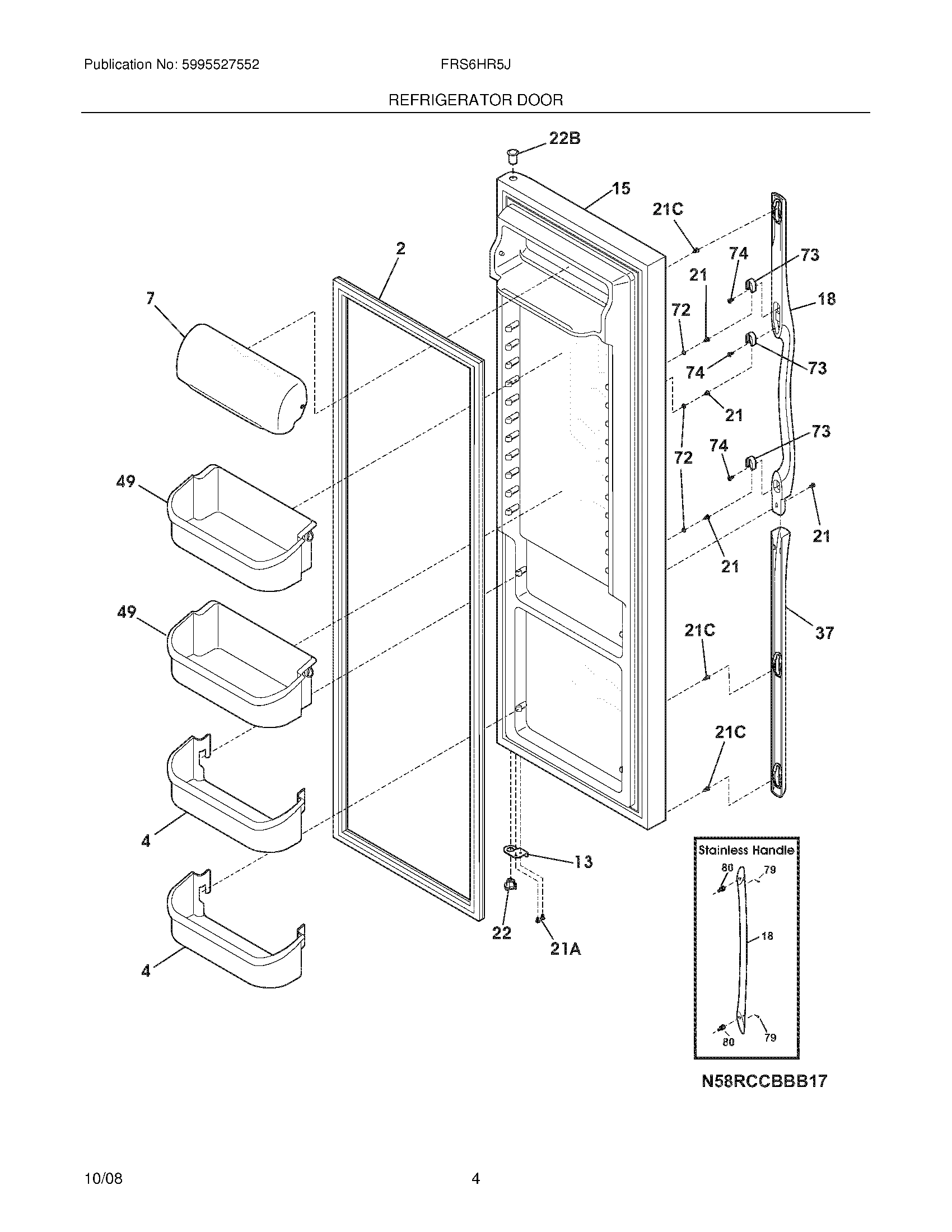

05 - REFRIGERATOR DOOR
07 - CABINET
09 - SHELVES
11 - CONTROLS

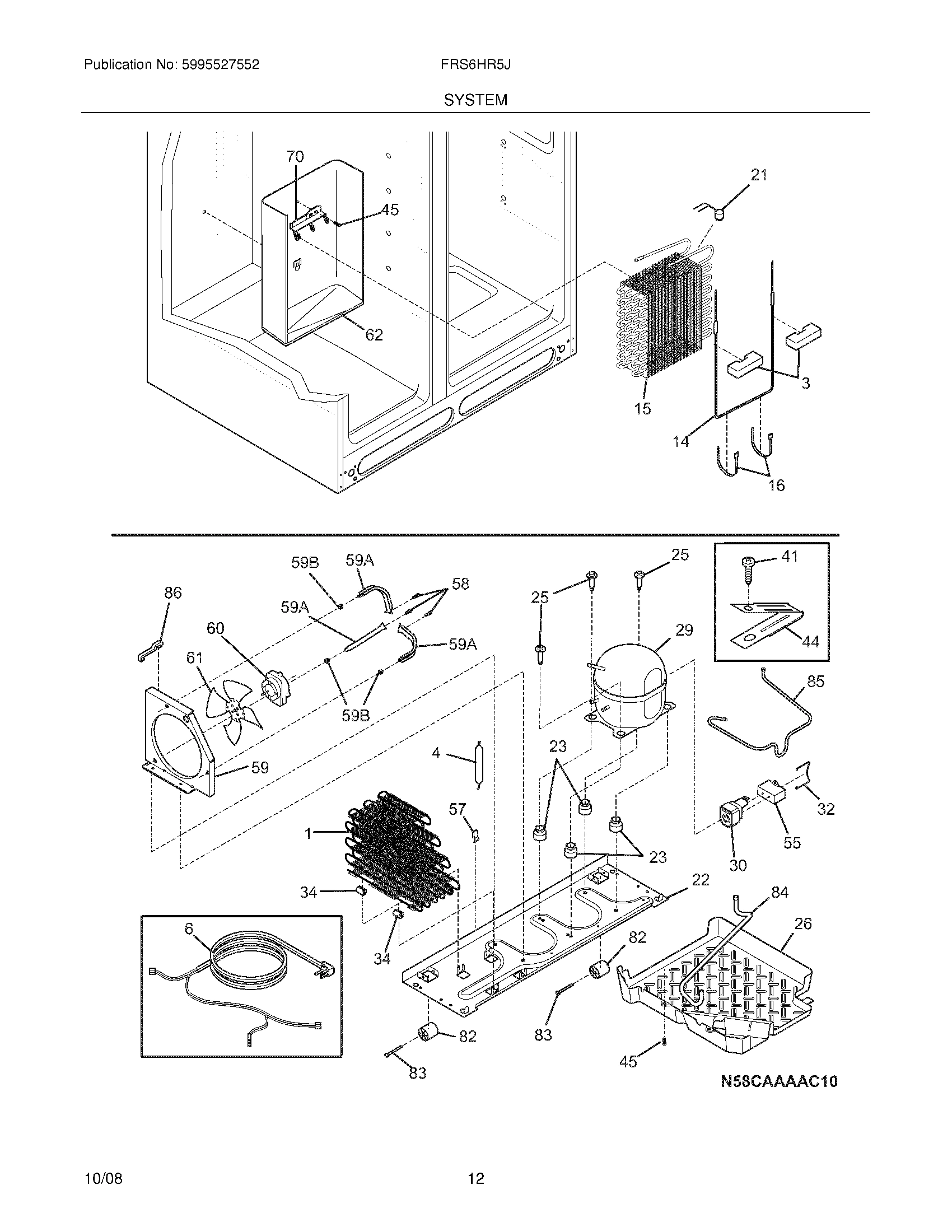

13 - SYSTEM
15 - ICE & WATER DISPENSER
17 - ICE CONTAINER

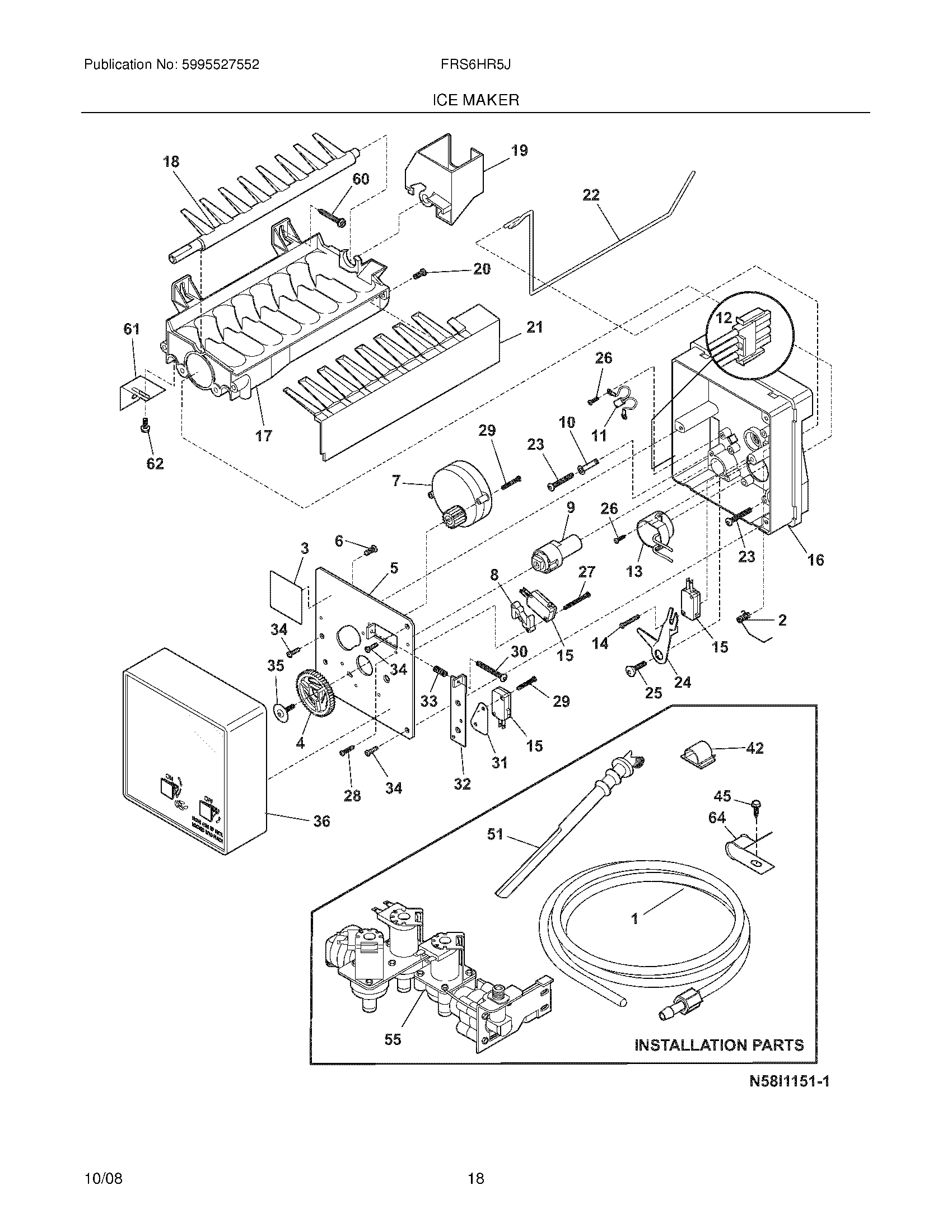

19 - ICE MAKER

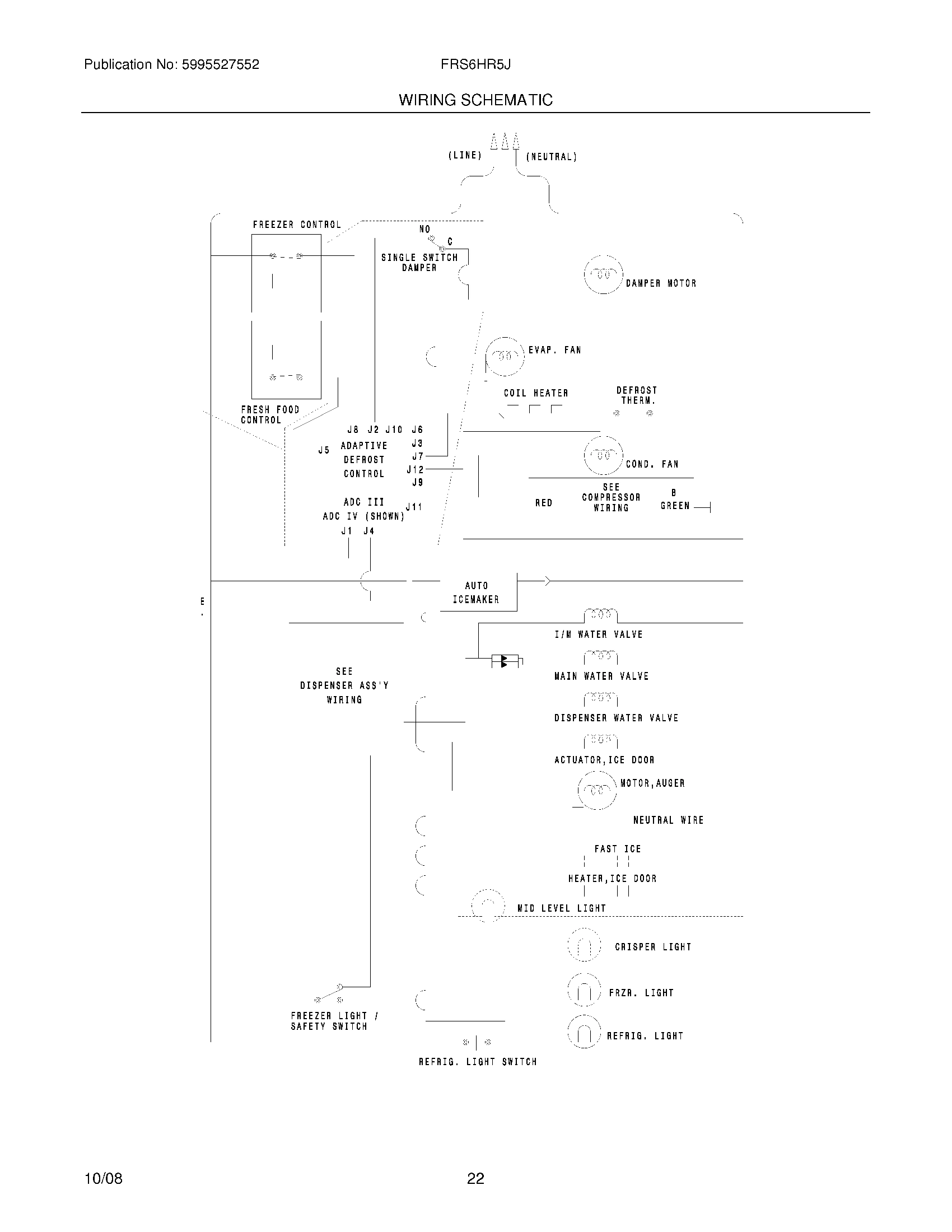

22 - WIRING SCHEMATIC
23 - WIRING DIAGRAM
