Model FLSC23F6DS2 – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

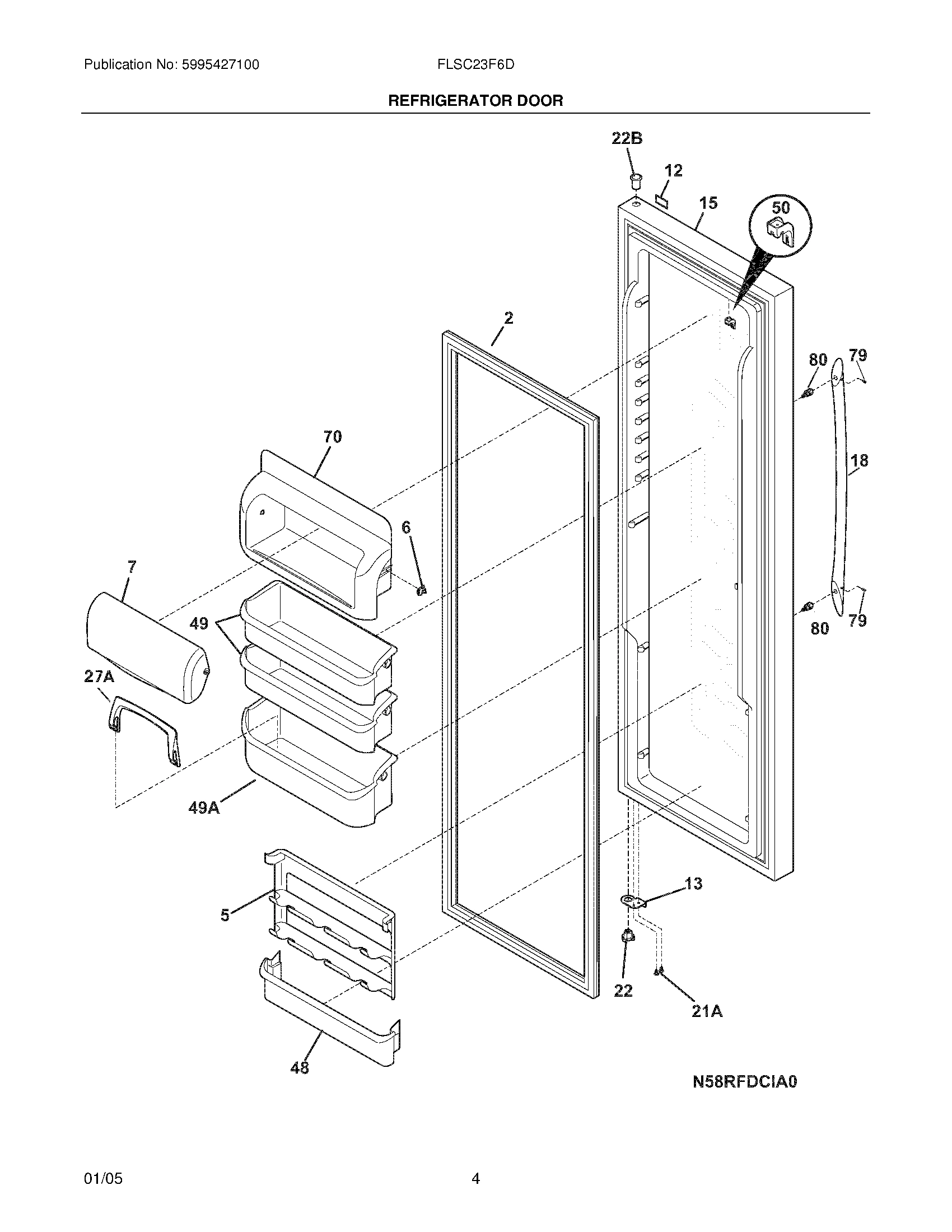

05 - REFRIGERATOR DOOR

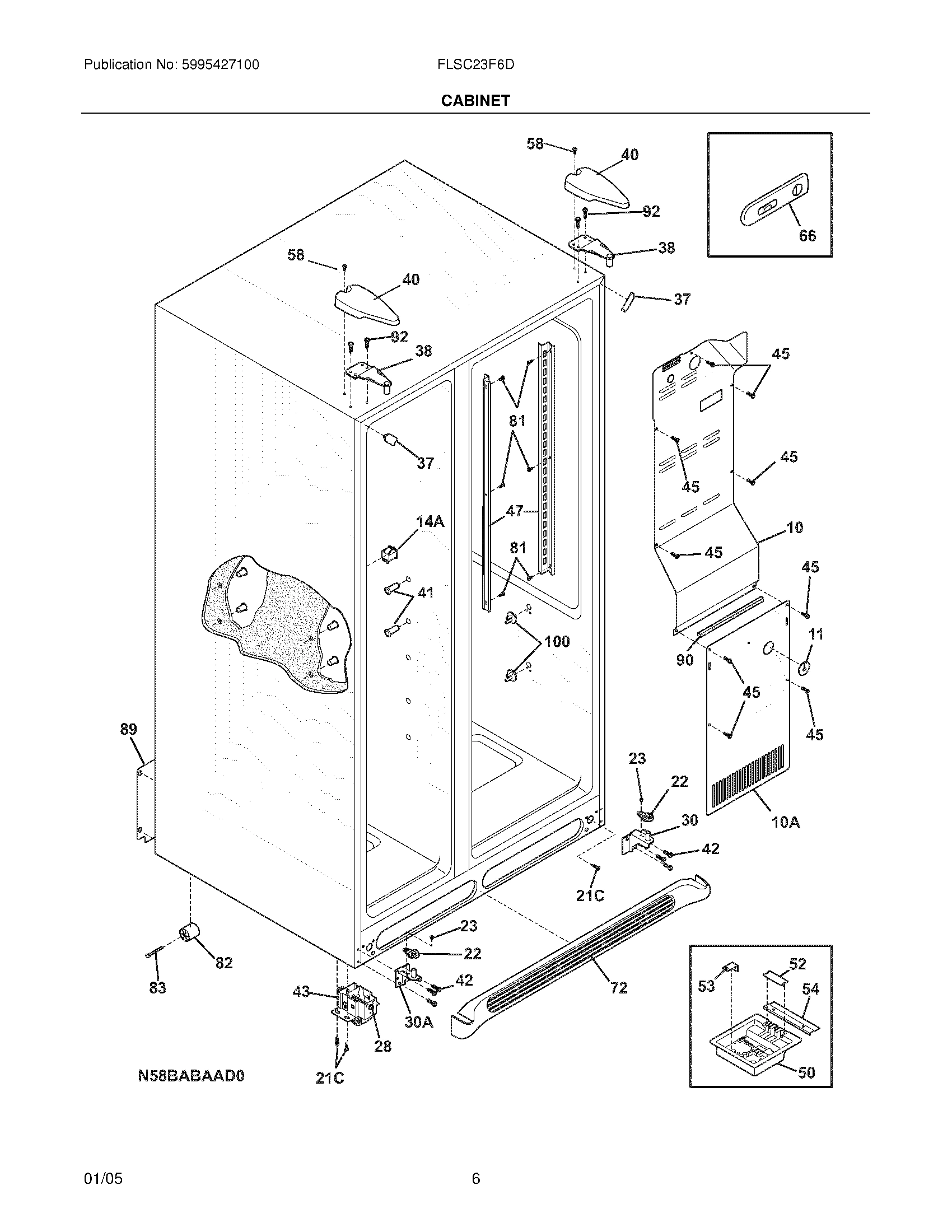

07 - CABINET

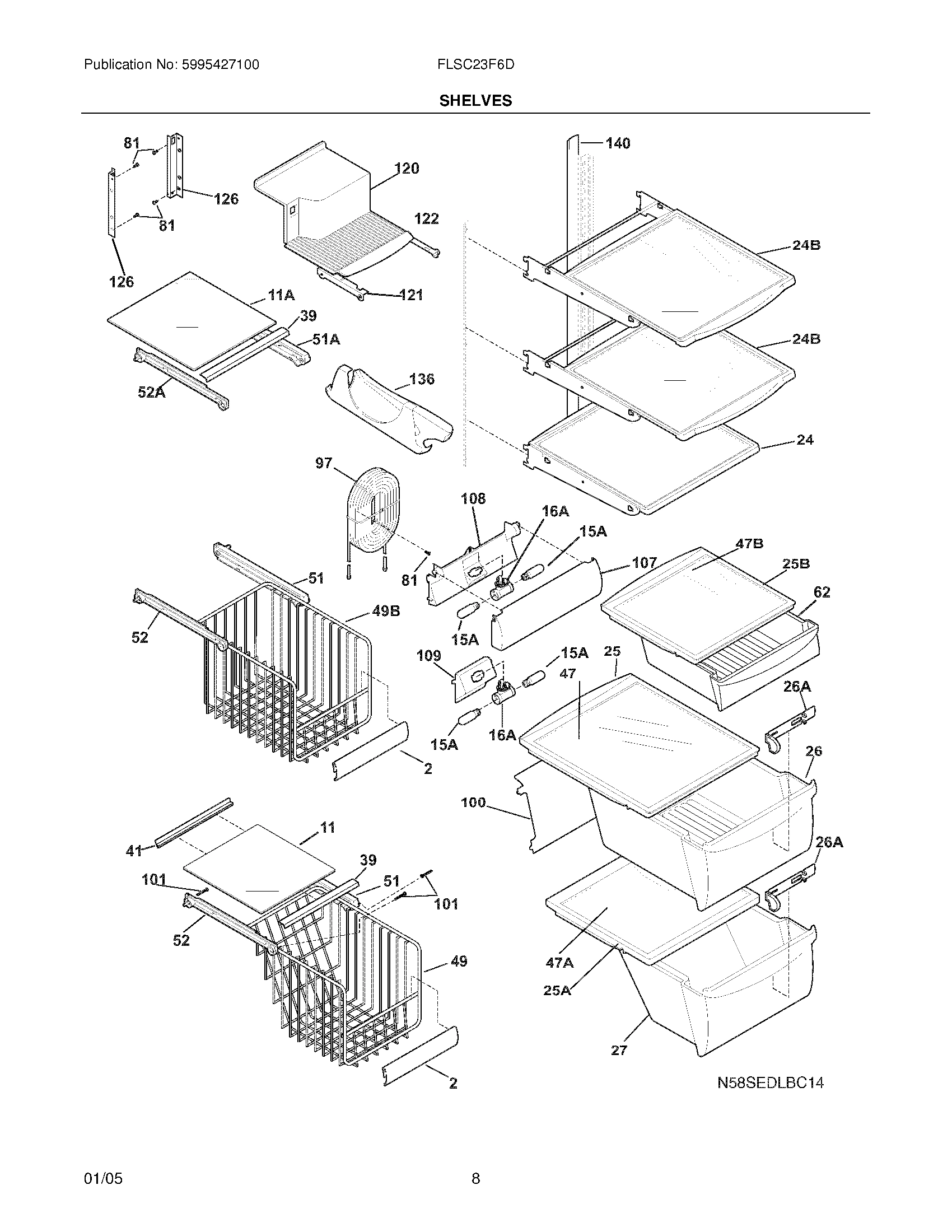

09 - SHELVES

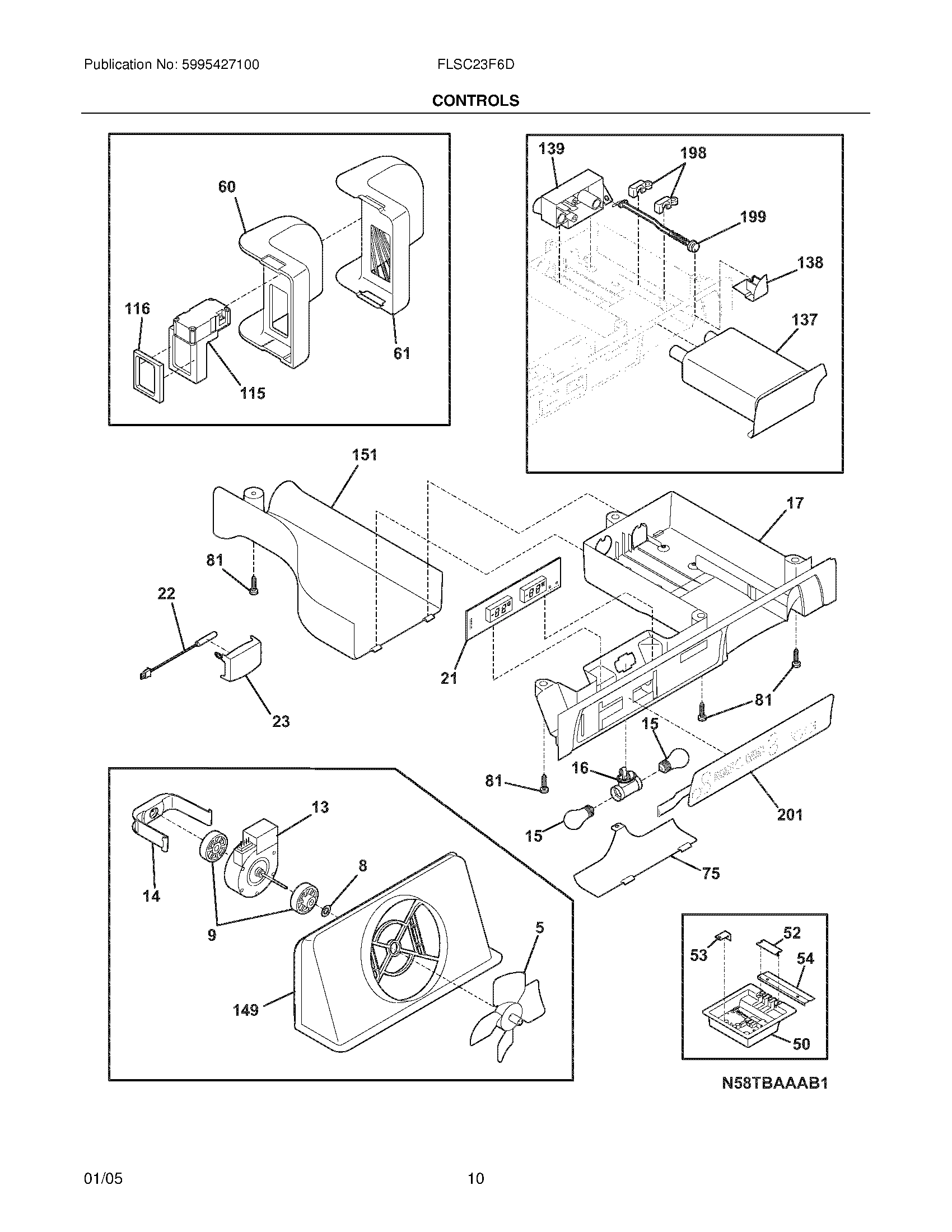

11 - CONTROLS

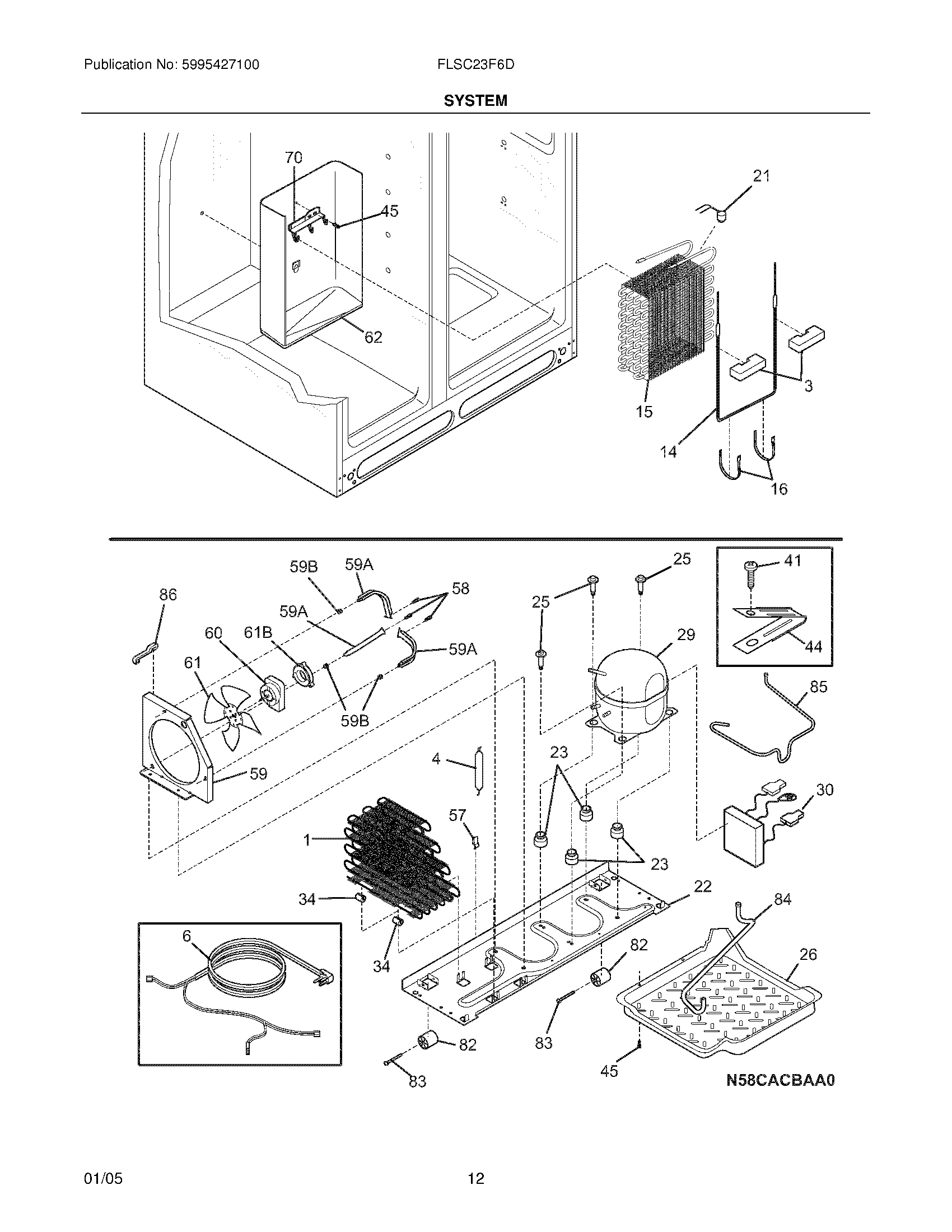

13 - SYSTEM

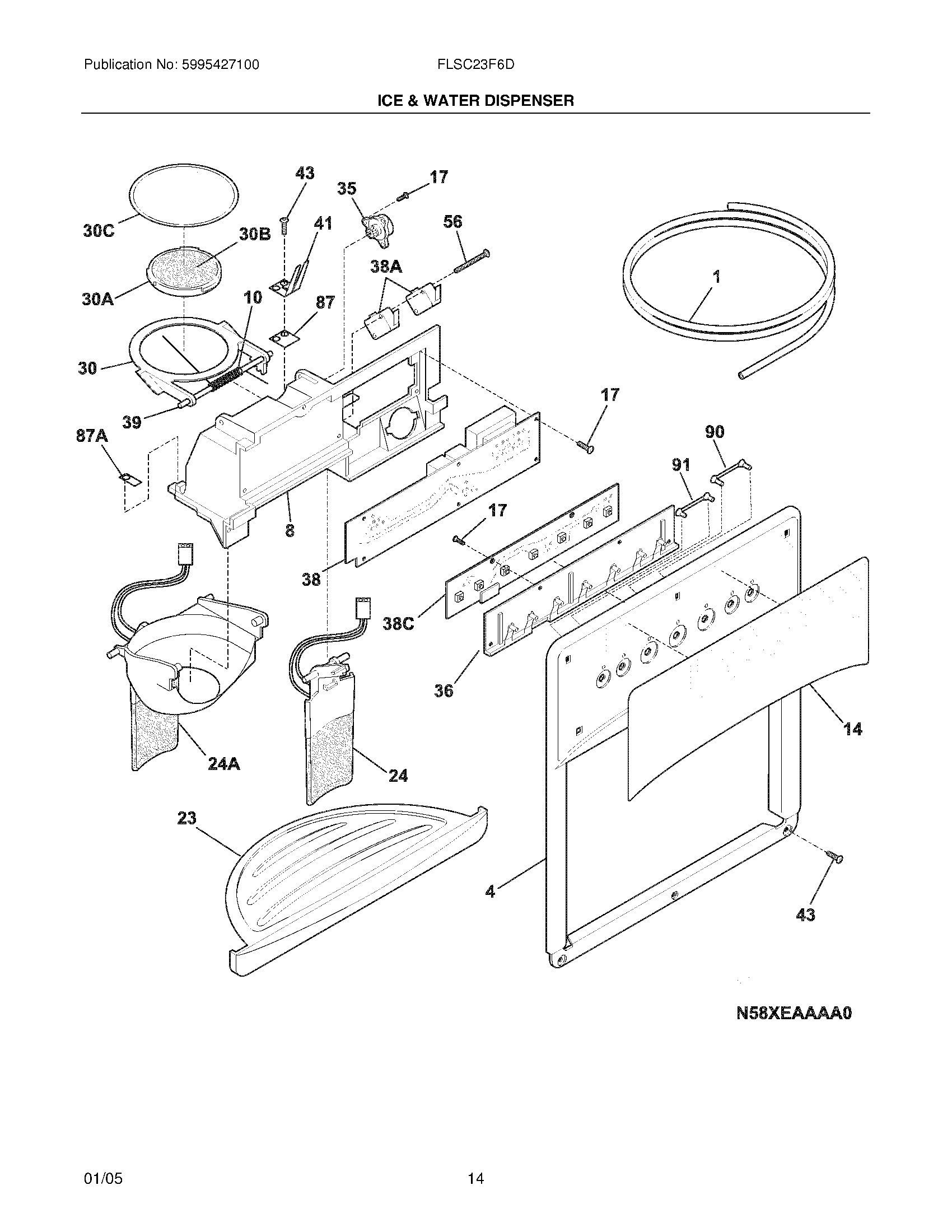

15 - ICE & WATER DISPENSER

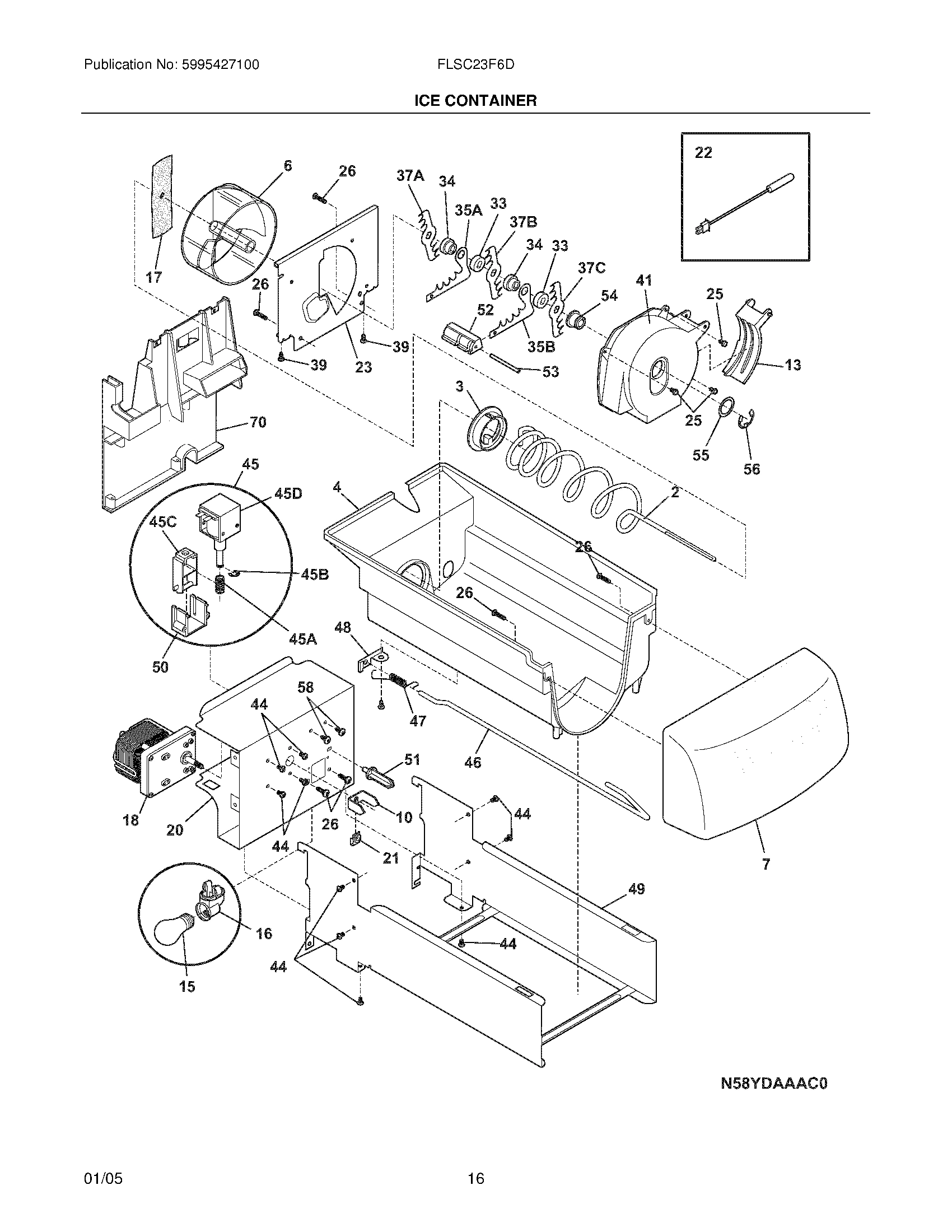

17 - ICE CONTAINER
19 - ICE MAKER
20 - WIRING SCHEMATIC
21 - WIRING DIAGRAM
