Model FLS26Z2GKB0 – Common Parts & Diagrams

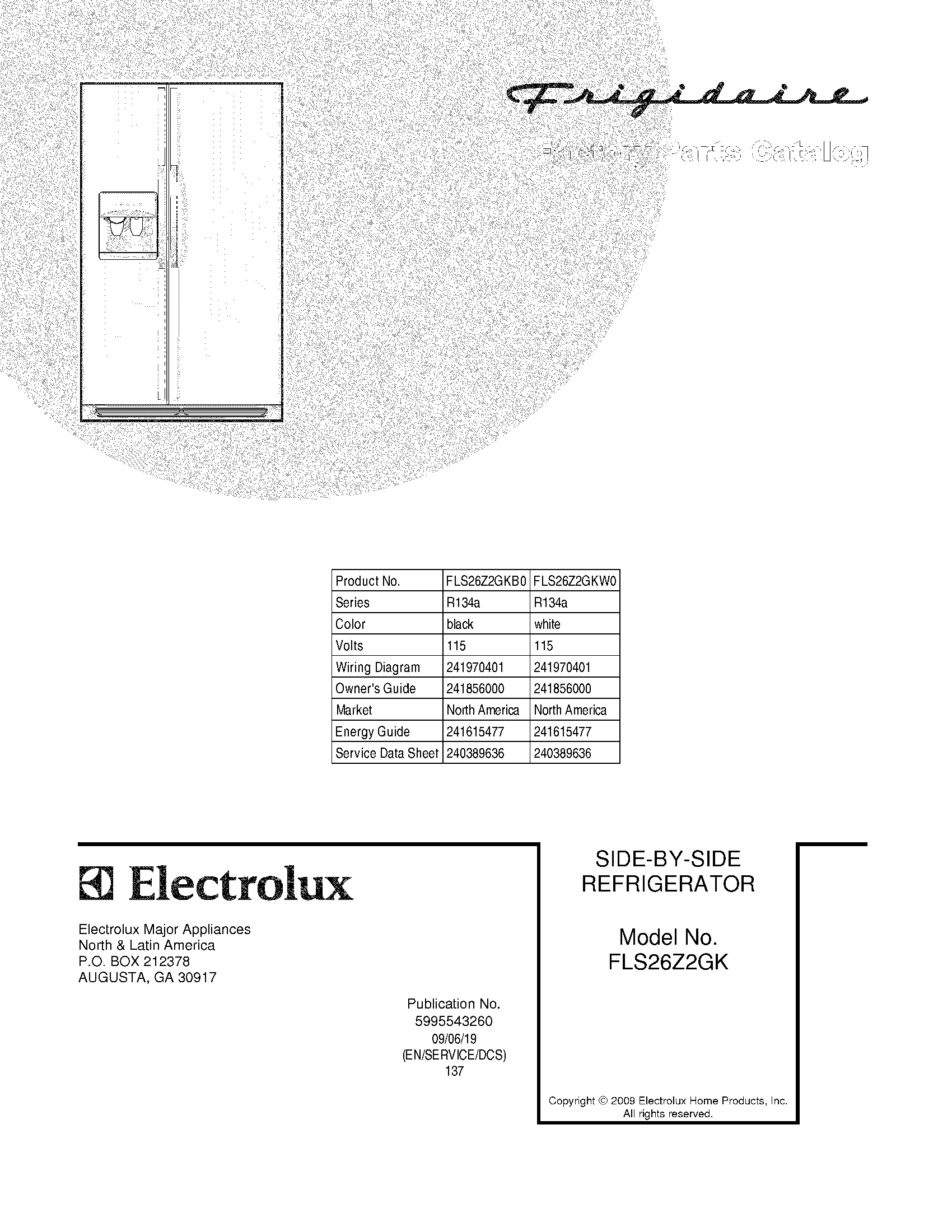

01 - COVER

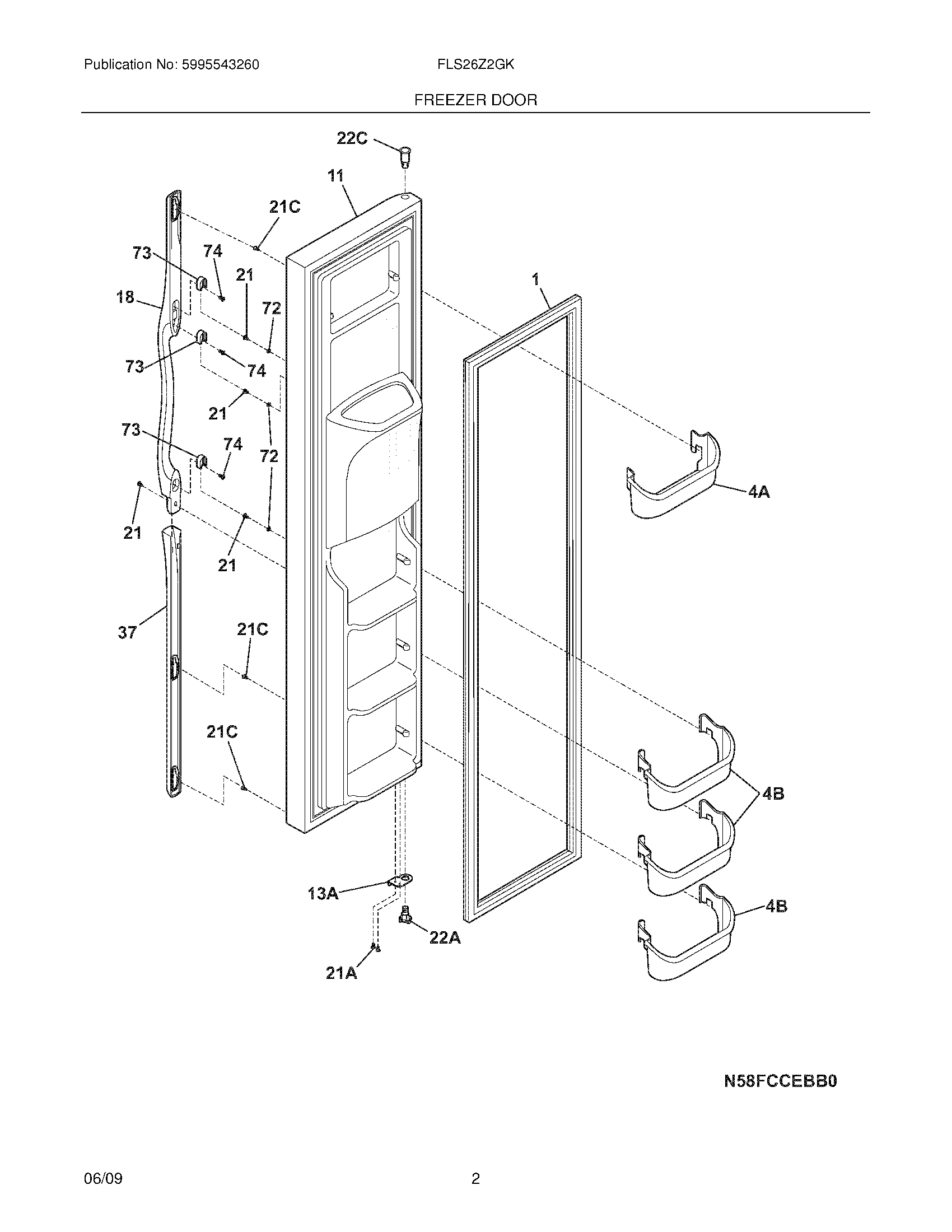

03 - FREEZER DOOR
05 - REFRIGERATOR DOOR
07 - CABINET

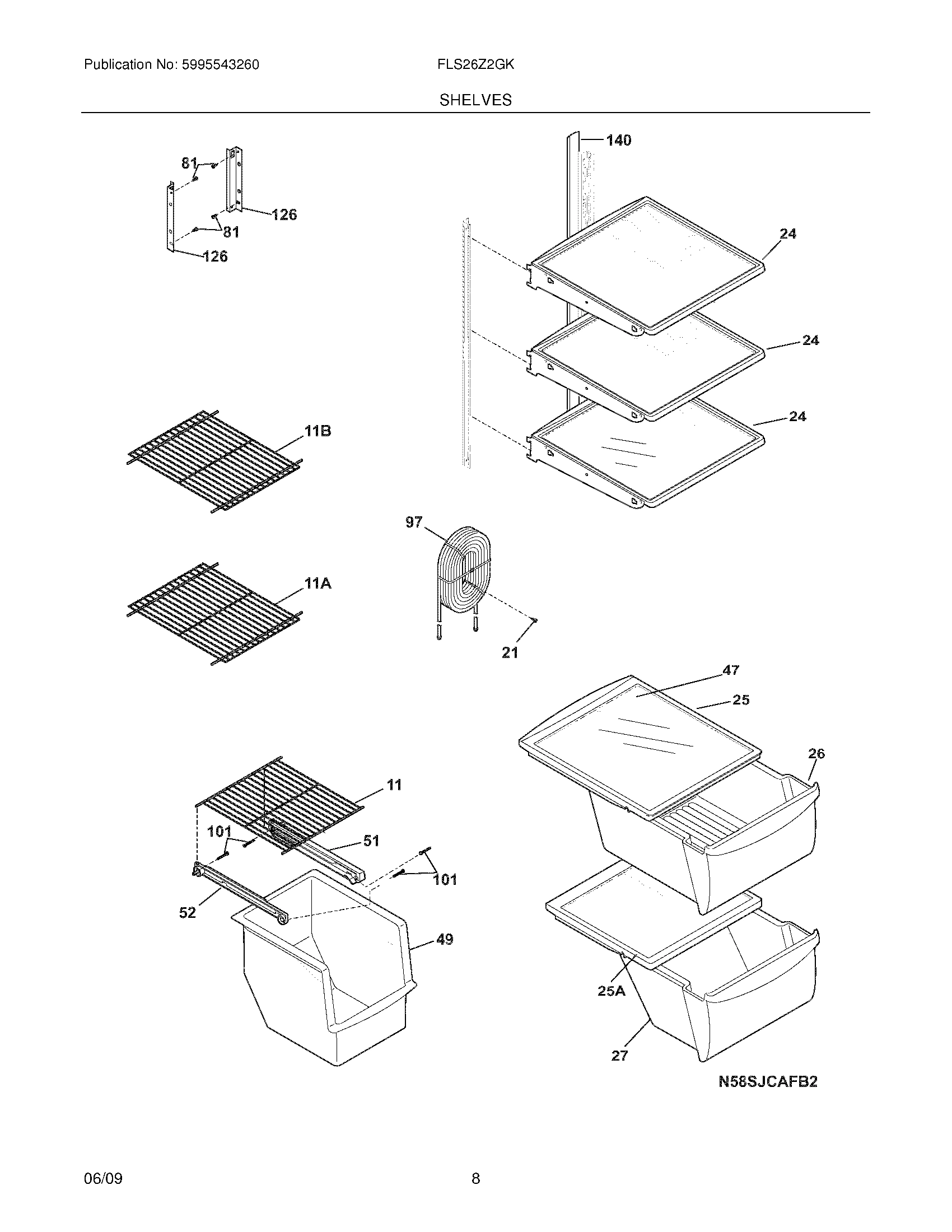

09 - SHELVES
11 - CONTROLS

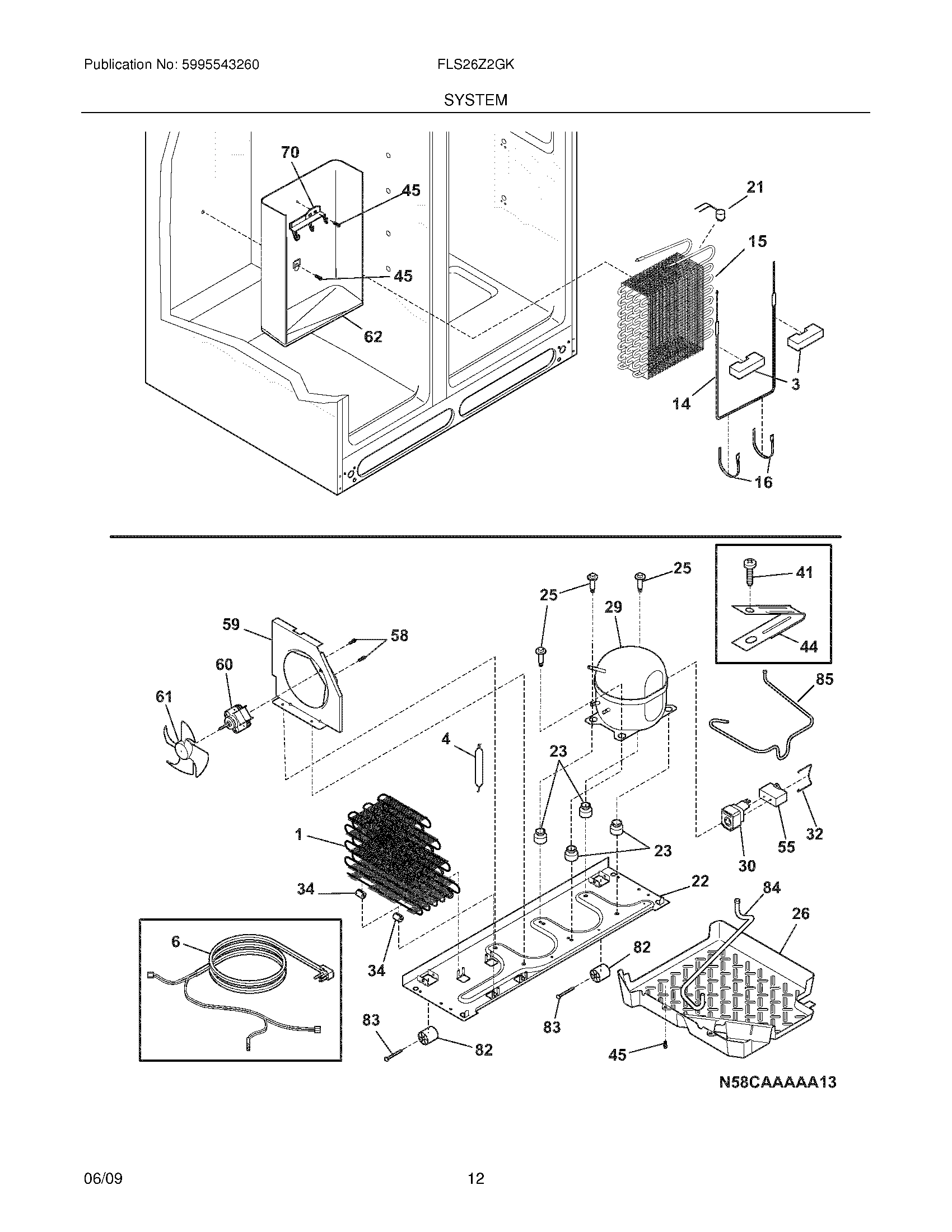

13 - SYSTEM
15 - ICE & WATER DISPENSER
17 - ICE CONTAINER

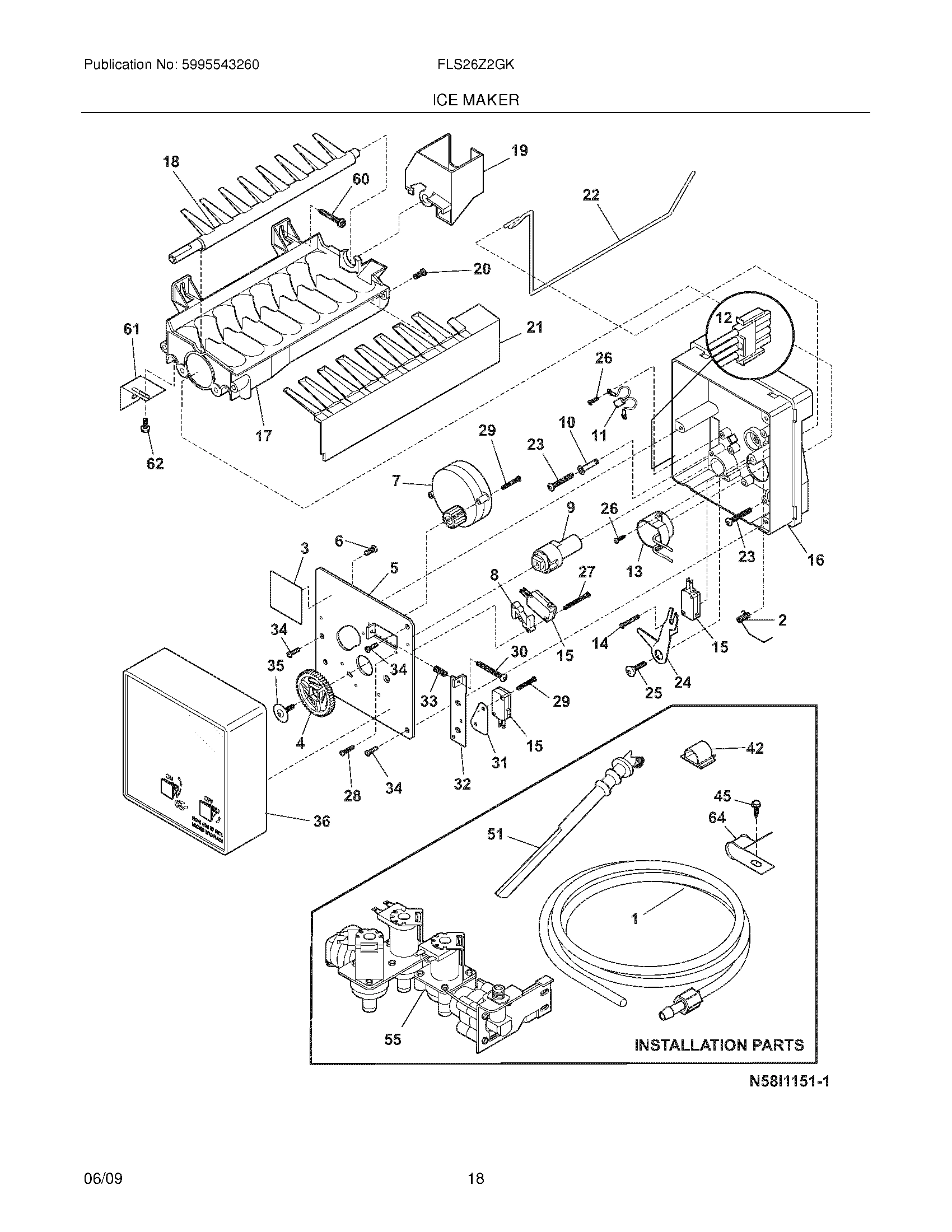

19 - ICE MAKER

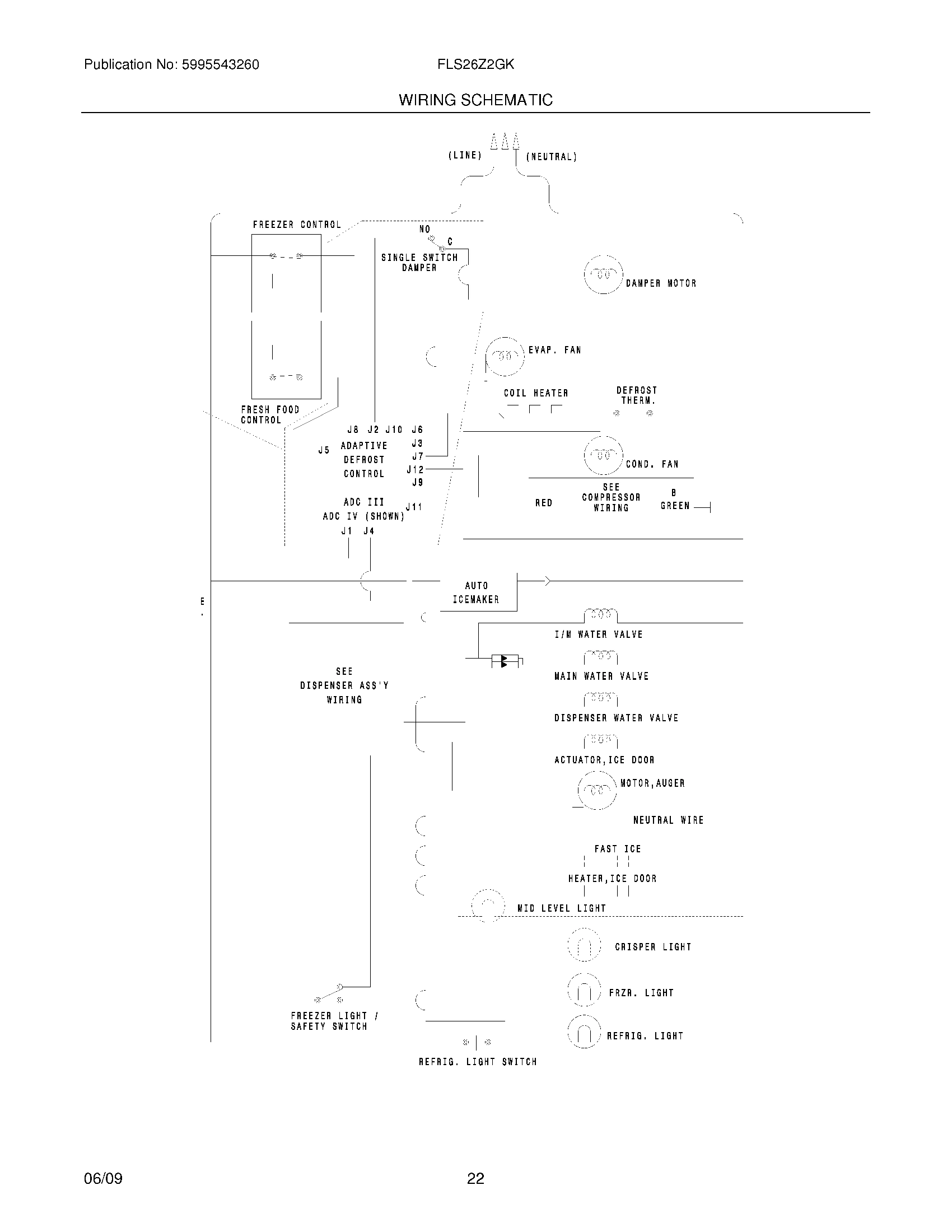

22 - WIRING SCHEMATIC
23 - WIRING DIAGRAM
