Model Electrolux FGID2466QB3A DISHWASHER – Common Parts & Diagrams
01 - COVER SHEET

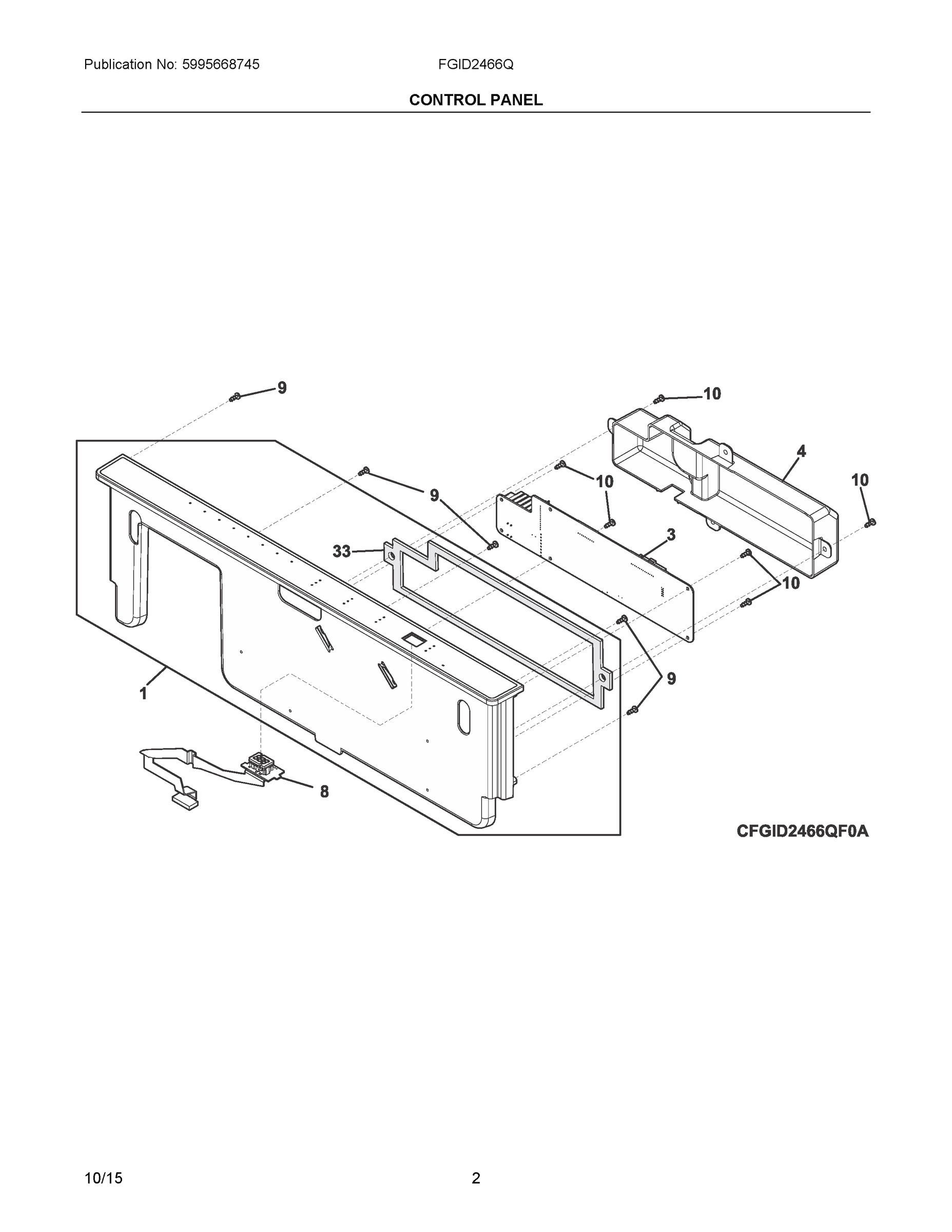

02 - CONTROL PANEL
03 - DOOR
04 - TUB
05 - MOTOR & PUMP
06 - FRAME
07 - RACKS
08 - WIRING DIAGRAM
Common parts from model Electrolux FGID2466QB3A DISHWASHER
1
HEATER, ROUND WCI 154825001 Contact Us For Availability
1
SPRING, FRICTION PULLEY, (2) WCI 154579101 Contact Us For Availability
1
CONSOLE ASSEMBLY, W/OVERLAY, BLACK, & COVER G WCI 5304496526 Contact Us For Availability
1
TUB ASSY, W/FRAME PARTS, DARK GREY, DF, W/VEN WCI 5304502973 Contact Us For Availability
2
BRACKET, HEATER, (2) WCI 154465101 Contact Us For Availability
2
SCREW, ARM ASSY, (4) WCI 154093301 Contact Us For Availability
3
GASKET, TUB WCI 154827601 Contact Us For Availability
3
VALVE, WATER WCI 807047901 Contact Us For Availability
6
SLIDE, RACK, UPPER, (2) WCI 154597801 Contact Us For Availability
6
SCREW, W/WASHER, (8) WCI 5303943103 Contact Us For Availability
7
WCI 5304496934 WCI 5304496934 Contact Us For Availability
8
TOEPLATE, ADJUSTABLE, BLACK WCI 154745503 Contact Us For Availability
8
WCI 807144701 WCI 807144701 Contact Us For Availability
9
SCREW, PLT, 8-10 WCI 154783101 Contact Us For Availability
10
COVER, VOLUTE WCI 807145201 Contact Us For Availability
10
SCREW, TOEPLATE MTG, 8-18 AB HEX HD, BLACK, ( WCI 154754801 Contact Us For Availability
10
SCREW, LATCH MTG, (2) WCI 154103702 Contact Us For Availability
10
SCREW, #7 PLAS .375, (6), DISP. ASSY. WCI 154294701 Contact Us For Availability
11
PULLEY, FRICTION, LH WCI 154579201 Contact Us For Availability
11
PLATE, PUMP INLET WCI 807111601 Contact Us For Availability
11
SCREW, #10-32 X 3/8 WCI 154200701 Contact Us For Availability
11A
PULLEY, FRICTION, RH WCI 154579202 Contact Us For Availability
13
GASKET, SUMP WCI 154246801 Contact Us For Availability
13
DUCT ASSEMBLY, VENT, W/TAPE WCI 154755801 Contact Us For Availability
13A
FENCE, MULTI, 3 WIRE, LH, GREY, UPPER RACK WCI 154740304 Contact Us For Availability
14
VENT ASSY, DRY, W/GASKETS WCI 154784401 Contact Us For Availability
14
WCI 154723801 WCI 154723801 Contact Us For Availability
16
WCI 154246502 WCI 154246502 Contact Us For Availability
20
COVER, JUNCTION BOX, W/LABEL WCI 154758501 Contact Us For Availability
20
DOOR ASSEMBLY, W/INSULATION, BLACK WCI 807278502 Contact Us For Availability
21
SCREW, TRUSS HD, 8-18 TYPE AB WCI 154754701 Contact Us For Availability
24
HOSE, DRAIN WCI 807117001 Contact Us For Availability
28
SWITCH ASSY, FLOAT WCI 154773201 Contact Us For Availability
30
RETAINER, THERMOSTAT WCI 154241101 Contact Us For Availability
32A
GASKET, DELIVERY TUBE WCI 154406401 Contact Us For Availability
33
GASKET, COVER WCI 154478901 Contact Us For Availability
40
HANDLE, TOWEL BAR, BLACK WCI 154724903 Contact Us For Availability
49
WCI 5304500204 WCI 5304500204 Contact Us For Availability
51
CLAMP, DRIP LOOP, WIRE WCI 154320301 Contact Us For Availability
53
NUT, KEPS, (2), HANDLE MTG. WCI 154425001 Contact Us For Availability
58
WCI 154246402 WCI 154246402 Contact Us For Availability
59
O-RING, REAR WCI 154246901 Contact Us For Availability
59A
O-RING, FRONT WCI 154247001 Contact Us For Availability
65
FILTER ASSY, GREY WCI 154283005 Contact Us For Availability
70
WCI 154853801 WCI 154853801 Contact Us For Availability
71
SENSOR, TURBIDITY, SNAP-IN, W/SEAL WCI 154762601 Contact Us For Availability
NI
CLAMP, HOSE, 1.5" OPEN, WORM GEAR, (5) WCI 154380601 Contact Us For Availability
NI
WCI 154870101 WCI 154870101 Contact Us For Availability
NI
BRACKET KIT, COUNTERTOP MTG, W/SCRWS & INSTR WCI 154406801 Contact Us For Availability
NI
BEARING, HINGE PIN WCI 154686401 Contact Us For Availability
NI
HINGE PIN, ARM ASSY WCI 154647101 Contact Us For Availability
NIA
NUT, HEATER, (2) WCI 154106202 Contact Us For Availability
NIA
SCREW, SUMP MTG, 8-16, (4) WCI 154754901 Contact Us For Availability
NIA
SCREW, PH, 8-10, (2) WCI 154779601 Contact Us For Availability
NIA
SCREW, DRAIN MOTOR MTG, (3) WCI 154741501 Contact Us For Availability
NIA
COVER, CONNECTOR, VENT ASSY WCI 154691601 Contact Us For Availability
NIA
SCREW, RETAINER-THERMO WCI 154297701 Contact Us For Availability
NIA
SCREW, DRY DUCT, (3) WCI 154793401 Contact Us For Availability
NIB
FLAPPER, VALVE WCI 807048001 Contact Us For Availability
NIB
SHIELD, HEATER TERMINAL WCI 154289801 Contact Us For Availability
NIB
SCREW, DELIVERY TUBE WCI 154491101 Contact Us For Availability
× ![]()
