Model Electrolux FFGH3054UBB RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

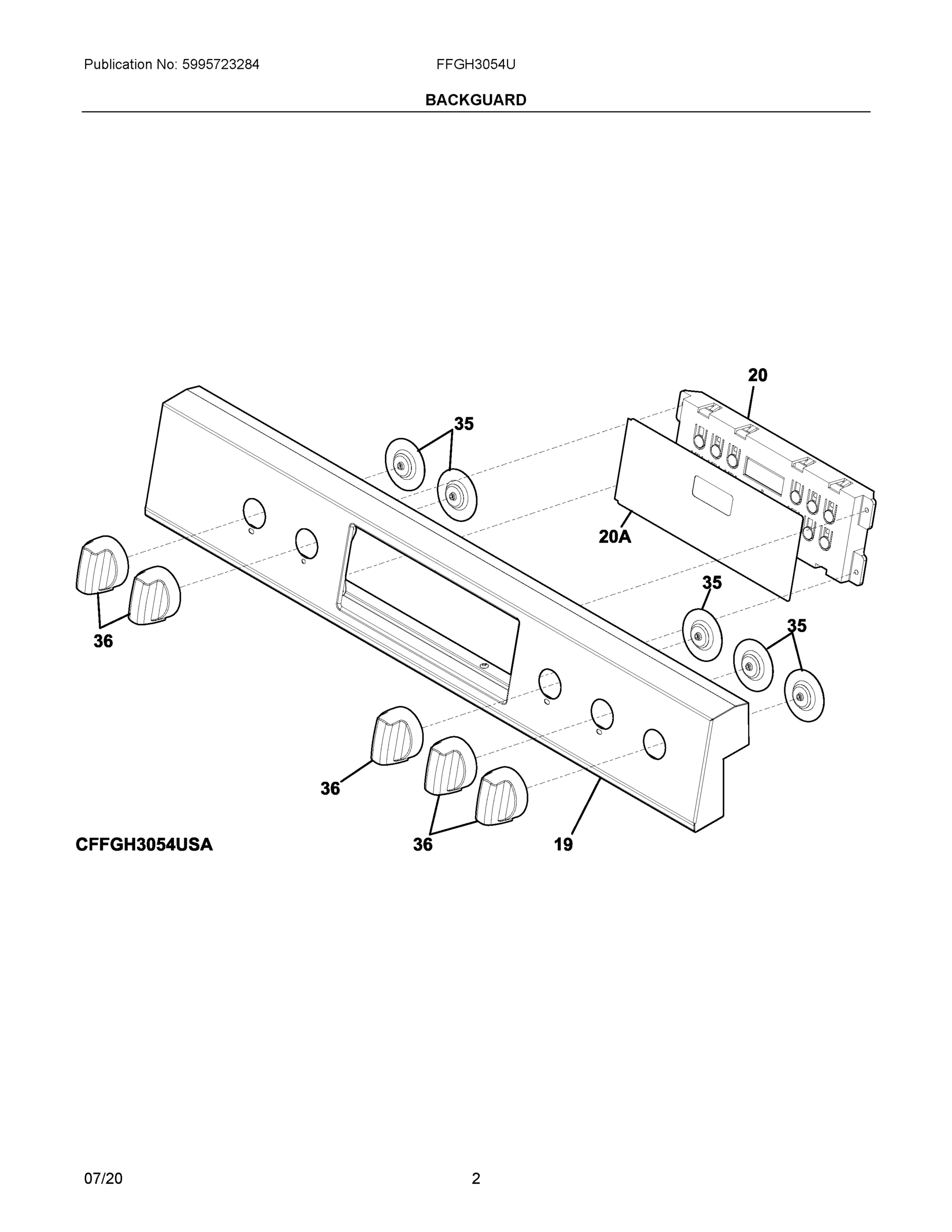

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
Common parts from model Electrolux FFGH3054UBB RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
1
BACK, MAIN WCI 5304514161 Contact Us For Availability
2
VALVE, TOP BURNER, WHITE STEM, 1500BTU WCI 5304506550 Contact Us For Availability
2A
VALVE, TOP BURNER, BLACK STEM, 500BTU WCI 5304506547 Contact Us For Availability
2B
VALVE, TOP BURNER, BLUE STEM, 1125BTU WCI 5304506549 Contact Us For Availability
2C
VALVE, TOP BURNER, GREEN STEM, 850BTU WCI 5304506548 Contact Us For Availability
3
TRIM KIT-DOOR, 3 SIDED, BLACK, W/TAPE WCI 5303935378 Contact Us For Availability
3
SHIELD, REAR WALL, UPPER WCI 5304514133 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
SHIELD, WOOL WCI 316402316 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316403900 Contact Us For Availability
8
SPARK MODULE WCI 808608804 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400603 Contact Us For Availability
9
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTI WCI 5304494997 Contact Us For Availability
9
LINER-OVEN DOOR WCI 316423807 Contact Us For Availability
10
SCREW, 10-14 X 2.125", HANDLE MTG. WCI 316433300 Contact Us For Availability
10A
BURNER, CROWN, MEDIUM, AFT WCI 5304520368 Contact Us For Availability
10C
BURNER, CROWN, LARGE, AFT WCI 5304520369 Contact Us For Availability
10D
BURNER, CROWN, SMALL, AFT WCI 5304520367 Contact Us For Availability
11
IGNITOR/ORIFICE ASSEMBLY, 12K, LEFT FRONT, AS WCI 5304520384 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSEMBLY, 9.5K, LEFT REAR, AS WCI 5304520385 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9. WCI 5304520922 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, RH FRONT, WCI 5304520923 Contact Us For Availability
11D
IGNITOR/ORIFICE ASSY., TOP BURNER, RH REAR, 5 WCI 5304520921 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445501 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 5304498835 Contact Us For Availability
13
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
13
TUBE, MANIFOLD SUPPLY WCI 5304514135 Contact Us For Availability
13A
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
REGULATOR, PRESSURE WCI 316091711 Contact Us For Availability
14
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
14A
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
15
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
16
MAINTOP, ASSEMBLY, BLACK WCI 5304520919 Contact Us For Availability
17
VALVE, SAFETY WCI 316031501 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BURNER, OVEN WCI 316404400 Contact Us For Availability
20
CONTROLLER, ELECTRONIC, OVEN, ES330 WCI 5304514107 Contact Us For Availability
20
BAFFLE, OVEN BURNER WCI 5304519024 Contact Us For Availability
20
GRATE, BURNER, BLACK, SIDE, (2) WCI 5304518358 Contact Us For Availability
20A
OVERLAY, EOC, BLACK, ES330 WCI 316419380 Contact Us For Availability
20A
GRATE, BURNER, BLACK, CENTER WCI 5304518359 Contact Us For Availability
21
NUT, HEX HEAD SEMS WCI 5303013272 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
CAP, BURNER, SMALL, BLACK WCI 5304520370 Contact Us For Availability
22
TUBE, SAFETY VALVE, TO MIXER WCI 5304514183 Contact Us For Availability
22A
CAP, BURNER, MEDIUM, BLACK WCI 5304520371 Contact Us For Availability
22B
CAP, BURNER, LARGE, BLACK WCI 5304520372 Contact Us For Availability
23
BURNER, BROILER WCI 316404302 Contact Us For Availability
23
HINGE, OVEN DOOR, RED WCI 316575917 Contact Us For Availability
24
ELBOW, MIXER WCI 5304516894 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
25
BAFFLE, BROILER WCI 5304497666 Contact Us For Availability
26
IGNITOR, BROILER WCI 5304506545 Contact Us For Availability
35
BUSHING, INSULATING WCI 5304508440 Contact Us For Availability
35
GASKET-FLUE WCI 316542102 Contact Us For Availability
36
FLUEBOX, ASSEMBLY WCI 5304514132 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
45
THERMOSTAT, THERMAL CUT-OFF, 110, AUTO RESET WCI 5304514198 Contact Us For Availability
52
CAP, DOOR TRIM, BLACK WCI 316575501 Contact Us For Availability
55
DUCT, INLET AIR, FRONT WCI 5304514171 Contact Us For Availability
56
DUCT, INLET AIR, REAR WCI 5304514172 Contact Us For Availability
57
DUCT, EXTERIOR WCI 5304514173 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316403700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
60
DUCT ASSEMBLY, COOLING, TOGGLE LOCK WCI 5304522591 Contact Us For Availability
60B
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
72
SCREW, VALVE MTG., 1/4 - 20 WCI 316215600 Contact Us For Availability
72A
SPACER, WIRE SHIELD, (2) WCI 5304514177 Contact Us For Availability
82
SHIELD, BAKE BURNER WCI 316400801 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
90
TRIM, VENT, BLACK, REAR WCI 5304514122 Contact Us For Availability
92
REAR FILLER KIT, FCFS RANGE, BLACK WCI 5304520261 Contact Us For Availability
108
WCI 5304514166 WCI 5304514166 Contact Us For Availability
130
SEAL, MAINTOP, SILICONE, REAR WCI 808931802 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* WCI 5303285179 Contact Us For Availability
NI
WCI 316089500 WCI 316089500 Contact Us For Availability
NI
WCI 5304518244 WCI 5304518244 Contact Us For Availability
NI
SCREW, HEX, 8-18 X 3/8, NICK, (3), REGULATOR WCI 316021104 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 5304505563 WCI 5304505563 Contact Us For Availability
NIA
WCI 316401500 WCI 316401500 Contact Us For Availability
× ![]()
