Model Whirlpool FES330GN1 ELECTRIC RANGE – Common Parts &amp; Diagrams

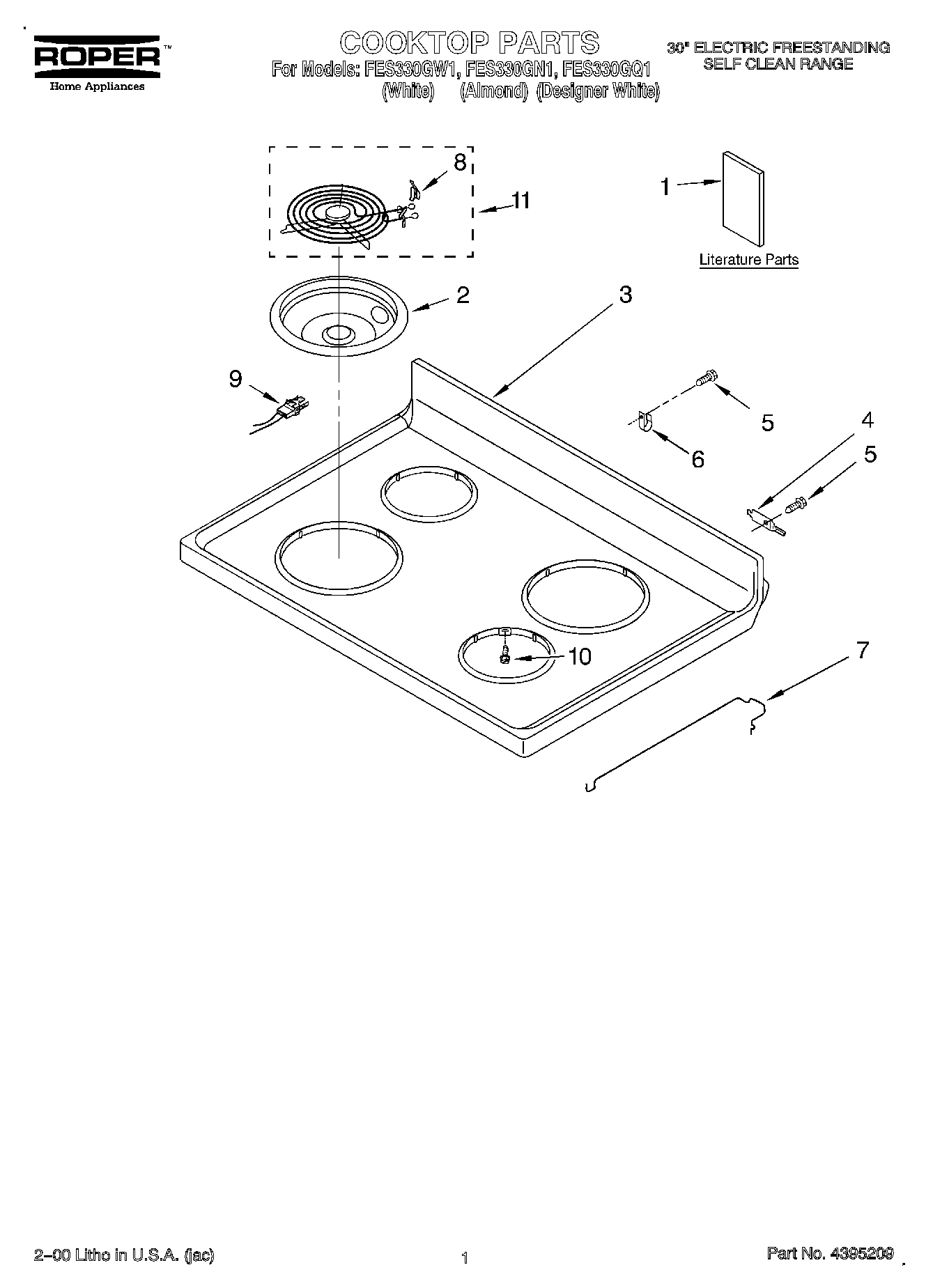

1

Endcap (Left Hand-Black) WPL 3195316 Contact Us For Availability

1

Endcap (Right Hand-Black) WPL 3195317 Contact Us For Availability

1

Endcap (Left Hand-White) WPL 3195318 Contact Us For Availability

1

Endcap (Right Hand-White) WPL 3195319 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Instruct, Install (Template WPL LIT3195945 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8053298 Contact Us For Availability

1

Literature Parts (Guide, Use & Care) WPL LIT8053404 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8053714 Contact Us For Availability

2

W11699791 Whirlpool Burner Box In Stock WPL W11699791 $107.87

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

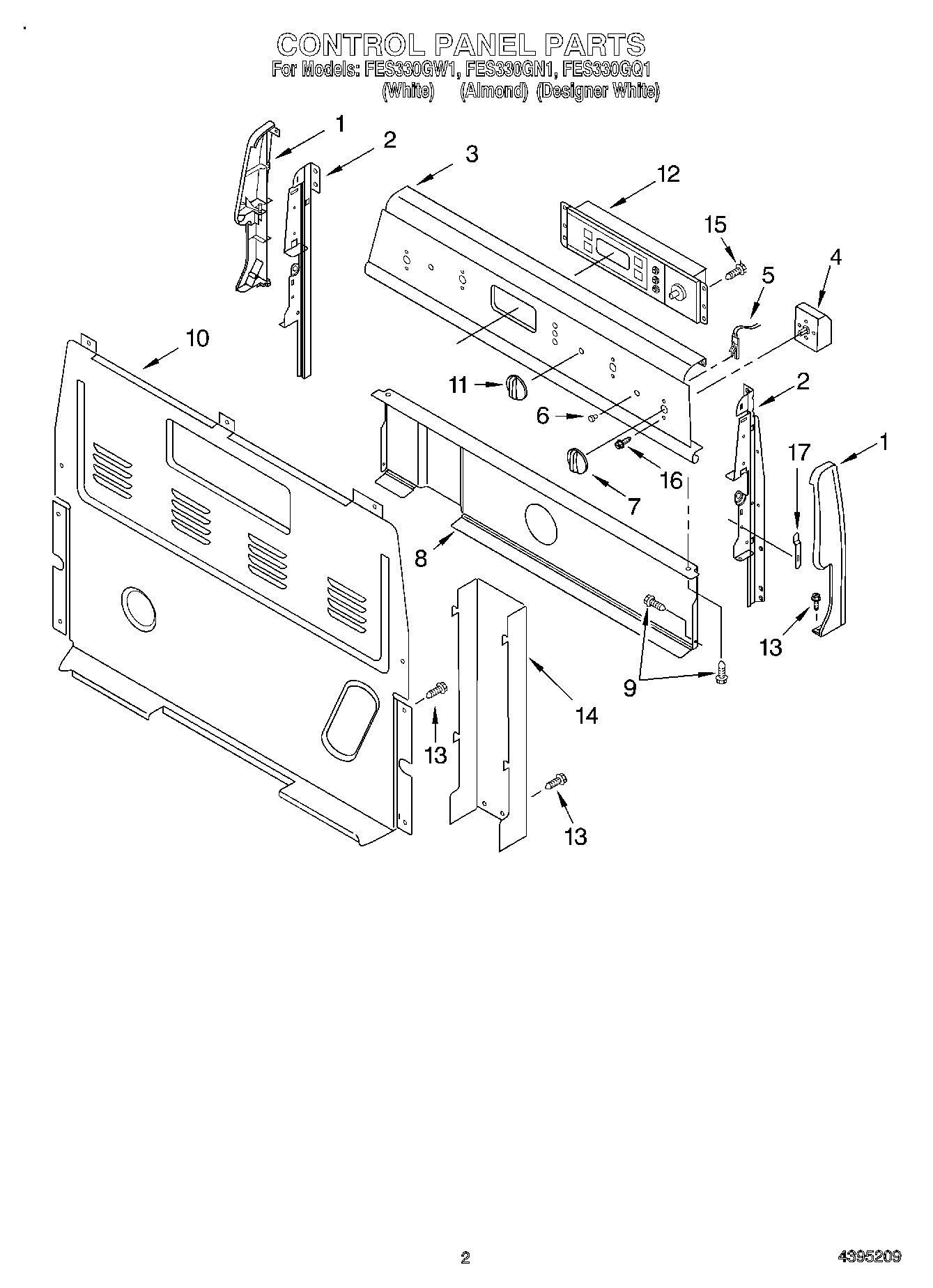

3

8195532 Whirlpool Cooktop Power Switch Backorder WPL 8195532 $207.59

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

3

Panel, Backguard (Black) WPL 8053250 Contact Us For Availability

3

Panel, Backguard (White) WPL 8053251 Contact Us For Availability

3

Cooktop (Almond) WPL 3186232 Contact Us For Availability

3

Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability

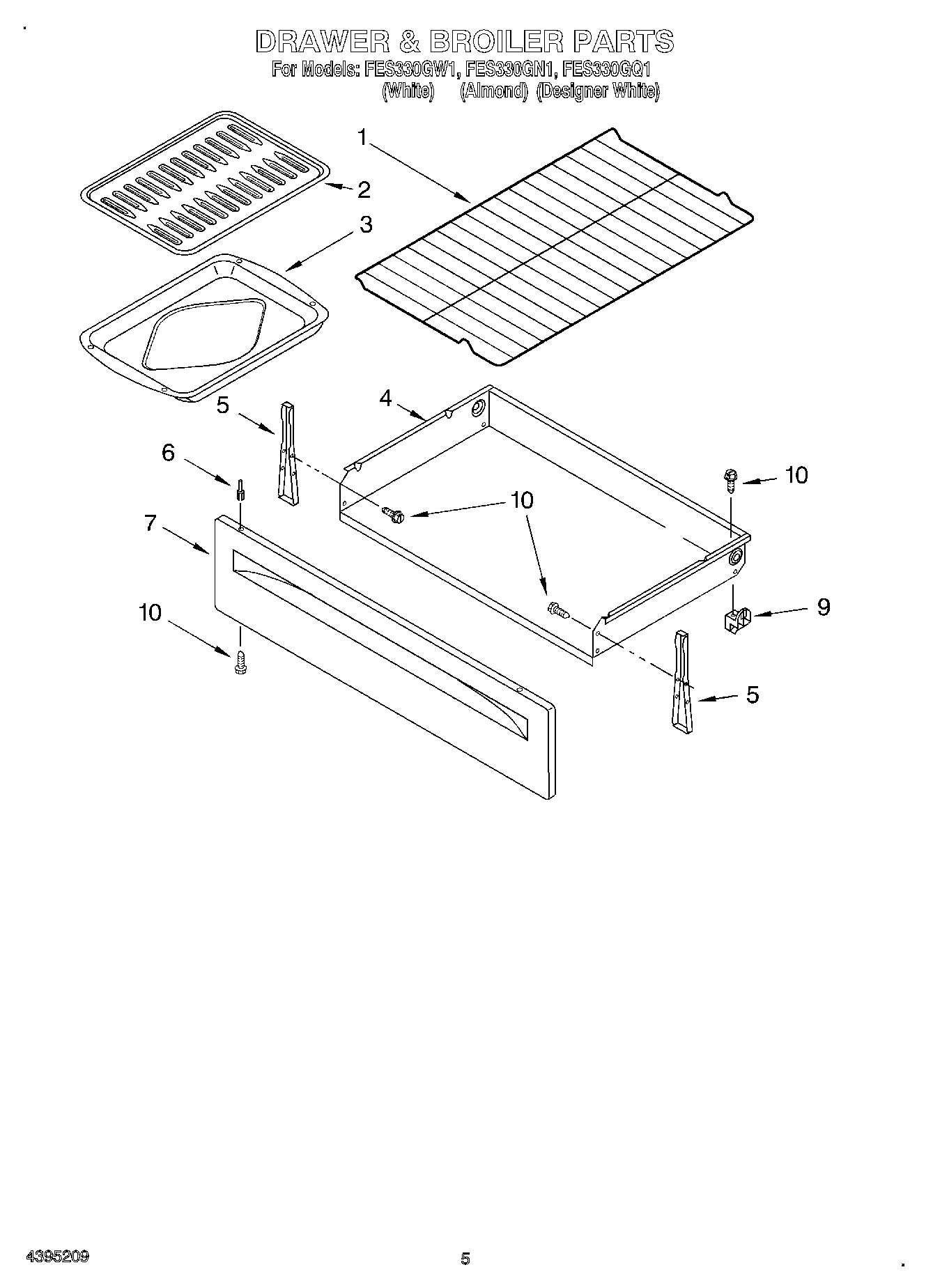

4

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

4

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

Seal, Oven Flange WPL 3195737 Contact Us For Availability

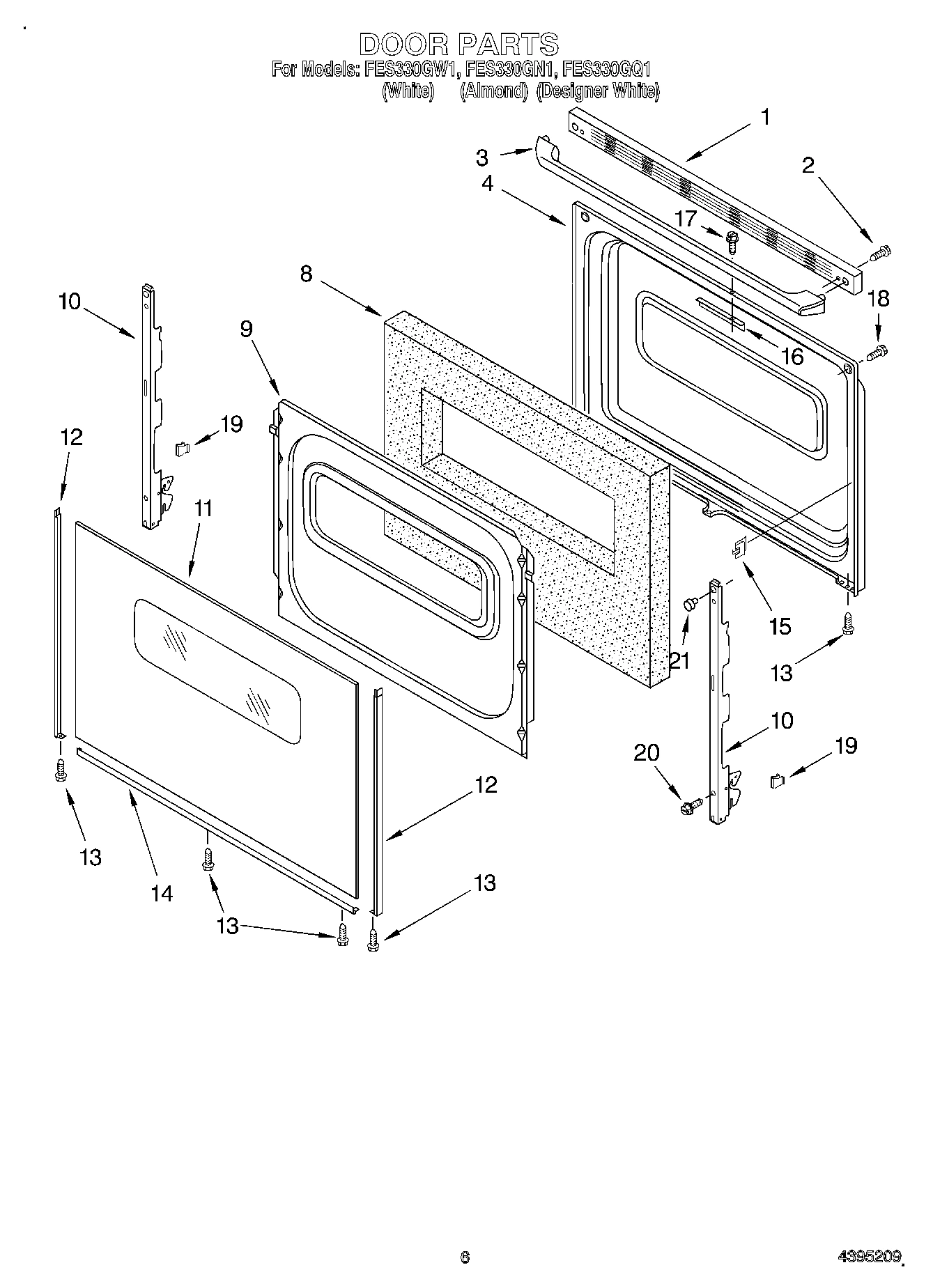

5

W10838990 Whirlpool Mounting Bracket In Stock WPL W10838990 $31.66

5

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

5

Indicator, Surface WPL 8273303 Contact Us For Availability

6

3196815 Whirlpool Oven Rivet Backorder WPL 3196815 $9.59

6

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $87.56

6

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

WP3196027 Whirlpool Knob Backorder WPL WP3196027 $10.58

7

WP3196028 Whirlpool Knob Backorder WPL WP3196028 $11.42

7

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $36.86

7

Panel, Drawer Front (Almond) WPL 8053340 Contact Us For Availability

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

8

Shield, Heat WPL 8053912 Contact Us For Availability

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $15.52

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

Screw WPL 4449746 Contact Us For Availability

9

Plug-Button WPL 3196439 Contact Us For Availability

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

Hinge, Door (2) WPL 8053808 Contact Us For Availability

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 $53.12

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $63.64

Glass, Door (White) WPL 3196810 Contact Us For Availability

Glass, Door (Black) WPL 3195610 Contact Us For Availability

Knob-150 Control (White) WPL 8053355 Contact Us For Availability

Knob-150 Control (Black) WPL 8053354 Contact Us For Availability

12

Control, Range (Black) WPL 3196967 Contact Us For Availability

12

Control-Range (White) WPL 3196968 Contact Us For Availability

12

Frame, Front (Not Serviceable) WPL ARI57399A6 Contact Us For Availability

13

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $28.80

14

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $46.85

14

Clip, Panel (6) WPL 3196576 Contact Us For Availability

15

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

15

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

17

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

19

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

20

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

22

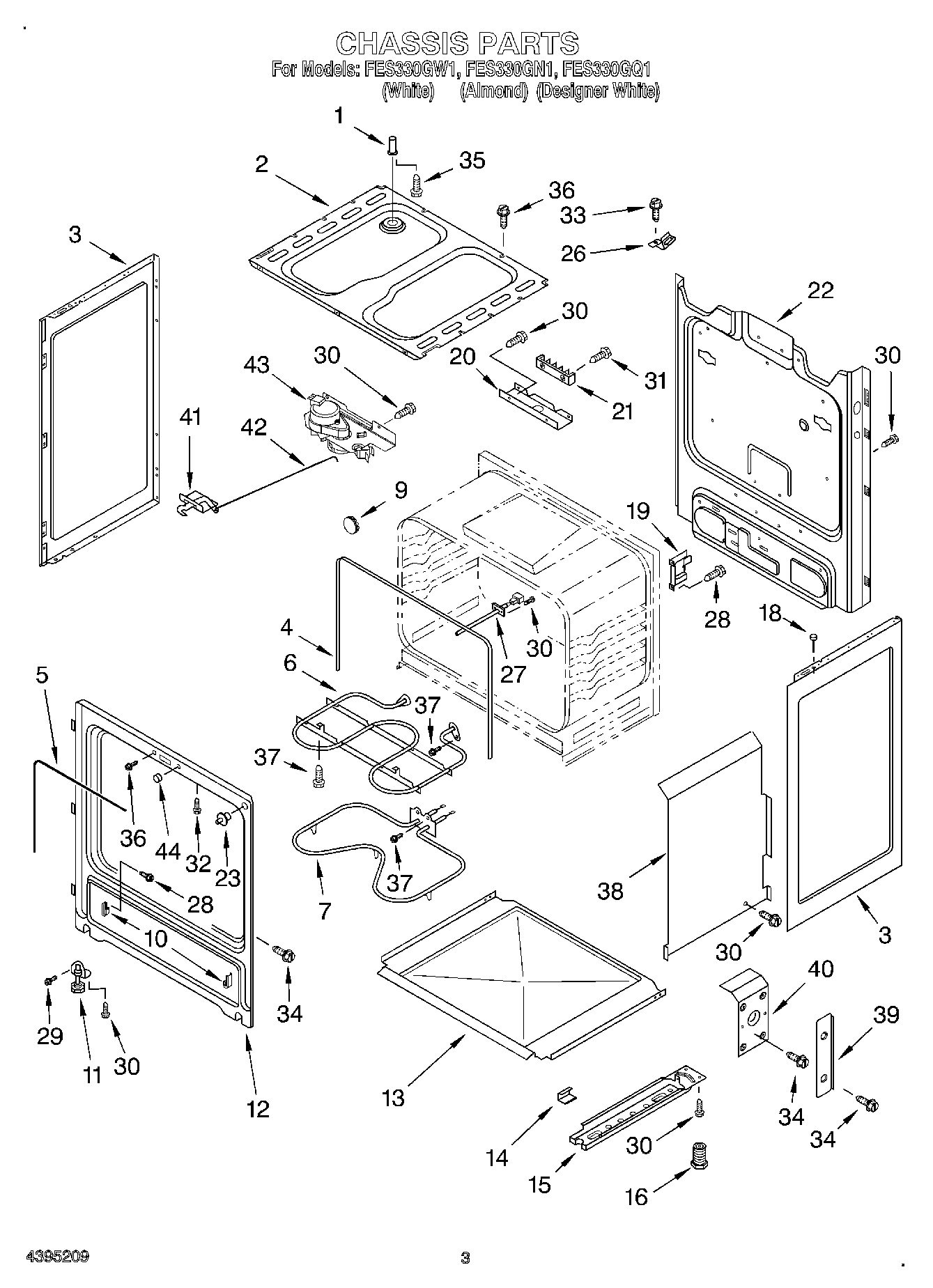

Back, Main WPL 8272922 Contact Us For Availability

23

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

26

Strap, Ground WPL 3169573 Contact Us For Availability

27

WP8273340 Whirlpool Sensor Backorder WPL WP8273340 $105.02

28

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

29

Screw WPL 3196179 Contact Us For Availability

31

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

32

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

33

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

34

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

35

WP3196567 Whirlpool Screw Backorder WPL WP3196567 $2.51

36

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

37

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

38

Retainer, Side (2) WPL 3195717 Contact Us For Availability

39

Shield, Outer (2) WPL 3196091 Contact Us For Availability

40

Shield, Inner (2) WPL 3196092 Contact Us For Availability

41

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

42

Rod, Latch WPL 3196961 Contact Us For Availability

43

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

44

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

44

WP8272612 Whirlpool Insulation Backorder WPL WP8272612 $77.67
