Model Whirlpool FES330EQ0 ELECTRIC RANGE – Common Parts &amp; Diagrams

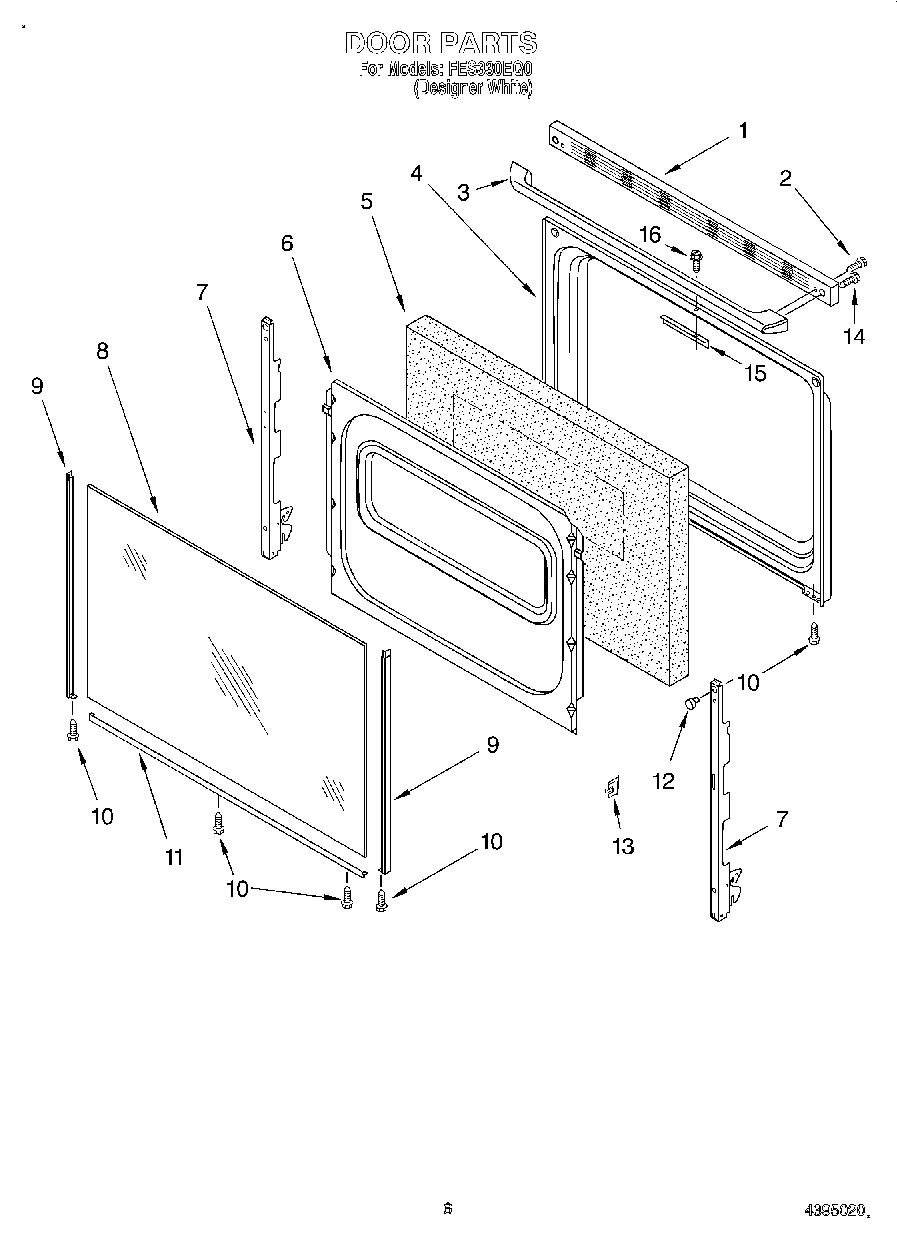

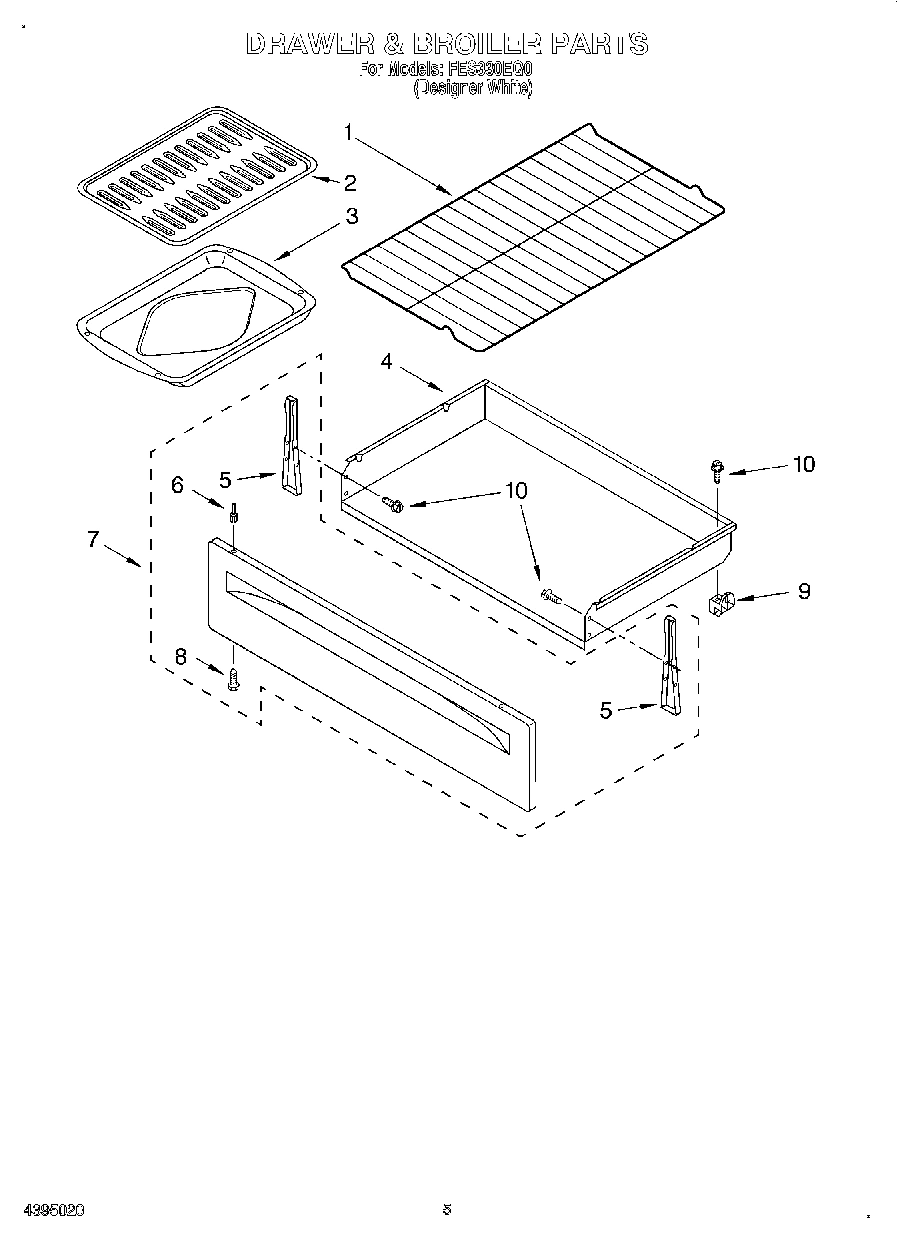

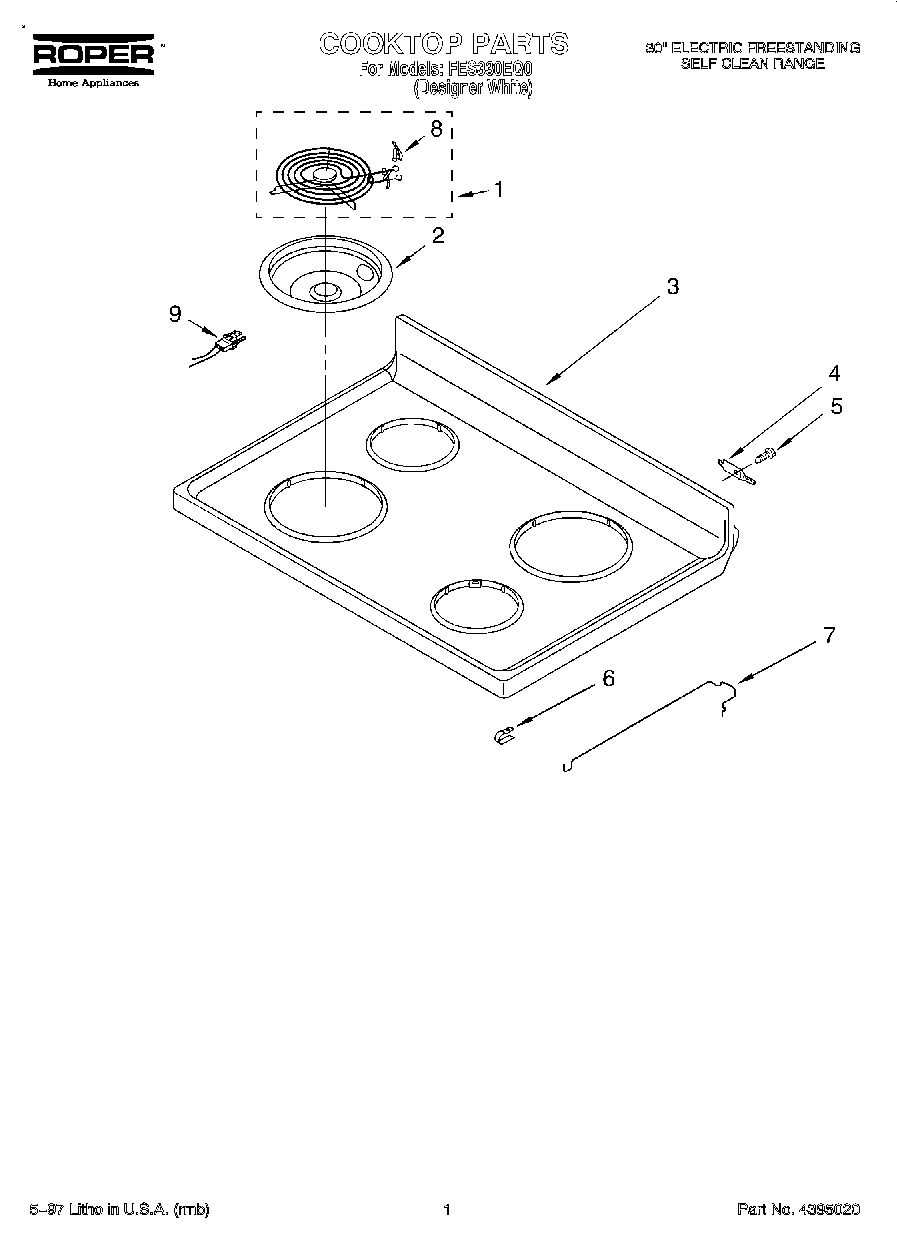

1

9755804 Whirlpool Oven Vent Tube Backorder WPL 9755804 $48.15

1

WP3196567 Whirlpool Screw Backorder WPL WP3196567 $2.51

1

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 $53.12

1

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $63.64

1

Endcap (Left Hand) WPL 3195318 Contact Us For Availability

1

Endcap (Right Hand) WPL 3195319 Contact Us For Availability

2

W11699791 Whirlpool Burner Box In Stock WPL W11699791 $107.87

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

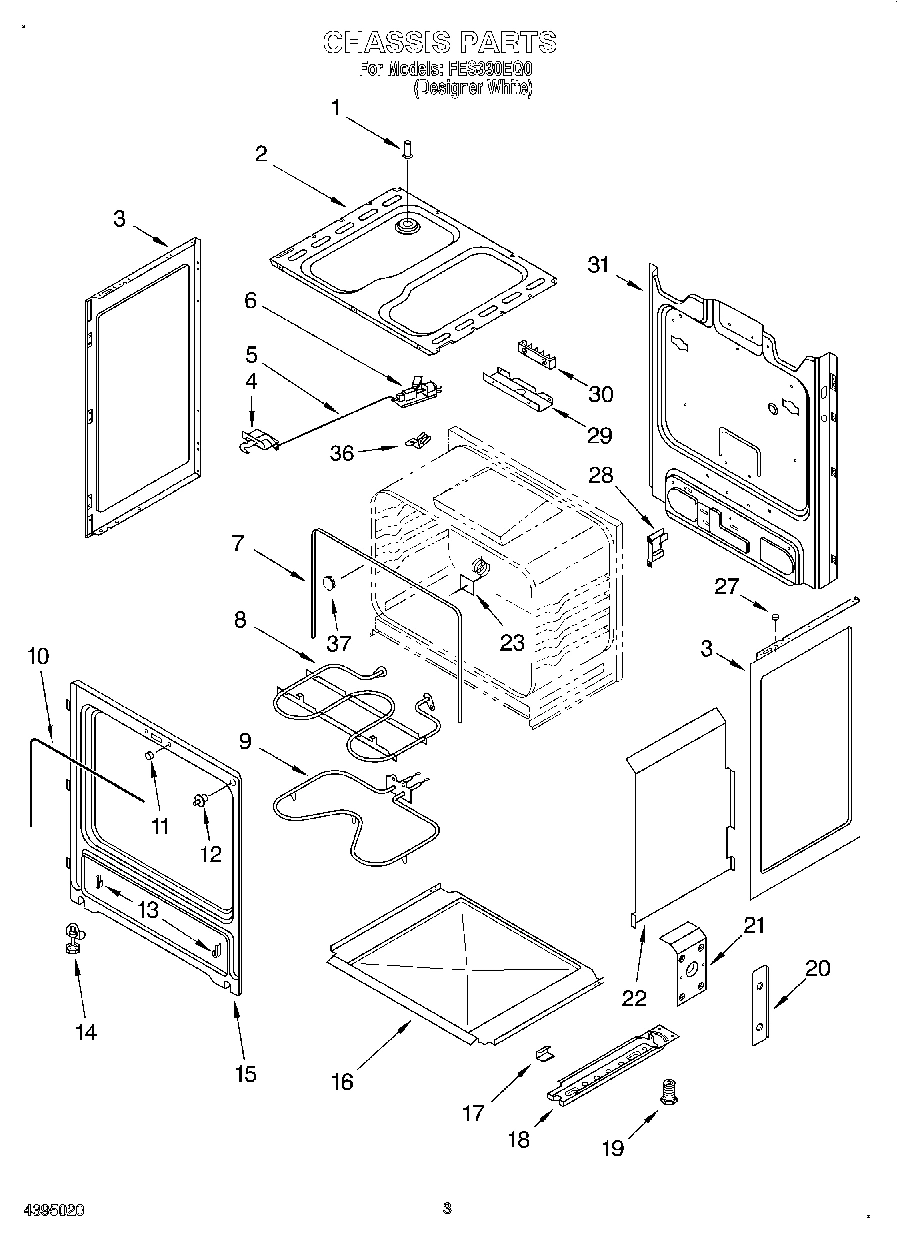

3

8195532 Whirlpool Cooktop Power Switch Backorder WPL 8195532 $207.59

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

Panel, Side (2) (White) WPL 3186073 Contact Us For Availability

3

Panel, Backguard WPL 3195361 Contact Us For Availability

4

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

4

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

4

Switch, Infinite (Screw (8)) WPL 3196171 Contact Us For Availability

5

Rod, Latch WPL 3196128 Contact Us For Availability

5

Light, Ind. WPL 3195955 Contact Us For Availability

6

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

Solenoid Assy. WPL 3196125 Contact Us For Availability

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

WP3196028 Whirlpool Knob Backorder WPL WP3196028 $11.42

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $87.56

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

8

Shield, Heat WPL 3196083 Contact Us For Availability

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $15.52

9

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $36.86

9

Screw (4) WPL 4449746 Contact Us For Availability

10

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

10

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

11

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

11

Glass, Clock WPL 3148852 Contact Us For Availability

12

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

12

Clock, Range WPL 3169299 Contact Us For Availability

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $46.85

Screw (4) WPL 3196179 Contact Us For Availability

15

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

15

Frame, Front WPL 3186156 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $28.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

17

Control, Oven WPL 3195186 Contact Us For Availability

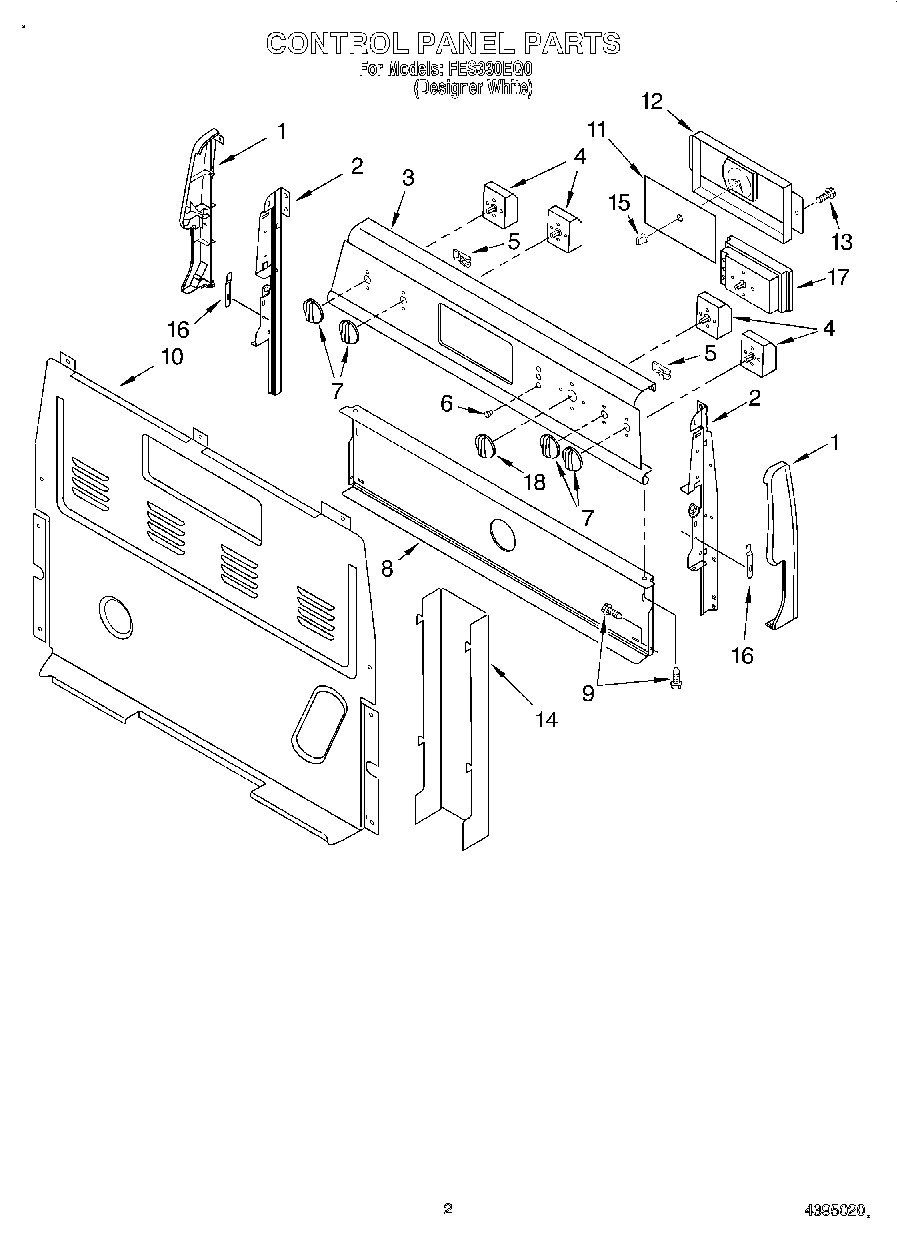

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

18

Knob, Oven Control WPL 3196034 Contact Us For Availability

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

21

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

22

Retainer, Side (2) WPL 3195717 Contact Us For Availability

23

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

23

Sensor, Oven WPL 3148440 Contact Us For Availability

27

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

28

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

30

WP3196163 Whirlpool Screw In Stock WPL WP3196163 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

31

Back, Main WPL 3195707 Contact Us For Availability

36

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

36

Strap, Ground WPL 3169573 Contact Us For Availability

37

WP8272612 Whirlpool Insulation Backorder WPL WP8272612 $77.67

37

Button, Plug (2) WPL 3196439 Contact Us For Availability
