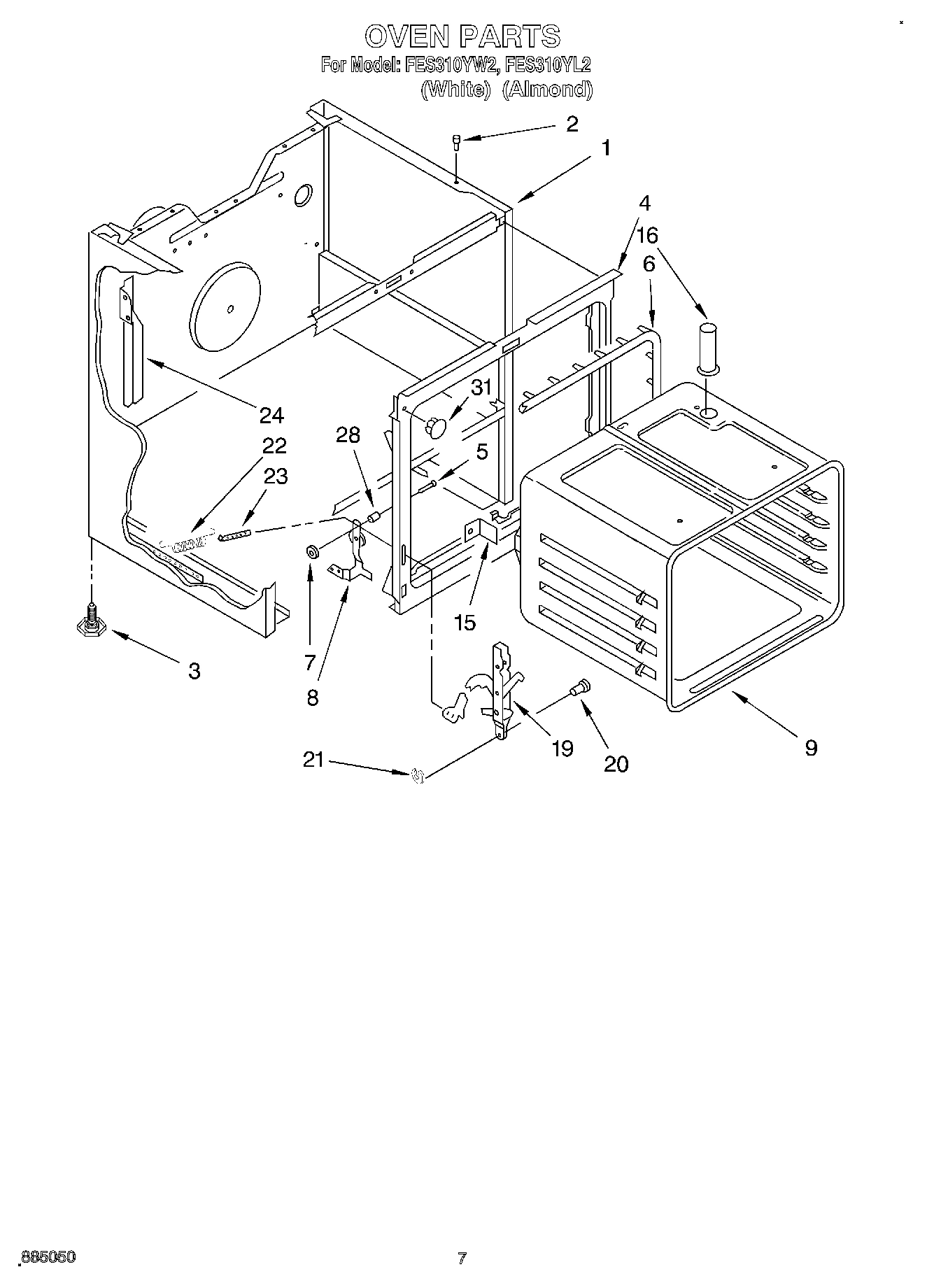

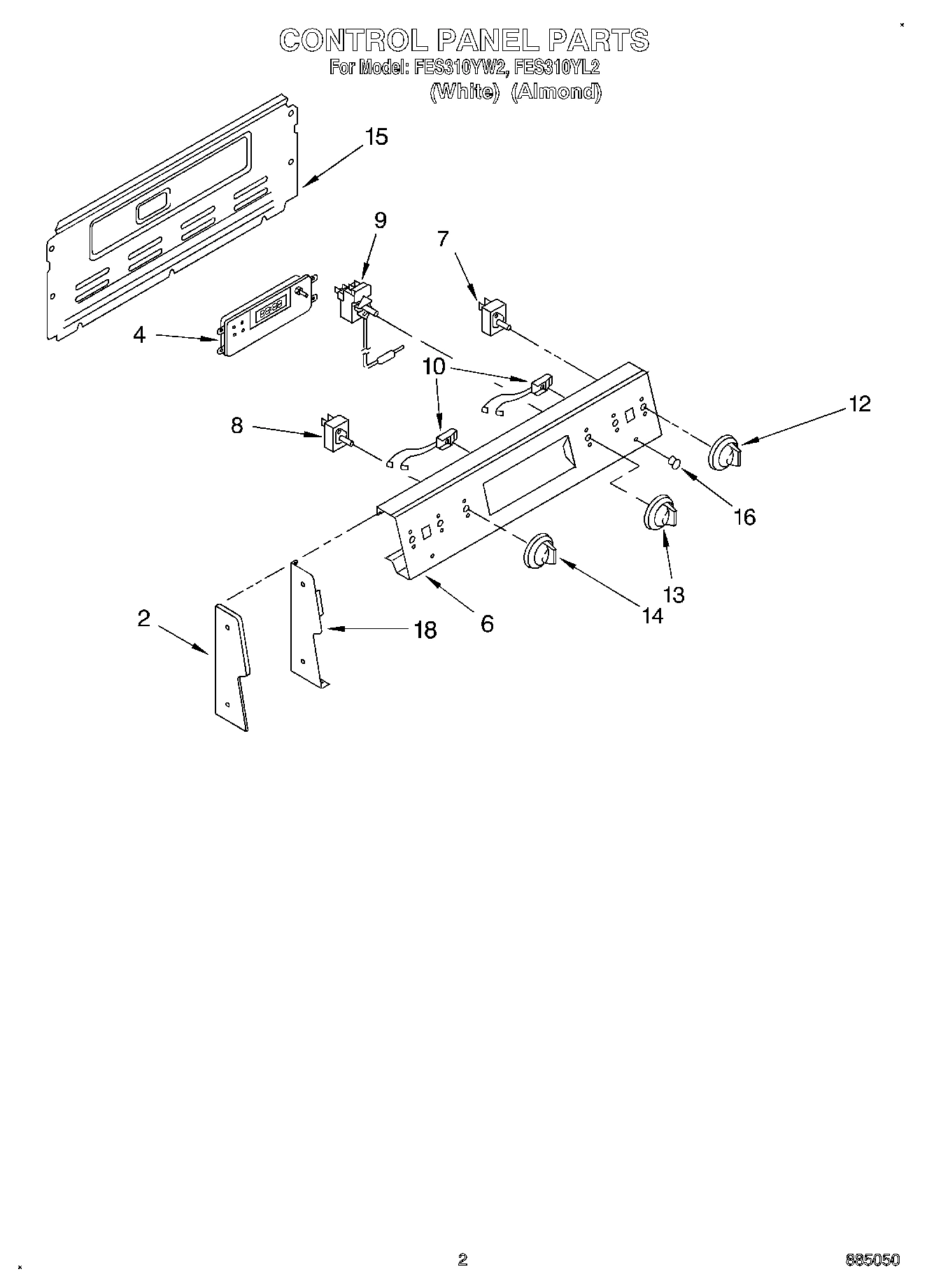

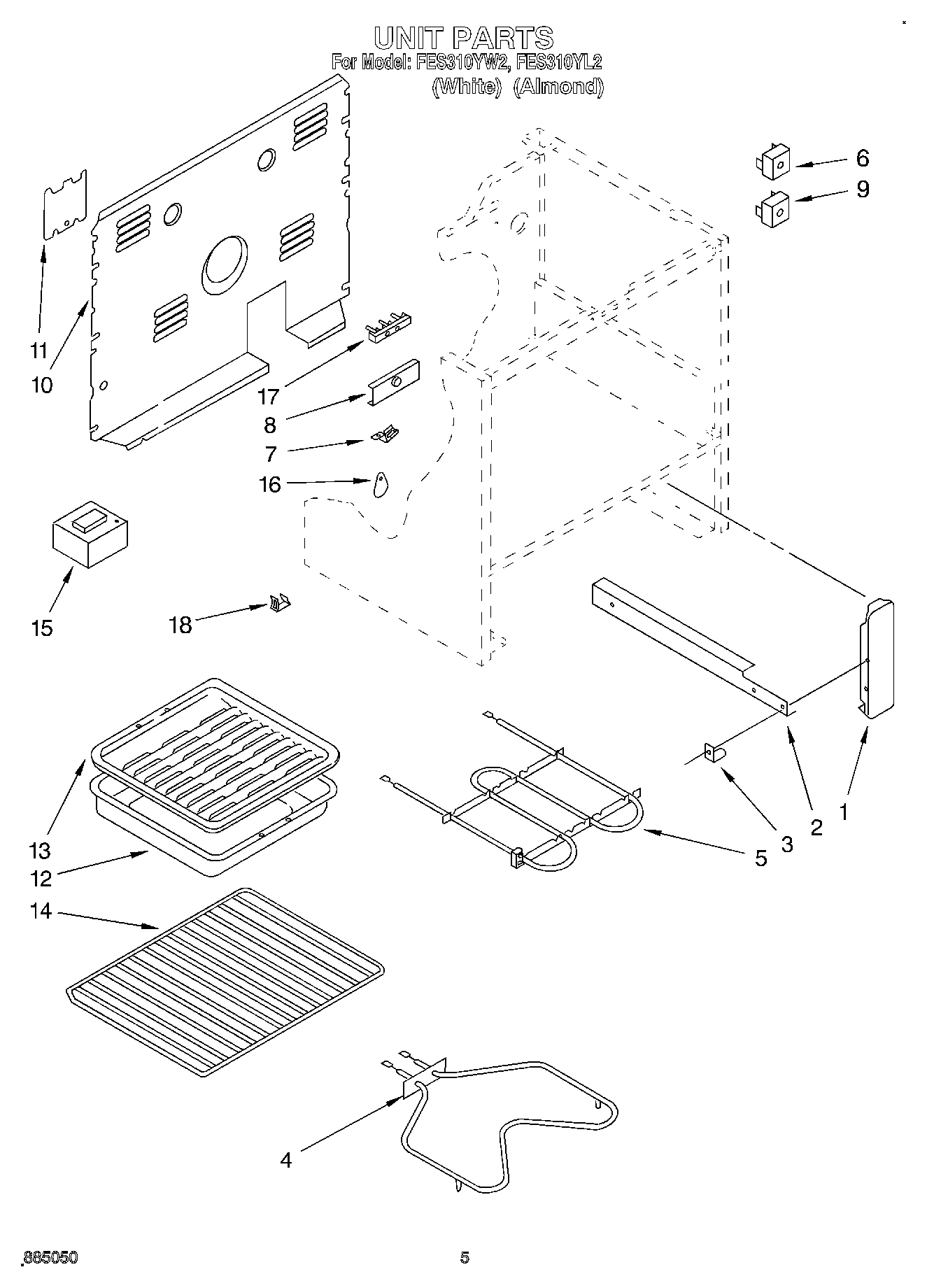

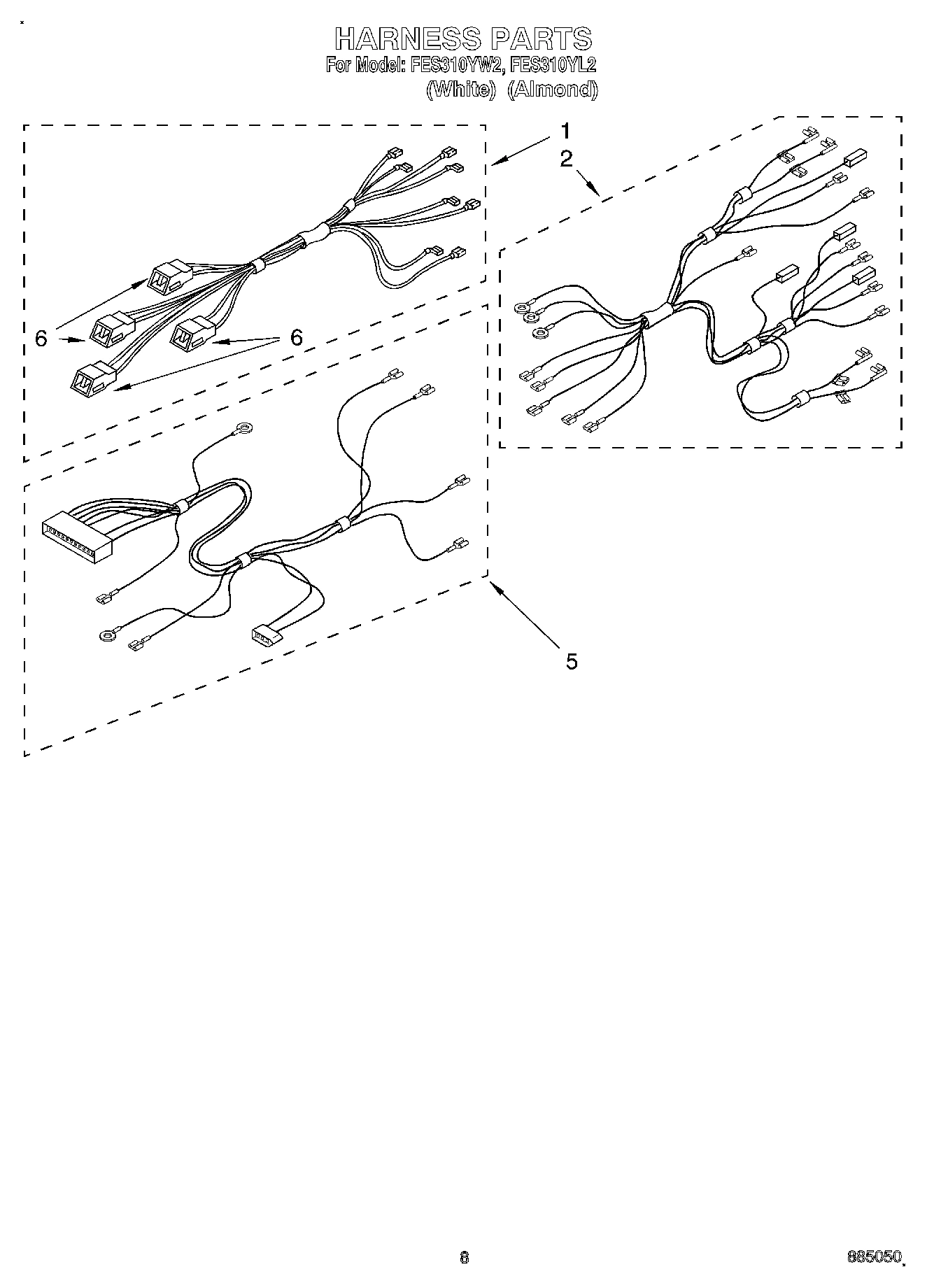

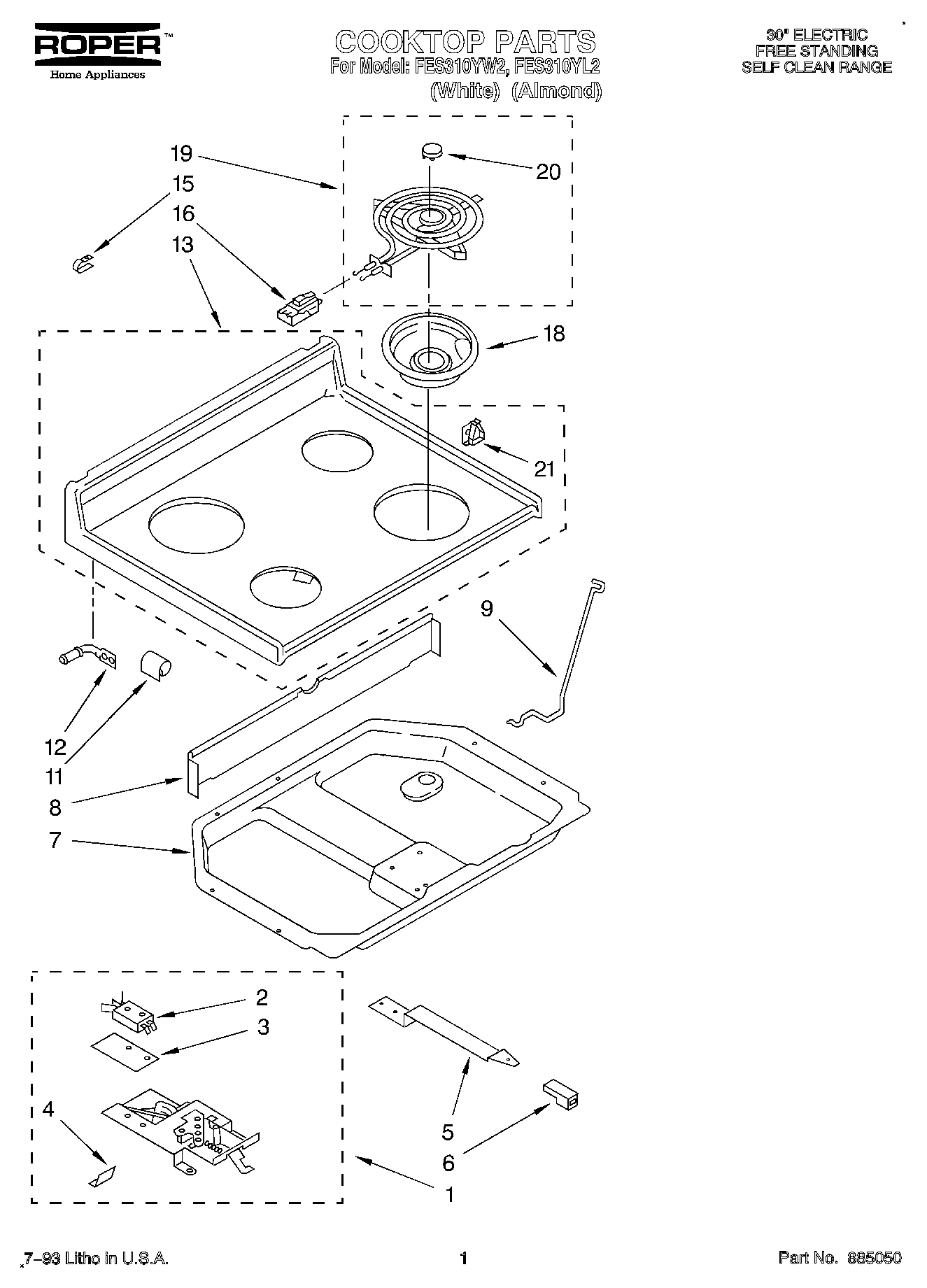

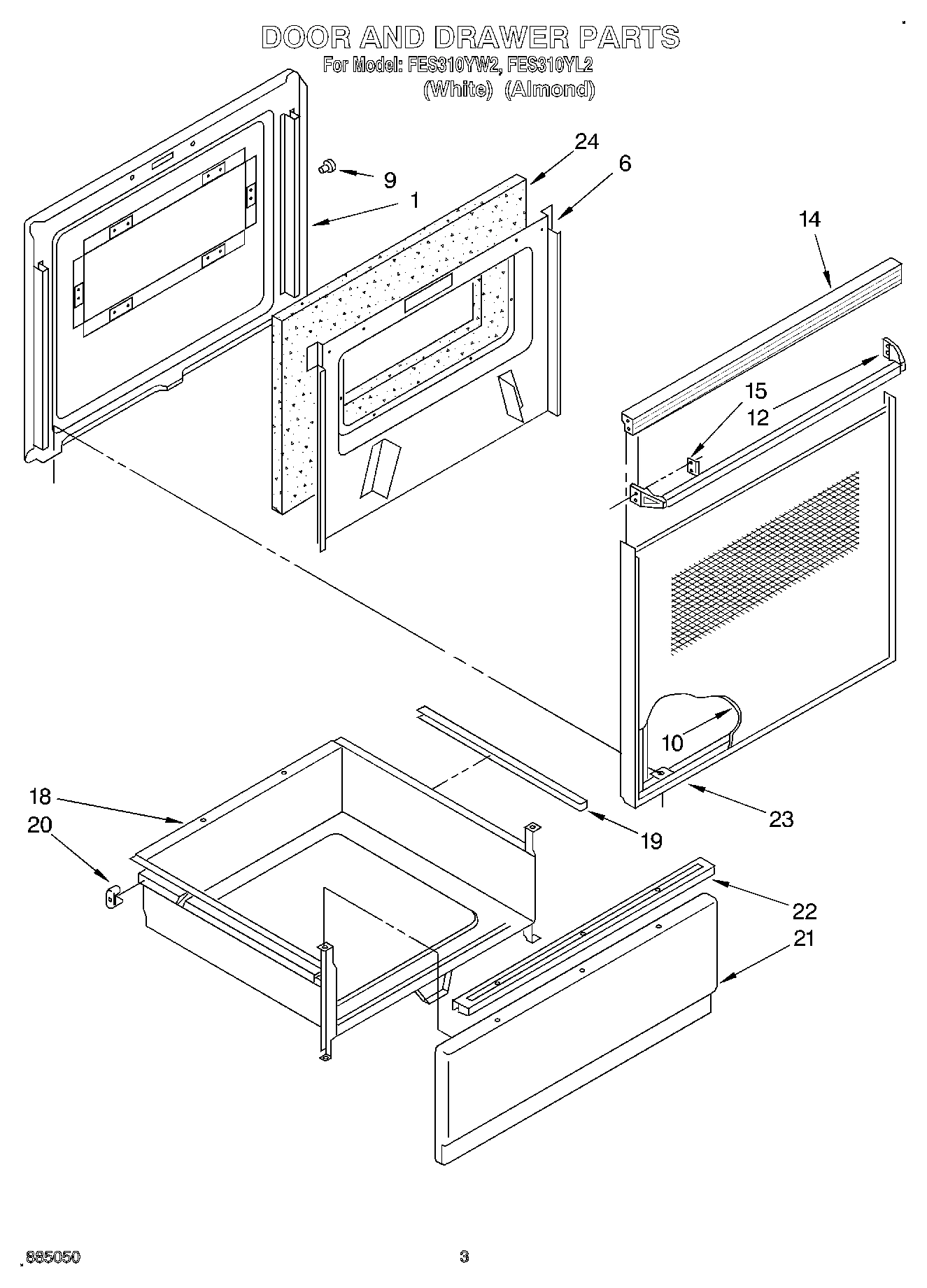

Model Whirlpool FES310YW2 ELECTRIC RANGE – Common Parts &amp; Diagrams

WPL 261582 WPL 261582 Contact Us For Availability

WPL 310433 WPL 310433 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL LIT3150400 WPL LIT3150400 Contact Us For Availability

WPL LIT3187096 WPL LIT3187096 Contact Us For Availability

WPL LIT3187321 WPL LIT3187321 Contact Us For Availability

WPL LIT3187489 WPL LIT3187489 Contact Us For Availability

WPL LIT677973 WPL LIT677973 Contact Us For Availability

1

Screw (2) 10-24x1/2 WPL 247326 Contact Us For Availability

1

Liner, Door WPL 3172219 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

2

Screw, 8A x 3/8 (4) WPL 3162918 Contact Us For Availability

2

End Cap L.H. WPL 3183465 Contact Us For Availability

2

End Cap R.H. WPL 3183466 Contact Us For Availability

2

Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability

2

Rail, Slide (L.H. (Includes Illus. 3)) WPL 3149256 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3169246 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Control, Oven Assembly WPL 3184559 Contact Us For Availability

4

Screw (Sides) WPL 311056 Contact Us For Availability

4

Frame Front WPL 3176718 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

5

Pin, Hinge WPL 307985 Contact Us For Availability

5

Harness, Wire (Latch Lock) WPL 3187095 Contact Us For Availability

6

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

6

285006 Whirlpool Spray In Stock WPL 285006 $28.82

6

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $9.81

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

6

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

6

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

6

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

6

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

6

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

Screw 6-32x.28 WPL 3185059 Contact Us For Availability

6

Screw (4) WPL 3148443 Contact Us For Availability

6

Retainer, Insulation WPL 3148160 Contact Us For Availability

6

Panel, Control WPL 3183475 Contact Us For Availability

6

Switch, Percentage WPL 314209 Contact Us For Availability

6

Seal, Door WPL 3169251 Contact Us For Availability

6

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

6

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

6

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

6

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

6

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

6

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

6

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

6

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

6

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

6

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

6

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

6

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

6

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

6

Coffee WPL 261886 Contact Us For Availability

6

New Avocado WPL 261888 Contact Us For Availability

6

Harvest Gold WPL 261890 Contact Us For Availability

6

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

6

Toast WPL 285365 Contact Us For Availability

6

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

6

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

6

Platinum (Uncut) WPL 285368 Contact Us For Availability

6

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

6

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

6

Almond (Uncut) WPL 978883 Contact Us For Availability

7

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $49.10

7

WP3149404 Whirlpool Range Surface Element Swi In Stock WPL WP3149404 $35.50

7

Switch, Infinite (Screw, (8) 8-32 x 1/4) WPL 308119 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

Switch, Selector WPL 3148419 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Hinge, R.H. WPL 3176710 Contact Us For Availability

8

Hinge, L.H. WPL 3176711 Contact Us For Availability

9

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

9

Thermostat, Oven WPL 3148933 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

9

Screw, No.6 WPL 314215 Contact Us For Availability

9

Switch, Percentage WPL 314210 Contact Us For Availability

9

Screw (3) WPL 3150537 Contact Us For Availability

9

Oven (30`` Pyro) WPL 3176612 Contact Us For Availability

Light, Indicator (250V) WPL 314031 Contact Us For Availability

Glass, Panel WPL 3148186 Contact Us For Availability

Light, Indicator (125V) (Includes No.16) WPL 3150662 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

11

Cover, Service WPL 307972 Contact Us For Availability

12

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

12

Handle, Door WPL 3149242 Contact Us For Availability

12

Screw (4) WPL 3149253 Contact Us For Availability

13

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

13

Knob, Thermostat WPL 3149988 Contact Us For Availability

14

Knob, Selector WPL 3149986 Contact Us For Availability

14

Top, Door WPL 3148223 Contact Us For Availability

14

Rack, Oven (2) WPL 308173 Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

Rear Cover Control Panel WPL 3187332 Contact Us For Availability

Block, Balance WPL 3149258 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

9755804 Whirlpool Range Vent Tube Backorder WPL 9755804 $50.56

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Lens, Amber (2) WPL 313101 Contact Us For Availability

Screw, 10-32 x 7/16 WPL 3150532 Contact Us For Availability

Plate, Cover (2) WPL 311982 Contact Us For Availability

17

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

17

Screw, (2) 10 x 1 WPL 98884 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Drawer, Utility WPL 327887 Contact Us For Availability

Shield (L.H.) WPL 3184353 Contact Us For Availability

Shield (R.H.) WPL 3184354 Contact Us For Availability

Insulation, Wrapper WPL 3169093 Contact Us For Availability

Insulation, Oven BAck WPL 3169094 Contact Us For Availability

19

Protector, Drawer Side (2) WPL 309329 Contact Us For Availability

19

Channel, Arm (2) WPL 3176709 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Medallion (4) WPL 309195 Contact Us For Availability

20

Glide, Rear (2) WPL 307980 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $3.95

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Nut (4) WPL 814102 Contact Us For Availability

Panel Drawer (Black) WPL 309923 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Screw (2) 8Ax5/8 WPL 309029 Contact Us For Availability

22

Handle, Drawer WPL 3184530 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Frame, Door WPL 3171530 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Insulation WPL 3147951 Contact Us For Availability

Support, L.H. Channel WPL 313196 Contact Us For Availability

Support, R.H. Channel WPL 313197 Contact Us For Availability

28

Snubber, Door (2) WPL 309111 Contact Us For Availability

28

Anchor (4) WPL 3148605 Contact Us For Availability

31

Button, Plug WPL 308535 Contact Us For Availability
