Model Whirlpool FES310BL0 ELECTRIC RANGE – Common Parts & Diagrams

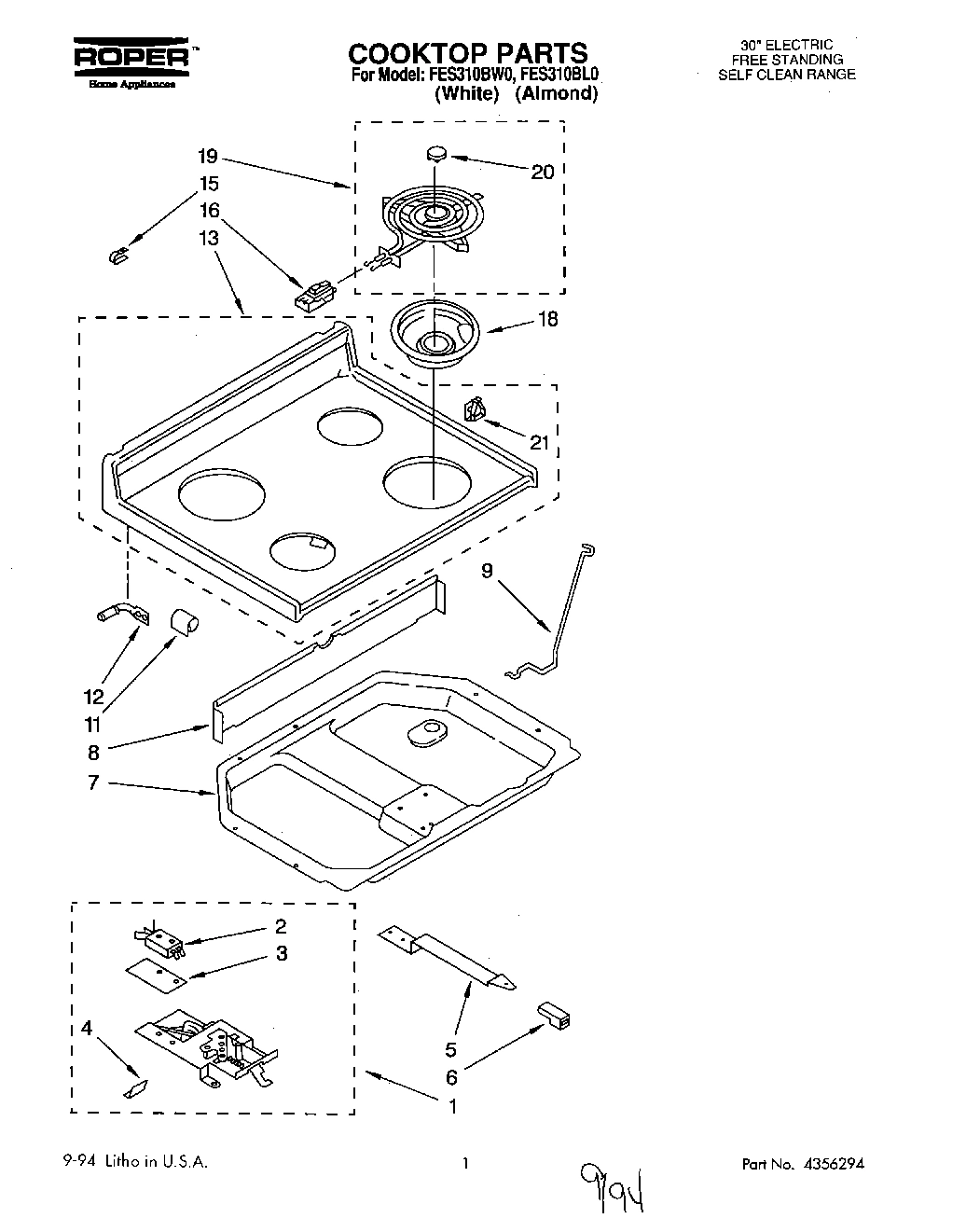

01 - COOKTOP

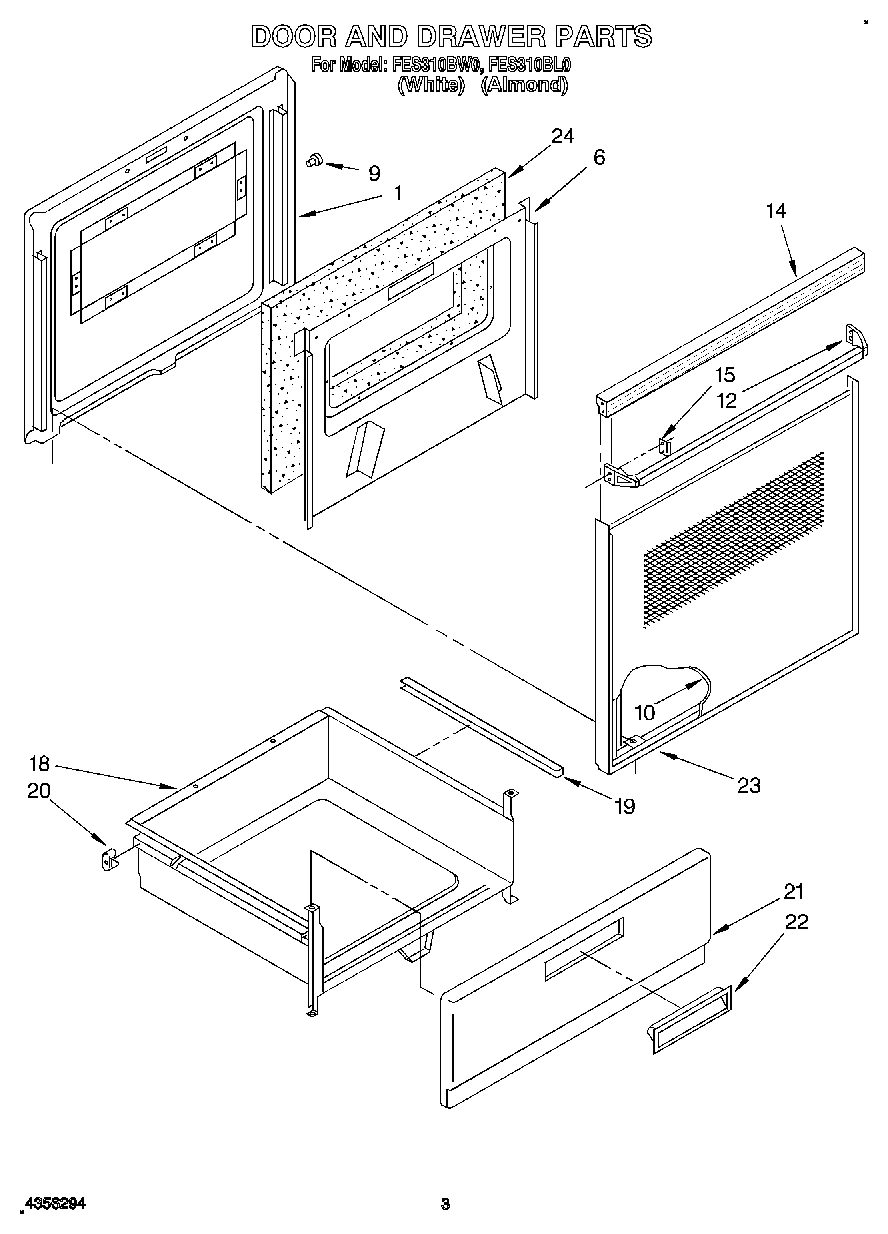

03 - DOOR AND DRAWER
02 - CONTROL PANEL
04 - UNIT
05 - OVEN
06 - HARNESS, LIT/OPTIONAL
Common parts from model Whirlpool FES310BL0 ELECTRIC RANGE
WPL LIT3150400 WPL LIT3150400 Contact Us For Availability
WPL LIT3187321 WPL LIT3187321 Contact Us For Availability
WPL LIT3187693 WPL LIT3187693 Contact Us For Availability
WPL LIT3187739 WPL LIT3187739 Contact Us For Availability
1
Screw (2) 10-24x1/2 WPL 247326 Contact Us For Availability
1
Liner, Door WPL 3172219 Contact Us For Availability
1
End Trim (Screw, 8 x 5/8 (2)) WPL 3169366 Contact Us For Availability
1
End Trim (Right) WPL 3187671 Contact Us For Availability
1
End Trim (Left) WPL 3187672 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
2
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
2
Rail, Slide (L.H. (Includes Illus. 3)) WPL 3149256 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169336 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Control, Oven Assembly WPL 661458 Contact Us For Availability
4
Screw (Sides) WPL 311056 Contact Us For Availability
4
Frame Front WPL 3176718 Contact Us For Availability
5
Glass, Timer WPL 313513 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Harness, Wire (Lock Switch) WPL 313550 Contact Us For Availability
6
PAINT, BULK (1 Q WPL 799344 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw 6-32x.28 WPL 3185059 Contact Us For Availability
6
Screw (4) WPL 3148443 Contact Us For Availability
6
Retainer, Insulation WPL 3148160 Contact Us For Availability
6
Panel, Control WPL 3187657 Contact Us For Availability
6
Switch, Percentage WPL 314209 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
6
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
6
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
6
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
6
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
6
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
6
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
6
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
6
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
6
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
6
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
6
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
6
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
6
Grease WPL 261582 Contact Us For Availability
6
Coffee WPL 261886 Contact Us For Availability
6
New Avocado WPL 261888 Contact Us For Availability
6
Harvest Gold WPL 261890 Contact Us For Availability
6
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
6
Toast WPL 285365 Contact Us For Availability
6
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
6
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
6
Platinum (Uncut) WPL 285368 Contact Us For Availability
6
Insulation Pyro-Wrap WPL 310433 Contact Us For Availability
6
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
6
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
6
WPL 799832 WPL 799832 Contact Us For Availability
6
WPL 978883 WPL 978883 Contact Us For Availability
7
Switch, Infinite (Screw, (8) 8-32 x 1/4) WPL 308119 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Switch, Selector WPL 3148419 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Thermostat, Oven WPL 3185625 Contact Us For Availability
9
Screw, No.6 WPL 314215 Contact Us For Availability
9
Switch, Percentage WPL 314210 Contact Us For Availability
9
Screw (3) WPL 3150537 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176612 Contact Us For Availability
10
Light, Indicator (250V) WPL 314031 Contact Us For Availability
10
Glass, Panel WPL 3148186 Contact Us For Availability
10
Light, Indicator (125V) WPL 3150662 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Handle, Door WPL 3149242 Contact Us For Availability
12
Screw (4) WPL 3149253 Contact Us For Availability
13
Knob, Thermostat WPL 3149988 Contact Us For Availability
14
Knob, Selector WPL 3149986 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
15
Block, Balance WPL 3149258 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Lens, Amber (2) WPL 313101 Contact Us For Availability
17
Screw, (2) 10 x 1 WPL 98884 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Shield, R or L WPL 313608 Contact Us For Availability
18
Insulation, Wrapper WPL 3169093 Contact Us For Availability
18
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Nut (4) WPL 814102 Contact Us For Availability
21
Panel, Drawer (Black) WPL 3150679 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Handle, Drawer WPL 3150615 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Screw (2) 8Ax5/8 WPL 309029 Contact Us For Availability
23
Frame, Door WPL 3171530 Contact Us For Availability
24
Insulation WPL 3147951 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
28
Snubber, Door (2) WPL 309111 Contact Us For Availability
28
Anchor (4) WPL 3148605 Contact Us For Availability
31
Button, Plug WPL 308535 Contact Us For Availability
× ![]()
