Model Whirlpool FEP320BL1 ELECTRIC RANGE – Common Parts & Diagrams

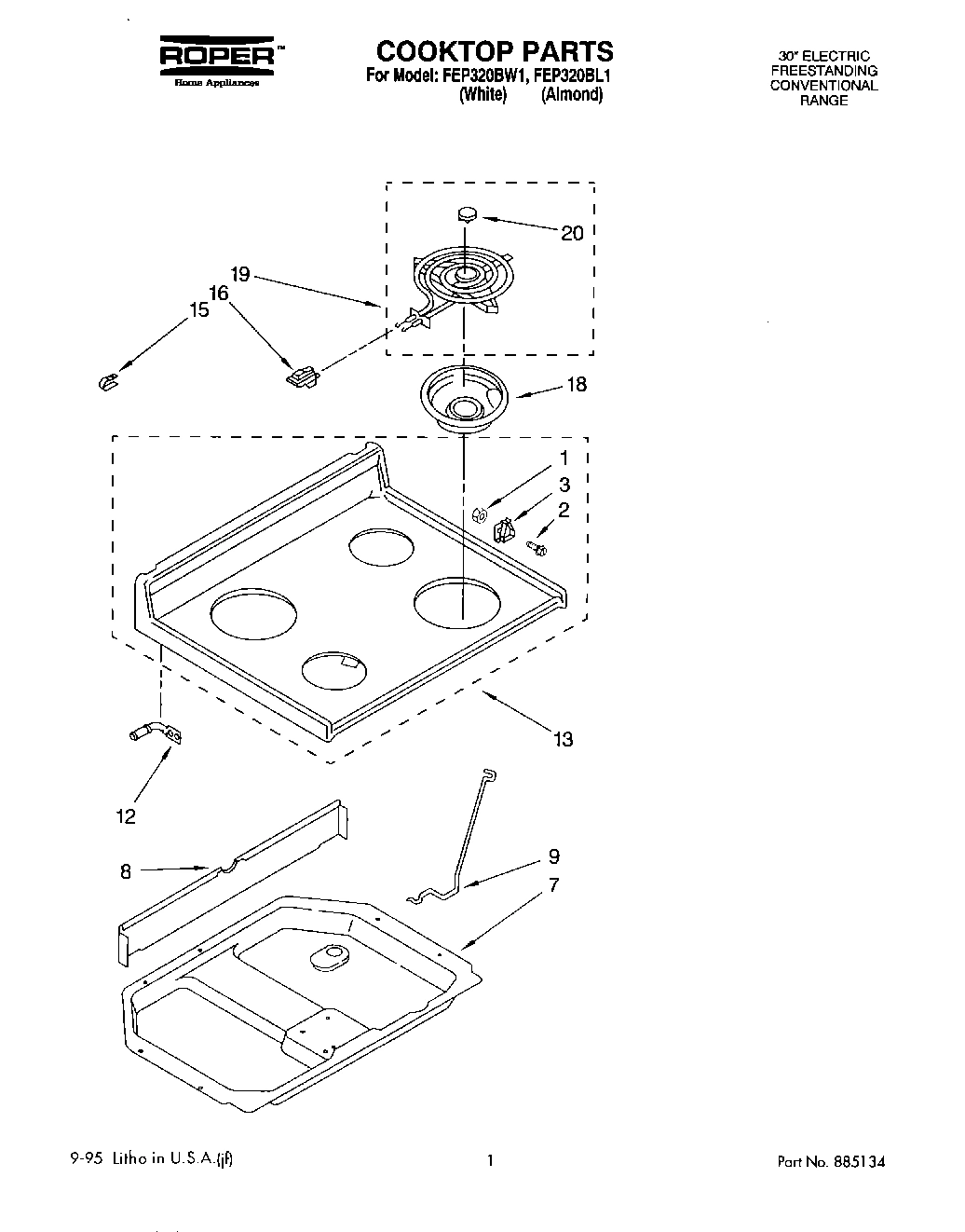

01 - COOKTOP, LITERATURE

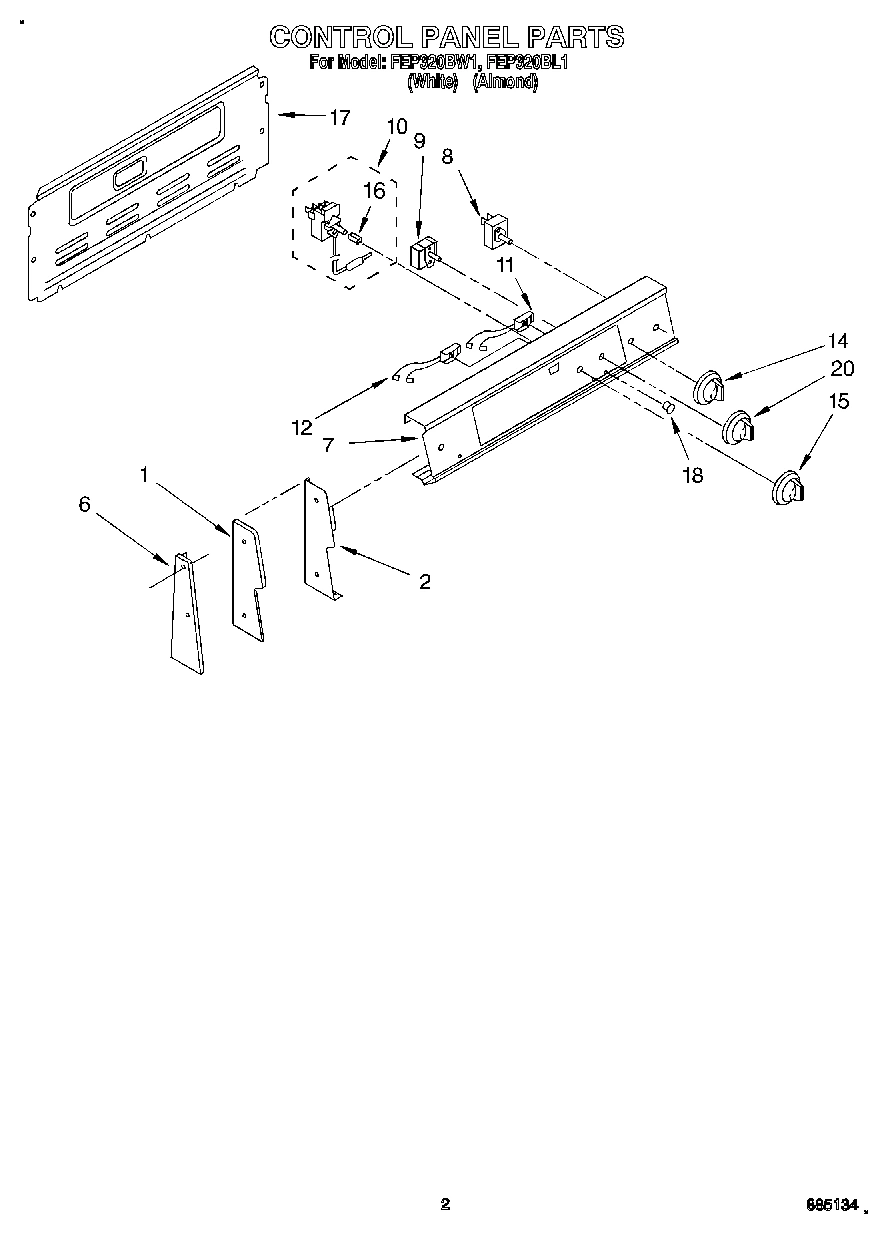

02 - CONTROL PANEL

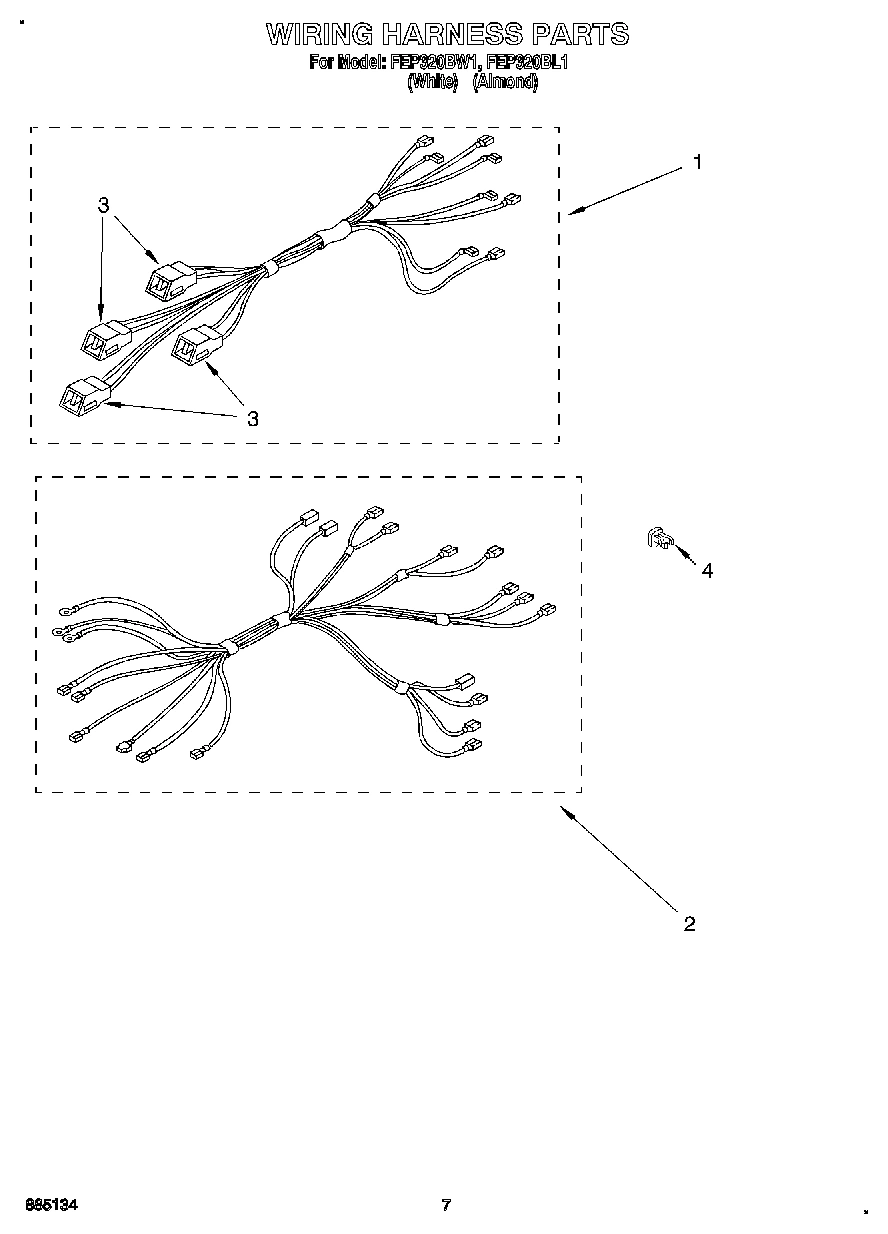

05 - WIRING HARNESS, OPTIONAL

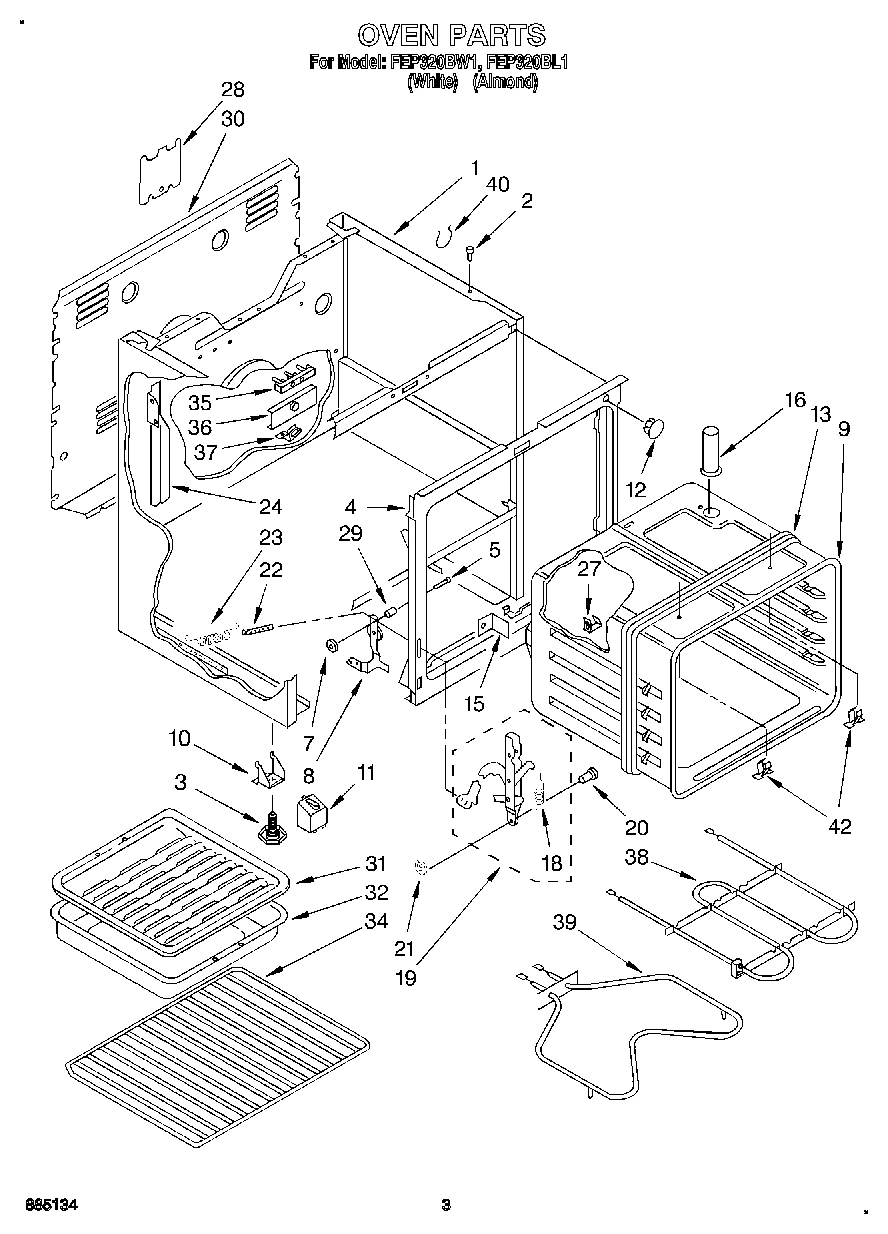

03 - OVEN

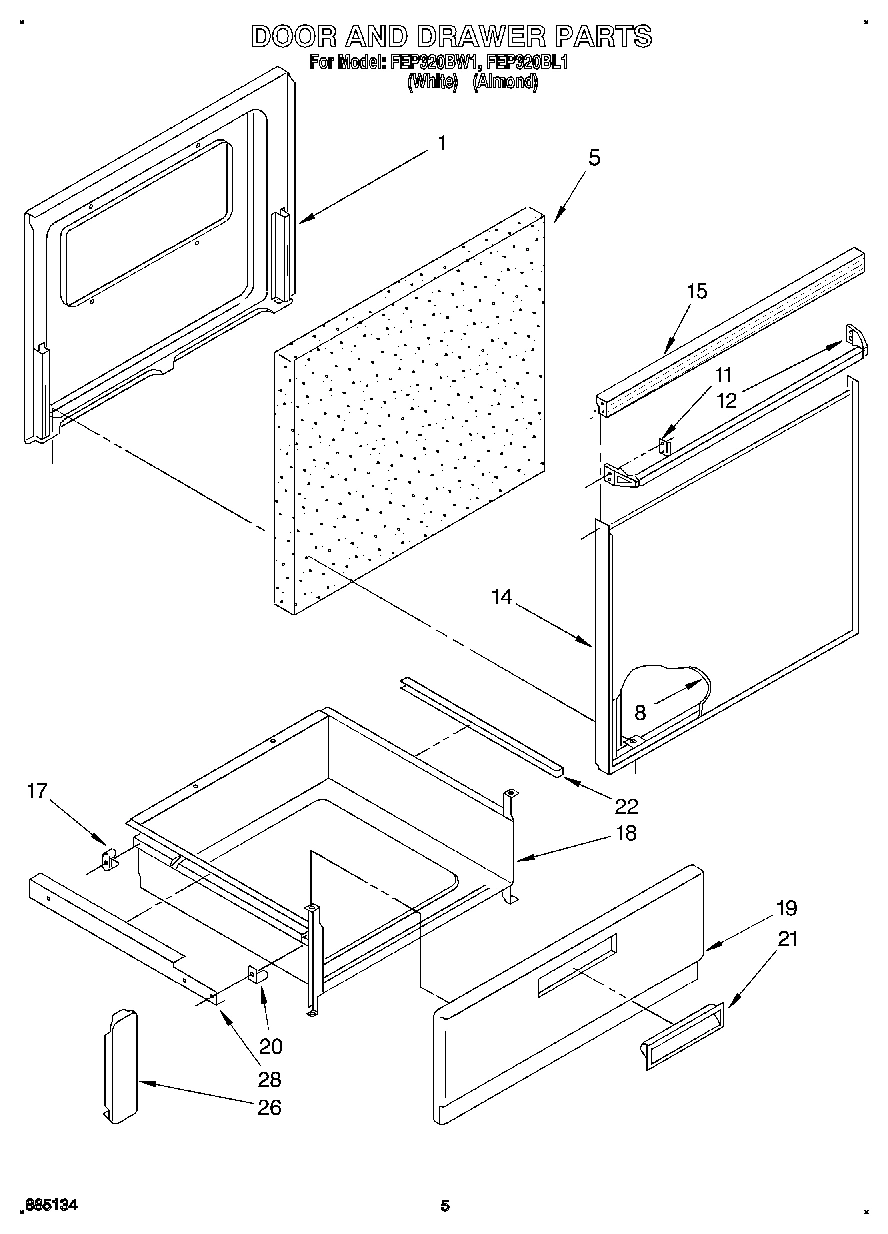

04 - DOOR AND DRAWER
Common parts from model Whirlpool FEP320BL1 ELECTRIC RANGE
1
Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Liner, Door WPL 3172221 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169147 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
4
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
4
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
4
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
4
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
4
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
4
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
4
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
4
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
4
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
4
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
4
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
4
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
4
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
4
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
4
Grease WPL 261582 Contact Us For Availability
4
Coffee WPL 261886 Contact Us For Availability
4
New Avocado WPL 261888 Contact Us For Availability
4
Harvest Gold WPL 261890 Contact Us For Availability
4
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
4
Toast WPL 285365 Contact Us For Availability
4
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
4
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
4
Platinum (Uncut) WPL 285368 Contact Us For Availability
4
Clip, Snap-In WPL 3169449 Contact Us For Availability
4
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
4
WPL 72112 WPL 72112 Contact Us For Availability
4
WPL 799832 WPL 799832 Contact Us For Availability
4
WPL 978883 WPL 978883 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
End Trim (Right) WPL 3187671 Contact Us For Availability
6
End Trim (Left) WPL 3187672 Contact Us For Availability
7
Panel, Control WPL 3187655 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Glass, Outer WPL 3148186 Contact Us For Availability
9
Switch, Selector WPL 3150430 Contact Us For Availability
9
Screw, 8-32 x 1/4 (2) WPL 308119 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3176612 Contact Us For Availability
10
Thermostat, Oven WPL 3169302 Contact Us For Availability
10
Support, Foot (2) WPL 3169418 Contact Us For Availability
11
Light, Indicator (Oven) WPL 314031 Contact Us For Availability
11
Clip, Handle (2) WPL 3148282 Contact Us For Availability
11
Cover, Foot (2) WPL 3169448 Contact Us For Availability
12
Light, Indicator (Surface Unit) WPL 3150662 Contact Us For Availability
12
Button, Plug WPL 308535 Contact Us For Availability
12
Handle, Door WPL 3184128 Contact Us For Availability
13
Seal, Heat WPL 3169283 Contact Us For Availability
14
Screw (4) WPL 3149253 Contact Us For Availability
14
Frame, Door WPL 3188997 Contact Us For Availability
15
Knob (Therm) (White/Almond Mdl.) WPL 3149987 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Top, Door Vent WPL 3169515 Contact Us For Availability
16
Sleeve, Adaptor WPL 3169525 Contact Us For Availability
17
Rear Cover WPL 3187332 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
Lens, Amber (2) WPL 313101 Contact Us For Availability
18
Spring, Stop WPL 308207 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
19
Panel, Drawer (Black) WPL 3169432 Contact Us For Availability
20
Knob, Selector WPL 3149984 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
21
Handle, Drawer WPL 3150615 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Screw (2) 8A x 1/2 WPL 309029 Contact Us For Availability
22
Spring, Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
26
Bracket, Rail (2) WPL 3169420 Contact Us For Availability
28
Rail, Slide (Screw (2)) WPL 307748 Contact Us For Availability
28
Plate, Service WPL 307972 Contact Us For Availability
28
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
28
Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Cover, Rear WPL 3148975 Contact Us For Availability
34
Oven Rack (2) WPL 308173 Contact Us For Availability
35
Screw (2) WPL 98884 Contact Us For Availability
36
Bracket, Service WPL 3150190 Contact Us For Availability
37
Ground Strap WPL 308498 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
42
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
42
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
