Model Whirlpool FEP310VL1 ELECTRIC RANGE – Common Parts & Diagrams

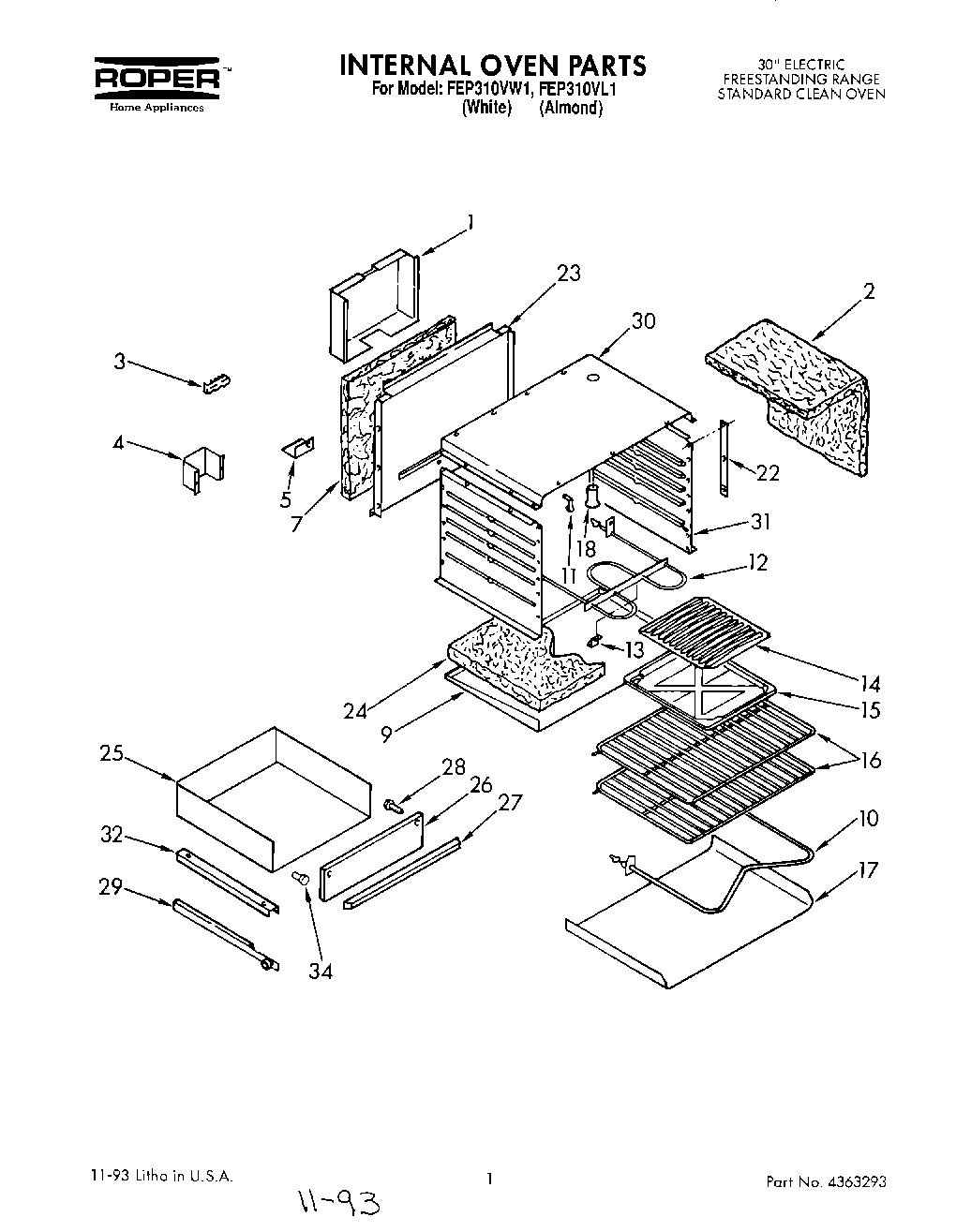

01 - INTERNAL OVEN

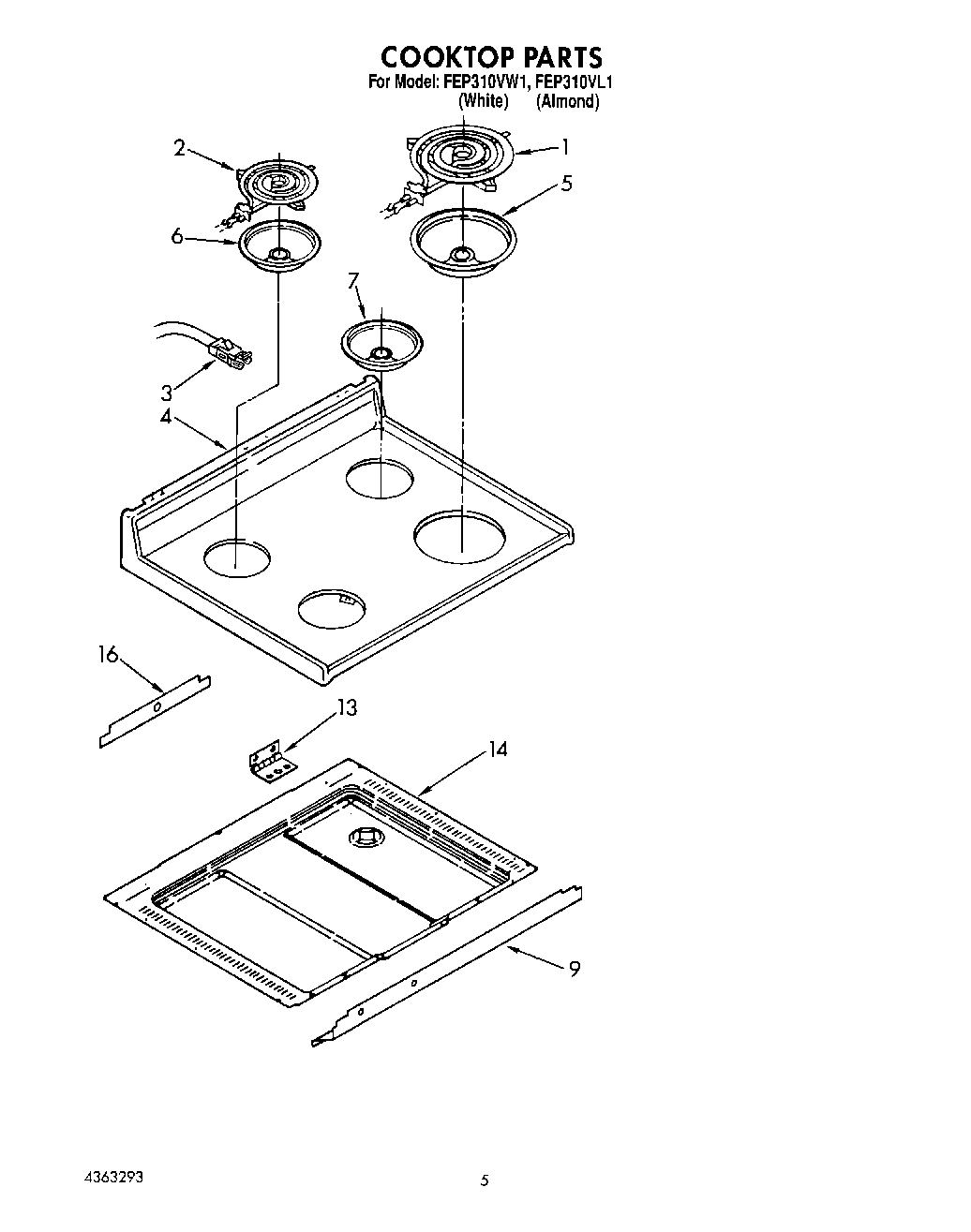

03 - COOKTOP
02 - EXTERNAL OVEN
04 - CONTROL PANEL, LITERATURE
05 - DOOR
Common parts from model Whirlpool FEP310VL1 ELECTRIC RANGE
Use & Care Manual WPL LIT4315644 Contact Us For Availability
Installation Guide WPL LIT4315694 Contact Us For Availability
1
Element, Large (1) WPL 4315620 Contact Us For Availability
1
Body Side (White) WPL 4363024 Contact Us For Availability
1
Body Side (Almond) WPL 4363025 Contact Us For Availability
1
Liner, Door WPL 4320538 Contact Us For Availability
2
Insulation, Wrap WPL 4320508 Contact Us For Availability
2
Element, Small (3) WPL 4315619 Contact Us For Availability
2
Rail, Base WPL 4320525 Contact Us For Availability
2
Spacer (2) WPL 4320511 Contact Us For Availability
3
Leg Leveler WPL 4157161 Contact Us For Availability
3
Cover, Backguard WPL 4320448 Contact Us For Availability
3
Insulation, Door WPL 4157033 Contact Us For Availability
4
Shield, Wire WPL 4320496 Contact Us For Availability
4
Cooktop (White) WPL 4320504 Contact Us For Availability
4
Cooktop (Almond) WPL 4320505 Contact Us For Availability
4
Nut WPL 4157332 Contact Us For Availability
4
End Cap (Left) WPL 4320549 Contact Us For Availability
4
End Cap (Right) WPL 4320550 Contact Us For Availability
5
Handle, Oven Door WPL 4157040 Contact Us For Availability
5
Screw, Handle (2) WPL 4320579 Contact Us For Availability
5
Hinge, Oven Door WPL 4320499 Contact Us For Availability
5
Support, Backguard (Left) WPL 4320490 Contact Us For Availability
5
Support, Backguard (Right) WPL 4320491 Contact Us For Availability
5
Spacer, Handle (2) WPL 4157041 Contact Us For Availability
6
Main Front WPL 4320497 Contact Us For Availability
6
White WPL 4320542 Contact Us For Availability
6
Panel, Front WPL 4320555 Contact Us For Availability
6
Almond WPL 4320601 Contact Us For Availability
6
Screw, No.10 x 1/2 (6) WPL 4320742 Contact Us For Availability
7
Support, Rear WPL 4315382 Contact Us For Availability
7
Retainer, Insulation WPL 4320352 Contact Us For Availability
8
Support, Main (2) WPL 4157011 Contact Us For Availability
9
Retainer Lower WPL 4315490 Contact Us For Availability
9
Extension, Burner Box WPL 4320495 Contact Us For Availability
9
Back, Main WPL 4315529 Contact Us For Availability
9
Indicator Light, Burner WPL 4320510 Contact Us For Availability
10
Support, Oven WPL 4315213 Contact Us For Availability
10
Panel, Control (White) WPL 4320400 Contact Us For Availability
10
Panel, Control (Almond) WPL 4320401 Contact Us For Availability
11
Panel, Base WPL 4157006 Contact Us For Availability
12
Disc, Thermo WPL 4179130 Contact Us For Availability
13
Support, Element WPL 4157967 Contact Us For Availability
13
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
13
Seal, Oven WPL 4320463 Contact Us For Availability
13
Light, Indicator Oven WPL 4320506 Contact Us For Availability
14
Grid, Broil Pan WPL 4315094 Contact Us For Availability
14
Bottom, Burner Box WPL 4320494 Contact Us For Availability
14
Anti-Tip Kit WPL 4363057 Contact Us For Availability
15
Extension, Back WPL 4320541 Contact Us For Availability
16
Bracket, Conduit WPL 4320523 Contact Us For Availability
16
Rack, Oven (2) WPL 4320804 Contact Us For Availability
16
Cover, Switch WPL 4320493 Contact Us For Availability
17
Bottom, Oven WPL 4320773 Contact Us For Availability
17
Shield, Insulation WPL 4157325 Contact Us For Availability
17
Knob, Infinite (4) WPL 4315513 Contact Us For Availability
18
Tube, Vent WPL 4320543 Contact Us For Availability
22
Support, Oven Side (2) WPL 4157328 Contact Us For Availability
23
Backliner, Oven WPL 4315052 Contact Us For Availability
25
Drawer, Storage WPL 4363284 Contact Us For Availability
26
Drawer, Front (White) WPL 4320527 Contact Us For Availability
26
Drawer, Front (Almond) WPL 4320528 Contact Us For Availability
26
Knob, Thermostat WPL 4315514 Contact Us For Availability
27
Thermostat WPL 4320548 Contact Us For Availability
29
Track, Lower Assy. (Left Side) WPL 4320465 Contact Us For Availability
29
Track, Lower Assy. (Right Side) WPL 4320466 Contact Us For Availability
30
Liner, Oven Top WPL 4315043 Contact Us For Availability
31
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
31
Screw, No.10 x 1/2 (6) WPL 4320452 Contact Us For Availability
31
Screw, No.10 x 5/8 (6) WPL 4320662 Contact Us For Availability
32
Track, Upper Assy. (Left Side) WPL 4364023 Contact Us For Availability
32
Track, Upper Assy. (Right Side) WPL 4364024 Contact Us For Availability
34
Bumper (2) WPL 4157128 Contact Us For Availability
× ![]()
