Model Whirlpool FEP210VW0 ELECTRIC RANGE – Common Parts & Diagrams

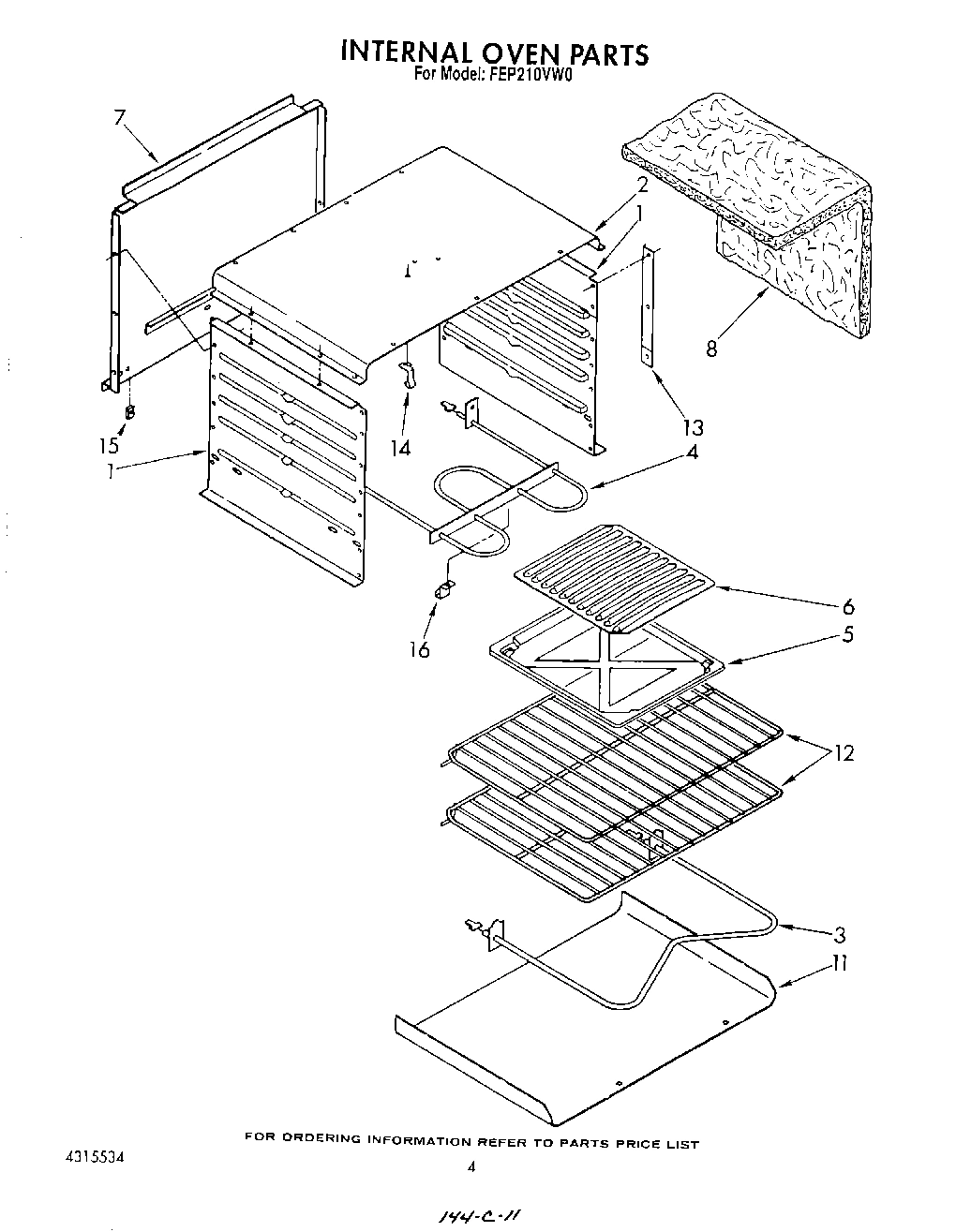

03 - INTERNAL OVEN

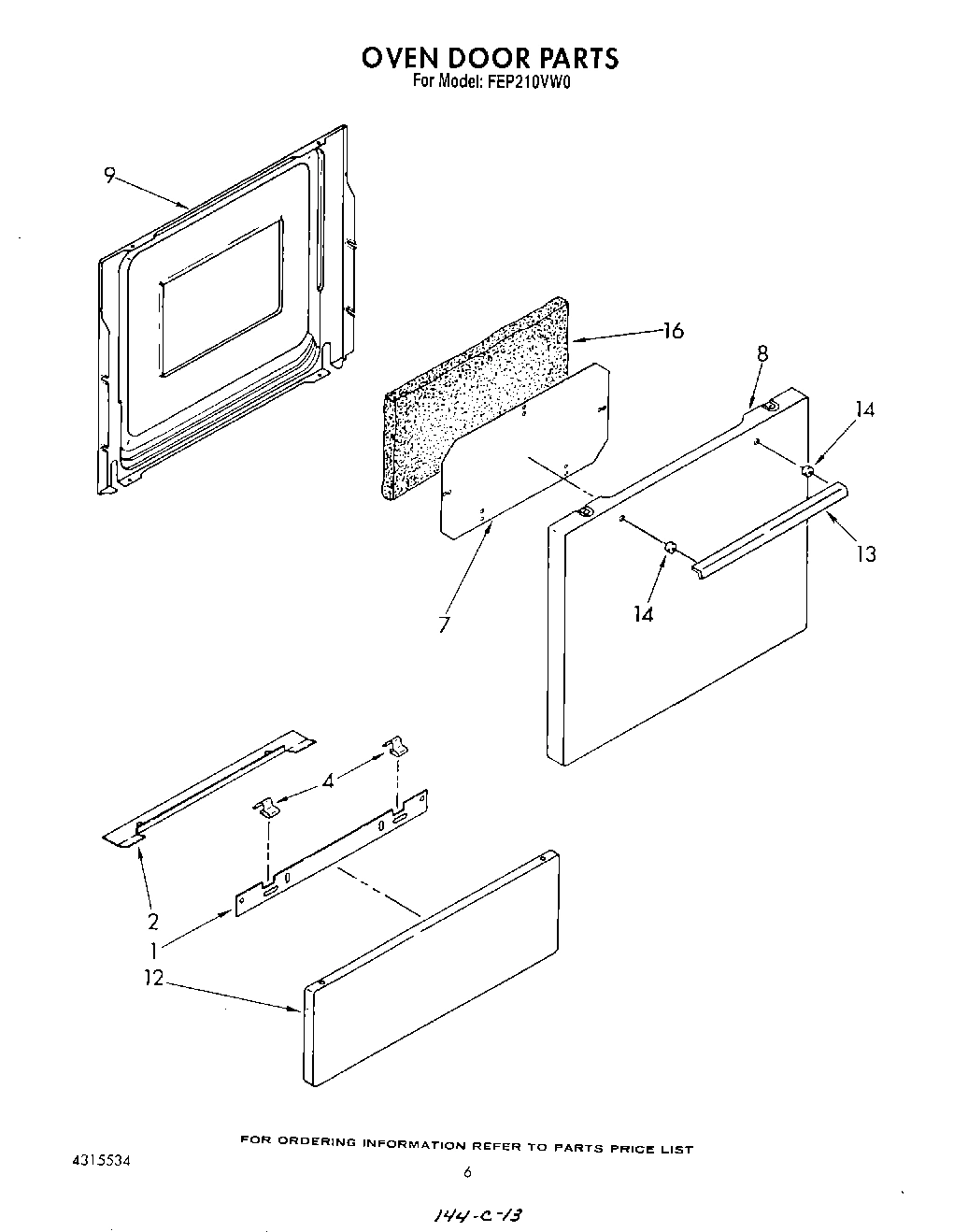

05 - OVEN DOOR

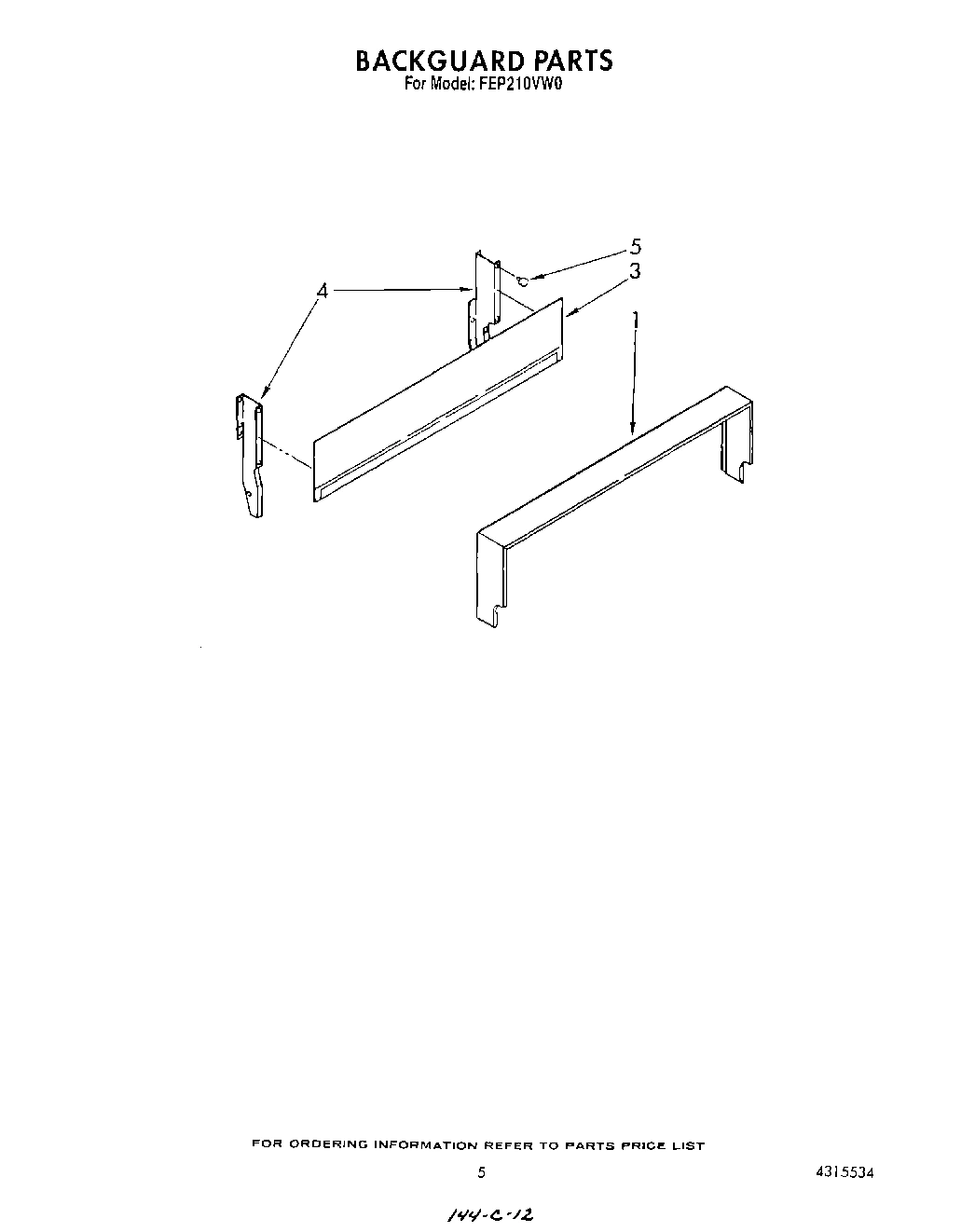

04 - BACKGUARD

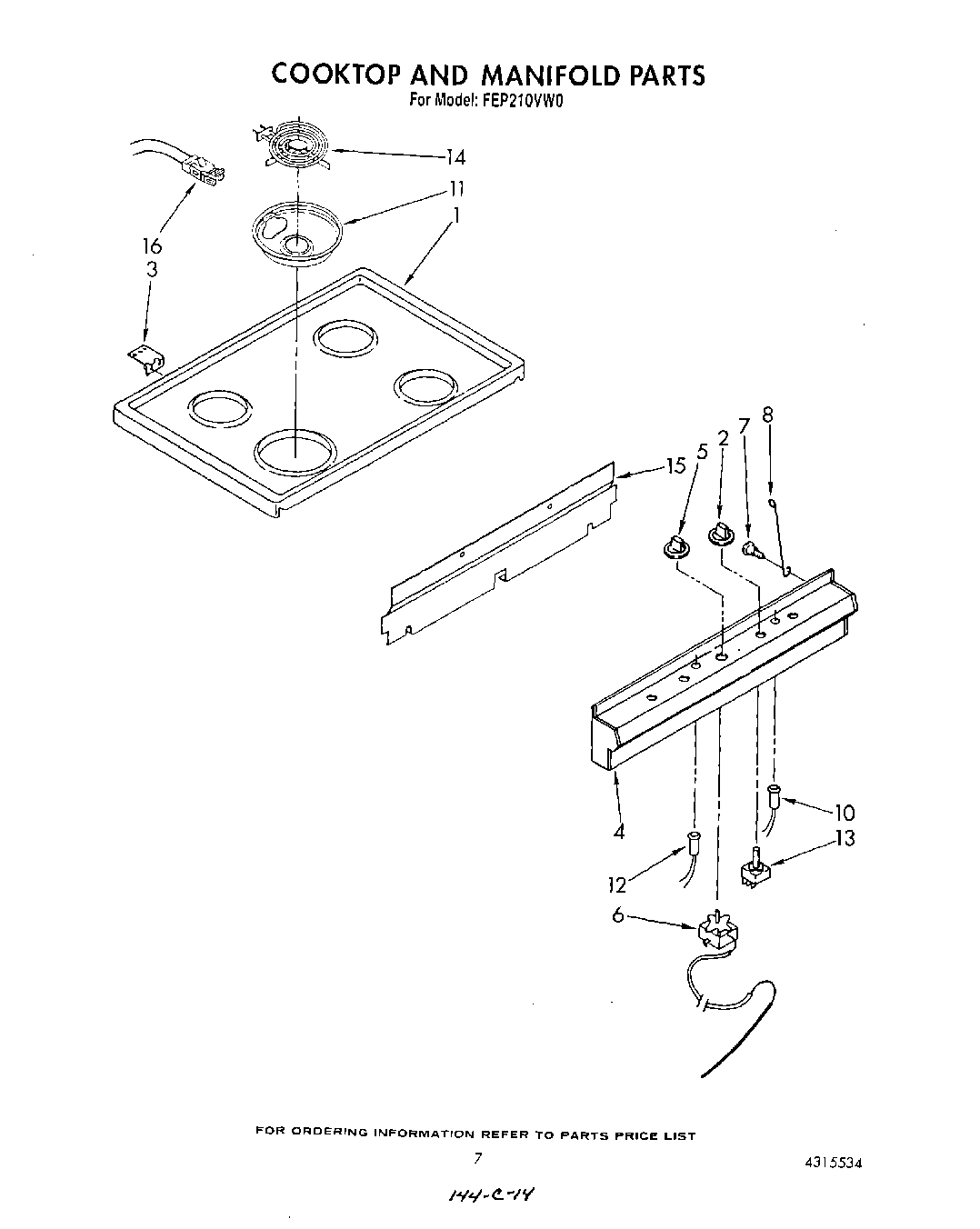

06 - COOKTOP AND MANIFOLD

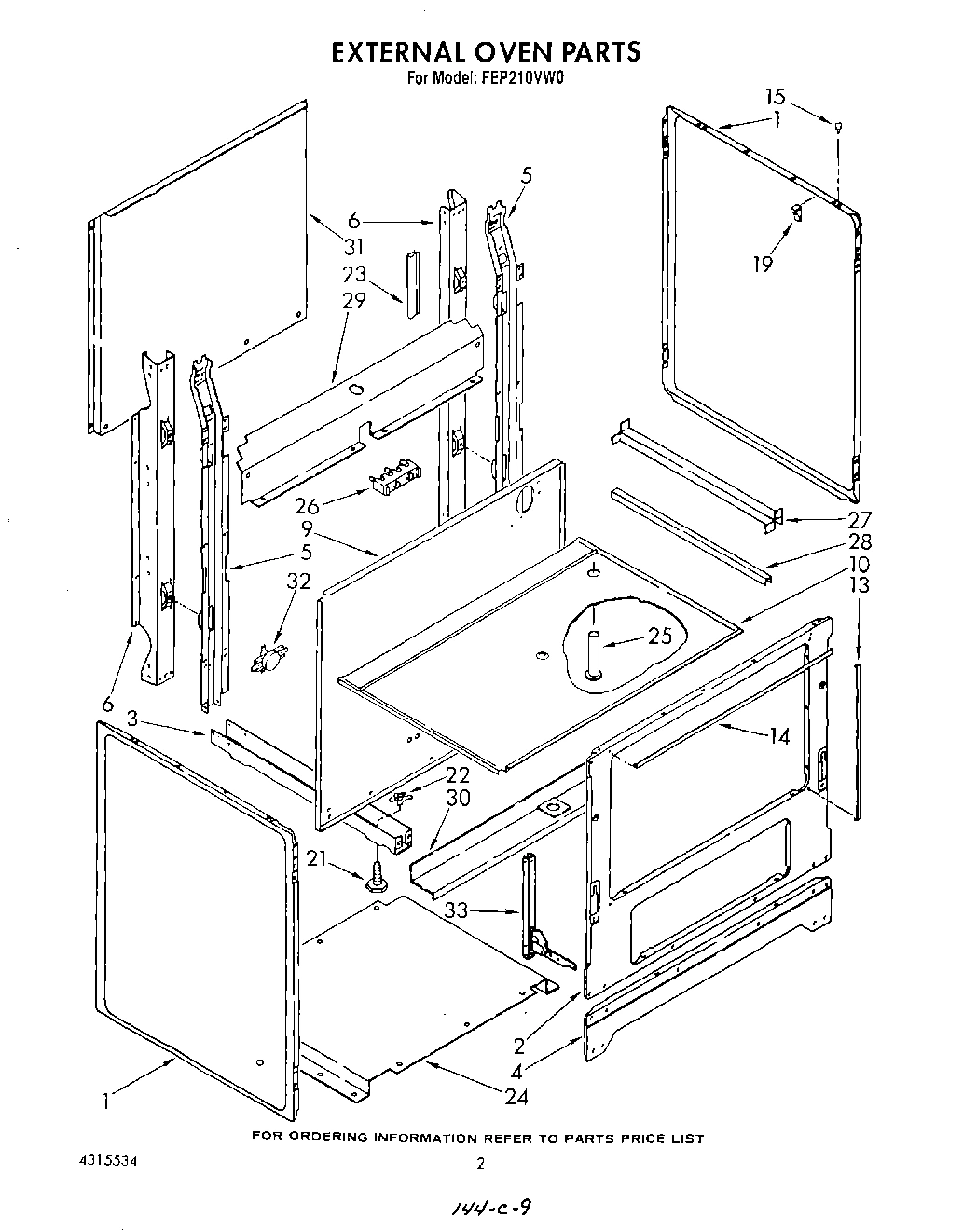

02 - EXTERNAL OVEN , LITERATURE AND OPTIONAL
Common parts from model Whirlpool FEP210VW0 ELECTRIC RANGE
Guide, Use & Care WPL LIT4315532 Contact Us For Availability
Instuctions, Installation WPL LIT4315533 Contact Us For Availability
List, Repair Parts WPL LIT4315534 Contact Us For Availability
Guide, Cooking WPL LIT786358 Contact Us For Availability
1
Support, Clip WPL 4157957 Contact Us For Availability
1
Screw, 10-12 X 3/8 (6) WPL 4157121 Contact Us For Availability
1
Frame WPL 4315545 Contact Us For Availability
1
Cooktop (White) WPL 4179180 Contact Us For Availability
1
Cooktop (Almond) WPL 4179181 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
2
Liner, Oven Top WPL 4315047 Contact Us For Availability
2
Bracket WPL 4157958 Contact Us For Availability
2
Knob, Burner (4) WPL 4320345 Contact Us For Availability
2
Frame, Front WPL 4315206 Contact Us For Availability
3
Back Guard Panel WPL 4157854 Contact Us For Availability
3
White WPL 4315546 Contact Us For Availability
3
Almond WPL 4315547 Contact Us For Availability
3
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
3
Speed Clip (4) WPL 4157115 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
4
Clip WPL 4157959 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Panel, Manifold WPL 4315507 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Base, Front WPL 4157945 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Knob, Thermostat WPL 4320346 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
6
Grid WPL 4315094 Contact Us For Availability
6
Thermostat WPL 4157565 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Liner, Oven Back WPL 4315059 Contact Us For Availability
7
Baffle WPL 4157931 Contact Us For Availability
7
Screw WPL 4157018 Contact Us For Availability
8
Panel, Door (White) WPL 4179271 Contact Us For Availability
8
Panel, Door (Almond) WPL 4179272 Contact Us For Availability
8
Rod, Support WPL 4157010 Contact Us For Availability
9
Liner, Door WPL 4315068 Contact Us For Availability
9
Panel, Rear WPL 4315529 Contact Us For Availability
10
Light, Indicator (Oven) WPL 4157870 Contact Us For Availability
10
Burner Box WPL 4157925 Contact Us For Availability
11
Bottom, Oven WPL 4315076 Contact Us For Availability
12
Rack, Oven (2) WPL 4157927 Contact Us For Availability
12
Panel (White) WPL 4315505 Contact Us For Availability
12
Panel (Almond) WPL 4315506 Contact Us For Availability
12
Light, Indicator (Surface Unit) WPL 4157976 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle WPL 4157794 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Unit, Surface (6``) WPL 4157979 Contact Us For Availability
14
Unit, Surface (8``) WPL 4157980 Contact Us For Availability
14
Seal, Door (Top) WPL 4315471 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Cover, Switch WPL 4157974 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
16
Support WPL 4157967 Contact Us For Availability
16
Insulation WPL 4179307 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Panel, Bottom WPL 4157952 Contact Us For Availability
25
Tube, Vent WPL 4157953 Contact Us For Availability
27
Channel, Wire WPL 4157964 Contact Us For Availability
28
Support, Channel WPL 4157965 Contact Us For Availability
29
Cover, Wire WPL 4157966 Contact Us For Availability
30
Support WPL 4157968 Contact Us For Availability
31
Cover, Rear WPL 4157969 Contact Us For Availability
32
Disc, Thermo WPL 4179130 Contact Us For Availability
33
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
33
Hinge, Door WPL 4315464 Contact Us For Availability
× ![]()
