Model Whirlpool FEP210VL4 ELECTRIC RANGE – Common Parts & Diagrams
04 - OVEN DOOR AND BROILER
05 - COOKTOP AND MANIFOLD

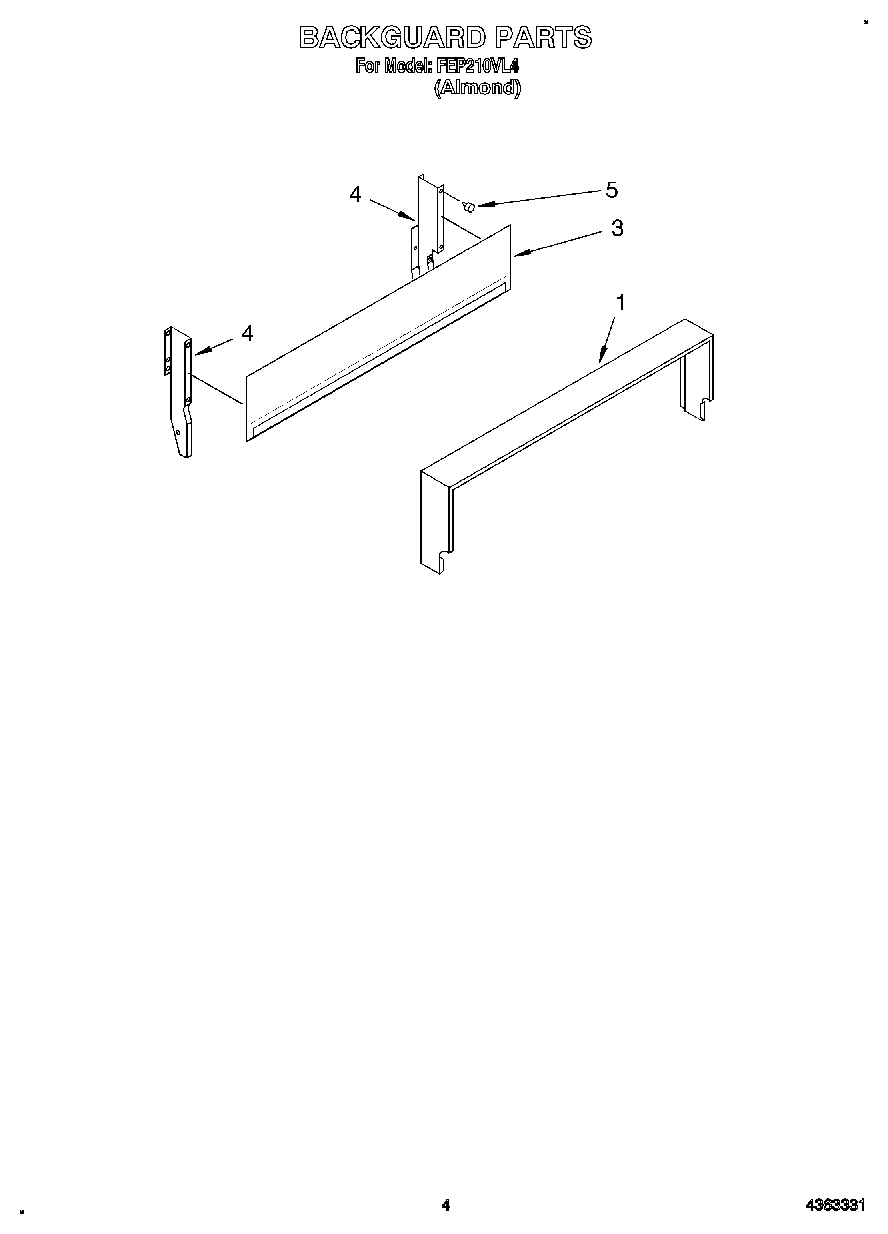

03 - BACKGUARD

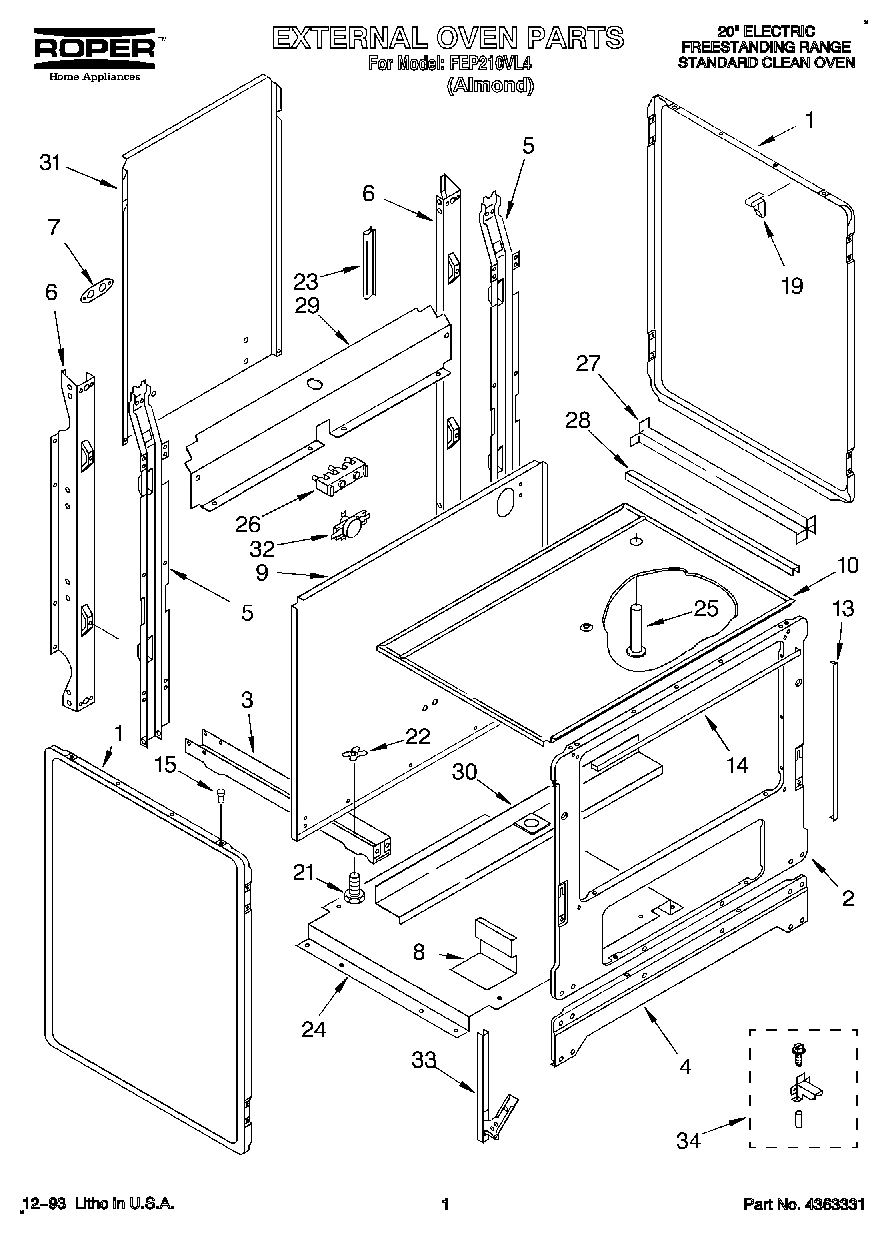

01 - EXTERNAL OVEN, LIT/OPTIONAL

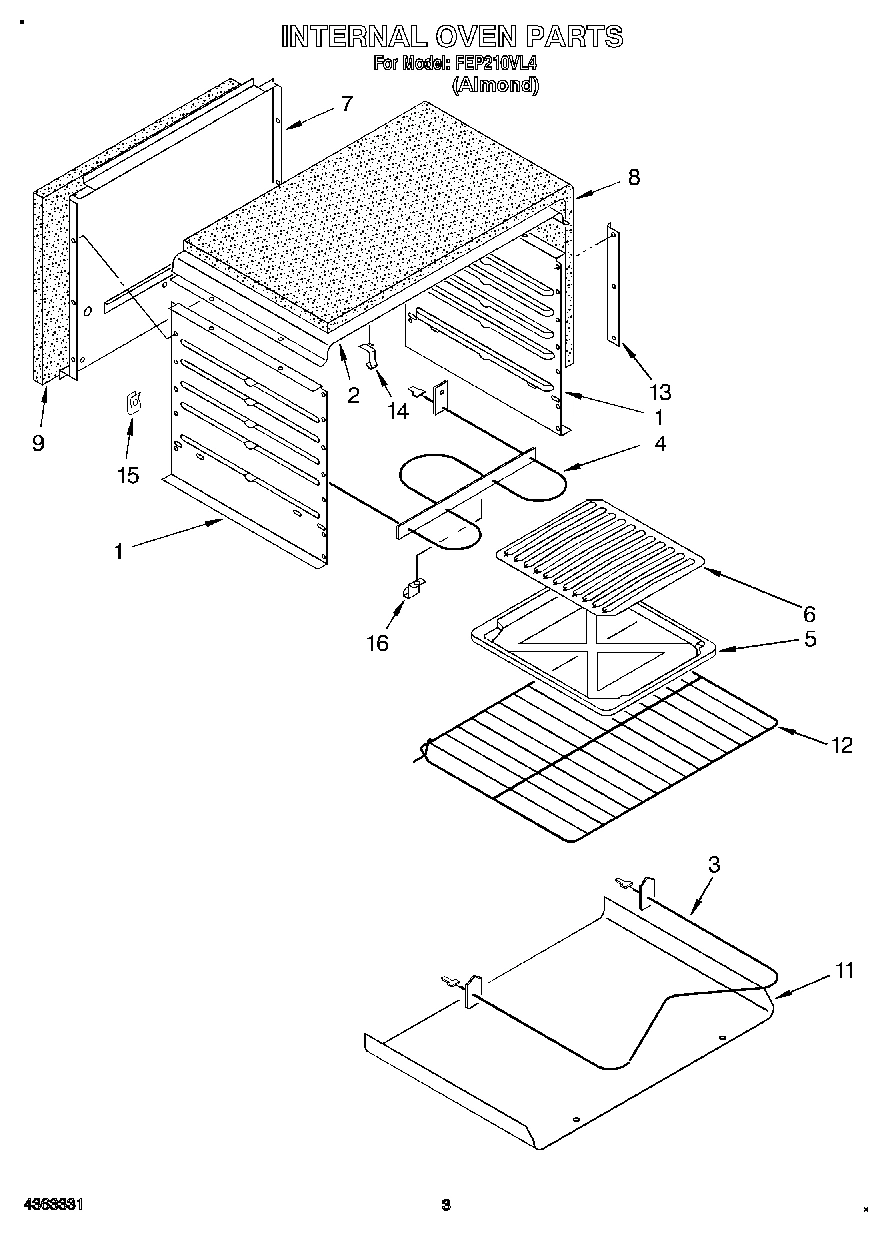

02 - INTERNAL OVEN
Common parts from model Whirlpool FEP210VL4 ELECTRIC RANGE
Guide, Use & Care WPL LIT4315532 Contact Us For Availability
Installation Instructions (Almond) WPL LIT4315533 Contact Us For Availability
1
Cooktop (Almond) WPL 4363172 Contact Us For Availability
1
Screw, 10-12 X 3/8 (6) WPL 4157121 Contact Us For Availability
1
Frame WPL 4315545 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4363025 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
2
Knob, Burner (4) WPL 4315513 Contact Us For Availability
2
Frame, Front WPL 4315206 Contact Us For Availability
2
Liner, Oven Top WPL 4315047 Contact Us For Availability
3
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
3
Speed Clip (4) WPL 4157115 Contact Us For Availability
3
Backguard Panel (Almond) WPL 4315547 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
4
Panel, Manifold WPL 4315507 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Base, Front WPL 4363014 Contact Us For Availability
5
Knob, Thermostat WPL 4315514 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
6
Screw, Handle (2) WPL 4320579 Contact Us For Availability
6
Thermostat WPL 4157565 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Grid, Broiler WPL 4315094 Contact Us For Availability
7
Baffle WPL 4157931 Contact Us For Availability
7
Screw WPL 4157018 Contact Us For Availability
7
Bracket, Conduit WPL 4320523 Contact Us For Availability
7
Liner, Oven Back WPL 4315059 Contact Us For Availability
8
Panel, Door (Almond) WPL 4363037 Contact Us For Availability
8
Rod, Support WPL 4157010 Contact Us For Availability
8
Shield, Hinge (2) WPL 4157876 Contact Us For Availability
9
Liner, Door WPL 4315068 Contact Us For Availability
9
Panel, Rear WPL 4315529 Contact Us For Availability
9
Insulation, Oven Back WPL 4363054 Contact Us For Availability
10
Light, Indicator (Oven) WPL 4315489 Contact Us For Availability
10
Burner Box WPL 4363053 Contact Us For Availability
11
Bottom, Oven WPL 4315076 Contact Us For Availability
12
Light, Indicator (Surface Unit) WPL 4157976 Contact Us For Availability
12
Rack, Oven WPL 4362870 Contact Us For Availability
13
Handle WPL 4157794 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Element, Surface (6`` (3)) WPL 4315619 Contact Us For Availability
14
Element, Surface (8`` (1)) WPL 4315620 Contact Us For Availability
14
Seal, Door (Top) WPL 4315471 Contact Us For Availability
15
Insulation, Strip (2) WPL 4179307 Contact Us For Availability
15
Cover, Switch WPL 4157974 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Insulation WPL 4179320 Contact Us For Availability
16
Support, Broiler WPL 4157967 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Panel, Bottom WPL 4157952 Contact Us For Availability
25
Tube, Vent WPL 4157953 Contact Us For Availability
27
Channel, Wire WPL 4363171 Contact Us For Availability
28
Support, Channel WPL 4157965 Contact Us For Availability
29
Cover, Wire WPL 4363170 Contact Us For Availability
30
Support WPL 4157968 Contact Us For Availability
31
Cover, Rear (Includes Counterweight) WPL 4363330 Contact Us For Availability
32
Disc, Thermo WPL 4179130 Contact Us For Availability
33
Hinge, Door WPL 4315464 Contact Us For Availability
34
Polishing Creme, Cooktop (20 oz.) WPL W10355051 No Longer Available
34
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
34
Anti-Tip Kit WPL 4363057 Contact Us For Availability
× ![]()
