Model Electrolux FEF352BAWG RANGE – Common Parts & Diagrams

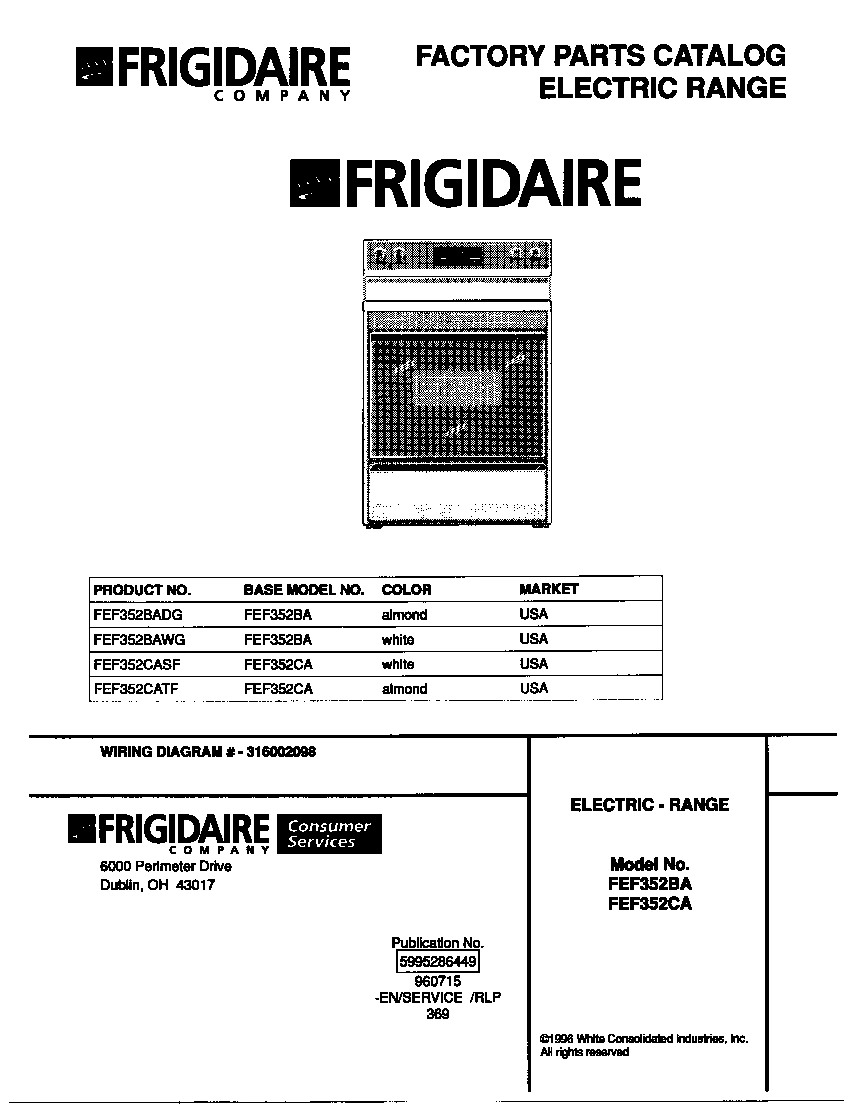

01 - COVER

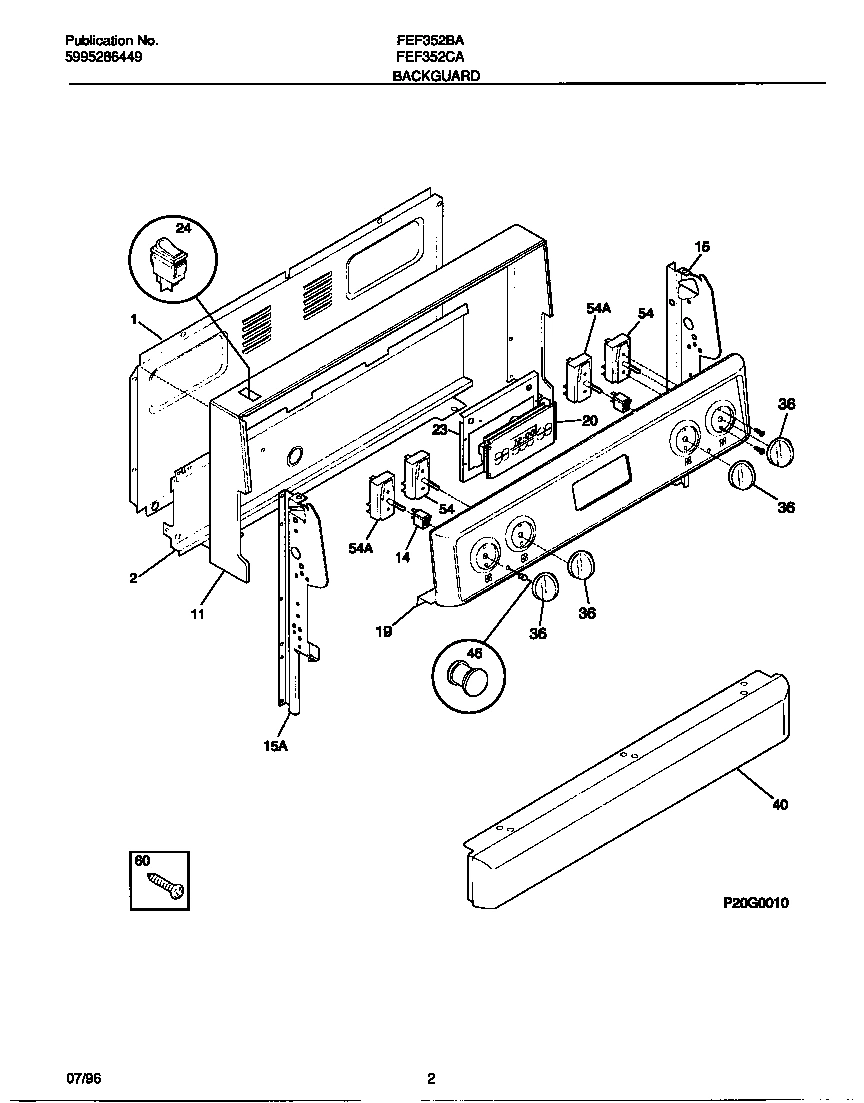

02 - BACKGUARD

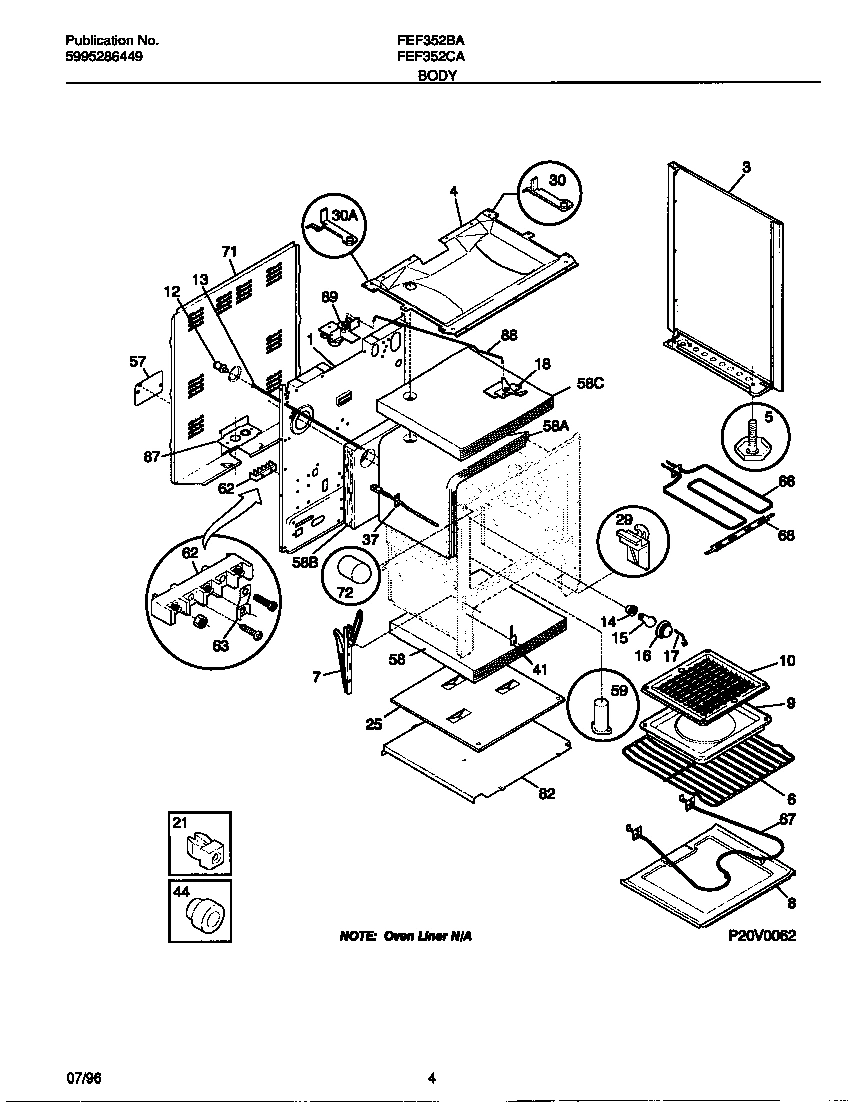

03 - BODY

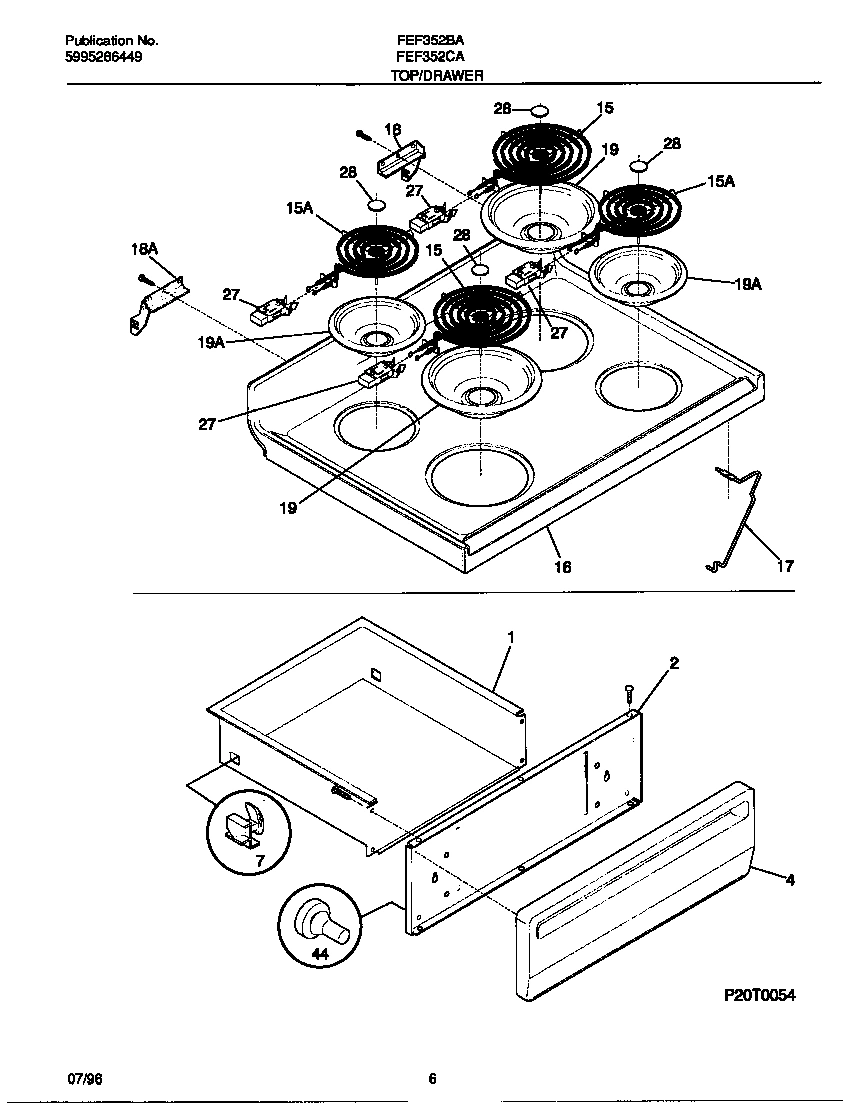

04 - TOP/DRAWER

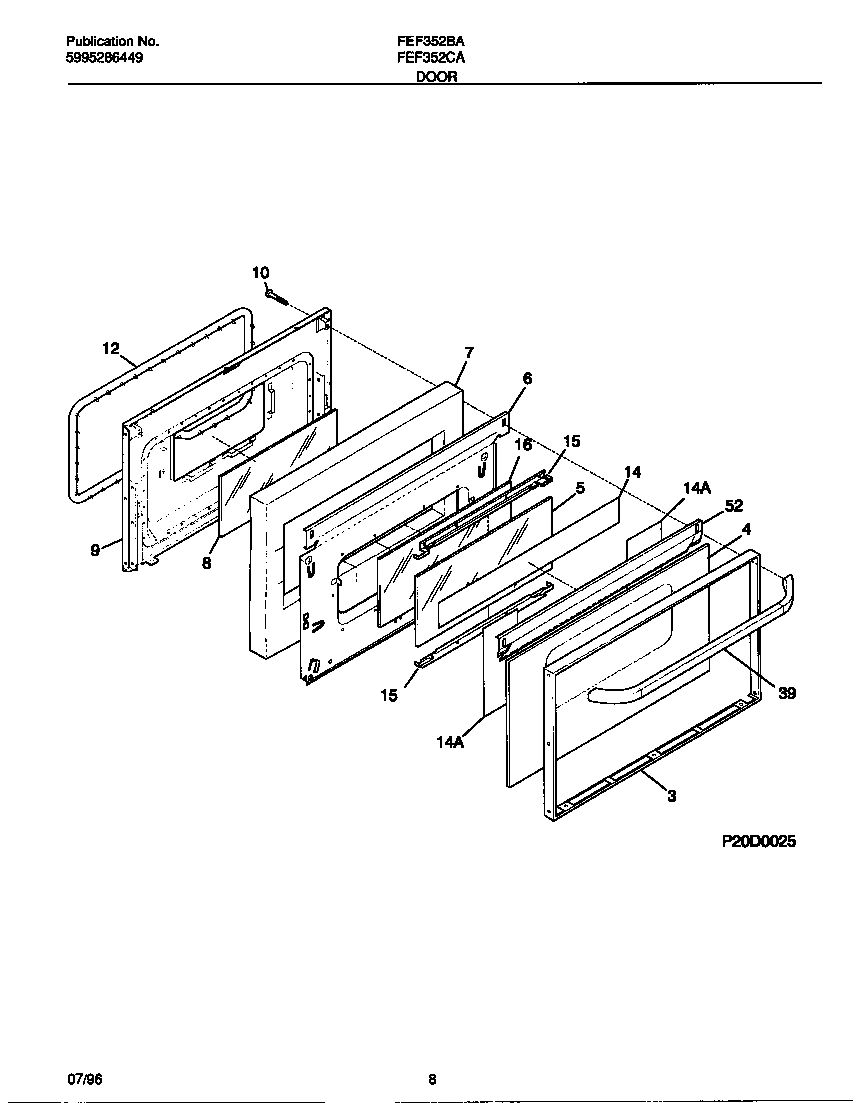

05 - DOOR

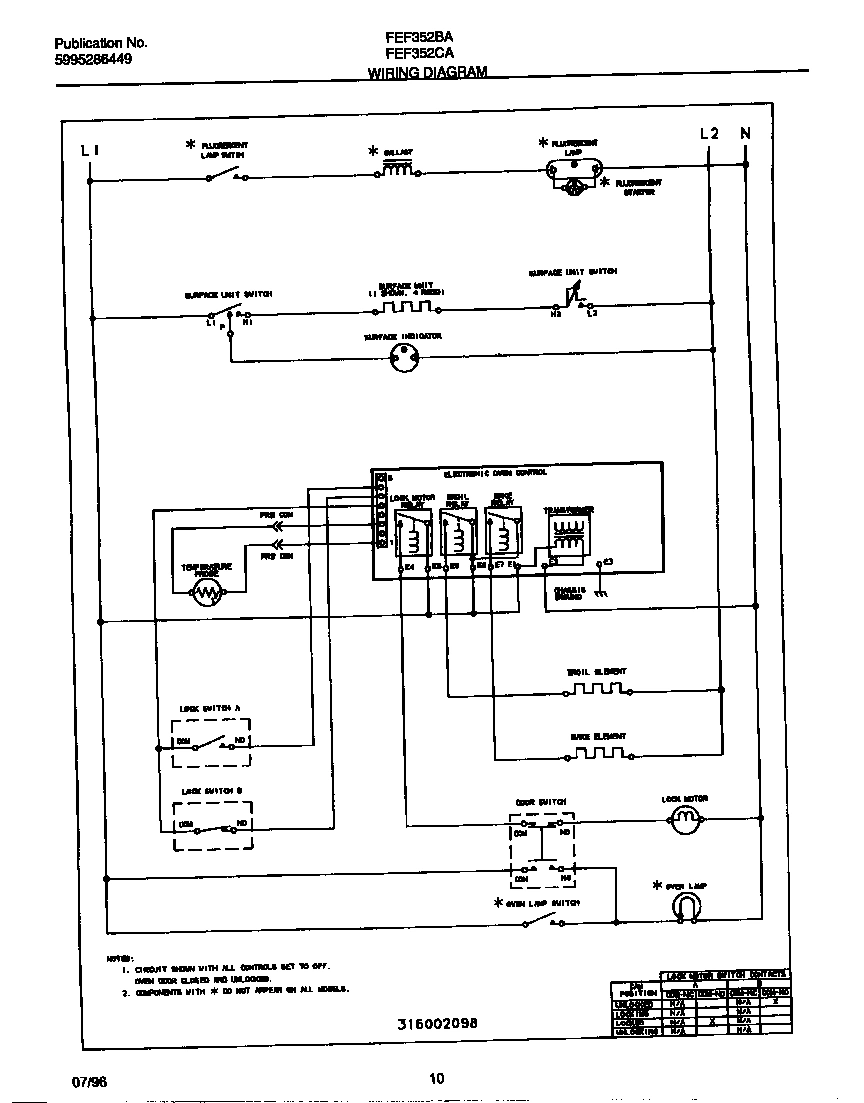

06 - WIRING DIAGRAM
Common parts from model Electrolux FEF352BAWG RANGE
*02601
WCI 316021108 WCI 316021108 Contact Us For Availability
*02605
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*02606
WCI 316001725 WCI 316001725 Contact Us For Availability
*02608
WCI 5303280311 WCI 5303280311 Contact Us For Availability
*02610
WCI 316065301 WCI 316065301 Contact Us For Availability
*02611
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*02612
WCI 5303271648 WCI 5303271648 Contact Us For Availability
*02614
WCI 5303285179 WCI 5303285179 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
5
WCI 316088700 WCI 316088700 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
Glide,drawer ,rear WCI 3051163 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
12
WCI 5303131601 WCI 5303131601 Contact Us For Availability
14
WCI 316022503 WCI 316022503 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL, (2) WCI 5303208655 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
17
WCI 316087500 WCI 316087500 Contact Us For Availability
17
WCI 316057601 WCI 316057601 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28A
Medallion,1 1/2``dia ,black ,surface element WCI 5303017715 Contact Us For Availability
28B
WCI 5303296595 WCI 5303296595 Contact Us For Availability
29
GLIDE-DRAWER, FRONT WCI 3051162 Contact Us For Availability
39
SPACER-HANDLE, BLACK, (2) (NOT ILLUSTRATED) WCI 316055101 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
WCI 3131903 WCI 3131903 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58
INSULATION,OVEN BACK WCI 316054202 Contact Us For Availability
58
INSULATION,OVEN WRAPPER WCI 316047707 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 316073600 WCI 316073600 Contact Us For Availability
60
SCREW,HEX, 8-18 X 3/8, BACK\BODYSIDE WCI 316021105 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
66
WCI 5303051140 WCI 5303051140 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 316081201 WCI 316081201 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
× ![]()
