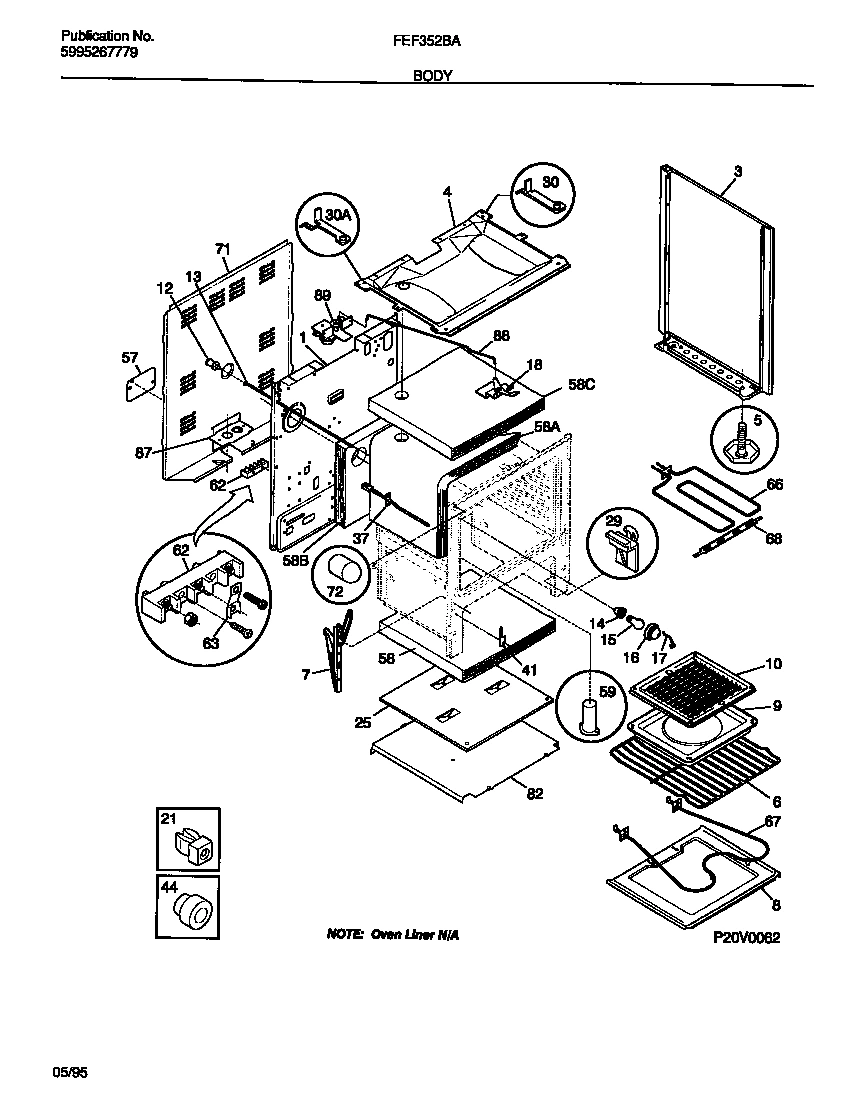

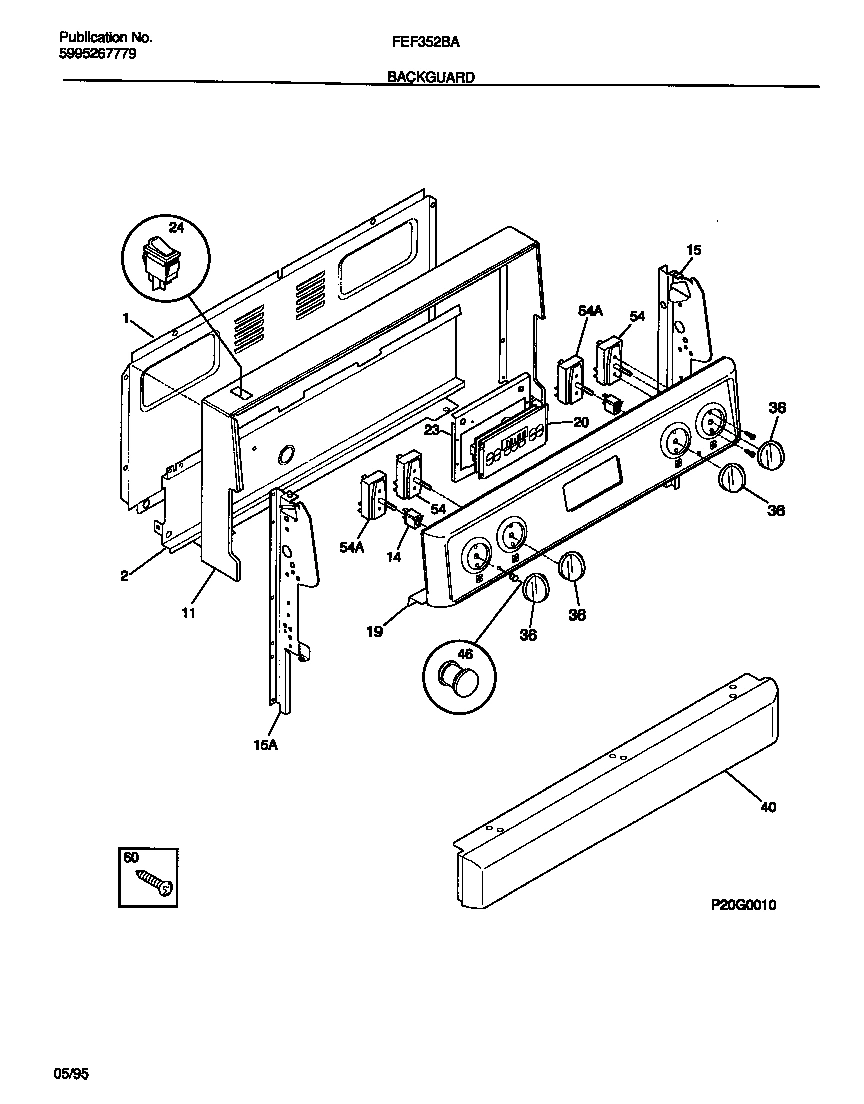

Model Electrolux FEF352BAWC RANGE – Common Parts & Diagrams

*71969
WCI 5303281584
WCI 5303281584 WCI 5303281584 Contact Us For Availability
View on Model
*71971
RIVET-POP, WARING-PLATE
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
View on Model
*71972
WCI 316065300
WCI 316065300 WCI 316065300 Contact Us For Availability
View on Model
*71973
SCREW, CR PAN HD SEMS, 8-32BP X 1.00
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
View on Model
*71975
WCI 5303269859
WCI 5303269859 WCI 5303269859 Contact Us For Availability
View on Model
1
WCI 316080801
WCI 316080801 WCI 316080801 Contact Us For Availability
View on Model
1
DRAWER-UTILITY
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
View on Model
2
WCI 3131975
WCI 3131975 WCI 3131975 Contact Us For Availability
View on Model
3
WCI 316081004
WCI 316081004 WCI 316081004 Contact Us For Availability
View on Model
3
WCI 316081005
WCI 316081005 WCI 316081005 Contact Us For Availability
View on Model
3
WCI 316067802
WCI 316067802 WCI 316067802 Contact Us For Availability
View on Model
3A
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
View on Model
3B
FASTENER-EDGE MTG (NOT ILLUSTRATED)
FASTENER-EDGE MTG (NOT ILLUSTRATED) WCI 3200846 Contact Us For Availability
View on Model
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
View on Model
4
WCI 5303271756
WCI 5303271756 WCI 5303271756 Contact Us For Availability
View on Model
4
WCI 316056205
WCI 316056205 WCI 316056205 Contact Us For Availability
View on Model
4
GLASS-OVEN DOOR, BLACK, OUTER
GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability
View on Model
5
GLASS-OVEN DOOR, INNER
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
View on Model
5A
SCREW-LEVELING
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
View on Model
5B
WCI 3934058
WCI 3934058 WCI 3934058 Contact Us For Availability
View on Model
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
View on Model
6
SHIELD-INSULATION
SHIELD-INSULATION WCI 5303211084 Contact Us For Availability
View on Model
7
WCI 316007002
WCI 316007002 WCI 316007002 Contact Us For Availability
View on Model
7
INSULATION-OVEN DOOR
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
View on Model
8
PANEL-OVEN BOTTOM
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
View on Model
9
WCI 316073800
WCI 316073800 WCI 316073800 Contact Us For Availability
View on Model
9
WCI 316066603
WCI 316066603 WCI 316066603 Contact Us For Availability
View on Model
10
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81 WCI 316001002 No Longer Available
View on Model
10
WCI 3205234
WCI 3205234 WCI 3205234 Contact Us For Availability
View on Model
12
SWITCH-OVEN LIGHT, DOOR FRAME
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
View on Model
13
WCI 316026800
WCI 316026800 WCI 316026800 Contact Us For Availability
View on Model
14
REFLECTOR, ALUMINUM FOIL
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
View on Model
15
BRACKET-GLASS MTG
BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability
View on Model
16
GLASS-OVEN DOOR, HEAT BARRIER, (2)
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
View on Model
17
RETAINER-GLASS
RETAINER-GLASS WCI 3204585 Contact Us For Availability
View on Model
17
WCI 5303209517
WCI 5303209517 WCI 5303209517 Contact Us For Availability
View on Model
18
WCI 316036300
WCI 316036300 WCI 316036300 Contact Us For Availability
View on Model
18
HINGE-MAIN TOP (RH)
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
View on Model
18
SEAL-ROPE, 0.25 DIA
SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability
View on Model
18A
HINGE-MAIN TOP (LH)
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
View on Model
19
WCI 316067600
WCI 316067600 WCI 316067600 Contact Us For Availability
View on Model
21
SPACER-BODYSIDE, (8)
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
View on Model
25
WCI 3200848
WCI 3200848 WCI 3200848 Contact Us For Availability
View on Model
28B
WCI 5303296595
WCI 5303296595 WCI 5303296595 Contact Us For Availability
View on Model
30
BRACKET-HINGE, MAIN TOP RH
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
View on Model
30A
BRACKET-HINGE, MAIN TOP, LH
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
View on Model
39
WCI 316026100
WCI 316026100 WCI 316026100 Contact Us For Availability
View on Model
41
WCI 3131570
WCI 3131570 WCI 3131570 Contact Us For Availability
View on Model
57
WCI 316081101
WCI 316081101 WCI 316081101 Contact Us For Availability
View on Model
58A
INSULATION, OVEN WRAPPER
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
View on Model
58B
WCI 316054200
WCI 316054200 WCI 316054200 Contact Us For Availability
View on Model
58C
INSULATION, OVEN TOP
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
View on Model
59
WCI 316073600
WCI 316073600 WCI 316073600 Contact Us For Availability
View on Model
60
WCI 5303288574
WCI 5303288574 WCI 5303288574 Contact Us For Availability
View on Model
63
PLATE-GROUND STRAP
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
View on Model
71
WCI 316015805
WCI 316015805 WCI 316015805 Contact Us For Availability
View on Model
72
COVER-LIGHT/SWITCH ROD
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
View on Model
82
SHIELD, OVEN BOTTOM
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
View on Model
87
WCI 316081201
WCI 316081201 WCI 316081201 Contact Us For Availability
View on Model
88
WCI 316026400
WCI 316026400 WCI 316026400 Contact Us For Availability
View on Model
89
WCI 316028101
WCI 316028101 WCI 316028101 Contact Us For Availability
View on Model
