Model Electrolux FEF323CASB RANGE – Common Parts & Diagrams
02 - BACKGUARD
04 - BODY

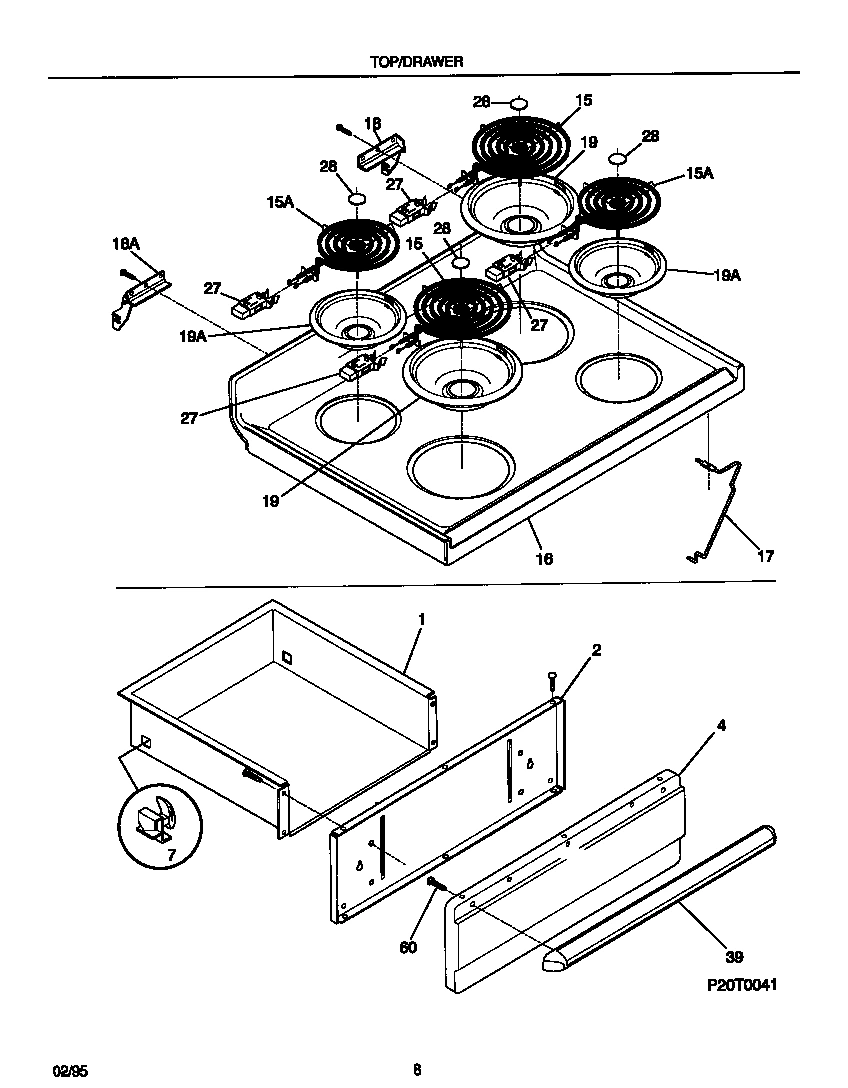

05 - TOP/DRAWER

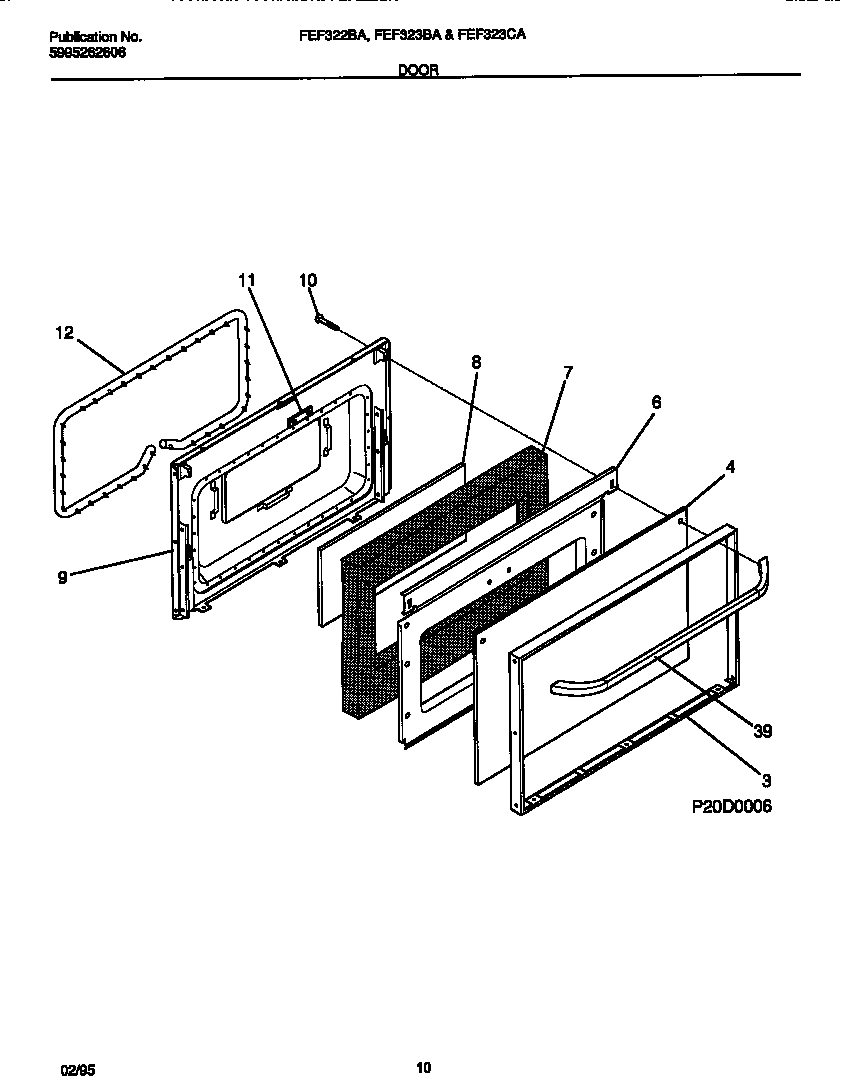

06 - DOOR

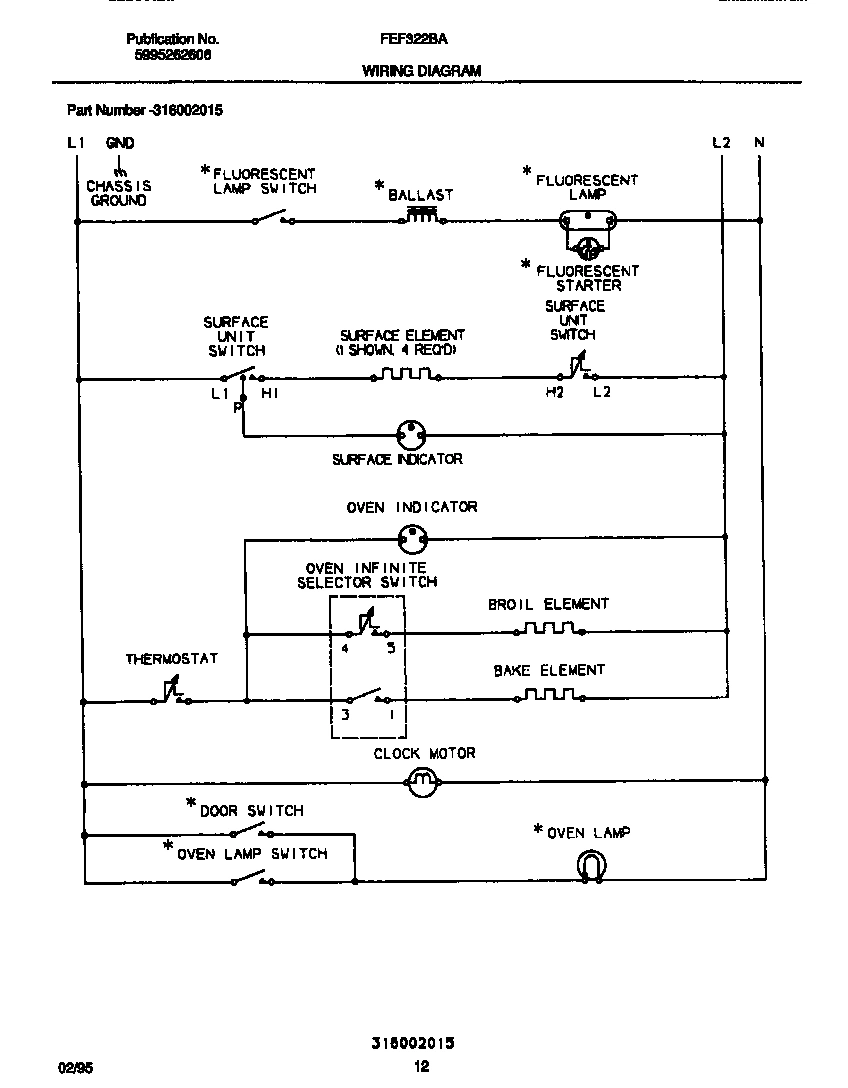

07 - WIRING DIAGRAM

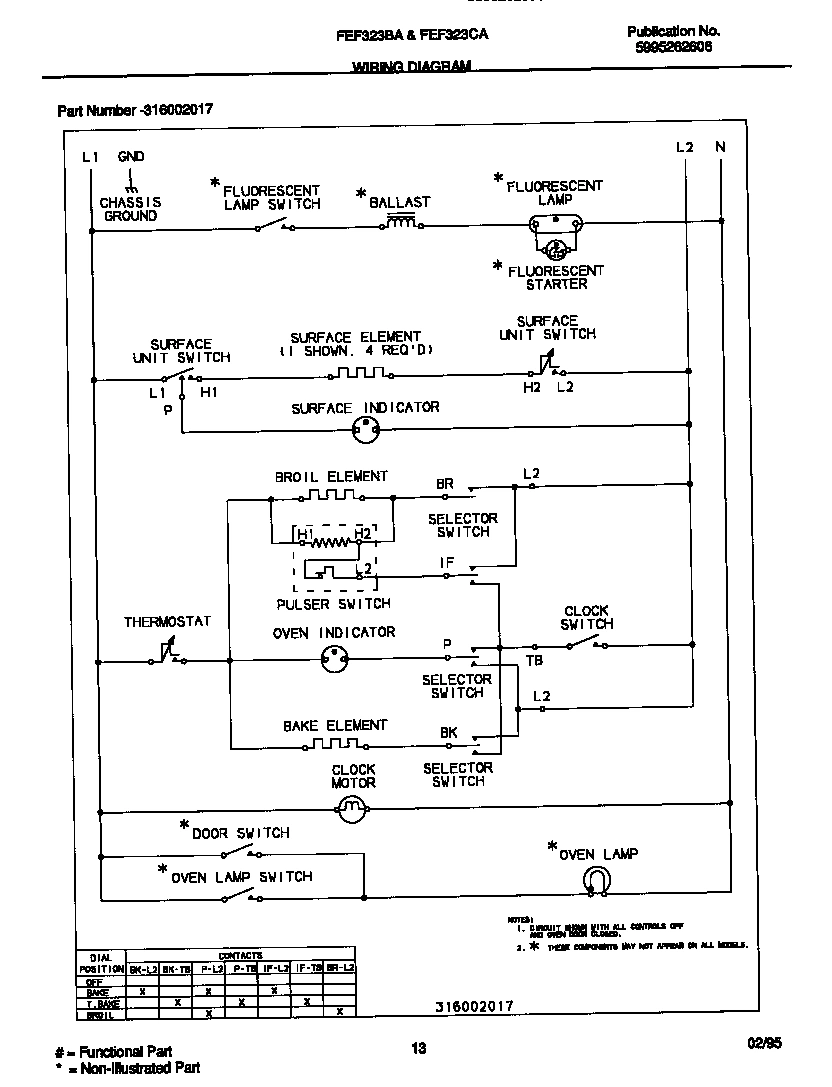

08 - WIRING DIAGRAM
Common parts from model Electrolux FEF323CASB RANGE
*72768
WIRING HARNESSES ARE NOT AVAILABLE FOR THIS M WCI N/A Contact Us For Availability
*72769
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*72775
WCI 316071600 WCI 316071600 Contact Us For Availability
1
WCI 316029405 WCI 316029405 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
PANEL, BODYSIDE, WHITE, LH (NOT-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
GLASS-OVEN DOOR, WHITE, OUTER WCI 316019701 Contact Us For Availability
5
WCI 3934058 WCI 3934058 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION, WHITE WCI 5303283832 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
8
WCI 316050303 WCI 316050303 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066603 WCI 316066603 Contact Us For Availability
10
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81 WCI 316001002 Contact Us For Availability
10
WCI 316073900 WCI 316073900 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
12
THERMOSTAT, OVEN, NON SC WCI 316032400 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
20
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
39
WCI 316026101 WCI 316026101 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
59
WCI 316073601 WCI 316073601 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
60
WCI 5303288574 WCI 5303288574 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
SHIELD, REAR WALL, REAR WALL WCI 316015803 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
× ![]()
