Model Electrolux FCS388CETA RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

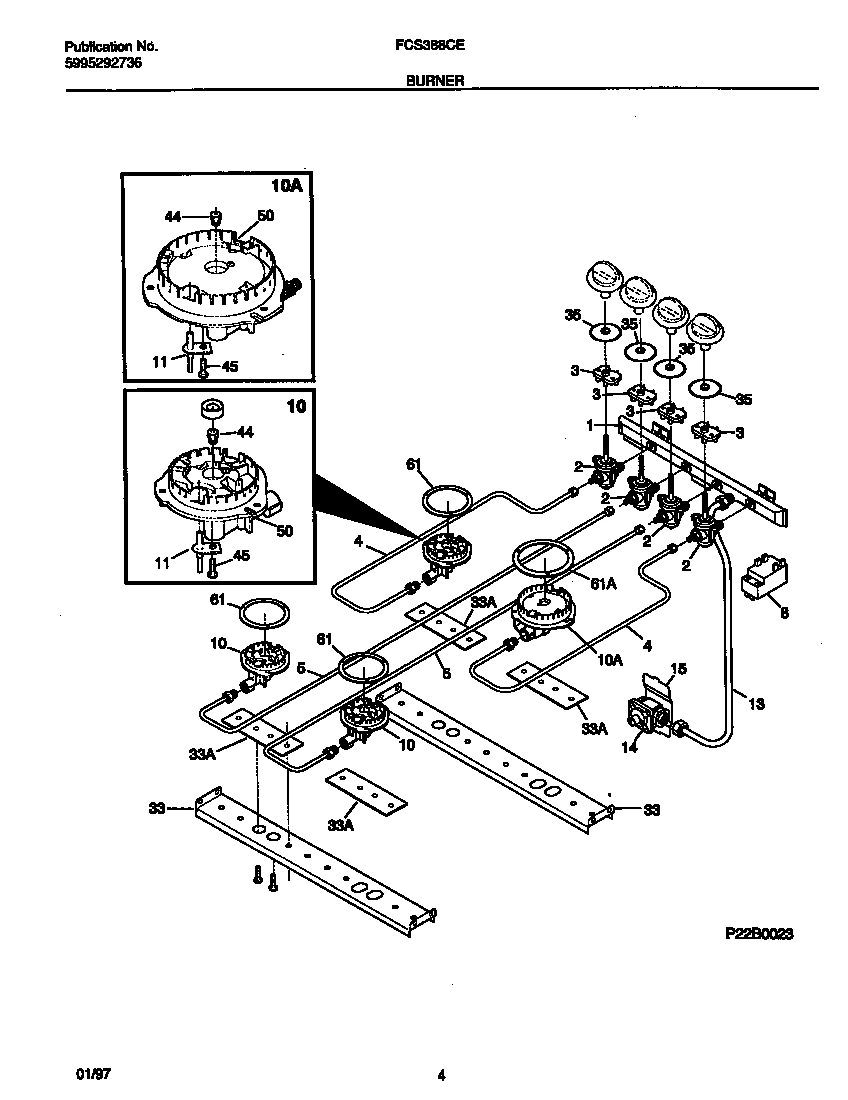

03 - BURNER

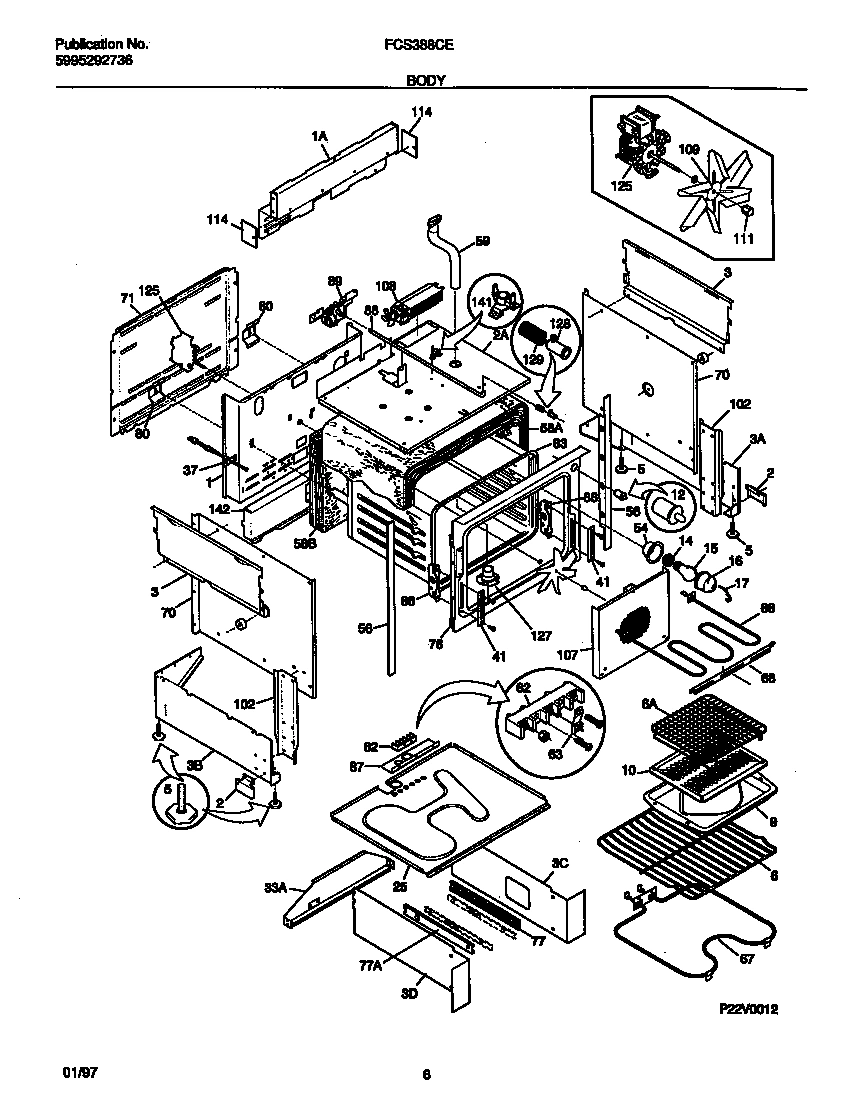

04 - BODY

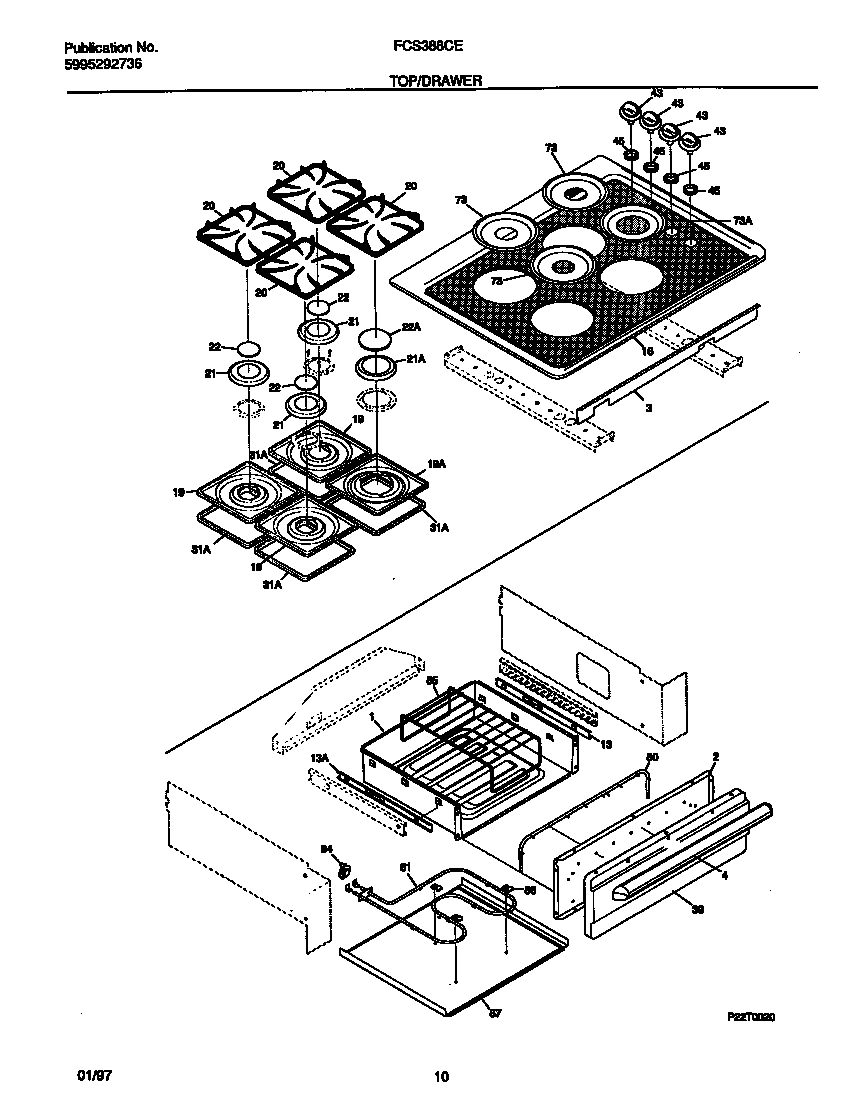

06 - TOP/DRAWER

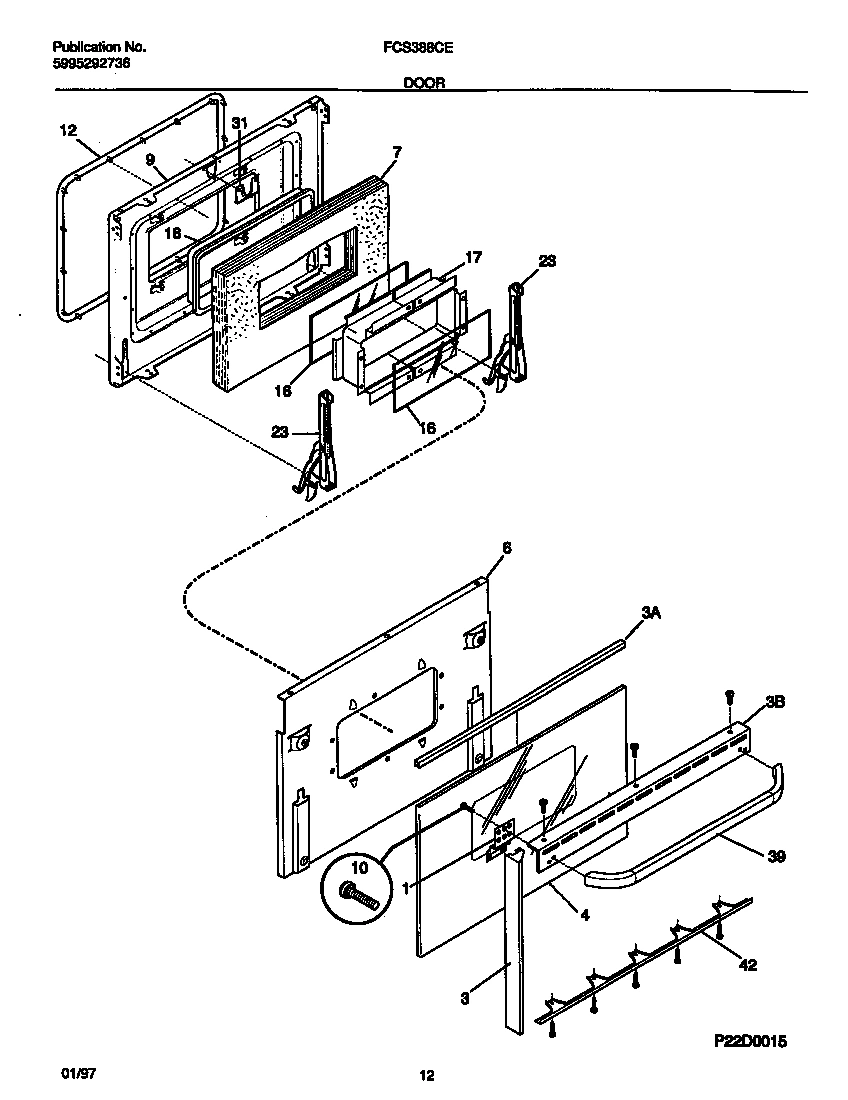

07 - DOOR

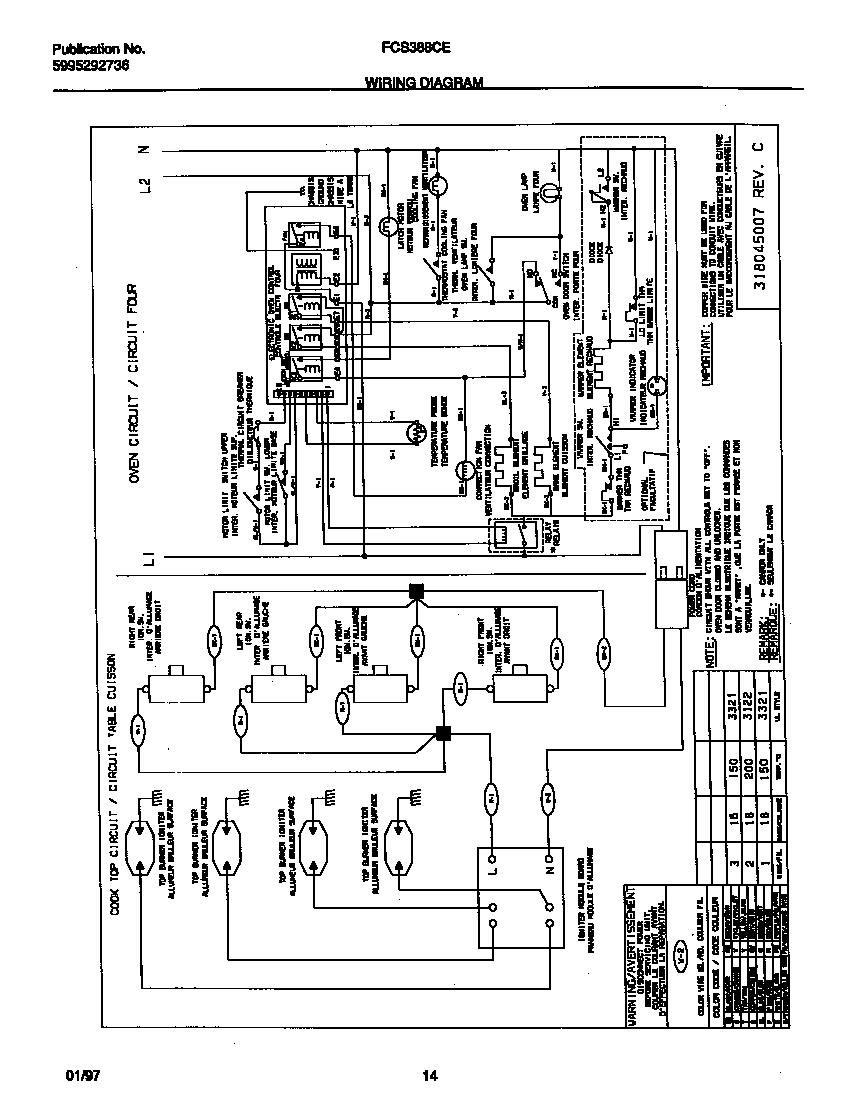

08 - WIRING DIAGRAM
Common parts from model Electrolux FCS388CETA RANGE
*90765
WCI 08002868 WCI 08002868 Contact Us For Availability
*90770
WCI 3016303 WCI 3016303 Contact Us For Availability
*90771
WCI 316005700 WCI 316005700 Contact Us For Availability
*90772
WCI 318038400 WCI 318038400 Contact Us For Availability
*90773
WCI 318073900 WCI 318073900 Contact Us For Availability
*90774
WCI 318077600 WCI 318077600 Contact Us For Availability
*90775
WCI 318113400 WCI 318113400 Contact Us For Availability
*90776
WCI 318143700 WCI 318143700 Contact Us For Availability
*90779
BRACKET-BACKSPLASH WCI 5303304030 Contact Us For Availability
*90781
WCI 5303311207 WCI 5303311207 Contact Us For Availability
*90782
WCI 5303320846 WCI 5303320846 Contact Us For Availability
*90783
WCI 5303321212 WCI 5303321212 Contact Us For Availability
*90784
WCI 318005101 WCI 318005101 Contact Us For Availability
*90785
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
*90787
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*90788
WCI 08002848 WCI 08002848 Contact Us For Availability
*90791
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*90792
WCI 5303311125 WCI 5303311125 Contact Us For Availability
*90797
PLUG, DOOR LINER WCI 5308007939 Contact Us For Availability
1
WCI 318043100 WCI 318043100 Contact Us For Availability
1
WCI 318066400 WCI 318066400 Contact Us For Availability
1
WCI 5303311161 WCI 5303311161 Contact Us For Availability
1
WCI 318142500 WCI 318142500 Contact Us For Availability
2
WCI 08012736 WCI 08012736 Contact Us For Availability
2
WCI 5303311158 WCI 5303311158 Contact Us For Availability
2
WCI 318108013 WCI 318108013 Contact Us For Availability
2B
VALVE-TOP BURNER, SMALL, W/SCREW(3) WCI 5303299965 Contact Us For Availability
2C
SCREW-TOP VALVE MTG, HEX WASHER HEAD, 1/4-20 WCI 316048200 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032002 Contact Us For Availability
3
WCI 318143302 WCI 318143302 Contact Us For Availability
3
WCI 318143303 WCI 318143303 Contact Us For Availability
3
WCI 5303280349 WCI 5303280349 Contact Us For Availability
3
WCI 5303280351 WCI 5303280351 Contact Us For Availability
3
WCI 5303300143 WCI 5303300143 Contact Us For Availability
3
WCI 318090700 WCI 318090700 Contact Us For Availability
3
WCI 318028900 WCI 318028900 Contact Us For Availability
3
WCI 318049207 WCI 318049207 Contact Us For Availability
3
WCI 5303311198 WCI 5303311198 Contact Us For Availability
4
WCI 5303305456 WCI 5303305456 Contact Us For Availability
4
WCI 5303300150 WCI 5303300150 Contact Us For Availability
4
WCI 318041103 WCI 318041103 Contact Us For Availability
5
WCI 5303305455 WCI 5303305455 Contact Us For Availability
5A
SCREW-LEVELING WCI 318175510 No Longer Available
5B
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203575 Contact Us For Availability
5C
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203576 Contact Us For Availability
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
6
WCI 5303311206 WCI 5303311206 Contact Us For Availability
6
WCI 318056810 WCI 318056810 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048800 WCI 318048800 Contact Us For Availability
10
WCI 318055001 WCI 318055001 Contact Us For Availability
10
WCI 318055100 WCI 318055100 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
13
WCI 318054503 WCI 318054503 Contact Us For Availability
13
WCI 316096500 WCI 316096500 Contact Us For Availability
13
WCI 316096501 WCI 316096501 Contact Us For Availability
14
WCI 318122700 WCI 318122700 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
WCI 318122600 WCI 318122600 Contact Us For Availability
16
GLASS-OVEN DOOR,INNER ,(2) WCI 318041603 Contact Us For Availability
16
WCI 318079202 WCI 318079202 Contact Us For Availability
17
RETAINER-LENS, LARGE/SMALL, OVEN WCI 3204483 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
19
WCI 5303307929 WCI 5303307929 Contact Us For Availability
19
WCI 5303311264 WCI 5303311264 Contact Us For Availability
20
WCI 5303307926 WCI 5303307926 Contact Us For Availability
21
WCI 318050501 WCI 318050501 Contact Us For Availability
21
WCI 318050601 WCI 318050601 Contact Us For Availability
22
WCI 318142000 WCI 318142000 Contact Us For Availability
22
WCI 318142010 WCI 318142010 Contact Us For Availability
23
WCI 318024700 WCI 318024700 Contact Us For Availability
25
WCI 318121303 WCI 318121303 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
33
WCI 318072000 WCI 318072000 Contact Us For Availability
33
WCI 5303307977 WCI 5303307977 Contact Us For Availability
33
WCI 318143200 WCI 318143200 Contact Us For Availability
35
WCI 5303307978 WCI 5303307978 Contact Us For Availability
37B
PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED) WCI 318080000 Contact Us For Availability
39
WCI 5303321335 WCI 5303321335 Contact Us For Availability
39
WCI 5303311197 WCI 5303311197 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
WCI 318049003 WCI 318049003 Contact Us For Availability
43
WCI 318016502 WCI 318016502 Contact Us For Availability
44A
WCI 318088702 WCI 318088702 Contact Us For Availability
44B
ORIFICE-TOP BURNER, 9000 BTU, SMALL, (3) WCI 5303210090 No Longer Available
45
WCI 316011100 WCI 316011100 Contact Us For Availability
45
WCI 5303307933 WCI 5303307933 Contact Us For Availability
50B
BURNER-TOP, SMALL WCI 316010700 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 318002603 WCI 318002603 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303310538 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303310539 Contact Us For Availability
59
WCI 318072502 WCI 318072502 Contact Us For Availability
61
WCI 318083900 WCI 318083900 Contact Us For Availability
61
WCI 318083901 WCI 318083901 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
67B
WCI 5303320681 WCI 5303320681 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
73
WCI 318057100 WCI 318057100 Contact Us For Availability
73
WCI 318057101 WCI 318057101 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
77
WCI 316094900 WCI 316094900 Contact Us For Availability
77
WCI 316094901 WCI 316094901 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
80
WCI 318052700 WCI 318052700 Contact Us For Availability
81
WCI 316093100 WCI 316093100 Contact Us For Availability
83
WCI 318089603 WCI 318089603 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
86
WCI 316095800 WCI 316095800 Contact Us For Availability
87
PLATE-MOUNTING WCI 318111800 Contact Us For Availability
87
WCI 318121500 WCI 318121500 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
107
WCI 318119600 WCI 318119600 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
109
WCI 318137400 WCI 318137400 Contact Us For Availability
111A
WCI 318137700 WCI 318137700 Contact Us For Availability
111B
WCI 318137600 WCI 318137600 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
125
WCI 318137100 WCI 318137100 Contact Us For Availability
127B
WCI 5303311195 WCI 5303311195 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
141
WCI 318005000 WCI 318005000 Contact Us For Availability
142
WCI 5303310541 WCI 5303310541 Contact Us For Availability
× ![]()
