Model Electrolux FCS388CEBF RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

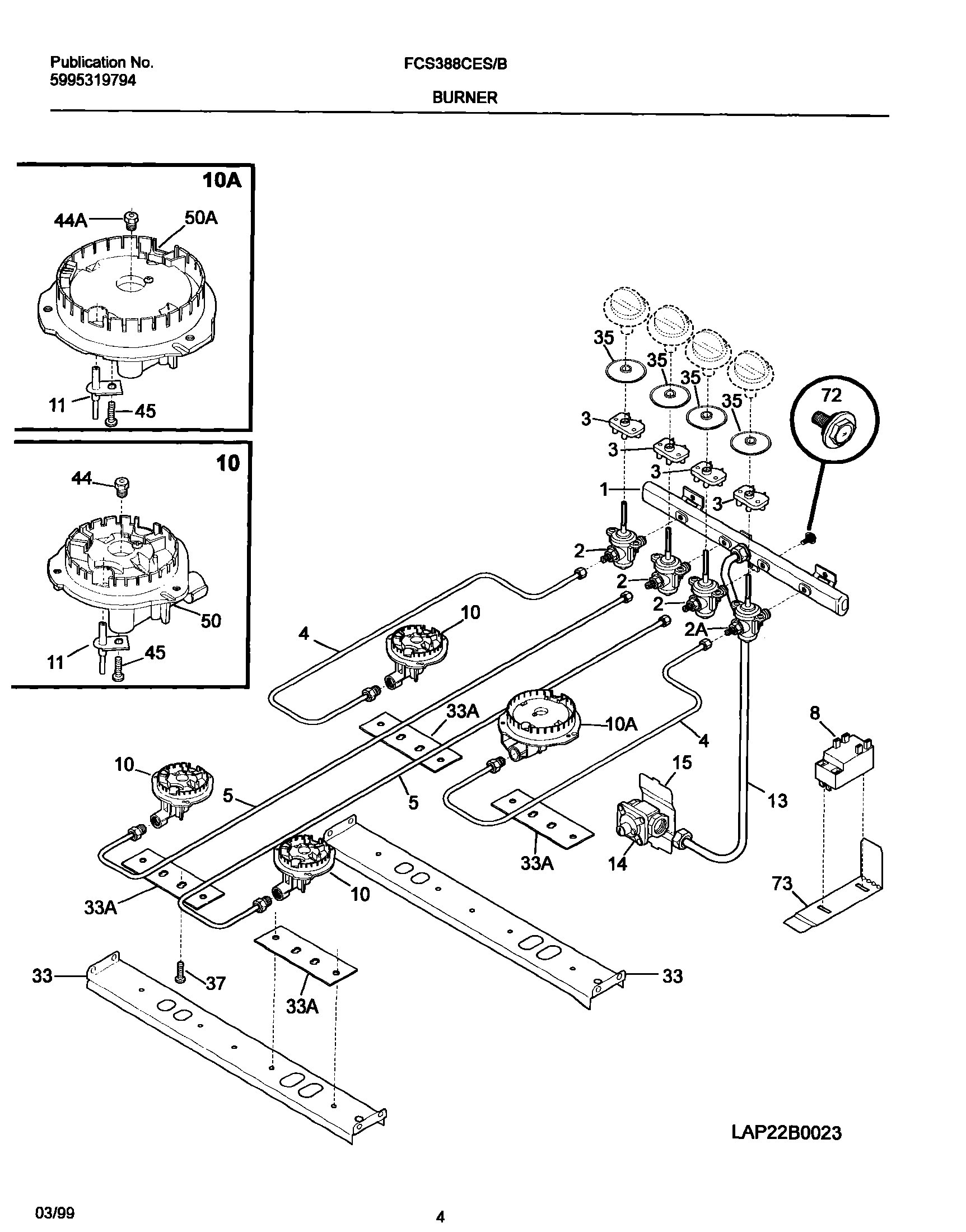

05 - BURNER

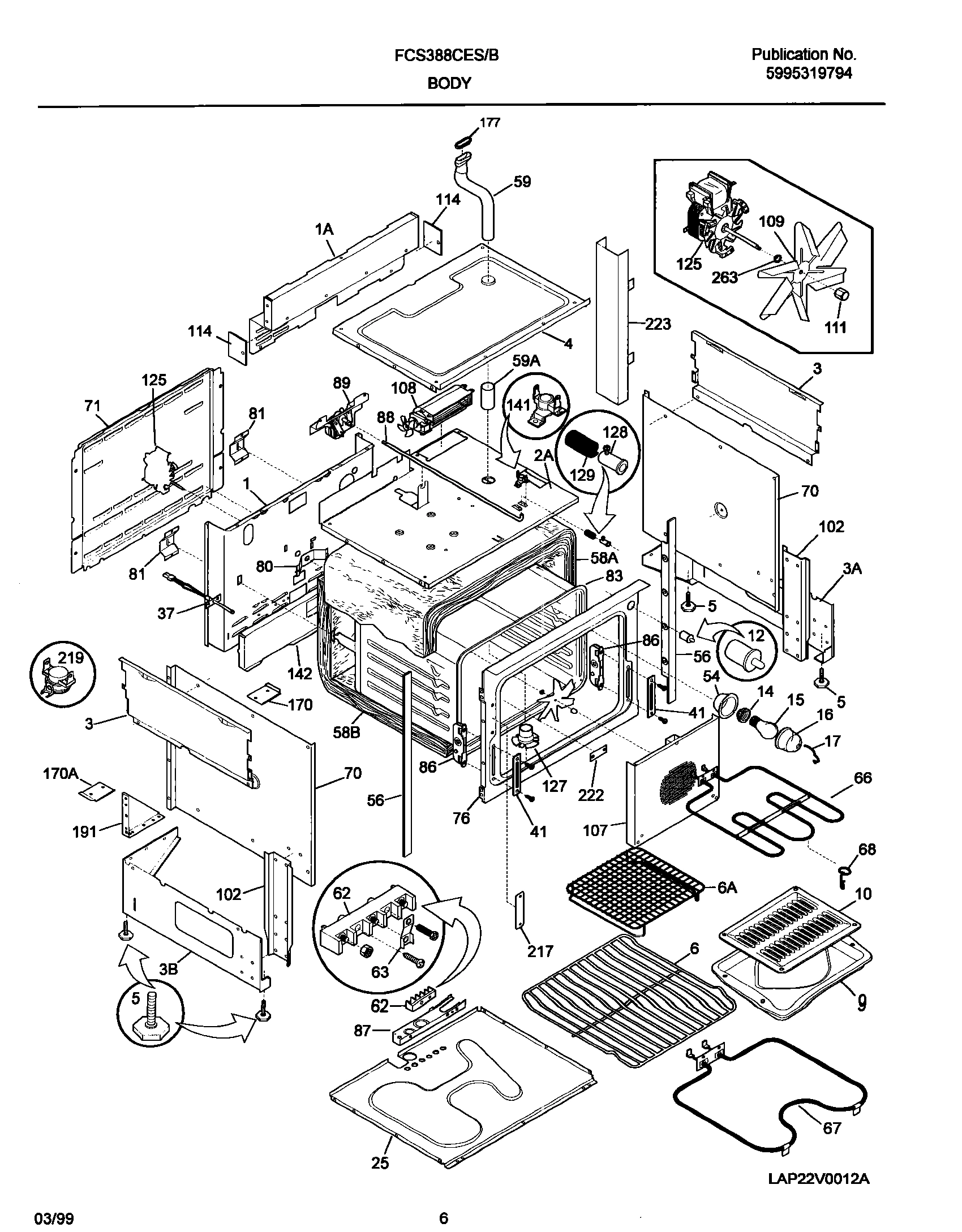

07 - BODY

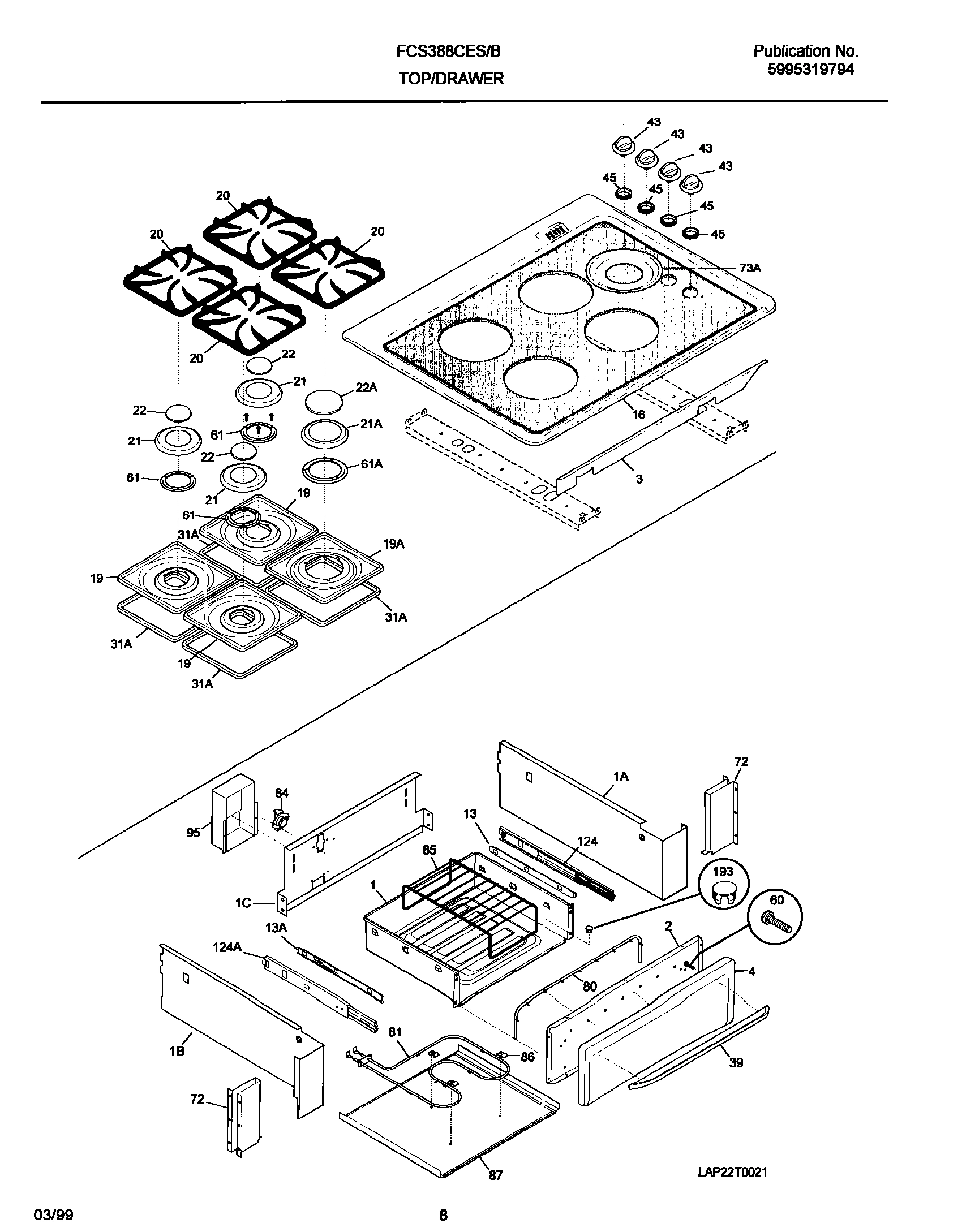

09 - TOP / DRAWER

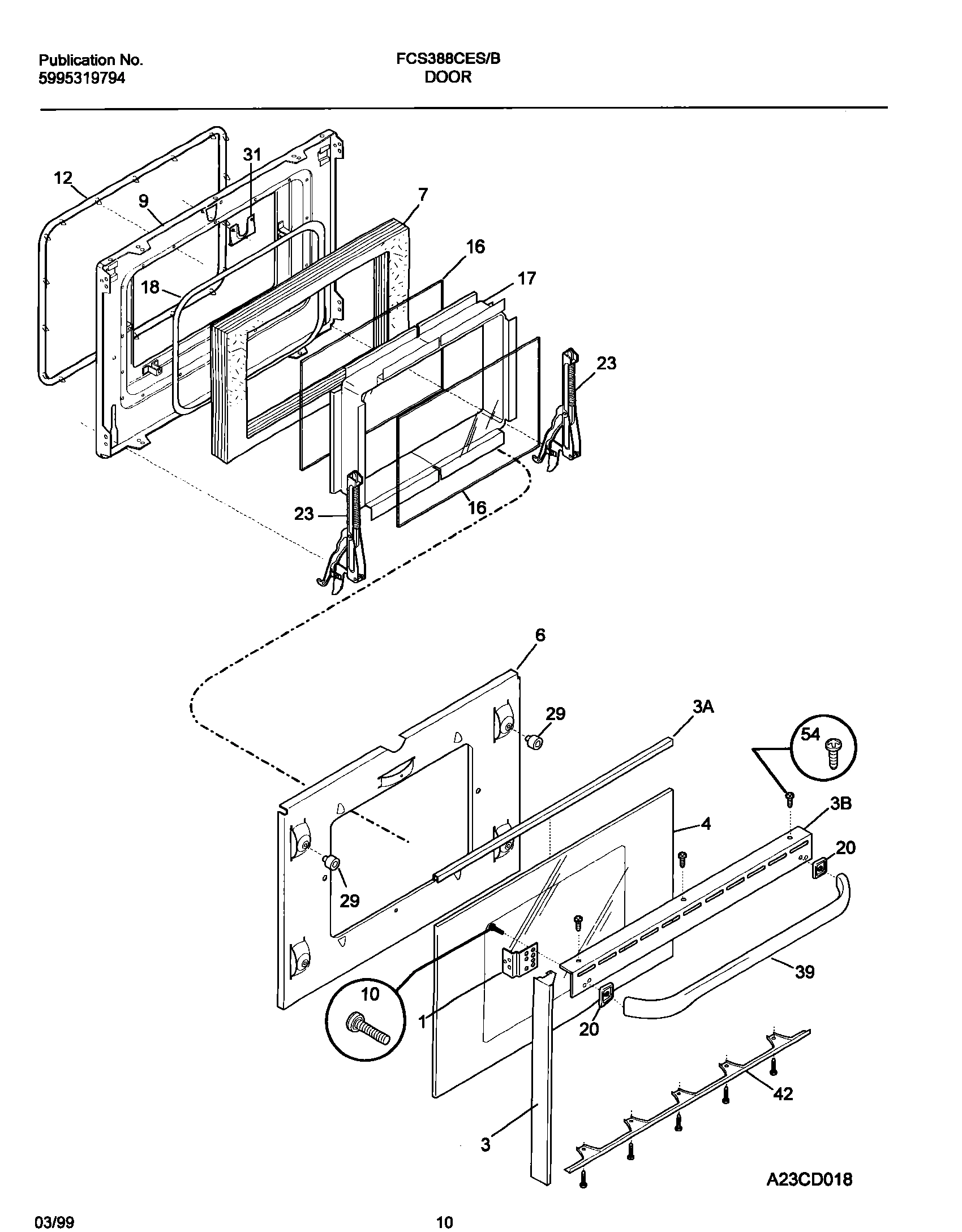

11 - DOOR

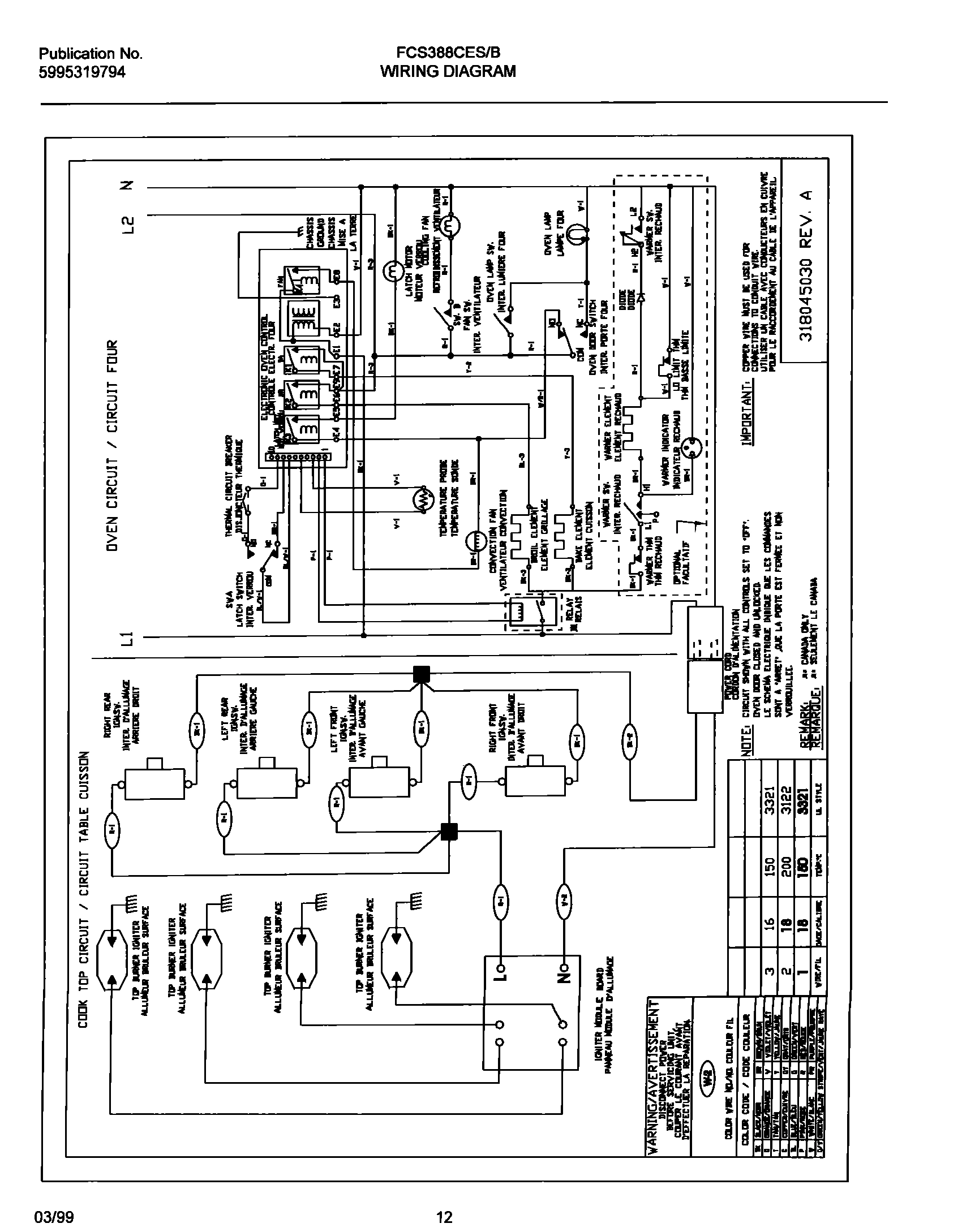

12 - WIRING DIAGRAM
Common parts from model Electrolux FCS388CEBF RANGE
1
BRACKET-TRIM WCI 318043100 Contact Us For Availability
1
WCI 318066400 WCI 318066400 Contact Us For Availability
1
WCI 318142500 WCI 318142500 Contact Us For Availability
1A
PANEL-BACK WCI 5303311161 Contact Us For Availability
1A
WCI 318143307 WCI 318143307 Contact Us For Availability
1B
WCI 318143306 WCI 318143306 Contact Us For Availability
1C
WCI 318143201 WCI 318143201 Contact Us For Availability
2
VALVE-TOP BURNER WCI 5303935042 Contact Us For Availability
2
PANEL-DRAWER WCI 318108013 Contact Us For Availability
2A
WCI 318108600 WCI 318108600 Contact Us For Availability
3
SWITCH-IGNITOR WCI 316032002 Contact Us For Availability
3
WCI 5303300143 WCI 5303300143 Contact Us For Availability
3
WCI 318090700 WCI 318090700 Contact Us For Availability
3
WCI 318049205 WCI 318049205 Contact Us For Availability
3A
WCI 318160004 WCI 318160004 Contact Us For Availability
3A
WCI 318028900 WCI 318028900 Contact Us For Availability
3B
WCI 318160005 WCI 318160005 Contact Us For Availability
3B
TRIM-OVEN DOOR, BLACK WCI 318049019 Contact Us For Availability
4
WCI 318073900 WCI 318073900 Contact Us For Availability
4
WCI 5303300151 WCI 5303300151 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK WCI 318041105 Contact Us For Availability
6
WCI 318056802 WCI 318056802 Contact Us For Availability
6A
WCI 5303311206 WCI 5303311206 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048802 WCI 318048802 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
SCREW, 10-24 X 5/8 WCI 5303324305 Contact Us For Availability
13
Rail,drawer ,RH outer WCI 316094900 Contact Us For Availability
13A
RAIL-DRAWER,LH,OUTER WCI 316094901 Contact Us For Availability
14
WCI 318122700 WCI 318122700 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
16
GLASS-OVEN DOOR WCI 318041603 Contact Us For Availability
16
WCI 318079213 WCI 318079213 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
19
PAN-BURNER,BLACK WCI 318066901 Contact Us For Availability
19A
PAN-BURNER, LARGE, BLACK WCI 318066911 Contact Us For Availability
20
SPACER-HANDLE,BLACK WCI 318014300 Contact Us For Availability
20
GRATE,(4) WCI 318120105 Contact Us For Availability
21
TRIM RING, BLACK WCI 5303209009 Contact Us For Availability
21A
WCI 316011304 WCI 316011304 Contact Us For Availability
22
WCI 316122100 WCI 316122100 Contact Us For Availability
22A
WCI 316098505 WCI 316098505 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSY WCI 5303311215 Contact Us For Availability
25
WCI 318179103 WCI 318179103 Contact Us For Availability
29
WCI 5303310535 WCI 5303310535 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
39
WCI 5303300154 WCI 5303300154 Contact Us For Availability
39
HANDLE-DOOR, BLACK WCI 316091121 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
TRIM-OVEN DOOR, BLACK WCI 5303311200 Contact Us For Availability
43
WCI 318016501 WCI 318016501 Contact Us For Availability
44A
ORIFICE WCI 318088702 Contact Us For Availability
45
WCI 318146200 WCI 318146200 Contact Us For Availability
46
WCI 5308006417 WCI 5308006417 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
TRIM-OVEN FRONT,BLACK WCI 318002601 Contact Us For Availability
58A
WCI 5303310539 WCI 5303310539 Contact Us For Availability
58B
WCI 5303310538 WCI 5303310538 Contact Us For Availability
59
WCI 318072519 WCI 318072519 Contact Us For Availability
59A
WCI 318072520 WCI 318072520 Contact Us For Availability
61
TRIM RING CHROME WCI 318083900 Contact Us For Availability
61A
TRIM RING, CHROME, LARGE WCI 318083901 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
72
WCI 5303323141 WCI 5303323141 Contact Us For Availability
72
WCI 318113402 WCI 318113402 Contact Us For Availability
73
WCI 318080100 WCI 318080100 Contact Us For Availability
73A
WCI 318057101 WCI 318057101 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
80
WCI 5303320846 WCI 5303320846 Contact Us For Availability
80
WCI 318052700 WCI 318052700 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
WCI 316093100 WCI 316093100 Contact Us For Availability
83
WCI 318089609 WCI 318089609 Contact Us For Availability
84
WCI 318005101 WCI 318005101 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING WCI 318111800 Contact Us For Availability
87
WCI 318121501 WCI 318121501 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89
WCI 318120702 WCI 318120702 Contact Us For Availability
89
WCI 5304404899 WCI 5304404899 Contact Us For Availability
95
WCI 318143701 WCI 318143701 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
107
WCI 318119600 WCI 318119600 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
109
FAN BLADE WCI 5303311203 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
124
Channel,drawer ,rh,inner WCI 316096500 Contact Us For Availability
124A
CHANNEL DRAWER,LH,INNER WCI 316096501 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
141
SWITCH WCI 5303284446 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
170
WCI 3203576 WCI 3203576 Contact Us For Availability
170A
WCI 3203575 WCI 3203575 Contact Us For Availability
177
WCI 5303324040 WCI 5303324040 Contact Us For Availability
191
BRACKET WCI 5303304030 Contact Us For Availability
193
WCI 5304400796 WCI 5304400796 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
222
COVERING PLATE WCI 318080000 Contact Us For Availability
223
WCI 318038400 WCI 318038400 Contact Us For Availability
NI
WCI 5303319611 WCI 5303319611 Contact Us For Availability
NI
WCI 5304400795 WCI 5304400795 Contact Us For Availability
NI
SCREW,8-18 X 3/8 WCI 08016432 Contact Us For Availability
× ![]()
