Model Maytag FAV9800AWQ WASHER – Common Parts & Diagrams
01 - BASE
02 - CABINET

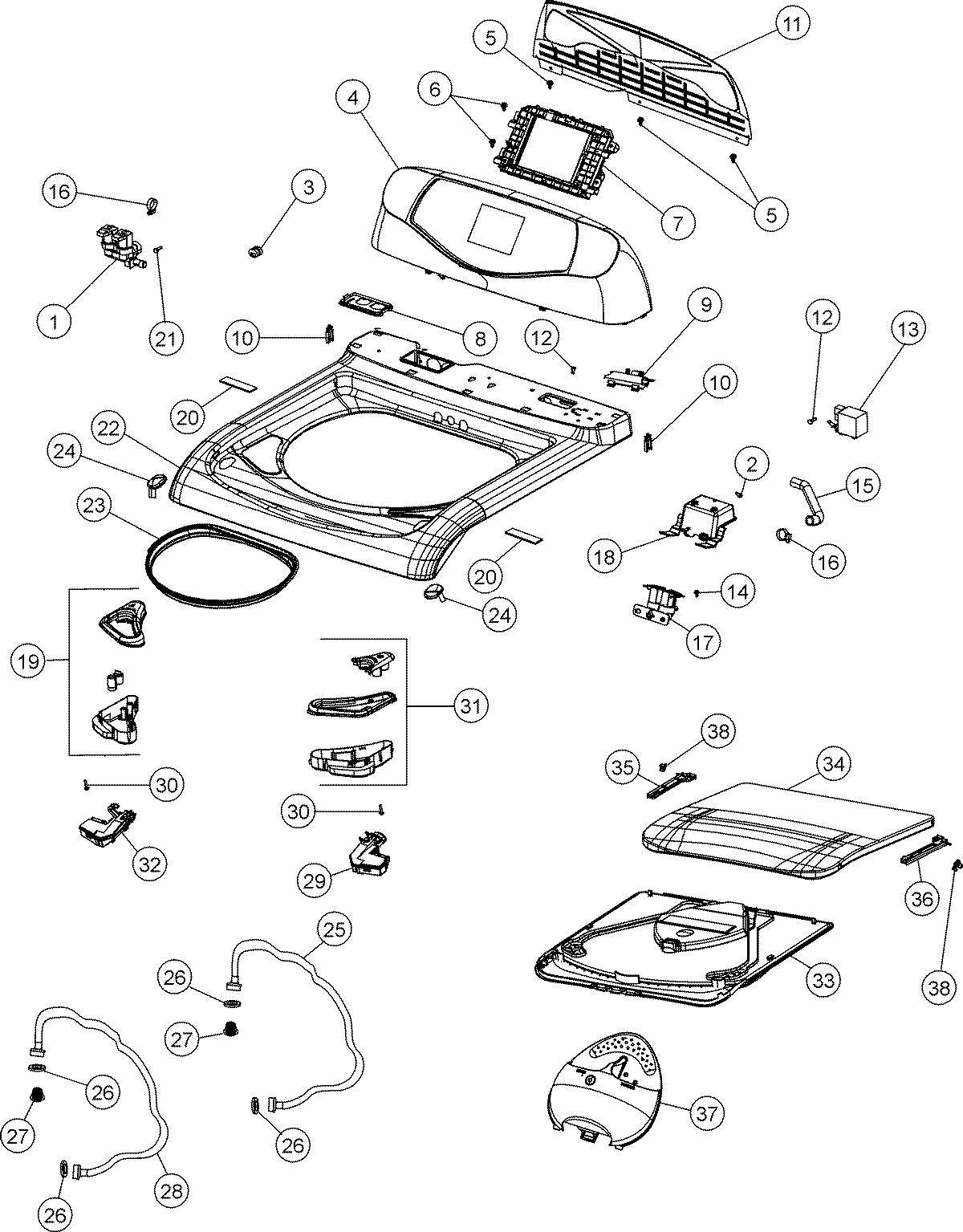

03 - CONTROL PANEL, TOP & LID

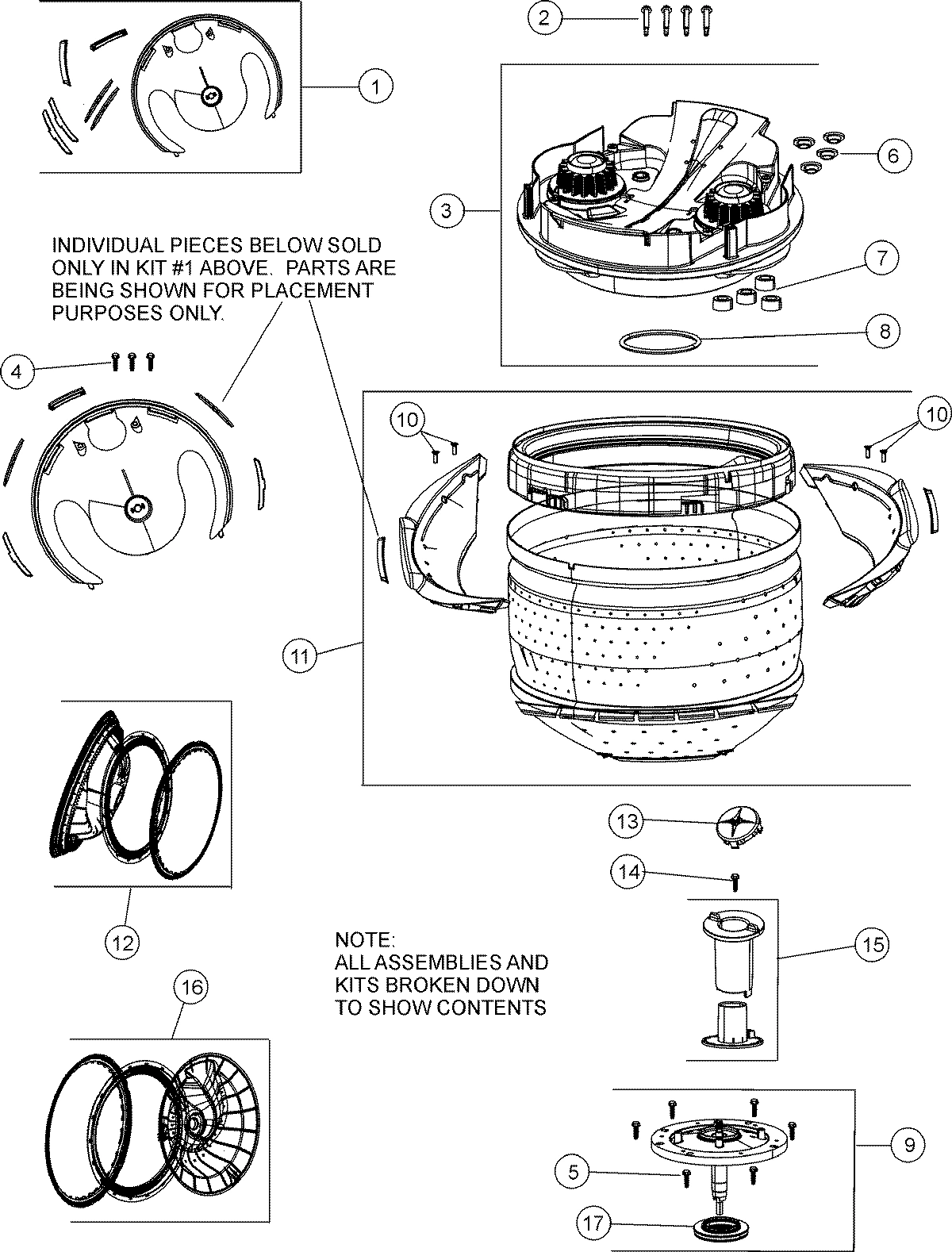

04 - INNER TUB / SPINNER

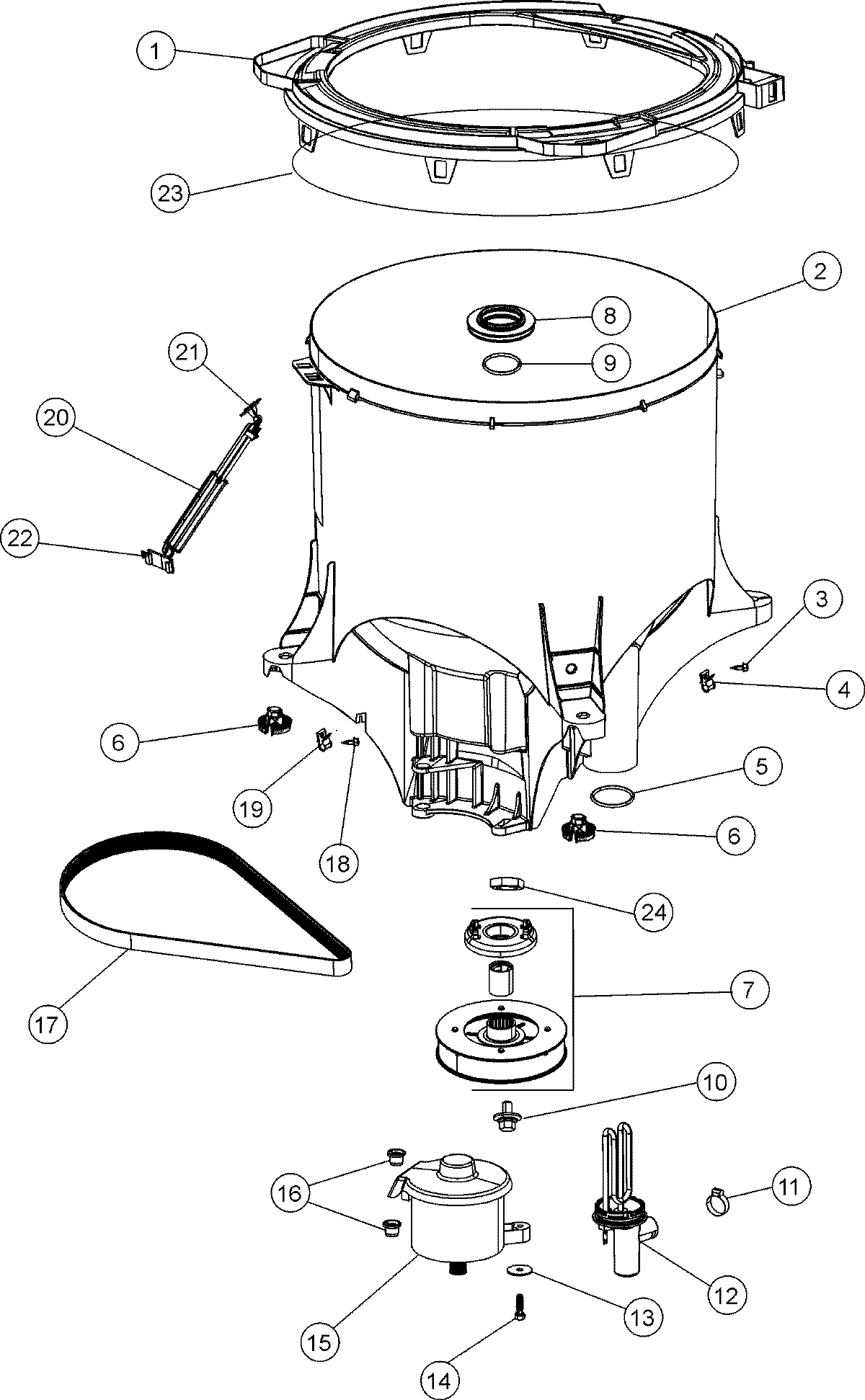

05 - OUTER TUB
06 - SUPPLEMENTAL INFORMATION

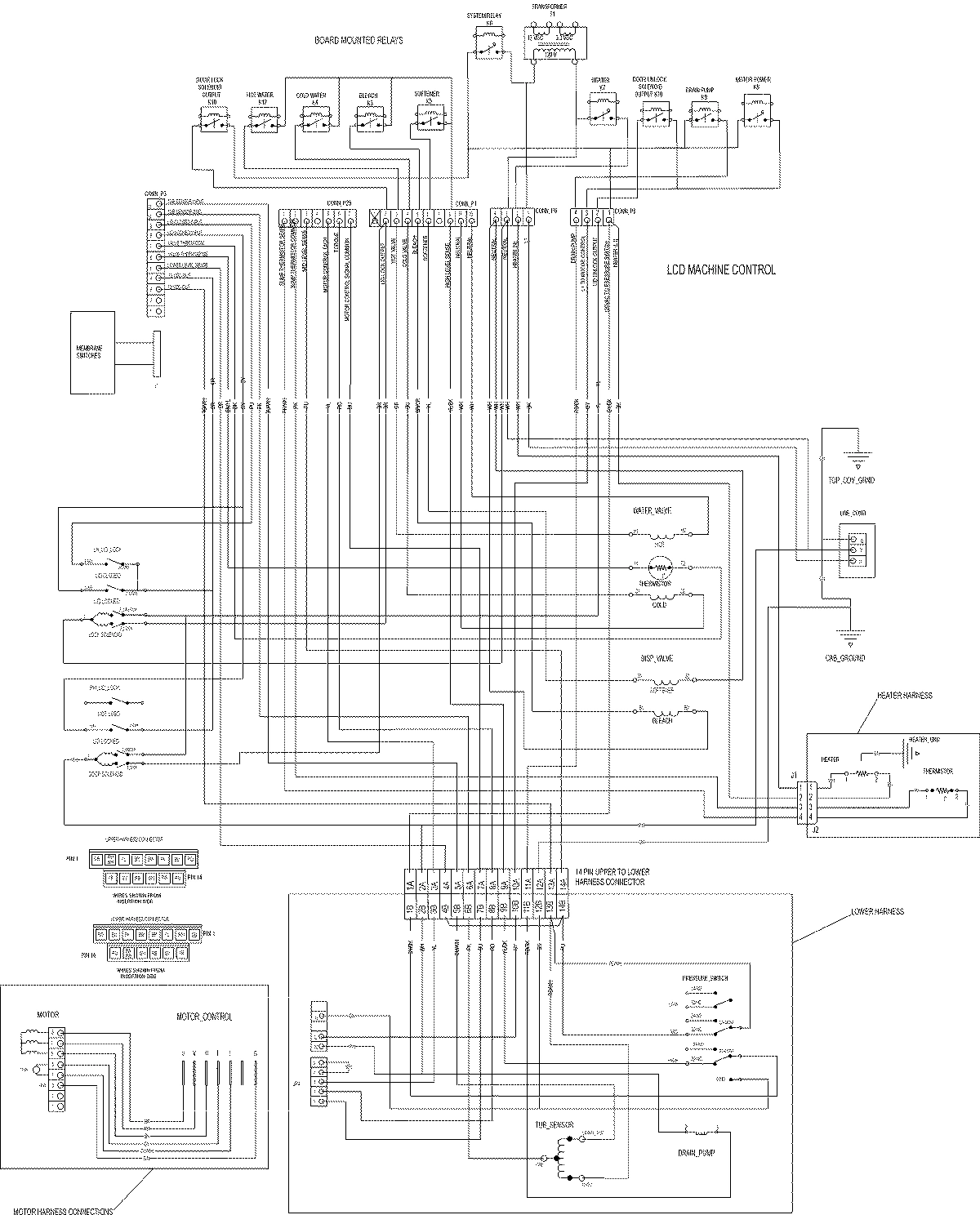

07 - WIRING HARNESS

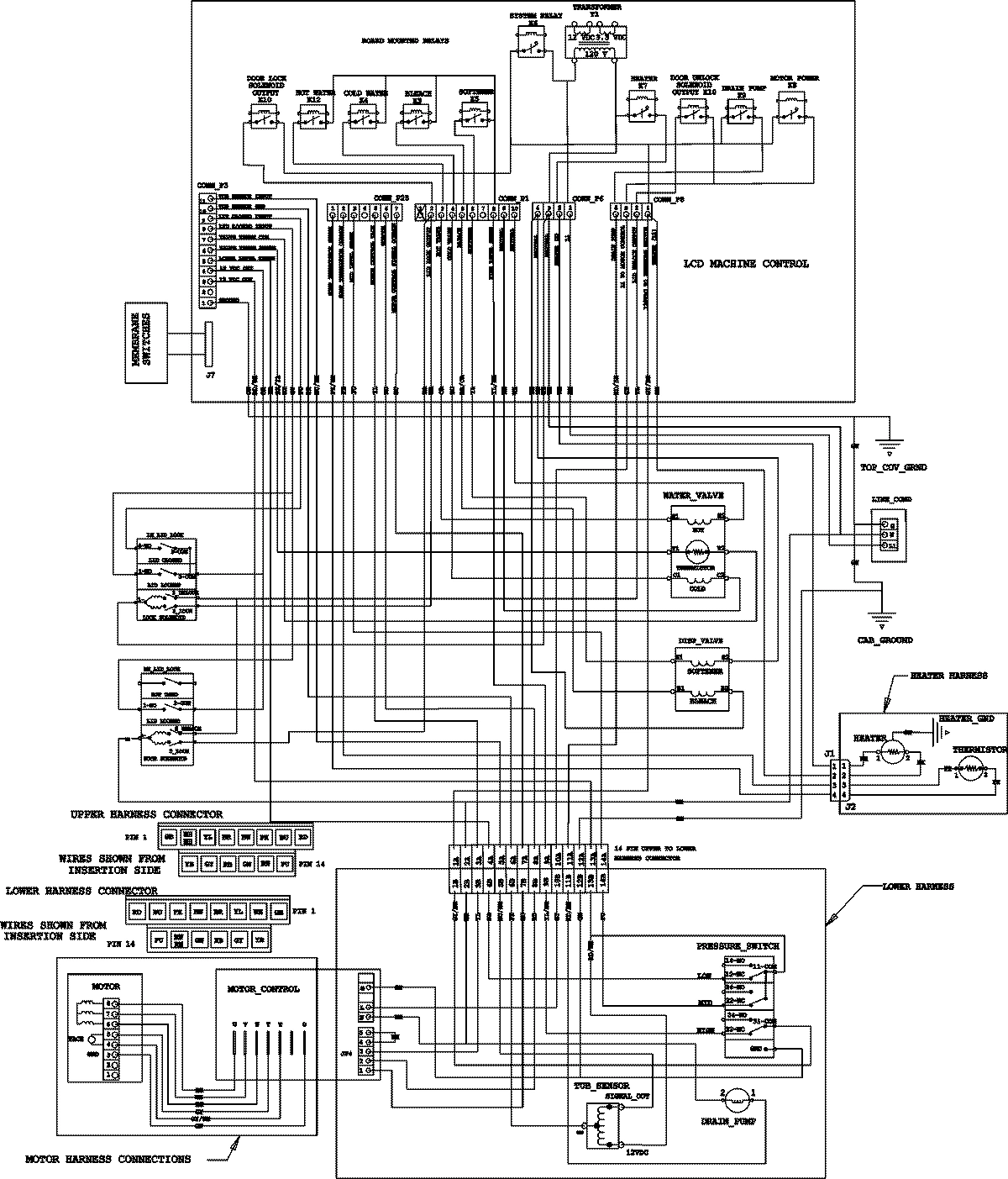

08 - WIRING INFORMATION

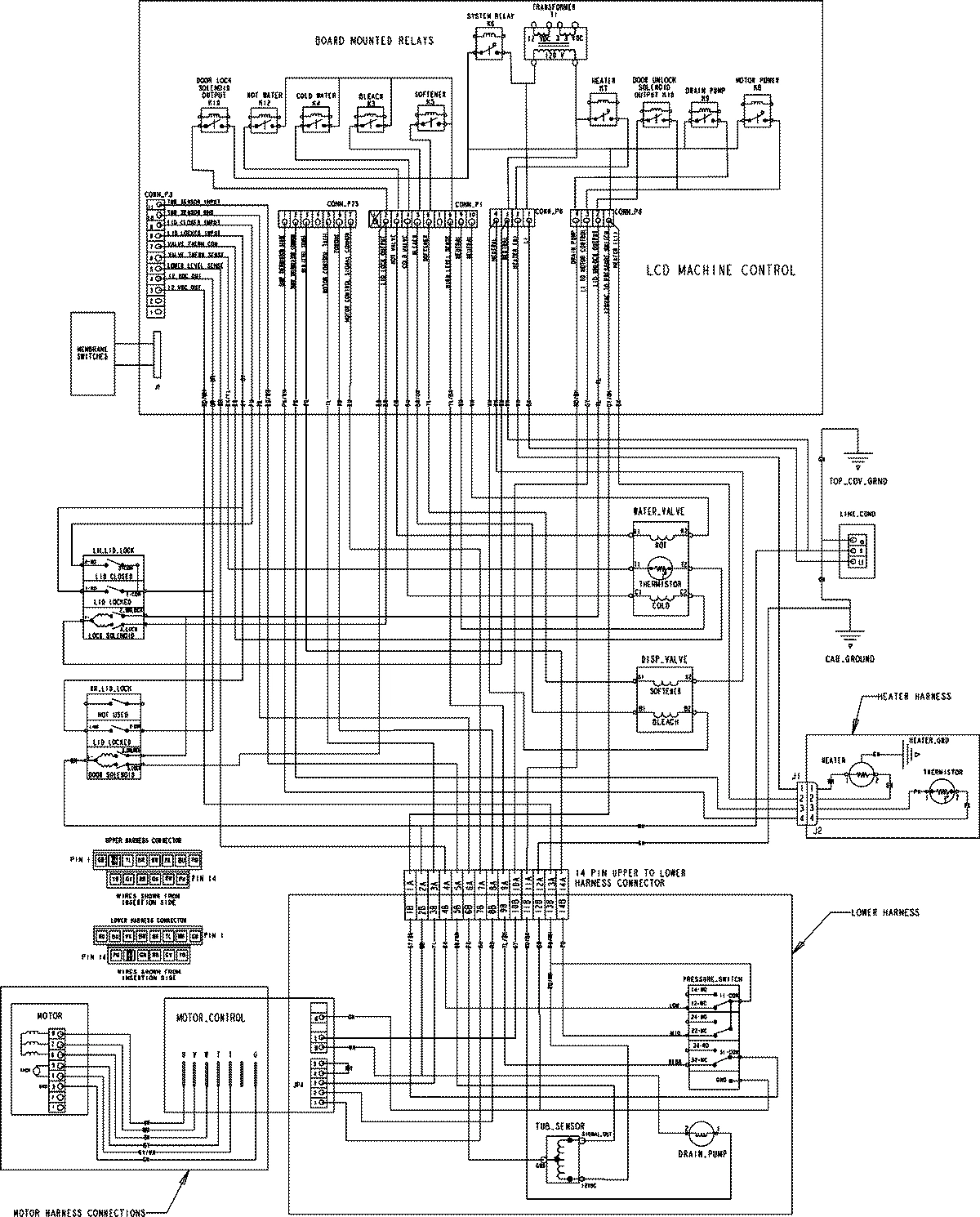

09 - WIRING INFORMATION
Common parts from model Maytag FAV9800AWQ WASHER
1
MAY 12002196 MAY 12002196 Contact Us For Availability
1
MAY 25001224 MAY 25001224 Contact Us For Availability
1
MAY 2202706 MAY 2202706 Contact Us For Availability
1
MAY 2202708 MAY 2202708 Contact Us For Availability
1
MAY 62906140 MAY 62906140 Contact Us For Availability
1
MAY Y2201982 MAY Y2201982 Contact Us For Availability
2
MAY 53-4240 MAY 53-4240 Contact Us For Availability
3
MAY 25001089 MAY 25001089 Contact Us For Availability
3
MAY 33002190 MAY 33002190 Contact Us For Availability
3
MAY 22003218 MAY 22003218 Contact Us For Availability
4
MAY 22004095 MAY 22004095 Contact Us For Availability
4
MAY 25001050 MAY 25001050 Contact Us For Availability
4
MAY 22004102 MAY 22004102 Contact Us For Availability
4
MAY 25001019 MAY 25001019 Contact Us For Availability
5
MAY 25001051 MAY 25001051 Contact Us For Availability
5
MAY 25001091 MAY 25001091 Contact Us For Availability
5
MAY 25001104 MAY 25001104 Contact Us For Availability
6
MAY 25001139 MAY 25001139 Contact Us For Availability
6
MAY 25001097 MAY 25001097 Contact Us For Availability
7
MAY 25001103 MAY 25001103 Contact Us For Availability
7
MAY 25001169 MAY 25001169 Contact Us For Availability
7
MAY 25001003 MAY 25001003 Contact Us For Availability
7
MAY 25001205 MAY 25001205 Contact Us For Availability
8
MAY 25001090 MAY 25001090 Contact Us For Availability
8
MAY 22003268 MAY 22003268 Contact Us For Availability
8
MAY 25001026 MAY 25001026 Contact Us For Availability
8
MAY 25001105 MAY 25001105 Contact Us For Availability
8
MAY 25001032 MAY 25001032 Contact Us For Availability
9
MAY 25001053 MAY 25001053 Contact Us For Availability
9
MAY 25001057 MAY 25001057 Contact Us For Availability
9
MAY 25001204 MAY 25001204 Contact Us For Availability
9
MAY 25001025 MAY 25001025 Contact Us For Availability
9
MAY 25001096 MAY 25001096 Contact Us For Availability
10
MAY 22003298 MAY 22003298 Contact Us For Availability
10
MAY 25001059 MAY 25001059 Contact Us For Availability
10
MAY 25001099 MAY 25001099 Contact Us For Availability
11
MAY 25001047 MAY 25001047 Contact Us For Availability
11
MAY Y25001058 MAY Y25001058 Contact Us For Availability
11
MAY 25001073 MAY 25001073 Contact Us For Availability
11
MAY 25001202 MAY 25001202 Contact Us For Availability
12
MAY 22003817 MAY 22003817 Contact Us For Availability
12
MAY 25001144 MAY 25001144 Contact Us For Availability
12
MAY 12002208 MAY 12002208 Contact Us For Availability
12
MAY 25001186 MAY 25001186 Contact Us For Availability
13
MAY 25001031 MAY 25001031 Contact Us For Availability
13
MAY 25001010 MAY 25001010 Contact Us For Availability
13
MAY 22004306 MAY 22004306 Contact Us For Availability
13
MAY 16022808 MAY 16022808 Contact Us For Availability
14
MAY 25001011 MAY 25001011 Contact Us For Availability
15
MAY 25001119 MAY 25001119 Contact Us For Availability
15
MAY 12002195 MAY 12002195 Contact Us For Availability
15
MAY 25001045 MAY 25001045 Contact Us For Availability
15
MAY 25001034 MAY 25001034 Contact Us For Availability
15
MAY 25001222 MAY 25001222 Contact Us For Availability
15
MAY 20001129 MAY 20001129 Contact Us For Availability
16
MAY 22004045 MAY 22004045 Contact Us For Availability
16
MAY 25001145 MAY 25001145 Contact Us For Availability
16
MAY 22003329 MAY 22003329 Contact Us For Availability
16
MAY 12002139 MAY 12002139 Contact Us For Availability
17
MAY 25001054 MAY 25001054 Contact Us For Availability
17
MAY 25001043 MAY 25001043 Contact Us For Availability
17
MAY 25001221 MAY 25001221 Contact Us For Availability
17
MAY 25001075 MAY 25001075 Contact Us For Availability
18
MAY 25001023 MAY 25001023 Contact Us For Availability
18
MAY 25001021 MAY 25001021 Contact Us For Availability
19
MAY 12002202 MAY 12002202 Contact Us For Availability
19
MAY 12002200 MAY 12002200 Contact Us For Availability
19
MAY 12002566 MAY 12002566 Contact Us For Availability
19
MAY 25001017 MAY 25001017 Contact Us For Availability
20
MAY 12002194 MAY 12002194 Contact Us For Availability
20
MAY 25001004 MAY 25001004 Contact Us For Availability
21
MAY 25001181 MAY 25001181 Contact Us For Availability
22
MAY 25001182 MAY 25001182 Contact Us For Availability
22
MAY 25001177 MAY 25001177 Contact Us For Availability
23
MAY 25001179 MAY 25001179 Contact Us For Availability
23
MAY 25001180 MAY 25001180 Contact Us For Availability
24
MAY 25001035 MAY 25001035 Contact Us For Availability
24
MAY 25001036 MAY 25001036 Contact Us For Availability
26
MAY Y013783 MAY Y013783 Contact Us For Availability
28
MAY 21001316 MAY 21001316 Contact Us For Availability
29
MAY 25001037 MAY 25001037 Contact Us For Availability
30
MAY 25001028 MAY 25001028 Contact Us For Availability
31
MAY 12002198 MAY 12002198 Contact Us For Availability
31
MAY 12002563 MAY 12002563 Contact Us For Availability
32
MAY 25001048 MAY 25001048 Contact Us For Availability
32
MAY 25001024 MAY 25001024 Contact Us For Availability
33
MAY 25001085 MAY 25001085 Contact Us For Availability
34
MAY 25001118 MAY 25001118 Contact Us For Availability
35
MAY 25001038 MAY 25001038 Contact Us For Availability
36
MAY 25001027 MAY 25001027 Contact Us For Availability
37
MAY 25001174 MAY 25001174 Contact Us For Availability
38
MAY 22002753 MAY 22002753 Contact Us For Availability
NI
MAY 15003650 MAY 15003650 Contact Us For Availability
NI
MAY 15003433 MAY 15003433 Contact Us For Availability
NI
MAY 15003643 MAY 15003643 Contact Us For Availability
× ![]()
