Model Whirlpool F9858W0 – Common Parts & Diagrams
02 - CONTROL PANEL , LIT/OPTIONAL
03 - COOK TOP

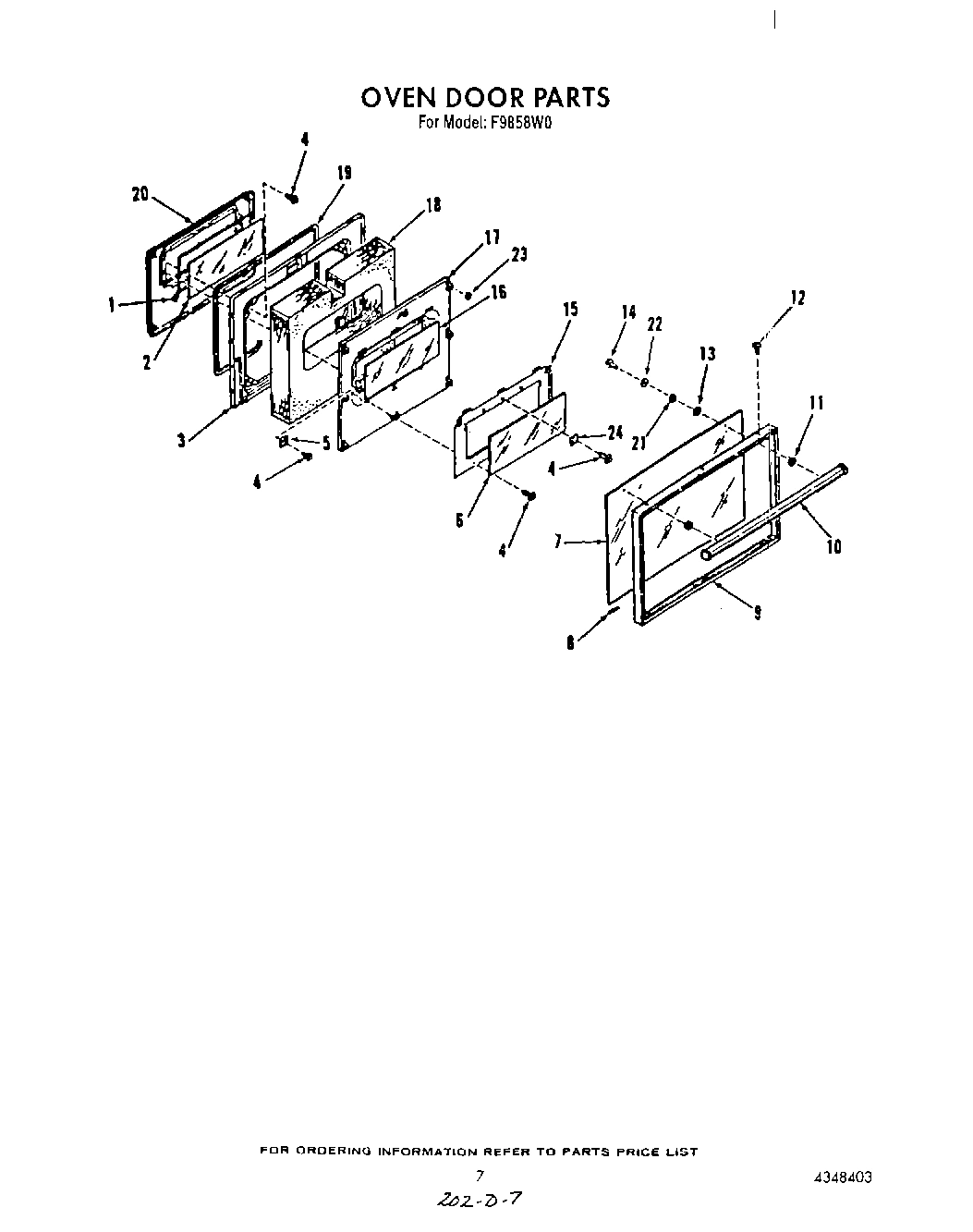

06 - OVEN DOOR

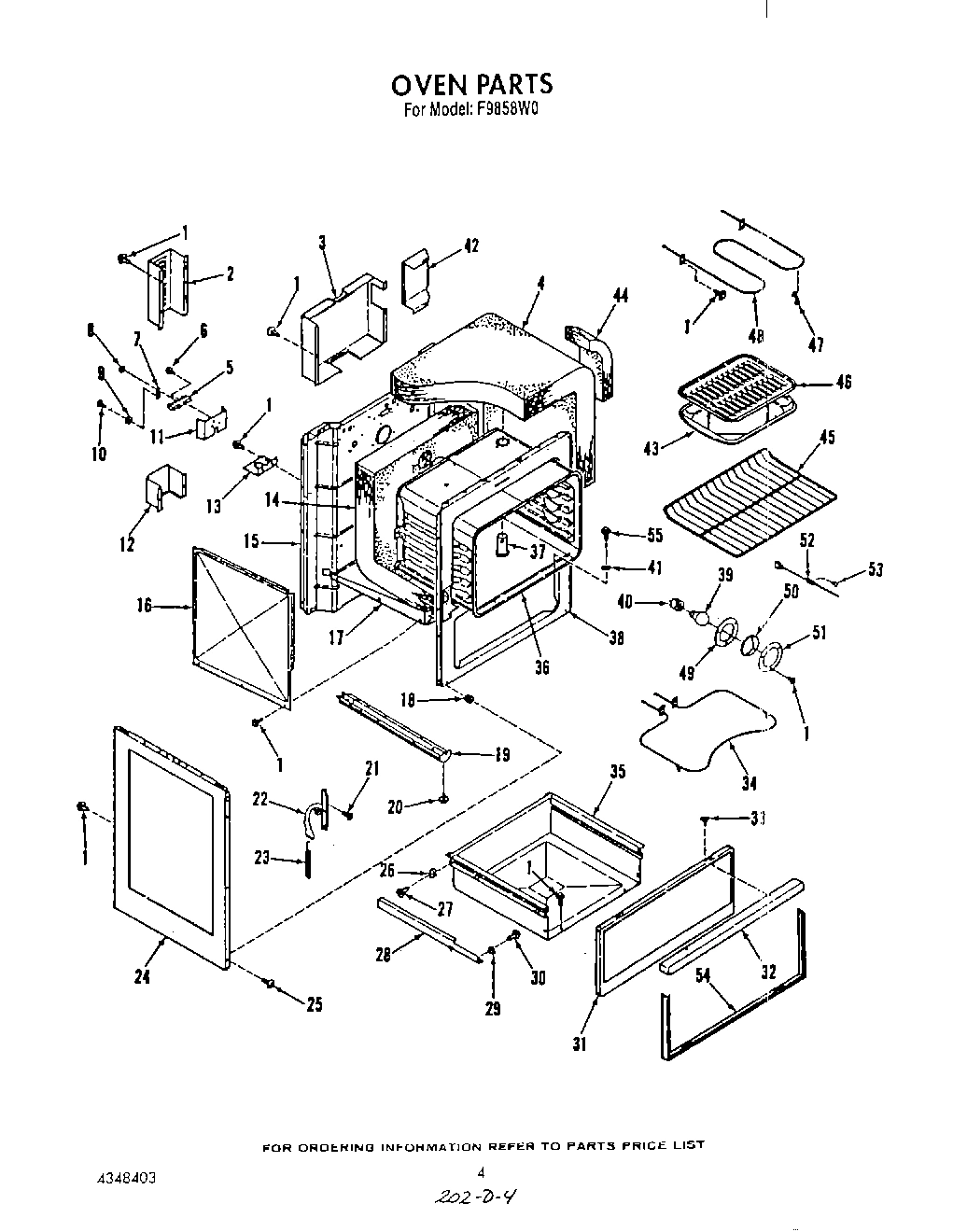

04 - OVEN

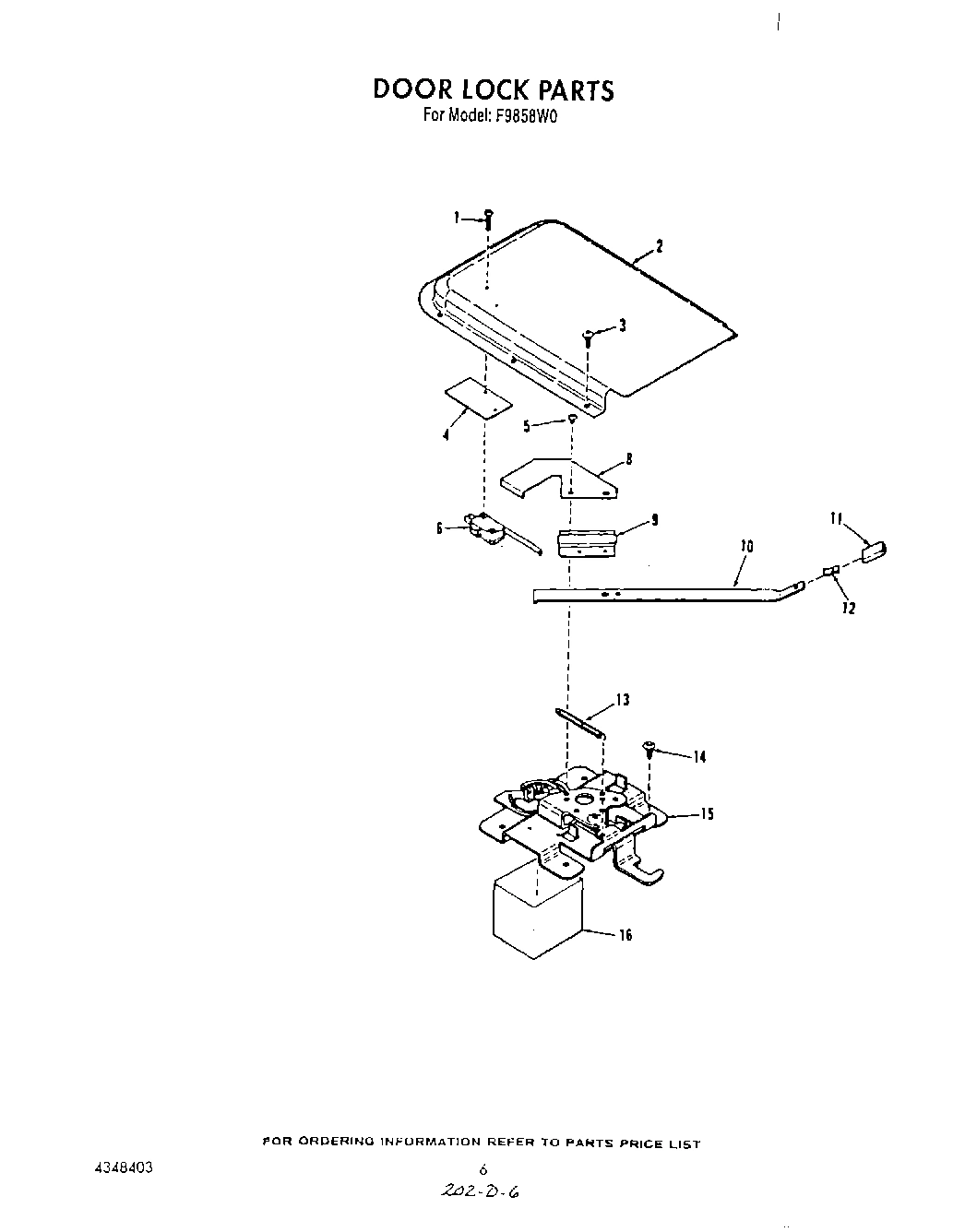

05 - DOOR LOCK

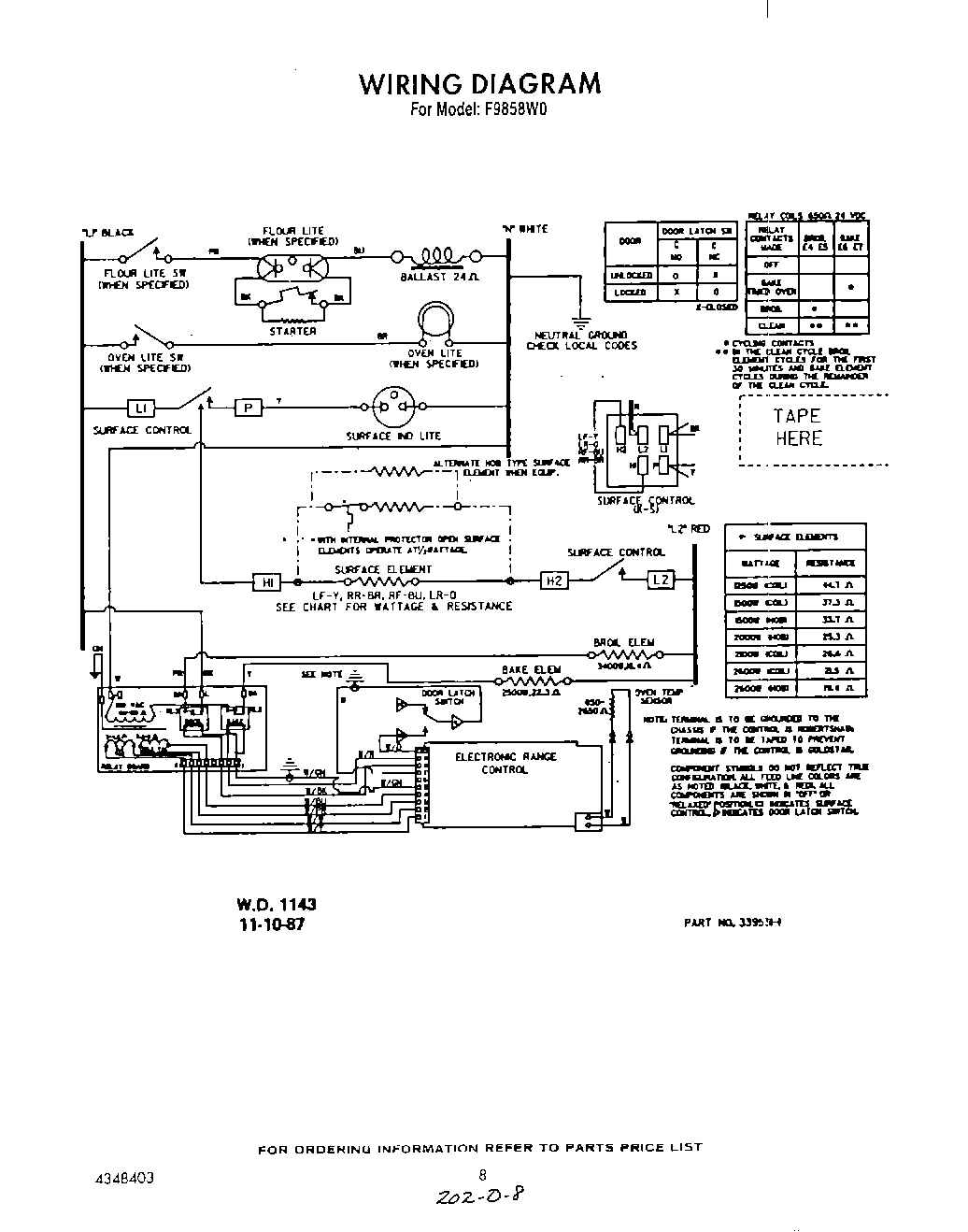

07 - WIRING DIAGRAM
Common parts from model Whirlpool F9858W0
1
Medallion (4) WPL 4332691 Contact Us For Availability
1
Seal, Inner Glass WPL 4342634 Contact Us For Availability
1
Screw, No.4-40 x 11/16 WPL 4337616 Contact Us For Availability
2
Raceway WPL 4337189 Contact Us For Availability
2
Glass-Inner WPL 4337767 Contact Us For Availability
2
Wire Shield, Upper WPL 4335208 Contact Us For Availability
2
Cover, Lock WPL 4337612 Contact Us For Availability
3
Cover, Raceway WPL 4337190 Contact Us For Availability
3
Screw, No.7-32 x 5/16 WPL 4327985 Contact Us For Availability
3
Lining WPL 4336608 Contact Us For Availability
3
Wire Shield WPL 4337567 Contact Us For Availability
3
Screw WPL 4337797 Contact Us For Availability
4
End Cap (Right) WPL 4337047 Contact Us For Availability
4
End Cap (Left) WPL 4337048 Contact Us For Availability
4
Insulation WPL 4338454 Contact Us For Availability
4
Insulator, Switch WPL 4335973 Contact Us For Availability
5
Support, Backguard (Right) WPL 4337180 Contact Us For Availability
5
Support, Backguard (Left) WPL 4337181 Contact Us For Availability
5
Retainer, Glass WPL 4331472 Contact Us For Availability
5
Screw, No.8-32 x 1/8 WPL 4323636 Contact Us For Availability
6
Clip, Backguard WPL 4338226 Contact Us For Availability
6
Glass, Intermediate WPL 4334821 Contact Us For Availability
6
Screw, No.10-32x1 WPL 4331572 Contact Us For Availability
6
Micro Switch WPL 4337452 Contact Us For Availability
7
Glass, Outer WPL 4336721 Contact Us For Availability
7
Strap, Ground WPL 4335219 Contact Us For Availability
8
Ballast WPL 4323673 Contact Us For Availability
8
Cushion (3) WPL 4324217 Contact Us For Availability
8
Nut, Hex 10-32 WPL 4354975 Contact Us For Availability
8
Lever, Switch WPL 4337611 Contact Us For Availability
9
Screw, No.6-20 x 3/8 WPL 4336048 Contact Us For Availability
9
Main Cooktop (White) WPL 4336717 Contact Us For Availability
9
Main Cooktop (Chrome) WPL 4336718 Contact Us For Availability
9
Main Cooktop (Almond) WPL 4336759 Contact Us For Availability
9
Frame, Door WPL 4338148 Contact Us For Availability
9
Washer WPL 4327921 Contact Us For Availability
9
Retainer, Handle WPL 4337056 Contact Us For Availability
10
Handle WPL 4336828 Contact Us For Availability
10
Screw No.10-32x7/16 WPL 4331573 Contact Us For Availability
10
Handle, Latch WPL 4337057 Contact Us For Availability
11
Support Rod (2) WPL 4336765 Contact Us For Availability
11
Spacer, Handle WPL 4323997 Contact Us For Availability
11
Insulator, Service Cord WPL 4335209 Contact Us For Availability
11
Knob, Lock WPL 4337568 Contact Us For Availability
12
Backguard WPL 4338272 Contact Us For Availability
12
Wire Cover, Lower WPL 4335222 Contact Us For Availability
12
Clip, Knob WPL 4335705 Contact Us For Availability
13
Hinge, Cooktop (Left) WPL 4337071 Contact Us For Availability
13
Hinge, Cooktop (Right) WPL 4337119 Contact Us For Availability
13
Washer WPL 4336868 Contact Us For Availability
13
Mounting Plate WPL 4335223 Contact Us For Availability
13
Spring WPL 4331536 Contact Us For Availability
14
Support Plate WPL 4337590 Contact Us For Availability
14
Insulation, Back WPL 4353609 Contact Us For Availability
15
Indicator Light WPL 4336633 Contact Us For Availability
15
Burner Box Bottom WPL 4336909 Contact Us For Availability
15
Mounting Plate WPL 4335753 Contact Us For Availability
15
Back-Main WPL 4337044 Contact Us For Availability
15
Latch Assembly WPL 4337053 Contact Us For Availability
16
Lamp Starter WPL 4337125 Contact Us For Availability
16
Screw WPL 4337623 Contact Us For Availability
16
Glass, Center WPL 4338251 Contact Us For Availability
16
Retainer, Side Insulation (Lt/Rt) WPL 4353951 Contact Us For Availability
16
Eyelet Terminal WPL 4325031 Contact Us For Availability
16
Flag Terminal Faston Terminal WPL 4325035 Contact Us For Availability
16
3/16`` WPL 4325036 Contact Us For Availability
16
Clock/Oven Control WPL 4337374 Contact Us For Availability
16
Retainer, Insulation WPL 4342826 Contact Us For Availability
17
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
17
Trim, Cooktop (Right) WPL 4337207 Contact Us For Availability
17
Trim, Cooktop (Left) WPL 4337208 Contact Us For Availability
17
Retainer, Insulation WPL 4335756 Contact Us For Availability
17
Retainer, Lower WPL 4353950 Contact Us For Availability
18
Insulation WPL 4354947 Contact Us For Availability
18
Spacer, Expansion Nut Sides (Lt/Rt) WPL 4331381 Contact Us For Availability
19
Bracket, Backguard WPL 4337555 Contact Us For Availability
19
Gasket, Door WPL 4342564 Contact Us For Availability
19
Base W/Levelers Rt/Lt WPL 4337332 Contact Us For Availability
20
Plug, Door Lining WPL 4337448 Contact Us For Availability
20
Levelers, Leg (4) WPL 4334800 Contact Us For Availability
21
Starter Base WPL 4337372 Contact Us For Availability
21
Screw WPL 4336631 Contact Us For Availability
21
Spacer, Glass WPL 4336869 Contact Us For Availability
22
Washer WPL 4323694 Contact Us For Availability
22
Hinge, Oven Door (Right) WPL 4354928 Contact Us For Availability
22
Hinge, Oven Door (Left) WPL 4354929 Contact Us For Availability
23
Washer, Felt WPL 4337618 Contact Us For Availability
23
Spring, Oven Door (Lt/Rt) WPL 4337253 Contact Us For Availability
24
Knob, Infinite WPL 4337246 Contact Us For Availability
24
Retainer, Glass WPL 4334791 Contact Us For Availability
24
Side Panel (Lt/Rt) (White) WPL 4342569 Contact Us For Availability
24
Side Panel (Lt/Rt) (Almond) WPL 4342570 Contact Us For Availability
24
Side Panel (Lt/Rt) (Black) WPL 4342571 Contact Us For Availability
25
Screw, No.8-32 x 1/4 WPL 4350281 Contact Us For Availability
25
Screw No.8x5/8 WPL 4331822 Contact Us For Availability
26
Socket WPL 4337139 Contact Us For Availability
26
Rear Slide Block (Lt/Rt) WPL 4325731 Contact Us For Availability
27
Knob, Clock WPL 4337111 Contact Us For Availability
27
Screw, No.8-32 x 3/8 WPL 4323796 Contact Us For Availability
28
Control Panel WPL 4338528 Contact Us For Availability
28
Support, Storage Drawer - Lt/Rt WPL 4331092 Contact Us For Availability
29
Front Slide Block, Lt/Rt WPL 4325732 Contact Us For Availability
30
Screw, No.10-32 x 17/32 WPL 4327611 Contact Us For Availability
31
Panel, Storage (White) WPL 4336747 Contact Us For Availability
31
Panel, Storage (Almond) WPL 4336748 Contact Us For Availability
31
Panel, Storage (Black) WPL 4336749 Contact Us For Availability
32
Clock/Oven Control W/Lens WPL 4338368 Contact Us For Availability
32
Handle WPL 4336754 Contact Us For Availability
33
Canopy Panel WPL 4337141 Contact Us For Availability
34
Spacer, Infinite Control WPL 4338452 Contact Us For Availability
34
Element, Bake (240 Volt) WPL 4334928 Contact Us For Availability
34
Element, Bake (208 Volt) WPL 4334929 Contact Us For Availability
35
Drawer, Storage WPL 4327658 Contact Us For Availability
36
Spacer, Circuit Board WPL 4337387 Contact Us For Availability
36
Oven WPL 4337959 Contact Us For Availability
37
Relay Circuit Board WPL 4338118 Contact Us For Availability
37
Installation Guide WPL 4348089 Contact Us For Availability
37
Repair Parts List Parts Not Shown On Illustra WPL 4348403 Contact Us For Availability
37
Use & Care Manual WPL 4348410 Contact Us For Availability
37
Tube, Vent WPL 4337059 Contact Us For Availability
38
Frame, Front WPL 4336956 Contact Us For Availability
41
Washer WPL 4323979 Contact Us For Availability
42
Wire Shield WPL 4336373 Contact Us For Availability
44
Insulation WPL 4354262 Contact Us For Availability
45
Oven Rack (Straight Rack) WPL 4334809 Contact Us For Availability
45
Oven Rack (Folding) WPL 4338333 Contact Us For Availability
47
Support, Broiler Element WPL 4337249 Contact Us For Availability
49
WPL 4324481 WPL 4324481 Contact Us For Availability
50
WPL 4324415 WPL 4324415 Contact Us For Availability
51
WPL 4324482 WPL 4324482 Contact Us For Availability
52
WPL 4337170 WPL 4337170 Contact Us For Availability
53
WPL 4338182 WPL 4338182 Contact Us For Availability
54
WPL 4336753 WPL 4336753 Contact Us For Availability
× ![]()
