Model Whirlpool F9857W0 – Common Parts & Diagrams

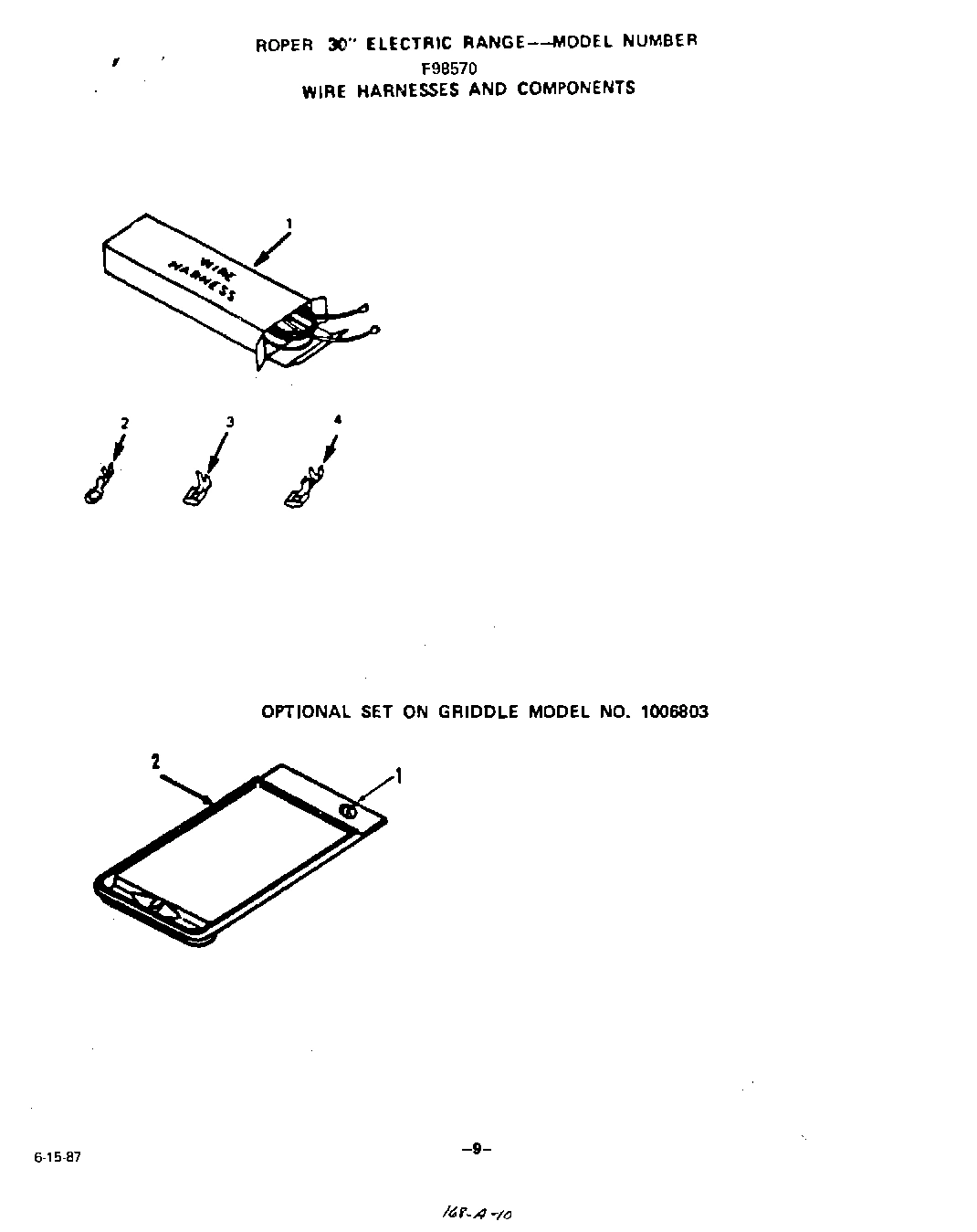

07 - WIRE HARNESS AND COMPONENTS , LIT/O

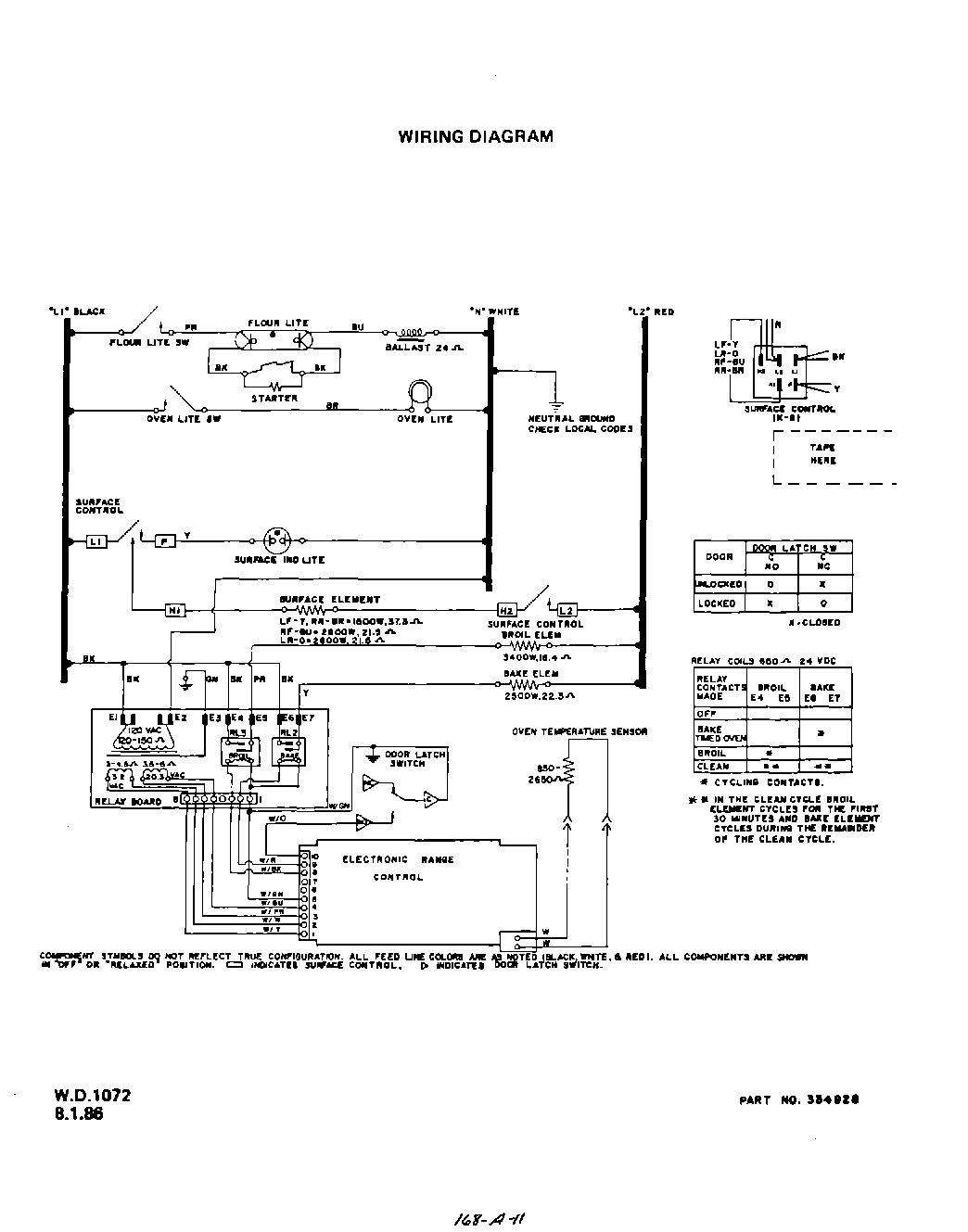

08 - WIRING DIAGRAM

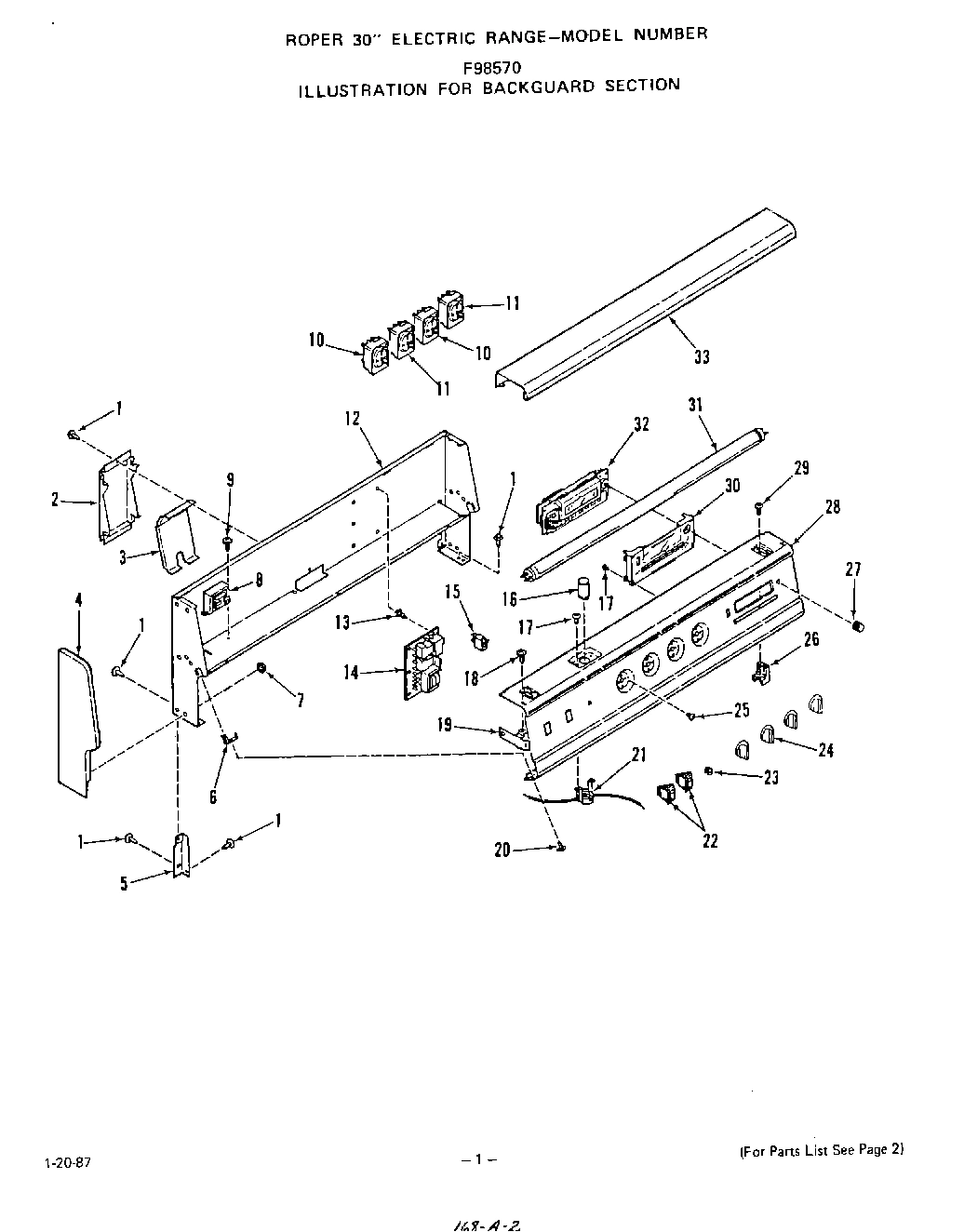

02 - BACKGUARD

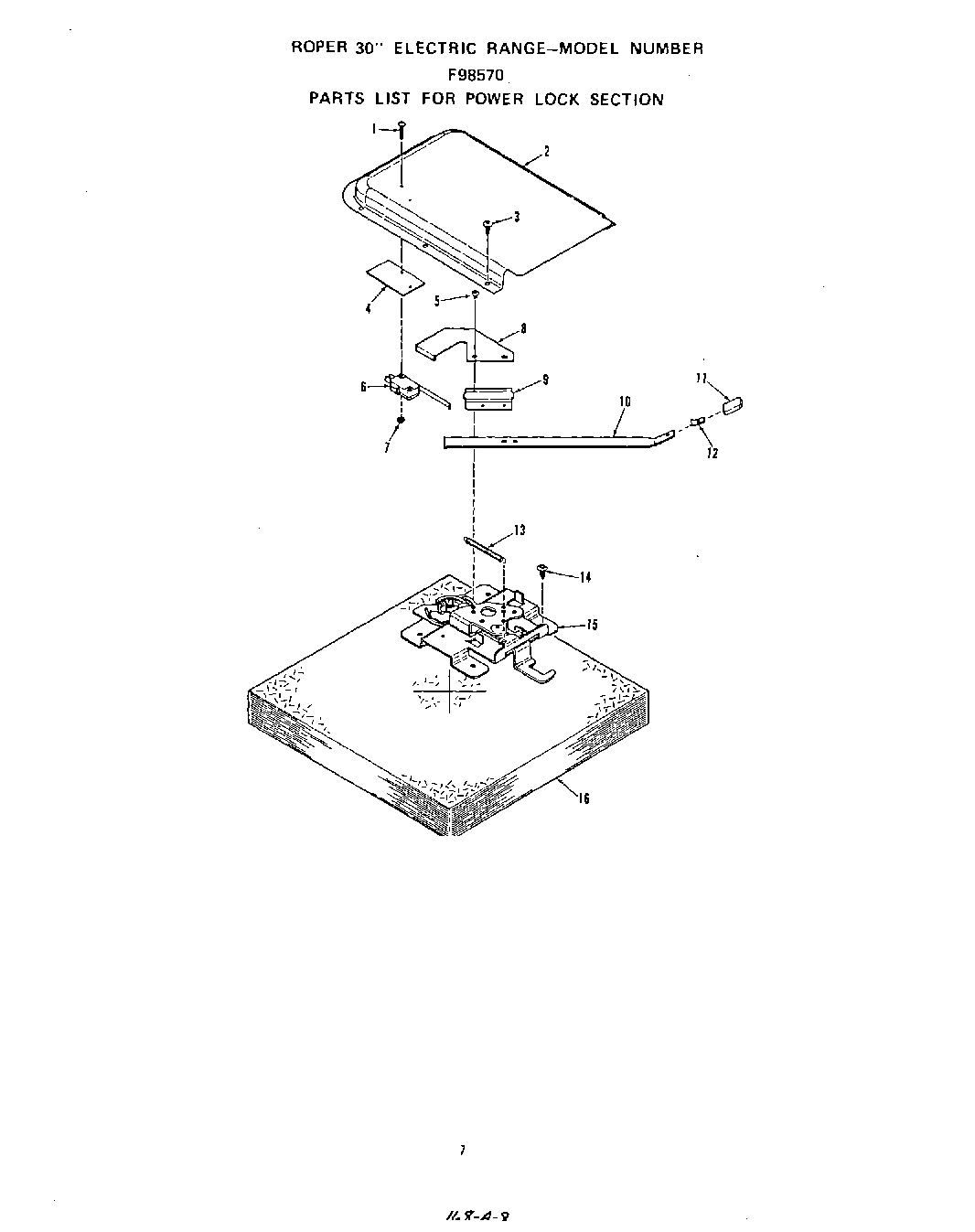

05 - POWER LOCK

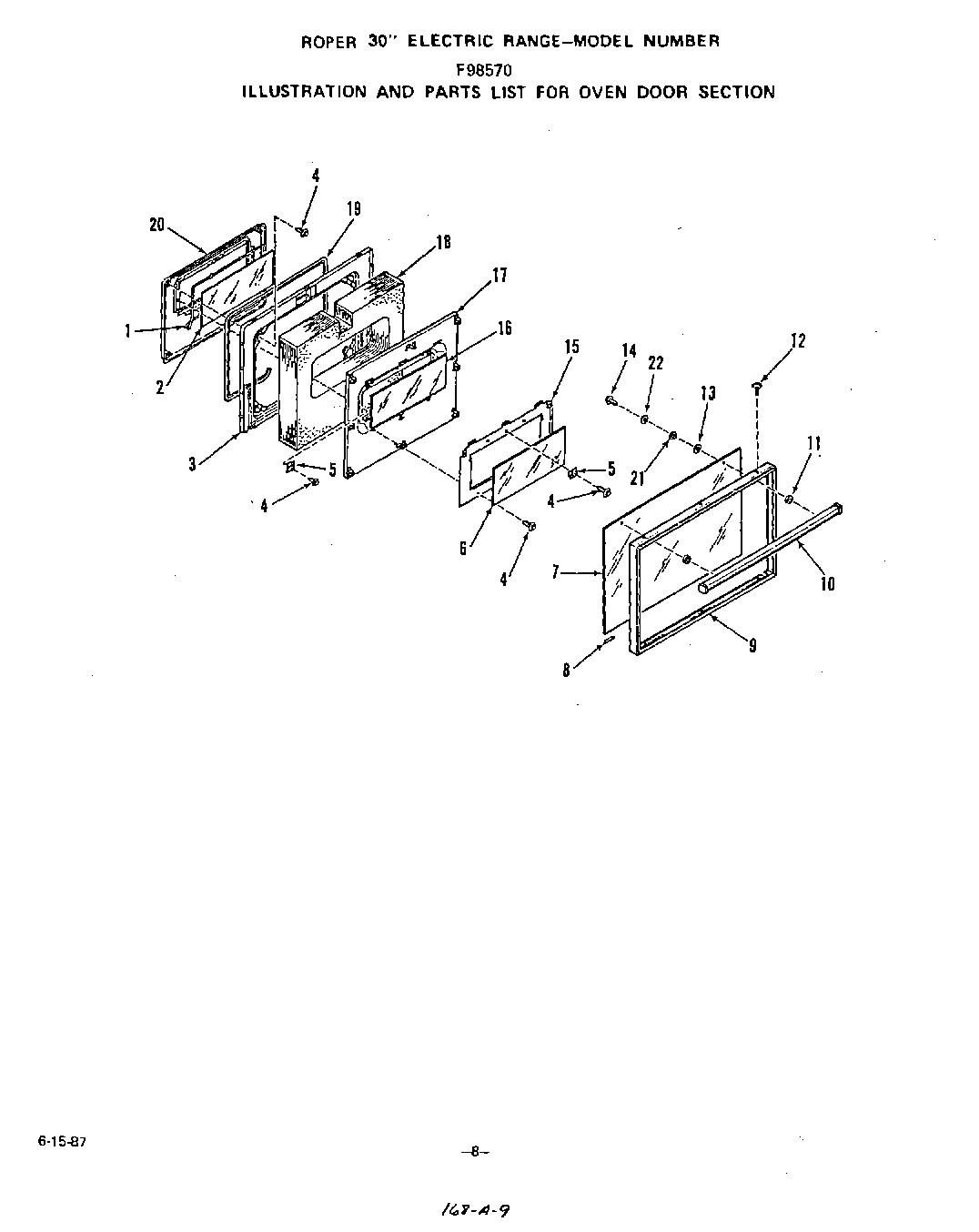

06 - OVEN DOOR

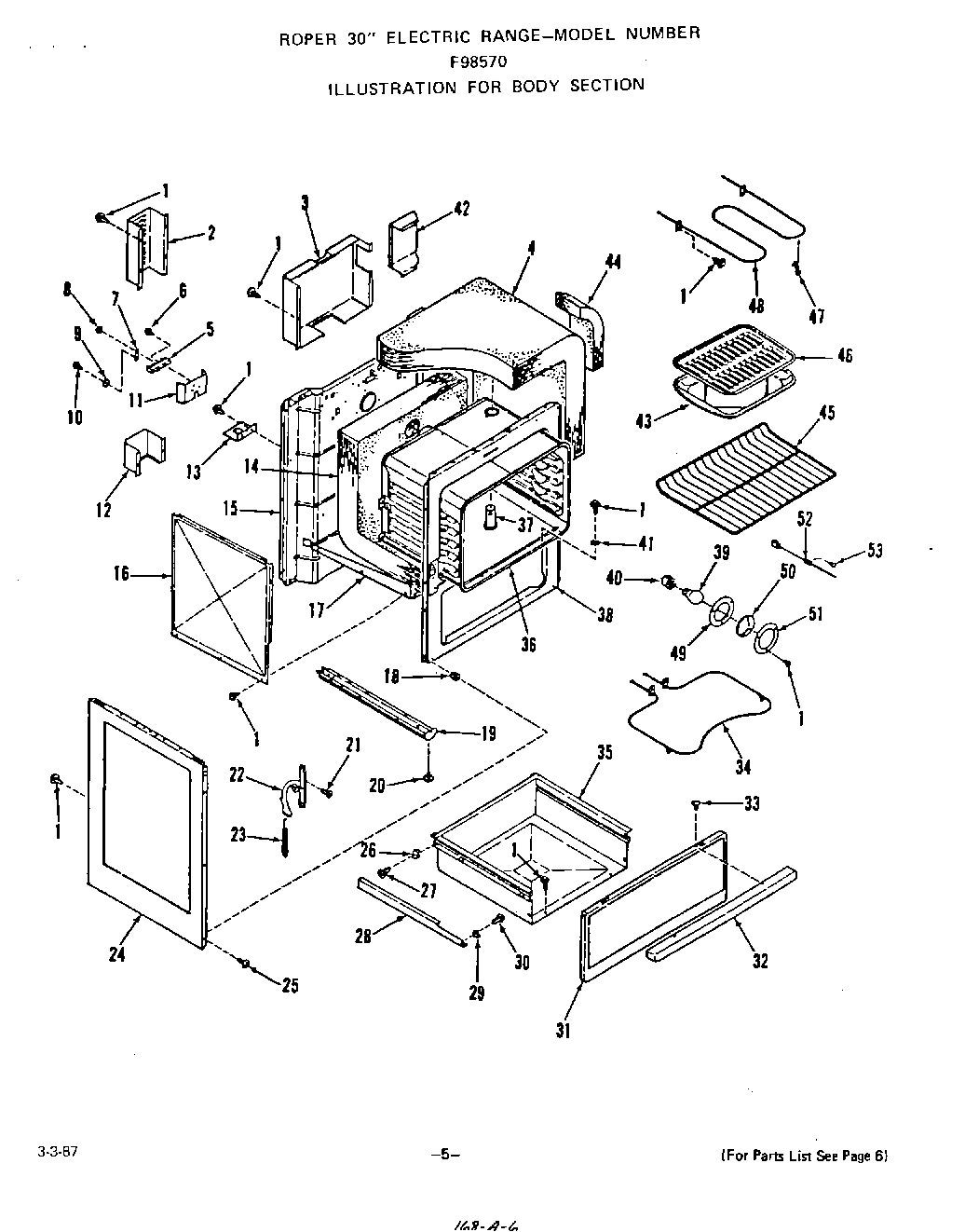

04 - BODY

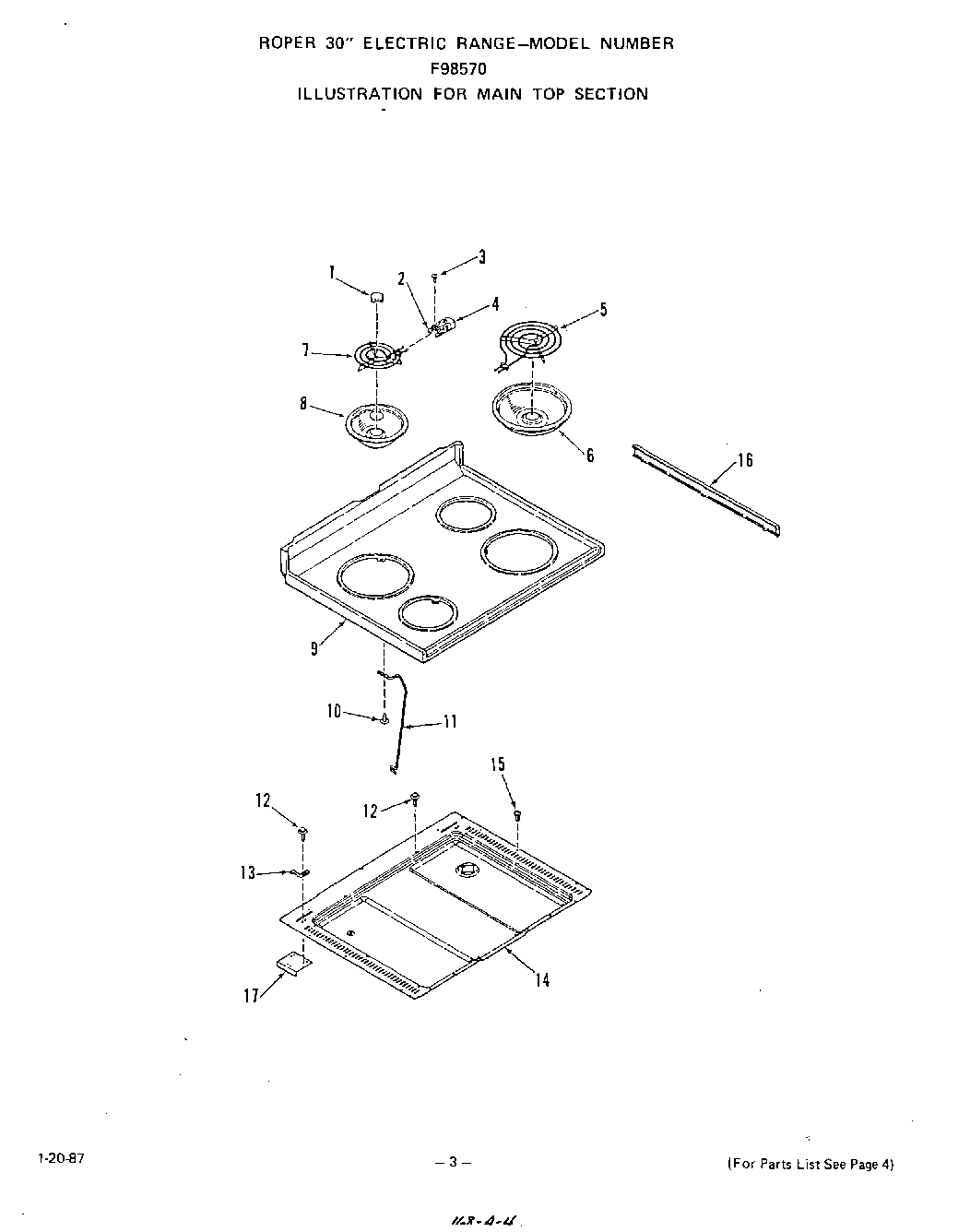

03 - MAIN TOP
Common parts from model Whirlpool F9857W0
1
Clock/Oven Control WPL 334927 Contact Us For Availability
1
Lock Switch WPL 335588 Contact Us For Availability
1
Main Top WPL 336316 Contact Us For Availability
1
Main WPL 336505 Contact Us For Availability
1
Thermometer WPL 87996 Contact Us For Availability
1
Wire Harness WPL ARI57187A9 Contact Us For Availability
1
Screw 4-40 x 11/16`` WPL 335942 Contact Us For Availability
1
Seal-Inner Glass WPL 302935 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
2
Set-On Griddle WPL 236766 Contact Us For Availability
2
Eyelet Terminal WPL 238387 Contact Us For Availability
2
Wire Raceway WPL 334363 Contact Us For Availability
2
Cover-Lock WPL 335934 Contact Us For Availability
2
Inner Glass-Oven Door WPL 336442 Contact Us For Availability
2
Wire Shield-Upper WPL 327235 Contact Us For Availability
2
Terminal Block Clip (4 Req) WPL 318872 Contact Us For Availability
3
Flag Terminal WPL 238391 Contact Us For Availability
3
Raceway Cover WPL 334364 Contact Us For Availability
3
Lining-Oven Door WPL 331624 Contact Us For Availability
3
Wire Shield WPL 335724 Contact Us For Availability
3
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
4
3/16`` WPL 238392 Contact Us For Availability
4
1/4`` WPL 238393 Contact Us For Availability
4
Faston Terminal WPL ARI57188A2 Contact Us For Availability
4
Right WPL 333760 Contact Us For Availability
4
Left WPL 333761 Contact Us For Availability
4
End Cap WPL ARI57177A5 Contact Us For Availability
4
Insulator-Switch WPL 329171 Contact Us For Availability
4
Insulation-Oven Wrap WPL 334531 Contact Us For Availability
4
Terminal Block w/Wires (4 Req) WPL 318960 Contact Us For Availability
5
Right WPL 334337 Contact Us For Availability
5
Left WPL 334338 Contact Us For Availability
5
Backguard Support WPL ARI57178A8 Contact Us For Availability
5
Screw (8-32x1/8``) WPL 97411 Contact Us For Availability
5
Retainer-Door Glass WPL 326009 Contact Us For Availability
5
Junction Block WPL 290105 Contact Us For Availability
5
8`` Surface Element WPL 325506 Contact Us For Availability
6
Backguard Clip WPL 334375 Contact Us For Availability
6
Micro Switch WPL 335177 Contact Us For Availability
6
Intermediate Glass-Oven Door WPL 326088 Contact Us For Availability
6
Screw 10-32x1`` WPL 313190 Contact Us For Availability
6
8`` Burner Bowl WPL 292975 Contact Us For Availability
7
Pal Nut WPL 335776 Contact Us For Availability
7
Nut-Hex 4-40 WPL 306638 Contact Us For Availability
7
Outer Glass-Oven Door WPL 332067 Contact Us For Availability
7
Ground Strap WPL 327255 Contact Us For Availability
7
6`` Surface Element WPL 325510 Contact Us For Availability
8
Ballast WPL 98186 Contact Us For Availability
8
Switch Lever WPL 335929 Contact Us For Availability
8
Cushion (3 Req) WPL 112370 Contact Us For Availability
8
G.M. Hex Nut 10-32 WPL 453284 Contact Us For Availability
8
6`` Burner Bowl WPL 292974 Contact Us For Availability
9
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
9
Retainer-Latch Handle WPL 333787 Contact Us For Availability
9
Frame-Oven Door WPL 332065 Contact Us For Availability
9
Washer WPL 299425 Contact Us For Availability
9
Chrome WPL 332048 Contact Us For Availability
9
White (With Trims) WPL 338839 Contact Us For Availability
9
Main Top WPL ARI57179A7 Contact Us For Availability
10
Infinite Switch (Rt. Front or Lt. Rear) WPL 337035 Contact Us For Availability
10
Handle-Latch WPL 333792 Contact Us For Availability
10
Handle WPL 332452 Contact Us For Availability
10
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
10
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
11
Infinite Switch (Lt. Front or Rt. Rear) WPL 336119 Contact Us For Availability
11
Knob-Lock WPL 335738 Contact Us For Availability
11
Spacer, Door Handle WPL 107158 Contact Us For Availability
11
Insulator-Service Cord WPL 327242 Contact Us For Availability
11
Support Rod-Main Top (2 Req) WPL 332284 Contact Us For Availability
12
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
12
Backguard Body WPL 334172 Contact Us For Availability
12
Clip-Knob WPL 328474 Contact Us For Availability
12
Wire Shield-Lower WPL 327258 Contact Us For Availability
13
Circuit Board Spacer WPL 334955 Contact Us For Availability
13
Spring-Lock Handle WPL 313075 Contact Us For Availability
13
Washer WPL 333014 Contact Us For Availability
13
Range Service Mounting Plate WPL 327259 Contact Us For Availability
13
Left WPL 333859 Contact Us For Availability
13
Right WPL 334089 Contact Us For Availability
13
Hinge-Main Top WPL ARI57180A7 Contact Us For Availability
14
Circuit Board w/Relay WPL 335245 Contact Us For Availability
14
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
14
Insulation-Oven Back WPL 308861 Contact Us For Availability
14
Burner Box Bottom WPL 333171 Contact Us For Availability
15
Indicator Light WPL 331716 Contact Us For Availability
15
Screw 10-32x1/2`` WPL 321665 Contact Us For Availability
15
Latch Asm. WPL 333781 Contact Us For Availability
15
Mounting Plate-Glass WPL 328615 Contact Us For Availability
15
Main Back WPL 333749 Contact Us For Availability
16
Lamp Starter WPL 334104 Contact Us For Availability
16
Insulation-Lock WPL 335944 Contact Us For Availability
16
Center Glass-Oven Door WPL 336443 Contact Us For Availability
16
Insulation Retainer-Sides (Lt. or Rt.) WPL 312518 Contact Us For Availability
16
Right WPL 334393 Contact Us For Availability
16
Left WPL 334394 Contact Us For Availability
16
Main Top Trim WPL ARI57181A2 Contact Us For Availability
17
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
17
Retainer-Oven Door Insulation WPL 328623 Contact Us For Availability
17
Insulation Retainer-Lower WPL 312517 Contact Us For Availability
17
Reinforcement Plate (2 Req) WPL 335823 Contact Us For Availability
18
screw WPL 326974 Contact Us For Availability
18
Insulation-Oven Door WPL 335782 Contact Us For Availability
19
Backguard Bracket WPL 335667 Contact Us For Availability
19
Gasket-Oven Door WPL 292244 Contact Us For Availability
19
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
20
Plug-Oven Door Lining WPL 335165 Contact Us For Availability
20
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
21
Starter Base WPL 334924 Contact Us For Availability
21
Screw WPL 331704 Contact Us For Availability
21
Spacer-Glass WPL 333015 Contact Us For Availability
22
Switch WPL 334649 Contact Us For Availability
22
Washer WPL 99279 Contact Us For Availability
22
Right WPL 334632 Contact Us For Availability
22
Left WPL 334633 Contact Us For Availability
22
Hinge-Oven Door WPL ARI57182A9 Contact Us For Availability
23
Lens-Indicator Light WPL 331705 Contact Us For Availability
23
Spring-Oven Door (Lt. or Rt.) WPL 334572 Contact Us For Availability
24
Infinite Knob WPL 334562 Contact Us For Availability
24
White WPL 333303 Contact Us For Availability
24
Almond WPL 333307 Contact Us For Availability
24
Black WPL 333308 Contact Us For Availability
24
Body Side (Lt. or Rt.) WPL ARI57183A3 Contact Us For Availability
25
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
25
Screw 8ABx8`` WPL 314124 Contact Us For Availability
26
Lamp Holder WPL 334173 Contact Us For Availability
26
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
27
Clock/Oven Control Knob WPL 334914 Contact Us For Availability
27
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
28
Control Panel WPL 335927 Contact Us For Availability
28
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
29
Screw 6-32x3/8`` WPL 89022 Contact Us For Availability
29
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
30
Clock/Oven Control Lens WPL 334898 Contact Us For Availability
30
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
31
Fluorescent Lamp WPL 334193 Contact Us For Availability
31
White WPL 332153 Contact Us For Availability
31
Almond WPL 332157 Contact Us For Availability
31
Black WPL 332158 Contact Us For Availability
31
Front Panel-Storage WPL ARI57184A1 Contact Us For Availability
32
Clock/Oven Control WPL 336678 Contact Us For Availability
32
Handle WPL 332205 Contact Us For Availability
33
Canopy Panel WPL 334176 Contact Us For Availability
33
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
34
240 Volt WPL 325883 Contact Us For Availability
34
208 Volt WPL 326364 Contact Us For Availability
34
Bake Element WPL ARI57185A3 Contact Us For Availability
35
Storage Drawer WPL 296150 Contact Us For Availability
36
Oven Body WPL 334938 Contact Us For Availability
37
Vent Tube WPL 333802 Contact Us For Availability
38
Front Frame WPL 333321 Contact Us For Availability
39
Oven Light Bulb WPL 111257 Contact Us For Availability
40
Bulb Holder WPL 87883 Contact Us For Availability
41
Washer WPL 106462 Contact Us For Availability
42
Wire Shield WPL 330614 Contact Us For Availability
43
Broiler Pan WPL 331592 Contact Us For Availability
44
Insulation WPL 316951 Contact Us For Availability
45
Oven Rack WPL 326069 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Support-Broil Element WPL 334565 Contact Us For Availability
48
240 Volt WPL 334368 Contact Us For Availability
48
208 Volt WPL 334369 Contact Us For Availability
48
Broil Element WPL ARI57186A7 Contact Us For Availability
49
Gasket-Lens WPL 229371 Contact Us For Availability
50
Lens-Oven Bulb WPL 114989 Contact Us For Availability
51
Retainer-Oven Light WPL 229372 Contact Us For Availability
52
Sensor WPL 334300 Contact Us For Availability
53
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
× ![]()
