Model Whirlpool F7908W0 – Common Parts & Diagrams
02 - BACKSPLASH PARTS
04 - OVEN

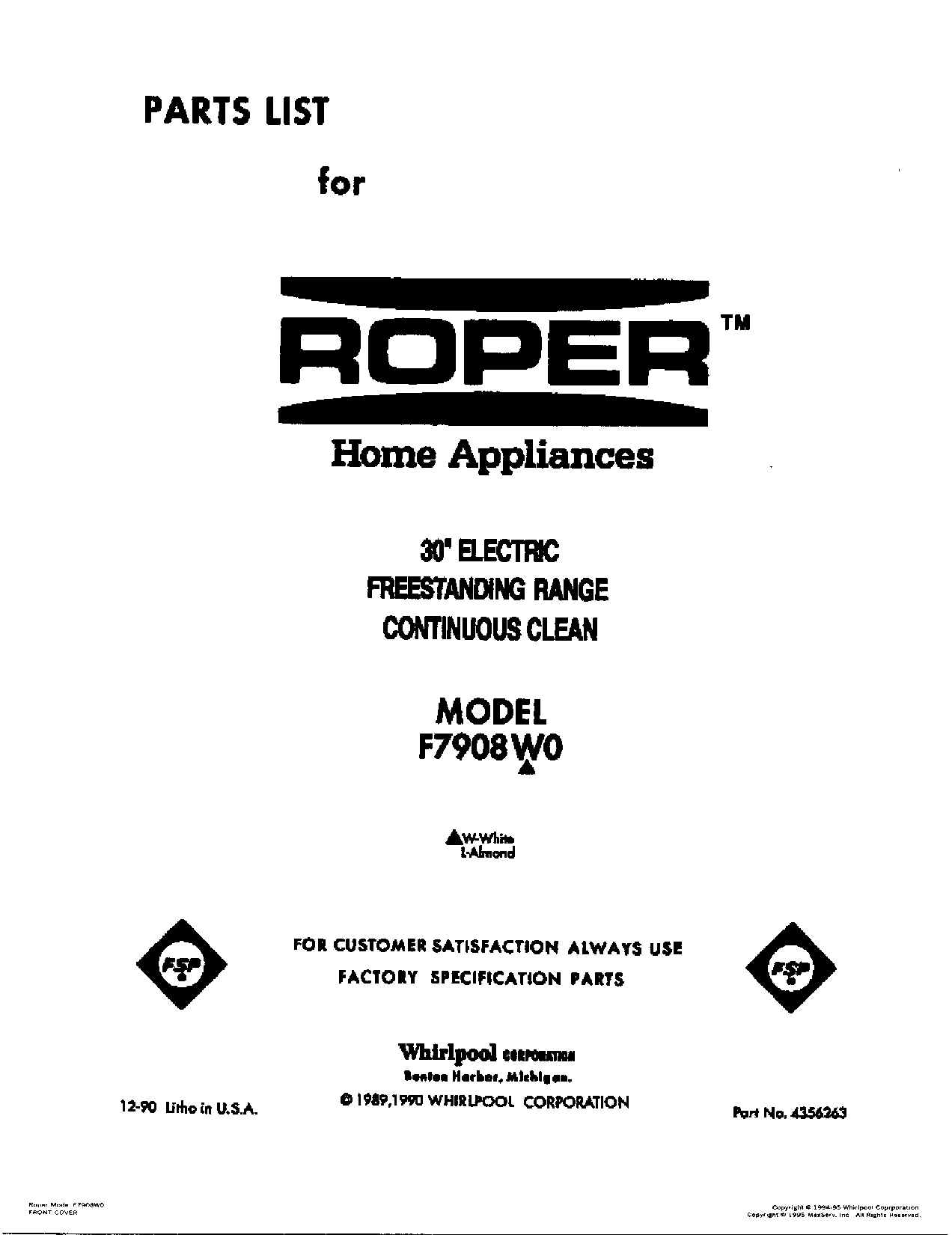

01 - COVER

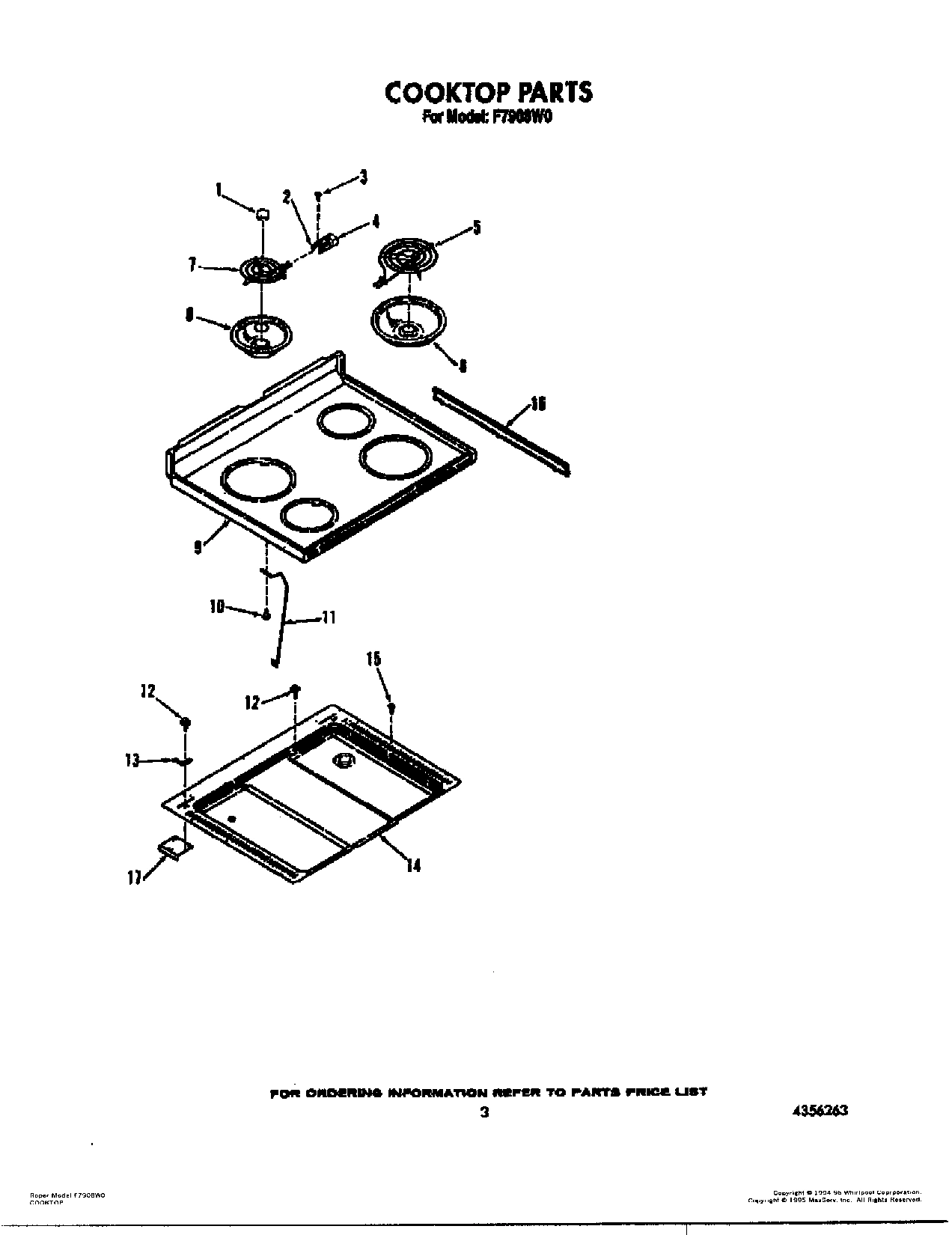

03 - COOKTOP

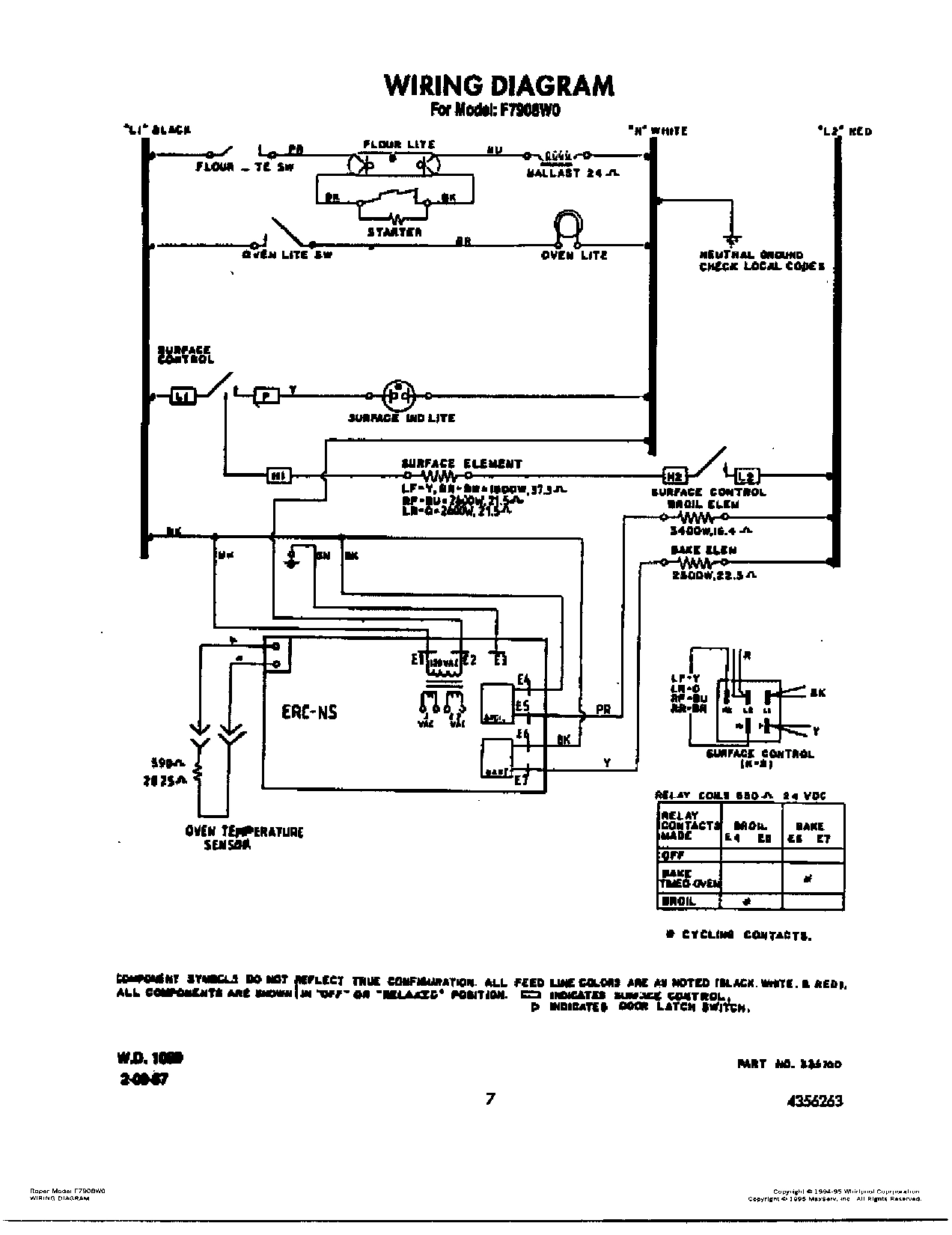

06 - WIRING DIAGRAM

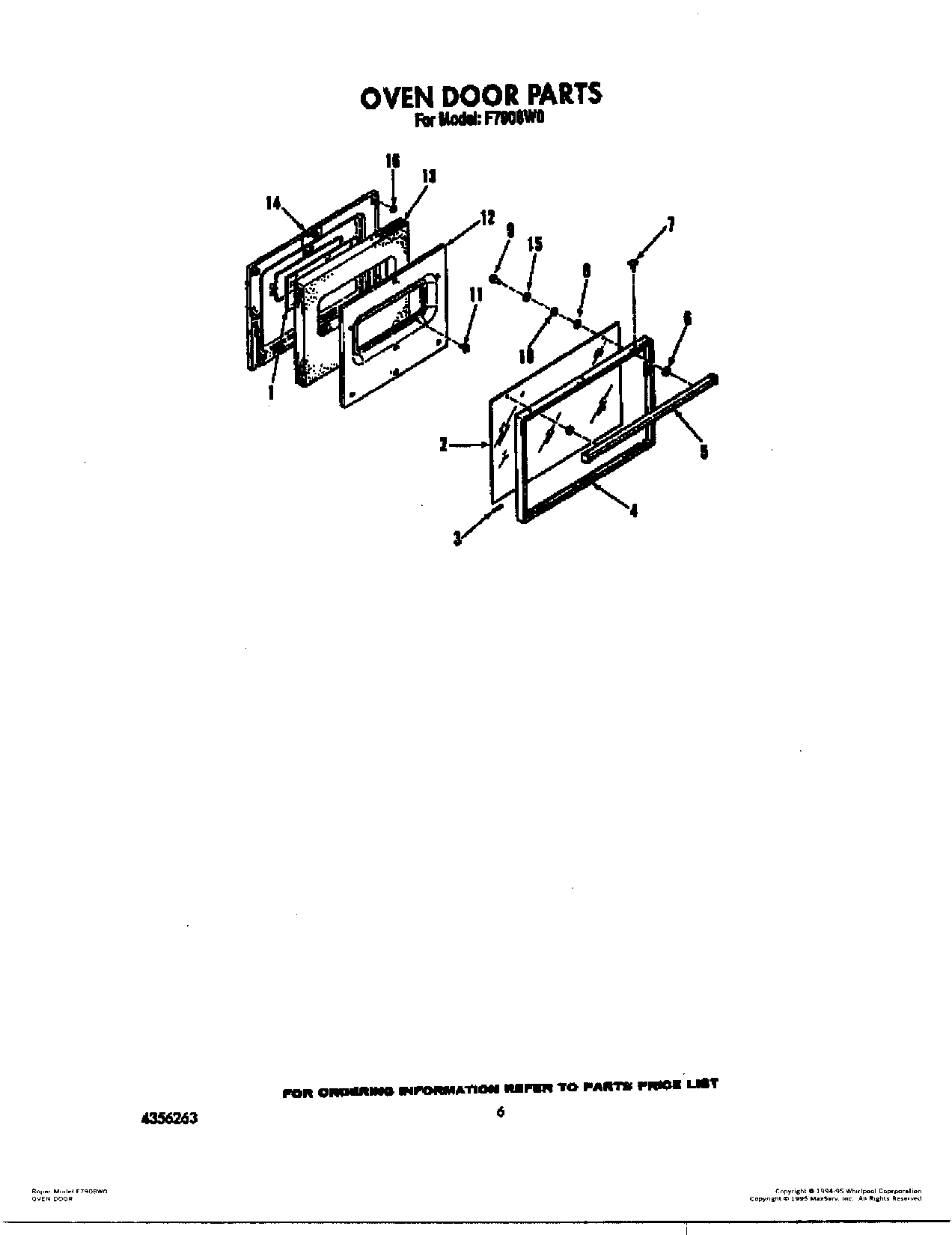

05 - OVEN DOOR
Common parts from model Whirlpool F7908W0
1
Medallion (4) WPL 4332691 Contact Us For Availability
1
Glass, Inner WPL 4334792 Contact Us For Availability
2
Wire Raceway WPL 4337189 Contact Us For Availability
2
Wire Shield, Upper WPL 4335208 Contact Us For Availability
2
Glass, Outer WPL 4336721 Contact Us For Availability
3
Cover, Raceway WPL 4337190 Contact Us For Availability
3
Wire Shield WPL 4337567 Contact Us For Availability
3
Screw, No.7-32 x 5/16 WPL 4327985 Contact Us For Availability
3
Cushion WPL 4324217 Contact Us For Availability
4
End Cap (Right) WPL 4337047 Contact Us For Availability
4
End Cap (Left) WPL 4337048 Contact Us For Availability
4
Insulation WPL 4354750 Contact Us For Availability
4
Frame WPL 4336720 Contact Us For Availability
5
Support, Backguard (Right) WPL 4337180 Contact Us For Availability
5
Support, Backguard (Left) WPL 4337181 Contact Us For Availability
5
Handle WPL 4336828 Contact Us For Availability
6
Clip, Backguard WPL 4338226 Contact Us For Availability
6
Screw, No.10-32x1 WPL 4331572 Contact Us For Availability
6
Spacer, Handle WPL 4323997 Contact Us For Availability
7
Strap, Ground WPL 4335219 Contact Us For Availability
7
Screw WPL 4336631 Contact Us For Availability
8
Ballast WPL 4323673 Contact Us For Availability
8
Nut, Hex 10-32 WPL 4323653 Contact Us For Availability
8
Washer WPL 4336868 Contact Us For Availability
9
Screw, No.6-20 x 3/8 WPL 4336048 Contact Us For Availability
9
Washer WPL 4327921 Contact Us For Availability
9
Cooktop (White) WPL 4338445 Contact Us For Availability
9
Cooktop (Almond) WPL 4338446 Contact Us For Availability
10
Screw No.10-32x7/16 WPL 4331573 Contact Us For Availability
10
Spacer, Glass WPL 4336869 Contact Us For Availability
11
Insulator WPL 4335209 Contact Us For Availability
11
Support Rod (2) WPL 4336765 Contact Us For Availability
11
Screw, No.10-32x17/32`` WPL 4323884 Contact Us For Availability
12
Body, Backguard WPL 4338272 Contact Us For Availability
12
Wire Cover, Lower WPL 4335222 Contact Us For Availability
12
Retainer WPL 4335755 Contact Us For Availability
13
Mounting Plate WPL 4335223 Contact Us For Availability
13
Hinge - Main Top (Left) WPL 4337071 Contact Us For Availability
13
Hinge - Main Top (Right) WPL 4337119 Contact Us For Availability
13
Insulation WPL 4354748 Contact Us For Availability
14
Insulation, Back WPL 4354753 Contact Us For Availability
14
Bottom, Burner Box WPL 4336908 Contact Us For Availability
14
Lining, Oven Door WPL 4343222 Contact Us For Availability
15
Indicator Light WPL 4336633 Contact Us For Availability
15
Main Back WPL 4337044 Contact Us For Availability
15
Screw, No.10-32 x 1/2 WPL 4325569 Contact Us For Availability
15
Washer WPL 4323694 Contact Us For Availability
16
Starter, Lamp WPL 4337125 Contact Us For Availability
16
Side Insulation Retainer, Lt/Rt WPL 4335889 Contact Us For Availability
16
Trim, Main Top (Right) WPL 4337207 Contact Us For Availability
16
Trim, Main Top (Left) WPL 4337208 Contact Us For Availability
16
Wire Harness (Eyelet Terminal) WPL 4325031 Contact Us For Availability
16
Wire Harness (Flag Terminal Faston Terminal) WPL 4325033 Contact Us For Availability
16
Wire Harness (3/16``) WPL 4325036 Contact Us For Availability
16
Washer, Felt WPL 4337618 Contact Us For Availability
16
Wire Harness (Sensor) WPL 4337922 Contact Us For Availability
17
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
17
Lower Insulation Retainer WPL 4353950 Contact Us For Availability
17
Support Plate (2) WPL 4337590 Contact Us For Availability
18
Spacer, Expansion Nut WPL 4331381 Contact Us For Availability
19
Bracket, Backguard WPL 4337555 Contact Us For Availability
19
Base W/Levelers, Lt/Rt WPL 4337332 Contact Us For Availability
20
Screw, No.10-32 x 1/2 WPL 4337623 Contact Us For Availability
20
Levelers, Leg (4) WPL 4334800 Contact Us For Availability
21
Starter Base WPL 4337372 Contact Us For Availability
22
Oven Door Hinge (Right) WPL 4354928 Contact Us For Availability
22
Oven Door Hinge (Left) WPL 4354929 Contact Us For Availability
23
Oven Door Spring Lt/Rt (2) WPL 4337280 Contact Us For Availability
24
Knob, Infinite WPL 4337246 Contact Us For Availability
24
Side Body (Lt/Rt) (White) WPL 4342569 Contact Us For Availability
24
Side Body (Lt/Rt) (Almond) WPL 4342570 Contact Us For Availability
25
Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability
25
Screw No.8x5/8 WPL 4331822 Contact Us For Availability
26
Lamp Holder WPL 4337139 Contact Us For Availability
26
Rear Slide Block (Lt/Rt) WPL 4325731 Contact Us For Availability
27
Knob, Clock/Oven Control WPL 4338513 Contact Us For Availability
27
Screw, No.8-32 x 3/8 WPL 4323796 Contact Us For Availability
28
Control Panel WPL 4338505 Contact Us For Availability
28
Drawer Support, (Lt/Rt) WPL 4331092 Contact Us For Availability
29
Front Slide Block, Lt/Rt WPL 4325732 Contact Us For Availability
30
Lens, Clock/Oven Control WPL 4337553 Contact Us For Availability
30
Screw, No.10-32 x 17/32 WPL 4327611 Contact Us For Availability
31
Front Panel Storage Drawer (White) WPL 4336747 Contact Us For Availability
31
Front Panel Storage Drawer (Almond) WPL 4336748 Contact Us For Availability
32
Clock/Oven Control w/Lens WPL 4338512 Contact Us For Availability
32
Handle WPL 4336754 Contact Us For Availability
33
Canopy Panel WPL 4337141 Contact Us For Availability
33
Screw, No.10-32 x 1/2 WPL 4337797 Contact Us For Availability
34
Spacer, Infinite Control WPL 4338452 Contact Us For Availability
34
Element, Bake (240 Volt) WPL 4334756 Contact Us For Availability
34
Bake Element (208 Volt) WPL 4334927 Contact Us For Availability
35
Wire Clip WPL 4338244 Contact Us For Availability
35
Installation Guide WPL 4348089 Contact Us For Availability
35
Use & Care Manual WPL 4348391 Contact Us For Availability
35
Repair Parts List WPL 4356263 Contact Us For Availability
35
Drawer, Storage WPL 4327658 Contact Us For Availability
36
Oven Body WPL 4337960 Contact Us For Availability
37
Tube, Vent WPL 4337058 Contact Us For Availability
38
Seal, Oven Door WPL 4331799 Contact Us For Availability
39
Frame, Front WPL 4337118 Contact Us For Availability
42
Washer WPL 4323979 Contact Us For Availability
46
Oven Rack (Folding) WPL 4338333 Contact Us For Availability
46
Oven Rack (Non-Folding) WPL 4354754 Contact Us For Availability
48
Support, Broil Element WPL 4337249 Contact Us For Availability
50
Wire Shield WPL 4336373 Contact Us For Availability
55
WPL 4338291 WPL 4338291 Contact Us For Availability
56
WPL 4337678 WPL 4337678 Contact Us For Availability
× ![]()
