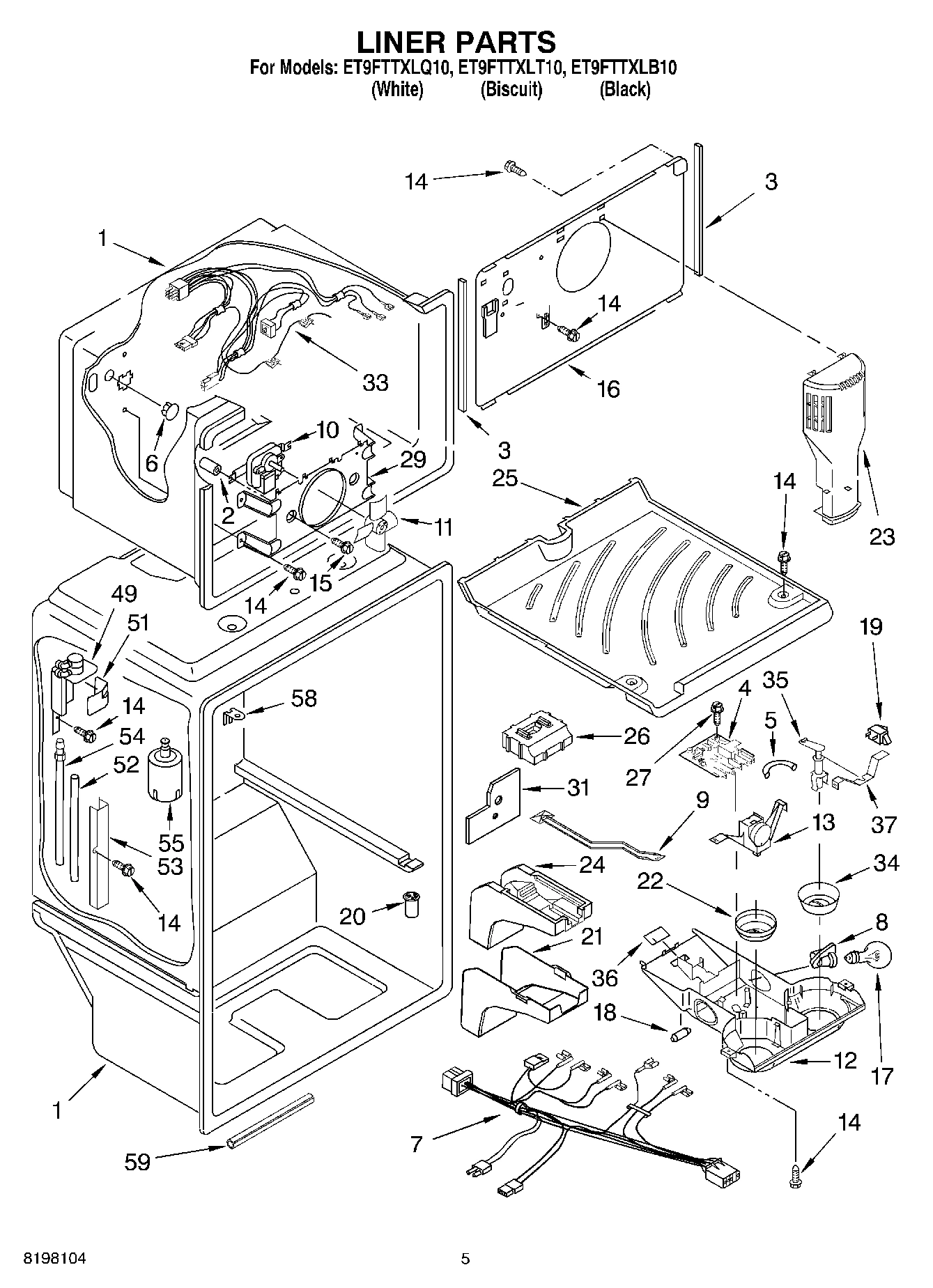

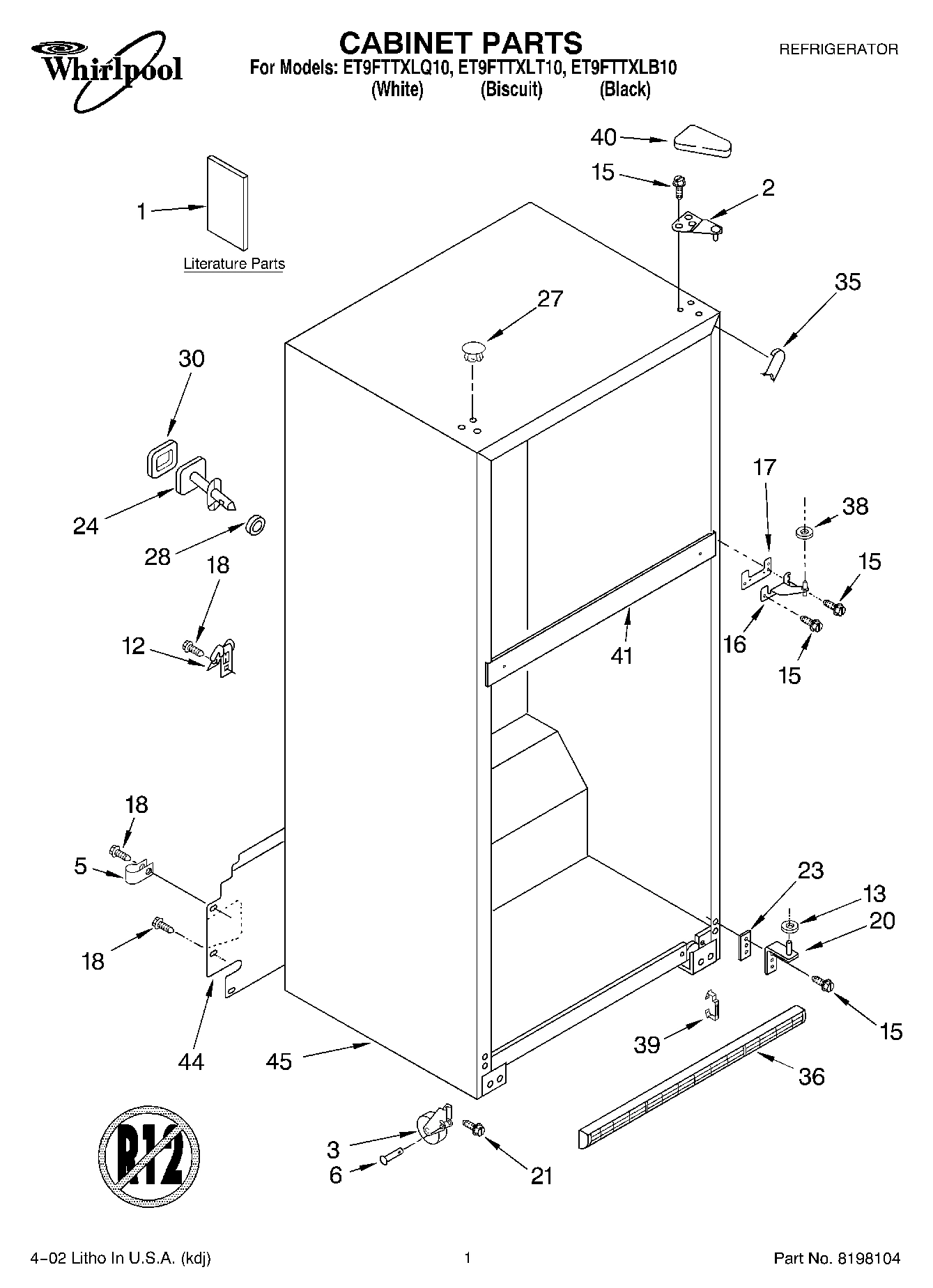

Model Whirlpool ET9FTTXLT10 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Housing, Dispenser WPL 2219617 Contact Us For Availability

1

Plate, Unit Mounting WPL 2205341 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

Button, Dispenser WPL 2210567 Contact Us For Availability

2

Frame Assembly WPL 2214908 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $141.72

3

WP2314548 Whirlpool Refrigerator Cover Backorder WPL WP2314548 $101.54

3

Tray, Door WPL 2159302 Contact Us For Availability

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $93.60

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $58.39

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Wire Assembly WPL 2187291 Contact Us For Availability

5

Evaporator Assy. WPL 2195391 Contact Us For Availability

5

Shelf, Ladder WPL 2202821 Contact Us For Availability

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

6

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

7

Shield, Switch WPL 2210547 Contact Us For Availability

7

Drain Pan WPL 2172619 Contact Us For Availability

8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

8

285006 Whirlpool Spray In Stock WPL 285006 $28.82

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

8

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

8

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

8

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

8

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

8

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $96.93

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $73.09

8

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

8

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

8

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

8

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

8

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

8

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

Torx Key WPL 1117510 Contact Us For Availability

8

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

8

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

8

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

8

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

8

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

9

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $95.15

9

Bracket, Heater WPL 2176301 Contact Us For Availability

10

WP2169921 Whirlpool Refrigerator Glass Shelf In Stock WPL WP2169921 $124.16

10

WPW10498990 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10498990 $91.66

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

Support Block WPL 2201184 Contact Us For Availability

11

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

13

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $35.14

13

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

13

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $85.99

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

15

8201647 Whirlpool Refrigerator Start Device Backorder WPL 8201647 $71.60

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

16

Strap WPL 2212997 Contact Us For Availability

16

Slide Pan WPL 2214892 Contact Us For Availability

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP3400065 Whirlpool Refrigerator Screw In Stock WPL WP3400065 $2.51

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

18

Door Bin (3) WPL 2204811 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

19

Clip, Heater WPL 2182338 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Glass, Half Shelf WPL 2214912 Contact Us For Availability

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $16.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Shelf Assembly WPL 2214908K Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

Pan Shelf, Cantilever WPL 2214910 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

27

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

Installation Kit WPL 482801 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

31

Compartment Door WPL 2218109 Contact Us For Availability

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

42

Wire Assembly Unit WPL 2187385 Contact Us For Availability

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

45

Tube, Transition WPL 2212603 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $30.25

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $35.89

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

Evaporator Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
