Model Whirlpool ET9AHTXLQ00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

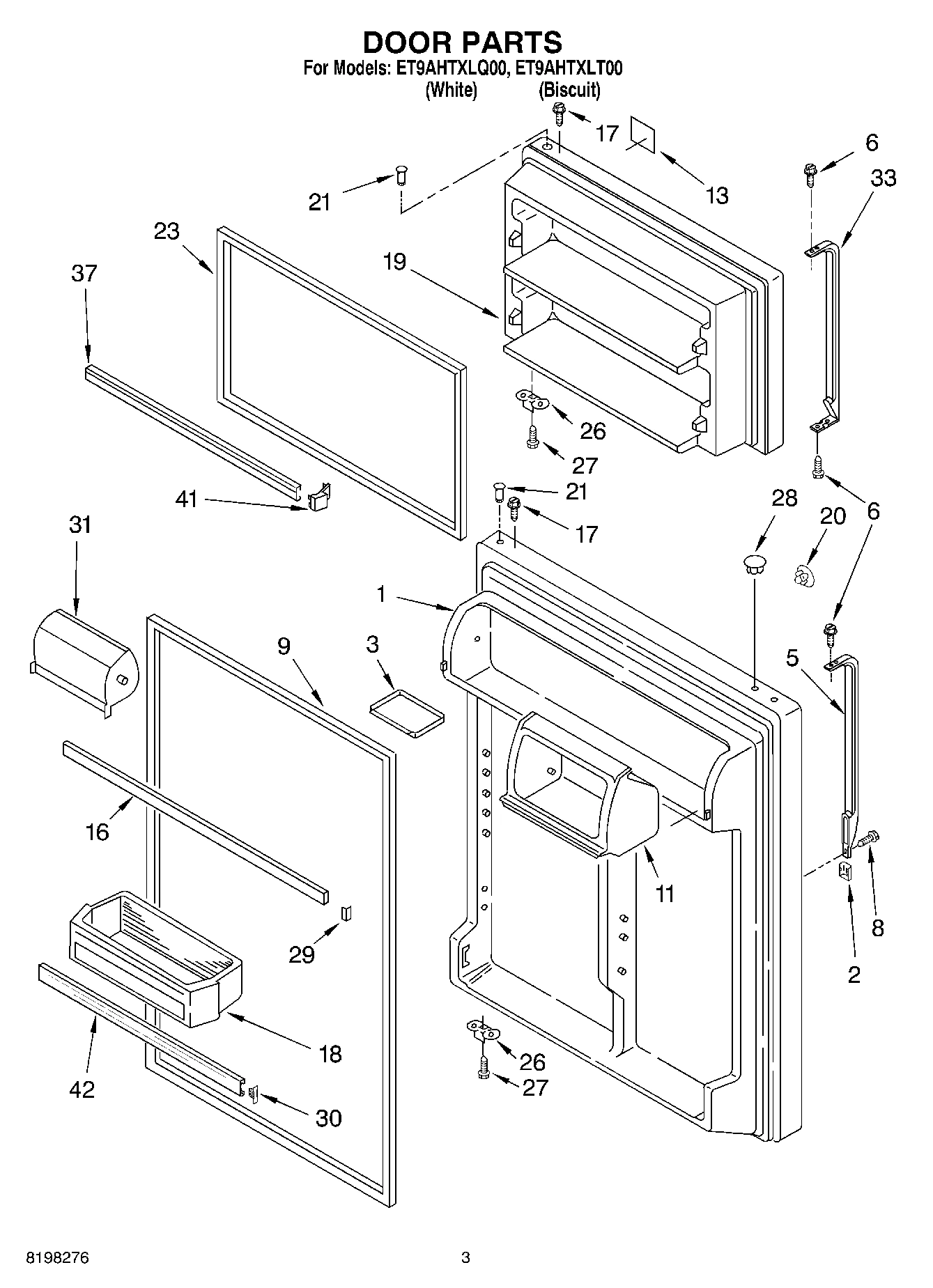

02 - DOOR

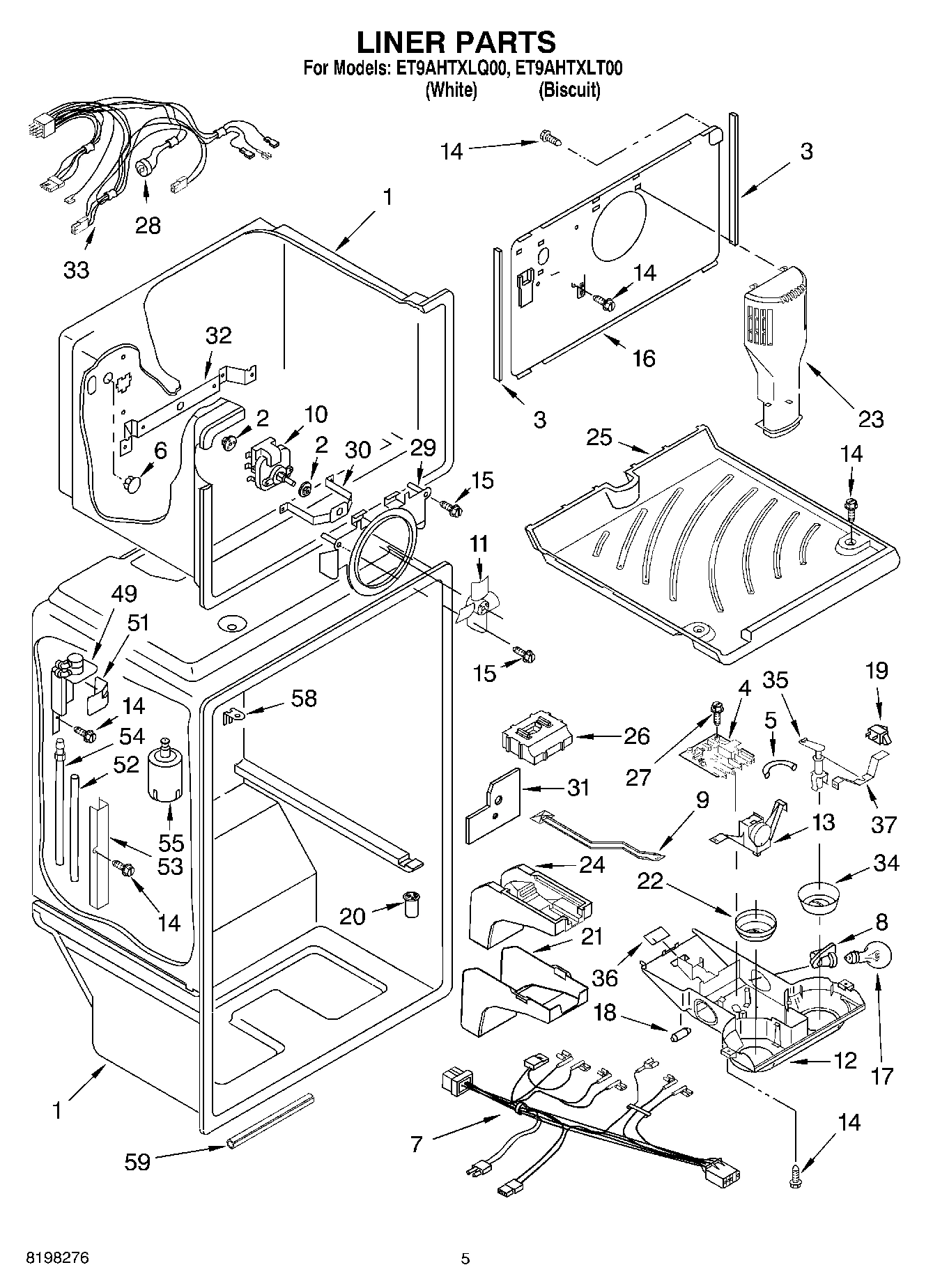

03 - LINER

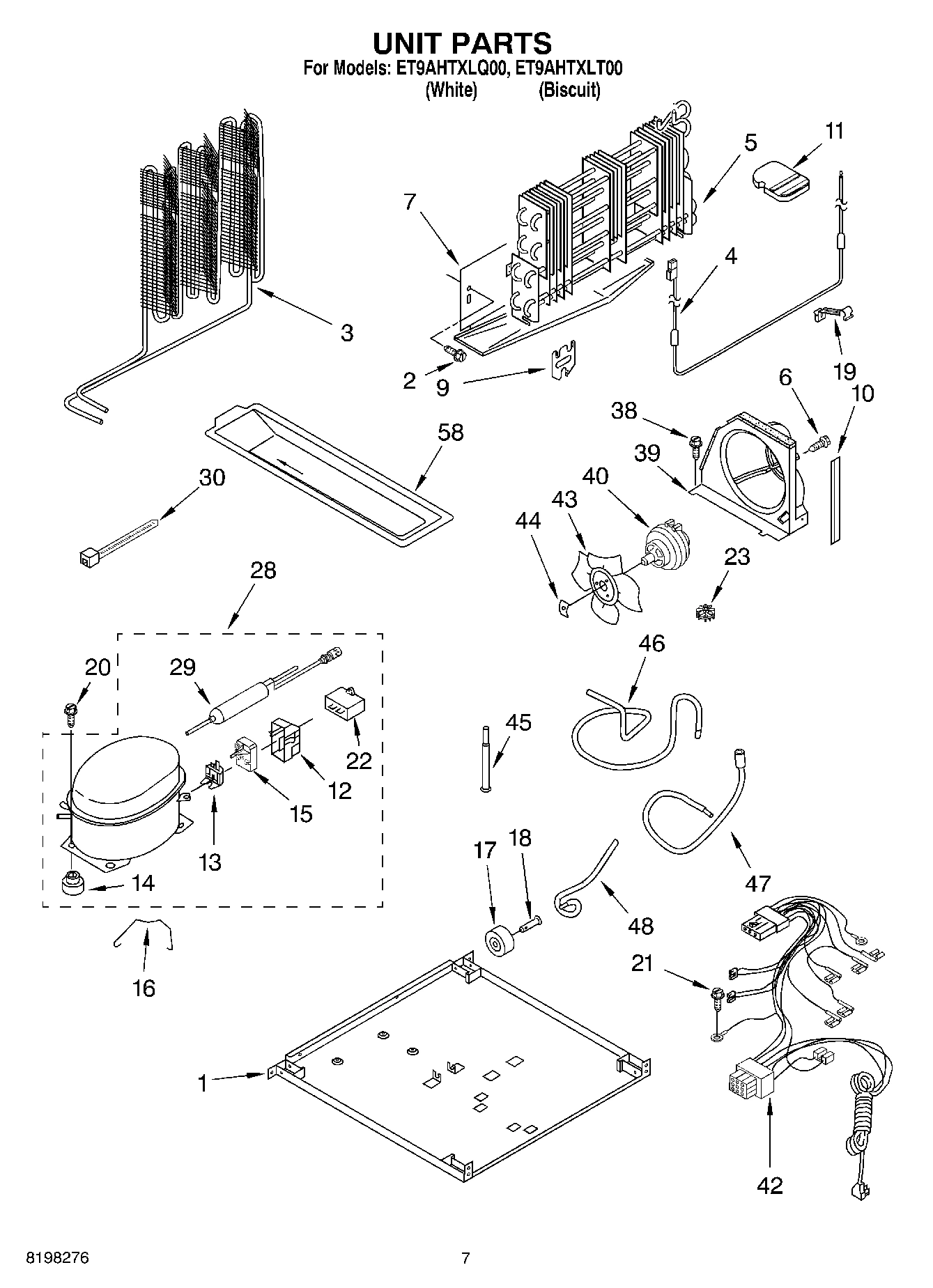

04 - UNIT

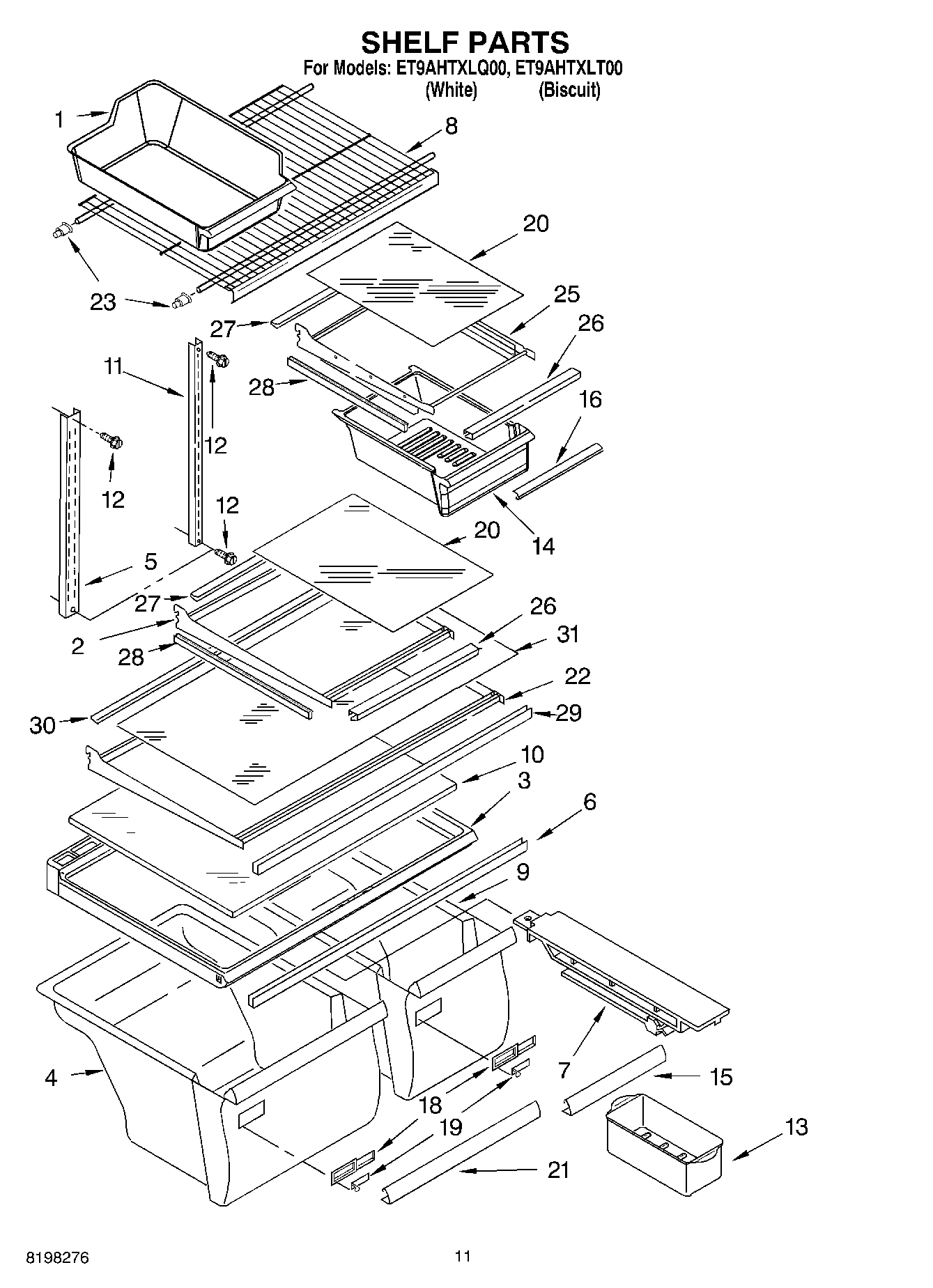

06 - SHELF

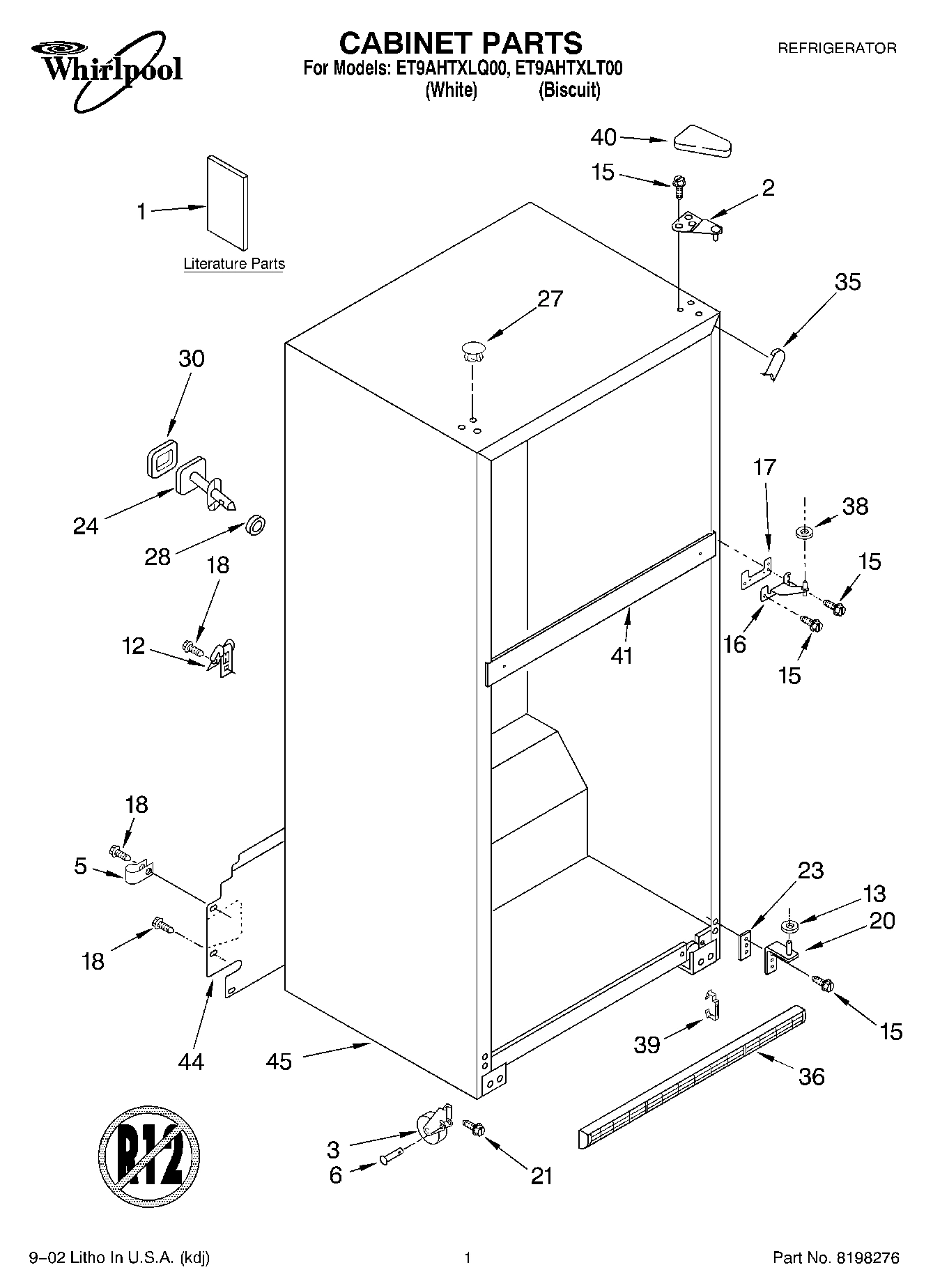

01 - CABINET, LITERATURE

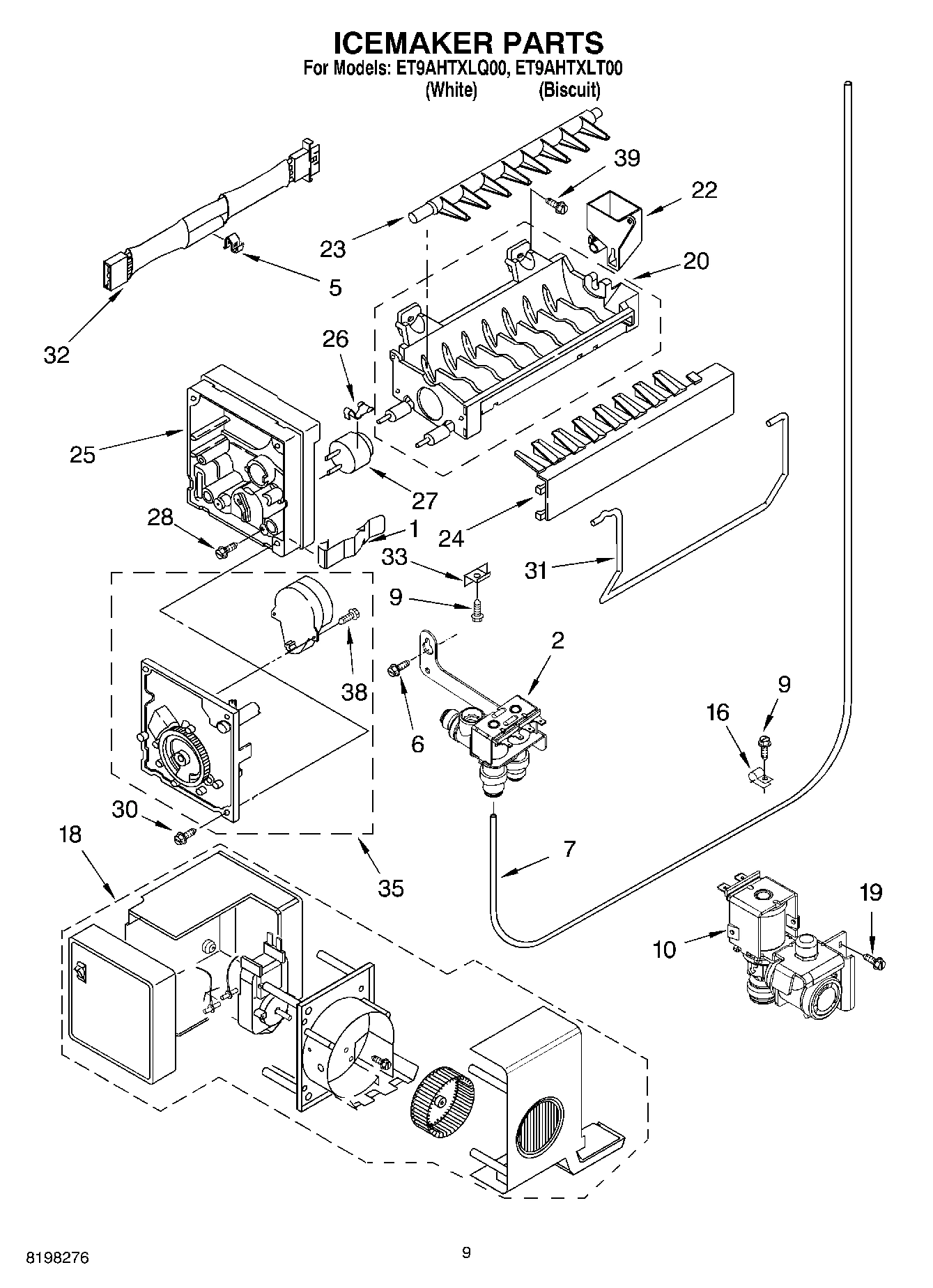

05 - ICE MAKER

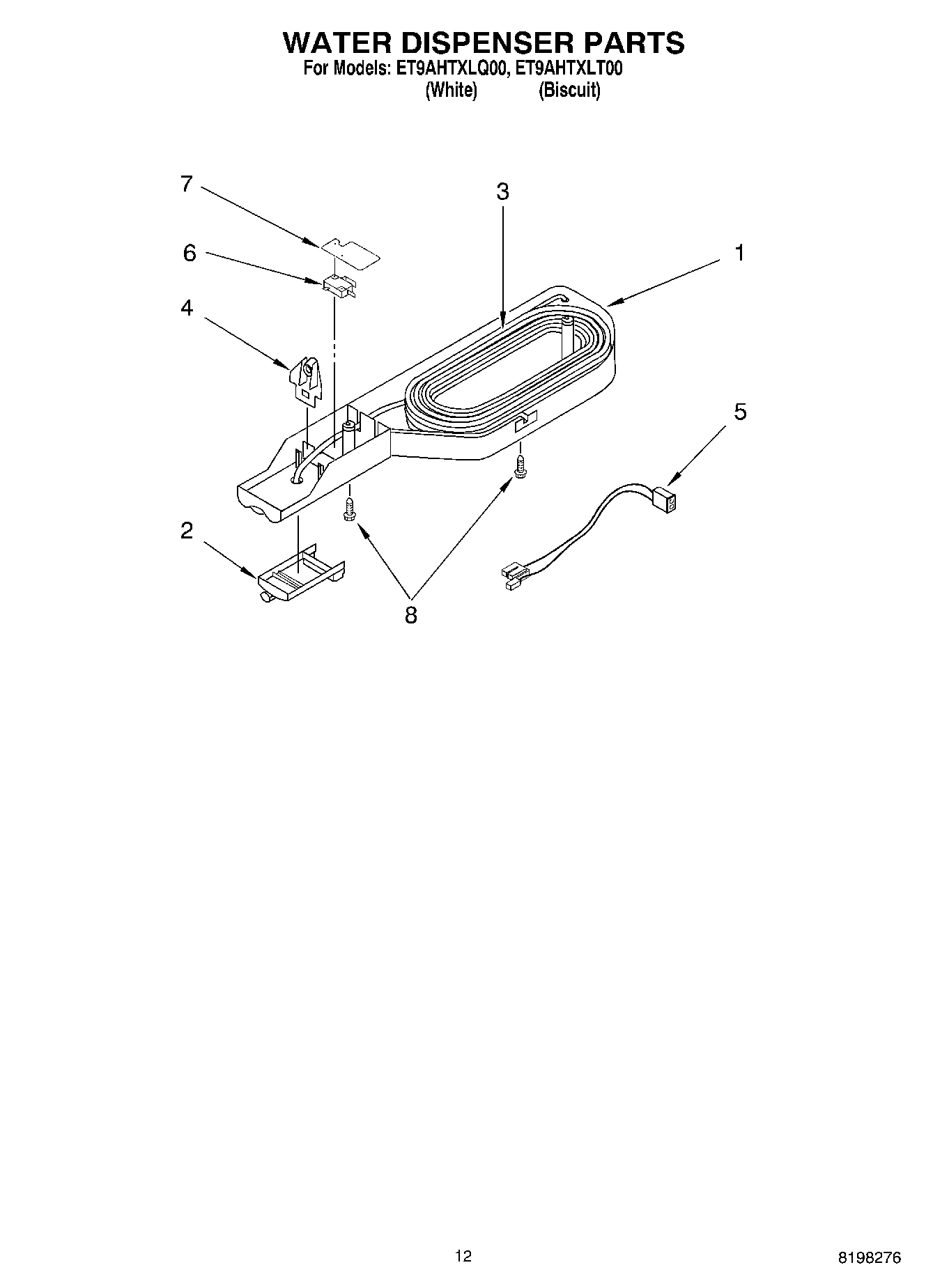

07 - WATER DISPENSER, OPTIONAL
Common parts from model Whirlpool ET9AHTXLQ00 TOP MOUNT REFRIGERATOR
1
Literature Parts (Instruction Sheet, Water Fi WPL LIT2210486 Contact Us For Availability
1
LITERATURE PARTS (Customer Quick Tips) WPL LIT2218340 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2218590 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2218878 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2225376 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability
1
Clip, Retainer WPL 2204881 Contact Us For Availability
1
Housing, Dispenser WPL 2219617 Contact Us For Availability
2
Shelf Assembly, Cantilever (Includes 20, 26, WPL 2201107K Contact Us For Availability
2
Button, Dispenser WPL 2210567 Contact Us For Availability
3
Tray, Door WPL 2159302 Contact Us For Availability
3
Reservoir, Tube WPL 2210513 Contact Us For Availability
4
Flange, Tube WPL 2210523 Contact Us For Availability
5
Wire Assembly WPL 2187291 Contact Us For Availability
7
Shield, Switch WPL 2210547 Contact Us For Availability
8
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
8
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
8
Torx Key WPL 1117510 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
8
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
8
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
8
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
11
Support Block WPL 2201184 Contact Us For Availability
11
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
15
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
16
Trim, Meat Pan WPL 2176356 Contact Us For Availability
18
Door Bin (3) WPL 2204811 Contact Us For Availability
18
Max Ice Assembly WPL 2221674 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Glass, Half Shelf WPL 2200985 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Shelf Assembly, Cantilever (Includes 29, 30, WPL 2201137 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI55022A6 Contact Us For Availability
25
Shelf Assembly, Meat Pan (Includes 20, 26, 27 WPL 2201111 Contact Us For Availability
26
Trim, Shelf Front WPL 2188525 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Trim, Shelf Side WPL 2188517 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI55023A6 Contact Us For Availability
29
Trim, Shelf (Front) WPL 2188690 Contact Us For Availability
30
Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI55024A6 Contact Us For Availability
31
Glass, Cantilever WPL 2177824 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI55025A8 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2221775 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI55026A8 Contact Us For Availability
58
Evaporator Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
