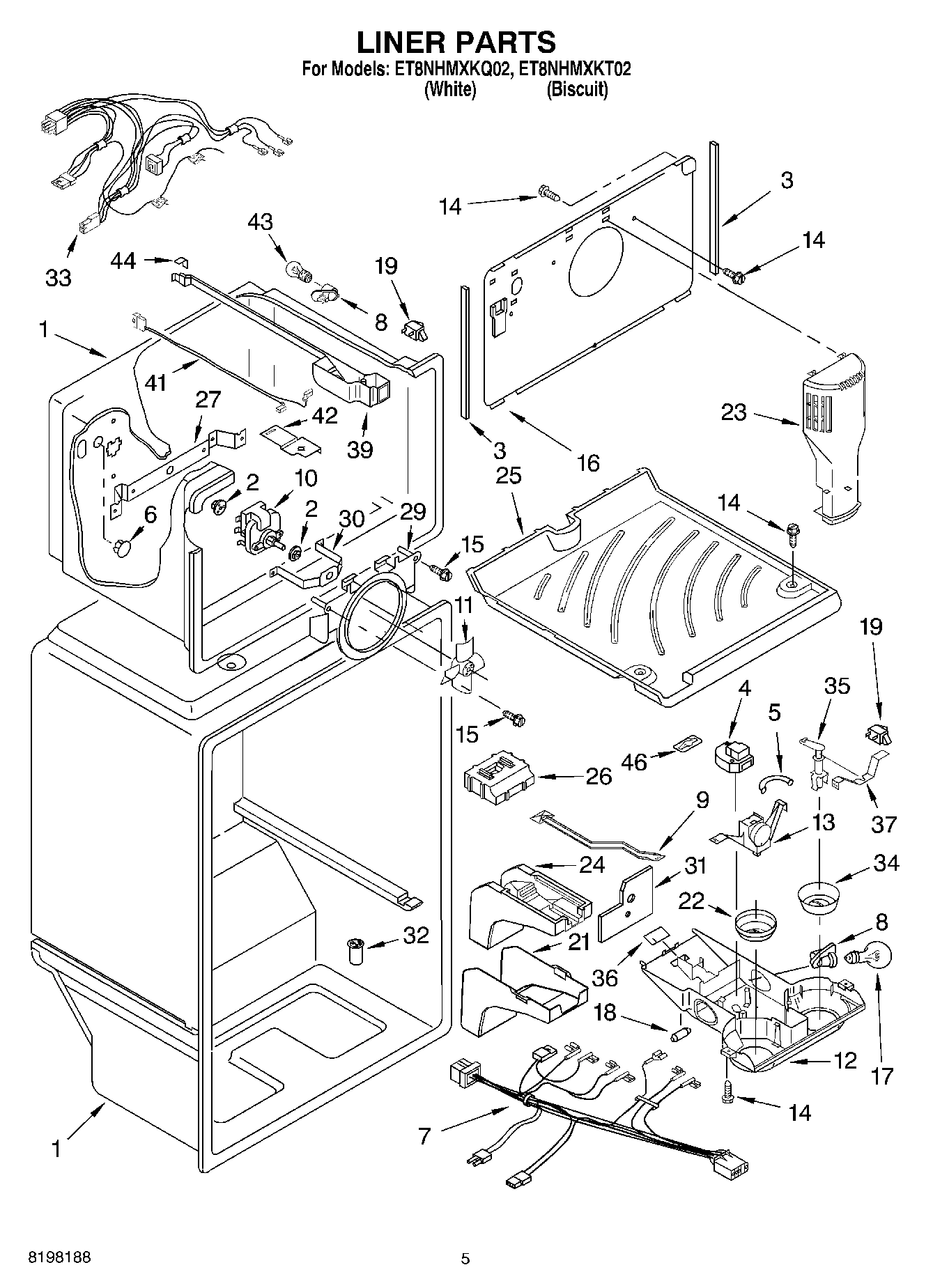

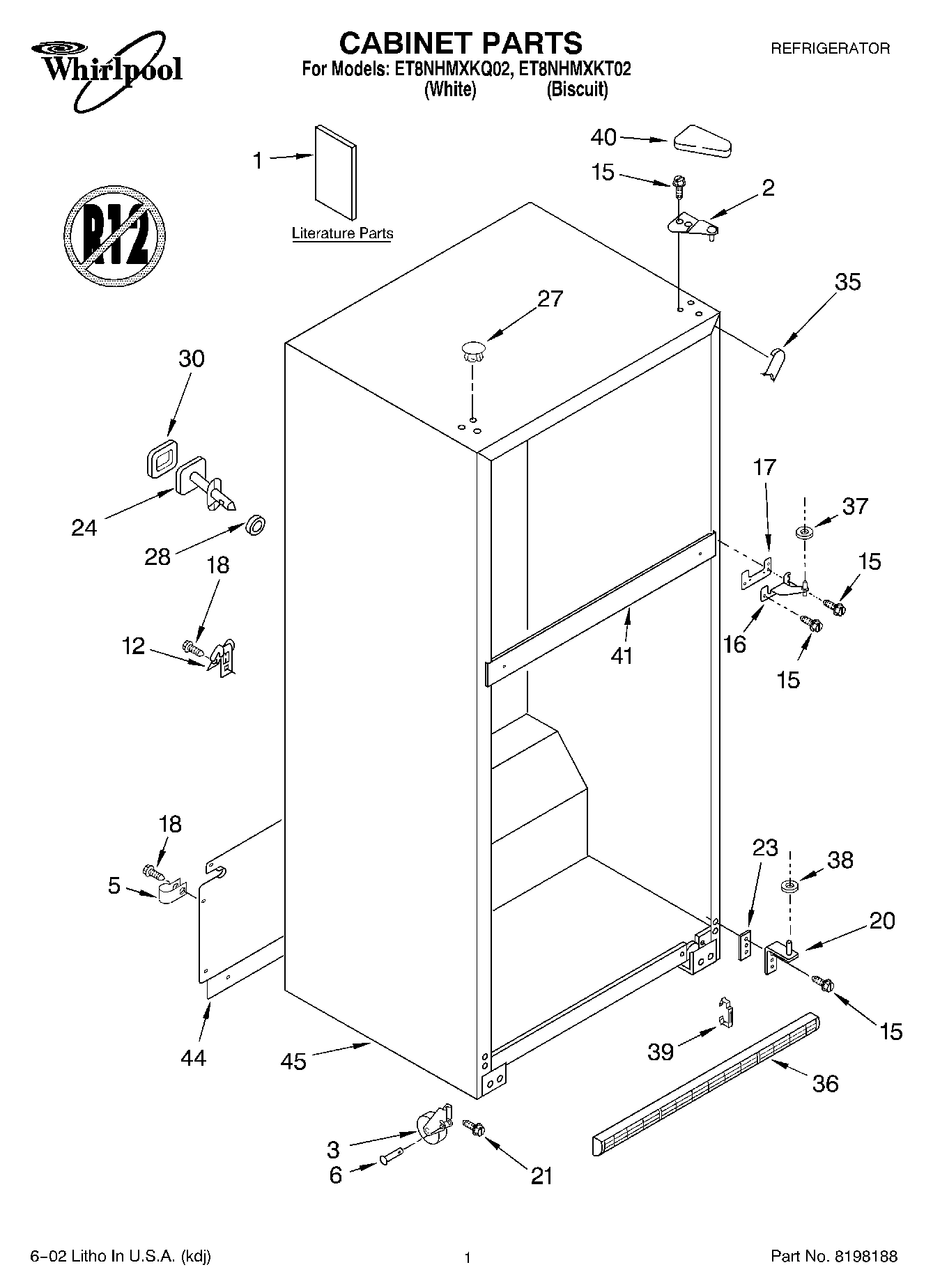

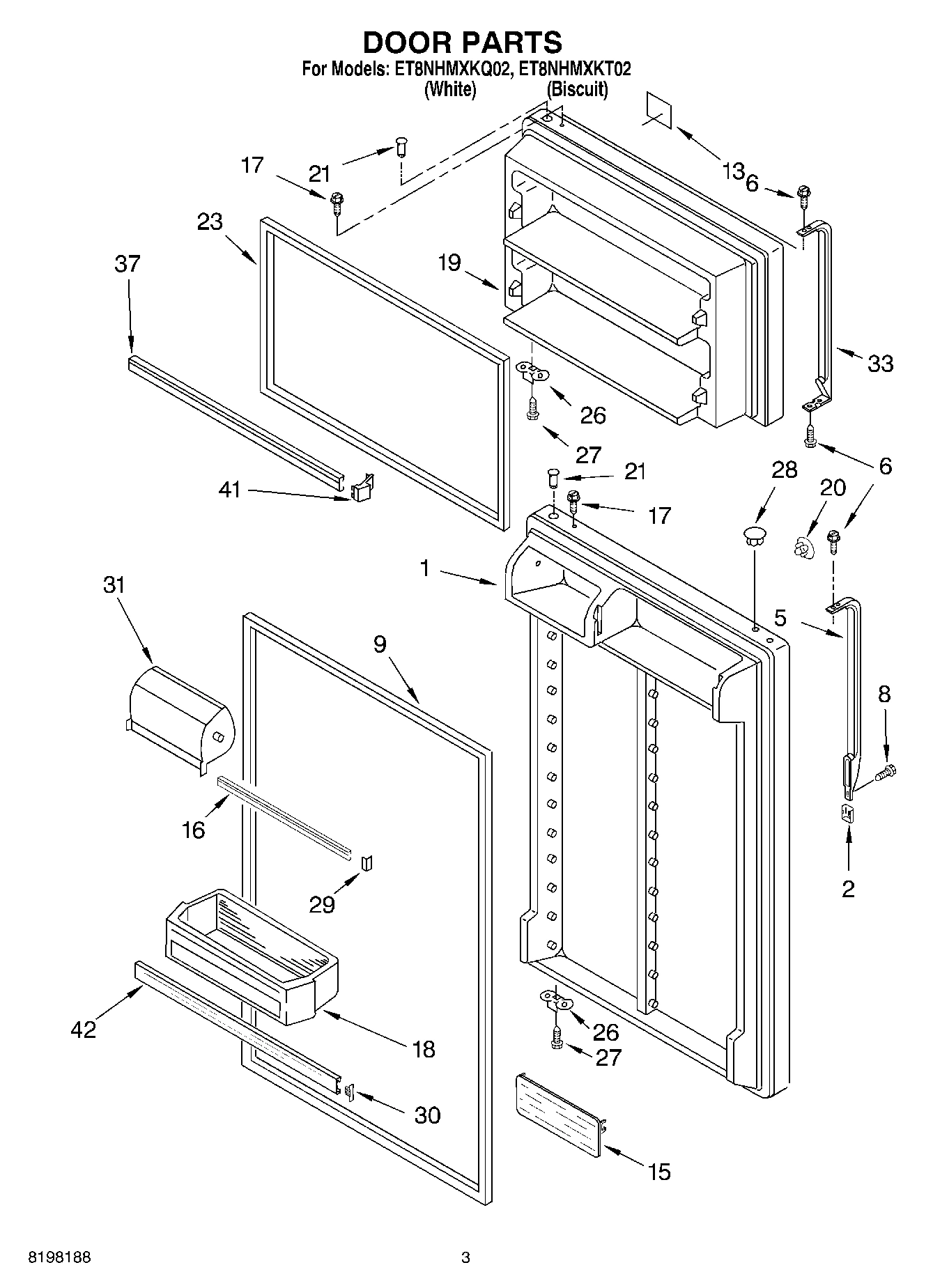

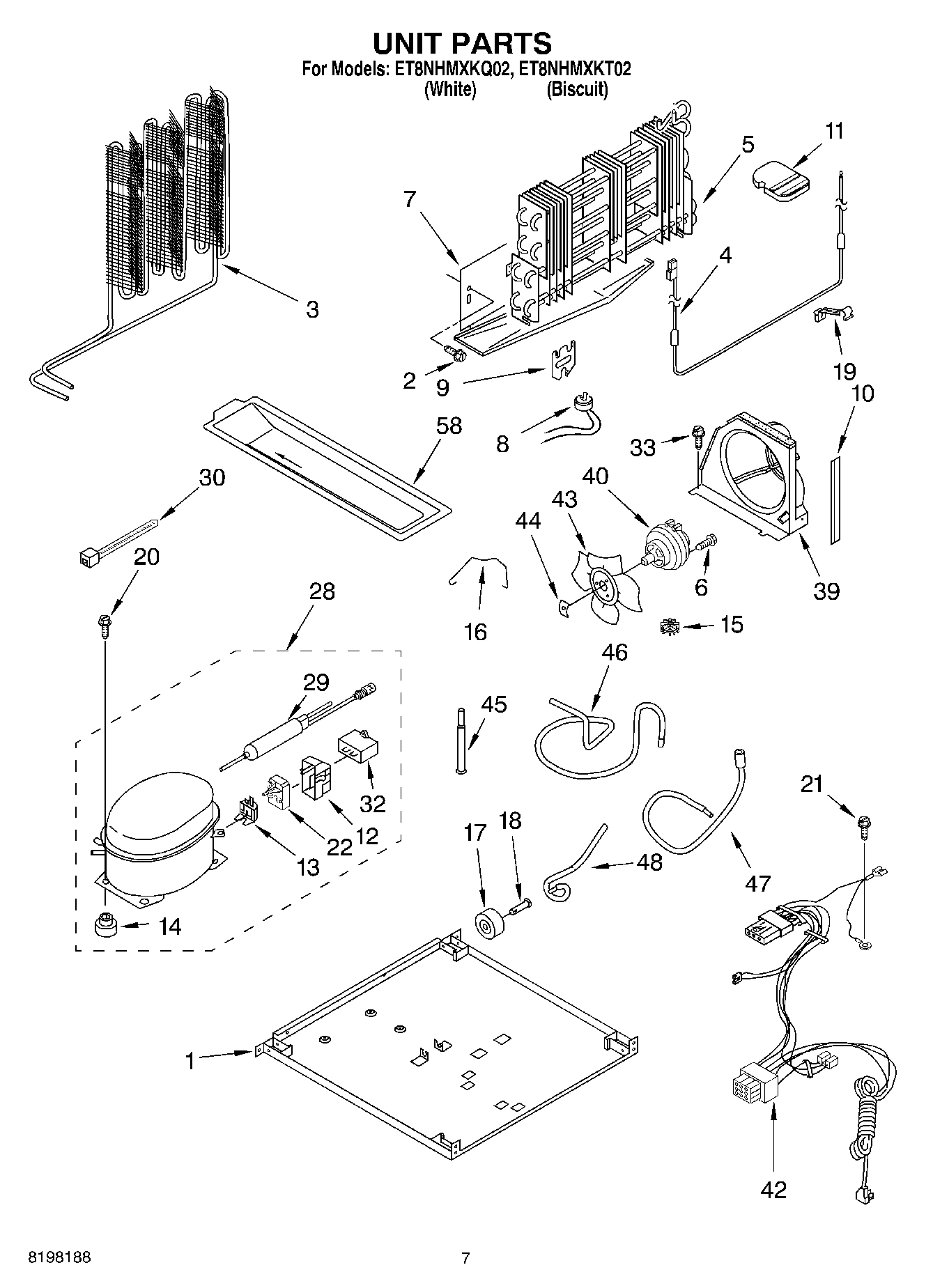

Model Whirlpool ET8NHMXKQ02 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Liner (Not A Serviceable Part) WPL ARI54166A3 Contact Us For Availability

2

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $31.90

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

2

Shelf, Cantilever WPL 2201107K Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

4

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

4

Timer, Defrost WPL 2188376 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

7

Wire Assy. Control Box WPL 2187306 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

9

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $90.63

9

Damper, Air WPL 2179858 Contact Us For Availability

10

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $118.25

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

11

Support Block WPL 2201184 Contact Us For Availability

12

Control Box WPL 2200820 Contact Us For Availability

13

WP4387938 Whirlpool Refrigerator Overload In Stock WPL WP4387938 $81.99

13

Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200830 Contact Us For Availability

14

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $81.90

15

WP2188234 Whirlpool Shelf Backorder WPL WP2188234 $29.43

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

16

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

16

Cover-Evaporator WPL 2201173 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

18

WP2204810 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204810 $47.62

18

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

21

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

21

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $12.08

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

23

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Fitting, Water Tube (Not Serviced) WPL ARI54161A3 Contact Us For Availability

25

Freezer Floor WPL 2172565 Contact Us For Availability

26

Air Diffuser, Top WPL 2179877 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

Bracket, Evap. Fan, Rear WPL 2214976 Contact Us For Availability

28

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

28

Seal, Front (Not Serviced) WPL ARI54162A2 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

29

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

30

Seal, Rear (Not Serviced) WPL ARI54163A1 Contact Us For Availability

31

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $25.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

31

Shield, heat WPL 2204639 Contact Us For Availability

32

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

Wire Assembly, Freezer Compartment WPL 2187568 Contact Us For Availability

34

Knob, Damper WPL 2176297 Contact Us For Availability

35

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

35

Post, Damper WPL 2179859 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

36

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

36

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

37

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Housing Base WPL 2201152 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

41

Rail Center (Not Serviced) WPL ARI54164A4 Contact Us For Availability

41

Wiring Harness, Freezer Light WPL 2221682 Contact Us For Availability

42

Electric Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2221775 Contact Us For Availability

44

Gasket, Rear WPL 2166284 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI54165A1 Contact Us For Availability

46

Tube, Discharge WPL 2205294 Contact Us For Availability

46

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

48

W11676464 Whirlpool Tube Backorder WPL W11676464 $37.81

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Evaporator Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
