Model Whirlpool ET22DQRDW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - COMPARTMENT SEPARATOR
04 - FREEZER DOOR

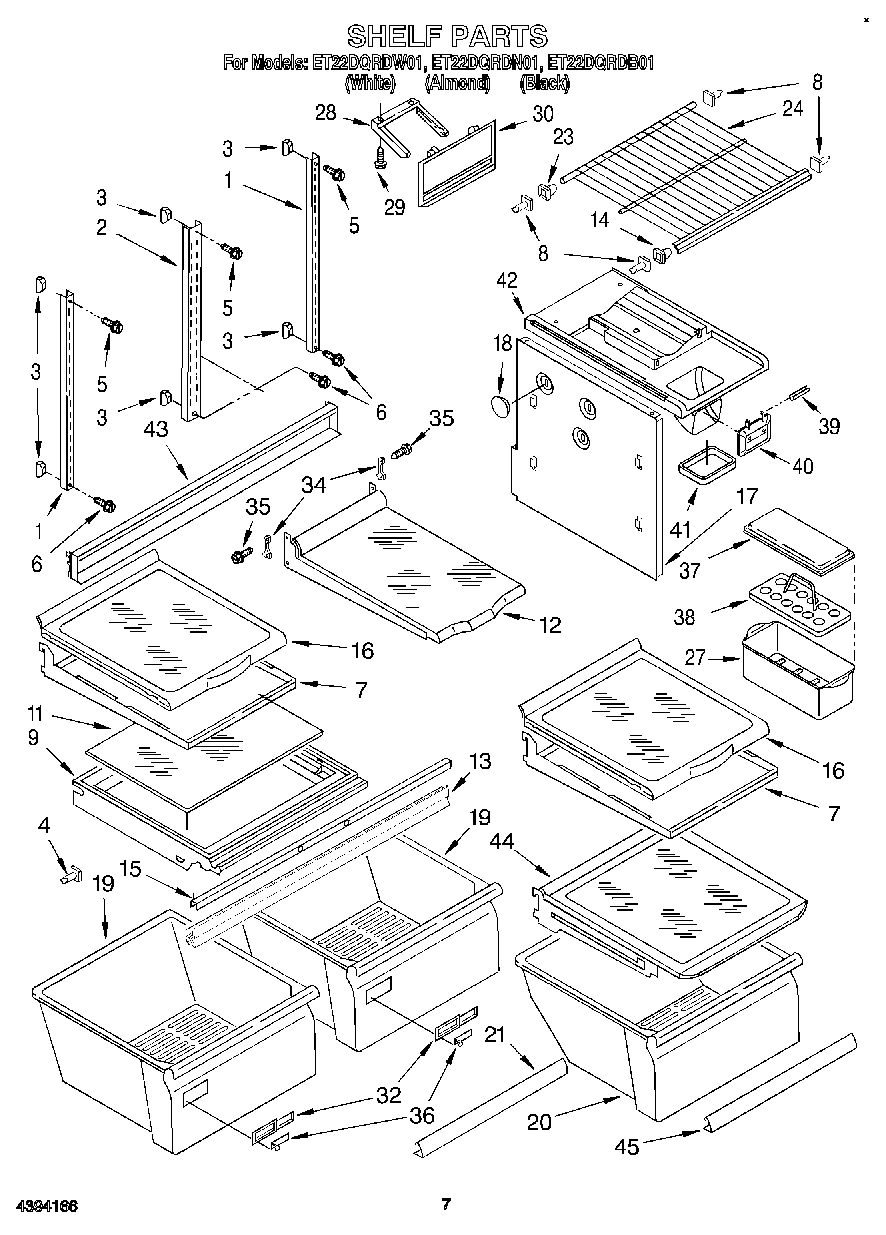

05 - SHELF, LIT/OPTIONAL

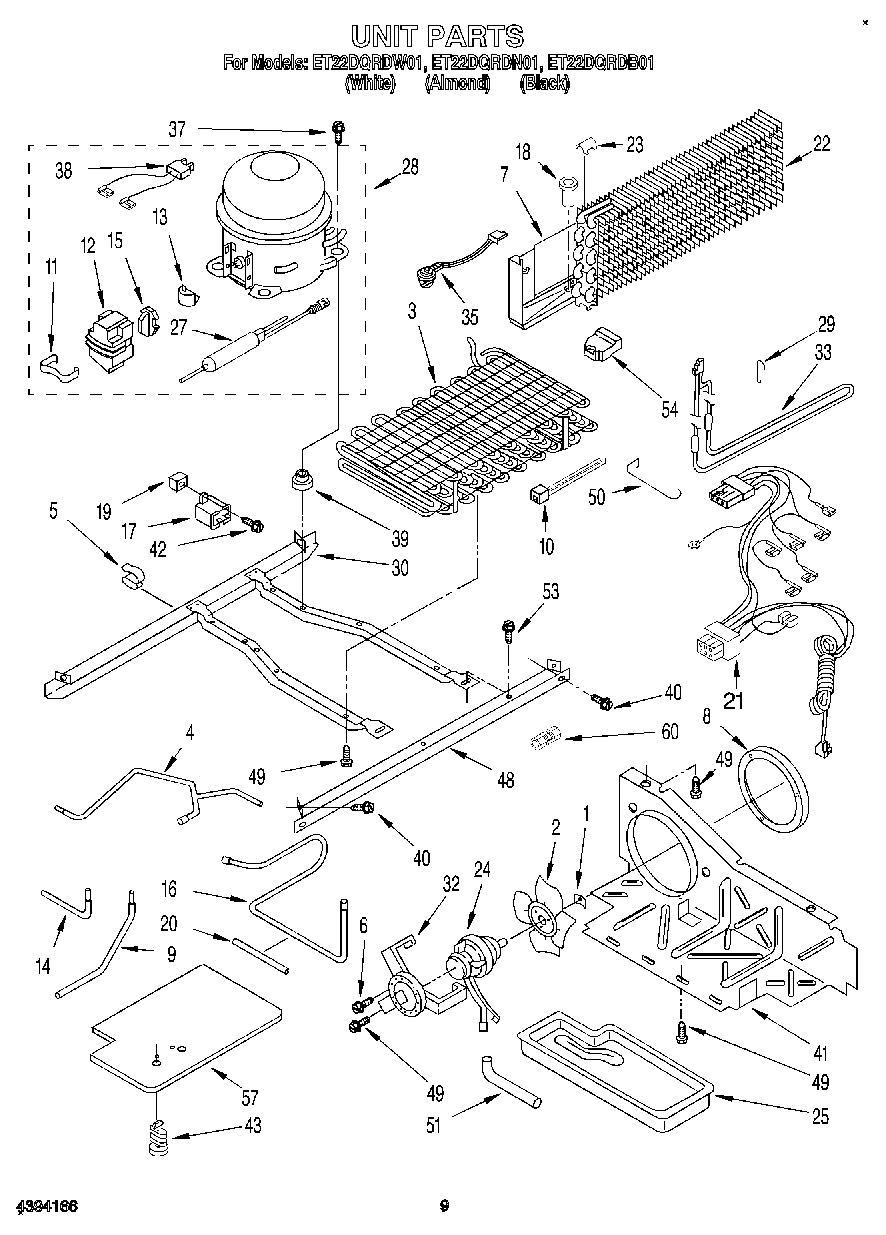

06 - UNIT

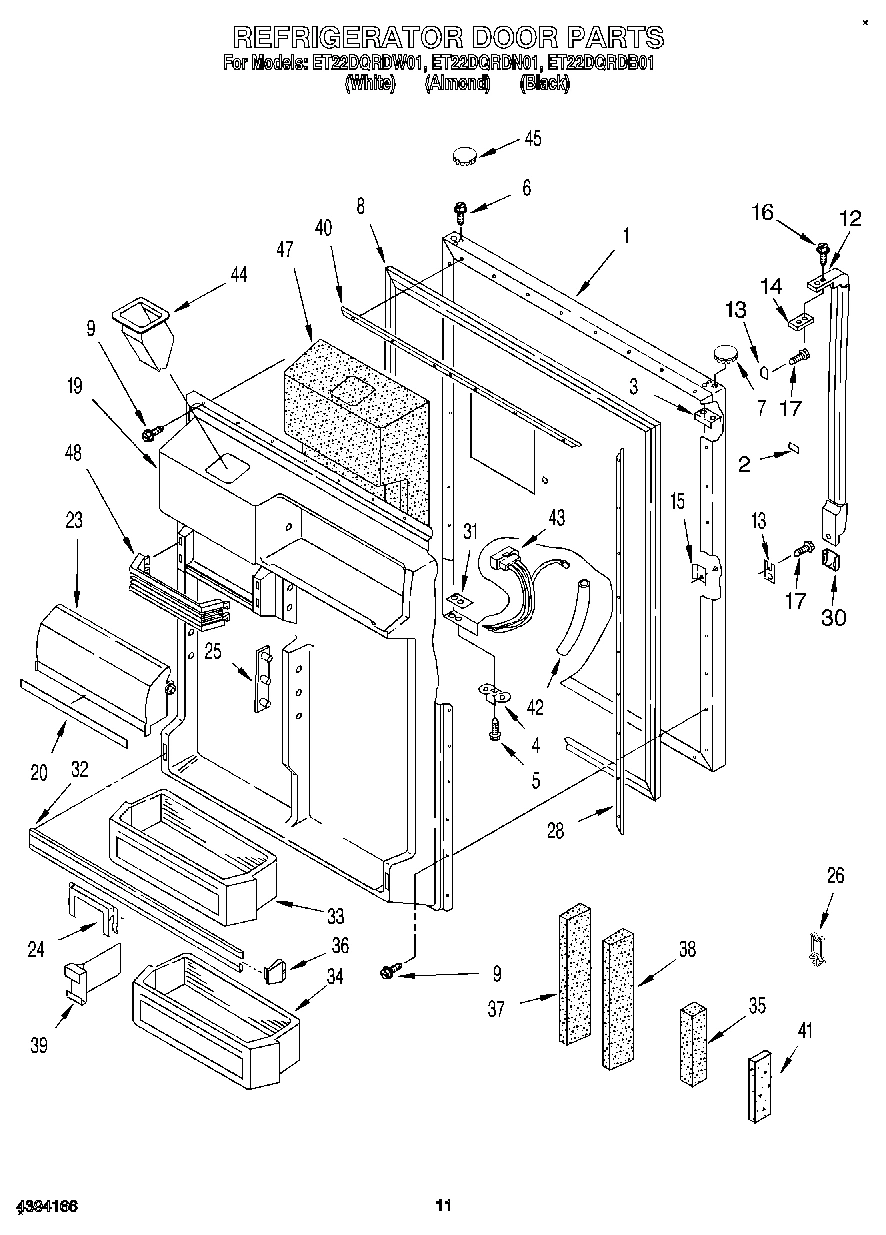

07 - REFRIGERATOR DOOR
02 - LINER

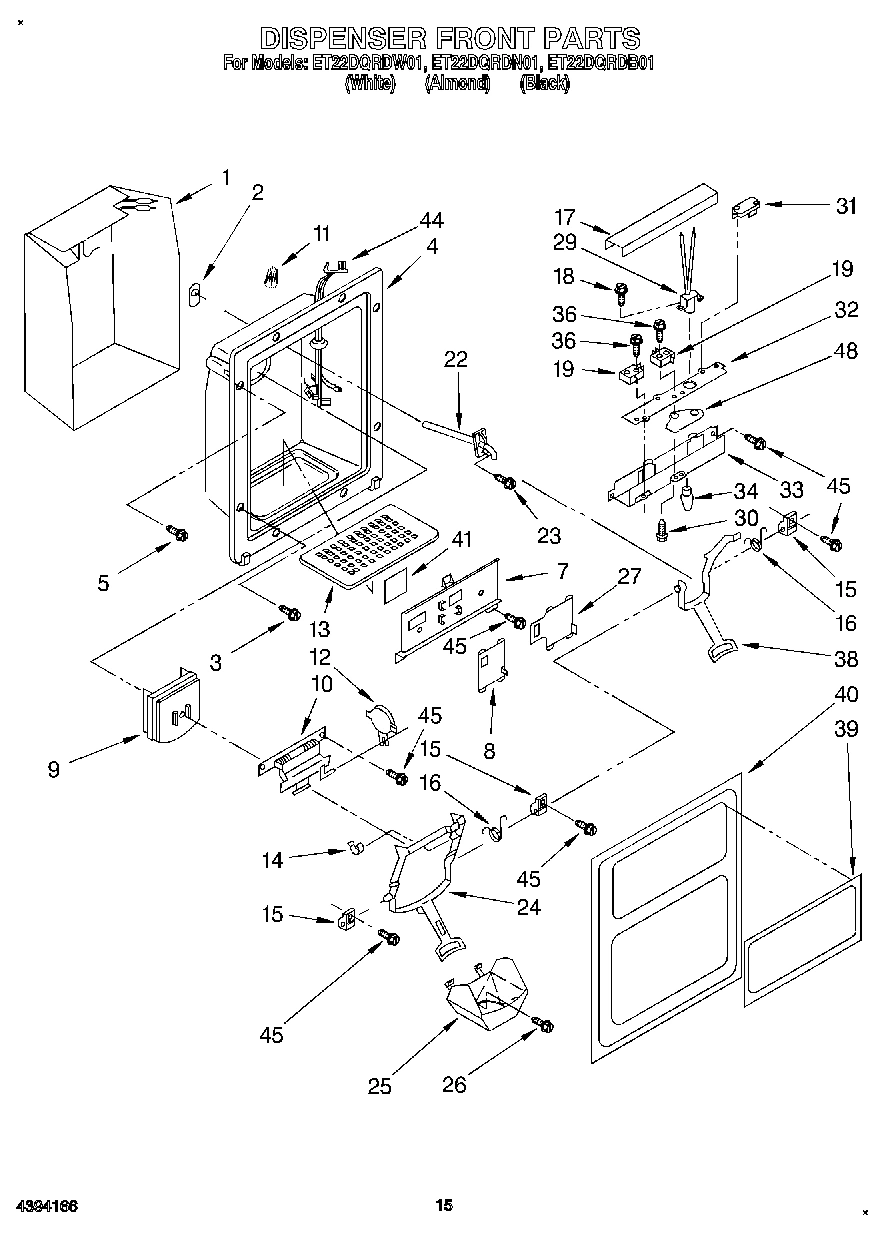

09 - DISPENSER FRONT

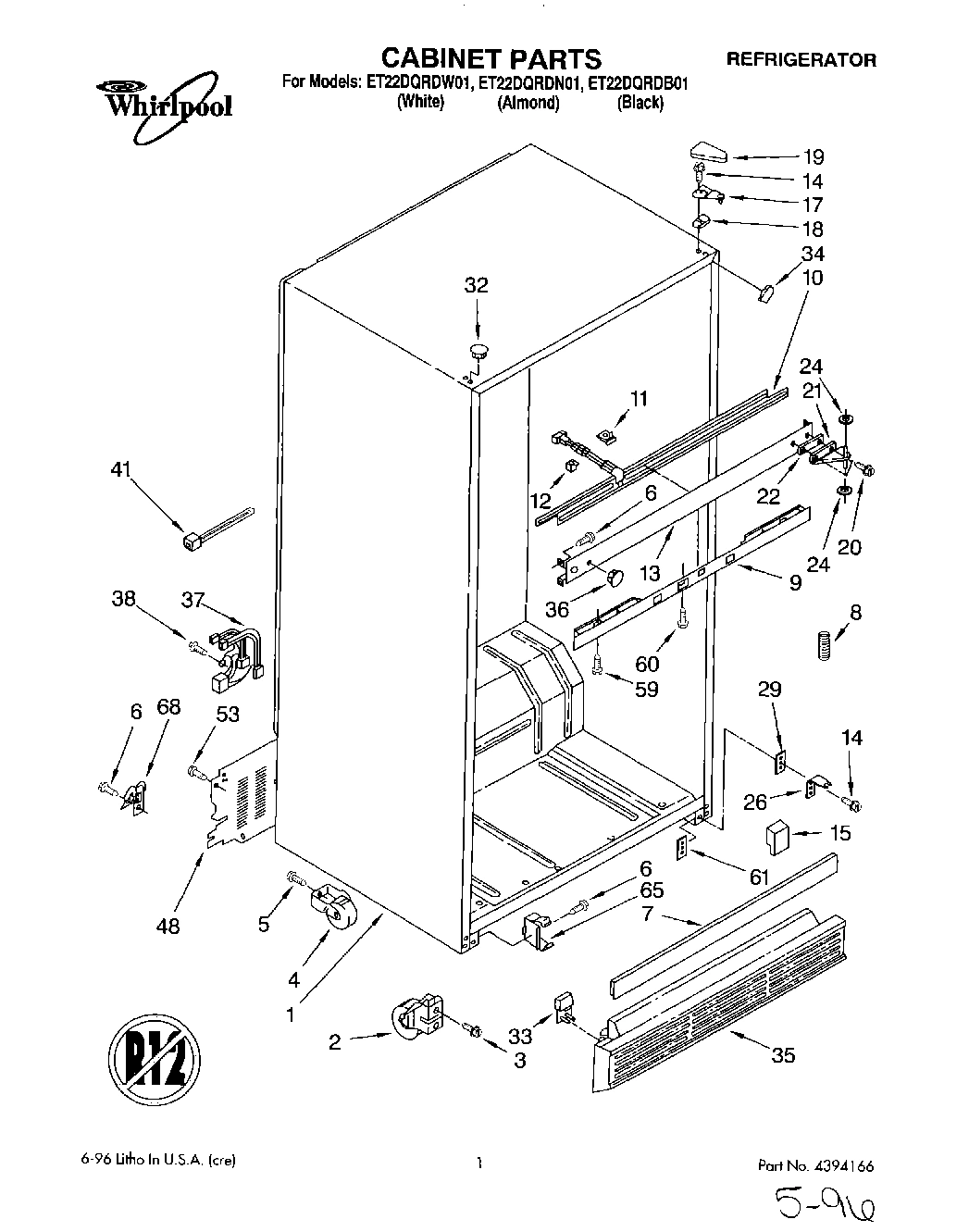

01 - CABINET

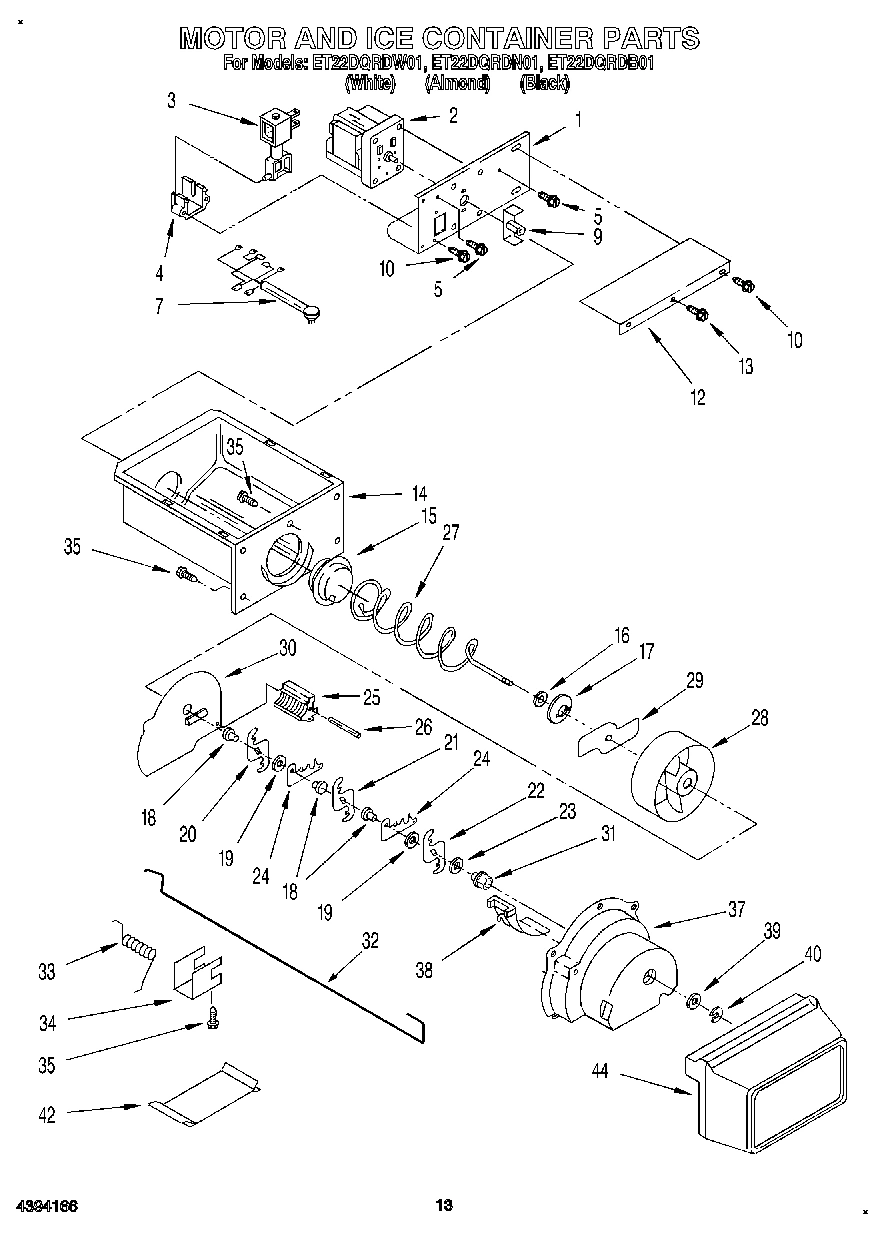

08 - MOTOR AND ICE CONTAINER
10 - ICEMAKER
Common parts from model Whirlpool ET22DQRDW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180090 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180091 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180092 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50110A7 Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50108A6 Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Shim, Handle WPL 2179398 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Shelf Stud (2) WPL 1106612 Contact Us For Availability
4
Tube, Discharge WPL 2162475 Contact Us For Availability
4
Bracket, Door Stop WPL 2155332 Contact Us For Availability
4
Grommet (2) WPL 2172803 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw WPL ARI50109A7 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Deck Rail Cover WPL 2172708 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
8
Ring, Fan Mounting WPL 549215 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
12
Handle, Door (White) WPL 2179311 Contact Us For Availability
12
Handle, Door (Almond) WPL 2179312 Contact Us For Availability
12
Handle, Door (Black) WPL 2179313 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Shim, Handle WPL 2183124 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
14
Spacer, Handle WPL 2151813 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
15
Relay (See Overload) WPL ARI50111A7 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Insert, Air Baffle WPL 2176796 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Suction WPL 2162472 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 2177318 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
20
Trim, Door Compartment WPL 2162896 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Wire Assembly WPL 2176988 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
23
Compartment Door Left Side WPL 2148289 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160695 Contact Us For Availability
24
Retainer, Bottle WPL 2173643 Contact Us For Availability
24
Evaporator Cover WPL 2160648 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Pin Plate (4) WPL 1116986 Contact Us For Availability
25
Pin Plate (2) WPL 1118048 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Clip WPL 2168567 Contact Us For Availability
26
Screw (White And Almond Models) WPL 488892 Contact Us For Availability
26
Screw (Black Model) WPL 489197 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Shim, Bottom WPL 2172744 Contact Us For Availability
30
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
30
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
30
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
31
Tap, Plate WPL 2155335 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Trim, Door Shelf WPL 2171402 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
34
Hook, Shelf WPL 2169608 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 2179604 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
35
Screw WPL 489419 Contact Us For Availability
35
Side Door Dike WPL 1122710 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Grille (Black) WPL 2160686 Contact Us For Availability
35
Grille (Almond) WPL 2160757 Contact Us For Availability
35
Grille (White) WPL 2168621 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Hole Plug (White) WPL 1129062 Contact Us For Availability
37
Cover, Egg Bin WPL 2169935 Contact Us For Availability
37
Door Dike, Center WPL 1122712 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2176859 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
38
Lever, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Le WPL 2177150 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
39
Divider, Bin WPL 2171284 Contact Us For Availability
39
WPL 2174331 WPL 2174331 Contact Us For Availability
39
WPL 2179206 WPL 2179206 Contact Us For Availability
39
WPL 2179207 WPL 2179207 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
40
Retainer, Gasket WPL 1122552 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
WPL 2174309 WPL 2174309 Contact Us For Availability
40
WPL 2174498 WPL 2174498 Contact Us For Availability
40
WPL 2174499 WPL 2174499 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Support, Pin Plate WPL 2168583 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
42
Tube-Door Wiring WPL 2160673 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
Slide Track Assy., Shelf WPL 2169793 Contact Us For Availability
43
Plug, Crossover WPL 2174771 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
44
Shelf, Meat Pan WPL 2174043 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 2170853 Contact Us For Availability
44
Clip WPL 934011 Contact Us For Availability
45
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
45
WPL 799344 WPL 799344 Contact Us For Availability
45
Door Removal Instructions WPL 2168575 Contact Us For Availability
45
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
45
WPL 799833 WPL 799833 Contact Us For Availability
45
WPL 978883 WPL 978883 Contact Us For Availability
45
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
47
Ins WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
WPL 2169749 WPL 2169749 Contact Us For Availability
48
Cover, Unit WPL 2172768 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 2174769 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2174770 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
60
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
