Model Whirlpool ET22DQRBW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

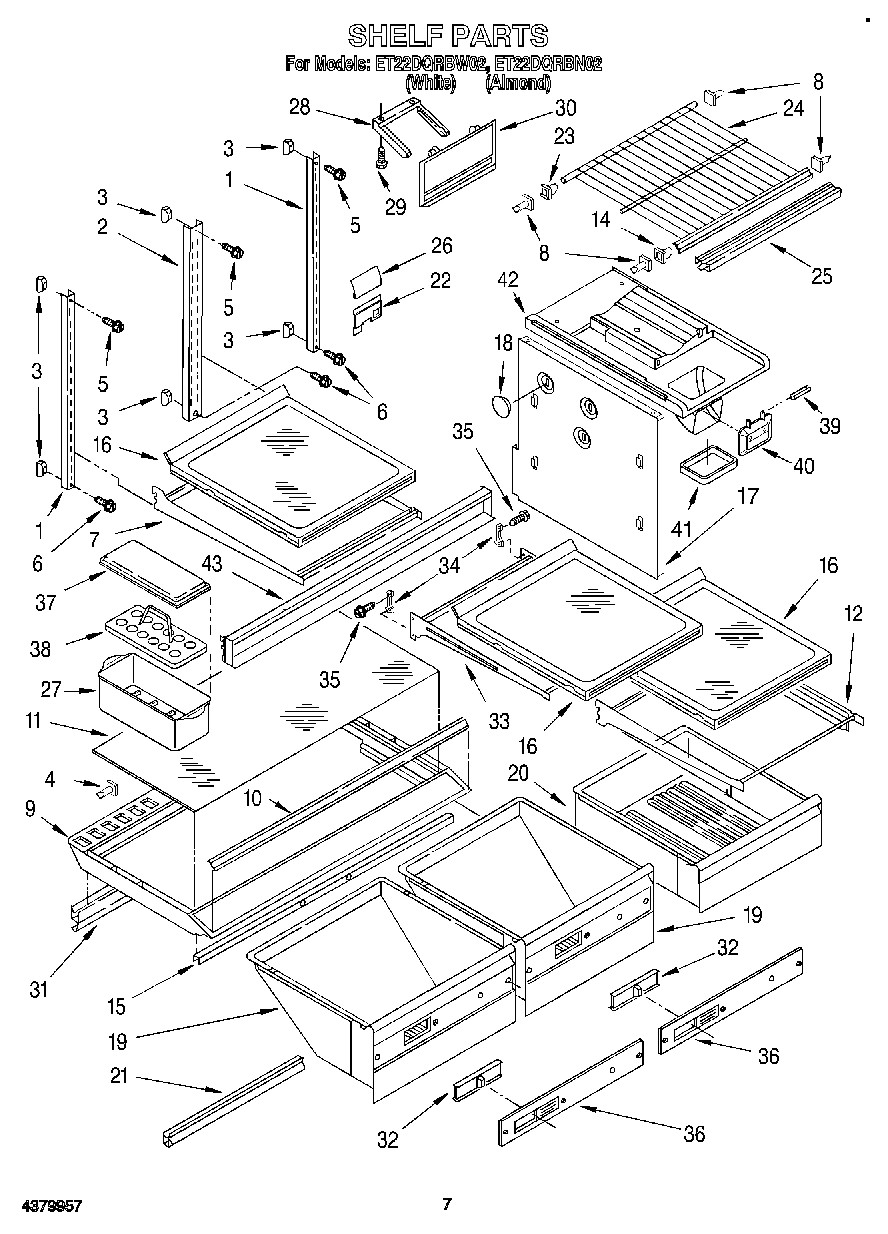

05 - SHELF, LIT/OPTIONAL

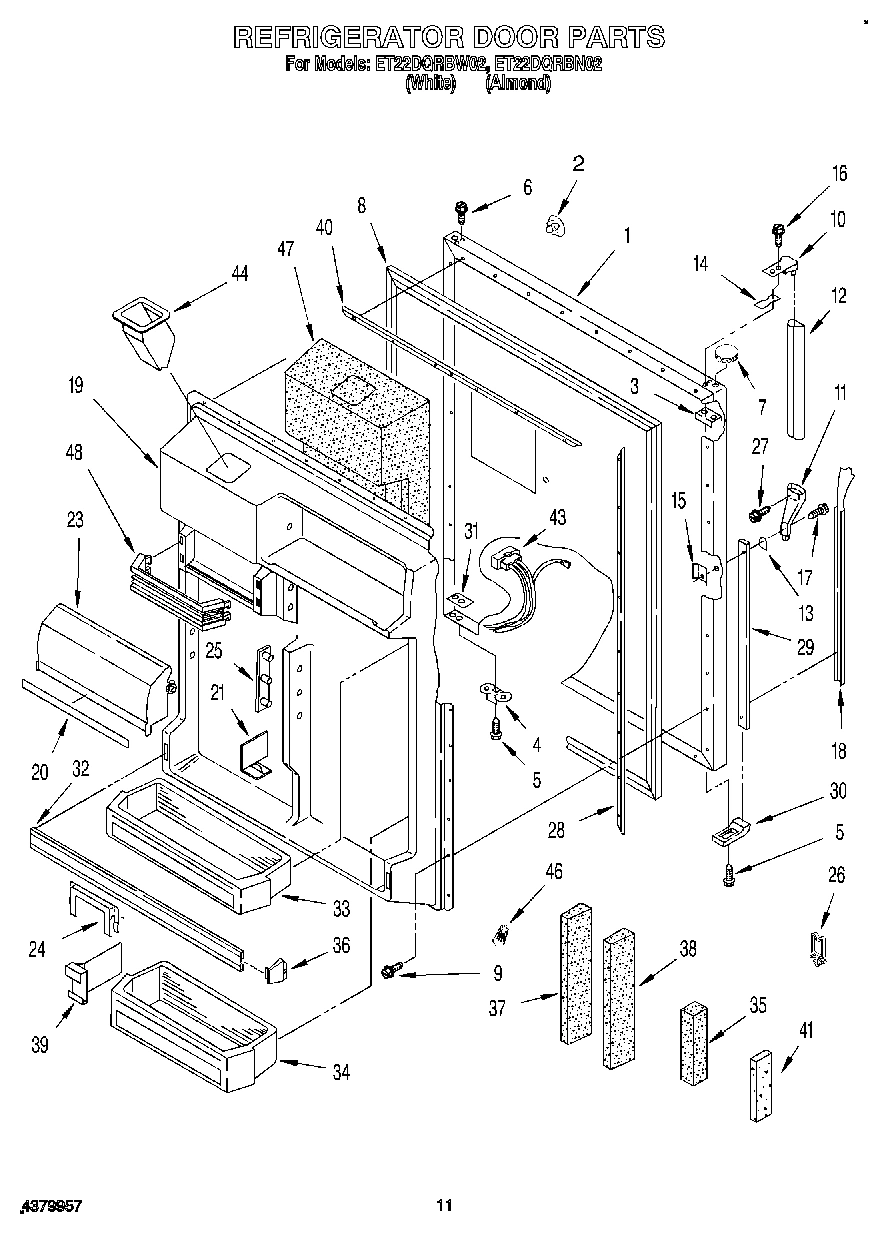

07 - REFRIGERATOR DOOR

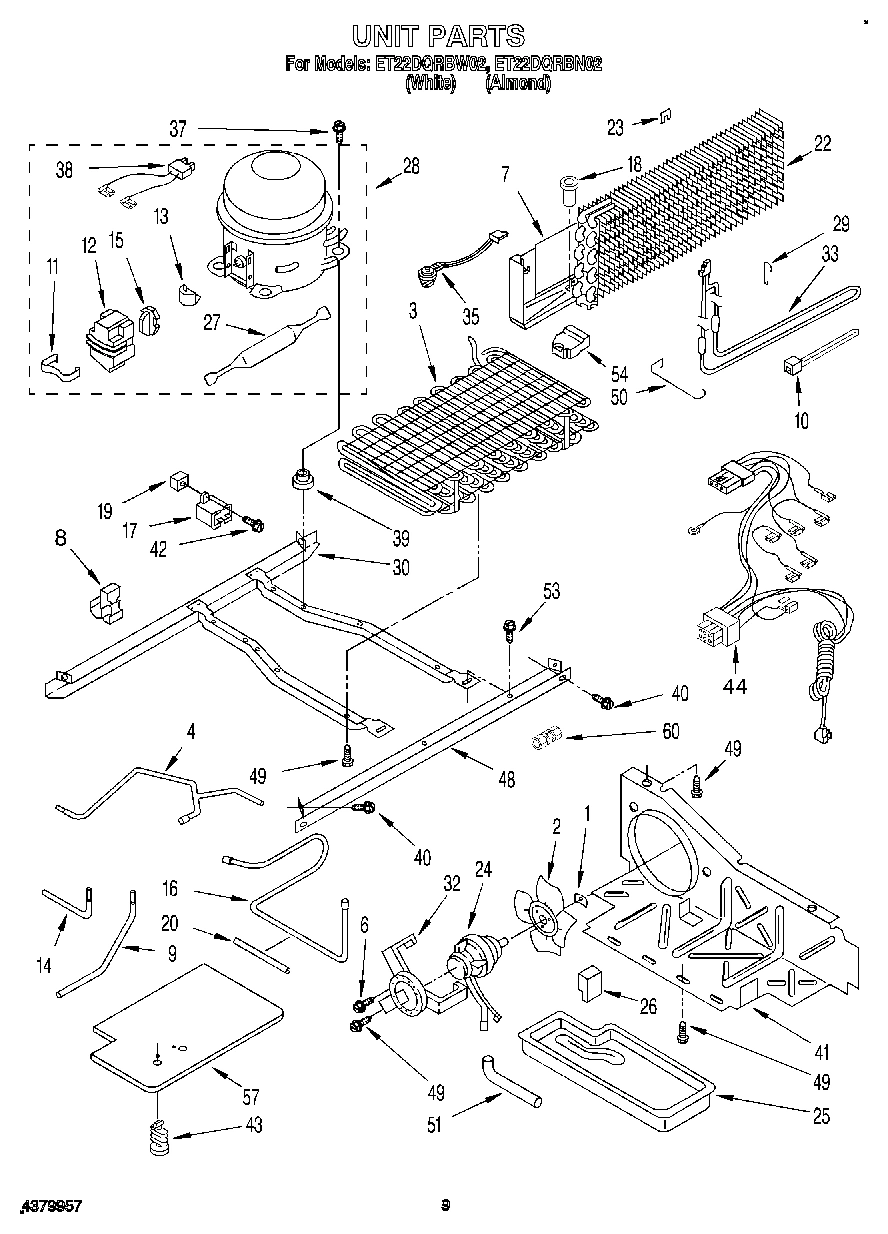

06 - UNIT

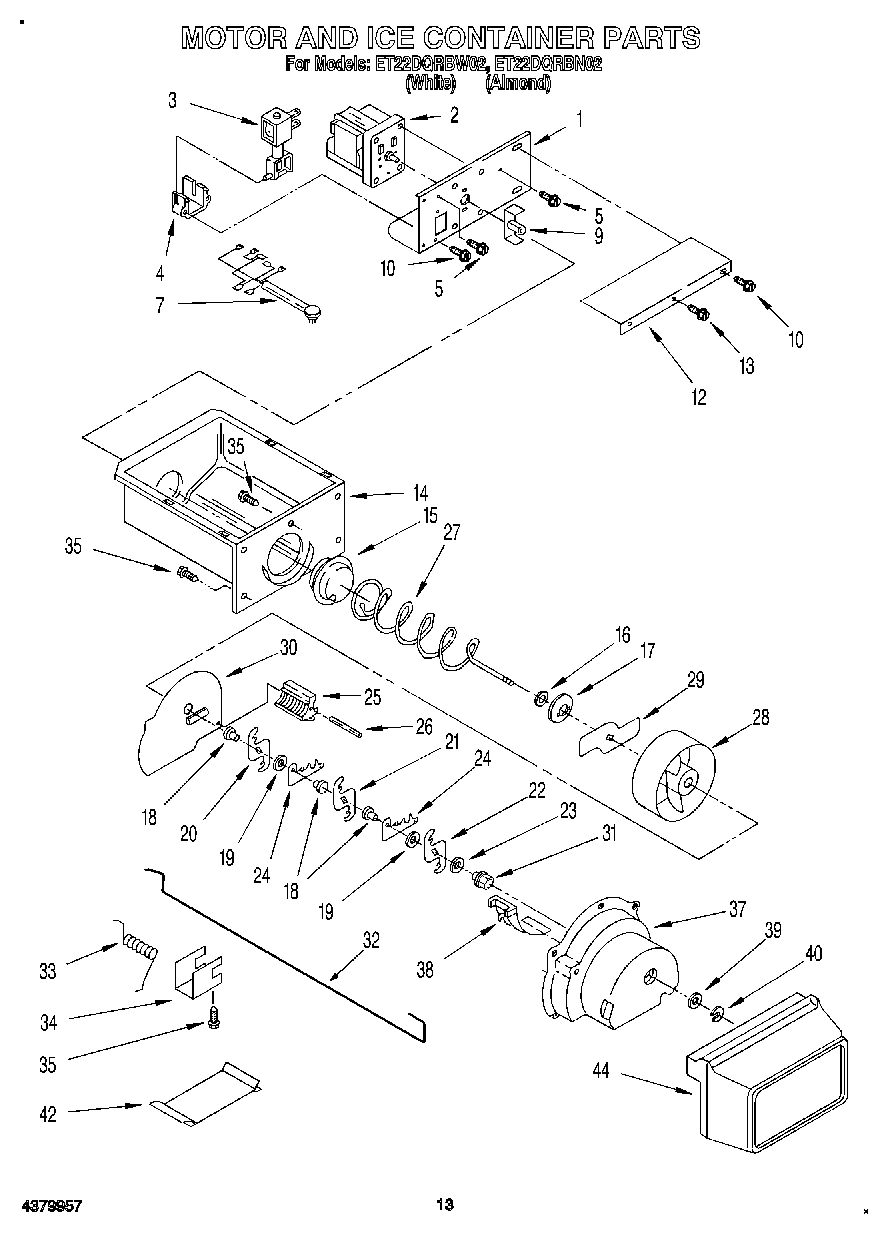

08 - MOTOR AND ICE CONTAINER

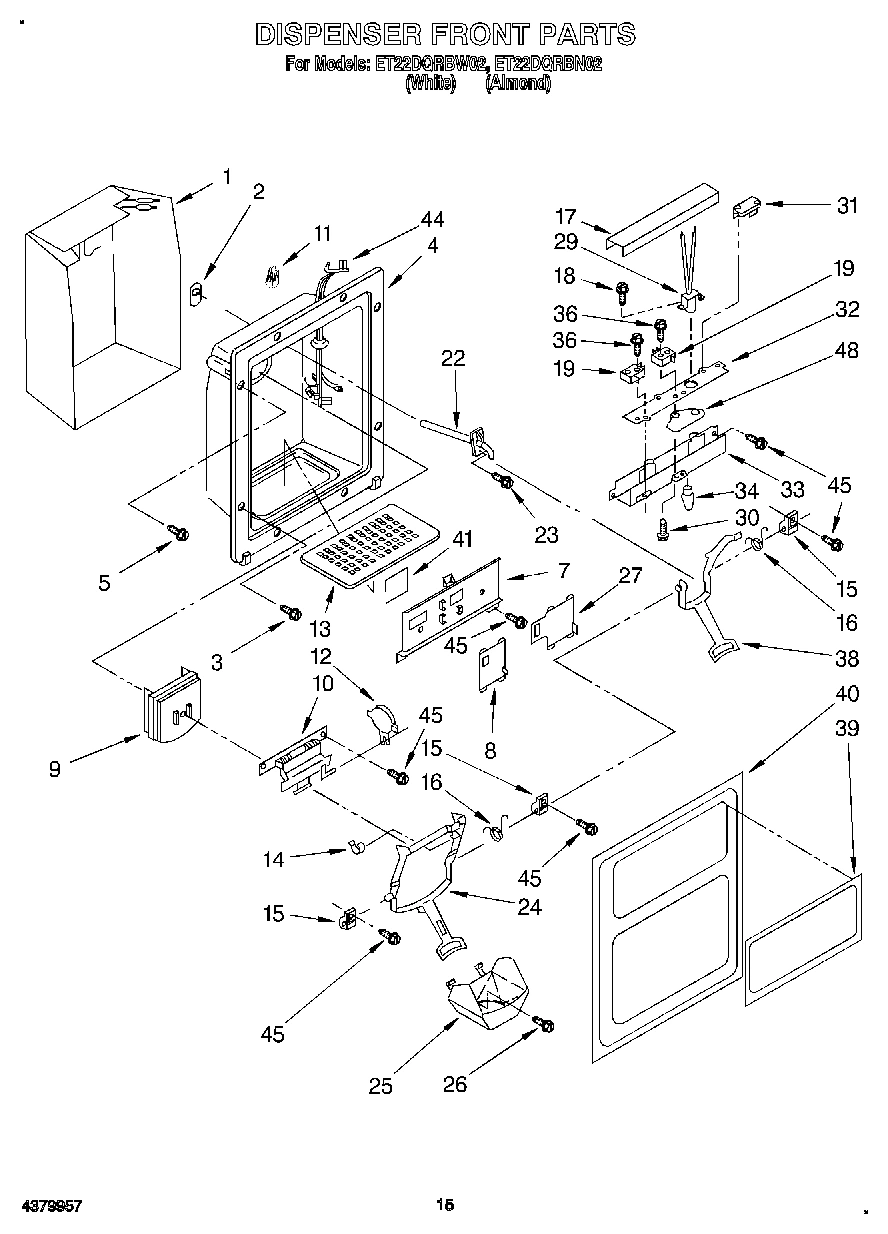

09 - DISPENSER FRONT

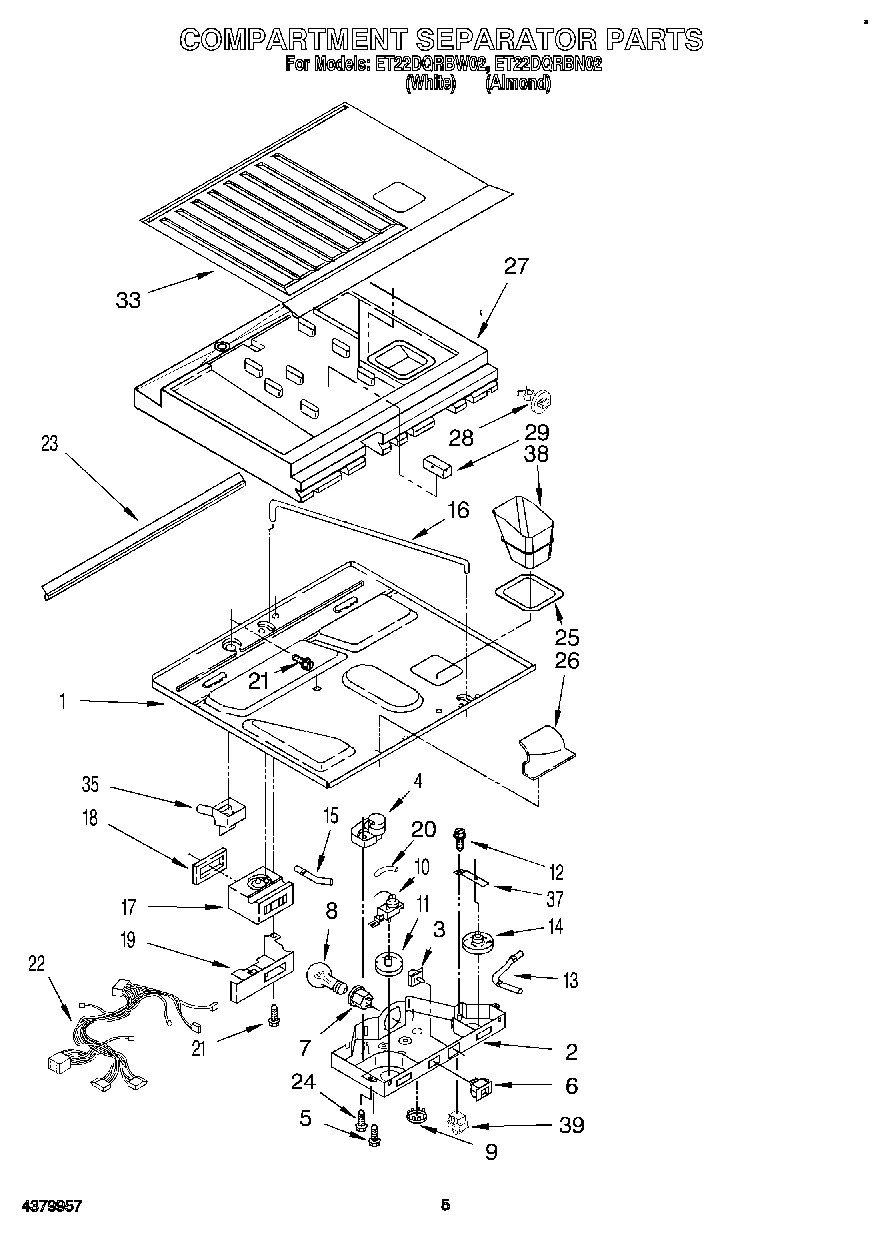

03 - COMPARTMENT SEPARATOR

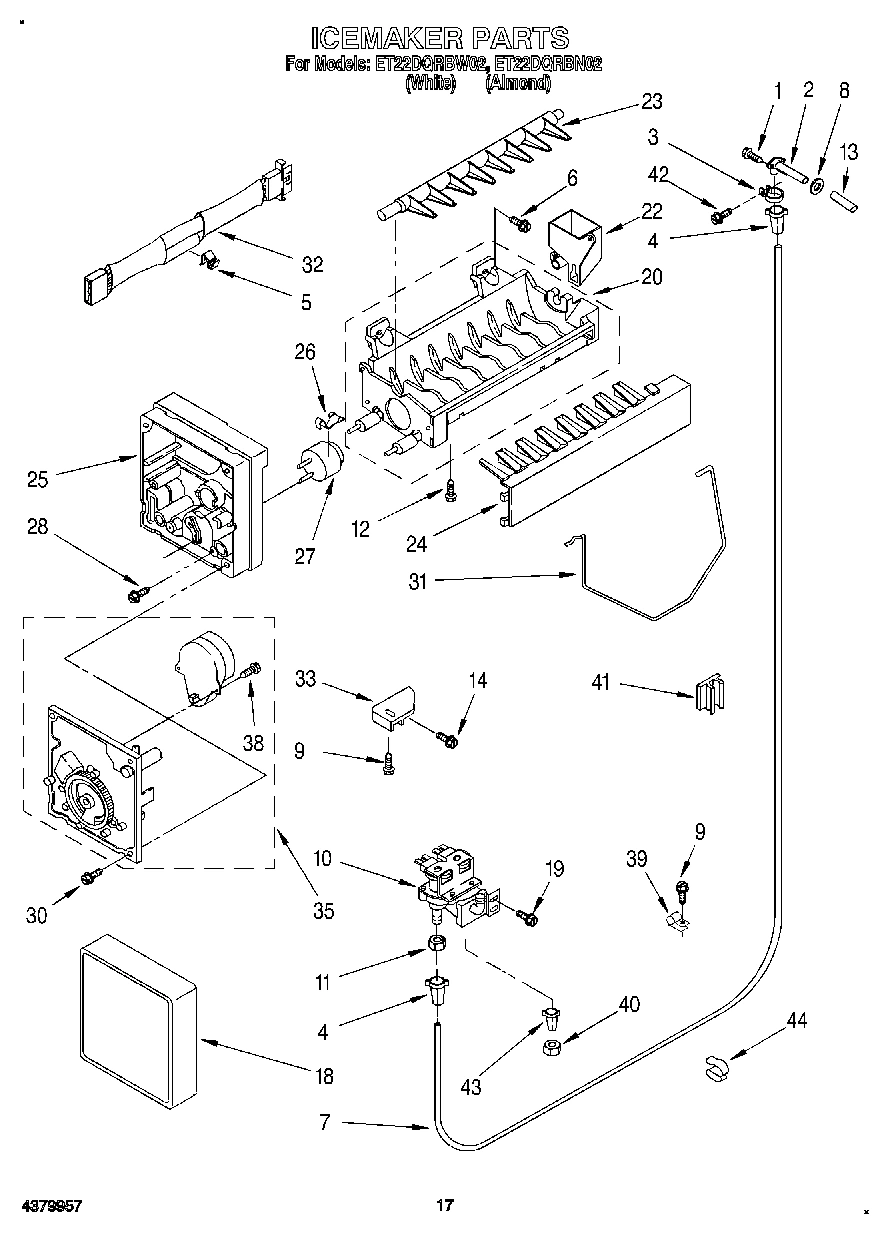

10 - ICEMAKER

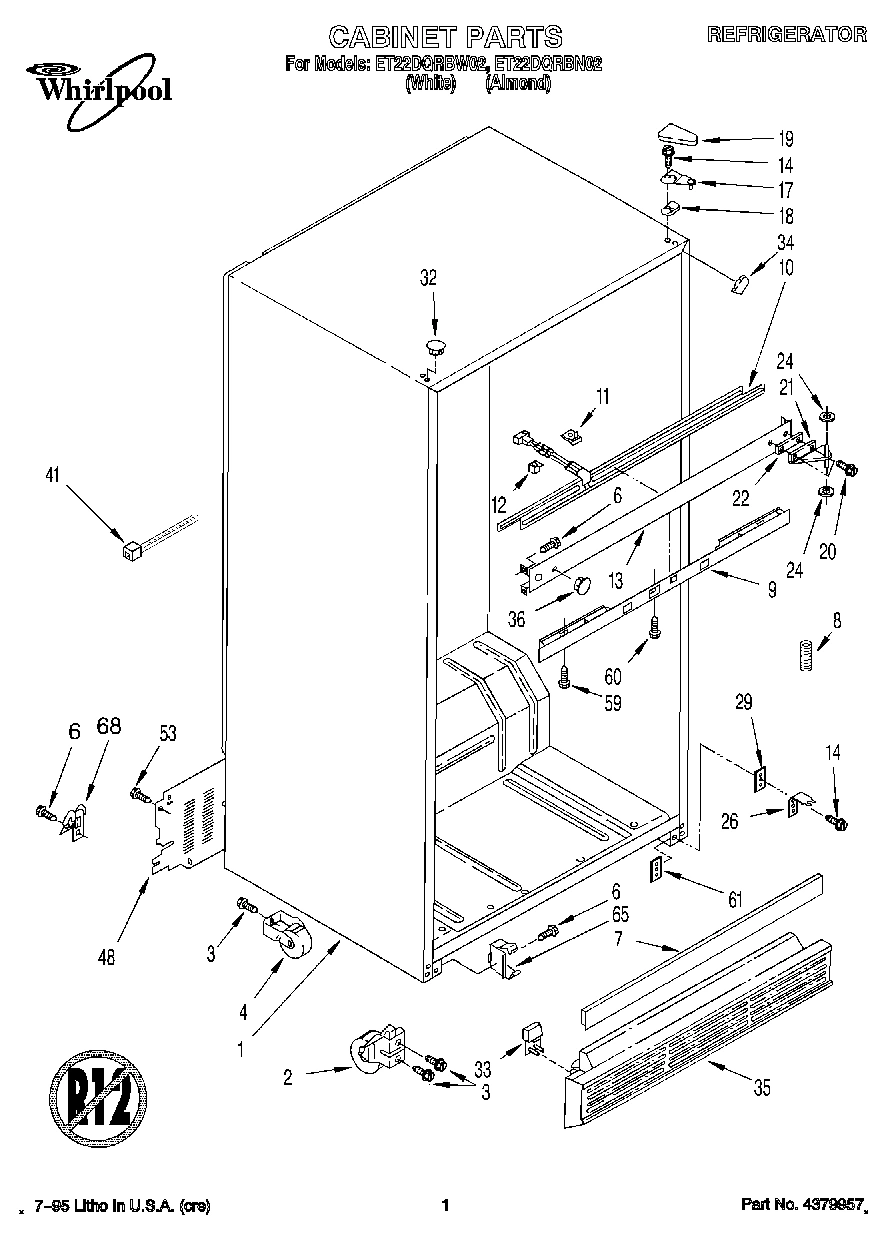

01 - CABINET

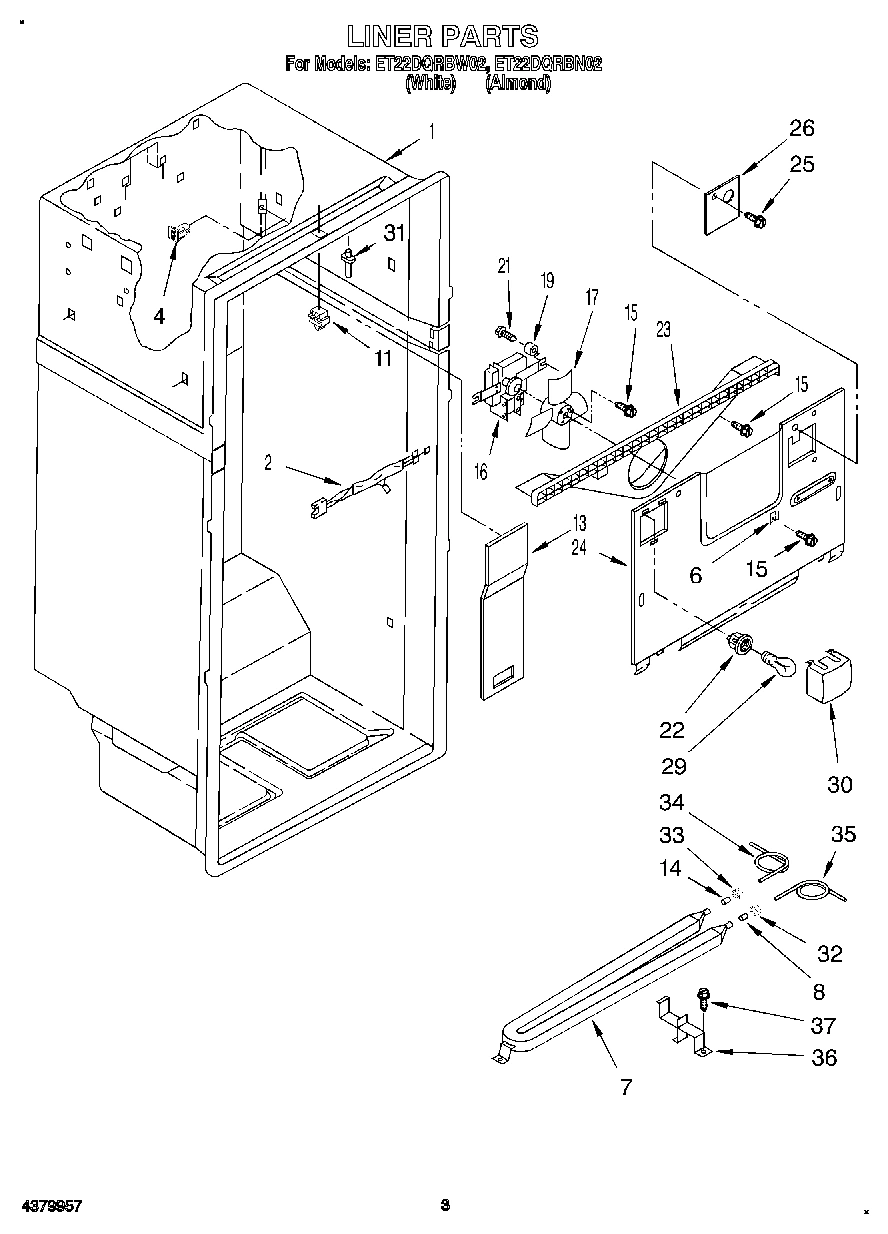

02 - LINER

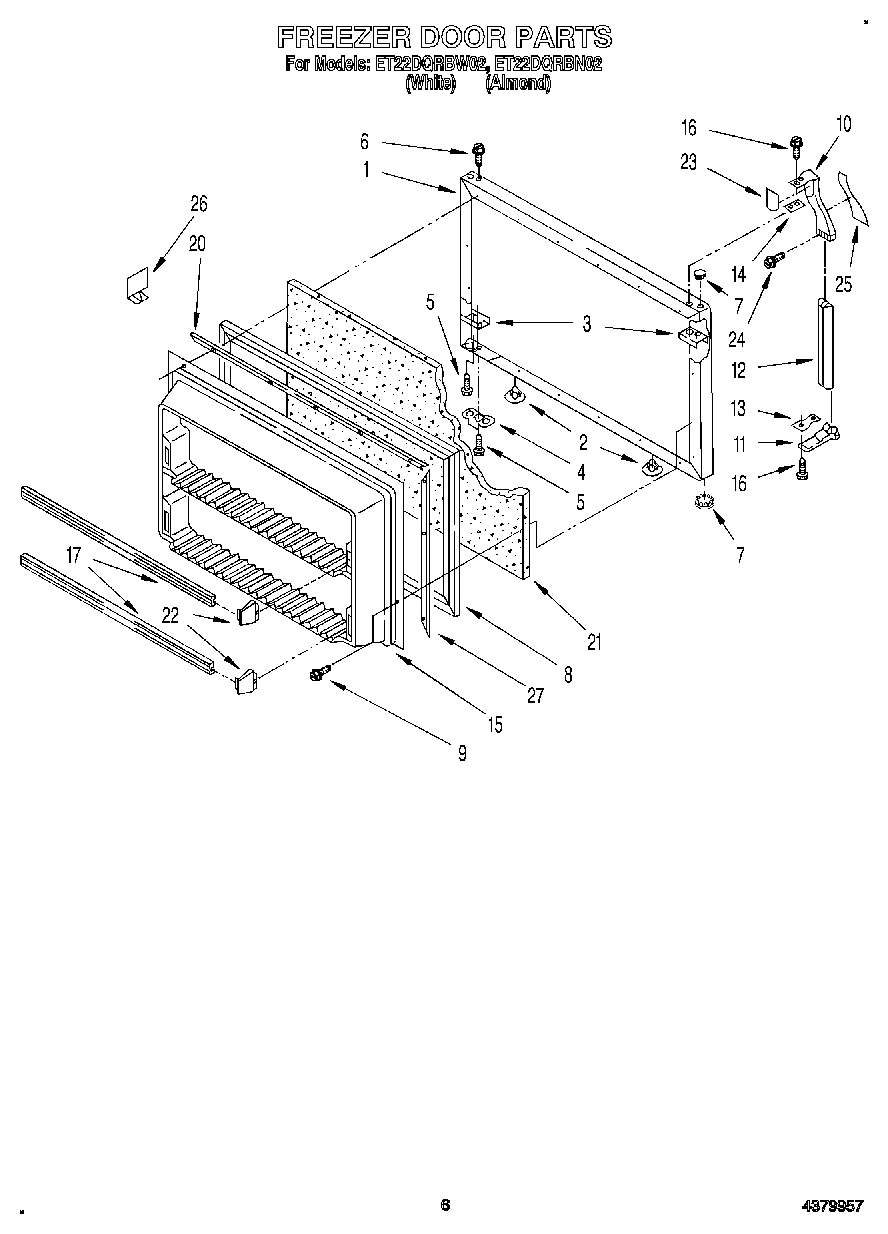

04 - FREEZER DOOR
Common parts from model Whirlpool ET22DQRBW02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172824 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50085A1 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50086A9 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Blade, Fan WPL 2176753 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Box, Control WPL 2174823 Contact Us For Availability
2
Roller, Front WPL 2174749 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Tube, Discharge WPL 2162475 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Grommet (2) WPL 2172803 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Deck Rail Cover WPL 2172708 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Wire Clip, Water Tube WPL 2155658 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center (White) WPL 2162586 Contact Us For Availability
12
Handle, Center (Almond Model) WPL 2162693 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Light, Bar Left WPL 2160638 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Insert WPL 1129177 Contact Us For Availability
15
Relay (See Overload) WPL ARI50087A9 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Light, Bar Right WPL 2160639 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Suction WPL 2162472 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
17
Running Capacitor WPL 2154565 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2162839 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Evaporator Cover WPL 2160648 Contact Us For Availability
24
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
26
Insert, Air Baffle WPL 2176796 Contact Us For Availability
26
Screw (White And Almond Models) WPL 488892 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2172897 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
29
Shim, Bottom WPL 2172743 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Rubber Strip WPL 2168582 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Nut, Compression WPL 1129179 Contact Us For Availability
32
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2160624 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (Almond) WPL 2160757 Contact Us For Availability
35
Grille (White) WPL 2168621 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Hole Plug (White) WPL 1129062 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
37
Door Dike, Center WPL 1122712 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2159197 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
39
Divider, Bin WPL 2152335 Contact Us For Availability
39
Overlay, Front Cover (White Model) WPL 2162923 Contact Us For Availability
39
Overlay, Front Cover (Almond Model) WPL 2162924 Contact Us For Availability
40
Front Cover, Housing (White Model) WPL 2162925 Contact Us For Availability
40
Front Cover, Housing (Almond Model) WPL 2162927 Contact Us For Availability
41
Support, Pin Plate WPL 2168583 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Plug, Crossover WPL 2174771 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
Wire Assembly WPL 2176859 Contact Us For Availability
44
Front Cover, Ice Container WPL 2170853 Contact Us For Availability
44
Wiring H WPL 2147166 Contact Us For Availability
44
Clip WPL 934011 Contact Us For Availability
46
Con WPL 227991 Contact Us For Availability
47
WPL 2160683 WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
WPL 2170851 WPL 2170851 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 2174769 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2174770 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
60
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
