Model Whirlpool ET22DQLDW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

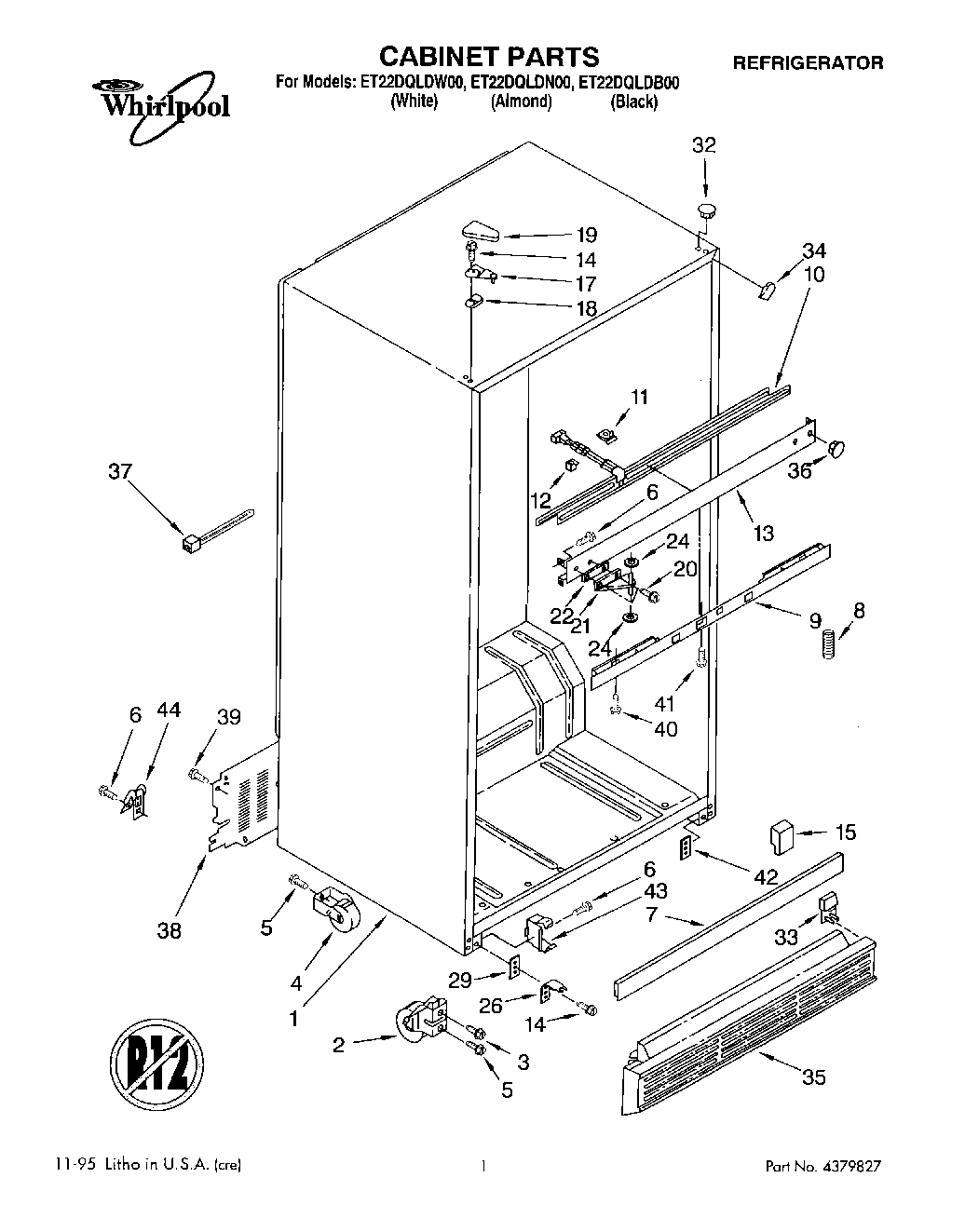

01 - CABINET

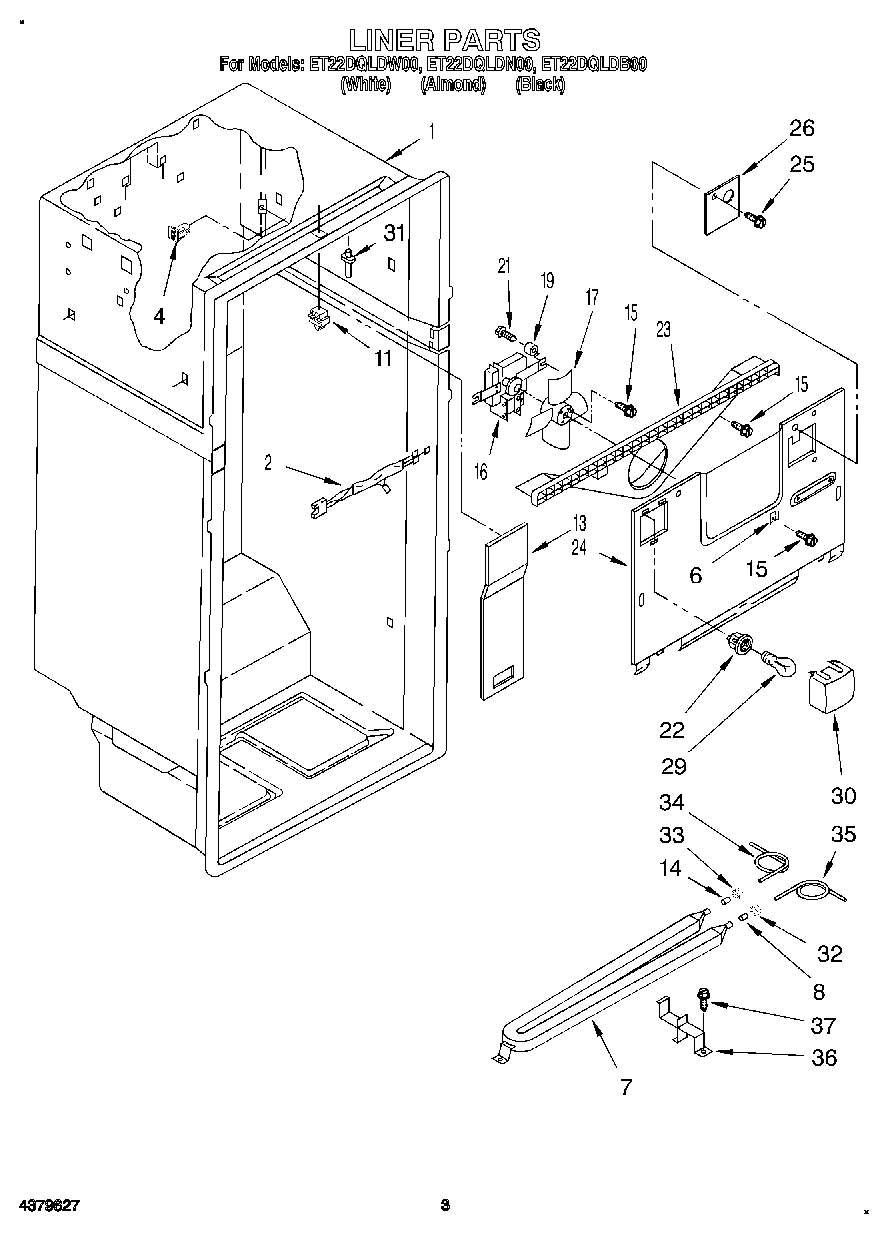

02 - LINER

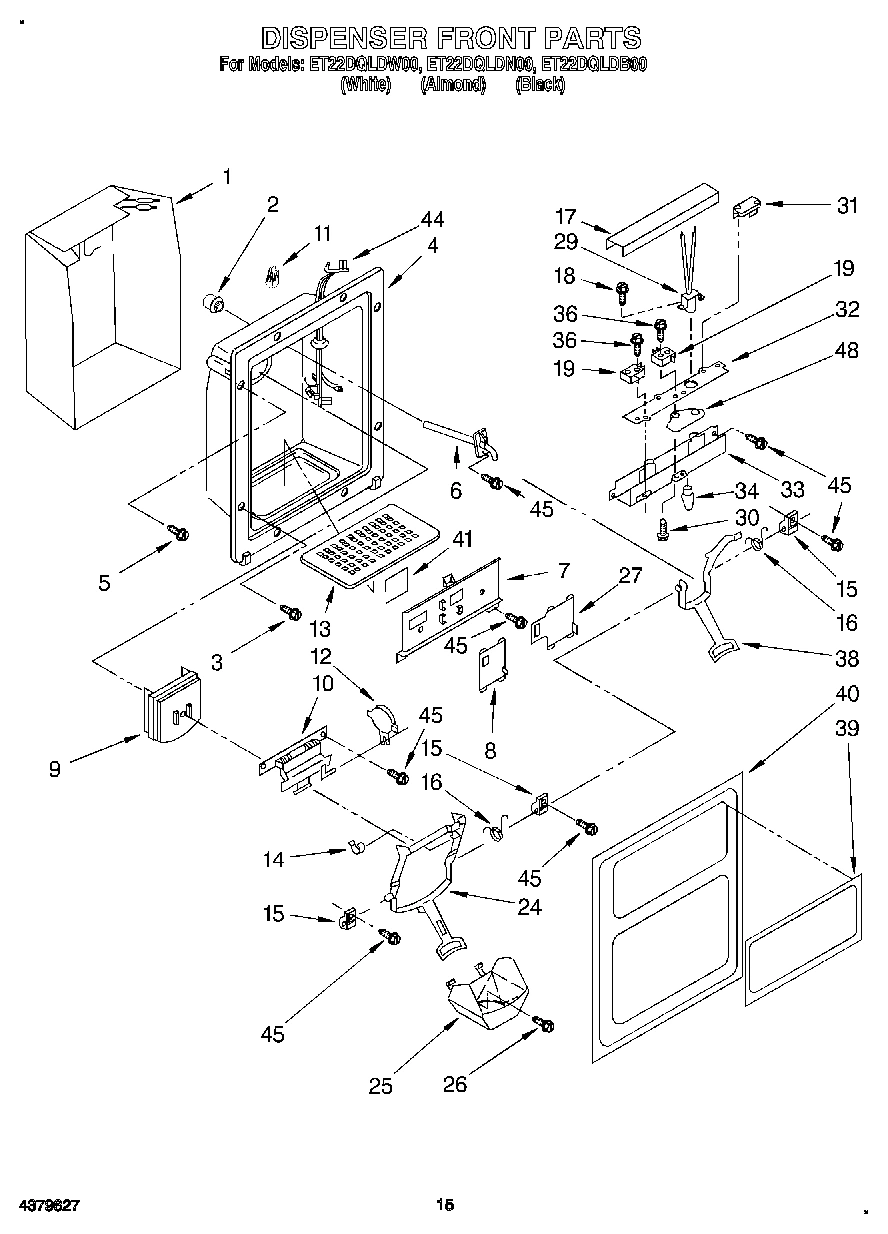

09 - DISPENSER FRONT

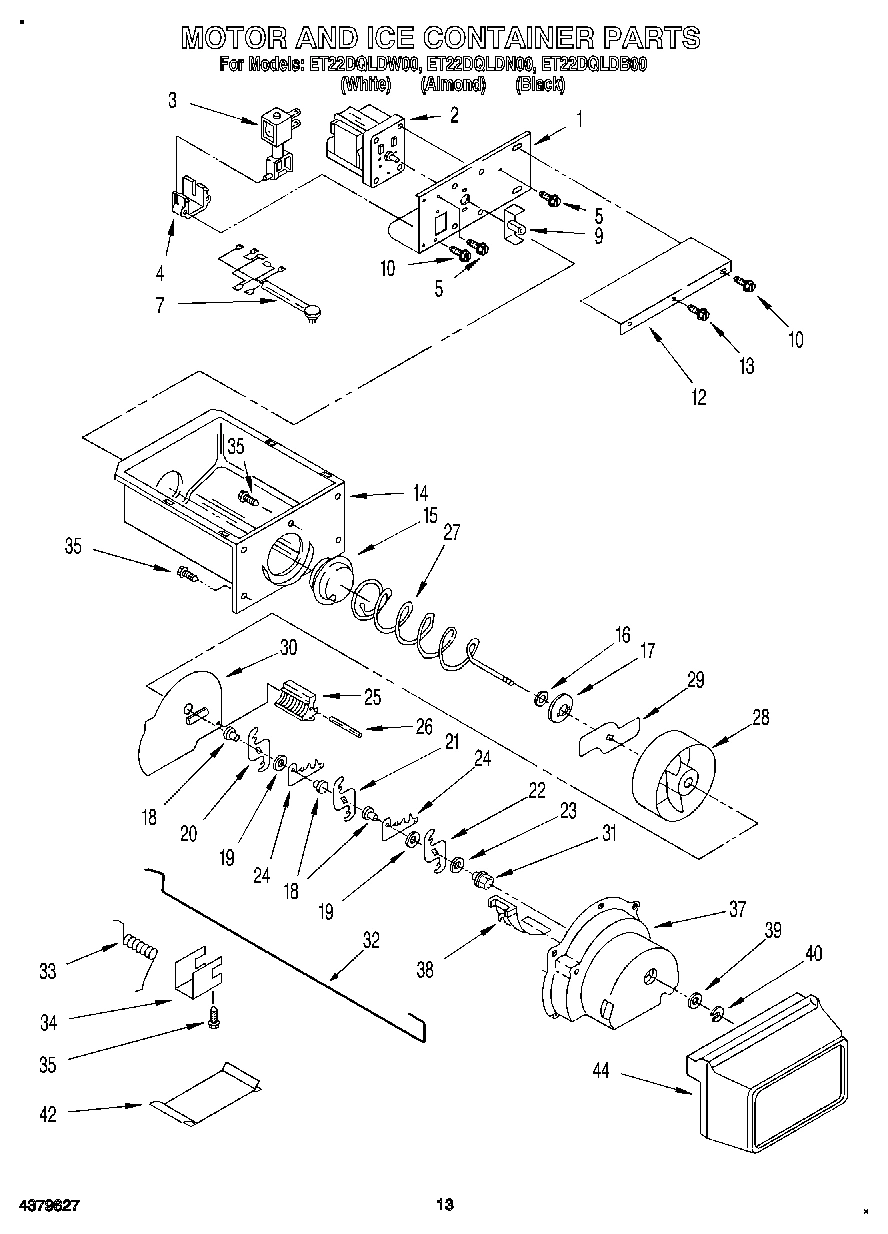

08 - MOTOR AND ICE CONTAINER

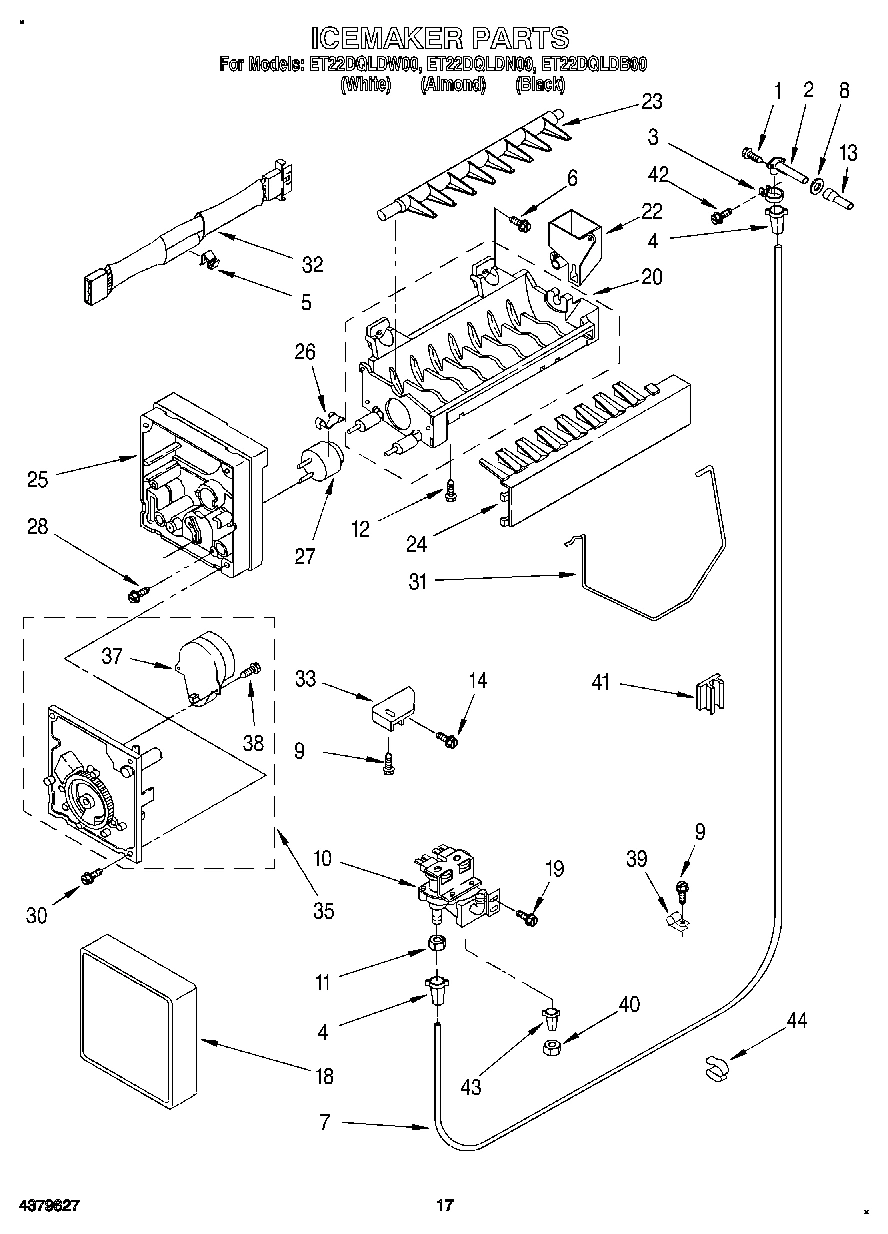

10 - ICEMAKER

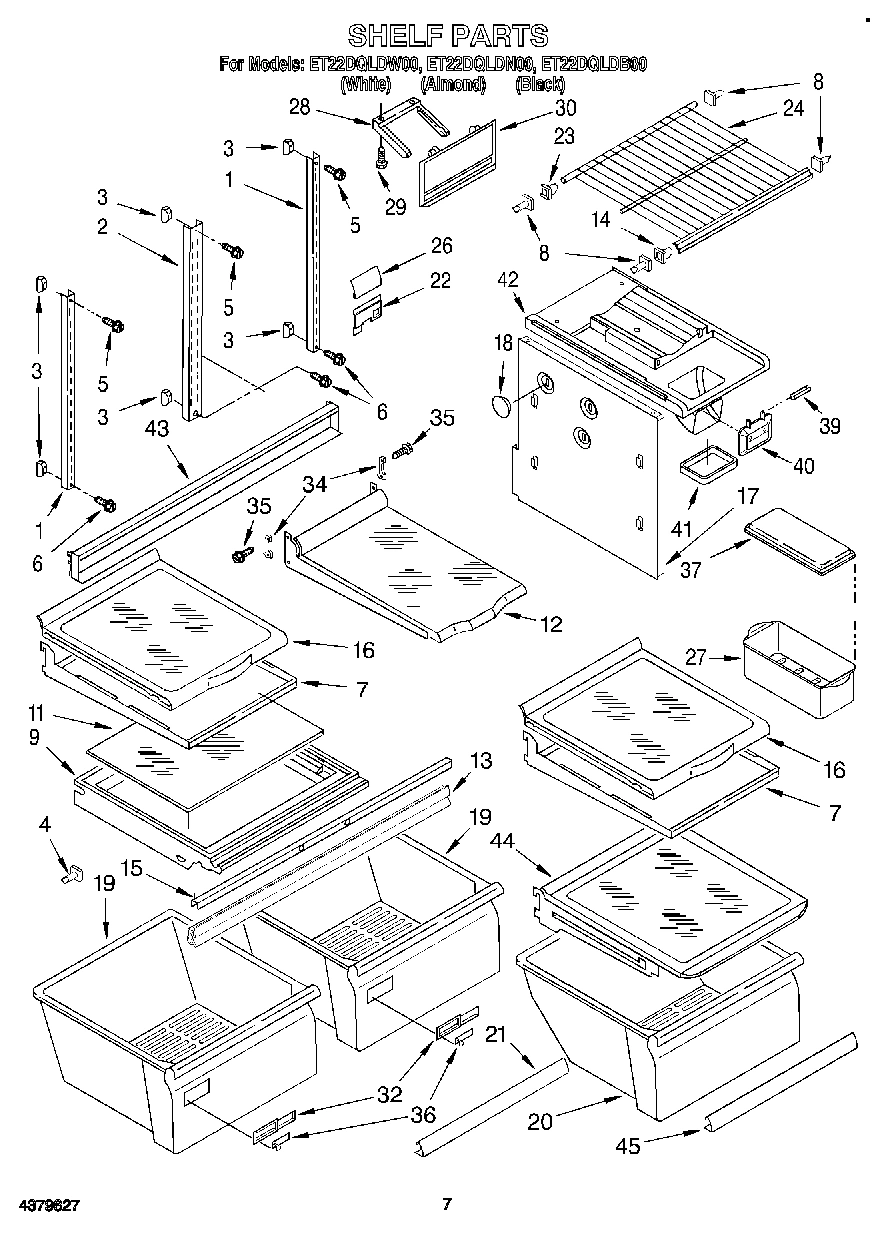

05 - SHELF, LIT/OPTIONAL

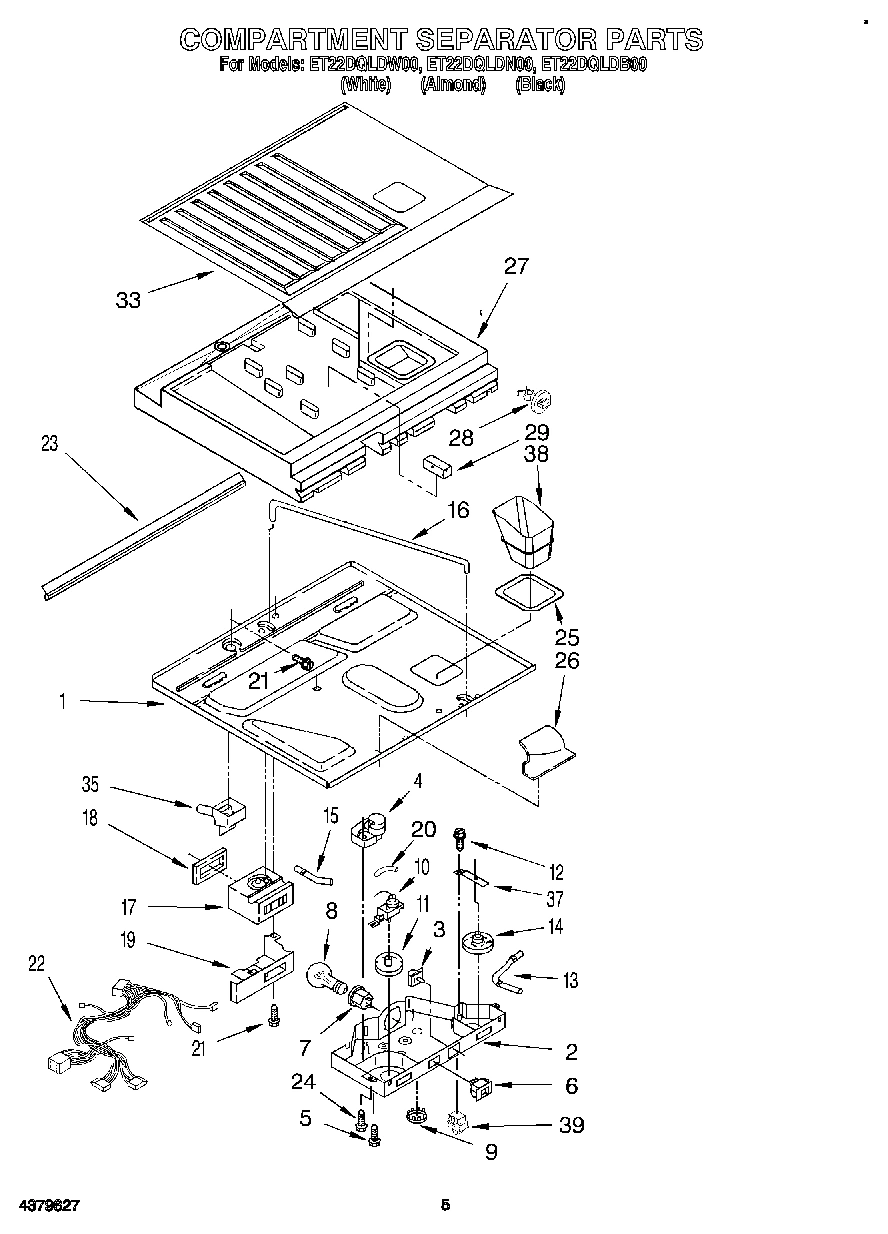

03 - COMPARTMENT SEPARATOR

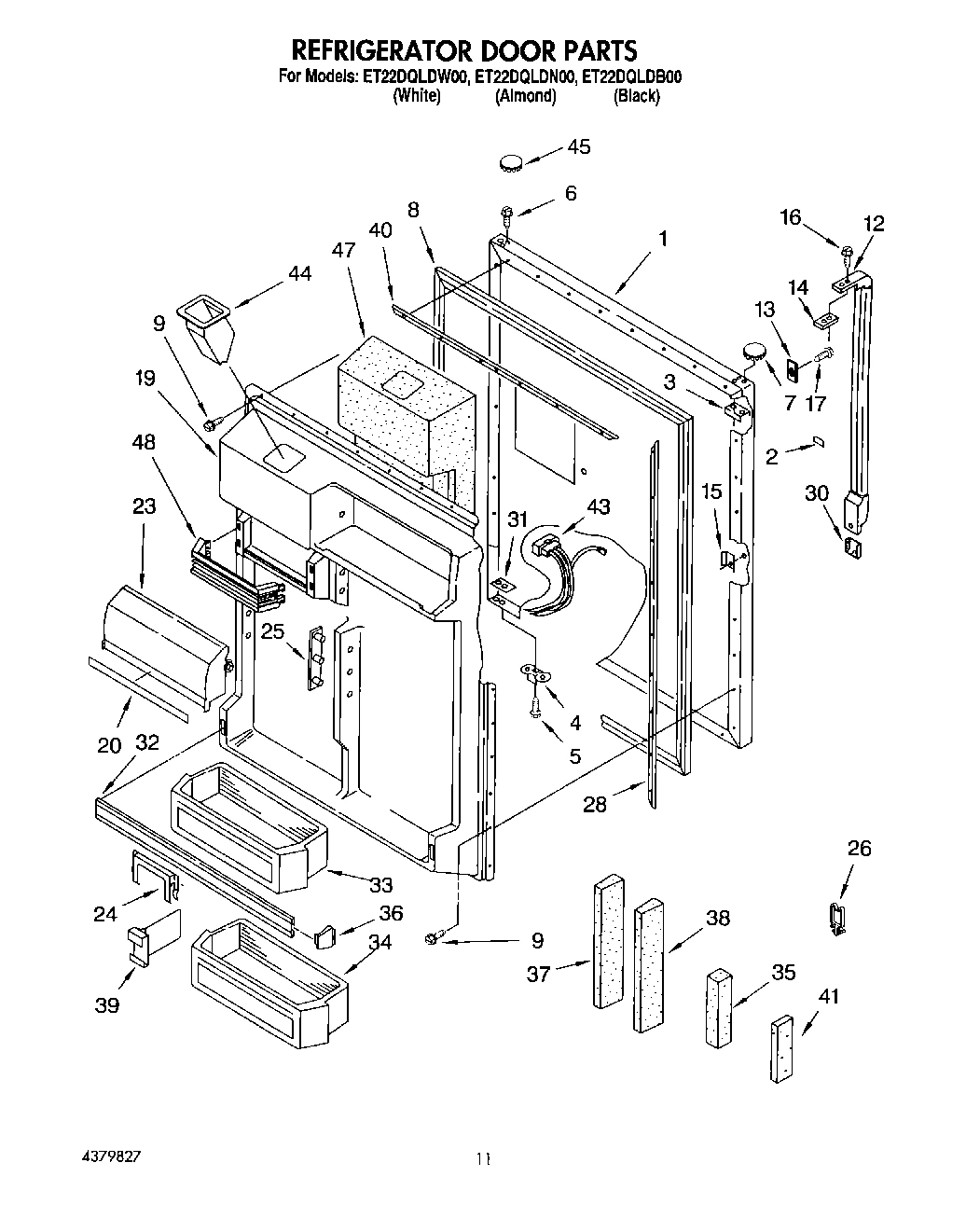

07 - REFRIGERATOR DOOR

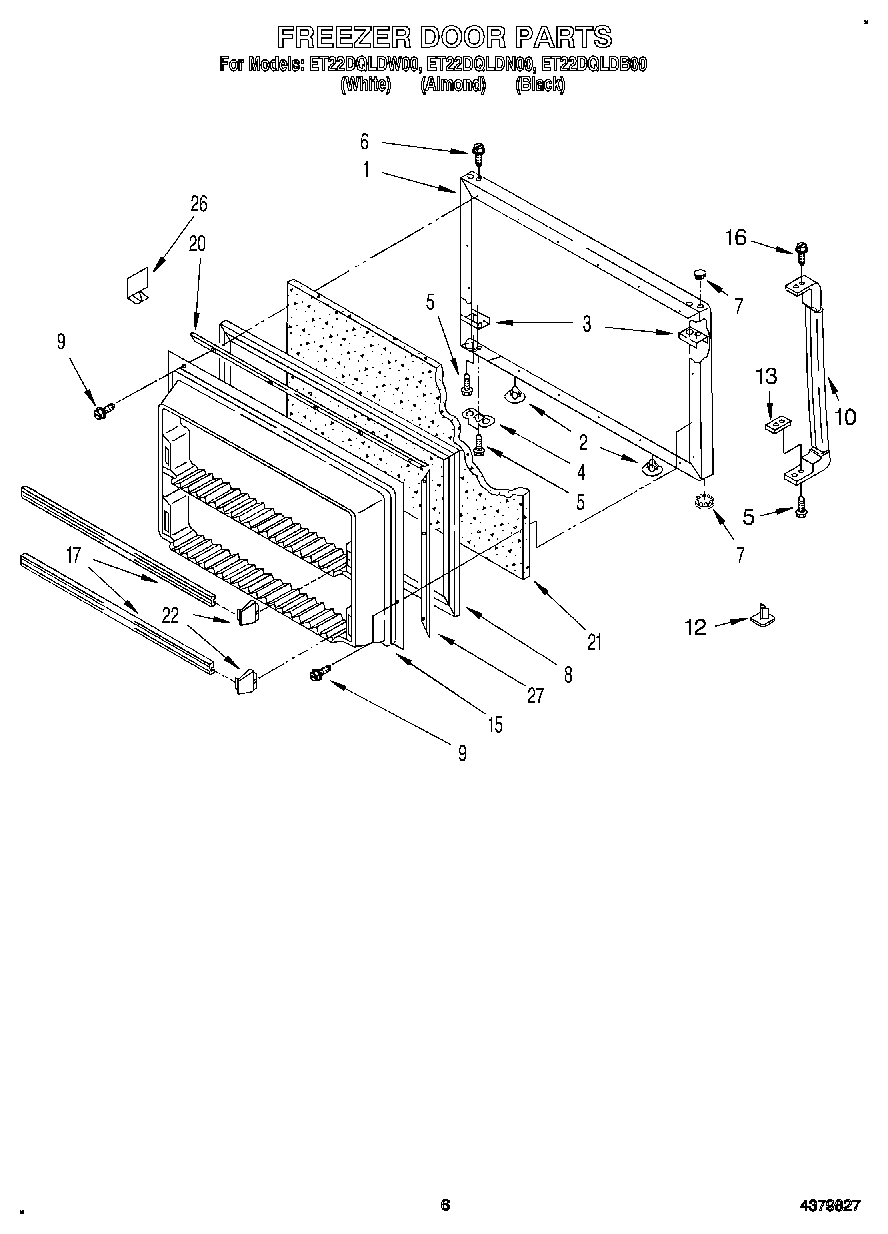

04 - FREEZER DOOR

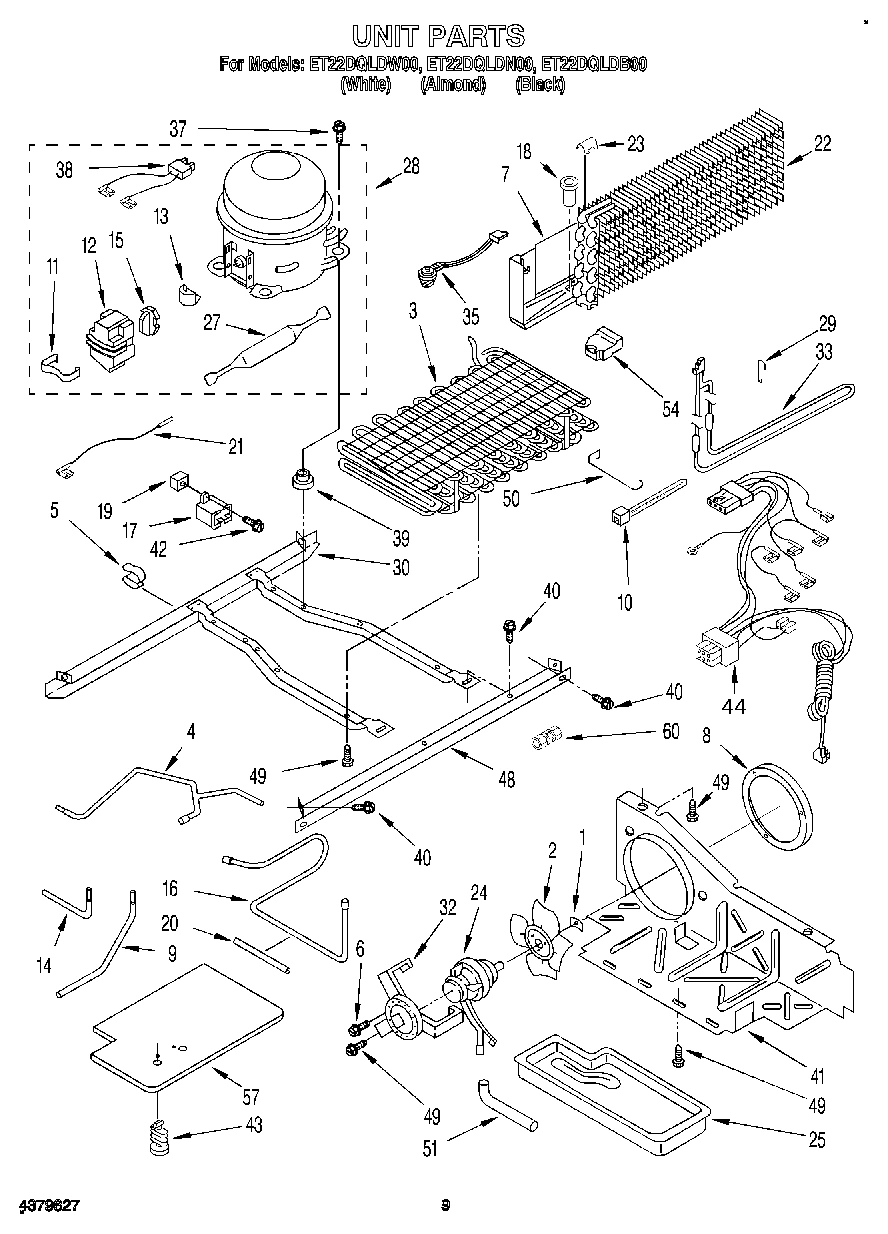

06 - UNIT
Common parts from model Whirlpool ET22DQLDW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169248 WPL LIT2169248 Contact Us For Availability
WPL LIT2182527 WPL LIT2182527 Contact Us For Availability
WPL LIT2182535 WPL LIT2182535 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172824 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2169039 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2169040 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2169041 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Box, Control WPL 2174823 Contact Us For Availability
2
Shim, Handle WPL 2179398 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Blade, Fan WPL 2176753 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Shelf Stud (2) WPL 1106612 Contact Us For Availability
4
Bracket, Door Stop WPL 2155332 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Tube, Discharge WPL 2162475 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2174036 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
8
Door Gasket, Magnetic (Black Model) WPL 2170598 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170599 Contact Us For Availability
8
Ring, Fan Mounting WPL 549215 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Crisper Cover WPL 2179420 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Handle End, Top (White) WPL 2179305 Contact Us For Availability
10
Handle End, Top (Almond) WPL 2179306 Contact Us For Availability
10
Handle End, Top (Black) WPL 2179307 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174143 Contact Us For Availability
11
Knob, Thermostat WPL 2174826 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Shelf, Slide (Side to Side) WPL 2174224 Contact Us For Availability
12
Handle, Door (White) WPL 2179311 Contact Us For Availability
12
Handle, Door (Almond) WPL 2179312 Contact Us For Availability
12
Handle, Door (Black) WPL 2179313 Contact Us For Availability
12
Plug, Hole (White) WPL 2174433 Contact Us For Availability
12
Plug, Hole (Almond) WPL 2174434 Contact Us For Availability
12
Plug, Hole (Black) WPL 2174435 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2179392 Contact Us For Availability
13
Light, Bar Left WPL 2160638 Contact Us For Availability
13
Shim, Handle WPL 2179319 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
14
Shelf Stud WPL 946356 Contact Us For Availability
14
Knob, Air Control WPL 2174827 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Light, Bar Right WPL 2160639 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
15
Relay (See Overload) WPL ARI50073A1 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2174035 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
16
Tube, Suction WPL 2162472 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Support Wall I/M WPL 2160619 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171403 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Pan, Crisper WPL 2179411 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Interior Door Panel WPL 2177318 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Pan, Meat WPL 2179412 Contact Us For Availability
20
Trim, Door Compartment WPL 2162896 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
21
Wire, Assembly Overload WPL 2159678 Contact Us For Availability
22
Baffle-Air, I/M WPL 2157452 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Compartment Door Left Side WPL 2148289 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160695 Contact Us For Availability
24
Retainer, Bottle WPL 2173643 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
25
Pin Plate (4) WPL 1116986 Contact Us For Availability
25
Pin Plate (2) WPL 1118048 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Screw (White And Almond Models) WPL 488892 Contact Us For Availability
26
Screw (Black Model) WPL 489197 Contact Us For Availability
26
Gasket, Baffle I/M WPL 2160729 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Clip WPL 2168567 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2172897 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Shim, Bottom WPL 2172743 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Rubber Strip WPL 2168582 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
30
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
30
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
30
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
31
Tap, Plate WPL 2155335 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
32
Trim, Door Shelf WPL 2171402 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2160624 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
34
Hook, Shelf WPL 2169608 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 2179587 Contact Us For Availability
35
Screw WPL 489419 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Side Door Dike WPL 1122710 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Cover, Egg Bin WPL 2169935 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Door Dike, Center WPL 1122712 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever, Wa WPL 2177150 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
39
WPL 2174331 WPL 2174331 Contact Us For Availability
39
WPL 2179206 WPL 2179206 Contact Us For Availability
39
WPL 2179207 WPL 2179207 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
39
Divider, Bin WPL 2171284 Contact Us For Availability
40
WPL 2174309 WPL 2174309 Contact Us For Availability
40
WPL 2174498 WPL 2174498 Contact Us For Availability
40
WPL 2174499 WPL 2174499 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
41
Support, Pin Plate WPL 2168583 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Slide Track Assy., Shelf WPL 2169793 Contact Us For Availability
43
Plug, Crossover WPL 2169003 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 2170853 Contact Us For Availability
44
Clip WPL 934011 Contact Us For Availability
44
Shelf, Meat Pan WPL 2174043 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
Wire Assy WPL 2176859 Contact Us For Availability
45
WPL 876029 WPL 876029 Contact Us For Availability
45
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
45
WPL 799344 WPL 799344 Contact Us For Availability
45
Door Removal Instructions WPL 2168575 Contact Us For Availability
45
CEMENT, ALUM WPL 542639 Contact Us For Availability
45
WPL 799833 WPL 799833 Contact Us For Availability
45
WPL 978883 WPL 978883 Contact Us For Availability
45
Hole Plug, WPL 1122654 Contact Us For Availability
47
WPL 2160683 WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
WPL 2169749 WPL 2169749 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 2174769 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2174770 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
60
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
