Model Whirlpool ET21DMXDW05 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

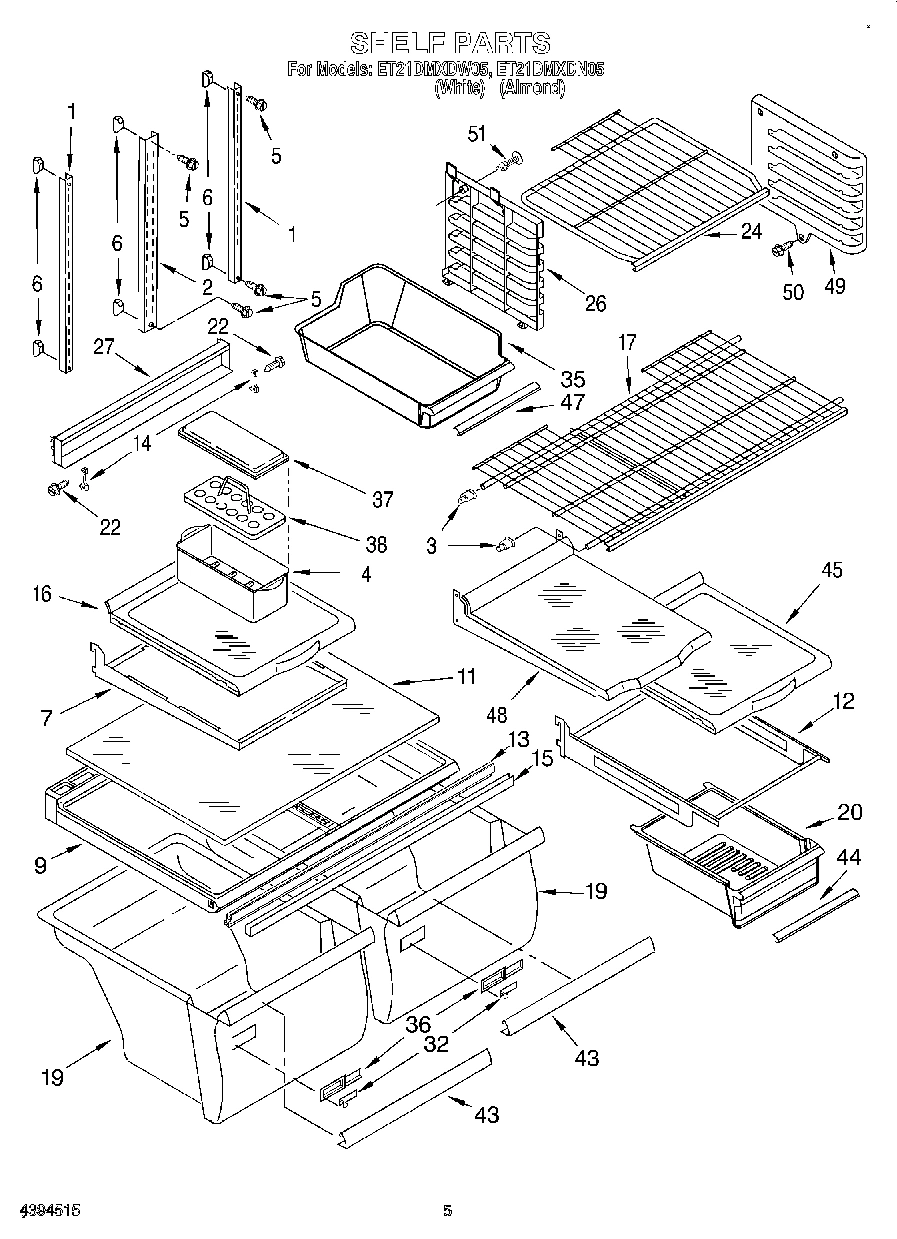

03 - SHELF

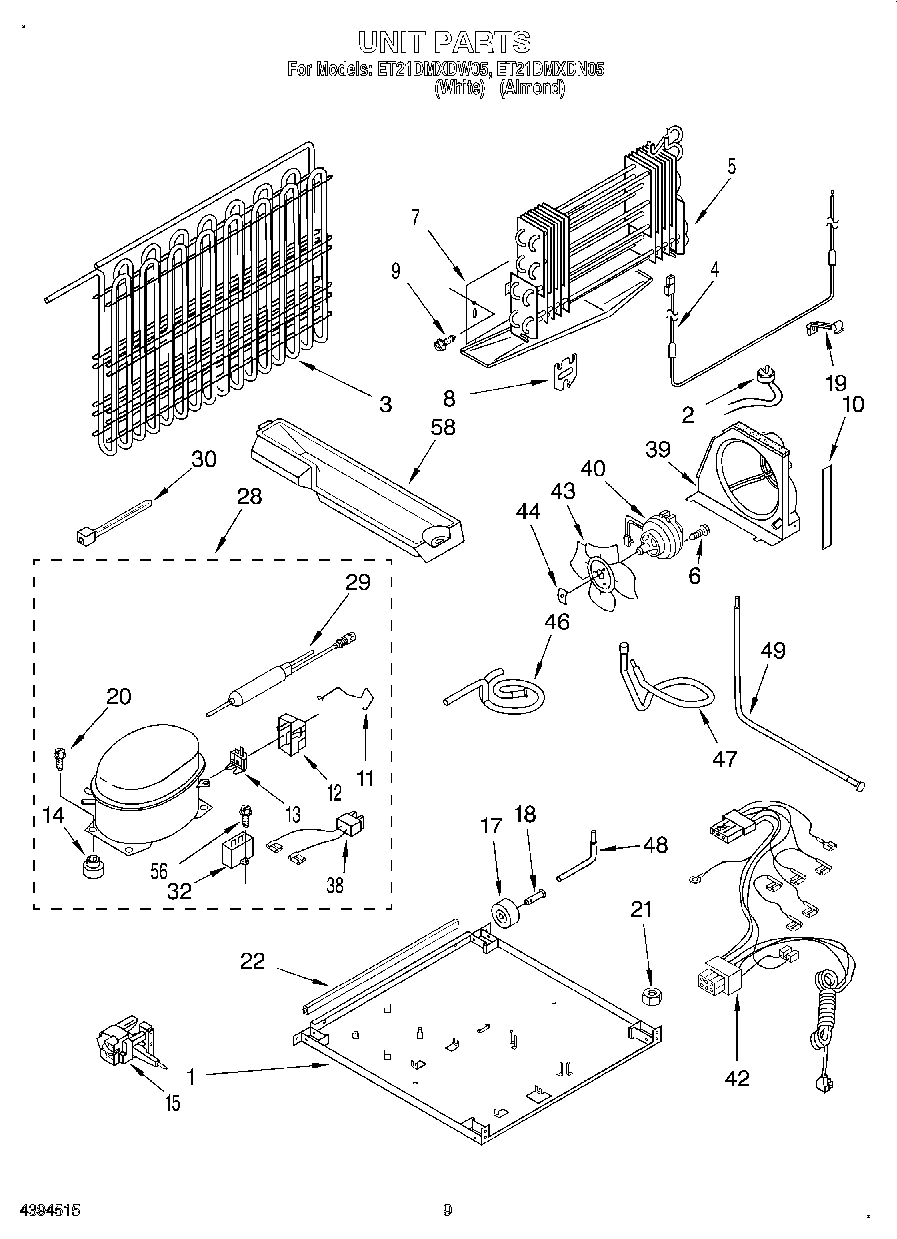

05 - UNIT
02 - LINER
04 - REFRIGERATOR DOOR
07 - FREEZER DOOR, LIT/OPTIONAL
01 - CABINET
06 - ICEMAKER
Common parts from model Whirlpool ET21DMXDW05 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175279 WPL LIT2175279 Contact Us For Availability
WPL LIT2193088 WPL LIT2193088 Contact Us For Availability
WPL LIT2193497 WPL LIT2193497 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI49678A5 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2171202 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2171239 Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2182490 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2184404 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI49675A8 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Divider, Door Bin WPL 2171284 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
3
Shim, Handle WPL 2183124 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
4
Bracket, Door Stop (White And Almond Models) WPL 944035 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193074 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shim WPL 2172745 Contact Us For Availability
8
Bracket, Bottom Hinge WPL 2174899 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
10
Tall Bottle Retainer WPL 2173643 Contact Us For Availability
11
Housing Compartment WPL 2156064 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Control Box WPL 2174672 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Divider, Door Shelf WPL 1123293 Contact Us For Availability
16
Cover, Evaporator WPL 2183153 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171265 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
18
Nameplate (White) WPL 2175380 Contact Us For Availability
18
Nameplate (Almond) WPL 2175381 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (White) WPL 2183808 Contact Us For Availability
19
Handle (Almond) WPL 2183809 Contact Us For Availability
19
Handle (White) WPL 2183811 Contact Us For Availability
19
Handle (Almond) WPL 2183812 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
20
Hole Plug (White) WPL 2174433 Contact Us For Availability
20
Hole Plug (Almond) WPL 2174434 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Knob, Thermostat WPL 2193400 Contact Us For Availability
22
Door Compartment WPL 2182402 Contact Us For Availability
22
Door Reversal Instructions WPL 2179845 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2159306 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI49676A6 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
27
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
34
Knob, Damper WPL 2182479 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2193096 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI49677A6 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2182384 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
45
Shroud, Icemaker WPL 2172624 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2172504 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179721 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
